Historical overview
The M41 was a compact but heavily armed Cold War light tank designed for reconnaissance, screening, security, and situations where a lighter tank was preferred over a medium tank. In U.S. nomenclature after November 1950, it was a 76-mm gun tank rather than a “light tank” by weight label alone, although the light-tank role remains the best historical classification. 1
It mattered because it represented a transitional design: more lethal and mobile than the M24 Chaffee, but too large, fuel-hungry, and lightly protected to solve the emerging Cold War light-tank problem. It was too late for Korea, did not see combat with the U.S. Army, and was soon overtaken by air-transportability, amphibious, antitank guided missile, and reconnaissance requirements that led toward the T92 and M551 Sheridan programs. 1, 2
The principal production family consisted of the baseline M41, M41A1, M41A2, and M41A3. A redesigned Cadillac turret-control system freed internal space and raised main-gun ammunition stowage from 57 to 65 rounds. The M41A2 and M41A3 reflected the fuel-injected AOSI-895-5 engine standard, improving road range. Foreign upgrades such as Taiwan’s M41D, Denmark’s M41 DK-1, Brazil’s M41C lineage, and Uruguay’s M41A1UR illustrate the vehicle’s long export life, but some of these are modernization families rather than U.S. production variants. 1, 4
The most important myth is that the M41 was a Korean War combat tank. It was developed under Korean War pressure and entered acceptance in 1951, but the available museum and technical sources indicate that the M41 series did not see combat with the U.S. Army. Its combat record is instead tied to Brigade 2506 at the Bay of Pigs, South Vietnamese armored units in Vietnam, and later foreign operators. 2, 3
The M41 offered speed and substantial gun power for an early-1950s light tank and found many export customers. Its thin armor left it vulnerable to heavier tanks, mines, recoilless rifles, and antitank missiles. Published production totals and details of later foreign modernizations remain inconsistent. 1, 2, 3
At the end of World War II, the M24 Chaffee was the U.S. Army’s standard light tank. The Chaffee had corrected many weaknesses of earlier U.S. light tanks, but its 75 mm gun was not adequate against newer Soviet medium tanks, and the Army wanted a postwar vehicle that could provide reconnaissance forces with a more capable direct-fire platform. The early Cold War also placed new emphasis on rapid deployment, mobile screening, and armored cavalry, all of which favored a vehicle smaller and more mobile than a medium tank but able to defeat light armor and provide fire support. 1, 4
The strategic context was ambiguous. The Korean War underscored the need for modern armored vehicles and accelerated many U.S. production decisions, but it also exposed the difficulty of moving heavier vehicles through poor terrain and limited infrastructure. The M41 emerged in this environment: a light-tank solution with a powerful gun and fast road speed, yet still a conventional gasoline-powered tracked tank that lacked amphibious mobility and was not truly airborne-portable in the way later requirements demanded. 2
Doctrine placed light tanks in reconnaissance, security, economy-of-force, and infantry-support roles. The M41 was not intended to defeat Soviet medium tanks frontally. Its practical combat record later showed this distinction clearly: South Vietnamese crews used M41s aggressively, sometimes with success against PT-76s and even T-54s under favorable circumstances, but the vehicle’s vulnerability to antitank missiles, mines, heavy guns, and poor tactical employment remained decisive. 2, 3
Industrial constraints favored rapid production by an experienced automotive firm. Cadillac Motor Car Division of General Motors manufactured the type, giving the program access to large-scale American automotive engineering and the Cleveland Tank Plant production base described in contemporary and later histories. 1, 4
Development and variants
The M41 family includes the U.S. production variants and foreign modernization programs that retained the tank’s identity. Related prototype and successor programs help explain its development. Chassis relatives such as the M42 Duster antiaircraft vehicle and self-propelled artillery were separate types, rather than additional M41 gun-tank variants. 4
Classification: light tank. Light tanks have served in reconnaissance, infantry support, exploitation, airborne, amphibious, and export roles. The M41 fits the reconnaissance/security interpretation, but its 23–25 ton combat weight and 76 mm gun also made it capable of direct-fire infantry support. The First Division Museum specifically describes the M41 series as designed for reconnaissance and security missions, not direct tank-to-tank combat. 2
Included: M41, M41A1, M41A2, M41A3, major foreign modernization families, operators and combat use, and the T41/T41E1 development lineage. Excluded as full core variants: the T92 light tank, T49 testbed, M42 Duster, M44/M52 artillery vehicles, and Brazil’s MB-3 Tamoyo. These are boundary/legacy items rather than direct production variants of the M41 gun tank family. Sources
Related vehicles often confused with it include the M24 Chaffee, which it replaced; the T92 light tank, which was designed as a lighter successor; the M551 Sheridan, which eventually replaced the M41 in U.S. light/airborne roles; and the PT-76, whose amphibious capability changed U.S. expectations for light-tank successors. 1
The cited sources dates the family’s development/start period to 1946–1951 and records its parent lineage as the T41 light tank. That date range is consistent with accounts describing the M41 as a post-1946 successor program for the M24 Chaffee. The program evolved through T41/T41E1 development into the production M41, with first acceptance in 1951. 1, 4
The baseline vehicle combined a welded and cast homogeneous-steel hull and turret, a 76 mm M32 gun, a four-man crew, torsion-bar suspension, rear engine/transmission arrangement, and a high-output Continental AOS-895 gasoline engine. The vehicle was initially known as “Little Bulldog,” but the M41 name became associated with Lieutenant General Walton H. Walker, who died in a jeep accident in Korea in December 1950. 1, 4
One key pre-production and early-production design problem concerned turret and gun control. AFV Database records that Army Field Forces required the main gun to be brought onto target within five seconds after target engagement. Cadillac developed a revised control system for the M41A1. The new system gave the gunner powered traverse and the tank commander an override, changed elevation arrangements, and freed space for increased ammunition stowage. 1
The M41A2/M41A3 stage was driven by engine development. In 1955, the AOS-895-3 carbureted gasoline engine was modified with fuel injection, becoming the AOSI-895-5. AFV Database associates that change with M41A2 designation and notes an improved road range of about 110 miles. M41A1 tanks equipped with the fuel-injected engine were designated M41A3. 1
The U.S. light-tank problem did not end with the M41. The cited sources records the T92 as a separate air-transportable light tank intended to replace M41, cancelled after amphibious requirements became more important, and the T49 as an M41-based testbed leading toward gun/launcher concepts. These projects show that, within only a few years of fielding M41, the Army was already searching for a different answer to light reconnaissance and airborne armor. Sources
Design and performance
The M41 used a conventional postwar tank layout: driver in the hull left front, a three-man turret in the center, and the Continental engine with Allison cross-drive transmission at the rear. AFV Database lists the crew as commander at turret right rear, gunner right front, loader left rear, and driver hull left front. This four-man layout preserved a human loader rather than adopting an autoloader. 1
The hull was of welded construction using rolled and cast homogeneous steel. The front hull was sloped, with the upper front listed at 1.0 inch at 65 degrees from vertical and the lower front at 1.25 inches at 45 degrees. The hull retained a single driver’s hatch and a rear engine compartment separated from the crew by the vehicle’s internal layout. 1
The turret was also rolled and cast homogeneous steel, with a large rear bustle and stowage box that gave the M41 a distinctive overhanging turret profile. Early and later turrets differed in weld-line and side-plate details, and early cast muzzle brakes gave way to fabricated T-shaped muzzle brakes. 1
Armor protection was intentionally light. The First Division Museum summarizes thickness as roughly 0.375 to 1.5 inches, while AFV Database gives detailed hull and turret thicknesses that generally range from 0.375-inch floor/rear-top areas to 1.25-inch gun shield/lower front and 1.5-inch front floor plates. The armor protected against small arms and fragments better than antitank guns, mines, and later shaped-charge threats. 1, 2
The primary weapon was the 76 mm Gun M32 in an M76 mount on the baseline M41. The M41A1 used the M32 in an M76A1 mount and increased stowage to 65 rounds. The gun offered much greater velocity than the M24 Chaffee’s 75 mm weapon, but it was not a long-term answer to T-54/T-55-class frontal armor. 1, 4
Secondary weapons included a flexible.50 caliber M2HB antiaircraft machine gun and a coaxial machine gun. AFV Database notes that the coaxial fit could be a.30 caliber M1919A4E1 or early.50 caliber arrangement, with the.50 caliber coaxial being replaced by.30 caliber during production. 1
The baseline M41 carried 57 rounds of 76 mm ammunition, with 11 ready rounds according to AFV Database. The M41A1 raised stowage to 65 rounds. The main ammunition family included armor-piercing, high explosive, and high explosive antitank types in U.S. service; later foreign users introduced modernized ammunition, but exact stocks varied by operator. 1, 2
The M41 family’s fire-control arrangements were among its important advances. The First Division Museum describes the M41A3 as having an integrated fire-control system connecting commander and gunner sights with the main gun. AFV Database records the five-second target-engagement requirement and Cadillac’s new turret/gun control system for the M41A1. 1, 2
Baseline sighting equipment included M20/M20A1 periscopes for gunner and commander and an M97 telescope for the gunner. AFV Database also lists an infrared M19 driver periscope as night-vision equipment. Many foreign modernizations later added laser rangefinders, thermal imaging, or upgraded night sights, but those systems were not universal across the family. 1
The baseline powerpack was a Continental AOS-895-3 six-cylinder opposed, supercharged gasoline engine, rated by AFV Database at 440 net horsepower at 2,400 rpm and 500 gross horsepower at 2,800 rpm. It drove through an Allison CD-500-3 cross-drive transmission with two forward ranges and one reverse. The M41A2/A3 fuel-injected AOSI-895-5 variant improved operating range. 1
The vehicle used torsion-bar suspension with five individually sprung dual road wheels per side, three dual track return rollers, rear drive sprockets, front idlers, and shock absorbers on the first two and last road wheels on each side. 1
The T91E3 track used center-guided, single-pin steel shoes with detachable rubber pads. AFV Database lists a 21-inch track width, 45 mph maximum road speed, 60 percent grade, 28-inch vertical obstacle, 48-inch fording depth, and approximately 100 miles road cruising range for the baseline M41. 1
The four-man crew simplified command and gunnery compared with a two-man turret or autoloader system, but the vehicle’s turret bustle and gun recoil space drove a tall, bulky profile. Crew efficiency benefited from the M41A1 turret-control redesign and from later range/fuel improvements, though the tank remained cramped by modern standards. 1
The cited sources and open technical pages used here do not provide a single verified radio fit across all M41 variants. U.S. armored vehicles of the period normally carried turret radio equipment, and AFV Database notes the turret radio bustle, but this account does not assign a specific radio model without manual verification in TM 9-2350-201-12 or FM 17-80. 1
The standard early M41 relied on armor, speed, and tactical employment rather than modern active or passive protection systems. The cited sources do not establish an NBC suite, laser-warning equipment, or smoke-grenade package on the original American vehicles. Later national upgrades had separate configurations. Denmark’s M41 DK-1 and Taiwan’s M41D are reported in secondary sources as receiving more modern sighting/protection improvements. Some technical details remain uncertain. Sources
The integrated rear engine/transmission arrangement improved servicing logic compared with earlier light tanks. The First Division Museum calls the M41A3 the first U.S. light tank with engine and transmission combined as a single unit at the rear. South Vietnamese maintenance performance was notable: Starry records that ARVN units kept more than 90 percent of equipment in operation despite limited support. 2, 3
The M41 was tall for a light tank, thinly armored, noisy, and range-limited by its gasoline engine. It lacked the protection to fight main battle tanks frontally and lacked the amphibious/airborne mobility that later light-tank doctrine demanded. In Vietnam, later fighting showed acute vulnerability to antitank missiles and poor combined-arms coordination. 1, 2, 3
Production, operators, and combat record
Cadillac Motor Car Division of General Motors built the M41 series. AFV Database identifies Cadillac as manufacturer for both M41 and M41A1 and gives first acceptance in 1951 for the baseline M41. The War Zone’s 2022 Taiwan article describes production beginning at Cadillac’s Cleveland Tank Plant in 1951 and amounting to more than 5,000 examples. 1, 4
Production figures require careful wording. The cited sources records approximately 5,467 built. The First Division Museum states 5,500 total M41-series tanks. AFV Database gives more granular acceptances for M41 (1,785, with 416 converted to M41A1) and M41A1 (1,944 plus the 416 conversions), but it does not reduce the whole family to a single clean number in the lines used here. These numbers are not necessarily contradictory: they may represent different count boundaries—new acceptances, conversions, rebuilt vehicles, and all-series totals. 1, 2
The production window in the cited sources is 1951–1954. This very short U.S. production period helps explain the large export afterlife. The vehicle was produced at Cold War scale, then quickly made available to allies and aid recipients as U.S. doctrine moved toward other light and airborne armor solutions. 2
Industrial bottlenecks were not primarily material scarcity in the way late-war Axis programs were; rather, the M41’s problem was conceptual obsolescence. Its gasoline engine, tall profile, limited range, and lack of amphibious or true airborne mobility meant that production success did not prevent rapid U.S. replacement planning. 1
The M41’s service history is primarily an export history. The U.S. Army used it as a reconnaissance/light tank in the 1950s and early 1960s, but First Division Museum emphasizes that the series never saw combat with the U.S. Army. South Vietnam, Taiwan, Brazil, Denmark, Thailand, Uruguay, Belgium, West Germany, Spain, and many other countries operated or received the type in some form. 2
The U.S. operator record in the cited sources gives service start 1951 and 1960s front-line retirement, with replacement by the M551 in airborne/light roles. Taiwan’s case is one of the longest: ROCA received M41A3s beginning in 1958 according to The War Zone, formally retired its remaining M41A3s in 2022 per Focus Taiwan/CNA, but small numbers of deeply reworked M41D vehicles remained in service after that reporting; later news described planned retirement of M41D by 2028. 4, 5
The M41 series did not see combat with the U.S. Army according to the First Division Museum. This is an important distinction for readers: U.S. production and U.S. fielding is distinct from U.S. combat employment. 2
The M41’s first widely noted combat association came with Brigade 2506 at the Bay of Pigs. The Hialeah Gardens Museum honoring Assault Brigade 2506 identifies an M41 of the same make and model as the five tanks used by Brigade 2506 in 1961. JFK Library background places the landings on 17 April 1961 and summarizes the rapid failure of the operation after the brigade landed under fire and ran short of ammunition and support. Published accounts describe detailed tank-by-tank tactical claims from the invasion as an unresolved question unless backed by dedicated Brigade 2506 after-action documentation. Sources

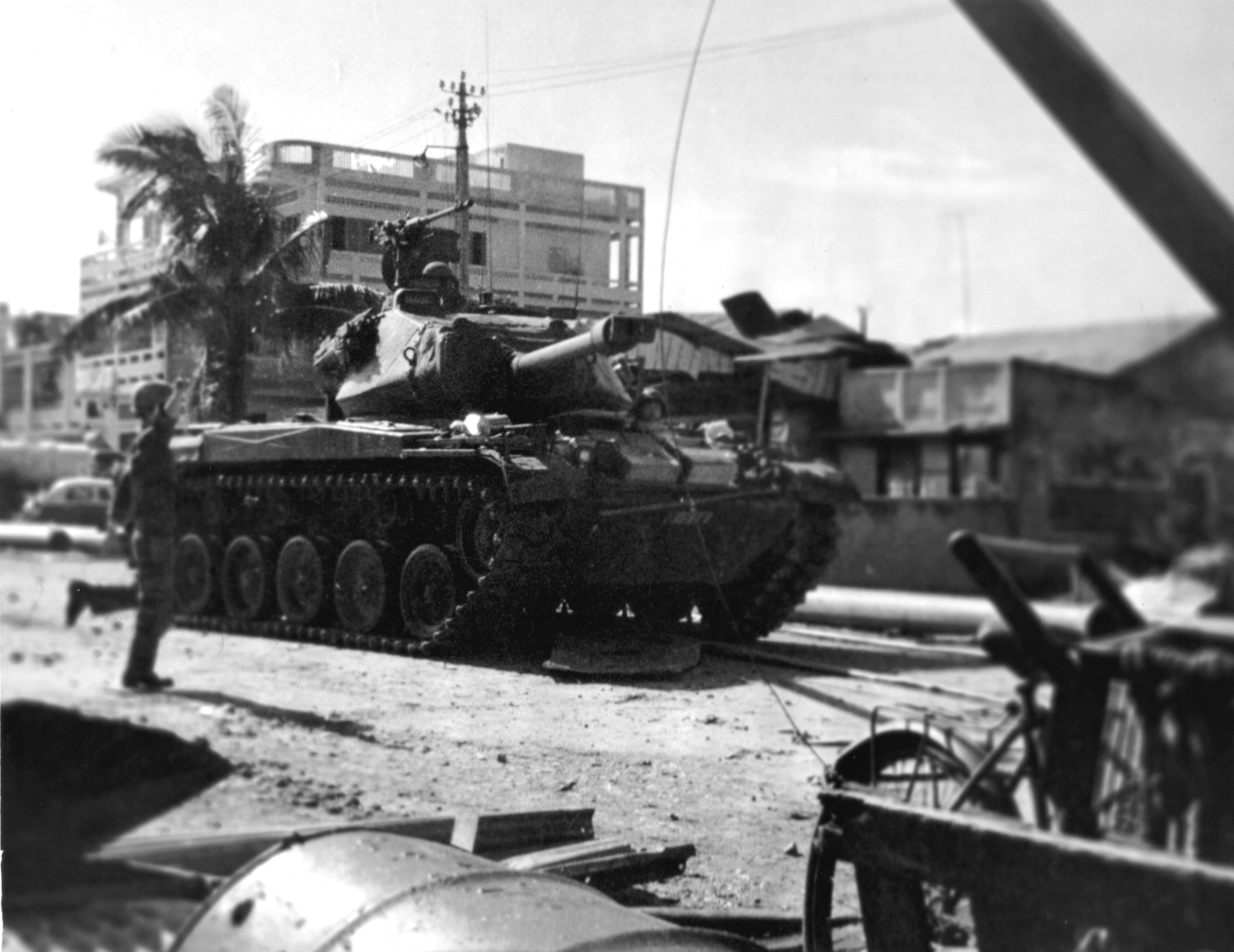

South Vietnam provides the most important combat record for the M41. Starry records that the M24 Chaffee was inadequate for ARVN needs by the mid-1960s and that the M41A3 was selected in mid-1964. The first M41s arrived in January 1965, instructor training was completed by 17 April 1965, and five South Vietnamese squadrons had been equipped and trained by the end of 1965. Starry also notes that ARVN M41 units maintained more than 90 percent of equipment in operation despite poor support. 3
The Lam Son 719 campaign in 1971 is the central M41 combat case. Starry describes the movement into Laos under severe terrain and coordination limits, including a road network that restricted armored movement. In one engagement, South Vietnamese M41s met North Vietnamese armor; Starry describes the fight as the first battle between North and South Vietnamese tanks and records 22 enemy tanks destroyed—six T-54s and sixteen PT-76s—with no M41s lost in that specific action. Later phases were much worse for ARVN, with abandoned M41s blocking a river crossing and about 60 percent of armored vehicles lost during withdrawal. 3
The Easter Offensive of 1972 showed the M41’s vulnerability to modern antitank threats and heavier enemy armor. Starry’s account of the fighting around Tan Canh records M41 losses to Sagger antitank guided missiles and subsequent abandonment or capture of vehicles. The lesson is not that the M41 was useless; rather, it was that a thinly armored light tank, used without robust combined-arms integration against modern antitank weapons and heavy armor, was at grave risk. 3
The M41 appeared in numerous Cold War and postcolonial conflicts through foreign operators, including Latin American and Middle Eastern contexts. Because operator-specific combat records vary widely and many claims rely on secondary compilations, Published accounts describe those conflicts as leads for. Sources
Legacy and historical evidence
Overall battlefield value: the M41 was a very good early-1950s light gun tank when judged against M24-class predecessors and light armored opposition. It was a poor substitute for a main battle tank and was increasingly exposed by ATGMs, mines, recoilless rifles, and Soviet medium tanks. Its strategic value came from export availability and allied armor modernization more than from U.S. battlefield impact. 1, 2, 3
The M41’s influence lies in the problem it revealed as much as the solution it provided. It gave the U.S. Army a fast, modern light tank, but it did not resolve the combined requirement for air transportability, amphibious mobility, survivability, and antiarmor lethality. The T92 and M551 programs belong to that next search. Sources
Doctrinally, the M41 confirmed that reconnaissance vehicles with tank guns could be useful in allied armies, especially where the likely opponent was light armor, older medium tanks, or insurgent forces. But the Vietnam record also showed that light tanks could be forced into static or poorly coordinated roles where their mobility no longer compensated for thin armor. 3
The vehicle’s export legacy was immense. The First Division Museum notes export to more than 18 countries, and the cited sources lists broad NATO/Western operators. Taiwan, Brazil, Denmark, Uruguay, and South Vietnam demonstrate different afterlives: long territorial defense, local modernization, NATO upgrading, Latin American rebuilds, and intense combat service. 2
Surviving M41s are common in museum parks, veterans’ memorials, and military collections. Many display vehicles are restored, repainted, or externally modified, and a museum M41A3 may not represent a Vietnam-service or Bay of Pigs vehicle without provenance. Sources
Modern reputation is polarized. Enthusiasts often praise the M41’s speed, gun handling, and classic Cold War silhouette, while doctrinal histories emphasize its shortcomings: high silhouette, fuel consumption, short range, and obsolescence against modern armor. Both views are defensible if the role and time period are stated clearly. 1, 2
U.S. technical sources and official Vietnam histories document much of the M41 record. Total production, foreign modernization details, and current operator status vary among accounts. 1, 2, 3, 4
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- AFV Database. "76mm Gun Tank M41 Walker Bulldog."
- First Division Museum at Cantigny. "M41A3 Walker Bulldog."
- Donn A. Starry. Mounted Combat in Vietnam. Vietnam Studies / CMH Pub 90-17-1. U.S. Army Center of Military History, originally 1978/1979; web edition.
- Thomas Newdick. "Taiwan Is Giving Up Its M41A3 Walker Bulldog Tanks After More Than Six Decades Of Service." The War Zone, 22 February 2022.
- Focus Taiwan / Central News Agency. "Taiwan to retire M41A3 Walker Bulldog tanks after over six decades." 22 February 2022.
