Historical overview
The M26 Pershing was the first U.S. operational tank to combine a 90 mm gun, a lower silhouette than the M4 series, torsion-bar suspension, a cast turret, and a markedly heavier armor scheme in a wartime combat vehicle. It was not a clean-sheet success: the powertrain was adequate rather than generous, the tank was harder to ship and bridge than Sherman, and the vehicle arrived too late to change the overall outcome of the European war. Even so, it was a genuine milestone because it exposed the U.S. Army to the design tradeoffs that would shape the early Cold War Patton line. Sources
Its historical significance rests on three linked facts. First, it was the culmination of the T20 series that the Ordnance Department had pursued as a Sherman successor since 1942. Second, its delayed adoption reflected doctrinal and institutional debates inside the U.S. Army over the proper relationship between tanks, tank destroyers, and armored exploitation. Although only a small number fought in Europe in 1945, Pershing became central to later debate over the timing of American heavy-gun tank development. Sources
The Pershing was a technically important, combat-capable, but late and transitional design. Against the German Panther and Tiger I it gave U.S. crews a more balanced gun/armor combination than the Sherman, but against Tiger II it was still not a simple equal on every metric. In Korea its 90 mm gun was decisive against T-34-85s, yet automotive reliability and mobility in mountainous terrain pushed units toward improved Shermans and then M46s. Sources
Development and variants
Pershing developed through T20, T23, T25, and T26 experiments into the wartime T26E3/M26. Related vehicles included T26E4 and T26E5 trials, the M45 howitzer tank, and postwar M26A1 improvements. M46 Patton followed as a successor, not another Pershing production variant. Sources
Excluded from full-family coverage are unrelated vehicles with similar designations: the Soviet T-26 light tank, the Yugoslav / Czechoslovak Skoda S-I-d / T-32 tankette, and the U.S. T32 heavy tank as a separate prototype family. The T32 is discussed as a derivative influence but is not folded into the M26 operational family. Sources
Design origin. The M26 developed through the T20 series, a program begun in 1942 to produce a more capable medium tank successor to the M4. The T20 explored a lower silhouette, rear-mounted powertrain concepts, and improved suspension/armament arrangements. The T22 and T23 branches tested other powertrain choices, including electric drive in the T23. About 250 T23 pilot tanks were built, but they were not adopted for combat service; the T23 turret nevertheless influenced 76 mm Sherman turret development. Sources
Prototype progression. The T25 introduced the 90 mm gun concept into the successor line, while T26/T26E1 prototypes added heavier armor. The resulting weight pushed the design from medium-tank territory into a wartime heavy-tank classification. The eventual T26E3 incorporated production-oriented changes and became the standard Pershing before and during its combat debut in Europe. Sources
Design and performance
The M26 used a conventional five-crew tank layout: driver and assistant driver/bow gunner in the forward hull; gunner, loader, and commander in the turret/fighting compartment; and engine/powertrain at the rear. Compared with the Sherman, the T20/T26 line emphasized a lower profile and a more modern layout that anticipated postwar U.S. tanks. Sources
The standard M26 offered much better frontal protection than the Sherman but did not make the vehicle invulnerable. The reported upper hull maximum of about four inches and substantial turret/mantlet armor gave crews more protection against mid-war German guns, while side/top/belly armor remained vulnerable to anti-tank guns, mines, shaped-charge weapons, and close assault. The T26E5 attempted a much heavier protection scheme and the T26E4 received field-added frontal armor in Europe. Sources
The standard M26 is commonly listed with about 70 rounds of 90 mm ammunition. Ammunition types included armor-piercing, high-velocity armor-piercing when available, and high-explosive or smoke rounds for general support. Exact stowage counts vary in reference works and may differ between standard M26, M26A1, and experimental vehicles. The T26E4's long round forced a two-piece ammunition solution in the cramped turret. Sources
The Pershing used the Ford GAF liquid-cooled V-8 gasoline engine, generally rated around 500 horsepower gross. This was not enough to give a 41-46 short-ton tank the strategic and tactical agility of lighter Shermans. The postwar M46 conversion replaced this powertrain with the Continental AV-1790 engine and Allison CD-850 transmission, an implicit admission that the M26 chassis needed more power and a more durable drivetrain. Sources
A five-man crew was a strength because it separated command, gunnery, loading, and driving tasks. The assistant driver/bow gunner, however, was a legacy feature that consumed hull space, and the T26E4's two-piece ammunition highlighted how quickly turret ergonomics could become inadequate when heavier guns were installed. Sources
Production, operators, and combat record
The Pershing came into production late, with mass production beginning in November 1944. Production was associated with the major U.S. tank-industrial system rather than with one boutique manufacturer; Detroit Tank Arsenal and Fisher/Grand Blanc production are repeatedly cited in specialist accounts. Because sources often mix T26E3, M26, postwar M26, M45, and remanufactured M46 accounting, the safest production figure for the standard family is the commonly cited 2,202 M26/T26E3 total, with the cited accounts using a rounded "~2,200 by 1945/early postwar boundary.". Sources
Export and licensed production. The M26 was not licensed abroad as a new-production tank family. Postwar foreign service came mainly through U.S. aid and transfers, especially through NATO channels. The successor M46 program reused and rebuilt M26s in U.S. service rather than creating a foreign licensed Pershing industry. Sources

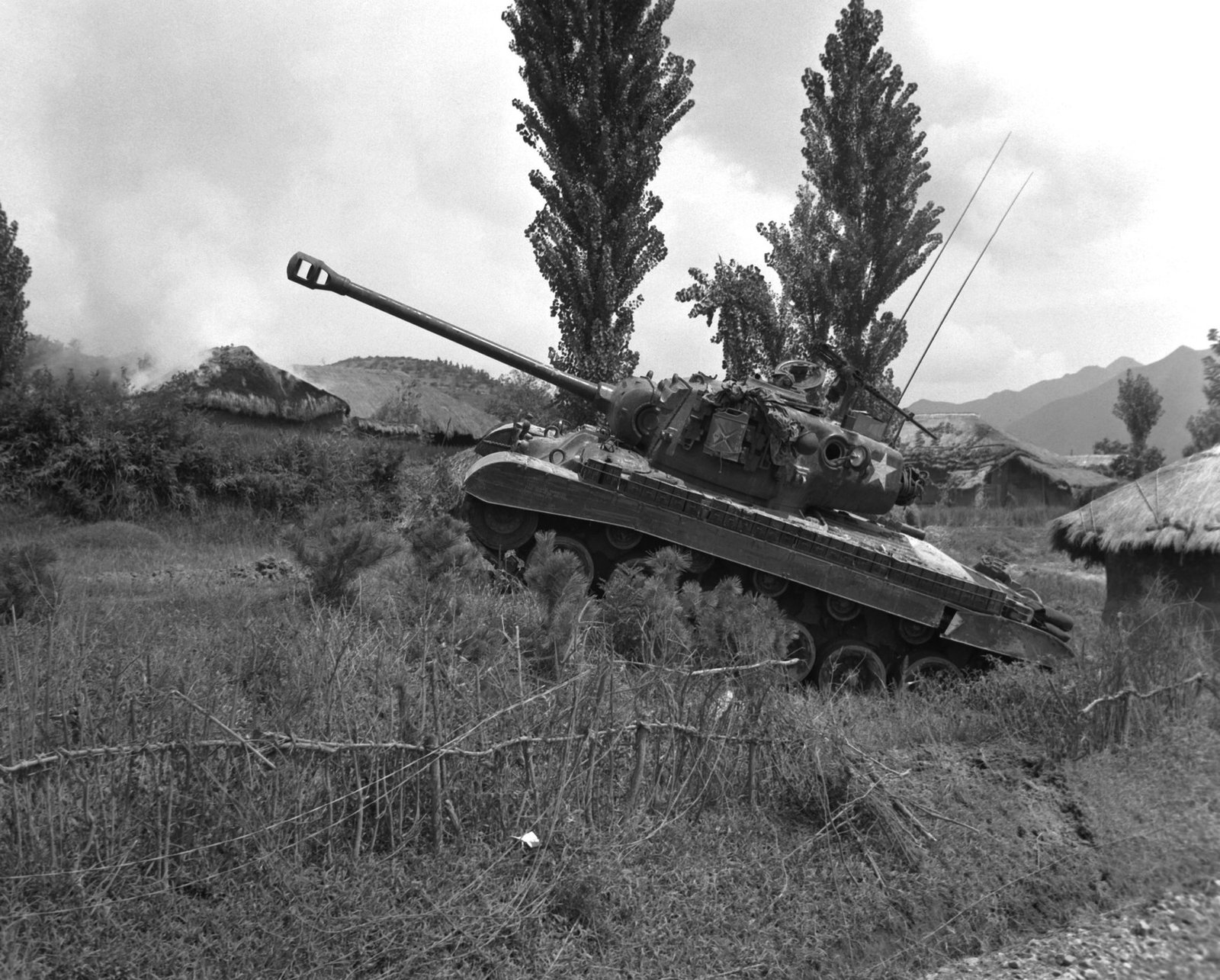

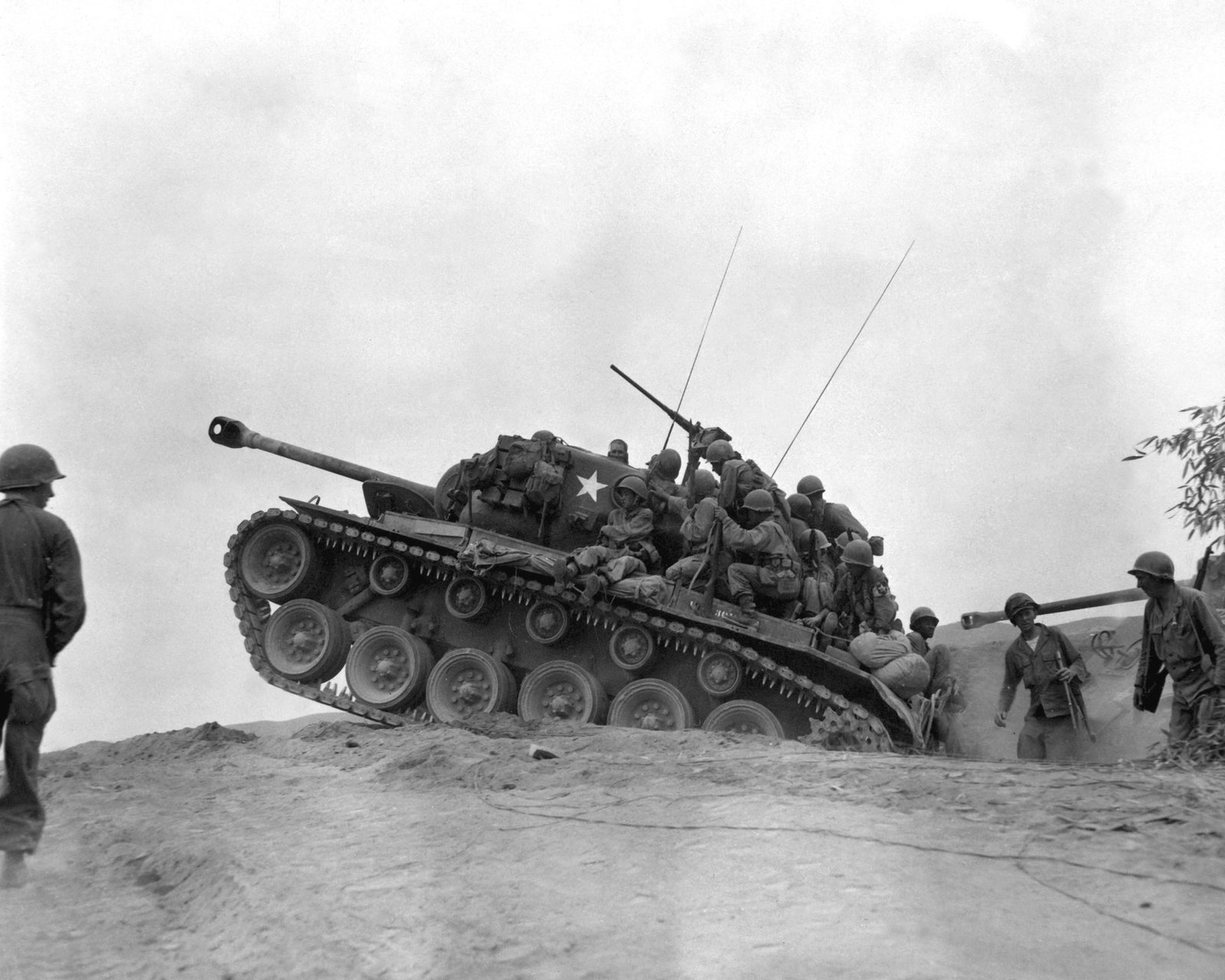

Original operator. The United States Army was the original and principal M26 operator. U.S. Marine Corps Pershings also fought in Korea in 1950, where their 90 mm gun proved effective against T-34-85s but automotive limitations remained serious. Sources
First combat use. The first twenty Pershings issued in Europe under Zebra Mission went to the 3rd and 9th Armored Divisions. On 26 February 1945 near Elsdorf, T26E3s of the 3rd Armored Division entered action. The tank "Fireball" was knocked out by a Tiger I, killing two crewmen, but the vehicle was repaired and returned to service, a reminder that survivability and repairability were separate questions. Sources
Legacy and historical evidence
The M26 was not simply "better than Sherman" in every operational sense. It was better in gun power and frontal armor; it was worse in strategic maturity, shipping simplicity, bridge classification, and power-to-weight. The tank belongs in comparison with the M4A3(76) HVSS, Panther, Tiger I, Tiger II, T-34-85, and IS-2 rather than with early-war medium tanks. Sources
Design legacy. The M26's biggest influence was not the number of German tanks it destroyed but the design path it opened. The Tank Museum explicitly identifies the Patton family as beginning with the M26 Pershing and running through M46, M47, M48, and M60. The M46 addressed the Pershing's main automotive weakness with a new engine/transmission package and became the practical Cold War continuation of the line. Sources
Doctrinal legacy. The Pershing showed that the U.S. Army could not indefinitely separate exploitation tanks from anti-tank problems when enemies fielded well-armored gun tanks in defensive positions. It also reinforced the need for balanced firepower, protection, mobility, maintainability, and industrial throughput. Sources

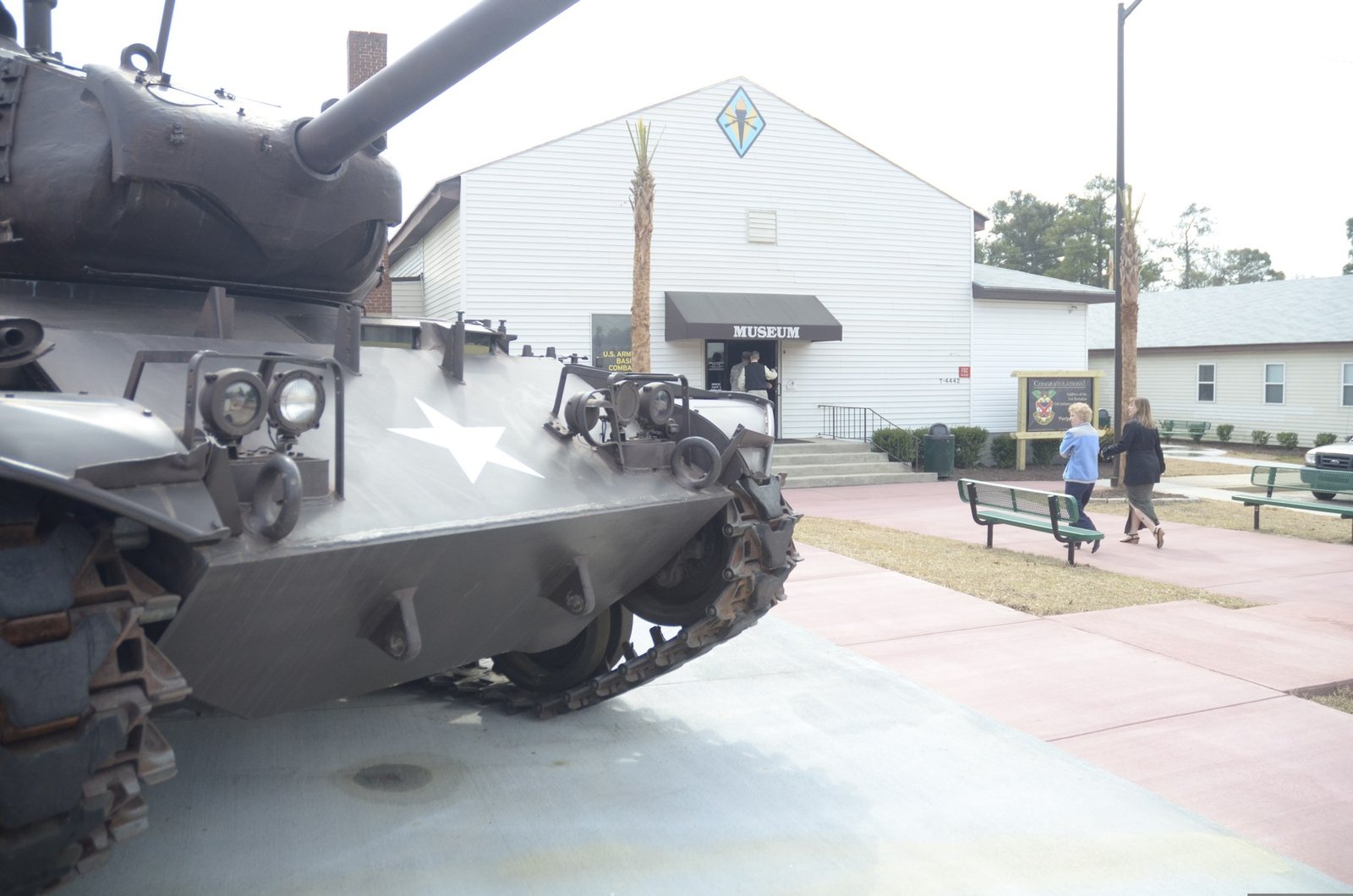

Surviving vehicles. M26-family vehicles survive in U.S. and foreign museum collections, including standard M26s and the sole surviving T26E4 at the First Division Museum at Cantigny. Surviving vehicles often carry restoration, outdoor-storage, or display modifications; photographs of survivors are useful for visual study but is not established as untouched 1945 configuration unless the museum gives detailed provenance. Sources
Modern reputation. The Pershing remains surrounded by two big simplifications: that it would have solved the "Sherman problem" if fielded earlier, and that the Super Pershing decisively defeated a Tiger II. Both are too neat. Earlier fielding could have saved some crews and changed some tactical engagements, but it would not have removed logistics, doctrine, bridge, production, and training constraints. The Super Pershing was a real and striking experiment, but the most famous Tiger II claim remains disputed. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- Looney, Dallas. "The M26 Pershing Tank." The Army Historical Foundation. — Development background, Zebra Mission, specifications, European combat, Super Pershing discussion, Korean War service, NATO transfer overview. Accessed 2026-06-02
- Alley, COL Louis A. "U.S. Army Observes 75th Anniversary of Armored Force." eARMOR / U.S. Army Armor School, 2015. — Institutional and doctrinal context for the T20/T26 delays and Army Ground Forces debate. Accessed 2026-06-02
- First Division Museum. "T26E4 Pershing Tank." — T26E4 technical data, production cut to 25, and museum interpretation of Europe/combat status. Accessed 2026-06-02
- The Tank Museum. "Keeping Up with the Pattons." — Patton-family lineage, 2,202 M26 figure, M46 remanufacturing and powertrain explanation. Accessed 2026-06-02
- The Tank Museum. "First Across the Rhine: The Bridge at Remagen." — Remagen context and Pershings of A Company, 14th Tank Battalion, CCB. Accessed 2026-06-02
- Collins, Elizabeth M. "Soldiers hold desperate line in one of Forgotten War's bloodiest battles." U.S. Army, 22 September 2015. — Official U.S. Army Korea/Naktong photo caption and context for M26s in Korea. Accessed 2026-06-02
- Trackpads historical compilation, 2026 (unpublished).
