Chieftain

Historical overview

Chieftain was the British Army's principal main battle tank during much of the Cold War. It was conceived as a universal tank able to replace both the medium Centurion and the heavy Conqueror: the result was a vehicle with exceptional firepower, heavy protection for its day, and a doctrinal fit for NATO's defensive problem in Central Europe. The Tank Museum describes it as one of the first true main battle tanks and notes that it served as Britain's main battle tank for roughly twenty years. [TM-Chieftain] Sources

Its most important technical feature was the 120 mm L11 rifled gun, which gave Britain a larger tank gun than the 105 mm L7 then common among Western tanks. Chieftain also used separate ammunition with a combustible bagged charge, a design that saved volume but imposed British-specific ammunition handling and stowage practices. The vehicle's low silhouette owed much to the reclining driver, who sat almost horizontally in the hull front rather than upright behind a high glacis. [TM-Chieftain; MoD-Armament-1980] Sources

The central historical tension is that Chieftain's gun and armor were strategically impressive while its powerpack was difficult. The Leyland L60 opposed-piston, two-stroke, multi-fuel engine promised commonality and fuel flexibility, but it became the tank's most criticized subsystem. Late marks and rebuild programs improved the design, and Mk 10/Mk 11 standards added Stillbrew armor, improved fire-control, and TOGS thermal imaging, but the basic mobility-reliability reputation remained a defining part of the Chieftain story. [TM-Chieftain; NTM-FV4201] Sources

The most important variants for book treatment are Mk 1 as the initial service/training standard, Mk 2 as the first substantial production combat standard, Mk 3 and Mk 5 as maturing production marks, Mk 6-Mk 9 as rebuild/upgrade designations, Mk 10 as the Stillbrew-armored standard, and Mk 11 as the late TOGS-equipped standard. Specialist variants included AVLB bridge-layers, recovery/repair vehicles, engineering variants, and the Marksman anti-aircraft demonstrator. FV4030, Shir, Khalid, and Challenger 1 were related export or development lines, not interchangeable versions of the basic Chieftain. [TM-Chieftain] Sources

Chieftain was a design of deliberate priorities. It was not a balanced universal tank in the Leopard 1 sense; it was a heavily armed and heavily protected Cold War fighting vehicle optimized for a hull-down, defensive fight against Warsaw Pact armor. Its battlefield value lay in firepower, protection, and deterrent credibility; its liabilities lay in availability, automotive burden, and modernization cost. [TM-Chieftain; Hansard-1988; TM-Replacing] Sources

The Chieftain emerged from a British postwar problem: Centurion had proven adaptable and successful, but the Cold War battlefield was moving toward heavier Soviet armor and longer-range engagements. Britain had also fielded Conqueror as a heavy gun tank with a 120 mm weapon, but maintaining separate medium and heavy tank roles was costly and doctrinally awkward. A single main battle tank promised to combine the protection and firepower of the heavy tank with a more generally deployable platform. [TM-Chieftain] Sources

Strategically, the design was shaped by NATO's Central European problem. The British Army of the Rhine expected to fight a defensive, delaying, and counterattack battle against numerically strong Warsaw Pact tank forces. That context favored a tank that could survive in prepared or hull-down positions, engage enemy armor at long range, and exploit the killing power of a large-caliber gun. [TM-Chieftain; Hansard-1988] Sources

Doctrine also helps explain why Chieftain did not chase the same mobility balance as Leopard 1 or AMX-30. West Germany and France emphasized mobility and accepted lighter protection in their early Cold War MBTs. Britain instead accepted weight, complexity, and a conservative automotive risk to secure gun and armor superiority. In practice, that trade produced a formidable defender but also a tank whose field availability depended heavily on maintenance discipline and incremental powerpack improvements. [TM-Chieftain; NTM-FV4201] Sources

Industrial context mattered. British tank manufacture in the postwar period drew on Leyland, Royal Ordnance, Vickers Armstrong, government research establishments, and a defense-industrial base accustomed to specialized armored vehicles. The Chieftain program was therefore not a clean commercial product but a national armored-vehicle system with official requirements, Army trials, export diplomacy, and later replacement politics. [NTM-FV4201; Hansard-1967; Hansard-1988] Sources

Procurement politics are visible in later parliamentary records. By 1967, after acceptance for the British Army, Parliament discussed costs in the range of roughly 90,000 to 100,000 pounds per tank and expected about 150 deliveries in that calendar year. By 1988, the same vehicle was being discussed as a platform that had entered service in 1965 and needed replacement, with Vickers and foreign alternatives under review. [Hansard-1967; Hansard-1988] Sources

Development and variants

FV4201 Chieftain developed through the late 1950s and early 1960s, with production continuing into the early 1980s. Its history includes successive production marks, upgrades, specialized vehicles, and export branches. Sources

Included: FV4201 Chieftain prototypes; British Chieftain Mk 1 through Mk 11 gun tanks; Totem Pole and late-life rebuild logic where supported; Stillbrew armor and TOGS fire-control upgrade standards; Chieftain AVLB, ARRV/ARV, AVRE/engineer, and Marksman specialized derivatives; major export/operator contexts including Iran, Kuwait, Oman, and Jordan/Khalid as a related line. [TM-Chieftain] Sources

Excluded or treated as boundary-related rather than core: Challenger 1, MBT-80, Shir 2, and later Iranian post-Cold-War upgrade families such as Mobarez. These are included in the narrative where they explain lineage or legacy, but they are not counted as ordinary Chieftain production marks. [Hansard-1988; TM-Replacing] Sources

Related vehicles often confused with the Chieftain story include Centurion, Conqueror, FV4202 40-ton Centurion, FV4211, Shir 1/Khalid, Shir 2, Challenger 1, and Challenger 2. The FV4202 was an experimental precursor and layout influence, while Shir and Challenger 1 were export/successor branches rather than simple Chieftain marks. Sources

Late Chieftain rebuild names, export quantities, service endings, and some national upgrade totals remain inconsistent across sources. [SIPRI-ATD] Sources

Design origin: the Chieftain developed from British attempts to define a post-Centurion universal tank. The cited accounts dates development from 1958-1965 and links the family to the FV4201 program. In broad terms, Britain wanted a lower, more heavily armed and better protected successor that could make Conqueror redundant while preserving the utility and deployability of a medium tank. [TM-Chieftain] Sources

FV4202 is an important precursor but not a Chieftain production mark. Published accounts describe FV4202 40-ton Centurion as a 1955-1956 prototype/research vehicle influencing Chieftain ergonomics and layout. Its value in the cited record is developmental: it explored low-profile design thinking that informed later FV4201 solutions. Sources

The key design solution was the reclining driver. By reducing the vertical space needed in the front hull, British designers could create a sharply sloped, low hull profile while retaining crewed tank architecture. This became one of the best-known Chieftain features and is highlighted by The Tank Museum as a major design distinction. [TM-Chieftain] Sources

The gun choice was equally central. Chieftain adopted the 120 mm L11 rifled gun rather than relying on the 105 mm L7. This was not merely an armament upgrade but a whole vehicle-system decision, because the larger gun, ammunition stowage, turret volume, recoil forces, sights, and fire-control evolution shaped the tank's layout. [TM-Chieftain; MoD-Armament-1980] Sources

The automotive choice introduced the longest-running design problem. Chieftain used the Leyland L60 opposed-piston two-stroke multi-fuel engine and a David Brown/TN12 transmission family. The promise was a compact, flexible powerpack; the cost was years of reliability improvement. The Norfolk Tank Museum's vehicle page for a Mk 2/3 lineage vehicle preserves detailed public figures for the L60 Mk4A, TN12 gearbox, suspension and dimensions. Sources

Service acceptance and early production were not the end of development. The Mk 1 and Mk 2 were early service standards, Mk 3 and Mk 5 matured the platform, and later rebuilds dealt with recurring reliability, fire-control, and protection needs. The published account’s late mark rows are a reminder that "Chieftain" is a family of evolving standards, not a single frozen 1965 vehicle. Sources

Design and performance

Chieftain used a conventional tank arrangement with driver in the front hull, fighting compartment and turret in the center, and powerpack in the rear. The unusual part was the driver posture: the driver reclined, allowing a lower hull front and helping create the Chieftain's characteristic low silhouette. Crew size was four: commander, gunner, loader/operator, and driver. [TM-Chieftain; NTM-FV4201] Sources

The hull emphasized a low frontal profile and strong glacis protection. The low driver position was central to this geometry. Chieftain's hull side details changed through marks and rebuilds, but the basic design remained a heavy, conventional rear-powerpack MBT chassis. [TM-Chieftain; NTM-FV4201] Sources

The turret housed the 120 mm L11 gun, crew positions for commander, gunner and loader/operator, sighting systems, and machine guns. Later marks carried visible external changes associated with improved fire control, TOGS thermal sight installations, and Stillbrew add-on protection. Museum vehicles may combine late equipment and post-service restoration features rather than preserving a single wartime or service standard. [TM-Chieftain; Commons] Sources

The Chieftain was designed around heavy steel armor rather than the lightweight mobility-first philosophy of Leopard 1 or AMX-30. The Tank Museum fact box gives an armor figure of 388 mm for its Mk 11C exhibit; this is described as a public summary figure, most likely a maximum or line-of-sight value rather than a complete armor map. Late Mk 10 and Mk 11 tanks added Stillbrew armor, an appliqué/add-on package, not a reason to describe ordinary Chieftain as a Chobham-armored tank. [TM-Chieftain] Sources

The main armament was the British 120 mm L11 rifled gun, later L11A5 on mature standards. It was a defining feature of the vehicle and a major reason the Chieftain could claim high long-range anti-armor lethality during its service life. Exact ammunition types changed over time and by user, so published accounts describe ammunition summaries by period rather than as one universal load. [TM-Chieftain; MoD-Armament-1980] Sources

The secondary armament normally consisted of 7.62 mm machine guns, including coaxial and commander's weapons. Early Chieftains also used a.50 in ranging machine gun before laser rangefinders replaced that function. The Norfolk Tank Museum page notes an Ordnance 120 mm L11, a commander's 7.62 GPMG, a gunner's coaxial 7.62, and removal of the.50 ranging machine gun after installation of a laser sight on its displayed vehicle lineage. [NTM-FV4201; MoD-Armament-1980] Sources

Chieftain used separate-loading 120 mm ammunition with a projectile and a combustible bagged charge. Public secondary references commonly list APDS, HESH, smoke, practice and later fin-stabilized anti-armor rounds across the service life, but exact combat loads varied. Because the cited accounts does not lock a specific ammunition capacity, The evidence does not firmly establish common capacity figures. [TM-Chieftain; MoD-Armament-1980] Sources

Early Chieftains used ranging-machine-gun methods that were later replaced by laser rangefinding and improved ballistic/fire-control systems. Late marks added IFCS and TOGS. The Tank Museum's Mk 11C description explicitly notes that its Mk 5-origin vehicle was later fitted with IFCS, TOGS, and Stillbrew armor. [TM-Chieftain; NTM-FV4201] Sources

The sighting suite evolved significantly. The broad technical trajectory was from optical/ranging-machine-gun solutions through laser rangefinding to TOGS thermal imaging. A TOGS-equipped Chieftain Mk 11 was a much more capable night and poor-visibility fighting system than an early Mk 1/Mk 2, even though both belonged to the same vehicle family. [TM-Chieftain] Sources

The powerpack was built around the Leyland L60, a 19-liter, six-cylinder, twelve-piston, vertically opposed, water-cooled, two-stroke diesel/multi-fuel engine in public descriptions of a Mk 2/3 lineage vehicle. The Norfolk Tank Museum page gives 650 bhp at 2,100 rpm for its L60 Mk4A vehicle and identifies the gearbox as a David Brown TN12 Merritt-Wilson semi-automatic unit with six forward and two reverse speeds. The Tank Museum also notes the L60 opposed-piston two-stroke and TN12 gearbox with triple differential steering. [NTM-FV4201; TM-Chieftain] Sources

The suspension used Horstmann units with paired road wheels. The Norfolk Tank Museum page describes six pairs of road wheels per side, a rear sprocket, a front idler, and three return rollers on its displayed vehicle. Sources

Mobility was adequate when the powerpack was healthy, but it was not Chieftain's strong suit. Public museum data for a Mk 2/3 lineage vehicle gives a top speed of about 25.3 mph, while The Tank Museum fact box gives 48 kph for its Mk 11C. The discrepancy is mostly unit conversion and vehicle/mark context rather than a fundamental contradiction. [NTM-FV4201; TM-Chieftain] Sources

The four-man crew retained a human loader, which simplified ammunition flexibility compared with autoloaded Soviet designs but preserved the manpower and turret-volume costs of a Western manual-loading MBT. The reclining driver enabled Chieftain to retain a low hull profile while accommodating a four-man crew. [TM-Chieftain; NTM-FV4201] Sources

Communications equipment changed during service. Early vehicles belonged to the Larkspur radio era, while later British Chieftains were modernized into the Clansman communications period. Sources

Protection was primarily armor-based, supplemented by smoke dischargers, NBC protection in appropriate marks, internal fire precautions, and late Stillbrew applique. Stillbrew and TOGS are important late-life markers, but they cannot be retroactively attributed to every Chieftain. [TM-Chieftain] Sources

Reliability is the central technical controversy. The L60 powerpack was ambitious and compact but difficult, and early Chieftain service suffered from engine and automotive availability problems. Later marks and rebuild programs improved performance, but maintenance burden remained part of the tank's institutional memory. This judgment is well-documented as a qualitative assessment, but exact availability rates cannot be stated without unit-level maintenance records. [TM-Chieftain; NTM-FV4201] Sources

Known weaknesses were automotive reliability, power-to-weight ratio compared with lighter contemporaries, complexity, and export support challenges. In combat narratives, especially Iran-Iraq War accounts, sources often connect Chieftain losses and operational limits to mobility and sustainment as much as to armor or gun performance. Those claims need careful unit-by-unit sourcing before numeric loss conclusions are made. [SIPRI-ATD] Sources

Production, operators, and combat record

Chieftain production sits in a difficult zone for public-source counting. Published accounts describe the core family as approximately 2,200+ vehicles and dates production from 1965 to 1983. The Tank Museum fact box gives a larger "number produced" figure of 4,400 for its Chieftain page. These totals likely reflect different counting conventions: gun tanks only versus broader family/derivative counting, export orders versus delivered vehicles, rebuilds versus new builds, and possibly inclusion of support or successor-line vehicles. Sources

Manufacturing and assembly involved the British armored-vehicle industrial system, including Vickers Armstrong/Elswick for at least some vehicles and government/industry facilities connected with Royal Ordnance and Leyland powerpack supply. The Norfolk Tank Museum records its Chieftain vehicle as originally built by Vickers Armstrong at Elswick as a Mk 2, later rebuilt through multiple standards. Sources

Production began in the mid-1960s after acceptance for the British Army. Hansard evidence from July 1967 shows that the tank had been accepted in 1963, that estimated cost since acceptance was in the 90,000 to 100,000 pound range, and that around 150 deliveries were expected during calendar year 1967. That parliamentary record is useful because it anchors production and cost discussion in contemporary British official reporting. [Hansard-1967] Sources

Industrial bottlenecks were not simply hull or turret fabrication. The powerpack and automotive-development burden were central. The L60 required iterative refinement, and later Chieftain mark progression can be understood as both tactical modernization and industrial/maintenance correction. [TM-Chieftain; NTM-FV4201] Sources

Export production and delivery are especially hard to state cleanly. Iran ordered large numbers before the 1979 revolution, Jordan received the Khalid/Shir 1 branch, Oman and Kuwait operated Chieftain-related vehicles, and some Iranian vehicles were captured by Iraq during the Iran-Iraq War. SIPRI and diplomatic sources are useful discovery aids for transfer chronology, but they do not replace a detailed factory acceptance and delivery ledger. [SIPRI-ATD; FRUS-1972] Sources

United Kingdom: Chieftain served as the British Army's principal Cold War main battle tank, especially associated with BAOR. Published accounts describe service start as 1965/1967 and retirement through the 1990s as Challenger and Challenger 2 replaced it. The Tank Museum's replacement article states that Chieftain replacement began in 1994 with Challenger 2 introduction and that the last Chieftain, 00FD90, left service on 22 March 1996. [TM-Replacing] Sources

Iran: Iran became the largest export context and used Chieftain extensively in the Iran-Iraq War. Published accounts describe large export orders before the 1979 revolution and notes upgraded survivors as current/unknown. A U.S. diplomatic source from 1972 refers to a recent British sale of 800 Chieftain tanks to Iran; this is useful context for scale but is not established as a precise delivered-vehicle ledger. [FRUS-1972] Sources

Jordan: Jordan operated the Khalid / Shir 1 branch, a Chieftain-related export derivative rather than a simple British Mk 5. Sources

Kuwait and Oman: both appear in common Chieftain operator lists and fit the broader Middle Eastern export pattern. Individual variant histories, upgrade states, and retirement dates remain uncertain. [SIPRI-ATD] Sources

Iraq: Iraqi use is best understood mainly through captured Iranian Chieftains and Iran-Iraq War battlefield capture, not as a conventional British export relationship. The quantity and serviceability of captured examples need further primary-qualification. Sources

British service was mostly deterrent and readiness service rather than large-scale combat by British crews. Chieftain's central British role was in NATO Europe, where it was intended to defeat Soviet armored thrusts from prepared defensive positions and counterattack roles. Its significance in British service is therefore strategic and doctrinal as much as combat-proven. [TM-Chieftain; Hansard-1988] Sources

The Iran-Iraq War is the major combat theater for the Chieftain gun tank. Iranian Chieftains entered a brutal war of attrition, often under difficult sustainment conditions after the revolution and arms embargo constraints. Public narratives commonly credit Chieftain with strong firepower and protection while criticizing mobility, maintenance load, and vulnerability when unsupported or mechanically compromised. Sources

Chieftain-derived specialist vehicles also served in later operational contexts. The Chieftain AVLB image metadata used in Published accounts describe Chieftain AVLB service from 1974 to 2007 and states that the bridge-layer saw Gulf War and Bosnia service. Sources

Enemy assessments are fragmentary in the cited sources. Soviet and Iraqi views of Chieftain would be valuable in the cited record, especially assessments of the 120 mm L11 and armor performance. Sources

Crew experience likely varied sharply by mark, unit, climate, maintenance backing, and tactical context. A well-maintained late British Chieftain in BAOR and a worn export tank in wartime Iran were not identical propositions. That distinction is crucial for avoiding a simplistic reputation based only on the L60 engine or only on the 120 mm gun. [TM-Chieftain; NTM-FV4201] Sources

Legacy and historical evidence

Against the M60A1, Chieftain offered a larger 120 mm gun and a stronger frontal-protection philosophy, while the M60 family offered simpler automotive reliability, broad production scale, and easier logistic support across many operators. Chieftain was the more ambitious gun-and-armor solution; M60 was the more conventional and supportable fleet solution. [TM-Chieftain; NTM-FV4201] Sources

Against Leopard 1 and AMX-30, Chieftain represented the opposite Western answer to the same nuclear-era battlefield debate. Leopard 1 and AMX-30 prioritized mobility and accepted lighter protection; Chieftain prioritized protection and firepower. Sources

Against T-62, Chieftain's 120 mm L11 and heavy armor gave it a strong long-range duel reputation, while T-62 was simpler, lower, produced in much larger numbers, and fielded a 115 mm smoothbore gun. Against T-64, the comparison becomes more complex: T-64 introduced advanced armor concepts, a 125 mm gun in later standards, an autoloader, and a compact diesel, but it was itself mechanically sophisticated and classified in many details. Sources

Against Centurion and Conqueror, Chieftain fulfilled the British goal of replacing a split medium/heavy concept with a single MBT. It inherited Centurion's lineage of up-gunning and adaptation, and Conqueror's high-caliber anti-tank logic, while trying to make both roles sustainable in one front-line tank. [TM-Chieftain] Sources

Chieftain's most durable legacy was Britain's commitment to the 120 mm rifled-gun tradition. The L11 family fed directly into later British tank thinking and helped shape Challenger 1 and Challenger 2 identity, even as other NATO armies standardized around smoothbore guns. [TM-Chieftain; TM-Replacing] Sources

The Chieftain-to-Shir-to-Challenger line is a major lineage story. Iranian export requirements and the Shir 2 branch contributed to the eventual Challenger 1 path after the Iranian Revolution disrupted the original export program. [Hansard-1988; TM-Replacing] Sources

The tank also influenced debate over the balance of capabilities expected of a main battle tank. Its strengths encouraged confidence in heavy gun-and-armor design; its weaknesses warned against ambitious powerpack promises that outpaced reliability. Chieftain is therefore a useful case study in requirements trade-offs: a tank can be tactically formidable and operationally troublesome at the same time. [TM-Chieftain; NTM-FV4201] Sources

Surviving vehicles are held by museums and private collections, including The Tank Museum, Norfolk Tank Museum, Royal Engineers Museum specialist vehicles, and IWM Duxford's Marksman demonstrator context. Sources

Modern reputation is polarized. Enthusiasts often celebrate the gun, armor and low profile; critics often foreground L60 unreliability. Design intentions, early service, subsequent upgrades, export support, and combat conditions were different aspects of its history. [TM-Chieftain; NTM-FV4201] Sources

The broad Chieftain service history is better documented than exact production totals, export deliveries, operator retirement dates, and individual Iran–Iraq War losses. Sources

The best-established points are: Chieftain was Britain's Cold War FV4201 main battle tank; it used the 120 mm L11 rifled gun; it had a reclining driver; it used a Leyland L60 opposed-piston two-stroke powerpack and TN12 gearbox family; late service included Stillbrew/TOGS-equipped standards; it was replaced by Challenger family vehicles in British service. [TM-Chieftain; NTM-FV4201; TM-Replacing] Sources

Uncertain details include mark-specific weight, speed, armor and ammunition capacity, export totals, the conversion history of Mk 6 through Mk 9, and the treatment of specialist derivatives in family totals. [NTM-FV4201] Sources

Unconfirmed details include: exact current status of Iranian upgraded Chieftains; exact captured Iraqi service quantities; Chieftain 900 production/conversion implications; any claim that a single public production total captures all Chieftain-related vehicles without. [SIPRI-ATD] Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

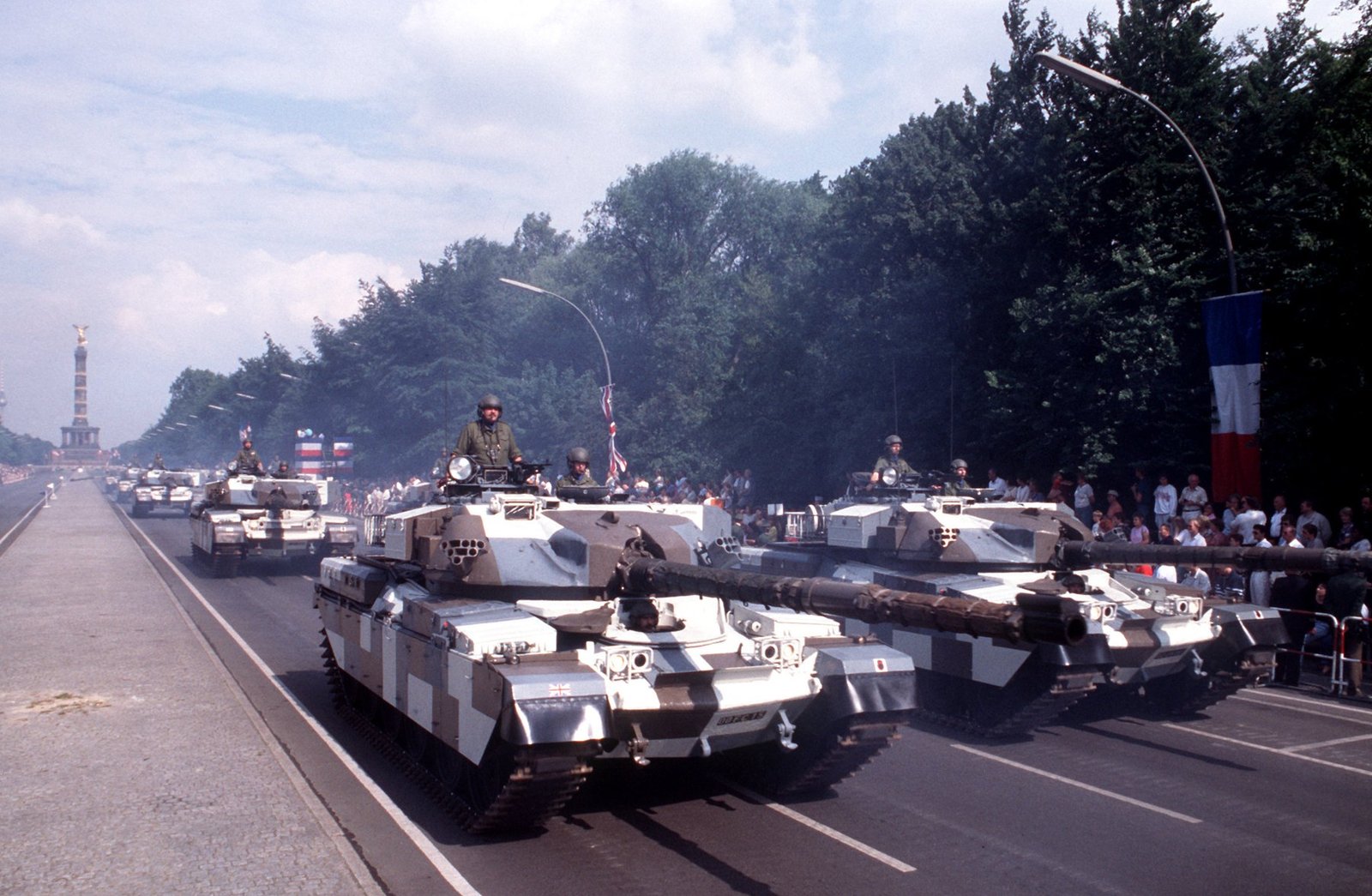

British Chieftain MBTs in West Berlin during the final annual Allied Forces Day parade, 18 June 1989; a service-context image rather than a museum display.Imke Paust; Public domain: U.S. Department of Defense employee work.
