Historical overview

Challenger 1 was a late-Cold-War British main battle tank developed from the Chieftain/Shir lineage rather than from a clean-sheet NATO standard design. The project combined the basic British pattern of a four-man tank with manual loading, a 120 mm rifled gun, heavy emphasis on armor protection, and a new 1,200 hp Condor diesel power pack. The result was not a revolutionary vehicle in layout, but it was a major improvement over Chieftain in mobility and survivability. Sources

Its historical importance rests on three overlapping stories. First, it preserved a British armored-vehicle industrial line after the Iranian order collapsed and after the MBT-80 project failed to become a service tank. Second, it gave the British Army a Chobham-armored heavy MBT at a time when BAOR planning still assumed a major Warsaw Pact armored threat in Central Europe. Third, it acquired a battlefield reputation in 1991 that contrasted sharply with its poor public image after the 1987 Canadian Army Trophy controversy. Sources

The most important production variants are the early Challenger 1 Mk 1, the TOGS-equipped Mk 2, the improved Mk 3 and Granby-modified vehicles, plus the Challenger Armoured Repair and Recovery Vehicle (CRARRV). Jordanian Al-Hussein vehicles form a post-British-service export branch, and Jordanian Falcon-turret and Marksman-related projects belong in the prototype or modernization boundary category rather than in the core British production family. Sources

Major disputed or source-sensitive points include exact production-batch counts by mark, production-end dating (1989 versus 1990 in secondary sources), exact Gulf War kill totals, the exact range of the famous long-range engagement, ammunition capacity figures, and the current status of Jordanian Al-Hussein vehicles. Published accounts describe 420 British Army Challenger 1 MBTs as well-documented; total Jordanian deliveries around 400/402 as less certain; and current Jordanian operational status as uncertain. Sources

Challenger 1 was a conservative, heavily protected, imperfect but successful stopgap-to-bridge design. It did not solve all British tank-modernization problems, and it was replaced relatively quickly by Challenger 2, but in combat it performed better than its critics expected and helped shape Britain’s late-20th-century armored identity. Sources

Challenger 1 was created at the intersection of British Cold War doctrine, export politics, and procurement failure. The British Army’s Chieftain had offered a formidable gun and strong protection but had become associated with mobility and power-pack limitations. At the same time, NATO’s Central Front planning still imagined a short-warning armored war in Germany, where survivability, night fighting, and the ability to kill Warsaw Pact armor at range were central requirements. Sources

Britain’s preferred next-generation route, MBT-80, did not survive as the service replacement for Chieftain. Instead, an export-derived option became available. The Iranian army had ordered improved Chieftain-line vehicles in the FV4030 series, including Shir 1 and Shir 2. After the fall of the Shah, the British Army became the customer for the reworked Shir 2 line. The resulting tank was briefly known as Cheviot before entering service as Challenger. Sources

The political context is essential. A project that began as an export answer to Iranian requirements became a domestic continuity solution. It kept British heavy-armored-vehicle design and manufacture moving while preserving key British preferences: a four-man turret, rifled 120 mm gun, high protection, and an armor philosophy centered on classified composite arrays rather than publicly described thickness tables. Sources

The industrial context was equally important. Challenger was built through the Royal Ordnance Factory system, with Leeds/Barnbow commonly associated with manufacture. The transition of Royal Ordnance Leeds to Vickers Defence Systems in the mid-1980s placed Challenger within a changing British armored-vehicle industrial base. By January 1988, the UK Parliament was still discussing deliveries for fifth, sixth, and seventh Challenger regiments and options for replacing remaining Chieftains, showing that the Challenger fleet was part of a continuing BAOR modernization rather than a settled final answer. Sources

Development and variants

Published accounts describe Challenger 1 as a tank family centered on FV4030/4 Challenger in British service and its directly related service variants, specialized derivatives, and export afterlife. It is not a account on the World War II A30 Cruiser Tank Challenger, Challenger 2, or Challenger 3, although those vehicles appear where necessary for lineage and legacy. Sources

CRARRV is a Challenger 1-derived armored recovery and repair vehicle, not a separate main battle tank. Sources

The line leading to Challenger 1 began in the FV4030 export series. Public secondary sources consistently describe FV4030/4 Challenger as descending from the Shir 2 design, itself an improved Chieftain-line vehicle intended for Iran. Published accounts describe Challenger 1 as “Composite-armored successor to Chieftain” with the parent/lineage field “Shir 2 / Chieftain lineage.”. Sources

The project moved from export vehicle to British service vehicle during the 1978-1983 window used in the source chronology and the cited accounts. Publicly available sources are stronger on the broad transition than on exact prototype serials or all trial events. Sources

Parliamentary records from 1985 and 1987 put the fully equipped Challenger cost at about £1.5 million in contemporary budgetary terms and place the initial programme cost in the region of £350 million. Those figures are budgetary and programme-cost snapshots, not complete life-cycle cost figures, but they anchor the scale of the procurement more reliably than later uncited summaries. Sources

In January 1988, the Minister of State described Challenger regiment deliveries in progress and additional regiments ordered, while also noting that an improved Challenger and other options were under discussion for the remaining Chieftain replacement problem. This captures the vehicle’s ambiguous status: already central to BAOR modernization, yet already part of a debate about what came next. Sources

The Canadian Army Trophy controversy became a defining reputational episode. In July 1987, the Minister of State responded that tank performance in the artificial circumstances of a competition was not a proper indication of war capability, while emphasizing Challenger’s gun, protection, mobility, and thermal imaging. The statement itself shows both the public-relations damage and the official MOD line: CAT was a training and gunnery data point, not a complete combat assessment. Sources

Design and performance

Challenger 1 used a conventional postwar MBT layout: driver in the front hull, fighting compartment and turret in the center, engine and transmission at the rear, and a four-man crew. Commander and gunner sat on the right side of the turret, loader on the left, and the driver in the hull. This preserved British manual-loading practice and avoided the autoloader path taken by many Soviet designs. Sources

The hull retained Chieftain/Shir-line design DNA but used a stronger power pack, hydropneumatic suspension, and composite armor layout. Published dimensions commonly give an overall length of 11.56 m with gun forward, hull length around 8.33 m, width about 3.5-3.51 m, and height about 2.95 m. Sources

The turret was an angular, heavily protected design with the 120 mm gun in the center, thermal-sight installation on later standards, and applique/side protection in Gulf War form. Sources

The most important protection feature was British composite armor, generally referred to in open sources as Chobham armor. Public sources agree on the broad point that Challenger was very strongly protected, but they do not provide a reliable declassified armor-thickness map. Sources

The main weapon was the Royal Ordnance L11A5 120 mm rifled gun, firing separate-loading ammunition. This continued the British HESH-capable rifled-gun tradition and provided continuity with Chieftain ammunition practice, but also left Britain increasingly outside the smoothbore NATO mainstream represented by Leopard 2 and M1A1. Sources

Secondary armament consisted of 7.62 mm machine guns, commonly described as an L8A2 coaxial gun and an L37A2 commander’s gun, plus smoke grenade dischargers. Open technical summaries commonly give 4,000 rounds of 7.62 mm ammunition. Sources

Open sources list APDS/APFSDS, HESH, smoke, and training natures. Many summaries give 64 rounds for the main gun, but some variant-specific or stowage-specific accounts give lower numbers after armored charge-bin changes. Sixty-four is a commonly published ammunition allowance; exact Mk 3 and Operation Granby stowage remains less certain. Sources

Challenger 1 used an integrated fire-control system with laser rangefinding and ballistic computation. Later standards carried the Thermal Observation and Gunnery Sight (TOGS), which was central to the tank’s night and poor-visibility combat value. The 1987 Hansard response specifically emphasized Challenger’s thermal imaging in official defense of the vehicle after CAT controversy. Sources

Published summaries identify Barr & Stroud / Pilkington-related sighting equipment and TOGS thermal imaging. The key historical point is not merely equipment existence, but availability and maturity: early vehicles and competition vehicles did not always represent the mature Granby configuration. Sources

The power pack was the Perkins/Rolls-Royce Condor CV12 26-liter diesel rated at about 1,200 hp, paired with a David Brown transmission. This gave the 62-ton tank a power-to-weight ratio around 19 hp/t or 14.4 kW/t, depending on unit convention. Sources

Hydropneumatic, or Hydrogas, suspension was a major improvement over Chieftain’s earlier mobility package and gave better cross-country behavior. It also became part of Challenger’s identity as a heavy but mobile British tank. Sources

Published road speed is commonly about 56 km/h, with road range about 450 km. Desert operations added logistical stress from sand, heat, and long approach movement, but the Gulf War record summarized by IWM and NAM is positive after pre-combat preparation. Sources

The four-man crew gave Challenger manual loading and allowed the loader to assist with maintenance and observation, at the cost of a larger turret volume than autoloading designs. The arrangement was familiar to British crews moving from Chieftain but did not eliminate the strain of separate-loading ammunition. Sources

Challenger 1 served during the Clansman-era British Army communications environment. Detailed radio fits varied with command, period, and upgrade state; the account does not assert a single universal radio model without vehicle-level confirmation. Sources

Published protection features include NBC protection, smoke dischargers, fire-suppression equipment, composite armor, and Gulf War additional armor/side protection. CRARRV carries recovery equipment rather than a tank gun but retains protected mobility appropriate for armoured recovery tasks. Sources

Challenger’s public reputation suffered from competition and readiness criticism, but Operation Granby showed the value of focused preparation, spares, REME support, and desertization. IWM’s collection record states that the 180 deployed Challengers proved reliable in desert conditions. This does not demonstrate “problem-free,” but as evidence that the deployed force became combat-effective. Sources

Weaknesses included a relatively small production base, the inherited rifled-gun/ammunition path, uncertain early TOGS maturity and availability, public embarrassment after CAT 87, heavy combat weight, and the fact that Challenger 2 arrived quickly enough to make Challenger 1 a short-lived British service family. Sources

Production, operators, and combat record

Published accounts describe the family as a production vehicle with development/start “1978-1983,” production/end “1983-1990,” and number built “420 for British Army plus export lineage.” That 420 figure is consistent with widely repeated public counts for British Army Challenger 1 MBTs, although exact splits by Mk 1/Mk 2/Mk 3 is described as less certain until verified against a factory or official vehicle list. Sources

Manufacture was centered on the Royal Ordnance armored-vehicle industrial base, especially the Leeds/Barnbow association cited in museum-survivor records. PreservedTanks identifies the Bovington vehicle as built by Royal Ordnance Factory Barnbow/Leeds and connected with Directorate of Tank Design/Chertsey test activity. Sources

Cost data is unusually well anchored by parliamentary answers. In April 1985, the unit production cost of a fully equipped Challenger MBT was given as £1.5 million at 1984-85 outturn prices, with initial programme costs in the region of £350 million. In January 1987, the budgetary cost of a fully equipped Challenger was again stated as £1.5 million. These is distinct from later book values assigned to worn vehicles transferred to Jordan. Sources

Production timing is a minor source conflict. The cited accounts and many summaries use 1983-1990. Some secondary pages compress the end to 1989. Sources

The British Army was the original operator. Challenger 1 entered service in 1983 and replaced part of the Chieftain fleet during BAOR modernization. By January 1988, Parliament described deliveries for the fifth Challenger regiment nearing completion, tanks for the sixth on the way, and tanks for the seventh ordered. Challenger 1 remained in British Army MBT service until replacement by Challenger 2, with the cited accounts giving UK service from 1983 to 2001. Sources

Jordan is the central export/service afterlife. In 1999, the UK government stated that up to 288 Challenger 1 MBTs would be supplied to Jordan as they came out of British service, at no purchase cost to Jordan beyond Ministry of Defence additional costs. Parliamentary written evidence later described a 2002 gift of 114 Challenger 1 MBTs and 19 training tanks to Jordan. Together, those official figures explain why total Jordanian counts are often around 400/402, while some secondary sources list 392. Sources

The Challenger Armoured Repair and Recovery Vehicle remains relevant even after Challenger 1 MBT retirement because it is a support derivative rather than a gun tank. The British Army page describes the vehicle’s mission as recovery and repair of damaged tanks, equipped with two winches and an Atlas crane. Its inclusion in the Challenger 1 family is a boundary decision: it shares Challenger-family automotive/protection lineage but is a specialized support vehicle, not an MBT. Sources

Challenger 1’s major combat test was the 1991 Gulf War. The National Army Museum describes the British contribution as based on 1st Armoured Division and notes that about 35,000 British servicemen and women with 13,000 vehicles served in the campaign. During the ground offensive, 1st Armoured Division advanced as part of the coalition’s wide left hook rather than a frontal assault into Kuwait. Sources

IWM’s Gulf War collection object for a Challenger 1 of the 14th/20th King’s Hussars states that 180 Challenger tanks were deployed, advanced nearly 350 km in 97 hours, destroyed 300 Iraqi armored vehicles, included one tank engagement at 5 km, and suffered no loss. The National Army Museum similarly states that the Challenger claimed 300 kills for no losses and credits a Royal Scots Dragoon Guards tank with a tank-to-tank kill at around 5 km. These museum accounts are high-quality but can be understood as summary claims rather than vehicle-by-vehicle loss ledgers. Sources

IWM’s narrative article identifies the famous long-range engagement with Captain Tim Purbrick’s crew and gives a range of 4,700 m, while other museum and public summaries round it to around 5 km or nearly three miles. Published accounts describe the event as well-documented but the exact range as less certain. Sources

The Gulf War context favored Challenger’s strengths: long-range gunnery, thermal optics, heavy protection, and British crew training. Coalition air superiority, GPS-assisted navigation, artillery, and Iraq’s degraded command and control were also decisive. The vehicle’s battlefield reputation cannot be isolated from coalition operational conditions, but it did demonstrate that the CAT 87 reputation did not predict combat failure. Sources

Challenger 1’s post-Gulf-War British service included late-Cold-War drawdown and post-Cold-War deployments before Challenger 2 replacement. Compared with the Gulf War, public open-source combat documentation is thinner for later peace-support service. Published accounts describe the Gulf War as the core combat-history section and treats later Bosnia/Kosovo-era use as service history rather than as a second major combat proof. Sources

Legacy and historical evidence

Overall battlefield value: In the narrow context of Operation Granby, Challenger 1 was highly effective. In broader design history, it was less elegant and less exportable than Leopard 2, less strategically visible than M1 Abrams, and less numerous than T-72, but it was a successful British answer to a difficult procurement and doctrine problem. Sources

Challenger 1’s design legacy is best understood as continuity rather than revolution. It carried forward British emphasis on protection and rifled-gun firepower while proving that a Chieftain-line vehicle could be made much more mobile and survivable. It also exposed limits in using an export-derived design as a long-term national MBT, which helps explain the quick move to Challenger 2. Sources

Doctrinally, its Gulf War use confirmed the importance of thermal imaging, long-range gunnery, combined-arms movement, and logistics in desert operations. Its reputation swung from CAT 87 embarrassment to Desert Storm success, creating one of the more dramatic public-image reversals in modern tank history. Sources

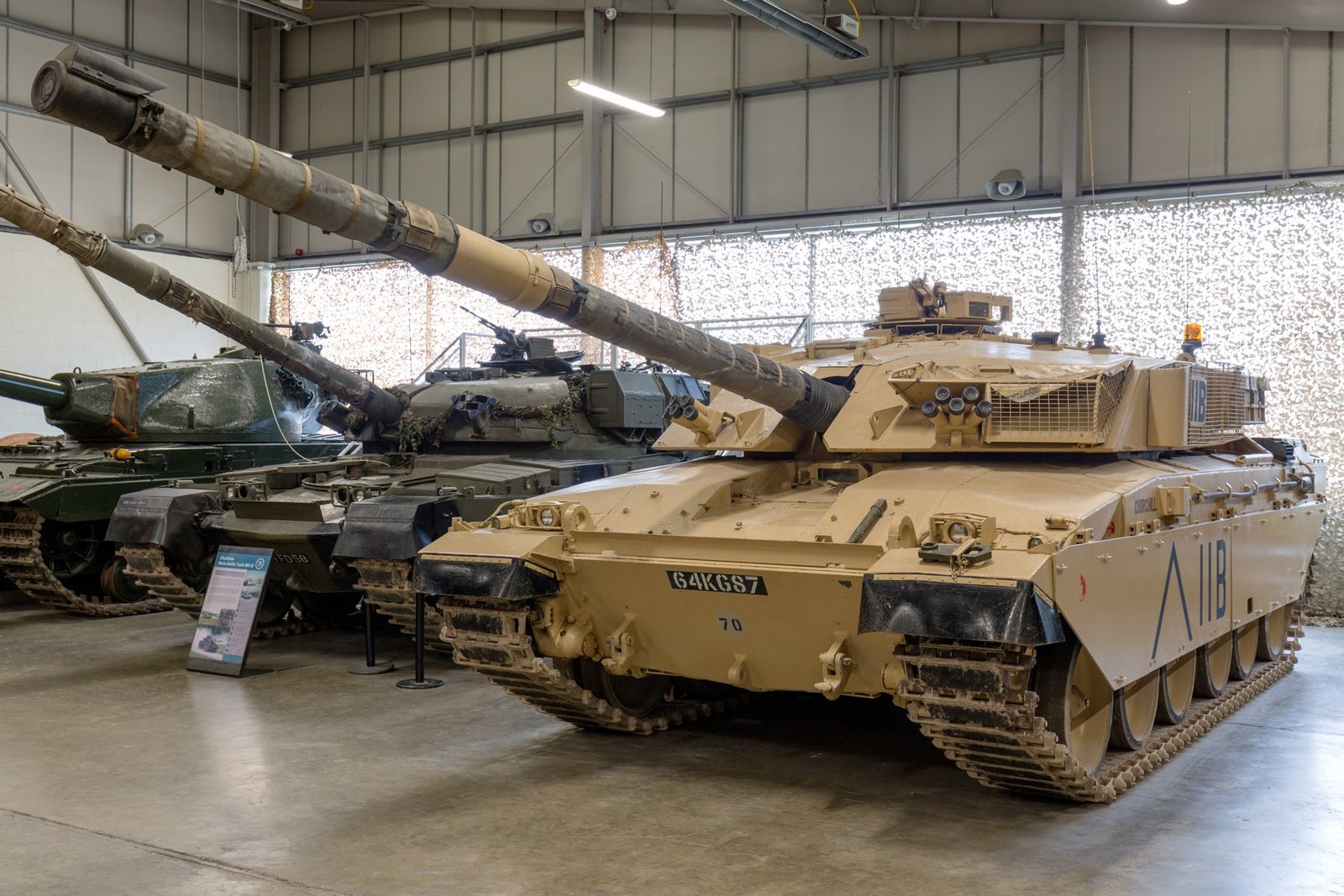

Museum survival is strong. PreservedTanks documents a FV4030/4 Challenger 1 at The Tank Museum, Bovington, with registration 05 SP 52 and collection details, and Wikimedia Commons documents a well-photographed Bovington Challenger 1, 64 KG 87. The Royal Tank Museum in Amman displays an Al-Hussein, illustrating the Jordanian afterlife. Sources

Common misconceptions include treating Challenger 1 as simply a failed Chieftain upgrade, overstating public armor data, assuming all Iraqi armor kills were tanks rather than armored vehicles, and treating Jordanian modernization proposals as fleet-wide production standards. The safer interpretation is that Challenger 1 was a protected, conservative, locally successful British MBT family with a complex export afterlife. Sources

British chronology is documented in parliamentary, Army, and museum records. Exact production splits by mark and Jordanian inventory dates are less consistent across the sources, while classified armor and ammunition details limit technical comparisons. Sources

Challenger 1 is the British FV4030/4 MBT family derived from the Shir 2 / Chieftain line. Sources

British Army service began in 1983 and the UK retired Challenger 1 from MBT service by 2001. Sources

The 120 mm L11A5 rifled gun, four-man crew, Condor CV12 1,200 hp engine, and approximate 62-ton weight are well supported in public technical summaries. Sources

CRARRV is a Challenger-based recovery and repair derivative with official British Army specs for length, width, height, weight, crew, armament, crane lift, engine, and speed. Sources

Exact Mk 1/Mk 2/Mk 3 production split; secondary totals are plausible but Published accounts describe Mk 2/Mk 3 quantities as unknown/verify. Sources

Exact Gulf War armored-vehicle kills and the wording “tanks” versus “armored vehicles.” Museum summaries support the core claim but not all granular accounting. Sources

Exact long-range kill distance; the event is well supported but exact range varies by source. Sources

Jordanian total around 400/402; UK parliamentary staged-transfer records support the inference, but secondary totals vary. Sources

Current number of Al-Hussein tanks active, stored, or scrapped in Jordan. Sources

Production or conversion counts for Falcon turret and Marksman-based proposals. Sources
