ZTZ-99 / Type 99 family

Type 99 MBT front-right view at the Beijing Military Museum, “Our troops towards the sky” exhibition, August 2007. Museum display vehicle; external finish and fitted equipment may not reflect operational condition.Max Smith; Public domain self-release.

Historical overview

The ZTZ-99 / Type 99 family is the People’s Republic of China’s prestige main battle tank line: a relatively heavy, three-man, autoloaded, 125 mm-gunned family intended for elite PLA Ground Force formations rather than export. Open sources generally place its entry into service around 2001 and its development roots in the late 1980s and 1990s, when Chinese designers sought to move beyond the Type 88/Type 96 generation and absorb lessons from the Soviet T-72, Western fire-control practices, and indigenous electronics development. [Army Recognition 2026; SCMP 2025] Sources

Why it mattered: The Type 99 was China’s first widely fielded third-generation main battle tank and a visible emblem of PLA modernization. It combined a 125 mm smoothbore gun and carousel autoloader with composite and reactive armor, thermal sights, laser warning/countermeasure features, and progressively more capable command-and-control systems. The Type 99A, first displayed publicly in the 2010s, is the key mature production form most often associated with the family’s modern reputation. [TRADOC WEG 2015; Army Recognition 2026; SCMP 2025] Sources

Most important variants: Published accounts describe Type 98 / Project 9910 as the visible prototype/precursor, ZTZ-99 / Type 99 as the initial service family, Type 99G as a contested open-source upgrade label, Type 99A as the major mature model, Type 99A2 as a U.S. WEG/ODIN designation requiring caution, and Type 99B as a recently reported upgrade shown in 2025. A Type 99-based armored recovery vehicle is included because the cited sources describe it as a specialized derivative, but it remains uncertain in open sources. [ODIN 2025; SSI 2025] Sources

Major controversies and myths: The family is often described with highly specific armor-equivalence numbers, precise APFSDS penetration claims, and exact inventory totals. These are not reliable without context. U.S. Army WEG material includes useful OPFOR technical estimates, but some values—especially ammunition penetration and late-variant naming—is best understood as open-source assessment, not confirmed Chinese disclosure. The “Type 99A2” label is especially problematic because ODIN/WEG uses it while many public and Chinese-adjacent sources describe the same visible mature tank simply as Type 99A. [TRADOC WEG 2015; ODIN 2025] Sources

In open-source terms, the Type 99 family is best understood as a high-capability but opaque Chinese heavy MBT family. It has credible modern firepower, mobility, optics, and digitalization claims, but it lacks combat validation, has limited export/operational transparency, and appears to be more expensive and less numerous than the Type 96 family. Its historical importance is nevertheless high because it marks China’s movement from licensed, copied, or derivative tank design toward sophisticated indigenous armored systems and the later Type 100/next-generation debate. [DIA China Military Power 2019; SCMP 2025; SSI 2025] Sources

Strategic context before development: Chinese tank development after the Cold War was shaped by a long transition away from the Type 59/Type 69 generation and toward a smaller number of more modern, better protected, electronically capable tanks. The PLA had large armored forces, but much of the fleet lagged behind Western and late-Soviet third-generation designs in optics, fire control, armor packages, and high-output powerpacks. The Type 96 family would become the larger-force modernization tank, while the Type 99 family became the elite, higher-cost spearhead. [DIA China Military Power 2019] Sources

Military problem to solve: The design challenge was to field a domestic MBT able to defeat contemporary tanks, fight at night and on the move, survive anti-tank guided missiles and modern kinetic threats, and participate in increasingly informationized combined-arms operations. The requirement translated into a 125 mm smoothbore gun, autoloader, modular/composite armor, thermal sights, laser range-finding, improved engines, and crew/network integration. [TRADOC WEG 2015; Army Recognition 2026] Sources

Doctrine and lessons: Chinese armored doctrine in the 1990s and 2000s moved toward mobile combined arms, digitized command, and rapid concentration of firepower. The tank itself had to become part of a networked ground force rather than a purely mechanical platform. The 2018 Zhurihe training reports, in which a Type 99A-equipped unit reportedly suffered from tactics that failed to exploit the vehicle’s capabilities, are useful precisely because they show the gap between acquiring advanced hardware and employing it properly. [Global Times 2019; DefenseMirror 2019] Sources

Industrial and political context: The Type 99 family reflected China’s ambition to demonstrate indigenous industrial capability. Open sources associate Chinese tank production with NORINCO and the Baotou / Inner Mongolia First Machinery / Factory 617 ecosystem, but exact allocation of design, component supply, and final assembly for Type 99 variants are not fully transparent in English-language open sources. The family also had symbolic value: its parade appearances communicated both domestic modernization and international deterrence. [GlobalSecurity 617 Institute; SCMP 2025; SSI 2025] Sources

Development and variants

This is a full-family history, not only a single variant profile. It covers the Type 98 / WZ-123 lineage as background, the initial ZTZ-99 / Type 99 service tank, named upgrade labels, Type 99A, the U.S. WEG/ODIN Type 99A2 reference, the 2025 Type 99B reporting stream, and known or reported support derivatives. Sources

Classification: The Type 99 family is a main battle tank family. It is not a light tank, tank destroyer, assault gun, or direct-fire support vehicle. The relevant boundary issue is not classification but variant naming and family boundary. The Type 100/ZTZ-100 reporting stream cannot be silently merged into Type 99 because current sources describe it as a newer generation or different weight class, although it may inherit design lessons and doctrinal roles from Type 99A/99B. [Global Times 2025; SSI 2025] Sources

Duplicate risk appears in variant names, not in the master family: Type 99G, Type 99A1, Type 99A2, Type 99A upgraded, and Type 99B may overlap depending on source language and date. Sources

The family itself is unambiguous; the exact late-variant taxonomy is not. Sources

Design origin: Open-source histories usually connect the Type 99 to a late-1980s/early-1990s Chinese third-generation tank program and the Type 90-II/Type 98/WZ-123 lineage. SCMP reported that work on the Type 99 series began in 1989 and that the design drew on the Soviet T-72 chassis lineage; U.S. WEG material likewise treats Type 98 and Type 99A2 within the same Chinese MBT development stream. [SCMP 2025; TRADOC WEG 2015] Sources

Prototype timeline: The Type 98 / Project 9910 appeared publicly in association with the 1999 National Day parade. It showed the familiar low-profile hull, three-man crew concept, 125 mm smoothbore gun, autoloader, roof machine gun, and early external countermeasure/laser equipment that would become associated with the Type 99 family. The Type 98 was not simply the final service Type 99; it is better treated as a visible precursor and development bridge. [Wikimedia Commons Type 98 image record; TRADOC WEG 2015] Sources

Initial service and production: the cited accounts and multiple secondary sources place the Type 99 service start around 2001. WEG’s Type 98/Type 99A2 section uses 2001 and 2003 introduction dates for Type 98/Type 99-related records, while Army Recognition and SCMP both report 2001 service entry for the Type 99 family. [TRADOC WEG 2015; Army Recognition 2026; SCMP 2025] Sources

Type 99A maturation: Army Recognition states that the first Type 99A prototype was tested in 2007 and that the type was publicly unveiled during the September 2015 Beijing parade. The Type 99A is widely treated as the major modern form, with a larger turret, improved armor architecture, improved propulsion, updated fire control, and stronger hunter-killer capability. [Army Recognition 2026; SCMP 2025] Sources

Late-variant uncertainty: ODIN currently presents a Type 99A2 / ZTZ-99A2 page and says the vehicle builds further improvements into a Type 99A1 design, with greater frontal protection and a likely more powerful engine. Published accounts describe “Type 99A2” only when referring to the WEG/ODIN naming stream, not as a confirmed separate Chinese service designation. [ODIN 2025] Sources

Type 99B reporting: In 2025, Chinese and external sources reported a Type 99B upgrade appearing at China’s Victory Day parade. SCMP, citing state media, described it as designed for rapid and sustained combat in high-altitude/cold-weather environments and emphasized information-based command, communications, and integrated firepower. SSI assessed it as an upgrade from Type 99A with improved all-weather communications, firepower, and maneuver, while Global Times placed it in the same parade formation as the new Type 100 vehicles. Because detailed specifications remain sparse, the Type 99B is described as a current reporting category rather than a fully documented production standard. [SCMP Type 99B 2025; SSI 2025; Global Times 2025] Sources

Design and performance

The Type 99 family uses the classic Soviet-derived three-man MBT architecture: driver forward, fighting compartment and turret in the center, and engine/transmission at the rear. The crew consists of commander, gunner, and driver; a carousel autoloader eliminates the human loader. This gives a lower turret silhouette than many four-man Western MBTs but concentrates ammunition inside the crewed fighting compartment. [Army Recognition 2026; TRADOC WEG 2015] Sources

The hull is longer than the T-72 pattern from which many open sources say it drew inspiration. Visible features include a sharply sloped glacis with add-on modular armor/ERA on later vehicles, side skirts, six road wheels per side, front idler, rear drive sprocket, and external fuel drum fittings on many display or field configurations. U.S. ODIN notes the six-roadwheel layout, forward idler, rear sprocket, and rear engine arrangement. [ODIN 2025; Army Recognition 2026] Sources

Early Type 98/Type 99 turrets show angular welded construction with add-on armor blocks and roof-mounted sensors/countermeasure equipment. Type 99A is visually distinct because of its larger, more angular turret, pronounced modular armor, and revised roof layout. The turret design is a major reason Type 99A is often treated as a substantial redesign rather than a simple incremental upgrade. [Army Recognition 2026; Wikimedia Commons image records] Sources

Exact armor composition and thickness are classified. Open sources consistently describe welded steel, composite/applique armor, and explosive reactive armor on the front hull and turret. WEG describes second- and third-generation ERA in the Type 99 lineage, while Army Recognition describes composite armor and ERA against new-generation tandem-warhead missiles. Specific RHA-equivalent numbers frequently quoted online is described as speculative unless tied to a clearly identified source and methodology. [TRADOC WEG 2015; Army Recognition 2026] Sources

The main armament is a 125 mm smoothbore gun with thermal sleeve and fume extractor, fed by a carousel autoloader. It is generally described as compatible with APFSDS, HEAT, HE/frag, and gun-launched anti-tank guided missiles. WEG lists a 125 mm smoothbore gun and gun-launched ATGM capability; Army Recognition gives a 41-round total for Type 99A, while WEG’s sample combat load totals 42 rounds. [TRADOC WEG 2015; Army Recognition 2026] Sources

Secondary weapons normally include a 7.62 mm coaxial machine gun and a 12.7 mm heavy machine gun on or near the commander’s cupola/roof station. Weapon names vary by source; Army Recognition identifies a Type 86 7.62 mm coaxial and QJC/Type 88 12.7 mm heavy machine gun on Type 99A. [Army Recognition 2026; GlobalSecurity Type 99 specs] Sources

WEG gives a notional 42-round combat load with APFSDS-T, HEAT/HEAT-MP, FRAG-HE, and ATGM rounds. Army Recognition states 41 rounds for Type 99A, including 22 in the carousel. The disagreement is minor but important: total stowage may vary by variant and source assumptions, and open sources may mix Type 99, Type 99A, and WEG Type 99A2 configurations. [TRADOC WEG 2015; Army Recognition 2026] Sources

The family is generally credited with stabilized day/night sights, thermal imaging, laser range-finding, ballistic computation, and commander/gunner hunter-killer capability on later variants. WEG names an ISFCS-212 fire-control system with thermal sights and two-plane stabilization; Army Recognition describes a 1A45T-derived fire-control package, panoramic commander sight, ballistic computer, thermal sights, and meteo sensors for Type 99A. These labels may reflect source transliteration or technical inference rather than official Chinese naming. [TRADOC WEG 2015; Army Recognition 2026] Sources

Later vehicles have independent or semi-independent commander observation and targeting equipment, stabilized gunner sights, thermal channels, laser range-finding, and broader sensor integration. Type 99A/99B sources emphasize commander panoramic sighting and digital command functions, but exact sight generation, manufacturer, and fielded batch variation are not fully open. [Army Recognition 2026; SCMP Type 99B 2025] Sources

Early Type 99/Type 98 records are often associated with a 1,200 hp diesel; later Type 99A records commonly state a 1,500 hp 150HB turbocharged diesel. WEG lists a 1,200 hp diesel and a 1,500 hp upgrade, while Army Recognition states that Type 99A uses a 1,500 hp 150HB turbocharged diesel with a manual transmission and side gearboxes. Type 99B reports emphasize improved performance in high-altitude/cold conditions but do not provide enough detail for a confident powerpack description. [TRADOC WEG 2015; Army Recognition 2026; SCMP Type 99B 2025] Sources

The suspension is torsion-bar based, with six rubber-tired road wheels per side. Army Recognition reports special hydraulic shock absorbers on the first, second, and sixth road wheels for Type 99A. The visible wheel spacing and side skirts are consistent across museum and parade photographs. [Army Recognition 2026; Wikimedia Commons image records] Sources

Open-source mobility figures typically cite up to about 80 km/h on roads, with lower cross-country speeds, and ranges from roughly 500–650 km or 600–800 km with external fuel drums depending on source. These figures are plausible for a 50–58 tonne vehicle with 1,200–1,500 hp engines but is not established as validated test data. [TRADOC WEG 2015; Army Recognition 2026; GlobalSecurity Type 99 specs] Sources

The three-man layout reduces turret volume and crew count but creates the usual autoloader tradeoffs: no human loader, potentially faster/steadier mechanical loading, and less manpower for maintenance, guard, and field repair tasks. Ammunition carried in a carousel within the fighting compartment can increase catastrophic vulnerability when penetrated compared with Western bustle-separated ammunition concepts. This is an engineering inference from layout, not a confirmed Type 99 combat-loss finding. [TRADOC WEG 2015; comparative tank design analysis] Sources

The initial Type 99 is associated with improved radios and digital systems compared with earlier PLA tanks. Type 99A is widely discussed as a networked/digitized platform, and Type 99B reporting emphasizes information-based command and communication as a principal upgrade area. Exact radio suites and battle-management systems remain undisclosed in public sources. [Global Times 2019; SCMP Type 99B 2025; SSI 2025] Sources

Visible and reported protection systems include smoke grenade launchers, vehicle exhaust smoke, NBC protection, fire detection/suppression, laser warning receivers, and roof-mounted laser/countermeasure equipment often discussed as JD-3 or similar. WEG describes laser warning and a laser dazzler/countermeasure system, while Army Recognition describes a roof laser jamming device. Hard-kill APS claims for late variants remain uncertain because open sources mix demonstrators, prototypes, and Type 100/GL-6 reporting. [TRADOC WEG 2015; Army Recognition 2026; SSI 2025] Sources

There is little independent evidence on Type 99 reliability in sustained combat. Its elite-unit fielding, relatively high technology content, and limited export exposure make it harder to evaluate than T-72/T-90, Abrams, or Leopard 2 families. Open reporting on 2018 training suggests that doctrinal integration, not only mechanical reliability, was a major issue: crews and commanders needed to learn how to exploit digitalized and long-range capabilities. [Global Times 2019; DefenseMirror 2019] Sources

Documented weaknesses are mostly inferential: opaque armor and ammunition claims, no combat record, potentially limited fleet size due to cost, autoloader ammunition vulnerability, less crew manpower for maintenance, and possible logistical burden compared with Type 96 units. Source uncertainty itself is a weakness for historians: open sources often repeat specifications without proving whether they apply to Type 99, Type 99A, WEG Type 99A2, or Type 99B. [SCMP 2025; source comparison] Sources

Production, operators, and combat record

Manufacturing base: The Type 99 family is generally associated with NORINCO and China’s Baotou / Inner Mongolia First Machinery / Factory 617 armored-vehicle industrial base. GlobalSecurity describes the 617 Institute / Inner Mongolia No. 1 Machinery Plant as China’s main battle tank and 8x8 armored vehicle R&D/manufacturing base. Exact lines of responsibility among design institutes, state-owned groups, and final assembly facilities are not transparent in open English sources. [GlobalSecurity 617 Institute] Sources

Production timeline: Open sources usually present a transition from Type 98/Project 9910 prototypes in the late 1990s to Type 99 service around 2001 and Type 99A maturation in the late 2000s/2010s. The cited accounts start year is 2001. Type 99B reporting begins in 2025. [Army Recognition 2026; SCMP Type 99B 2025] Sources

Production quantity: No reliable official production figure was found. The cited accounts summarizes the total as “hundreds to low thousands depending estimate.” SCMP reported around 1,300 Type 99-series tanks built, while IISS equipment holdings are often cited in secondary discussions but require edition-specific handling. Published accounts describe “hundreds to roughly 1,300 reported” as a cautious open-source range, not a confirmed count. [SCMP 2025; IISS Military Balance] Sources

Bottlenecks and cost: The Type 99 family appears to have been fielded in smaller numbers than the Type 96 family, likely because it is heavier, more expensive, and reserved for elite units. This is consistent with the wider PLA pattern of retaining multiple tank tiers: large numbers of Type 96/96A/96B for broad modernization and smaller numbers of Type 99/99A/99B for high-end heavy combined-arms units. [DIA China Military Power 2019] Sources

Exports and licensed production: No export operator is confirmed for the Type 99 family. Sources

Service pattern: Type 99 tanks appear to be concentrated in elite or heavy combined-arms units rather than distributed throughout the entire PLA tank force. Public reporting and parade appearances emphasize prestige, high-end heavy armor, and training integration. The Type 99A’s 2018 training difficulties, as reported by Chinese state media and repeated by foreign defense outlets, illustrate that the PLA treated the platform as technologically advanced enough to require new tactics and command habits. [Global Times 2019; DefenseMirror 2019] Sources

Current status: The Type 99/99A family remains active. ODIN maintained a Type 99A2 page current to November 2025, SCMP described Type 99A as a crucial PLA ground system in 2025, and 2025 parade reporting introduced Type 99B as a late upgrade. Exact current holdings and the status of older Type 99 vehicles are not publicly confirmed. [ODIN 2025; SCMP 2025; SSI 2025] Sources

No confirmed combat use: No reliable open source in the cited record documents the Type 99/99A/99B firing in combat or being lost in combat. Sources

Exercise and training record: The Type 99 family has appeared in parades, PLA exercises, and multinational exercises. Army Recognition notes Type 99A use in Shanghai Cooperation Organization exercises in 2014. Chinese and defense press reporting in 2019 described Type 99A-equipped units as digitalized/interconnected but criticized obsolete tactics in a 2018 exercise. These reports are valuable because they show that the PLA understood the platform as part of a networked, long-range firepower ecosystem—not simply a direct analog of earlier tanks. [Army Recognition 2026; Global Times 2019; DefenseMirror 2019] Sources

Type 99B and high-altitude reporting: SCMP, citing state media, reported in December 2025 that Type 99B was designed for improved high-altitude and cold-weather operations and had been shown in testing of driving, electronic systems, and live-fire exercise. Because the report did not state when or where those tests occurred, The vehicle is described as important but not independently verified. [SCMP Type 99B 2025] Sources

Legacy and historical evidence

Relevant contemporaries include Russia’s T-90/T-90M, Western M1A2 Abrams and Leopard 2A5/A6/A7 families, South Korea’s K2, Japan’s Type 10, and China’s own Type 96B/VT-4/Type 15 ecosystem. Sources

Influence on later tank design: The Type 99 family is the bridge between China’s older Soviet-derived tank inheritance and its newer informationized armored concepts. Its legacy is visible in later Chinese emphasis on command networks, high-output powerpacks, thermal/independent sights, sensor integration, and active-protection discussions. [SCMP 2025; SSI 2025] Sources

Doctrinal impact: The family helped force the PLA to address a central problem of modernization: advanced tanks do not automatically produce advanced tactics. The 2018 exercise reports are a useful narrative lens because they show experienced units struggling to use new digital and long-range capabilities effectively. [Global Times 2019] Sources

Surviving vehicles and museum examples: Public display vehicles at the Military Museum of the Chinese People’s Revolution and Beijing Military Museum provide useful reference imagery, although museum paint, stowage, missing equipment, and parade/display preparation can distort operational appearance. Sources

Modern reputation: In Chinese media, Type 99A is often presented as a “king of land battle” or elite symbol. In Western and open-source defense discussions, it is treated with more caution: technologically credible, probably formidable, but opaque and untested. Sources

Common misconceptions: The biggest misconception is that a single set of specifications describes the whole family. In reality, Type 98, early Type 99, Type 99A, WEG Type 99A2, and Type 99B reporting may refer to different hardware, different batches, or different naming conventions. Sources

The family is widely discussed, but much of the detail is derived from OPFOR reference summaries, parade imagery, secondary defense sites, and state-media narratives. U.S. Army WEG/ODIN material is useful but is described as an external assessment. Army Recognition and GlobalSecurity provide accessible specifications but mix dates and dimensions that require cross-checking. SCMP, Global Times, and SSI are useful for 2025 Type 99B/Type 100 context, but late-variant details remain preliminary or state-media-based. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

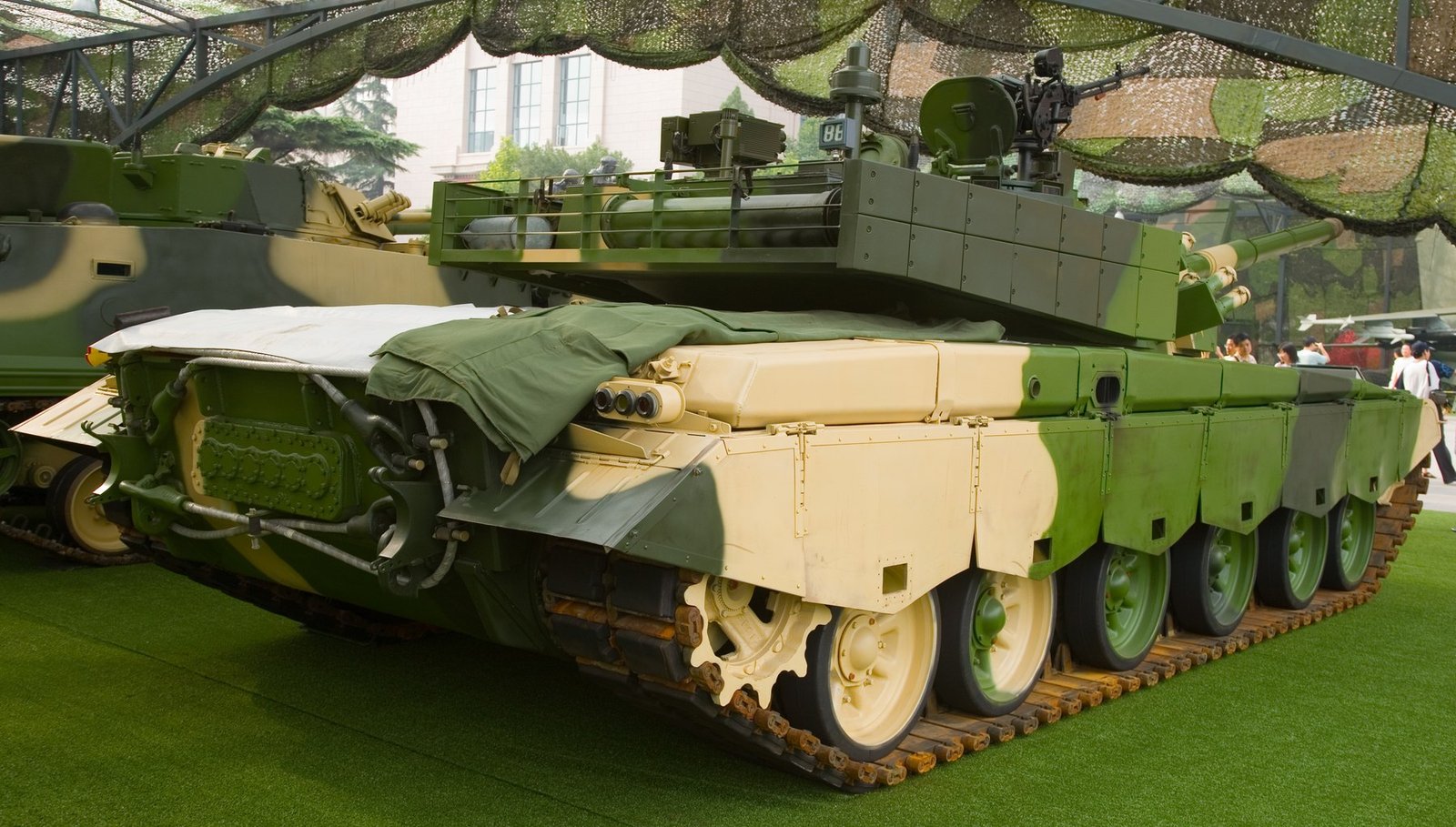

Type 99 MBT rear/side view at the Beijing Military Museum, “Our troops towards the sky” exhibition, August 2007. Shows rear hull, external fuel drum/stowage area, and side-skirt layout; museum display context.Max Smith; Public domain self-release.

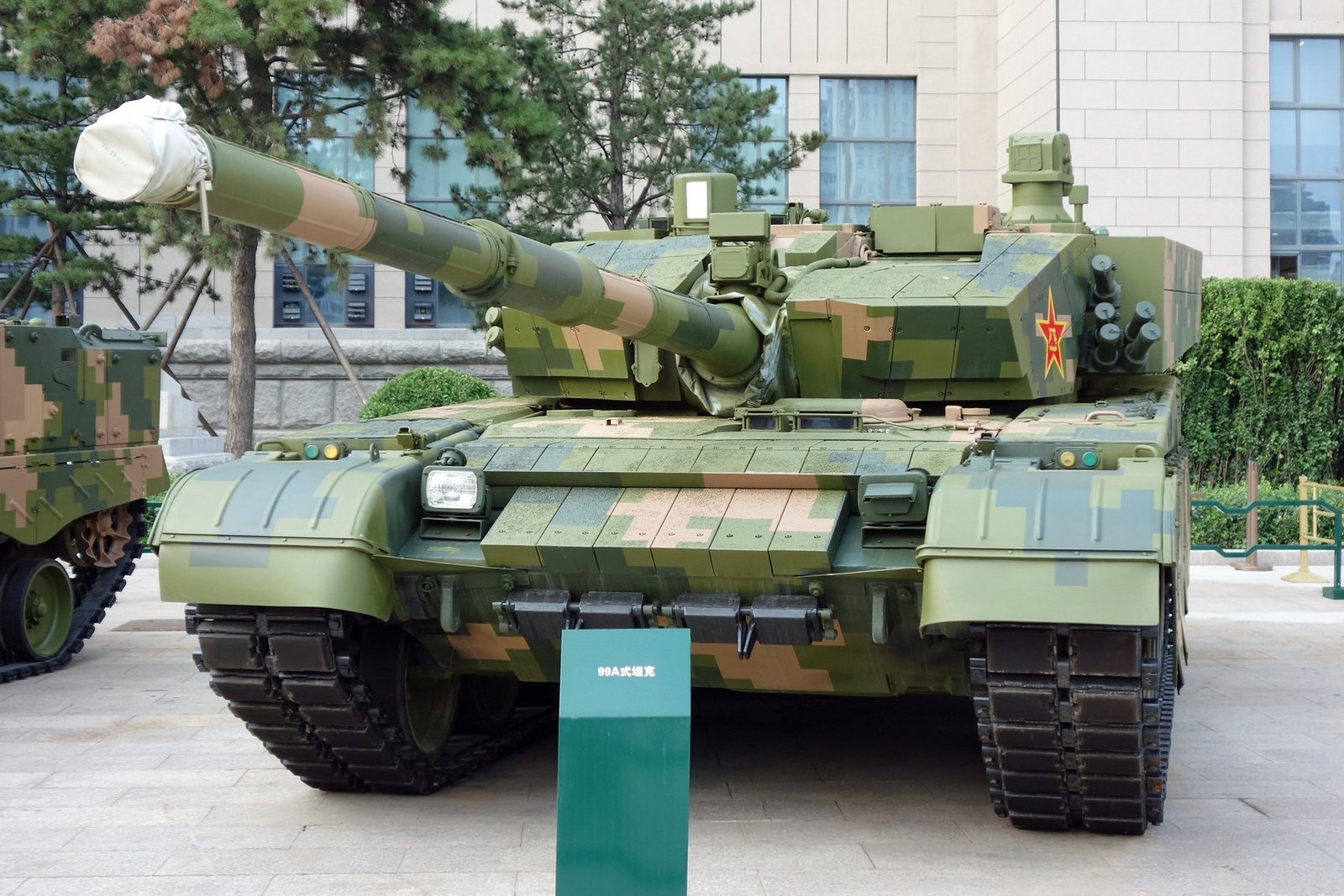

ZTZ-99A / Type 99A front view at the Military Museum of the Chinese People’s Revolution during the PLA 90th Anniversary theme exhibition, 2 September 2017. Display vehicle; front armor modules, turret sensors, and gun travel cover visible.Tyg728; Creative Commons Attribution-ShareAlike 4.0 International.

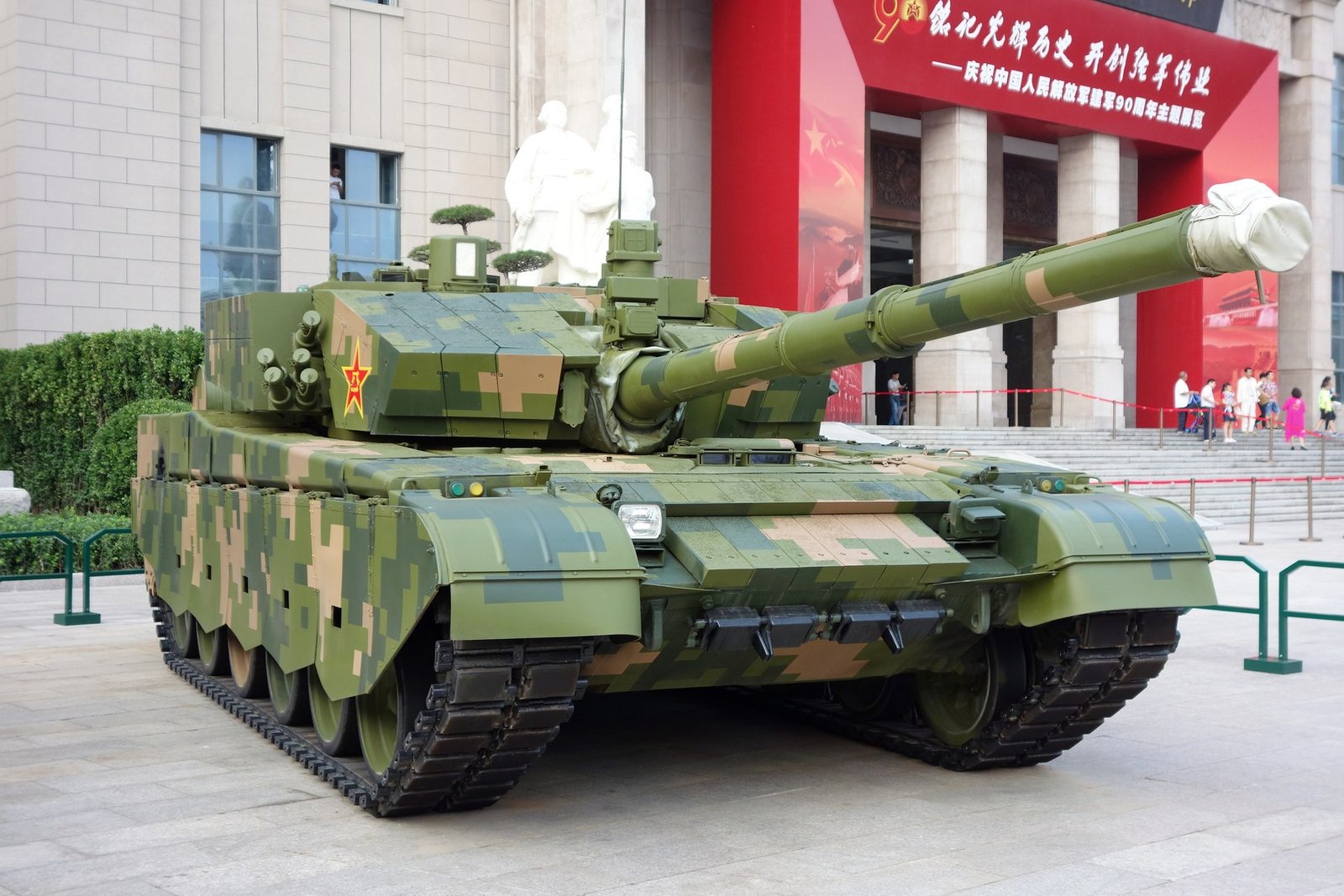

ZTZ-99A / Type 99A front-right view at the Military Museum of the Chinese People’s Revolution, 2 September 2017. Strong reference for Type 99A turret shape, side armor, and hull glacis arrangement; display context.Tyg728; Creative Commons Attribution-ShareAlike 4.0 International.
