Type 61

Historical overview

The Type 61 was Japan's first postwar domestic tank and the first main battle tank fielded by the JGSDF. Development began in 1955, the STA prototype sequence ran through the late 1950s, the vehicle was accepted in 1961, and production continued until 1975. The cited sources records 560 production tanks, and this figure is independently repeated by several external sources, including Tank-AFV, Military Factory, and an official JGSDF 7th Division history snippet. ^{1, 3, 5}

Its importance is not that it represented a world-leading 1960s tank. It did not. Compared with contemporaries such as the M48 Patton, T-54/55, Centurion, and later Leopard 1, the Type 61 had limited armor, a 90 mm gun rather than the 100-105 mm weapons that soon became standard, a short road range, no modern gun stabilization, no integral NBC protection, and conservative automotive arrangements. Its historical significance lies in the recovery of Japanese armored-vehicle design capacity after demilitarization, the reconstitution of a domestic defense-industrial base, and the creation of a technological bridge to the Type 74, Type 90, and Type 10 families. ^{1, 4, 10, 11, 12}

The major family branches are the STA-1 through STA-4 prototypes, the standard Type 61 production tank, possible production-batch improvements sometimes summarized in the cited sources as Type 61 B, and two support derivatives: the Type 67 armored vehicle-launched bridge and the Type 70 armored recovery vehicle. Sources

Operationally, the Type 61 was a homeland-defense and training tank. It appears to have seen no combat. It served with JGSDF armor units through the Cold War, was gradually replaced by the Type 74, and was retired by the end of the 1990s or in 2000 depending on whether one is speaking of a particular unit, disposal action, or the type as a whole. A JGSDF 13th Brigade unit history states that the 13th Tank Battalion received the Type 61 in March 1972, held a closing ceremony in 1996, and disposed of its final Type 61 in 1999; broader reference sources generally state all Type 61s were decommissioned by 2000. ^{1, 2, 5}

The Type 61 was a modest, context-specific tank that was strategically more important than it was tactically impressive. It was adequate for Japan's limited defense posture and industrial circumstances, but it was already obsolescent against the best tanks of the 1960s. Its true value was as a domestic design school, production base, and institutional bridge to more capable Japanese tanks. ^{1, 4, 10}

Japan's armored-vehicle industry effectively stopped after the 1945 surrender. The postwar occupation and demilitarization period broke institutional continuity, while the later Korean War forced a partial reversal: Japan rearmed through the National Police Reserve, National Safety Force, and finally the JGSDF. Early JGSDF armored units relied on U.S.-supplied M24 light tanks, M4 Sherman medium tanks, and later M41 light tanks. These gave Japan a training base, but they were foreign, aging, mechanically worn, and not optimized for Japanese crews or infrastructure. ^{2, 4}

The military problem was not simply "buy a tank." Japan's defense posture was constrained by pacifist politics, domestic roads and bridges, railway loading limits, mountainous terrain, soft ground, and the difficulty of maintaining U.S. Wartime vehicles during and after the Korean War. Japanese officials and JGSDF armor officers therefore had to balance firepower against transportability and domestic industrial feasibility. TrafficNews summarizes this context by noting that M47 and M48 tanks were not expected to be available for Japan in the required numbers and were also too large for Japan's domestic transport environment. ⁴

Doctrine also mattered. The new tank was intended for homeland defense rather than expeditionary armored maneuver. It needed enough gun power to counter likely Soviet-designed medium tanks, especially after Korean War lessons showed the inadequacy of light-tank guns against T-34/85-class threats. The 25-ton early concept therefore gave way to a 35-ton vehicle with a 90 mm gun. This was a compromise: heavy enough to carry a serious antitank weapon, yet lighter and narrower than many Western contemporaries. ^{1, 4}

Procurement was politically delicate. JGSDF tanks were often discussed under euphemistic terminology in the early postwar period, and the Defense Agency had to rebuild armored forces under constitutional and public-opinion constraints. The Type 61 emerged from this unusual environment as both a weapon and an industrial policy instrument. It allowed Japan to relearn hull, turret, gun integration, engine, transmission, and armored-vehicle production skills inside a constrained national-defense framework. ^{4, 7, 10}

Development and variants

Published accounts describe the Type 61 as a tank family centered on the production Type 61 and its direct development line. Included are the STA-1, STA-2, STA-3, and STA-4 prototypes; the production Type 61; documented late-service equipment additions such as infrared searchlights or smoke grenade launchers where source support exists; the Type 67 AVLB; the Type 70 ARV; JGSDF operator/service history; production and retirement; and surviving/display vehicles where usable sources exist. ^{1, 2}

Excluded from the core family are the STB-1 through STB-6 prototypes and the Type 74 production tank. The STA sequence is the Type 61 development path, while the STB sequence belongs to the Type 74 path. The STB/Type 74 line is therefore discussed only as successor context. Sources

The Type 61 is generally classed as a main battle tank because it served as the JGSDF's principal tank and because Cold War-era sources often classify national medium/heavy convergence vehicles as MBTs. Some references also describe it as a medium tank, which is understandable: at roughly 35 tonnes, armed with a 90 mm gun, and lacking second-generation MBT features such as stabilization and NBC protection, it was closer in performance philosophy to late medium tanks than to the heavier M48/M60 line. The classification used here is "first-generation / early MBT; medium-tank characteristics.". ^{1, 5}

The specialized Type 67 AVLB and Type 70 ARV are not counted as tanks in the main production total unless a source explicitly includes them. They are retained because the cited sources treats tank-chassis support vehicles as specialized derivatives, and because they are important to the Type 61 chassis legacy. ^{8, 9}

The cited sources records the Type 61 family development span as 1955-1961 and lists the STA prototypes as the parent lineage. External Japanese-language reporting identifies the Defense Agency Technical Research and Development Institute as the central development authority, with Mitsubishi Heavy Industries responsible for major vehicle design and production work and Japan Steel Works involved in gun development and manufacture. ⁴

The tank was not a direct copy of a U.S. Patton, but it was U.S.-influenced. Japanese engineers studied American tanks and tank destroyers, including the M36 and M47/M48 context, while also drawing from domestic wartime experience and industrial habits. Tank-AFV identifies U.S. influence in the 90 mm gun and automotive/chassis layout, but also emphasizes Japanese manufacture and adaptation. ^{1, 4}

The cited sources lists four direct Type 61 prototypes: STA-1 in 1956, STA-2 in 1957, and STA-3/STA-4 in 1959. The first pair explored early design alternatives; the later pair moved closer to the adopted production configuration. The source base for fine prototype-by-prototype differences remains less certain in the cited sources because it relies partly on secondary references and the cited sources; Japanese monographs by Hayashi and by Furuze/Ichinohe are recommended for full prototype geometry and trial results. ¹

The decisive design movement was from a light 25-ton concept toward a 35-ton 90 mm-gun tank. TrafficNews attributes this to Korean War lessons and the realization that a 25-ton vehicle could not practically carry the required gun and protection. The production Type 61 was therefore a deliberate compromise: more capable than a light tank, lighter than many Western MBTs, and sized for Japan's transport and terrain limits. ⁴

The Type 61 was accepted into service in April 1961, and the "61" designation reflects the year of adoption under the Japanese era/year-based designation pattern. ^{1, 7}

Production continued from 1961 to 1975, with 560 tanks recorded in the cited sources and repeated by multiple external sources. Early production was reportedly slow, and broader secondary references commonly state that production accelerated later, reaching 250 by 1970 before final output reached 560. The cited accounts do not firmly establish the exact annual production schedule. ^{1, 3, 5}

Design and performance

The Type 61 used a conventional four-man tank layout: driver in the hull, commander, gunner, and loader in the turret, main armament in a central rotating turret, and the engine at the rear. The vehicle retained a front-drive arrangement, with the transmission/drive components forward and accessible through hull panels. This layout reflected both U.S. influence and Japanese experience, but it also produced a reputation for difficult driving and maintenance compromises. ^{1, 4, 9}

The hull was welded steel, relatively compact, and designed with Japanese infrastructure constraints in mind. The driver sat at the front right, with three forward vision periscopes. The transmission was to the driver's left and could be serviced through a removable front panel. The front-drive layout is visually evident in the forward drive sprockets shown in surviving examples. ¹

The turret was cast steel with a prominent rounded form, a rear bustle, a commander's domed cupola, and a conspicuous T-shaped muzzle brake on the 90 mm gun. The commander and gunner sat on the right side of the turret, with the loader on the left. Tank-AFV identifies the commander's stereoscopic rangefinder and the gunner's optical sights as key features. ¹

Most accessible sources cite armor in the general range of about 55 mm on the hull front and up to 114 mm on the turret face. ^{1, 5}

The main weapon was the Japanese Type 61 90 mm L/52 rifled tank gun. It was U.S.-influenced and related conceptually to the American 90 mm tank-gun family, but it was a Japanese-produced weapon, with Japan Steel Works identified in Japanese sources as a key gun industrial participant. Tank-AFV cites a muzzle velocity of about 910 m/s for M318 AP-T ammunition. ^{1, 4}

Secondary weapons were a 7.62 mm coaxial Browning M1919A4-type machine gun and a 12.7 mm M2 heavy machine gun for antiaircraft or commander’s-hatch use. Later vehicles or fielded configurations often show smoke dischargers, and sources note infrared searchlights and smoke dischargers as later additions, but these is distinct from a comprehensive modernization program. ^{1, 5}

Common sources list approximately 50 rounds for the 90 mm gun. Tank-AFV notes that 18 rounds were stowed in the rear bustle with the remainder distributed inside the hull. Exact ammunition mix varied by period and remains an unresolved question in the cited sources; likely categories included armor-piercing and high-explosive types compatible with the Japanese 90 mm system. ¹

The Type 61 had optical fire-control features appropriate to the late 1950s but lacked a modern stabilized gun system. Tank-AFV describes a commander's stereoscopic rangefinder with 7x magnification and a gunner's 6x sight/periscope arrangement. Absence of stabilization meant that firing accurately on the move was a weakness compared with later MBTs. ¹

The engine was the Mitsubishi 12HM21WT, a V-12, air-cooled, turbocharged diesel rated around 570 hp at 2,100 rpm with a displacement of about 29.6 liters. It drove a conventional tracked chassis through a Mitsubishi manual transmission and front drive. Multiple sources repeat the 570 hp figure. ^{1, 5, 6}

The suspension was torsion-bar, with six road wheels per side and three return rollers. Tank-AFV identifies shock absorbers on the front and rear roadwheel pairs. Road speed is commonly quoted at about 45 km/h, with range around 200 km. With 570 hp and a 35-ton weight, the power-to-weight ratio was roughly 16.3 hp/tonne, respectable but not exceptional. ^{1, 5}

The four-man arrangement avoided the older five-man medium-tank layout and omitted a bow machine-gunner position. One design objective was to suit Japanese crews better than U.S.-supplied Second World War vehicles, which were physically large and mechanically worn by the time Japan operated them. Even so, veteran and secondary accounts characterize the Type 61 as difficult to drive, largely because of its transmission and steering arrangements. ^{4, 9}

Tank-AFV identifies radio equipment in the rear turret bustle, with antennae mounted on the bustle. Detailed JGSDF radio fit by production batch remains an unresolved question. Detailed operational and model-specific equipment information is not fully established by the cited public sources. ¹

The Type 61 did not have modern composite armor, integral NBC protection, or a deep-forging system comparable to later Cold War MBTs. Later additions such as infrared searchlights and smoke grenade launchers improved night fighting and survivability modestly, but did not solve the basic protection problem. ^{1, 5}

The Type 61's strongest maintainability advantage was national ownership of the design and supply chain. Its weaknesses were equally clear: short range, modest armor, lack of stabilization, limited growth margin, difficult driving characteristics, and conservative design elements that made it look dated soon after adoption. None of this makes the Type 61 a failure; it reflects the constraints of a country rebuilding an armored-vehicle industry while trying to avoid a tank too large for its roads, bridges, railways, and budgets. ^{1, 4, 9}

Type 61 accounts also quote a maximum armor value of 64 mm, depending on the surface and component described. Published summaries do not form a complete, consistent armor plan. ^{1, 5}

Production, operators, and combat record

Mitsubishi Heavy Industries was the primary vehicle manufacturer, while Japanese reporting identifies Japan Steel Works as a gun-development/manufacturing participant. The Type 61 therefore reestablished a domestic industrial chain for hull, turret, automotive, gun, integration, and sustainment work after a decade of reliance on U.S.-supplied vehicles. ^{2, 4}

The total production figure is one of the most stable facts in the cited sources: 560 Type 61 tanks. The cited sources, Tank-AFV, Military Factory, and the JGSDF 7th Division search snippet all converge on 560, with production ending in 1975. This makes the production quantity well-documented. ^{1, 3, 5}

The production timeline is less granular. Secondary sources commonly describe slow early output, followed by higher production in the late 1960s and early 1970s. The cited accounts do not firmly establish the specific annual figures often repeated in English-language summaries. For now, Published accounts describe annual production distribution as less certain and total production as well-documented. ^{1, 7}

Industrial constraints included limited postwar experience, budgetary caution, and the need to create a tank that could be used on Japanese roads, bridges, training areas, and rail networks. The resulting vehicle did not match the largest Western MBTs, but it fit a domestic industrial and logistical niche. Mitsubishi's modern defense-vehicle material documents continuity of the business, not Type 61 production quantities. ^{4, 10}

The Type 61 was a Japanese-only operational tank. The cited sources lists Japan as the operator with service beginning in 1961 and retirement to verify around 2000. External sources likewise describe JGSDF-only use and no export operational users. ^{1, 5}

The official JGSDF 13th Brigade page provides useful unit-level evidence. It states that the 13th Tank Battalion received the Type 61 in March 1972; that the Type 61 was the first postwar domestic tank and that Mitsubishi Heavy Industries was responsible for development; that a closing ceremony was held in 1996; and that the last Type 61 in that unit was disposed of in 1999. This is unit history, not necessarily the final disposal date for every Type 61 in the JGSDF. ²

Most broader summaries state that all Type 61s were decommissioned by 2000. The reported position is therefore: "withdrawn during the 1990s and retired from JGSDF service by 1999-2000, depending on unit versus type-level framing.". ^{1, 2, 5}

Captured use, Lend-Lease use, or combat transfer use: none identified. Museum and display transfers are not operational users. Surviving vehicles are displayed at several Japanese camps and schools, and at least one source reports an example in the Royal Tank Museum in Jordan. The latter claim remains unconfirmed. ⁵

No combat use is documented. The Type 61 served in Japan and in training; photographs show tanks participating in the bilateral Orient Shield exercise at Camp Fuji in 1985. ¹

Tactically, the Type 61 is best understood as a defensive tank for the JGSDF's armored units. It was designed to give Japanese forces a domestic direct-fire platform capable of engaging contemporary medium tanks while fitting domestic terrain and infrastructure. It was not designed as an expeditionary breakthrough tank and was never tested in war. ^{1, 4}

Strengths in service were domestic maintainability, reasonable mobility for its size, a useful 90 mm gun by late-1950s standards, and dimensions suited to Japanese constraints. Weaknesses were modest armor, limited range, no gun stabilization, no modern NBC protection, and a conservative powertrain/drivetrain layout. Secondary technical accounts describe those limitations in the context of the vehicle's requirements and period. ^{1, 4, 9}

Legacy and historical evidence

The Type 61 belongs in comparison with late first-generation MBTs and medium tanks: M48 Patton, T-54/55 and Type 59, Centurion, and the slightly later Leopard 1. The comparison highlights the Type 61's central trade: it was smaller and nationally tailored, but it was neither heavily armored nor technically advanced by the standards of the best early-1960s tanks. ^{1, 11, 12}

The 90 mm gun addressed the late-1950s requirement but was overtaken by the 100–105 mm standard. A 570 hp engine in a roughly 35-tonne vehicle gave useful mobility, although range and transmission handling were limitations. Protection, fire control, and stabilization were modest by later MBT standards. Its enduring significance was Japan’s recovery of domestic tank production rather than worldwide numerical impact. ^{1, 4, 11, 12}

The Type 61's legacy is industrial and institutional. It rebuilt a domestic tank design and manufacturing chain after postwar demilitarization and U.S.-supplied interim vehicles. The Type 74 that followed was far more technically ambitious, with a 105 mm gun and hydropneumatic suspension, but it depended on the experience, organizations, and industrial relationships reestablished in the Type 61 program. ^{1, 4, 10}

Doctrinally, the Type 61 reinforced a Japanese pattern: tanks had to be designed around national terrain, transport infrastructure, and defensive deployment rather than simply around global fashion. This theme appears again in later Japanese tanks, especially in the emphasis on mobility and domestic operational fit. ^{4, 10}

Surviving vehicles have become historical markers at JGSDF camps, schools, and museums. The photographs shows preserved examples at the JGSDF Ordnance School, Camp Imazu, and Camp Senzo, plus a 1985 service-exercise photograph. Sources

Common misconceptions include treating the Type 61 as merely a "bad Patton," assuming it was a second-generation MBT, or assuming the Type 61 B is an established major variant. A more accurate reputation is that it was a necessary first step: conservative, imperfect, and limited, but historically consequential. ^{1, 4}

The source base is good for broad identification, production total, service period, layout, and major technical features. It is weaker for prototype-by-prototype details, exact armor scheme, annual production distribution, production costs, and formal late-production subvariant designations. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

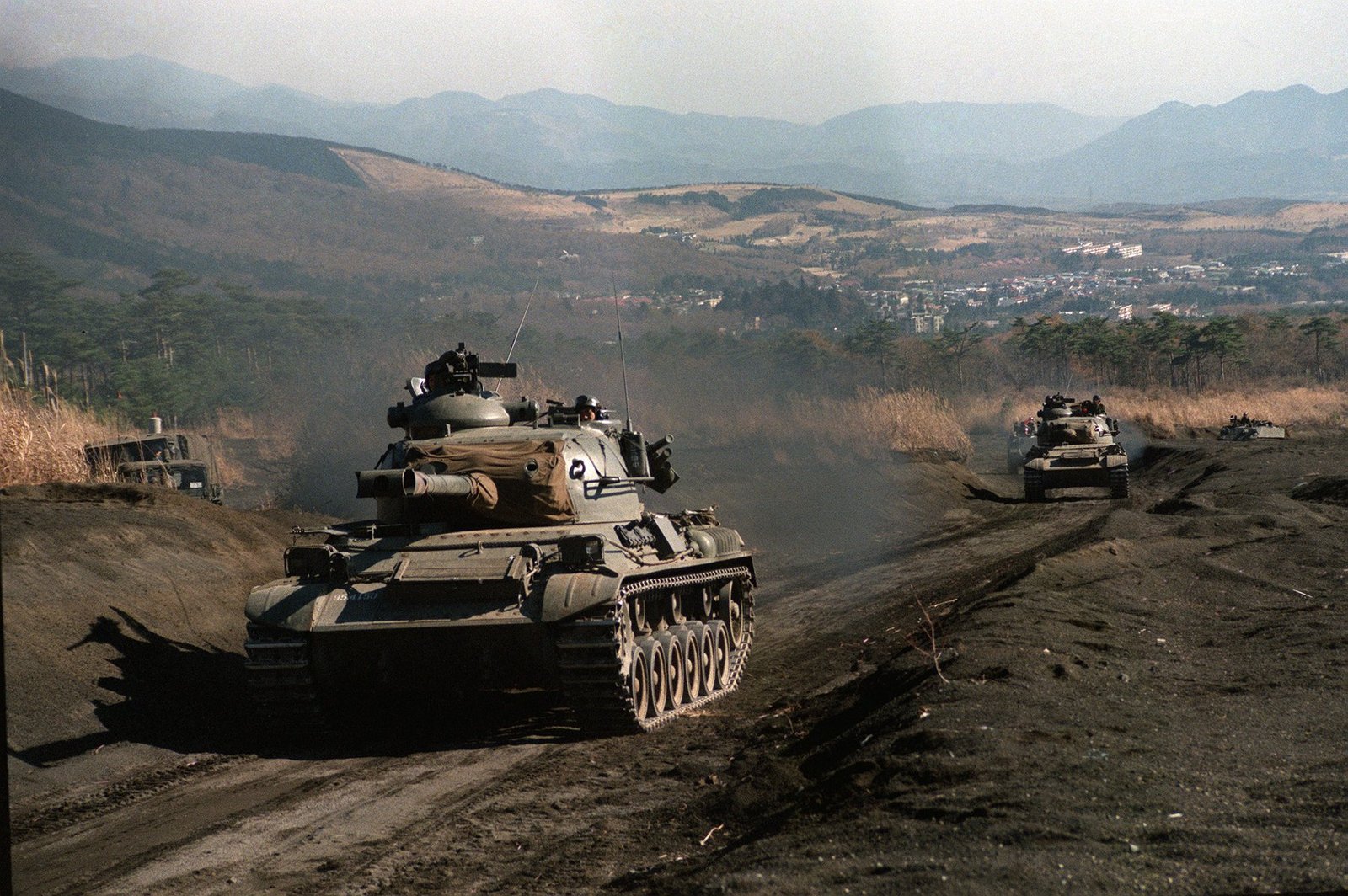

JGSDF Type 61 tanks moving into position during bilateral Exercise Orient Shield at Camp Fuji, Japan, 18 November 1985.JGSDF Type 61 tanks moving into position during bilateral Exercise Orient Shield at Camp Fuji, Japan, 18 November 1985. Vehicle/variant: Type 61 production tanks in service exercise. Date: 18 Nov. 1985. Location: Camp Fuji, Japan. Source: U.S. Department of Defense media via Wikimedia Commons, source ID DASC8604498. Creator/photographer: Al Chang. License/reuse: public domain as U.S. military work. URL: https://commons.wikimedia.org/wiki/File:Type_61,_Exercise_Orient_Shield,_18_nov._1985.jpg. Notes: valuable service-context image; original caption identifies Exercise Orient Shield. [S9].Image source

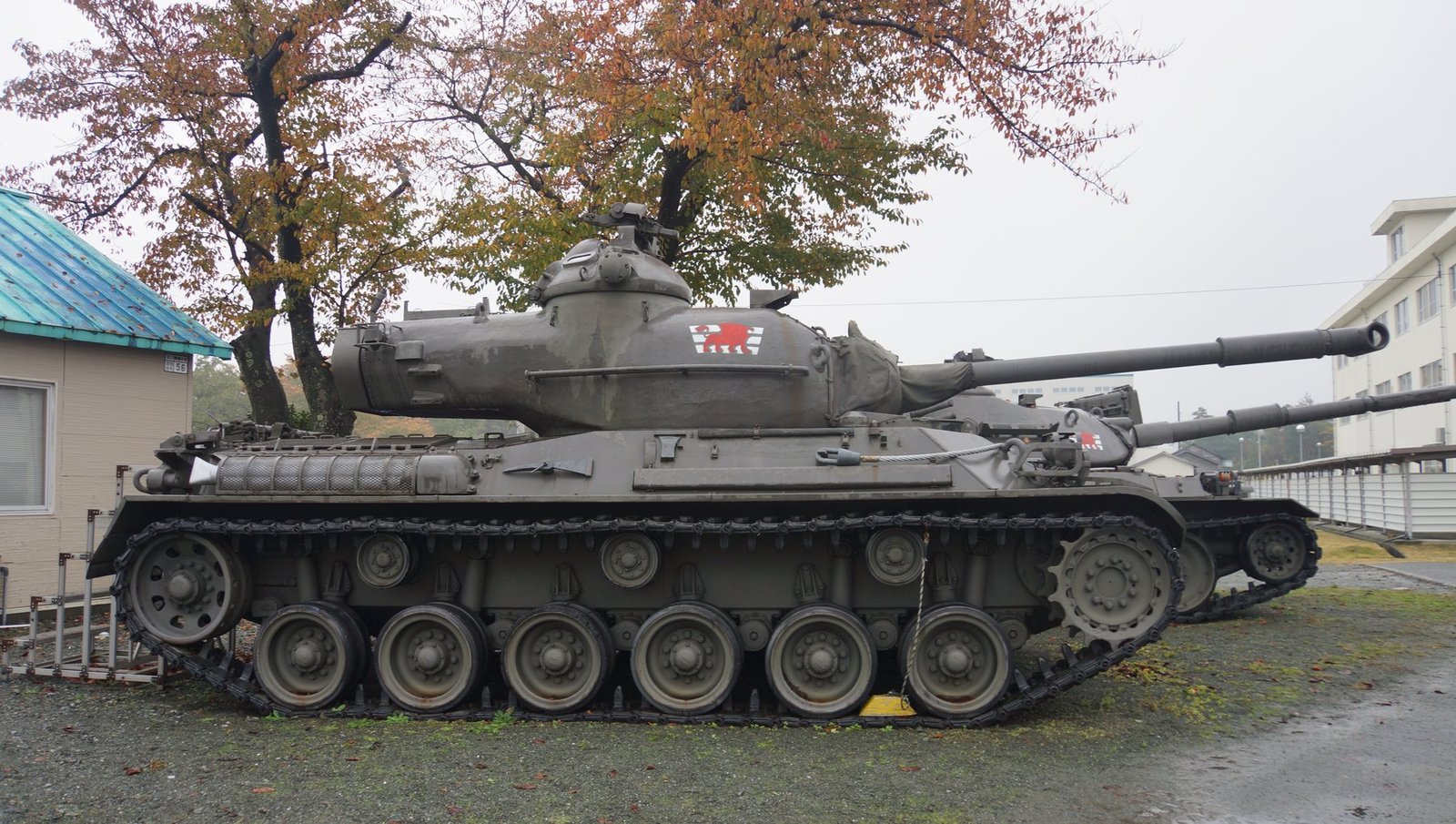

Right-side view of a preserved JGSDF Type 61 at Camp Imazu, photographed 9 November 2014.Hunini. · Creative Commons Attribution-ShareAlike 4.0 International.Image source

Right-rear view of a preserved JGSDF Type 61 at Camp Senzo, photographed 19 May 2013.Hunini. · Creative Commons Attribution-ShareAlike 4.0 International.Image source

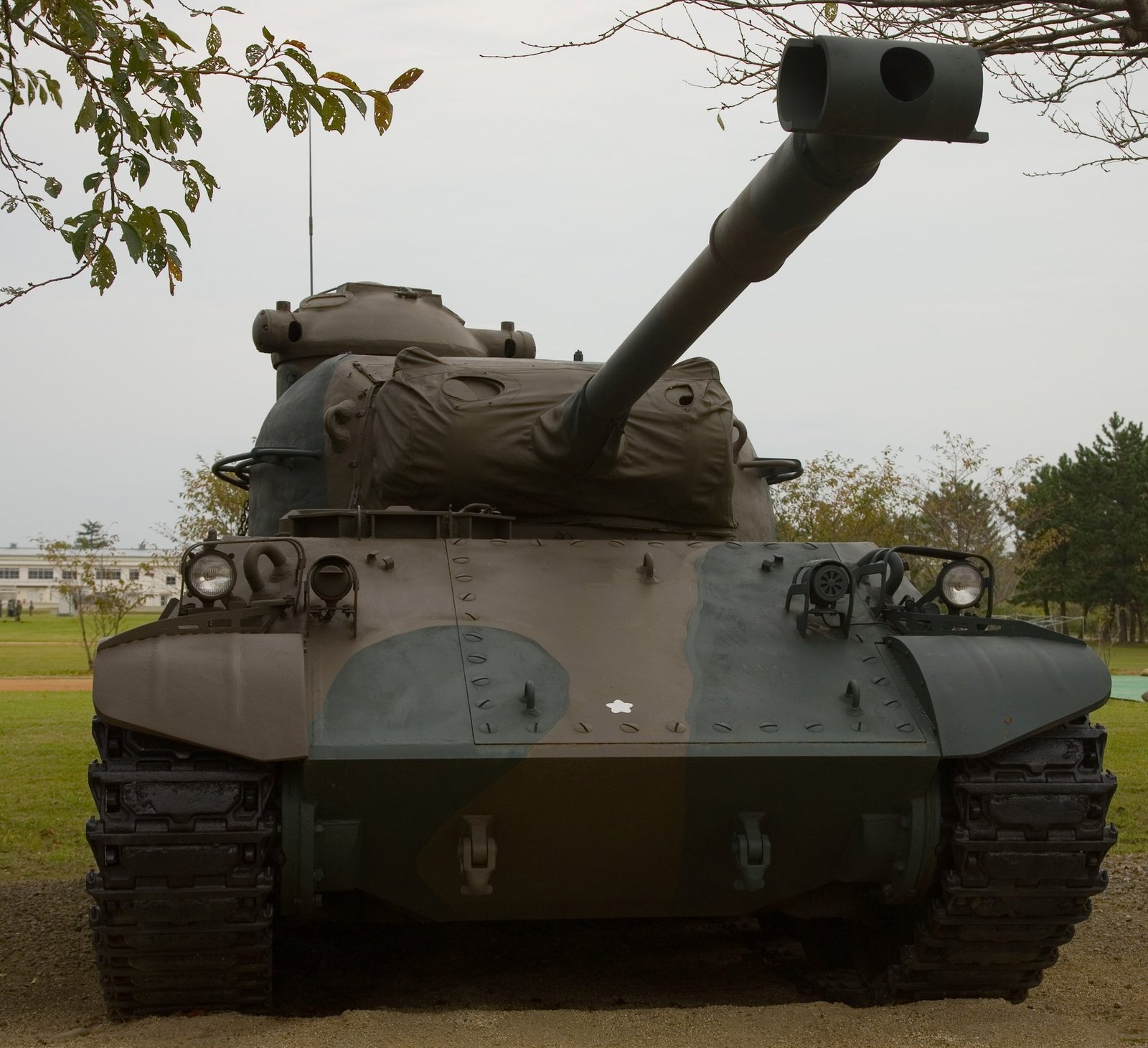

Front view of a Type 61 at the JGSDF Ordnance School, showing the 90 mm muzzle brake, glacis, driver area, and turret front.Max Smith / User:Megapixie. · public domain self-release.Image source
