A practical infantry tank built for an emergency
The Valentine was important less because it introduced a radical technical idea than because Britain could build it in useful numbers at a moment of extreme need. Vickers combined infantry-tank protection with mechanical arrangements derived from known cruiser-tank practice, producing a compact vehicle that could enter manufacture without the long development cycle demanded by a clean-sheet design. That decision imposed lasting compromises. The early turret was crowded, growth space was limited, and road speed remained modest. In return, the tank offered a low silhouette, substantial armor for its weight and a reputation for comparatively dependable service. Sources
Valentine variants differed in engine, armament, crew arrangement, and other details. These included early petrol and diesel tanks, three-man-turret versions, Canadian production, and later 6-pounder and 75 mm configurations. Totals also differ according to whether they cover turreted tanks or include chassis derivatives. Sources
Design compromise and limited growth
The Valentine emerged from Britain’s distinction between infantry and cruiser tanks. It was expected to accompany infantry, cross obstacles and endure fire rather than conduct high-speed exploitation. A roughly sixteen-ton design limit shaped the entire vehicle. The hull could carry useful armor, but the compact turret and automotive package left little reserve for larger weapons, more crew space or extensive later redesign. Early two-man-turret vehicles forced the commander to combine observation and command with gun work, while the three-man-turret marks improved workload only by accepting other space and weight compromises. Sources
Published accounts give both a roughly 60 mm design framing and maximum figures near 65 mm; neither is reported as uniform armor over the vehicle. The 2-pounder was a credible early-war antitank weapon, but the absence of a generally useful high-explosive round sharply limited infantry-support flexibility. Fitting the 6-pounder improved antitank performance but created new internal compromises, including the loss of a coaxial machine gun on many Mk IX vehicles. Later corrections and the 75 mm Mk XI improved particular capabilities without turning the hull into an unconstrained late-war medium tank. Sources
Marks, engines and production networks
The mark sequence records a series of practical substitutions rather than a single straight line of improvement. Early AEC petrol and diesel engines gave way in some production to General Motors diesels; transmissions, radios, machine guns and fuel arrangements also varied. Their three-man turrets reduced the commander’s burden. Canadian Mk VI and VII-series vehicles were not merely British tanks with a different national label: Canadian Pacific Railway’s Angus Shops used Canadian and American components and produced vehicles primarily for overseas supply, while only a small portion remained in Canada for training. Sources
The overall turreted-tank total is commonly stated around 8,275, while museum and secondary summaries also use more than 8,200 or roughly 8,300. Those are not automatically contradictory if they use different rounding and derivative rules. Mark-level totals are less secure, and contract totals do not always equal completed or accepted vehicles. The industrial achievement lay in distributing manufacture among Vickers-Armstrong, Metropolitan-Cammell, Birmingham Railway Carriage and Wagon, and the Canadian program. This breadth made Valentine available at scale, but it also complicates any attempt to assign one universal engine, equipment set or production detail to the entire family. Sources
Service from North Africa to Lend-Lease fronts
Valentines fought with British and Commonwealth forces in North Africa and later appeared in Burma and the Pacific. Their small profile and armor were useful, while low speed, cramped working conditions and the limitations of 2-pounder ammunition reduced tactical flexibility. The arrival of better-armed British and American tanks progressively displaced the Valentine from the principal British gun-tank role, but that transition was not instantaneous. Different marks and specialized vehicles remained useful after the standard tank was no longer a preferred front-line type. Sources
The Soviet Union became one of the most important operators, receiving British- and Canadian-built vehicles under Lend-Lease. The account appropriately distinguishes numbers sent, delivered, received, issued and lost in transit; these categories cannot be combined into a false exact total. Soviet assessments described useful reliability and compactness while also criticizing track behavior, gearbox problems, spare-parts support and the early lack of high-explosive ammunition. The cited accounts do not firmly establish Canadian and New Zealand service. A national production total is not an operator inventory, and photographs of exported vehicles cannot by themselves establish unit, date or combat outcome. Sources
A chassis with a second career

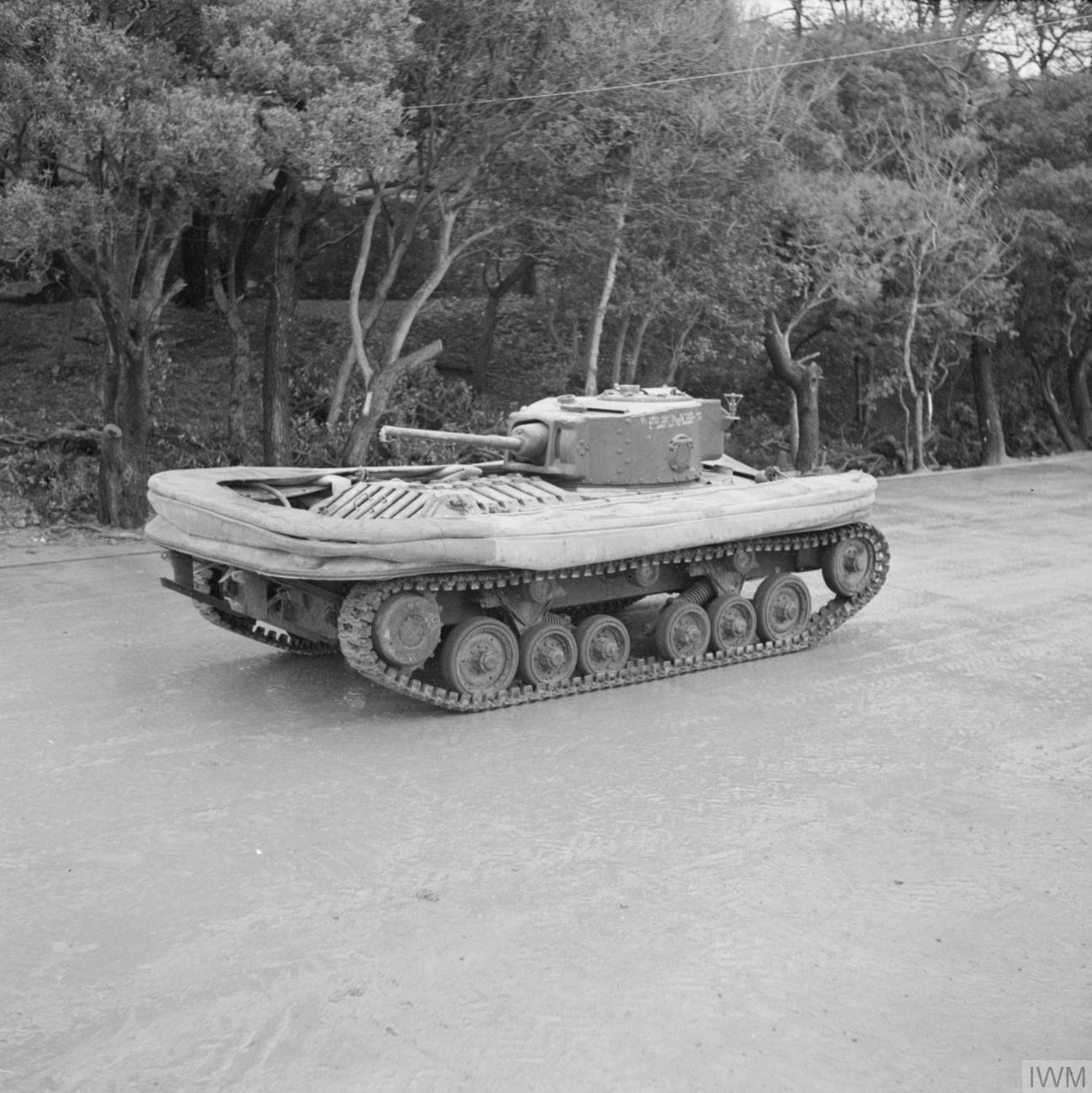

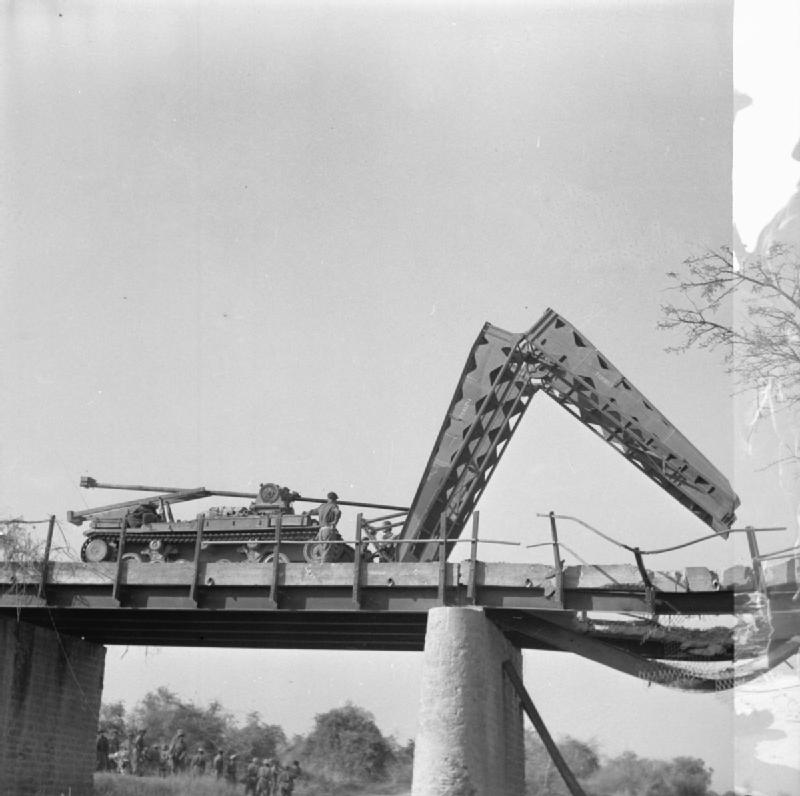

The Valentine’s continued value is clearest in the vehicles developed from its chassis. Duplex Drive Valentines were central to amphibious training, but they are separate from later Sherman DD combat use and from uncertain conversion totals. Valentine bridgelayers removed the turret and carried engineering equipment; Bishop placed a 25-pounder in a high fixed superstructure; Archer mounted the 17-pounder facing to the rear. These vehicles belonged to the Valentine technological family while serving roles different from a conventional turreted tank. Sources
That distinction matters for both writing and counting. A converted chassis is not a second newly manufactured tank, and a self-propelled gun cannot be folded into a gun-tank total without an explicit source rule. The Archer’s production appears as approximately 665 in one museum account and 655 elsewhere, while DD and bridgelayer quantities also vary. Published accounts give relationships and disputed numbers, although the exact production chronology remains uncertain. The A38 Valiant remains a separate prototype and not a late Valentine mark, even though it belongs in the broader discussion of British assault and infantry-tank development. Sources
Assessment, evidence limits and image use
The Valentine succeeded as a wartime compromise. It was not fast, spacious or easily up-gunned, yet it combined protection, manufacturability and reliability more effectively than several contemporary British designs. Its value changed over time: as an early emergency gun tank it filled a dangerous gap; as enemy weapons improved it became increasingly constrained; as an exported, training, engineering and self-propelled-weapon chassis it remained useful. A single label such as obsolete or successful therefore conceals the chronology that explains the family. Sources
Several core questions remain open. Detailed production accounting remains uncertain. The cited accounts do not firmly establish armor maxima, Archer output and DD conversion counts. The seven images are candidates only. A photograph of an Archer or bridgelayer illustrates a family branch, not proof that those vehicles were standard turreted Valentines or already approved in the cited record. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- B1 — The Tank Museum, “Valentine” collection page
- B2 — David Fletcher, The Tank Museum, “Valentine: What’s in a name?”
- B3 — Imperial War Museums, object H 6556, “THE VALENTINE TANK”
- B4 — Juno Beach Centre, “Canadian-built Tanks”
- B5 — Canadian War Museum collection record, Valentine tank artifact
- B6 — The Canadian Encyclopedia, “Valentine Tank”
- B7 — WW2DB, “Infantry Tank Mk III Valentine”
- B8 — Armor Archives, “Infantry Sweet Spot”
- B9 — Armor Archives, “A Turret for Three”
- B10 — Armor Archives, “Long Barrel for Infantry Tanks”
- B11 — Armor Archives, “Canada’s Valentines”
- B12 — Armor Archives, “Lend Lease Impressions: Valentine”
- B13 — Oorlogsmuseum Overloon, Valentine Bridgelayer exhibit page
- B14 — National Army Museum collection, “A Scissors bridge, Kiel, Germany, 1945”
- B15 — Queen’s Royal Hussars Museum, “Valentine Archer”
- B16 — Tank-AFV.com, “Bishop QF 25-pdr SPG”
- B17 — Wikimedia Commons / IWM KID 893, Valentine IX image
- B18 — Wikimedia Commons / IWM source, Valentine Mk III Tunisia 1943 image
- B19 — Wikimedia Commons / IWM H 35169, Valentine DD Gosport image
- B20 — Wikimedia Commons / IWM SE 3429, Valentine bridgelayer near Meiktila image
- B21 — Wikimedia Commons, Archer SP 17-pdr image
- B22 — Wikimedia Commons / Tyne & Wear Archives & Museums, Valentine tanks on assembly line
- B23 — Wikimedia Commons / Library of Congress, Office of War Information, Lend-Lease Valentine image
