A medium tank in its Japanese setting
The Type 97 Chi-Ha became an important Japanese medium tank through its combination of a diesel engine, compact dimensions and a turret-mounted gun. The designation belongs to the Japanese adoption system, not to a claim that every tank bearing a Type 97 label was the same vehicle. The much smaller Te-Ke is a separate design. Likewise, the Japanese medium classification is best understood in its own period and army context rather than treated as evidence of equivalence to the larger European medium tanks encountered later in the war. Sources
The family contains a major change in fighting purpose. The original short 57 mm gun emphasized infantry support, whereas the Shinhoto version’s new turret and higher-velocity 47 mm gun increased its ability to engage armor. That evolution is central to the overview. Command vehicles, engineering adaptations and gun-carrying derivatives are related subjects, but their presence cannot obscure the distinction between a turreted battle tank, a converted chassis and a separately manufactured specialist vehicle. The published production disagreements are therefore retained rather than resolved by indiscriminately adding all related types. Sources
From the Type 89 replacement to Shinhoto
The Chi-Ha emerged from the need to replace the older Type 89 with a more mobile medium tank. Japanese designers and procurement authorities faced competing demands for weight, cost, protection and infantry support. The competing Chi-Ni proposal forms part of that selection history; it was not a production Chi-Ha variant. Accounts place acceptance in 1937 and issue to units in 1938, keeping the designation date distinct from the beginning of widespread service. Sources
Experience against stronger opposition exposed the limits of the original gun’s antitank performance. The response involved more than putting a different barrel in the existing mounting: the Shinhoto branch used a new turret to accommodate a high-velocity 47 mm weapon. The source associates this development with lessons from fighting in China and the Soviet border conflicts. The cited accounts do not firmly establish precise causal and introduction dates. New production and conversion of earlier vehicles also are separate questions. A photograph of a later turret on an older chassis cannot, by itself, prove when the conversion occurred or whether the vehicle appears in a new-build total. Sources
Fighting compartment, gun and protection
The original Chi-Ha carried four crew, with the driver and a hull machine-gunner forward and the remaining crew in the turret. The small fighting compartment imposed overlapping command, observation and weapon-handling duties. Accounts record disagreement over Shinhoto crew numbers, so a later five-man arrangement cannot silently replace the four-man baseline throughout the family. Crew allocation is a configuration question rather than a number to average between sources. Sources
The short 57 mm gun and the longer 47 mm gun served different priorities. Both versions also had machine-gun arrangements that included a rear turret position, an important recognition feature but not a sufficient basis for identifying every subtype. Ammunition stowage figures for one gun cannot be transferred automatically to the other. Protection was relatively modest, with riveted construction and differing plate thicknesses by location. Sources
Diesel mobility and industrial accounting
The diesel installation was a significant feature of the Chi-Ha, but engine output appears in the cited sources under different ratings. A normal operating figure around 150 horsepower and a higher rated figure around 170 horsepower need their conditions and engine versions attached. Selecting one without explanation would create an artificial conflict or exaggerate a particular tank’s performance. Road speeds and published ranges also vary with the test basis. Suspension, maintenance and terrain mattered alongside the headline speed. Sources
Chi-Ha totals differ. One breakdown gives 1,162 original-gun tanks and 930 Shinhoto vehicles, totaling 2,092, while other summaries use 2,208. Conversions can overlap with earlier production rather than add new hulls. The treatment of factory output, acceptance dates, and specialized chassis complicates a precise total. Sources
Service evidence and the limits of photographs
Chi-Ha service extended across several theaters, including China and campaigns in Southeast Asia and the Pacific. The account discusses the original tank’s use in mobile operations and the later gun’s response to more difficult armored opposition. Such breadth cannot encourage a single undifferentiated combat story. Unit, date, gun fit, terrain and opposing equipment changed the meaning of the same family name. Specific claims about a first battle or the exact debut of Shinhoto remain uncertain than a retrospective general summary. Sources

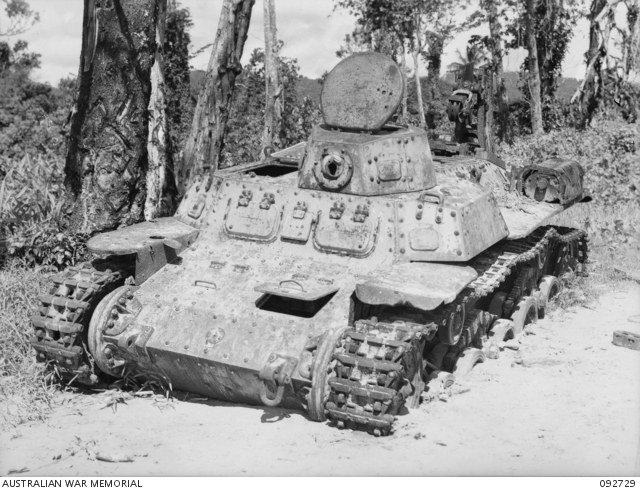

The photographs also represent different moments in a vehicle’s life. Surrender and inspection scenes show captured equipment after fighting, not necessarily a tank in Japanese combat service at the moment of exposure. A damaged engineer-recovery vehicle is valuable evidence for a derivative, but it is not an ordinary production Chi-Ha specification. Captured and postwar use differed from original procurement. These qualifications preserve useful evidence while preventing a recognizable silhouette, a command marking or a collection caption from supplying an unsupported complete vehicle history. Sources
The family’s legacy
The Chi-Ha’s significance lies partly in what could be developed from its chassis and partly in what could not be solved without moving beyond it. A more effective antitank gun and specialist adaptations extended its usefulness, but they did not make the tank equivalent to later, heavier opponents in every condition. Its compact crew space, limited armor and period communications remained relevant constraints. Capabilities varied by version and stage of the war; no single vehicle combined every improvement introduced across the family. Sources

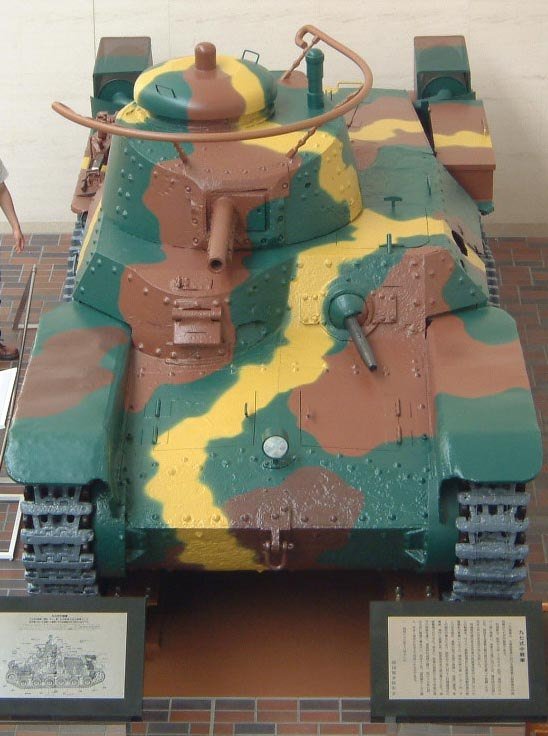

Ho-Ni and other self-propelled guns reused elements of the engineering base; Chi-He and Chi-Nu were distinct later tanks. Preserved Chi-Ha examples may be repainted, restored, or reconstructed from incomplete vehicles, so their present condition does not establish every wartime fitting. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- War Department, Japanese Tank and Antitank Warfare. Special Series No. 34, Military Intelligence Service, 1 Aug 1945.
- War Department, Handbook on Japanese Military Forces. TM-E 30-480, 1944/HyperWar edition.
- Imperial War Museums. Japanese Capture of Singapore, object 1060005218.
- Imperial War Museums. Gurkha Battle in the Imphal Area and Japanese Tank, object 1060032968.
- Australian War Memorial. AWM 097335, Japanese crew bringing Type 97 Chi-Ha to handover at Rapopo, public domain / Commons mirror.
- Australian War Memorial. AWM 097474, Type 97 Chi-Ha at Blanche Bay / New Britain.
- Australian War Memorial. AWM 092729 and related Wewak recovery/engineer tank photos.
- Pacific Wrecks. Type 97 Shinhoto Chi-Ha Medium Tank, National Museum of the Pacific War/Nimitz Museum.
- Wikimedia Commons / Alan Wilson. Type 97 ShinHoTo Chi-Ha - Patriot Museum, Kubinka (38251002671).jpg. CC BY-SA 2.0.
- Wikimedia Commons. Type 97 Chi-Ha with IJA officer.jpg. Public-domain file page; original provenance requires caution.
- Wikimedia Commons / Max Smith (Megapixie). Japanese Type 97 Chi-Ha Tank.jpg. Public-domain file page.
- Trackpads historical compilation, 2026 (unpublished).
