Identity and intended role
The Type 94 TK was a small Japanese tracked armored vehicle intended for supply movement, reconnaissance, security, and infantry-support tasks. Its two-man crew and machine-gun turret made it capable of fighting, but its original utility role is essential to understanding both its usefulness and its limitations. Judging it as though it were designed to perform the work of a medium tank obscures why the Japanese Army acquired it. Sources
Published accounts give a distinction between the 1934 designation or adoption context and the 1935 beginning used in some production and service accounts. Its protected-list year is therefore not a substitute for an independently established first unit-issue date. The cited accounts also contains parallel Japanese family and variant identifiers. The Type 92 tracked cavalry vehicle and the later Type 97 Te-Ke remain distinct subjects. Sources
Development and changing configurations
Japanese interest in small tracked vehicles developed from the need to move equipment and supplies where ordinary motor transport was constrained. The account cites the evaluation of British Carden-Loyd tankettes as part of that background, while treating the Type 94 as a Japanese design rather than a simple relabeling of the British machine. Secondary manufacturer attributions connect it with Tokyo Gas and Electric and the later Hino lineage; the precise contracting and production record is still an unresolved question. Sources
The principal configuration distinction concerns the running gear. Early vehicles used a small raised rear idler, while the later arrangement enlarged and lowered that wheel and extended track contact. Accounts commonly associate this change with 1936, but The available evidence does not establish a complete serial-by-serial transition. These changes is described as production evolution, not multiplied into unsupported official model designations. Sources
Layout, protection, and crew work
The compact hull placed the engine toward the front left, with the driver at the front right and the small turret toward the rear. The rear access arrangement supported the vehicle's stores-carrying purpose. Its size left little division of labor: the second crewman had to observe, command, and operate the turret weapon while coordinating with the driver. The available evidence does not establish a universal radio installation, so a radio-equipped baseline is not established. Sources
The construction combined riveted and welded elements, with relatively thin protection commonly given in the approximate 4–12 mm range. Such armor cannot be identified as proof against every rifle projectile or battlefield condition. The Australian museum assessment and wartime recognition material emphasize the vehicle's vulnerability. Protection depended on projectile, range, impact location, and condition, none of which is settled by quoting the maximum plate thickness alone. Sources
Weapons, engine, and mobility evidence
The armament evidence is not completely uniform. The museum account identifies a 6.5 mm Type 91 machine gun, while the U.S. Wartime handbook uses a 7.7 mm description. The same care is required with experimental chemical or cannon-equipped references: they are not evidence that ordinary Type 94s carried those systems. Sources
Engine and performance figures also come from different contexts. The museum description gives 35 hp, whereas the wartime manual reports 32 hp and a Ford-tractor association. That manual's speed, range, obstacle, and gradient values record an Allied intelligence assessment, not a newly verified Japanese acceptance trial. The revised idler arrangement is visually useful, but it cannot resolve engine identity, fuel consumption, or precise cross-country performance by itself. Sources
Production and the limits of the count
Type 94 TK production is commonly given as approximately 823, with other accounts using around 800 or more. Production is often described as ending around 1940, but a consistent factory-by-factory acceptance record is not established. Sources
The tankette's small size and comparative mechanical simplicity fitted Japan's need for numerous armored utility vehicles. That industrial interpretation does not establish a claim that verified monthly costs or output schedules are available. Factory histories and Japanese procurement records remain necessary to distinguish orders, completed vehicles, army acceptance, and any later alterations without double-counting. Sources
Operators and documented capture
Japan was the original and principal operator. The service material associates the tankette with China, Manchuria, and Pacific theaters, but does not supply a complete issue history for every unit. Manchukuo use remains less securely documented. Captured vehicles in Chinese custody differed from those operated by Japanese-sponsored forces. An image of a formation is a useful lead, not automatically a verified unit inventory. Sources
Allied possession is best treated separately from combat operation. The Australian records cited in the cited sources identify serial 88, captured at Klandasan, Balikpapan, on 1 July 1945 by A Company, 2/9th Battalion, and subsequently sent to Australia. That provides a particular vehicle history with unusual photographic continuity. It does not make Australia an original Type 94 operator or establish that the captured machine was returned to battle by its captors. Sources
Combat use and historical assessment
In the Sino-Japanese conflict, a small tracked machine-gun vehicle could assist infantry, perform security tasks, and accompany supply movements where enemy armored opposition was limited. The published account also makes its limits clear: a single machine gun could not defeat hard targets, the crew was heavily burdened, and thin armor left little margin against antitank weapons. Tactical usefulness in one setting cannot be generalized into suitability for every armored mission. Sources
The Type 94 remained present in forward theaters in 1945, as the Okinawa and Balikpapan capture photographs demonstrate. Those appearances document persistence, not modern battlefield adequacy. The vehicle's history is therefore less a story of a failed main battle tank than of an armored utility design repeatedly employed beyond its modest protection and firepower. The cited accounts do not firmly establish detailed engagement outcomes. Sources
Preservation and the photographic record
The Type 94 survives in collections and recognition imagery, giving the article several different kinds of visual evidence. Period photographs can document running-gear configuration, contemporary fittings, or a particular capture. Modern museum photographs show the condition of a surviving object at the date of photography; they cannot automatically authenticate wartime paint, missing weapons, or every component now fitted. Sources
Serial 88 is especially useful because the account connects wartime capture photographs with its Australian preservation history. The broader legacy is the role of small armored carriers in Japanese mechanization and the danger of pressing limited vehicles into increasingly demanding combat. Claims about design influence or superiority remain uncertain than external resemblance. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- S1 — U.S. War Department, Technical Manual TM-E 30-480, Handbook on Japanese Military Forces, Chapter IX, Tanks and Armored Cars, 1 Oct. 1944; Lone Sentry transcription.
- S2 — U.S. War Department, Technical Manual TM-E 30-480, Handbook on Japanese Military Forces, Internet Archive record.
- S3 — Australian War Memorial, Collection C110503, Type 94 Tankette Model 2594: Imperial Japanese Army.
- S4 — Australian War Memorial, P02125.001, Australian soldiers on captured Type 94 Tankette, Balikpapan, July 1945.

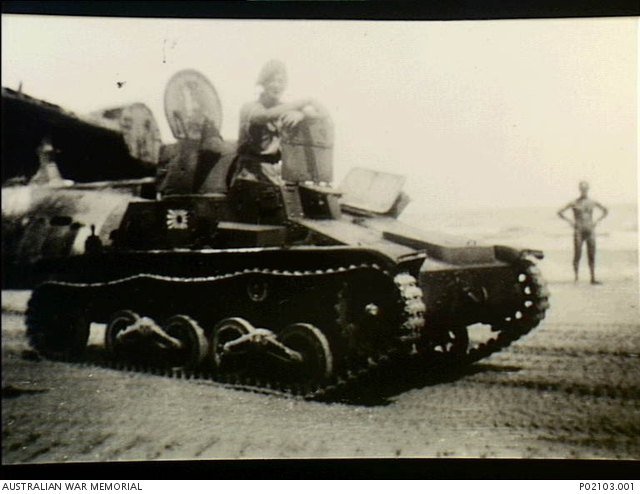

- S5 — Australian War Memorial, P02103.001, Brian Bourke with captured Type 94 Tankette, Balikpapan, c. Aug. 1945.
- S6 — J. Rickard, Type 94 TK tankette, HistoryOfWar.org, 2008.

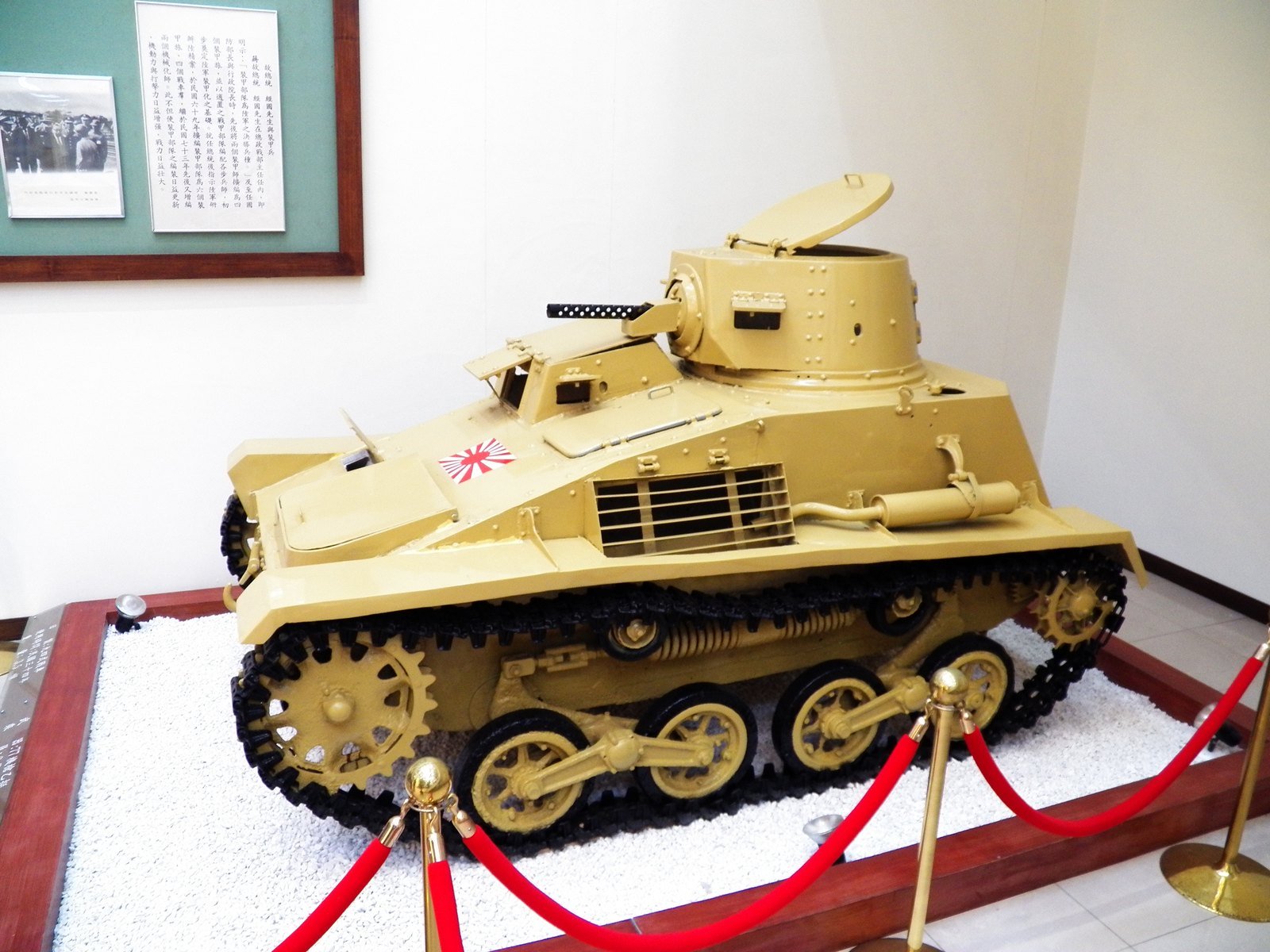

- S7 — Wikimedia Commons, IJA TK Tankette Display at Armor School History Museum 20130302b.JPG; author 玄史生; CC0 public-domain dedication.
- S8 — Wikimedia Commons, Type 94 Tankette at the Treloar Technology Centre September 2016.jpg; author Nick-D; CC BY-SA 4.0.
- S9 — Wikimedia Commons, Type 94 tankette late model.jpg; Imperial Japanese Army image reproduced in Jiro Sayama, public domain in Japan and the United States.
- S10 — Wikimedia Commons, Type 94 TK tankette.jpg; captured at the Battle of Okinawa, public-domain U.S. military image.
- S11 — Wikimedia Commons, Nanjing Government Army Type 94 tankettes.png; historical press image, public-domain China/U.S. status as stated by Commons.
- S12 — Wikimedia Commons, Type 94 TK - Patriot Museum, Kubinka; Alan Wilson, CC BY-SA 2.0; useful as a survivor lead but metadata production count conflicts with stronger sources.
- S14 — Japanese-language secondary reference, combat1.sakura.ne.jp, Type 94 tankette page
