Historical overview
The Type 63 / WZ-211 was a Chinese amphibious light tank developed after China obtained and assessed Soviet PT-76 amphibious tanks in the 1950s. The common chronology begins with a domestic-development decision in October 1958, a troubled Type 60/WZ221 prototype stage in 1959, redesign through Chinese research institutes, and approval/fielding in 1963 under the Type 63 designation. [Tank-AFV; WeaponSystems.net; MilitaryFactory] Sources
Why it mattered: the vehicle gave the People’s Liberation Army and later export users a tracked, turreted direct-fire vehicle that could swim without bridges or ferries. It was especially relevant to southern China, river-crossing doctrine, reconnaissance, and coastal/amphibious contingencies. The Type 63 also shows China’s early Cold War pattern of absorbing Soviet design influences while adapting them to Chinese industrial and doctrinal priorities. [Tank-AFV; Tanks Encyclopedia] Sources
The most important production branches are the early Type 63, the improved Type 63-I with a more powerful 12150L-2 diesel engine, the Type 63-II with night-vision and laser-rangefinder improvements, and the post-Cold-War Type 63A/ZTS-63A family with a redesigned turret, 105 mm gun, upgraded propulsion, and higher-speed ship-to-shore aspirations. Sources
The Type 63 was a useful, inexpensive, and exportable amphibious light tank, but it was always protection-limited. Its strengths were mobility, tactical surprise, water crossing, and an 85 mm gun more powerful than the PT-76’s 76.2 mm armament; its weaknesses were thin armor, modest fire control, limited stabilization in early versions, and vulnerability to heavy machine guns, autocannon, mines, artillery fragments, and modern anti-armor weapons. [Tank-AFV; WeaponSystems.net; MilitaryFactory] Sources
China’s requirement for an amphibious tank developed from geography, doctrine, and Cold War politics. A force operating in southern China, around river deltas, lakes, flooded rice fields, and coastal approaches required a tracked armored vehicle capable of swimming without heavy bridging equipment. The Soviet PT-76 offered a model for such a vehicle, but Chinese sources and secondary summaries describe Chinese dissatisfaction with the imported design’s performance and a decision to build a domestic answer. [Tank-AFV; WeaponSystems.net] Sources
The strategic problem was not simply “light tank versus main battle tank.” It was how to deliver armored fire support where heavy vehicles were slowed by water obstacles. A lightly armored vehicle could cross waterways, scout, exploit weak points, and support infantry; its thin armor was acceptable only when tactical surprise, terrain, and amphibious access mattered more than survivability in a tank duel. [Tank-AFV; MilitaryFactory] Sources
Industrial constraints shaped the design. China’s armored industry of the late 1950s and early 1960s was still absorbing Soviet-derived technology while also coping with domestic production limits and the Sino-Soviet split. The Type 63’s mixture of PT-76 influence, Chinese light-tank armament practice, and domestic prototype iteration reflects that industrial transition. [Tanks Encyclopedia; Tank-AFV] Sources
Political and procurement context also mattered. Amphibious armor had relevance to the Taiwan Strait, to river-crossing operations, and later to PLA Marine requirements. That relevance became more explicit in the Type 63A era, when the platform was reworked for ship-to-shore missions and eventually superseded in Chinese service by the Type 05/ZTD-05 family. [Army Recognition 2020; Army Recognition 2025; ODIN] Sources
Development and variants
It includes the original Type 63, Type 63-I, Type 63-II, major export/service use, the Type 63A/ZTS-63A modernization lineage, and important chassis derivatives only where they clarify the family boundary. Sources
Type 63A is therefore discussed as a later upgrade/modernization family, not as evidence that the base Type 63 was a modern amphibious assault tank. Sources
Primary classification: amphibious light tank. It had a turreted main gun and tank layout but was optimized for flotation and mobility rather than armor protection. [WeaponSystems.net; Tank-AFV] Sources
Secondary classification: amphibious reconnaissance/direct-fire support vehicle. In practice, it supported infantry and river/coastal operations where heavy tanks could not readily move. [Tank-AFV; MilitaryFactory] Sources
Frequently confused with PT-76: the Type 63 resembled and was influenced by the PT-76, but multiple sources stress differences in crew, turret/armament, hull details, and waterjet arrangement. [WeaponSystems.net; Tank-AFV] Sources
Frequently confused with Type 62: the Type 63 shared or adapted light-tank armament/turret concepts but was an amphibious design with a boat-like hull. [WeaponSystems.net; Tank-AFV] Sources
North Korean Model 1981 Shin’heung / PT-85: treated by the cited accounts as a separate North Korean line influenced by PT-76/Type 63 rather than a direct Type 63 variant. Sources
Chassis derivatives: Type 77 APC, Type 76 ARV, Type 89 SPH, and Type 7402 torpedo-launcher experiments are related offshoots and are not counted as core tanks unless explicitly noted. [Tank-AFV; MilitaryFactory] Sources
The base family identification is solid, but the family edge becomes blurry around Type 63A, export modernizations, recovery/support vehicles, and North Korean derivative claims. [Tank-AFV; MilitaryFactory] Sources
The best-supported starting point for the family is October 1958, when Chinese authorities decided to pursue an indigenous amphibious tank design using lessons from the PT-76. Tank-AFV identifies the 201 Institute and 615 Factory as initial development participants, with a prototype called WZ221 or Type 60 tested in 1959. Other secondary sources more simply call the industrial designation WZ211, which creates a designation problem discussed below. [Tank-AFV; WeaponSystems.net] Sources
The early Type 60/WZ221 prototype reportedly revealed engine-cooling and performance problems. The project then moved through a redesign stage involving the Military Engineering Institute and the No. 60 Research Institute of the Fifth Ministry of Machine Building. A later prototype reached a production-finalization phase with Norinco Factory 615 and the Shaanxi Weiyang Diesel Engine Plant. [Tank-AFV; MilitaryFactory] Sources
The final design was approved in 1963 and given the Type 63 designation. The production model used a boat-shaped welded hull, centrally mounted turret, four-person crew, and an 85 mm Type 62-85TC rifled gun. The baseline Type 63 was soon improved as the Type 63-I with the 12150L-2 V12 diesel; most production may have been of this improved version. [Tank-AFV; WeaponSystems.net] Sources
Later Cold War improvement produced Type 63-II, with infrared night-vision equipment and an external laser rangefinder. In the 1990s, the Type 63HG/Type 63G concept and the Type 63A/ZTS-63A modernization moved the family toward marine ship-to-shore service, adding a 105 mm gun, stronger propulsion, and improved fire-control systems. [Tank-AFV; MilitaryFactory; ODIN] Sources
Design and performance
The Type 63 used a conventional light-tank arrangement adapted to flotation: driver/steering position forward, fighting compartment and turret in the middle, and engine/transmission at the rear. The driver sat on the left front rather than the PT-76’s central driver position. Commander and gunner occupied the left side of the turret, while the loader sat on the right and also served the roof heavy machine gun. [Tank-AFV; WeaponSystems.net] Sources
The hull was a welded rolled-armor, boat-shaped structure with a trim vane for swimming, bilge pumps, and waterjet propulsion. It was wider, higher, and deeper than the PT-76 in order to improve buoyancy and meet Chinese requirements. The front trim vane folded onto the bow when not in use and was raised for water operations. [Tank-AFV; WeaponSystems.net] Sources
The cast, rounded turret was related to Chinese light-tank development rather than being a simple PT-76 turret transplant. It had two hatches, a roof ventilator, and provision for a 12.7 mm Type 54 anti-aircraft heavy machine gun. Early vehicles had basic sights; Type 63-II added infrared and laser-ranging equipment. [Tank-AFV; MilitaryFactory] Sources
Protection was very thin: commonly cited figures are about 10–14 mm across hull surfaces, with 11 mm front and 14 mm upper-side figures appearing in several technical summaries. This protected against small arms and shell splinters at best, not sustained autocannon fire or anti-tank weapons. [Tank-AFV; WeaponSystems.net; MilitaryFactory] Sources
The main gun on Cold War Type 63 variants was the 85 mm Type 62-85TC rifled gun, with 47 rounds commonly listed. This gave the Type 63 more anti-armor and high-explosive capacity than the PT-76’s 76.2 mm gun but without modern stabilization or fire-control sophistication in early variants. [WeaponSystems.net; Tank-AFV] Sources
A 7.62 mm Type 59T coaxial machine gun and a 12.7 mm Type 54 roof machine gun are the standard secondary-weapons set in most summaries; some sources note optional additional 7.62 mm anti-aircraft machine-gun arrangements. Ammunition figures often cited are 2,000 rounds of 7.62 mm and 500 rounds of 12.7 mm. [WeaponSystems.net; MilitaryFactory] Sources
The 85 mm gun could fire armor-piercing, high-explosive, fragmentation, smoke, HEAT, and later kinetic-style ammunition depending on ammunition availability and user. Penetration claims vary widely and cannot serve as guaranteed battlefield performance. [Tank-AFV] Sources
Early Type 63 variants had limited fire-control equipment and no gun stabilization in the standard Type 63-I data set. Type 63-II added a laser rangefinder and infrared night-vision equipment. Type 63A added much more substantial fire-control upgrades, including a computerized system in U.S. ODIN summaries. [WeaponSystems.net; Tank-AFV; ODIN] Sources
The driver used periscopes and a raised swimming periscope when the trim vane was erected. Turret sights were simple in early vehicles, with infrared searchlight arrangements noted on later vehicles. The Type 63A/ZTS-63A family carried more modern sights suited to firing on land and in water. [Tank-AFV; ODIN] Sources
The original small-number Type 63 was powered by a 6-cylinder diesel around 240–241 hp. The improved Type 63-I used the 12150L-2 12-cylinder liquid-cooled diesel producing about 400–402 hp at 2,000 rpm, driving a manual planetary transmission with five forward and one reverse gear. [WeaponSystems.net; Tank-AFV; MilitaryFactory] Sources
The chassis used torsion-bar suspension with six road wheels per side, front idlers, and rear drive sprockets. This was conventional, robust, and suitable for low ground pressure but not designed to absorb modern high-speed cross-country punishment like heavier later armored vehicles. [WeaponSystems.net; Tank-AFV] Sources
Road speed is commonly listed around 64 km/h, cross-country speed around 25–35 km/h, and water speed around 12 km/h for Type 63-I. Range is commonly listed at roughly 370 km on roads and 120 km afloat. Water movement used two water jets and, unlike the PT-76 according to several summaries, also involved moving tracks during swimming. [WeaponSystems.net; Tank-AFV] Sources
The four-person crew improved task distribution over the PT-76’s three-person turret/crew arrangement, particularly by separating loading duties. However, small-turret ergonomics, thin armor, limited observation, and primitive fire-control equipment constrained effectiveness under heavy fire. [WeaponSystems.net; Tank-AFV] Sources
Technical summaries list an A-221A internal telephone and an A-220A radio. Export users may have modified communications equipment locally, and such changes are rarely documented in open sources. [Tank-AFV] Sources
Base vehicles had no modern active protection and relied on terrain, mobility, concealment, and amphibious access. Type 63A-I/II sources mention provisions for additional armor or ERA mounts, but the exact fielding scale and operational use are unclear. [MilitaryFactory; ODIN] Sources
The Type 63’s value came from simplicity and relatively low cost. The troubled prototype phase suggests early cooling and propulsion issues, while the rapid move to the Type 63-I engine suggests the initial power pack was inadequate. Export longevity implies adequate maintainability for states willing to accept limited protection and older fire control. [Tank-AFV; MilitaryFactory] Sources
The main weaknesses were thin armor, vulnerability during approach and landing, limited early sights, no stabilization in the Type 63-I data set, modest water speed by modern standards, and inability to survive against tanks, autocannon, mines, artillery, or modern anti-armor weapons without tactical surprise or careful terrain use. [Tank-AFV; WeaponSystems.net; MilitaryFactory] Sources
Production, operators, and combat record
The industrial record is less clear than the design outline. Sources identify Chinese state arsenals, research institutes, Norinco-associated production, Factory 615, Shaanxi Weiyang Diesel Engine Plant, and Factory 256/Southwest Vehicles Factory in different stages or summaries. The cited accounts cites production beginning in 1963 and extending into the 1980s, while open sources sometimes compress “production” into the development period or leave end dates open. [Tank-AFV; MilitaryFactory] Sources
The most common production figure is more than 1,550 or 1,500+ Type 63-family vehicles, matching the published account’s “1,500+ often cited” entry and WeaponSystems/Tank-AFV summaries. MilitaryFactory separately lists “Total Production: 2,000 Units,” probably reflecting a broader interpretation, estimates, derivatives, or later modernizations, but that figure requires corroboration before use as the primary total. [WeaponSystems.net; Tank-AFV; MilitaryFactory] Sources
The Type 63-I engine change is a major production clue. The early vehicle’s 6-cylinder engine was underpowered, and the 12150L-2 12-cylinder diesel became the defining engine of the dominant production standard. This parallels a broader Chinese pattern of iterative improvement after initial Soviet-derived design absorption. [Tank-AFV; WeaponSystems.net] Sources
Known production bottlenecks are not well documented in English open sources. Prototype cooling problems, amphibious testing, power-pack substitution, and the need for water-crossing/seaworthiness trials were clearly important. Cost data has not been located in reliable open sources. [Tank-AFV; ] Sources
China was the original and largest operator. In PLA service the Type 63 was used for amphibious reconnaissance, inland-water operations, coastal defense/assault planning, and marine-support roles. Later Chinese service appears to have shifted toward Type 63A and then the Type 05/ZTD-05 family, but the exact status of surviving Type 63/Type 63A stocks in 2026 is difficult to verify from open sources. [WeaponSystems.net; Army Recognition 2025; ODIN] Sources
Export service is broad but poorly documented by reliable inventory trails. Vietnam, Myanmar/Burma, Cambodia, Sri Lanka, Pakistan, Sudan, Tanzania, Albania, North Korea, and Congo/Republic of the Congo appear in common lists, while Venezuela and Tanzania are often associated with Type 63A or later deliveries. Some published entries remain unresolved. [Tank-AFV; MilitaryFactory; SIPRI Arms Transfers Database] Sources
The Type 63 is credited with combat use in the final phases of the Vietnam War, the 1979 Sino-Vietnamese War, the Sri Lankan Civil War, and Pakistani service around the 1971 Indo-Pakistani War in some summaries. These details remain unconfirmed in the cited evidence. [Tank-AFV; MilitaryFactory; ] Sources
In Vietnam, the vehicle’s value was the ability to move through wet terrain and water obstacles where heavier vehicles were constrained. Photographic leads from WeaponSystems show non-images of NVA Type 63-I tanks in 1972 Hue and the 1975 entry into Saigon/Independence Palace, but those images are treated as non-embedded because the listed copyright status is unclear. [WeaponSystems.net media captions] Sources
During the 1979 Sino-Vietnamese War, Chinese armor included Type 59, Type 62, and Type 63 vehicles. The Type 63’s mobility could create tactical surprise, but its protection remained a severe liability. The same pattern appears in Sri Lankan Civil War references: mobility and access were useful, but thin armor made the vehicle vulnerable to any anti-armor weapon heavier than small arms. [Tanks Encyclopedia; Tank-AFV] Sources
Tactical employment is best understood as terrain-specific. A Type 63 was not a substitute for an MBT in open tank combat. It was best employed to cross obstacles, support infantry with direct fire, exploit surprise, scout, or operate in wetlands/coastal spaces where an opposing force did not have prepared anti-armor defenses. [Tank-AFV; MilitaryFactory] Sources
Detailed enemy assessments and crew-level accounts remain scarce. English-language summaries describe broad outcomes more often than they provide unit histories, after-action reports, or individual crew experiences. Sources
Legacy and historical evidence
Overall battlefield value: the Type 63 was strategically useful when water was the problem. Its firepower was respectable for an amphibious light tank of its era, but its armor and fire control prevented it from being a durable battle tank. The most favorable assessment is therefore not “good tank” or “bad tank,” but “good specialist for river/coastal access when properly supported.”. [Tank-AFV; WeaponSystems.net; MilitaryFactory] Sources
The Type 63’s legacy lies in China’s maturation from Soviet-derived armored designs toward indigenous families adapted to Chinese geography and amphibious doctrine. Its later Type 63A modernization showed that the PLA still valued amphibious direct fire but needed greater firepower, seaworthiness, and ship-to-shore capability than the original vehicle could provide. [Tank-AFV; Army Recognition 2020; ODIN] Sources
Doctrinally, the family connected inland river-crossing support to broader coastal/amphibious assault thinking. By the early 2000s, the Type 05/ZTD-05 family represented a higher-speed, hydrodynamically optimized successor for over-the-horizon amphibious assault. Army Recognition’s 2025 reporting describes Type 05 as developed to replace older platforms such as Type 63A. [Army Recognition 2025] Sources
Surviving vehicles are visible in museums and monuments, including Type 63 tanks at the Military Museum of the Chinese People’s Revolution, the War Memorial of Korea, and other preserved examples. These museum vehicles are useful for visual identification but may reflect repainting, missing equipment, or restoration choices. [Wikimedia Commons image files; WeaponSystems.net media] Sources
Common misconceptions: (1) that Type 63 was a pure PT-76 copy; (2) that Type 63A production totals can be merged into Cold War Type 63 totals without qualification; (3) that all amphibious tanks are useful in open tank combat; and (4) that every North Korean PT-85/Shin’heung reference is a Type 63 variant. [Tank-AFV; WeaponSystems.net] Sources
English-language online armor references agree on the broad family but disagree on designation details, production totals, exact operator numbers, and modern status. Official-source support is stronger for Type 63A/ZTS-63A through ODIN/WEG-type references, but even those pages can be terse and non-archival. [ODIN; Tank-AFV; WeaponSystems.net] Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- WeaponSystems.net, “Type 63” — Development dates, WZ211 designation, specifications, media-license clues, and comparison notes. Accessed 3 June 2026
- Tank-AFV, “Type 63 light amphibious tank — Chinese PLA (1963)” — Development narrative, WZ221/WZ211 issue, technical description, production and operator notes. Accessed 3 June 2026
- MilitaryFactory, “NORINCO Type 63 (WZ211) Amphibious Light Tank” — Alternate production total, technical summary, variant/derivative list, operator list, combat-
- Tanks Encyclopedia, “Chinese Tanks & AFVs of the Cold War” — Chinese Cold War armor context, Type 63 overview, Sino-Vietnamese War context, Type 77 derivative note. Accessed 3 June 2026
- Army Recognition, “Chinese army conducts refueling at sea with Type 63A light amphibious tank” — Type 63A marine/service context, ship-to-shore and refueling-at-sea reporting. Accessed 3 June 2026
- U.S. Army TRADOC ODIN / Worldwide Equipment Guide, “ZTS-63A (Type 63A) Chinese Amphibious Light Tank” — Official-style technical reference for Type 63A engine and fire-control claims; page lines not fully extractable by browser. Accessed 3 June 2026
- Army Recognition, “China tests new family of amphibious infantry fighting vehicles to replace the Type 05” — Replacement context: Type 05 developed to replace older platforms such as Type 63A. Accessed 3 June 2026
- SIPRI Arms Transfers Database — Recommended source for confirming export deliveries; not
- Wikimedia Commons, “File:Type 63 tank front right.jpg” — Embedded image; Max Smith, public domain, Beijing Military Museum, August 2007. Accessed 3 June 2026
- Wikimedia Commons, “File:Type 63 tank above.jpg” — Embedded image; Max Smith, public domain, Beijing Military Museum, August 2007. Accessed 3 June 2026
- Wikimedia Commons, “File:Type 63 Amphibious Light Tank, China.jpg” — Embedded image; Gary Todd, CC0, War Memorial of Korea, 8 May 2015. Accessed 3 June 2026

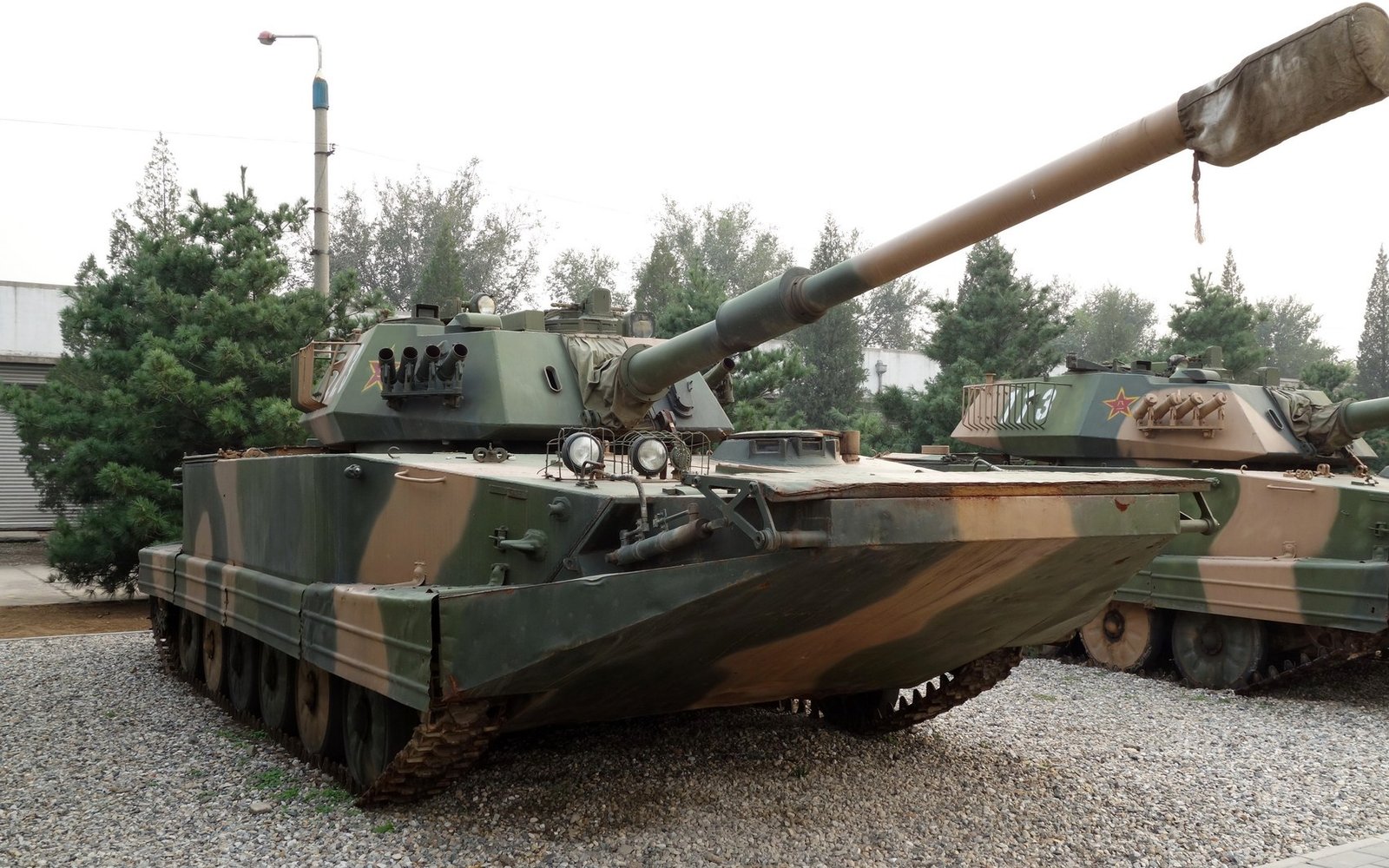

- Wikimedia Commons, “File:Type 63A Amphibious tank 20131004.JPG” — Embedded image; 颐园新居, CC BY-SA 3.0/GFDL, tank museum preserved example. Accessed 3 June 2026
