Historical overview
What it was. The Type 62 / WZ-131 was the People's Liberation Army's purpose-built light tank answer to a problem that the Type 59 medium tank could not solve cleanly: how to bring a turreted, tracked gun tank into southern Chinese, Vietnamese, Himalayan, and other low-infrastructure environments where heavier tanks strained bridges, roads, and soft ground. Sources
Why it mattered. The vehicle mattered less because it introduced a revolutionary tank technology and more because it matched Chinese geography, industry, and doctrine. At about 21 tonnes and with a relatively low ground pressure, it could be employed where a 36-tonne Type 59 was awkward, while retaining a fully rotating turret, a useful 85 mm gun, and the visual and organizational familiarity of the Type 59 lineage. This made it attractive for China and for export customers needing inexpensive armor in weak-road or mountainous regions. (Tank-AFV; Army Guide.). Sources
Historical significance. The Type 62 also marks an important stage in Chinese armored-vehicle self-reliance. It was not a mere licensed copy: it was a Chinese light-tank solution built around a familiar Soviet-derived design vocabulary but optimized for different terrain and military priorities. Its later modernization path, especially the Type 62-I and Type 62G, shows the recurring tension between keeping a light tank useful and acknowledging that thin armor and simple optics became dangerous liabilities in the era of RPGs, recoilless rifles, anti-tank missiles, and night fighting. (Army Guide; Tank-AFV; Tanks Encyclopedia.). Sources
Most important variants. The core family includes the baseline Type 62 / WZ-131, the post-1979 Type 62-I / WZ-131A upgrade with a laser rangefinder and practical crew-protection changes, the Type 62G modernization with a welded turret, 105 mm gun, improved fire control, and night-fighting equipment, and several specialized engineering, recovery, and mine-clearing vehicles whose exact quantities and designations are less secure. Sources
Major controversies and disputed facts. The largest unresolved issues are production totals, exact variant designations, conversion quantities, and operator status. The project the cited accounts and Tank-AFV use roughly 1,500 built, while Tank-AFV also notes a more precise figure above 1,393 WZ-131s. Army Guide lists current or past inventories totaling 1,251 in its tabulated country list. Some public summaries claim about 2,500. These cannot be harmonized by averaging; Published accounts describe roughly 1,400-1,500 as the best-supported working range while marking higher totals as unresolved secondary-source claims. (the cited accounts; Tank-AFV; Army Guide; MilitaryFactory, cited only as a conflicting claim.). Sources
The Type 62 was a rational, successful light tank for a specific set of terrain and procurement problems, but it became increasingly vulnerable when forced into the role of a conventional battle tank. Its combat record, especially in the 1979 Sino-Vietnamese War, is best understood as a warning about doctrinal misuse: mobility and low weight were real advantages, but they did not compensate for thin armor, limited fire control, and exposure to infantry anti-armor weapons when the vehicle was driven into close, prepared defenses. (Tank-AFV; Tanks Encyclopedia; Army Guide.). Sources
By the late 1950s, the People's Republic of China was trying to build a modern armored force under difficult conditions: Soviet technology had provided the pattern for the Type 59, but China also had to adapt armored warfare to its own infrastructure, border geography, and industrial limits. Large parts of southern China, the Sino-Vietnamese frontier, and mountainous border regions were ill-suited to heavy tank movement. Narrow roads, weak bridges, terraces, river networks, jungle tracks, and soft ground reduced the practical value of a heavier medium tank even when its gun and armor were desirable. (Tank-AFV; Army Guide.). Sources
The military requirement was not simply “make a smaller tank.” The PLA needed a vehicle with enough firepower to support infantry and reconnaissance troops, enough mobility to operate in constrained terrain, and enough mechanical continuity with established Chinese tank technology to be manufacturable and maintainable. The Type 59 offered a design vocabulary but was too heavy for some southern and mountainous environments. The Type 62 requirement therefore balanced reduced mass, simplified systems, and adequate firepower. (Tank-AFV; Army Guide.). Sources
Chinese doctrine in the period placed high value on mobility, dispersed operations, and infantry cooperation. The Type 62 fit this outlook as a supporting and exploiting vehicle. Its eventual weaknesses also flowed from the same compromise: the designers accepted thin armor and a simpler fire-control suite in exchange for low weight, lower ground pressure, and easier production. This compromise worked better in reconnaissance and support roles than in close fighting against anti-tank infantry weapons. (Tank-AFV; Tanks Encyclopedia.). Sources
Development and variants
It includes the baseline Chinese production light tank, major upgrades, recognized export-service contexts, reported specialized derivatives, and legacy vehicles that help define the family boundary. It excludes the Soviet T-62 medium/main battle tank despite the confusing numerical similarity, and it excludes the Chinese Type 63 / WZ-211 amphibious light tank except where comparison clarifies the Chinese light-armor ecosystem. Sources
The Type 62 was a turreted light tank intended for terrain that hindered heavier vehicles. Unlike the Type 63, it was not amphibious. Its role differed from that of a reconnaissance car or a tank destroyer despite some overlapping uses. Sources
The most consistent secondary-source chronology begins with a PLA requirement in the late 1950s and assigns the design work to Factory 674. Tank-AFV places the requirement in 1957 and the formal Factory 674 tasking in 1958; Army Guide likewise states that development began in 1958 at No. 674 Factory. Both sources describe the vehicle as a Type 59-derived or Type 59-inspired light tank, but not as a simple shortened Type 59. (Tank-AFV; Army Guide.). Sources
Tank-AFV reports that prototypes were built, tested, and refined between 1960 and 1962. Army Guide states that after trials the vehicle was classified as the Type 62 light tank in 1962. The cited sources describe a broader development/start range of 1958-1962 and production/end range of 1963-1989. Sources
The basic design borrowed the familiar Chinese Type 59 arrangement—front driver, central fighting compartment, rear engine, cast rounded turret form, five-roadwheel torsion-bar suspension layout—but reduced armor thickness, vehicle mass, gun caliber, and system complexity. The smaller 85 mm gun and 21-tonne weight were decisive changes, not minor detail alterations. The result looked like a compact Type 59 but behaved as a separate light-tank class. (Tank-AFV; Army Guide.). Sources
Series production is normally given as beginning in 1963. Production-end dates vary by source and by whether the author means baseline new-build production, final deliveries, modernization work, or service status. Sources
Design and performance
The Type 62 used a conventional four-crew tank layout: driver in the forward hull, commander/gunner/loader in the turret and fighting compartment, and engine/transmission in the rear. The turret was centrally mounted and fully rotating. This layout preserved familiar crew drills from the Type 59 lineage while reducing weight and scale. (Army Guide; Tank-AFV.). Sources
The hull was a compact, low-profile steel structure with a glacis substantially thinner than a Type 59. Tank-AFV gives about 35 mm on the glacis and about 15 mm on many other hull surfaces. The driver sat to the left front. The reduction in armor was the essential mass-saving measure, but it also defined the tank’s vulnerability. (Tank-AFV; Army Guide.). Sources
The baseline vehicle used a rounded turret visually reminiscent of the Type 59/T-54 design family but scaled for the smaller gun and lighter vehicle. Tank-AFV gives about 50 mm at the turret front. Later Type 62G modernizations reportedly adopted a new welded, flat-plate turret with improved armor layout, smoke launchers, and a 105 mm rifled gun. (Tank-AFV; TankNutDave.). Sources
The armor scheme was light by main battle tank standards: approximately 50 mm at the turret front, 35 mm at the glacis, and around 15 mm at the sides/rear or lesser-protected surfaces. This was adequate against small arms, fragments, and some light weapons, but not against modern anti-tank rockets or tank guns. Armor figures are described as approximate because open sources often repeat summary data without original Chinese technical manuals. (Tank-AFV; Army Guide.). Sources
The baseline gun was an 85 mm Type 62-85TC rifled weapon. Tank-AFV lists AP, APHE, HE, fragmentation-HE, HEAT, APFSDS-T, and smoke as possible ammunition types, with 47 rounds carried. Its firepower was useful against light armor, field fortifications, and infantry positions, but it was inferior to contemporary 100 mm and 105 mm tank guns. (Tank-AFV; Army Guide.). Sources
Open sources normally list one 12.7 mm Type 54/DShK-pattern anti-aircraft machine gun, one 7.62 mm coaxial machine gun, and a bow or hull 7.62 mm machine gun. Army Guide gives ammunition loads of 1,750 rounds for the 7.62 mm weapon and 1,250 rounds for the 12.7 mm gun. (Army Guide; Tank-AFV.). Sources
The standard 47-round 85 mm ammunition stowage was a key limitation in prolonged engagements. Ammunition types varied by source and period; well-documented statements can be made for AP, HE/fragmentation, and HEAT categories. The cited accounts do not firmly establish the exact timing of more advanced ammunition in every operator’s service. Sources
The original Type 62 had simple optics and no modern stabilizer. Tank-AFV stresses that the baseline gun was hampered by poor accuracy because of simplified optics and absence of stabilization. The Type 62-I upgrade added an external double-lens laser rangefinder over the gun, and Type 62G reportedly added a more modern fire-control system, night vision, and gun stabilization. (Tank-AFV; TankNutDave.). Sources
Baseline sighting equipment appears to have been basic day optics. Army Guide notes no observed infrared night-vision equipment on the baseline vehicle and no NBC system. Later modernization descriptions add night-fighting equipment, but the exact fit by sub-variant and operator is not fully secure. (Army Guide; Tank-AFV.). Sources
The engine is usually given as a 12150L-3 V-12 diesel rated at about 430 hp. Army Guide lists four forward gears and one reverse gear. At about 21 tonnes, this produced a strong power-to-weight ratio near 20 hp/t, making mobility one of the tank’s best technical qualities. (Tank-AFV; Army Guide.). Sources
The Type 62 used torsion-bar suspension with five large road wheels per side and no return rollers, echoing the Type 59/T-54 layout. Lower weight and relatively broad tracks reduced ground pressure, improving movement on soft or weak ground compared with heavier Chinese medium tanks. (Tank-AFV; Army Guide.). Sources
Open sources list a maximum road speed of about 60 km/h, cross-country speed around 35 km/h, and road range of about 500 km. Army Guide gives ground pressure of 0.71 kg/cm2, fording depth of 1.3 m, 60 percent gradient, 0.7 m vertical obstacle, and 2.55 m trench-crossing capability. These figures fit the design goal: strategic and tactical mobility over protection. (Army Guide; Tank-AFV.). Sources
The four-crew arrangement retained a dedicated loader, avoiding the compromises of a three-man autoloaded turret. Ergonomics were constrained by the reduced hull and turret volume. The commander’s situational awareness and night fighting were limited on baseline vehicles, and the exposed 12.7 mm machine-gun position was risky in close terrain; the Type 62-I shield around the heavy machine gun appears to respond to that problem. (Tank-AFV; Army Guide.). Sources
The baseline turret carries external antenna fittings, but open sources rarely identify the exact Chinese radio sets with certainty. Sources
The baseline vehicle had light armor and could lay smoke by fuel-injection/exhaust methods in some descriptions. Army Guide states there was no NBC system and no amphibious capability. Later Type 62G descriptions add smoke dischargers. (Army Guide; Tank-AFV.). Sources
The tank’s mechanical simplicity and use of familiar Chinese design patterns likely made maintenance easier than a more sophisticated imported system, especially for export operators. However, evidence is insufficient to quantify reliability. The evidence indicates that the Type 62 was maintainable and rugged enough for long service, but not mechanically documented in open sources as thoroughly as Soviet, American, or British contemporaries. (Army Guide; Tank-AFV.). Sources
The central weaknesses were thin armor, basic fire control, lack of stabilization on baseline tanks, limited night-fighting capacity, and vulnerability to infantry anti-armor weapons. Combat use in Vietnam demonstrated that a light tank used as a normal tank could suffer severe losses. The Type 62-I and Type 62G upgrades represents attempts to reduce, not eliminate, these weaknesses. (Tank-AFV; Tanks Encyclopedia.). Sources
Production, operators, and combat record
The program is associated in open sources with Factory 674 / No. 674 Factory, later commonly identified in secondary sources with Harbin First Machinery Building Group. Army Guide also identifies NORINCO / China North Industries Corporation and CNGC / China North Industries Group Corporation in its manufacturer fields. For strict chronology, Factory 674 is the safest design-and-production reference for early development; NORINCO/CNGC references are useful for later industrial context but can be anachronistic if applied to the earliest 1958-1963 phase without explanation. (Army Guide; Tank-AFV.). Sources
A practical chronology is: requirement in 1957; design tasking in 1958; prototypes and refinement from about 1960 to 1962; classification/adoption as Type 62 in 1962; production deliveries from 1963; production continuing into the 1980s and usually ending by 1989 in open summaries. This reconciles the cited accounts date convention of 1958 start with source statements that emphasize 1962/1963 acceptance and production. (Tank-AFV; Army Guide; the cited accounts.). Sources
Production quantity is the most important industrial uncertainty. The cited sources describe approximately 1,500 built. Tank-AFV gives “1500+” in its headline and later a more precise “more than 1393 WZ131” statement. MilitaryFactory claims about 2,500 examples, a much higher figure not adopted here without corroboration. Sources
The Type 62 served with China and a range of Asian and African operators. Operator lists vary by source because some authors combine deliveries, peak inventories, later holdings, and uncertain transfers. SIPRI’s arms-transfer methodology is useful here: even when open transfer-register data are curated, quantities can be uncertain, designations can be ambiguous, and delivery-year or license-production data may rely on conservative estimates. (SIPRI methodology; Army Guide; Tank-AFV; the cited accounts.). Sources
Original Chinese service appears to have emphasized areas where the tank’s light weight mattered. Tank-AFV specifically notes southern deployment and a reconnaissance-battalion context, while Tanks Encyclopedia emphasizes difficult terrain in the Sino-Vietnamese War. The tank’s late retirement reflects both age and a broader move toward more capable light armor, commonly connected in public sources with the later Type 15/ZTQ-15 light tank. Sources
The exact first combat use is not firmly documented in the open sources consulted. Type 62s appear in discussion of Vietnam War-era and postwar Vietnamese service, Cambodian and Southeast Asian conflicts, and African export-service contexts. Early combat claims are repeated in secondary accounts but remain incompletely verified by identified units, photographs, or transfer documents. Sources
The 1979 Sino-Vietnamese War is the central combat episode for the Type 62. Tanks Encyclopedia describes mountainous and difficult terrain, substantial PLA infantry forces, and an initial assault using about 200 Type 59/62/63 tanks in northern Vietnam. Tank-AFV states that local Chinese forces had about 200 tanks in northern Vietnam, most of them Type 62s, and that the vehicle suffered heavy losses to RPG fire. This experience is commonly identified as the trigger for Type 62-I improvements, especially the laser rangefinder, heavy-machine-gun shield, and practical survivability changes. (Tank-AFV; Tanks Encyclopedia.). Sources
Losses and myth control. Public loss claims for the Sino-Vietnamese War vary widely. Some nationalist or popular summaries quote very high Vietnamese claims for Chinese tank losses, while other accounts separate total losses, damaged vehicles, repairable vehicles, and permanently destroyed hulls. The safe account conclusion is not a precise number but a qualitative judgment: the Type 62 could reach terrain where heavier tanks struggled, but it proved vulnerable when used in close infantry-dense fighting against prepared defenses and anti-armor weapons. (Tank-AFV; Tanks Encyclopedia; National Interest and other secondary summaries treated as leads only.). Sources
Type 62s or Type 62-derived inventories are reported in several African and Asian conflicts through export operators, including Sudanese service and possibly Tanzanian, Congolese/Zairean, Bangladeshi, and Vietnamese contexts. Oryx lists Type-62 among Sudan’s fighting vehicles in a 2023 inventory catalogue, showing that the family still appeared in at least one modern conflict-adjacent inventory long after Chinese retirement. A vehicle appearing in an inventory does not prove it was used in a particular battle. (Oryx; Army Guide; SIPRI methodology.). Sources
Legacy and historical evidence
Overall battlefield value. The Type 62 was highly valuable when commanders respected its limits: reconnaissance, infantry-support, exploitation, and difficult-terrain operations. It was far less valuable when substituted for an MBT in close frontal assaults. Its best comparison is not with heavy Western or Soviet MBTs but with other postwar light armor that traded protection for strategic and tactical mobility. Sources
The Type 62’s legacy is partly technical and partly doctrinal. Technically, it proved that China could create a light tank from a known design lineage rather than merely operate foreign-derived medium tanks. Doctrinally, it confirmed that China’s geography required specialized armored solutions. The later Type 15/ZTQ-15 light tank is often presented in public sources as a successor to the Type 62’s mountain and high-altitude role, although the two vehicles belong to completely different technological generations. Sources
The family also left a cautionary legacy. Survivability could not be retrofitted cheaply forever. Type 62-I and Type 62G attempted to improve fire control, crew protection, and battlefield relevance, but the basic light hull could not become a true MBT. This tension remains a useful narrative thread for the book series: a tank can be perfectly logical for one battlefield problem and dangerous when commanders ask it to solve a different one. Sources
The Military Museum of the Chinese People’s Revolution in Beijing preserves Type 62 examples visible in public images. The museum itself is a major national military collection with large artifact holdings, and several reusable Wikimedia Commons photographs show Type 62 vehicles there. Surviving examples also appear in other collections and possibly in operator depots. The cited accounts do not firmly establish exact registration and vehicle histories. Sources
“Type 62” is not the Soviet T-62. The Chinese Type 62 is a light tank; the Soviet T-62 is a medium/main battle tank with a 115 mm smoothbore gun. Sources
It was not just a shrunken Type 59. It used the Type 59 design vocabulary, but weight, gun, armor, and mission were materially different. Sources
Low weight was not a flaw by itself. Low weight was the point of the program; the flaw emerged when the vehicle was used in roles requiring MBT protection. Sources
Production totals cannot be quoted as exact. Open-source totals vary; use an approximate range and flag the conflict. Sources
The source base is medium quality for the baseline Type 62 and lower quality for upgrades, specialized derivatives, and operators. The most useful open sources agree on the basic development story, physical layout, approximate specifications, and general mission. They disagree or become vague on production total, exact conversion numbers, export-transfer paths, and current operator status. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- Tank-AFV — Main technical and chronology source for Type 62, Type 62-I, Type 62G, production range, and Sino-Vietnam War lessons.
- Army Guide — Specifications, layout, manufacturer fields, operator quantities, and baseline feature list.
- Tanks Encyclopedia — Chinese Cold War tank context and Sino-Vietnamese War summary; useful for narrative and comparison.
- Trackpads historical compilation, 2026 (unpublished).
- SIPRI Arms Transfers Database methodology — Methodological caution for transfer registers, uncertain quantities, and
- Oryx, Sudan inventory catalogue — Modern inventory lead listing Type-62 among Sudanese fighting vehicles.
- Visit Beijing / Military Museum page — Context for the Military Museum of the Chinese People’s Revolution, where Type 62 examples are photographed.
- TankNutDave — Supplementary descriptions of Type 62-I and Type 62G features and summary specifications.
- GlobalSecurity. Type 62 background reference. Source
- MilitaryFactory Type 62 page — Cited only as a conflicting high production-total claim.

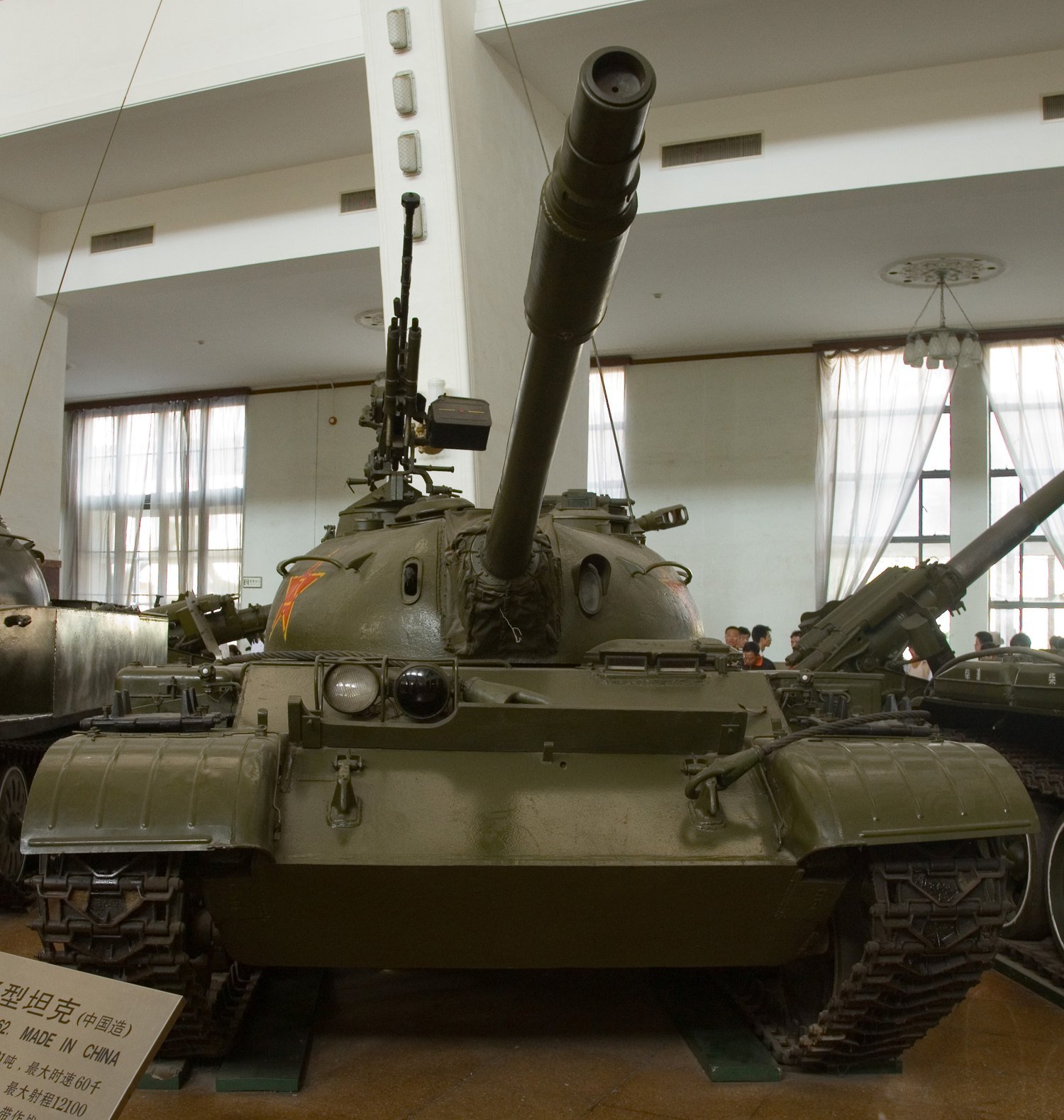

- Wikimedia Commons: Type 62 tank - front.jpg — Embedded Figure 1; Beijing museum front view; public domain release by Max Smith.
- Wikimedia Commons: Type 62 light tank 20180219.jpg — Embedded Figure 2; Military Museum preserved example; Tyg728, CC BY-SA 4.0.

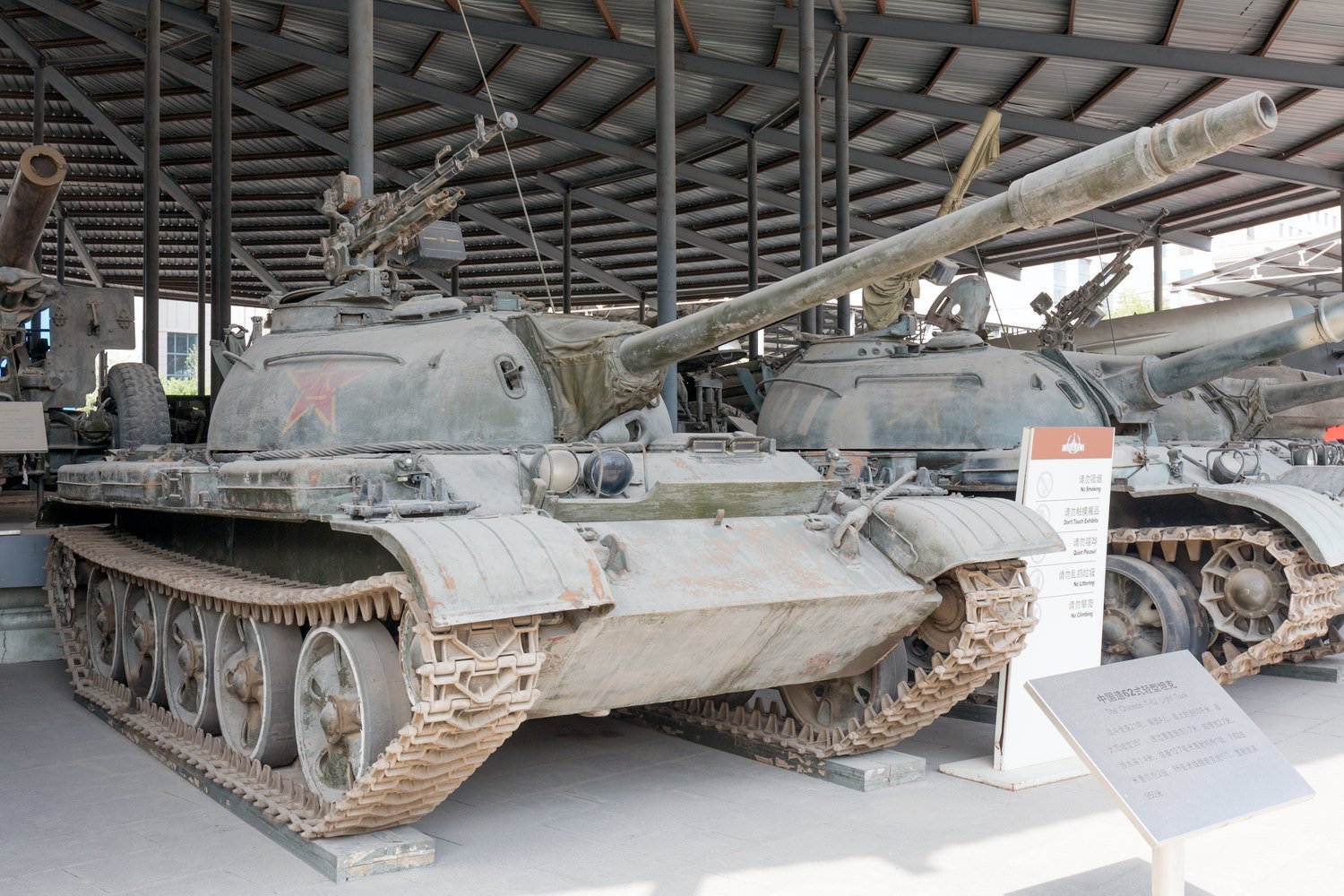

- Wikimedia Commons: Type 62 light tank front-right 2016 Military Museum Beijing.jpg — Embedded Figure 3; front-right view; Morio, CC BY-SA 4.0.
