Historical overview
The Type 59 / WZ-120 was a Chinese-built derivative of the Soviet T-54A, accepted into Chinese service in 1959 and closely linked to the construction of Factory 617 at Baotou. China’s official defense-industry archive records factory construction beginning in April 1956, a first Soviet-parts T-54A prototype completed in December 1958, the first production task completed in August 1959, and bulk production stopping in the 1980s. Sources
Its importance is larger than the basic tank’s specifications. The Type 59 gave the People’s Liberation Army a modern postwar armored platform, ended China’s dependence on imported finished tanks for its principal medium-tank requirement, and became the industrial baseline from which China developed decades of tank manufacturing, modernization, export, and support-vehicle work. China Military Online’s 2019 retrospective emphasizes the Korean War’s influence on Chinese weapons planning, the receipt of Soviet T-54/T-54A samples and production documentation in 1955, and the achievement of independent production by 1959. Sources
The most important variants are the basic Type 59 / WZ-120, the Type 59-I with improved fire-control and auxiliary systems, the Type 59-II / WZ-120B with a 105 mm gun, the uncertain but historically important Type 59-IIA, the post-1991 Type 59D / WZ-120C/D modernization with ERA and improved sights, and export or operator programs such as Type 59P, Type 59G / VT-3, Bangladesh Durjoy, and Pakistan Al-Zarrar. [S1; S4; S5; S11] Sources
The main controversies are not whether the vehicle existed or mattered; those are well-documented claims. Uncertainties include production totals and end dates, variant naming and quantities, remaining PLA stocks at particular dates, and the relationship of Type 59D, Type 59G, QN-506, and Al-Zarrar to the original production family. Sources
The Type 59 was not a design revolution in the way the T-54 itself had been, but it was a strategic industrial revolution for China. Its long life came from scale, simplicity, upgrade headroom, export affordability, and the political usefulness of a tank that China could build, modify, and supply on its own terms. [S1; S2; S3] Sources
China’s decision to develop domestic tank production followed both the Korean War experience and the early Cold War alliance with the Soviet Union. China Military Online connects the drive for indigenous armored equipment to post-Korean War assessments that Chinese forces had paid heavily for inferior weapons. The practical solution in the mid-1950s was not yet an indigenous clean-sheet design; it was technology transfer from the Soviet Union at the point when the T-54A represented a highly current medium-tank design. Sources
The military problem was straightforward: the PLA needed a modern tank that could equip armored units in quantity and be supported by Chinese industry. Strategically, the tank had to solve two problems at once. The army needed firepower, armor, and mobility comparable to contemporary first-line tanks; the state needed a durable industrial base for armor steel, engines, optics, guns, transmissions, and production management. [S2; S3] Sources
Doctrinally, the Type 59 entered a world where medium tanks were becoming main battle tanks. The Soviet T-54/T-55 family emphasized a balance of 100 mm firepower, low silhouette, cast turret protection, diesel mobility, and mass production. China adopted that pattern before later attempting to add rangefinders, stabilized fire-control components, improved radios, 105 mm guns, ERA, and other late-generation features to keep the old chassis relevant. [S4; S5] Sources
Industrial constraints shaped the family. The official 2019 Chinese retrospective notes that the vehicle moved through stages sometimes described as a Sino-Soviet mixed vehicle and then a vehicle made from fourteen major components, with more than 330 key engine technical issues reportedly resolved. Such accounts are official narratives and does not demonstrate independent engineering audit records, but they align with the broader fact that the Type 59 program was as much an industrialization project as a tank procurement. Sources
Development and variants
The Type 59 family developed from the original WZ-120 through Chinese production variants, specialized chassis adaptations, and several national modernization programs. Sources
Basic Type 59 / WZ-120 production tank and its T-54A parentage. Sources
Type 59-I, Type 59-II / WZ-120B, Type 59-IIA, Type 59D / WZ-120C/D, Type 59P, Type 59G / VT-3, and selected 120 mm / 125 mm demonstrators where they illuminate the family’s upgrade envelope. Sources
Type 59-based recovery, bridge, dozer, and mine-clearing variants where Published accounts describe records. Sources
Pakistan Al-Zarrar and Bangladesh Durjoy as operator or export-modernization lineages, not as original Cold War production variants. Sources
Type 69 and Type 79 are related Chinese tank families influenced by the Type 59 and by later T-62-related lessons, but they are treated as separate families rather than Type 59 variants. Sources
Type 62 light tank is a reduced-weight related design line and not a Type 59 variant in the cited account’s count. Sources
Modern heavy IFV / fire-support conversions such as VN11-like or QN-506 vehicles are mentioned as late chassis exploitation but not treated as core Type 59 service variants without additional project-specific documentation. Sources
The cited sources describe CN-TYPE59 as a unique, well-documented family and records the parent/lineage relationship as Soviet T-54A -> Type 59. Sources
The Type 59’s T-54A origin and major modernization sequence are well documented. Precise relationships and quantities for some bridging, mine-clearing, Type 59G/Durjoy, QN-506, and export adaptations remain uncertain. [S1; S5] Sources
The best-supported development sequence begins in 1955–1956. China Military Online states that China obtained T-54 and T-54A samples from the Soviet Union in November 1955 and that, at China’s request, the Soviet side supplied complete T-54A drawings and production process documentation. Both China Military Online and SASTIND date construction of China’s first tank factory, Factory 617, to April 1956. [S2; S3] Sources
SASTIND records the first T-54A prototype assembled with Soviet-supplied parts as leaving the line in December 1958. It also records completion of the first production task in August 1959 and explicitly states that this ended China’s history of being unable to manufacture tanks. China Military Online adds that 32 domestically produced tanks appeared in the 1959 National Day parade and that the type was formally named the 1959-type medium tank by year’s end. [S2; S3] Sources
Testing extended beyond simple parade acceptance. China Military Online describes extensive climatic and terrain testing totaling nearly 10,000 kilometers, including cold-region and hot-island trials. It also states that a Type 59 was present in a 1965 nuclear-effects test, though that account is described as a broad official-retrospective claim unless corroborated by trial reports. Sources
The production story after 1959 is less clean. Published accounts describe production as 1958–1985 and 9,500+ often cited. SASTIND states that bulk production stopped in the 1980s. Several open sources specify serial production beginning around 1963, after early assembly and production learning. The likely reconciliation is that assembly and initial production began in 1958–1959, while sustained mass production matured in the early 1960s after domestic component and armor-steel problems were solved. [S1; S2; S8] Sources
Modernization proceeded in layers. Type 59-I added a laser rangefinder and other support improvements; Type 59-II introduced a 105 mm gun; Type 59-IIA added further 105 mm, stabilization/fire-control, and protection changes; Type 59D carried the family into the 1990s with ERA, improved guns, passive night capability, and fire-control modernization. Deep export and operator upgrades later installed 125 mm guns, new turrets, higher-output engines, and modern sights, stretching the family well beyond its original design assumptions. [S4; S5; S11] Sources
Design and performance
The basic Type 59 follows the T-54A pattern: driver in the front-left hull, fighting compartment and cast turret in the center, engine/transmission at the rear, and a four-man crew. The layout is compact and low compared with many Western contemporaries, but its internal ergonomics and ammunition stowage are products of 1950s Soviet design philosophy. [S4; S7] Sources
The hull is welded steel armor. Army Recognition gives the basic arrangement as a front fighting compartment, rear engine compartment, and welded hull with armor ranging from 99 mm on the lower glacis to 20 mm on the hull floor; other open sources quote different maximum figures when turret armor is included. Published accounts describe precise armor values as source-dependent rather than definitive. [S4; S8] Sources

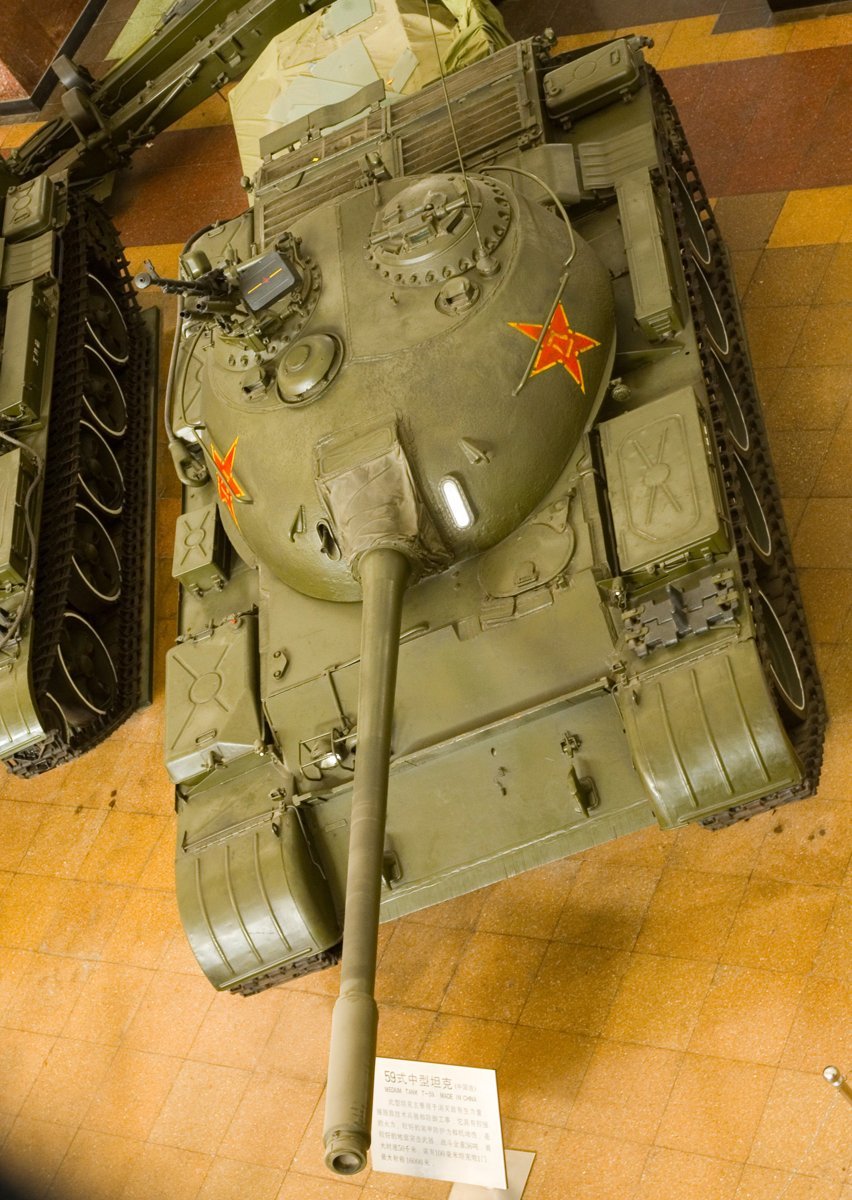

The basic tank uses a cast dome-shaped turret derived from the T-54A. The commander and gunner sit on the left side of the turret and the loader on the right. Modernized variants alter external details with smoke grenade launchers, thermal sleeves, laser rangefinders, ERA blocks, stowage racks, or in the case of Type 59G-style upgrades, a substantially different welded turret. [S4; S5] Sources
Base protection is homogeneous steel armor broadly comparable to early T-54/T-55 standards. It was adequate against many 1950s threats but vulnerable to later 105 mm APDS/APFSDS, modern anti-tank guided missiles, RPGs with improved warheads, and top-attack or tandem-charge weapons. Type 59D, Al-Zarrar, and export packages add ERA or modular/composite add-on armor, but such upgrades do not turn the underlying chassis into a peer of new-build third-generation MBTs. [S4; S5; S10; S11] Sources
The base tank mounts a 100 mm rifled gun derived from the Soviet D-10 family. Army Recognition gives a typical ammunition load of 34 rounds. Type 59-II / WZ-120B introduced a 105 mm rifled gun; Type 59D retained 105 mm firepower but with improved gun and fire-control integration; some demonstrators and export modernizations used 120 mm or 125 mm smoothbore guns. [S4; S5] Sources
Typical secondary weapons include a coaxial 7.62 mm machine gun, a hull-mounted 7.62 mm machine gun firing forward, and a 12.7 mm Type 54 anti-aircraft machine gun above the commander’s hatch. Exact ammunition loads differ by source and variant; Army Recognition gives 200 rounds for the 12.7 mm gun on the basic vehicle. Sources
Basic 100 mm ammunition included armor-piercing, high-explosive anti-tank, and high-explosive rounds. Type 59-II introduced 105 mm ammunition, commonly reported as APFSDS, HEAT, and HESH/HE rounds depending on source and period. Type 59D claims of gun-launched missile capability are source-sensitive and retained at less certain. Sources
Early Type 59s were austere, with limited night capability and no main-gun stabilizer in many descriptions. Type 59-I added a laser rangefinder and primitive/simple fire-control improvements. Type 59-II and Type 59-IIA improved automatic fire-control, stabilization, radios, and fire suppression. Type 59D and export upgrades added improved day/night sights, ballistic computation, and in some variants thermal imaging. [S4; S5; S10] Sources
The base vehicle’s optics reflected mid-1950s Soviet practice. Army Recognition states the standard version was equipped with NBC protection and night vision, while other accounts emphasize that early production vehicles lacked the infrared equipment associated with T-54A. This is likely a variant/date issue and is described as a configuration conflict rather than a single universal fact. [S4; S8] Sources
The basic Type 59 uses the 12150L V-12 liquid-cooled diesel, generally given as 520 hp at 2,000 rpm with a manual gearbox of five forward and one reverse gear. Type 59D is often given a 580 hp 12150L7 engine; Pakistan Al-Zarrar and some export packages use 700–730 hp class engines. [S4; S5; S10; S11] Sources
The suspension is torsion bar, with five large road wheels on each side, a distinctive gap between the first and second road wheels, rear drive sprocket, front idler, and no return rollers. The “five road wheel” visual identity became a popular shorthand for the Type 59 family and for its many modernized derivatives. [S4; S3] Sources
On-road speed is normally given around 40–50 km/h for the base tank; range is commonly cited around 440 km on internal fuel and up to roughly 600 km with external fuel. China Military Online gives combat weight as 34 tonnes, whereas Army Recognition and many Western summaries give 36 tonnes. The difference may reflect measurement standard, early configuration, or source simplification. [S3; S4] Sources
Crew of four: commander, gunner, loader, and driver. The compact Soviet-style turret limited comfort and growth room, especially as larger guns, additional fire-control equipment, and armor kits were added. Loader workload increased with larger-caliber rounds in some upgrade packages. [S4; S5] Sources
Base radios were upgraded repeatedly. GlobalSecurity identifies improved radio and intercom changes in Type 59-II, while later export packages added navigation and communication suites. The cited accounts does not preserve detailed radio designations, so published accounts describe radio details as variant-specific and less certain. [S1; S5] Sources
Base protection included steel armor, smoke and camouflage practices, and later NBC/fire-suppression improvements. Type 59-I added automatic fire suppression; Type 59D and export packages added ERA, smoke grenade launchers, and improved night/fighting survivability aids. [S5; S10] Sources
The family’s long export life suggests robust maintainability, simple mechanical systems, and broad parts compatibility with T-54/T-55-derived infrastructure. However, deep upgrades can create mixed fleets with supply and training complications, especially when 100 mm, 105 mm, 120 mm, and 125 mm guns coexist in national inventories. [S1; S4; S5; S11] Sources
Weaknesses include obsolete base armor, poor survivability against modern anti-tank weapons, limited early night-fighting and stabilization, cramped ergonomics, modest reverse speed, vulnerability of exposed fuel drums and turret ammunition stowage, and the tendency for late upgrade claims to outpace independent verification. [S4; S5; S10] Sources
Production, operators, and combat record
The production story centers on Factory 617 at Baotou, later associated with Inner Mongolia First Machinery Group / Norinco lineage in open sources. Construction of the factory began in April 1956, and the first Soviet-parts T-54A prototype was completed in December 1958. The first production task was completed in August 1959. [S2; S3] Sources
The program’s most important industrial output was not simply a count of tanks; it was the establishment of tank manufacturing capability. The Chinese official archive explicitly frames the Type 59 as ending China’s inability to manufacture tanks and providing a foundation for future Chinese tank development. Sources
Production totals remain disputed. Published accounts describe ‘9,500+ often cited.’ Other open sources use 9,500, over 10,000, or 10,000+ for all variants. Sources
Bulk production stopped in the 1980s according to SASTIND and China Military Online. Modernization, export-package work, rebuilds, and foreign upgrade programs continued far longer. Heavy Industries Taxila’s official site describes Al-Zarrar as a major modification and upgrade in mobility, firepower, and armor protection, with 730 hp engine and 125 mm smoothbore gun replacing the old Type 59 power/firepower baseline. [S2; S3; S11] Sources
The original operator was the People’s Liberation Army. The Type 59 formed the backbone of Chinese armored units for decades before being displaced by Type 69/79, Type 80/88, Type 96, Type 99, and later systems. Current status claims are source-sensitive: some open sources report remaining training, reserve, marine, stored, or target use; other references still list Type 59 variants in service. Sources
Exports and aid made the Type 59 one of the most widely distributed Chinese armored vehicles. Army Recognition lists Albania, Bangladesh, Cambodia, China, Democratic Republic of Congo, Iran, Iraq, North Korea, Pakistan, Sudan, Tanzania, Vietnam, Zambia, and Zimbabwe among users. Other open-source operator lists add or modify quantities and statuses, but exact current counts vary sharply by source and year. [S4; S8] Sources
The Type 59’s combat history is broad but difficult to isolate because sources often conflate Chinese Type 59s, Soviet T-54/T-55s, Chinese Type 69s, and later local upgrade derivatives. For narrative use, the safest approach is to describe documented operator contexts and then distinguish exact vehicle identification only where photos, unit records, or trustworthy battle histories permit it. [S4; S8] Sources
Myth: The Type 59 was simply a “Chinese T-55.” Evidence: the cited accounts and multiple technical sources tie the Chinese vehicle specifically to the T-54A production basis; later upgrades and family confusion blur the distinction. [S1; S2; S3; S6] Sources
Myth: The Type 59 remained modern because it received 105 mm or 125 mm guns. Evidence: firepower upgrades improved lethality, but survivability, sensors, ergonomics, ammunition stowage, powertrain limits, and training remained decisive. [S4; S5; S10; S11] Sources
Myth: Every five-road-wheel Chinese-looking tank is a Type 59. Evidence: Type 59, Type 69/79, Type 62, and modern conversions can be confused; identification requires gun, turret, hull, road-wheel spacing, engine deck, and equipment details. [S1; S4; S5] Sources
Legacy and historical evidence
Overall battlefield value: high in the Chinese strategic-industrial context of 1959, moderate as a first-generation MBT in the 1960s, and steadily declining as an unmodernized tank after the 1970s. Its best late-life value was as a cheap, known, upgradeable chassis for users who could not buy or sustain newer MBTs. [S1; S4; S5; S10; S11] Sources
The Type 59’s legacy begins with Chinese industrial self-reliance. It was the first PRC-built tank in series production and a foundational production school for armor steel, powerpacks, tank guns, sights, radios, recovery vehicles, and later design families. [S2; S3] Sources
Design influence is visible in the Type 69/79 families and in the habit of using proven hulls as modernization platforms. The Type 59 also became the object of Chinese enthusiast shorthand because its five large road wheels remained visually recognizable even when turrets, guns, armor packages, and electronics changed dramatically. [S3; S5] Sources
Surviving vehicles are numerous in museums, military displays, memorials, and training collections across China and export-user countries. Paint, markings, machine-gun fit, external stores, and modern display hardware may not represent a wartime or production-standard configuration. [S12; S13; S14; S15] Sources
Modern reputation is double-edged. To some observers, the Type 59 is a symbol of obsolescence; to others, it is a symbol of affordable modernization and the first major step in China’s postwar armored-vehicle industry. Both views are partly true, depending on whether the question is tactical survival against modern threats or strategic-industrial influence over a sixty-year lifecycle. [S1; S2; S3; S4] Sources
The source base is strongest for high-level development chronology and family identity, because Chinese official/official-media sources, the cited accounts, and Western technical summaries agree on the T-54A parentage, 1956 factory start, 1958–1959 initial production sequence, and long modernization history. It is weakest for exact production totals, variant quantities, and current inventories. [S1; S2; S3; S4; S5] Sources
The Type 59 / WZ-120 was derived from Soviet T-54A technology transfer and production documentation. [S1; S2; S3; S6] Sources
Factory 617 construction began in April 1956. [S2; S3] Sources
The first Soviet-parts T-54A prototype was completed in December 1958 and first production task in August 1959. Sources
The vehicle became China’s first mass-produced domestic tank family and a major foundation for later Chinese armored-vehicle industry. [S2; S3] Sources

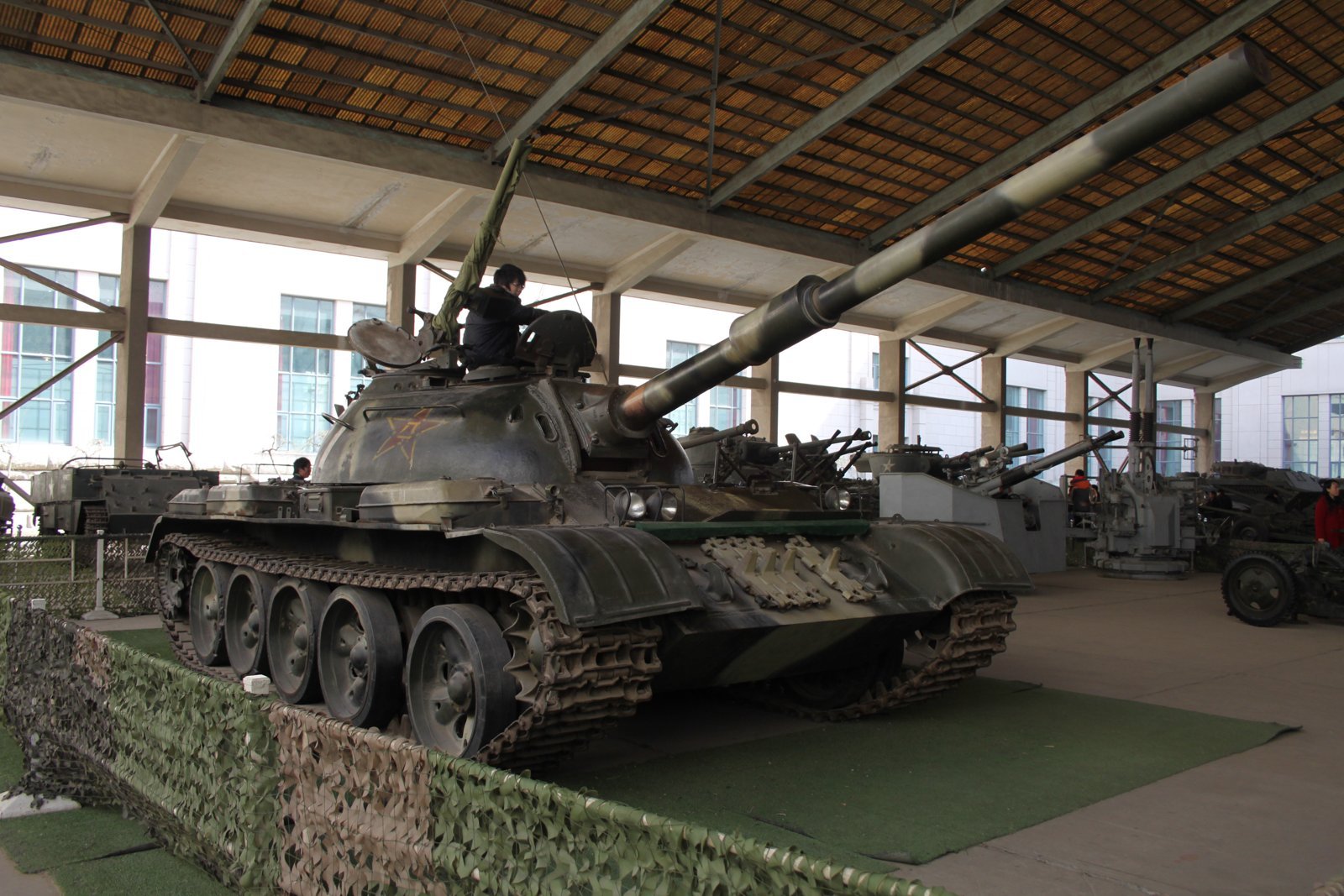

Type 59-II / WZ-120B production/conversion from 1982 to 1985 with a 105 mm gun, improved radio/fire-suppression/FCS features. [S4; S5] Sources

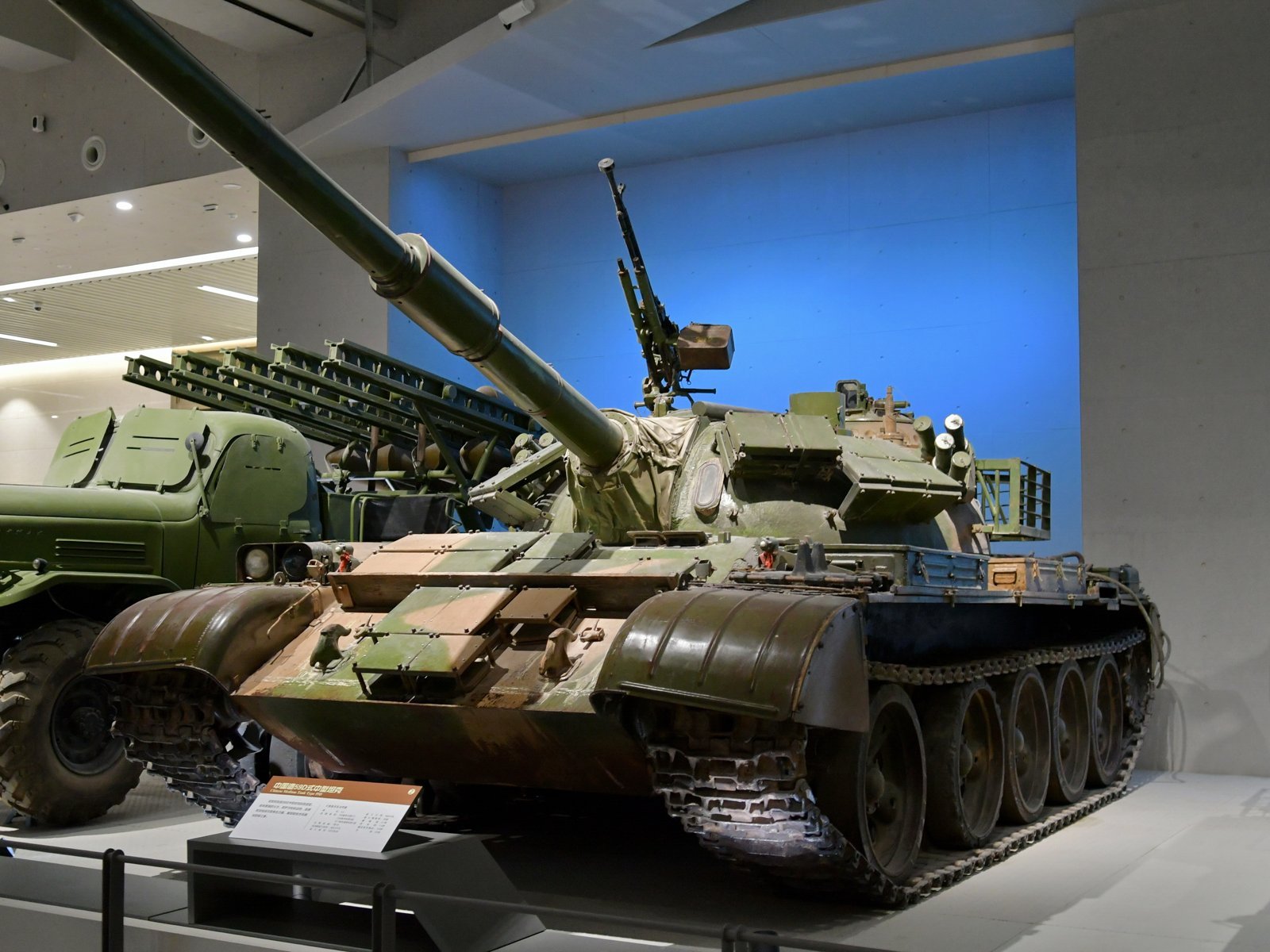

Type 59D modernization around 1995 with ERA, improved 105 mm gun, passive night capability, and FCS upgrades. [S4; S5] Sources
Pakistan Al-Zarrar as a Type 59 modernization lineage with major improvements to mobility, firepower, and protection. [S10; S11] Sources
Exact Type 59-IIA configuration and service quantities. [S1; S5] Sources
Exact Type 59D/D-I/WZ-120C/D nomenclature and quantities. [S1; S5; S8] Sources
Current operator inventories and serviceability, especially for countries under sanctions, civil conflict, or low transparency. [S4; S8] Sources
Whether Type 59G / VT-3, Durjoy, QN-506, and heavy-IFV conversions is described as variants, rebuilds, demonstrators, or separate export products. [S4; S5] Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
.jpg){kind=link}
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- S2 — State Administration for Science, Technology and Industry for National Defense (SASTIND) / Xinhua. “59式中型坦克研制成功.” Published 2019-09-26. —; accessed 2026-06-03.
- S3 — China Military Online / photo.81.cn. “59式坦克：铁骑纵横六十年.” Published 2019-09-06. —; accessed 2026-06-03.
- S4 — Army Recognition. “Type 59 WZ120.” Military equipment database page, dated 2024-10-19 on page. —; accessed 2026-06-03.
- S5 — GlobalSecurity.org. “Type 59 / WZ-120 Medium Tank - Variants.” —; accessed 2026-06-03.
- S6 — OE Data Integration Network (ODIN), U.S. Army. “WZ-120 (Type 59) Chinese Main Battle Tank (MBT).” Published/updated 2025-02-18 in search result. —; accessed 2026-06-03.
- Trackpads historical compilation, 2026 (unpublished).
- S8 — Wikipedia, English and Chinese Type 59 tank pages. — and; accessed 2026-06-03.
- S8 — Wikipedia, English and Chinese Type 59 tank pages. — and; accessed 2026-06-03.
- S10 — GlobalSecurity.org. “Tank T-59” (Pakistan). Last modified 2011-09-07 on page. —; accessed 2026-06-03.
- S11 — Heavy Industries Taxila. “HIT Products / Tank Al-Zarrar / 125mm Smooth Bore Tank Gun.” —; accessed 2026-06-03.
- S12 — Wikimedia Commons. “File:Type 59 tank - front right.jpg.” Photographer: Max Smith / Megapixie. Date 10 August 2007. —; accessed 2026-06-03.
- S13 — Wikimedia Commons. “File:Type 59 tank - above.jpg.” Photographer: Max Smith / Megapixie. Date August 2007. —; accessed 2026-06-03.
- S14 — Wikimedia Commons. “File:Type 59-II Tank (9871578856).jpg.” Photographer: Gary Todd. Date 13 March 2010. —; accessed 2026-06-03.
- S15 — Wikimedia Commons. “File:Type 59D tank 20180219.jpg.” Photographer: Tyg728. Date 19 February 2018. —; accessed 2026-06-03.
