Historical overview
The Tiran family was Israel’s practical answer to an armor problem created by victory: after the Six-Day War, Israel possessed large numbers of captured Egyptian and Syrian T-54/T-55 tanks, many repairable but incompatible with Israeli radios, crew routines, ammunition standards, and identification practices. Instead of scrapping all of them, the IDF converted many into usable reserve vehicles. Early vehicles retained the Soviet 100 mm D-10T gun, while later Tiran 4Sh and Tiran 5Sh vehicles adopted the 105 mm M68/L7-family gun already central to Israeli Centurion/Sho’t and Magach fleets. [Tank-AFV; TankNutDave; Levy 2021] Sources
The family mattered less because it was technically superior to purpose-built Israeli or Western tanks and more because it was strategically economical. It provided extra hulls during a period of recurring regional wars, disguised armor for special operations, a reserve-tank pool, and a test case in Israeli standardization. The Tiran 5Sh and Ti-67/Tirán also became one of the few Israeli captured-tank conversions with an export afterlife, most visibly in Uruguay. [Levy 2021; Cybermodeler review; Tank Encyclopedia Uruguay; Ejército Nacional Uruguay 2024/2025] Sources
The most important variants are Tiran 4 (T-54 base), Tiran 5 (T-55 base), Tiran 4Sh and Tiran 5Sh (105 mm rearmed conversions), Ti-67/export-upgrade configurations, and Tiran 6 (captured T-62 base). Early Tiran 1/2 designations are best treated as transitional labels for largely unmodified captured T-54/T-55 vehicles, not as mature conversion standards. The Achzarit heavy APC belongs in the Tiran story as a boundary derivative, but it is not itself a tank. [Tank-AFV] Sources
The largest controversies are definitional and numerical. Sources use Tiran for different groups: unmodified captures, 105 mm conversions, captured T-54/T-55/T-62 vehicles in Israeli service, and later Ti-67 export or upgrade vehicles. Production/conversion totals also vary: the cited accounts uses the defensible phrase “hundreds converted,” while secondary sources commonly cite about 146 Tiran 4/5 vehicles initially introduced after 1967 and about 150 Tiran 5Sh-type vehicles, but the boundaries behind those numbers are not always consistent. [Tank-AFV; AK Interactive/Abteilung 502; Cybermodeler] Sources
The Tiran was a successful expedient conversion family, not a technological revolution. It gave Israel useful armored mass, helped sustain reserve formations, and demonstrated the IDF’s talent for adapting captured and foreign equipment. Its limitations were equally clear: old Soviet ergonomics, cramped turrets, aging automotive components, divergent spare-parts needs, and limited growth potential compared with Magach, Sho’t Kal, and later Merkava fleets. [Zaloga 2004; Tank-AFV; TankNutDave] Sources
Israel entered the late 1960s with a diverse armored force built from necessity rather than procurement purity: upgraded Shermans, British Centurions, French AMX-13s, and American M48/Magach tanks served beside one another. The Six-Day War changed the equipment equation. Egypt and Syria had fielded Soviet T-54 and T-55 tanks, and Israel captured enough of them to make repair, standardization, and reuse a realistic option. [Levy 2021; Tank-AFV; TankNutDave; Zaloga, Armour of the Middle East Wars] Sources
The military problem was not simply a shortage of tanks. It was the need to convert a captured fleet into vehicles that Israeli crews could identify, maintain, communicate from, and employ within IDF armored doctrine. Captured Soviet tanks had useful firepower and low silhouettes, but they brought unfamiliar radios, different ammunition, different machine guns, different stowage habits, and ergonomics that Israeli crews often considered inferior to Western vehicles. [Zaloga 2004; Tank-AFV; TankNutDave] Sources
Doctrine also mattered. The IDF emphasized rapid maneuver, aggressive armored counterattack, high crew initiative, and good radio communication. A captured tank that could not communicate reliably with Israeli units or that looked too much like an enemy tank carried tactical risk. Tiran modifications therefore combined battlefield recognition, crew convenience, Israeli communications, and Western weapons standardization. [Tank-AFV; TankNutDave; Levy 2021] Sources
The political and industrial context was one of persistent embargo risk and heavy dependence on foreign supply. Converting enemy tanks into reserve armor fit a broader Israeli pattern: Shermans became heavily modified M-50/M-51 vehicles, Centurions became Sho’t and Sho’t Kal, and M48/M60 tanks became Magach variants. The Tiran was part of that ecosystem of adaptation. [Zaloga, Armour of the Middle East Wars; Tank-AFV] Sources
Development and variants
Published accounts describe Tiran as a full captured-tank conversion family centered on Israeli use of T-54, T-55, and T-62 chassis. It includes early unmodified captured designations where they explain the family tree; the main Tiran 4/5 conversion standards; 105 mm Tiran 4Sh/5Sh conversions; the Ti-67/Tirán export and modernization terminology; Tiran 6; and major tank-related derivatives such as dozer and mine-clearing configurations. Sources
The account excludes detailed histories of the Soviet T-54, T-55, and T-62 as independent families except where base-vehicle characteristics are needed to explain the Tiran conversions. Sources
Related vehicles often confused with Tiran include the Soviet T-54 and T-55 in unmodified Arab service; Israeli Sho’t Kal Centurions; Magach M48/M60 tanks; Egyptian Ramses II; Iranian T-55/T-72Z/Safir-74 modernizations; and Lebanese-war photographs of mixed T-54/T-55/Tiran hulls whose external fittings are hard to identify in poor imagery. [Zaloga 2004; Tank Encyclopedia Uruguay; Tank-AFV] Sources
The boundaries between Tiran, Ti-67, and later export-package terminology vary between sources. Some prototype names and covert-transfer claims remain unconfirmed. [Tank-AFV; Tank Encyclopedia Uruguay] Sources
The Tiran program began after the 1967 capture of T-54/T-55 tanks. Several sources state that Israel captured roughly 860 enemy tanks in the Six-Day War, including about 280 T-54/T-55 vehicles, and that about 146 were made serviceable for early IDF use. These figures are useful but is described as less certain because sources differ on whether they count all captured vehicles, repairable vehicles, initial conversions, or later serviceable holdings. [AK Interactive/Abteilung 502; Cybermodeler; Tank-AFV] Sources
The earliest stage appears to have been functional reuse: captured T-54 and T-55 vehicles were inspected, repaired, given Israeli markings and basic communications, and placed into limited service. Literature often calls unmodified captured T-54s “Tiran 1” and unmodified captured T-55s “Tiran 2.” the cited accounts, however, focuses the family on the more developed Tiran 4/5/4Sh/5Sh/6 variants. [TankNutDave; Tank-AFV] Sources
The first major conversion standards were Tiran 4 on T-54 chassis and Tiran 5 on T-55 chassis. Common external changes included additional turret stowage bins, Israeli-style jerrycan racks, modified fenders with black rubber sections, revised loader’s hatch arrangements, new antenna mounts, Western-pattern machine-gun fittings, and Israeli radio equipment. These changes improved field utility, identification, and logistical integration without making the tank fundamentally new. [TankNutDave; Tank-AFV] Sources
During the 1970s, Israeli standardization pressures pushed the conversion further. The Tiran 4Sh and Tiran 5Sh replaced the Soviet 100 mm D-10T gun with a 105 mm M68/L7-family rifled gun, requiring breech, ammunition-stowage, and sighting changes. These conversions aligned Tiran ammunition with Israeli Magach and Sho’t fleets and made the tanks more useful in reserve units. [TankNutDave; Tank-AFV; Zaloga 2004] Sources

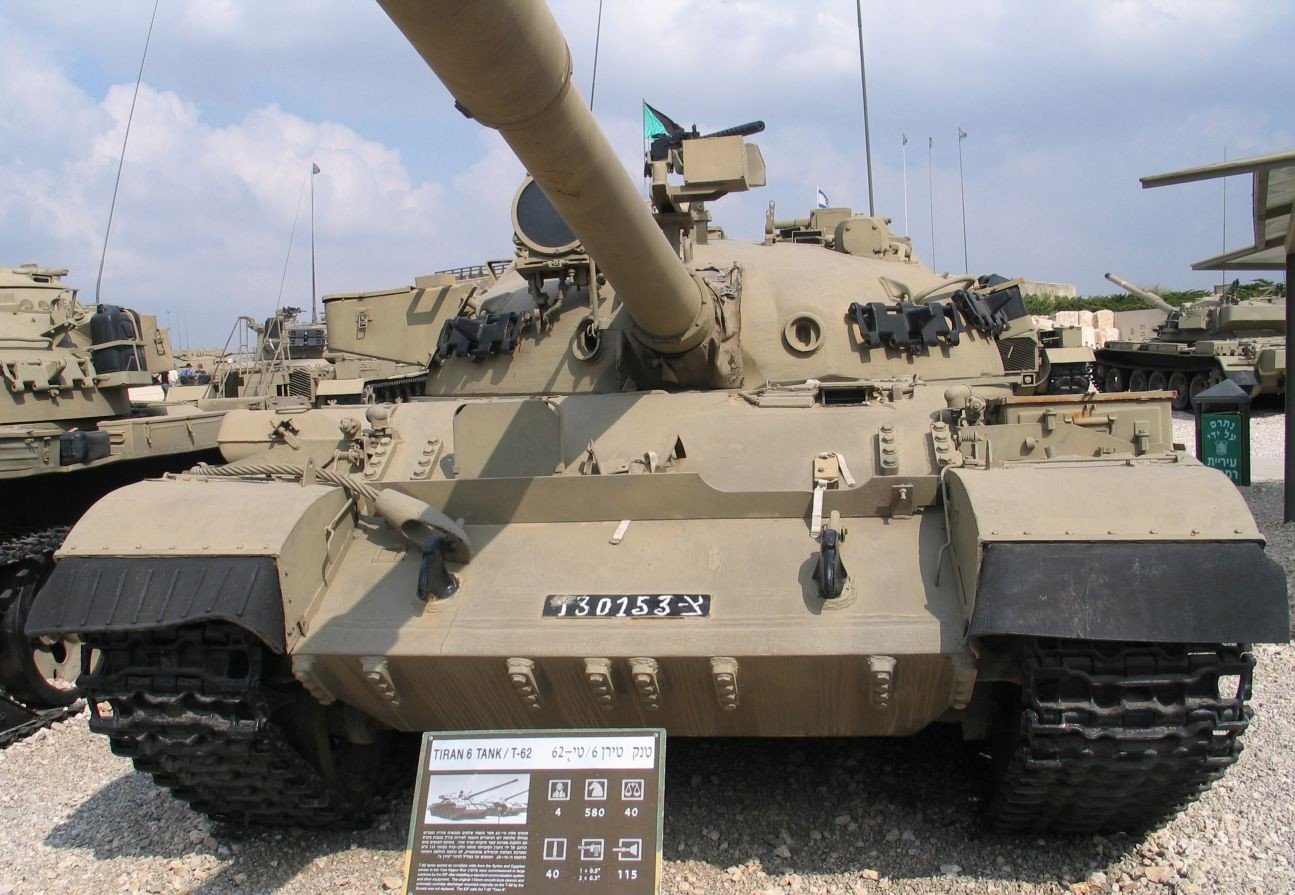

The 1973 Yom Kippur War added captured T-62s to the pool. Israel adapted some as Tiran 6, but these appear to have been fewer and less deeply standardized than the T-54/T-55-based vehicles. Most accounts retain the 115 mm U-5TS smoothbore gun and emphasize Israeli fittings, stowage, radios, and recognition modifications rather than a full 105 mm rearmament. [Tank-AFV; TankNutDave] Sources
Late upgrade packages sometimes called Ti-67 included improved fire-control equipment, night-vision equipment, stabilization, Detroit Diesel power-pack changes, improved suspension, and in some references Blazer explosive reactive armor. The exact package varied, and the name is not used consistently across IDF, export, hobby, and reference literature. Uruguay’s surviving vehicles are often referred to as Ti-67 “Tirán,” but Tank Encyclopedia cautions that the vehicles remain Tiran-5Sh-type tanks in Uruguayan service. [Tank-AFV; TankNutDave; Tank Encyclopedia Uruguay; Ejército Nacional Uruguay 2025] Sources
Design and performance
Tiran retained the standard Soviet T-54/T-55/T-62 layout: driver front-left in the hull, fighting compartment in the center, cast turret above a low hull, and engine/transmission in the rear. The crew remained four: commander, gunner, loader, and driver. The conversion did not solve the base family’s cramped turret volume, low silhouette ergonomics, or limited depression over some arcs. [Zaloga 2004; Tank-AFV] Sources
T-54/T-55-based Tiran hulls retained the welded Soviet hull with sharply sloped glacis and five large road wheels per side. Israeli changes were mostly external fittings, stowage, fenders, communications cabling, lights, brackets, infantry telephone arrangements on some vehicles, and mounting points for spare track or field equipment. Tiran 6 retained the T-62 hull with its longer chassis and distinctive road-wheel spacing. [Tank-AFV; TankNutDave; Wikimedia Commons image evidence] Sources
The cast Soviet turret remained the defining shape. Tiran 4/5 conversions usually show added bins and external fittings. The 105 mm Sh variants can often be identified by the 105 mm gun’s bore evacuator/fume extractor position compared with the original D-10T gun. Museum examples also show Israeli machine-gun mounts, turret stowage, and recognition markings. [TankNutDave; Wikimedia Commons file pages] Sources
The Tiran did not receive a new Israeli armor architecture in its basic forms. Base armor remained that of the T-54/T-55/T-62 families: sloped rolled/welded hull plates and cast turret armor. Later Ti-67/Tiran upgrade references mention Blazer ERA on some configurations, but exact application by vehicle and operator is source-conflicted. Sources
Tiran 4 and Tiran 5 initially retained the 100 mm D-10T-series gun. Tiran 4Sh and Tiran 5Sh replaced it with the 105 mm M68/L7-family rifled gun. Tiran 6 retained the T-62’s 115 mm U-5TS smoothbore in most sources. The 105 mm conversion was the most important technical change because it aligned Tiran ammunition and training with Israeli Western-equipped fleets. [Tank-AFV; TankNutDave] Sources
Tiran conversions commonly replaced or supplemented Soviet machine guns with Western/Israeli service weapons, including 7.62 mm Browning/M1919-family weapons and.50 caliber M2HB installations in some configurations. Photographs show variation: some vehicles carry loader or commander machine guns, some have a.50 caliber gun above the main gun, and Uruguayan vehicles do not always carry the heavy machine-gun fit. [TankNutDave; Tank Encyclopedia Uruguay; Wikimedia Commons image evidence] Sources
The 100 mm vehicles depended on Soviet D-10T ammunition stocks. The 105 mm Sh variants required new ammunition stowage and handling arrangements because NATO-style 105 mm ammunition differed dimensionally and logistically from the 100 mm rounds. The 115 mm Tiran 6 remained tied to T-62 ammunition unless modified in ways not well documented by open sources. [Tank-AFV; TankNutDave; Zaloga 2004] Sources
Early Tiran vehicles retained much Soviet sighting equipment, supplemented by Israeli radios and battlefield fittings. Later 4Sh/5Sh and Ti-67 references mention improved fire-control systems, infrared/night-fighting aids, stabilization, and computerized FCS in some packages. These claims are plausible but not uniform; Published accounts describe late FCS descriptions as configuration-specific rather than universal. [Tank-AFV; TankNutDave; Tank Encyclopedia Uruguay] Sources
Optics varied with the base chassis and upgrade standard. Tiran-5Sh examples often retained recognizable turret-searchlight arrangements, while late Ti-67/Tirán accounts mention upgraded night vision and gunner systems. Uruguayan service photographs and descriptions indicate an infrared searchlight linked to the main gun on their Tiran-5Sh/Ti-67 vehicles. [Tank Encyclopedia Uruguay; Ejército Nacional Uruguay 2024/2025] Sources
Basic Tiran 4/5 vehicles used the Soviet V-54/V-55-family diesel power packs inherited from T-54/T-55 chassis. Late Ti-67 references describe a Detroit Diesel 8V-71T and Western transmission package, often quoted at about 850 hp, but this cannot be retroactively applied to all Tiran 4/5/5Sh vehicles. Tiran 6 retained T-62 automotive fundamentals in most accounts. [Zaloga 2004; Tank-AFV; TankNutDave] Sources
Tiran 4/5 retained the T-54/T-55 torsion-bar suspension with five road wheels per side and no return rollers. Tiran 6 retained the T-62 torsion-bar system. Some late upgrade references include improved suspension, but the extent and vehicle-by-vehicle application are not consistently documented. [Zaloga 2004; Tank-AFV] Sources
Mobility remained close to the base Soviet tank unless the vehicle received a late power-pack upgrade. The low profile and compact hull were tactically useful, but the vehicles were old, cramped, and mechanically dependent on stocks of captured or adapted spares. Range figures vary across sources because external fuel drums, jerrycan arrangements, engine package, and road/off-road assumptions differ. [Zaloga 2004; TankNutDave; Tank-AFV] Sources
The crew layout remained Soviet: loader on the right side of the gun, commander and gunner on the left, driver in the hull. Israeli rearmament to 105 mm had to address loading-side and ammunition-stowage issues. Even after modifications, the turret remained smaller and less comfortable than Western tanks familiar to many Israeli crews. [TankNutDave; Zaloga 2004] Sources
Communication was one of the practical reasons for conversion. Israeli radios and antenna arrangements replaced or supplemented Soviet sets so captured vehicles could function in IDF networks. This was a more important combat improvement than it may appear: it reduced the isolation of reserve crews and made Tirans safer to integrate with friendly armor. [Tank-AFV; TankNutDave; Levy 2021] Sources
Basic Tiran protection was the base armor and low profile. Some late Ti-67/Tiran references mention Blazer ERA, smoke launchers, improved fire extinguishers, and other Israeli survivability fittings. Dozer and mine-clearing vehicles added engineering equipment but were not a universal combat-tank standard. [Tank-AFV; TankNutDave; Wikimedia Commons dozer file] Sources
The conversion improved maintainability for Israeli units by standardizing radios, weapons, and external stowage, but it could not make Soviet spares identical to Western fleets. The main long-term limitation was that T-54/T-55/T-62 hulls were aging captures, not a continuing domestic production line. Their eventual retirement and Achzarit conversion reflect that limitation. [Tank-AFV; Levy 2021] Sources
Known weaknesses included cramped ergonomics, limited growth margin, old base armor against modern anti-tank weapons, mixed spares, non-standard base hulls compared with Magach/Sho’t/Merkava fleets, potential friendly-identification issues, and uneven documentation of variant packages. [Zaloga 2004; Tank-AFV; TankNutDave] Sources
Production, operators, and combat record
Tiran was an industrial conversion effort, not a new-build production line. The “manufacturers” were therefore Israeli military repair, rebuild, and conversion facilities working from captured Soviet chassis, rather than a conventional tank plant producing new hulls. This complicates production accounting: a source may count captured tanks, repairable tanks, basic conversions, 105 mm Sh conversions, export upgrades, or surviving service vehicles. [Levy 2021; Tank-AFV] Sources
Published accounts describe the number built as “Hundreds converted,” which is the safest high-level statement. Several secondary sources repeat a more precise post-1967 story: about 280 T-54/T-55 vehicles captured and about 146 introduced into service as Tiran 4/5 within a few years. Those numbers are useful for narrative framing, but not sufficient to define total family conversion output through the 1970s, post-1973 T-62 captures, 105 mm conversions, or later export packages. [AK Interactive/Abteilung 502; Cybermodeler; Tank-AFV] Sources
Production bottlenecks would have centered on inspection of battle-damaged captures, spare-parts cannibalization, adaptation of communications, integration of Western machine guns and ammunition stowage, 105 mm gun conversion work, and training/maintenance documentation. A captured T-55 could be a valuable hull, but only after it could be safely identified, radioed, maintained, and armed within the IDF system. [Tank-AFV; TankNutDave; Levy 2021] Sources
Cost figures are not well documented in open sources. The strategic economy is nonetheless obvious: even with conversion labor, a repairable captured hull was cheaper and faster to field than a new imported tank during periods of procurement pressure. The tradeoff was that the resulting force added another base chassis to Israel’s already heterogeneous armored inventory. [Levy 2021; Zaloga, Armour of the Middle East Wars] Sources
Export production appears limited. The clearest export case is Uruguay, which purchased 15 Israeli Tiran-5Sh/Ti-67 vehicles in 1997 according to secondary accounts and continues to conduct training on Ti-67/Tirán vehicles according to 2024 and 2025 Uruguayan Army news releases. [Tank Encyclopedia Uruguay; Ejército Nacional Uruguay 2024; Ejército Nacional Uruguay 2025] Sources
Israel was the original and primary operator. Published accounts describe Israeli service from 1967 to retirement/conversion in the 1980s/1990s, with roles in Arab-Israeli wars and later conversions to APCs. Tiran units served most plausibly as reserve armor and specialist assets rather than as Israel’s preferred first-line MBT once modernized Centurion, Magach, and Merkava fleets matured. [Levy 2021; Tank-AFV] Sources
Secondary references report Tiran 4/5/5Sh transfers to Israeli-aligned Lebanese forces after 1982. Later photographs and lists describe captures or transfers to Lebanese authorities, but exact vehicle identities, totals, and post-2000 dispositions remain uncertain. [Tank-AFV; T-54/T-55 operator literature] Sources
Uruguay is the strongest post-Israeli operator case. Tank Encyclopedia reports that Uruguay bought 15 Tiran-5Sh vehicles from Israel in 1997, and the Uruguayan Army’s own 2024 and 2025 releases describe training on T-55 Tirán / Tanque Mediano Ti-67 “TIRÁN.” This supports continuing instructional or operational relevance as of 2025, though exact serviceability and full fleet readiness cannot be inferred from training news alone. [Tank Encyclopedia Uruguay; Ejército Nacional Uruguay 2024; Ejército Nacional Uruguay 2025] Sources
The Tiran story begins with combat as source material: T-54/T-55 tanks were captured from Arab armies in 1967, inspected, and reused. The family’s first famous combat use as an Israeli-operated vehicle is usually associated with Operation Raviv in September 1969, a War of Attrition raid in which Israeli forces used captured-looking armor and BTR-50 vehicles on Egypt’s Red Sea coast. Vehicle counts in published summaries differ; captured Soviet equipment allowed deception and reduced visual warning. [Levy 2021; Tank-AFV; Operation Raviv secondary literature] Sources
During the War of Attrition and after 1967, Tirans gave Israel a way to exploit captured tanks without revealing new Western armor. Their external similarity to Egyptian and Syrian armor could be tactically useful, but it also created friendly-identification hazards. The addition of Israeli markings, radios, and crew modifications was therefore operationally important. [Tank-AFV; TankNutDave; Levy 2021] Sources
In the 1973 Yom Kippur War, Israel again captured Soviet-origin tanks, including T-62s that became the basis for Tiran 6. Tirans were not the headline Israeli tanks of the war—Centurions/Sho’t, Magach, and other formations dominate the literature—but the captured-tank pool remained useful for reserves, replacement, and postwar adaptation. [Zaloga, Armour of the Middle East Wars; Tank-AFV] Sources
In Lebanon, Tiran vehicles and T-54/T-55-derived equipment appear in the complicated web of Israeli, SLA, Lebanese militia, and later captured equipment histories. The exact identity of vehicles in photographs can be difficult: T-54, T-55, Tiran 4, Tiran 5, Tiran 5Sh, and locally modified vehicles share silhouettes. Reports of post-2000 Lebanese Army or Hezbollah use concern individual vehicles with uncertain custody histories rather than one continuous operator lineage. [Tank-AFV.] Sources
Myths versus evidence: the Tiran was not proof that captured Soviet tanks were inherently better than Israeli or Western tanks, nor was it merely a cosmetic repaint. It was a practical conversion. The evidence supports substantial communications, armament, stowage, and crew-use changes, especially in 105 mm Sh vehicles, but it does not support treating every captured T-54/T-55 as a fully standardized Ti-67. [TankNutDave; Tank-AFV; Tank Encyclopedia Uruguay] Sources
Legacy and historical evidence
The most relevant comparison is not “Tiran versus every modern tank,” but Tiran versus Israel’s own contemporary alternatives and the Arab T-54/T-55/T-62 fleet from which it came. Against unmodified T-54/T-55 tanks, the 105 mm Tiran 5Sh offered better ammunition commonality with Israeli forces and likely improved fighting effectiveness through communications and fire-control changes. Against Sho’t Kal and Magach, it remained constrained by Soviet ergonomics and older chassis limitations. [Zaloga 2004; Tank-AFV; TankNutDave] Sources
The Tiran’s legacy is best understood as a logistics and adaptation story. It showed that captured enemy equipment could be more than trophies: it could be rebuilt into reserve armor, used for deception, exported, or transformed into an entirely different class of vehicle. That mindset sits naturally beside Israel’s broader conversion culture from Sherman to Sho’t/Magach modernization and eventually to the Achzarit heavy APC. [Levy 2021; Tank-AFV] Sources
Doctrinally, Tiran reinforced the importance of communications and battlefield identification. A tank’s gun and armor were only part of the combat system; radios, stowage, crew routines, night fighting, and ammunition standardization were also decisive in making a captured vehicle usable. [TankNutDave; Tank-AFV] Sources
Survivors at Yad La-Shiryon and other collections have individual modification and preservation histories. Museum vehicles may have restorations, missing equipment, non-original paint, signboard errors, or mixed fittings. Photographs are useful for recognition features—fenders, gun type, stowage boxes, searchlight, turret fittings—but cannot be the only evidence for service configuration. [Wikimedia Commons file metadata; Yad La-Shiryon category evidence] Sources
A common misconception is that Ti-67 is a clean, official umbrella term for all Israeli Tiran tanks. The evidence is messier. It is widely used in export, model, and Uruguayan contexts, and the Uruguayan Army uses “Ti-67 Tirán” in official training material. But specialist commentary warns that the IDF designation history and later export naming are not identical. [Tank Encyclopedia Uruguay; Ejército Nacional Uruguay 2025; Tank-AFV] Sources
The broad conversion sequence is better documented than precise quantities, late Ti-67 equipment definitions, and minor prototype names. Technical packages varied across the tanks’ long service lives. [Tank-AFV; TankNutDave; Levy 2021; Tank Encyclopedia Uruguay] Sources
