Tank, Mark I

Mark I C 19 Clan Leslie preparing to advance near Flers–Courcelette, 15 September 1916; period equipment state.John Warwick Brooke / IWM Q 5574; account public-domain assertion pending source/use review.Image source

From prototype work to production

The Mark I followed the experimental work associated with Little Willie and Mother. Mother helped establish the high track run and rhomboid layout needed to cross wide obstacles, but it was a predecessor rather than simply a production Mark I under another name. Later Marks II, III, and IV likewise belong to their own records. The Mark I article therefore begins with prototype context and then narrows to the first production family. Sources

Urgency shaped the move into service. The tank entered the field while design problems and operating methods were still being learned. Steering-tail removal and changes to brakes, rollers, and idlers were modifications within the Mark I story, not evidence for additional original-production totals. Sources

Male and Female configurations

Male vehicles carried side-mounted 6-pounder guns together with machine guns, while Female vehicles relied on machine-gun armament. The sponsons provided useful arcs of fire without a turret but widened the vehicle and complicated movement and transport. Exact machine-gun fits and ammunition loads varied in the surviving sources and remain tied to configuration and date rather than being collapsed into a single universal specification. Sources

Armor was thin by later standards and was intended for the battlefield threats the first tanks were expected to meet. The account carries a maximum thickness of roughly 12 mm, but one maximum figure does not describe the full protection scheme. Anti-grenade roofs and other fittings appeared on particular configurations rather than every Mark I. Sources

Crew, machinery, and steering

A roughly 105 hp Daimler petrol engine powered the vehicle. The engine, transmission, and fighting equipment shared the cramped hull with an eight-man crew, exposing the crew to heat, noise, fumes, and moving machinery. Driving was a team task involving the driver, commander, gearsmen, and weapon crews rather than a single-person automotive job. Sources

Early vehicles used a two-wheeled steering tail that was later removed. Dimensions and mobility figures therefore need to identify the configuration being described; length can depend on the tail, width depends on sponsons, and road performance is not established as guaranteed cross-country performance in shell-damaged terrain. Sources

Production and counting boundaries

The supported family-level production total is 150 new Mark I tanks. Configuration splits, contractor allocation, completion, delivery, and acceptance details remain limited pending stronger ledgers. Supply, wireless, and training conversions reused existing hulls and are not additional vehicles beyond the cited production total of 150. Sources

Prototype projects and later rhomboid marks help explain the family tree but do not belong inside the Mark I production denominator. The same caution applies to photographs: a rhomboid silhouette is not enough to identify a Mark I when Mother, Mark II, and other related vehicles can look similar in partial views. Sources

Combat debut and later service

Flers–Courcelette established the Mark I's historical importance, but accounts use different denominators for tanks assigned, reaching the start line, beginning the advance, and actually fighting. Those figures cannot be forced into one apparently precise sequence without matching their definitions and time points. The date of the combat debut is firm; the vehicle-by-vehicle participation and loss ledger remains limited. Sources

Later Mark I use extended beyond the Somme and increasingly included support roles. These details remain unconfirmed in the cited evidence. Sources

Conversions and the surviving vehicle

The Mark I established the tank as an operational weapon while exposing the weaknesses of its first production generation. Steering and running-gear changes and the move toward support conversions show a process of adaptation rather than immediate battlefield mastery. Sources

The surviving museum vehicle is especially useful when its restoration state is explicit. Its present appearance includes reconstruction and representation choices associated with C19 Clan Leslie; a modern photograph cannot establish that it is the original C19 preserved unchanged from September 1916. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

British infantry with Mark I D 17 near Flers, 17 September 1916. The photograph is dated after the 15 September debut.IWM Q 5578; account credits John Warwick Brooke; exact source terms pending.Image source

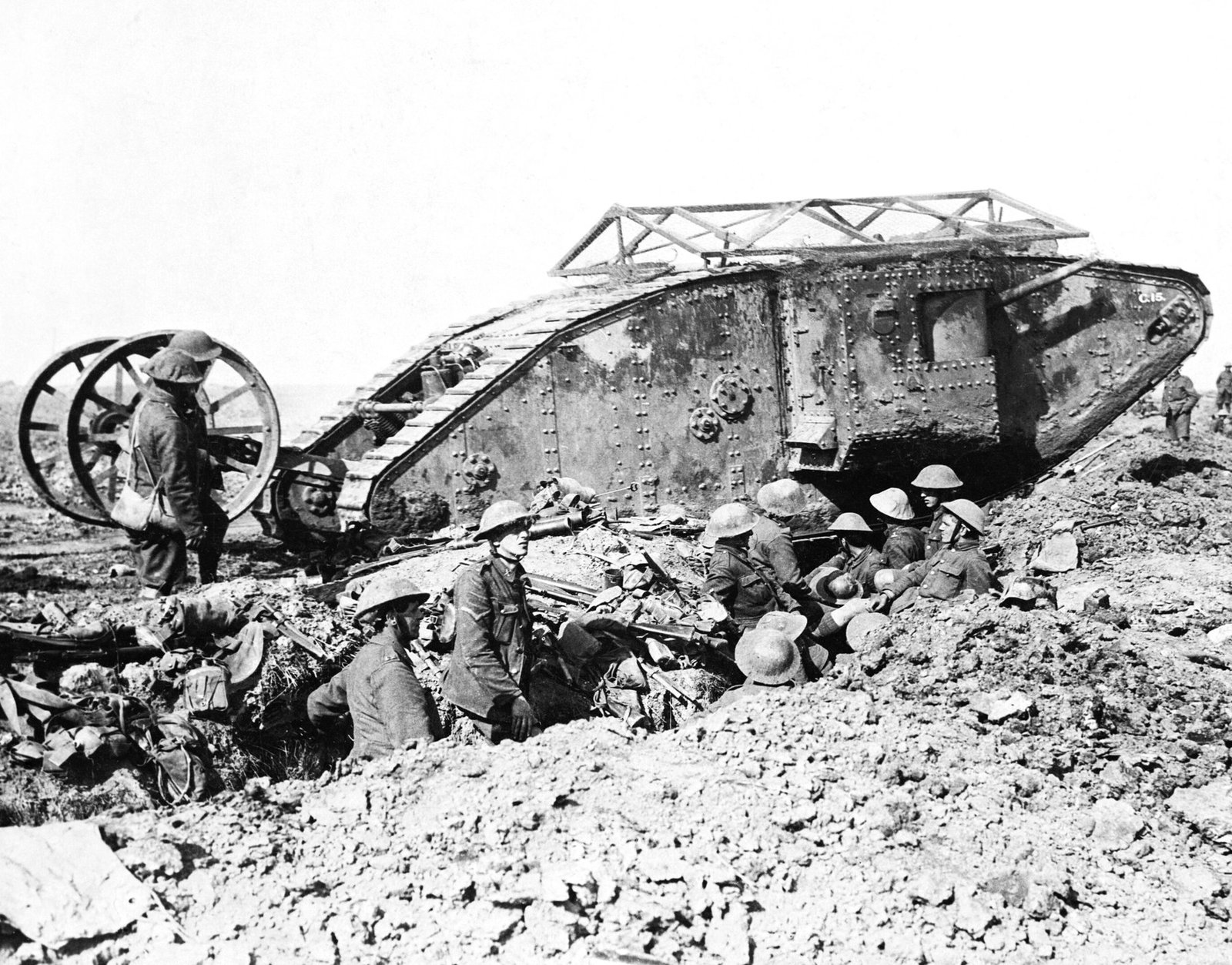

Mark I Male C 15 on the Somme, 25 September 1916, with steering tail and anti-grenade screen; enlarged source reproduction.Ernest Brooks / IWM Q 2486 via Wikimedia Commons; public-domain status is attributed to the cited source.Image source

Restored Mark I at Bovington, photographed 28 April 2018 and presented as C 19 Clan Leslie; reconstructed fittings form part of the display.Alan Wilson / Wikimedia Commons, CC BY-SA 2.0 per account; exact image-license page not refreshed in this batch.Image source·CC BY-SA 2.0
