Historical overview

The T92 light tank was one of the most technically adventurous U.S. armored-vehicle prototypes of the 1950s. It was not a production tank, and it never entered combat; its historical value lies in showing how the U.S. Army tried to escape the limitations of the M41 Walker Bulldog while preserving light-tank firepower, crewed-turret capability, and tactical mobility in a much lighter vehicle. The T92 was intended to make a light tank easier to air transport and potentially deploy with airborne forces, while keeping a 76 mm gun and enough armor for reconnaissance and fire support rather than tank-versus-tank slugging. [TE-T92; VDS-T92] Sources

The design mattered because it was a real attempt to rethink light-tank architecture rather than simply shrink a conventional medium-tank layout. Its low, faceted hull, forward-right power pack, rear crew-access doors, wide turret ring, twin cupolas, and central gun cradle gave it a silhouette and internal arrangement unlike the M41. The vehicle data sheets record a combat-loaded weight of 37,160 lb, a crew of four, a 76 mm T185E1 gun in a turret cradle, hydraulic and manual traverse, no gun stabilizer, and a maximum road speed of 35 mph. Sources

The evidence is mixed. As an engineering prototype, the T92 was imaginative and in several respects ahead of its time; as a procurement answer, it solved the wrong problem by the time it matured. The U.S. Army increasingly wanted a light tank that could combine reconnaissance, airdrop or air-portability, amphibious movement, and heavier future armament. The T92 could not realistically be converted into an amphibious vehicle, and its 76 mm gun was losing credibility just as postwar armor was thickening. The program therefore became a dead end that points directly toward the M551 Sheridan’s later, troubled attempt to satisfy the armored reconnaissance/airborne assault role. [TE-T92; AHF-M551] Sources

Most important “variants” are better understood as pilot states rather than formal production variants: the AAI full-scale mock-up, Pilot No. 1 delivered for Aberdeen testing in 1956, Pilot No. 2 delivered in 1957, revised track/idler test configurations, and two further pilot vehicles reportedly funded but not completed before cancellation. No export, combat, command, recovery, bridge, flamethrower, or tank-destroyer production derivatives are documented. [TE-T92; VDS-T92] Sources

Major controversies and disputed facts concern the exact cancellation date, the engine rating used in summaries, the transmission’s gear/range description, the current location and custody of the surviving hull, and the degree to which “airborne” represents a validated parachute-drop capability rather than a design goal. Published accounts describe the two-pilot build count and non-production status as well-documented claims, but marks those disputed details explicitly. [TE-T92; VDS-T92; PRT-T92] Sources

The T92 emerged from a persistent U.S. Army problem: how to build a light tank that was mobile enough for reconnaissance and airborne or rapid-deployment tasks, but still useful once enemy armor and antitank weapons appeared. World War II and Korea had shown that light tanks were valuable for reconnaissance, security, and infantry support, yet vulnerable when pushed into direct combat against tanks. The M24 Chaffee had been more effective than the M3/M5 Stuart, but by Korea its 75 mm gun and armor were inadequate against T-34-85s. The M41 Walker Bulldog gave the light-tank force a 76 mm gun and high speed, but it was still a relatively large, conventional, gasoline-powered vehicle. [AHF-M551; AFV-M41] Sources

The M41 first entered acceptance in 1951, with a four-man crew and Cadillac manufacture, but the Army quickly began looking beyond it. AFV Database records the M41’s combat weight around 51,200 lb and the later M41A1 at 51,800 lb, while the T92’s vehicle data sheet records 37,160 lb combat loaded. That roughly 14,000-lb difference explains the procurement attraction: the T92 promised a much lighter vehicle without abandoning a turreted 76 mm gun. [AFV-M41; VDS-T92] Sources

Strategically, the early 1950s were dominated by nuclear-battlefield thinking, air mobility, and the expectation that U.S. forces might need rapidly deployable armored reconnaissance elements. The T92’s low hull and weight discipline reflected that environment. At the same time, Soviet emphasis on amphibious light armor, later represented by the PT-76, altered the U.S. light-tank discussion. A light tank that could not swim or be readily adapted to swim looked less attractive once amphibious reconnaissance became a perceived operational requirement. [TE-T92; AHF-M551] Sources

Doctrine also pulled the requirement in different directions. Reconnaissance needed a small vehicle with long range, good visibility, radio communications, and enough firepower to defeat enemy scouts and light armor. Airborne forces needed low weight and compact dimensions. Conventional armored units wanted reliability, maintainability, and weapons that would not become obsolete before fielding. The T92 tried to satisfy many of these demands with a very unconventional design, but each innovative solution added technical risk. [TE-T92; VDS-T92] Sources

Development and variants

Published accounts describe the T92 as a prototype light-tank family rather than a single production variant. It excludes unrelated vehicles sharing the “T92” label, such as the T92 Howitzer Motor Carriage and Japanese Type 92 armored vehicles. Sources

The T92 is best classified as a light tank prototype rather than a tank destroyer, reconnaissance carrier, or self-propelled gun. It mounted its primary gun in a traversing turret, carried a four-man tank crew, and was conceived as a direct replacement for a light tank in U.S. service. Sources

The most important boundary question is the word “airborne.” Sources frequently describe the vehicle as airborne or air-transportable. The available sources support design intent for air transport and airborne deployment; the cited sources establish no reliable evidence that the T92 was successfully parachute-dropped as a complete vehicle. Therefore, “airborne” is used here as role intent, not as a demonstrated service capability. [TE-T92] Sources

By May 1952, a new light-tank search was underway even though the M41 had only recently entered service. Three principal contenders are identified in the detailed secondary literature: Cadillac Motor Car Division of General Motors, Detroit Arsenal, and Aircraft Armaments Incorporated (AAI). Cadillac and Detroit produced T71 concepts; AAI’s proposal became the T92. Sources

AAI received a contract to build a full-scale mock-up after review. The Chief of the Army Field Forces and the Assistant Chief of Staff authorized development in late July 1953, and the Ordnance Technical Committee approved the design in March 1954 for a pilot vehicle. Permission for an additional pilot vehicle followed on 18 June 1954. Design-review meetings in November 1954 and January 1955 produced numerous recommended changes before pilot testing. Sources

The competing T71 program continued for a time, but was canceled in January 1956. This left the T92 as the main advanced light-tank prototype in the post-M41 replacement path. The first T92 pilot reportedly arrived at Aberdeen Proving Ground on 2 November 1956 without its cupolas and was tested using dummy weights. A second pilot arrived on 22 July 1957. The test program revealed problems, especially with the novel track arrangement, and a linked track derived from M24 Chaffee practice was reportedly substituted after the initial band track gave trouble. [TE-T92; VDS-T92] Sources

In 1957 the requirement changed sharply after U.S. attention turned to Soviet amphibious light-tank development. Sources agree that the T92 could not practically be made amphibious. The 76 mm gun also looked increasingly inadequate as tank armor trends moved beyond the M41-era standard. Two further pilot vehicles were reportedly funded but canceled before completion. The exact cancellation timing is source-disputed: some summaries say June 1958, while Tank Encyclopedia states late 1958. Published accounts describe “1958 cancellation” unless a source-specific statement is required. [TE-T92; VDS-T92] Sources

Development chronology summary. Sources

Design and performance

The T92 used an unusual layout for a U.S. light tank. The driver sat in the left front of the hull, while the power pack occupied the front-right hull. The turret sat low and broad in the center, with the gun in a central cradle and two raised cupolas flanking it. Access into the rear of the hull was through large two-part armored doors, a feature visible in period and museum photographs and described in secondary technical accounts. [TE-T92; Commons-T92-1; Commons-T92-2] Sources

The vehicle data sheet records an 89-inch turret-ring diameter inside a hull only 189.75 inches long without gun. That very large ring relative to hull length underscores the core design idea: concentrate the fighting compartment around a low, wide turret while cutting hull volume and weight wherever possible. Sources

The hull was a welded assembly using rolled and cast homogeneous steel plus rolled aluminum. The front was flat and highly sloped, producing a wedge-like silhouette. The engine compartment and auxiliary equipment were separated by welded firewalls and bulkheads according to detailed vehicle-data descriptions. The fenders and several access panels used lightweight materials, including aluminum alloy and fiberglass-reinforced plastic according to the main secondary account. [VDS-T92; TE-T92] Sources

The low wedge hull is sometimes linked to nuclear-blast deflection in popular summaries. That may reflect period thinking, but it cannot be overstated. The better-documented engineering goals were reduced profile, reduced weight, and improved transportability. Sources

The turret was the T92’s signature feature. Instead of a conventional turret bustle and enclosed turret shell, the T92 used a cleft arrangement: the gun sat in a central cradle, while the commander and gunner occupied separate cupola positions on either side. This produced a remarkably low turret profile but made the weapon mount, cupola controls, ammunition handling, and crew coordination more complex than in a conventional light tank. [TE-T92; VDS-T92] Sources

The commander and gunner both had extensive vision devices. The vehicle data sheet lists M16E2 periscopes, modified T42 periscopes, vision blocks, over-cradle periscopes, and a driver infrared periscope among the optical equipment. These details show that the design put serious effort into battlefield visibility despite its very low silhouette. Sources

Protection was light but carefully sloped. The vehicle data sheet gives hull front upper armor as 0.5 in (13 mm) at 65-83 degrees, aluminum access doors at 1.0 in (25 mm) at 65 degrees, side plates ranging roughly 0.375-1.0 in (10-25 mm), and turret/cradle armor up to 1.25 in (32 mm). The cupola sides were listed at 1.125 in (29 mm). This was not medium-tank protection, but it was in the same general light-tank protection class as the M41 while delivered in a lower and lighter package. [VDS-T92; AFV-M41] Sources

The armor scheme reflected the vehicle's light-tank role. It was intended to protect against small arms, shell fragments, and light automatic weapons at useful angles, not to survive hits from modern tank guns or heavy antitank weapons. The heavy reliance on slope and silhouette was part of the protection concept. Sources

The primary weapon was the 76 mm Gun T185E1 mounted in a cradle in the turret. The gun was ballistically related to the M41’s 76 mm M32 family, but the T185E1 installation used an inverted breechblock arrangement to work with the T92’s semiautomatic loading system. The vehicle data sheets list a 360-degree traverse, 15 seconds for maximum 360-degree traverse, elevation from +20 to -10 degrees, maximum elevation rate of 4 degrees per second, a 12-round-per-minute maximum firing rate, and no stabilizer. Sources

Ammunition types listed for the M32/T185/T185E1 family include AP-T M339, HVAP-T M319, HVAP-DS-T M331A2, HEAT-T M496, HE M352, WP M361 smoke, and M363 canister. Because the T92 never entered service, the practical combat effectiveness of this ammunition suite in the T92 installation remains hypothetical. Sources

Secondary armament was heavy for a small light tank: one.50 caliber M2 heavy machine gun in the right cupola, one.30 caliber M37 machine gun in the left cupola, and one.30 caliber M37 coaxial with the 76 mm gun. The vehicle data sheet also lists provision for an M3A1.45 caliber submachine gun and an M2.30 caliber carbine. Sources

The vehicle data sheet gives ammunition stowage as 60 rounds of 76 mm, 700 rounds of.50 caliber, 5,000 rounds of.30 caliber, 180 rounds of.45 caliber, 90 rounds of.30 caliber carbine ammunition, and eight hand grenades. This ammunition load was respectable for a prototype of this size, though its internal stowage and autoloading arrangement would need full APG reports for a final ergonomics assessment. Sources

Fire control combined conventional optical and mechanical devices with the unusual two-cupola arrangement. Listed equipment includes a Periscope M16E2, an elbow telescope, a ballistic drive, an azimuth indicator, an M9 elevation quadrant, and an M1A1 gunner’s quadrant. No stabilizer was fitted, which limited the vehicle’s ability to fire accurately on the move compared with later stabilized tank designs. Sources

The T92 carried numerous vision devices: driver M17 periscopes plus an M19 infrared periscope, commander and gunner vision blocks and periscopes, and over-cradle periscopes. The large number of vision blocks in the turret/cupola area suggests a deliberate attempt to preserve situational awareness despite the low turret and separated crew stations. Sources

The engine was the Continental AOI-628-1, an 8-cylinder, four-cycle, opposed, fuel-injected gasoline engine. The vehicle data sheet lists 280 net horsepower and 340 gross horsepower at 3,200 rpm, with 150 gallons of 80-86 octane gasoline. Some secondary summaries list 357 horsepower; Published accounts describe 280 net / 340 gross as the preferred technical figure because it comes from the detailed data-sheet entry, while retaining the 357 hp figure as a source discrepancy. [VDS-T92; TE-T92] Sources

The power train used an XT-300 transmission. The vehicle data sheet describes three forward ranges and one reverse range with a single-stage hydraulic torque converter and clutch-brake steering. Some online summaries describe different forward/reverse gear counts, probably reflecting range-versus-ratio terminology. The data-sheet description is treated as the preferred wording. Sources

The T92 used Torsilastic suspension with eight individually sprung dual road wheels, four per track. The rear road wheel served as a trailing idler, and shock absorbers were fitted to the first and last road wheels on each side. This was a major departure from the M41’s torsion-bar suspension and contributed to the compact running gear and low hull. [VDS-T92; AFV-M41] Sources

Two track types appear in the data: the T110 band-type track, 16 inches wide, and the T85E1 double-pin track, 14 inches wide, with rubber chevron shoes. The T110 band track gave a listed zero-penetration ground pressure of 9.6 psi, while the T85E1 gave 10.9 psi. Tank Encyclopedia reports track problems during testing and substitution of a Chaffee-derived track arrangement after 202 hours of testing. [VDS-T92; TE-T92] Sources

Performance figures in the vehicle data sheet include a 35 mph maximum road speed, 60-percent grade, 6-ft trench, 30-in vertical wall, 40-in fording depth, pivot turning circle, and approximately 210 miles road cruising range. These figures are best understood as test-data design performance rather than operational service performance. Sources

The crew was four: commander, gunner, loader, and driver. The split cupola layout allowed the commander and gunner to sit low and separated by the gun cradle, but it likely complicated communication, loading, and emergency egress relative to a conventional turret basket. The rear hull doors gave a large access route, but the very low silhouette and central gun cradle would have made interior space tight. The account rates detailed ergonomic conclusions as uncertain until full APG test reports are consulted. [VDS-T92; TE-T92] Sources

The vehicle data sheet lists AN/GRC-3 and AN/VRC-24 radios in the turret, plus a four-station interphone and external extension kit AN/VIA-4. This indicates a normal reconnaissance-tank emphasis on radio communication and crew intercom despite the experimental layout. Sources

Fire protection consisted of three fixed 10-lb carbon-dioxide extinguishers and one portable 5-lb carbon-dioxide extinguisher in the vehicle data sheet. No stabilized weapon system is listed, and no built-in amphibious or nuclear-biological-chemical protection system is documented in the accessible sources. Sources

The most visible reliability concern was the original track system. The band track was innovative but problematic enough to prompt substitution of a more conventional linked track during testing. The front-right power pack, light access panels, and compact design may have improved some maintenance tasks, but the unusual turret and loading system probably added maintenance risk. Since the vehicle never matured into production trials, no service-level reliability record exists. [TE-T92; VDS-T92] Sources

Non-amphibious design: The program became vulnerable once swimming capability became a priority for future U.S. light armor. Sources

Aging gun concept: The 76 mm family was adequate against light armor but increasingly questionable against new tanks by the late 1950s. Sources

Novel track system: The T110 band track created test problems and contributed to redesign work. Sources

No stabilizer: The T92 lacked a stabilized main armament system, limiting fire-on-the-move potential. Sources

Prototype complexity: The cleft turret and semiautomatic loading arrangement were technically intriguing but carried production and maintenance risk. Sources

Source gaps: Accessible sources do not provide full APG reliability statistics, cost data, or detailed crew trial reports. Sources

Production, operators, and combat record

The T92 was not a production program. It was an AAI prototype program under U.S. Army Ordnance oversight, with pilot testing at Aberdeen Proving Ground. The accessible sources identify AAI as the designer/builder of the T92 pilot vehicles and list Cadillac Motor Car Division and Detroit Arsenal as competitors in the broader light-tank replacement competition. Sources

No reliable monthly production data, unit cost, contract total, or factory production schedule was found in the accessible sources. The only well-documented production quantity is two pilot vehicles built. Two additional pilot vehicles reportedly received funding but were canceled before completion. Because the program stopped before production tooling, cost learning curves, subcontractor bottlenecks, and export-production questions are not applicable. [TE-T92] Sources

Production and industry summary. Sources

The only operator was the United States Army in a test-and-evaluation sense. The T92 did not enter unit service, was not exported, and has no documented captured, Lend-Lease, military-aid, or training-school operational service. [TE-T92] Sources

Service history is therefore essentially an evaluation history: mock-up review, pilot construction, Aberdeen testing, track-system and design revisions, cancellation, and preservation of at least one vehicle. The preserved-vehicle record is less clear than the prototype count. Tank Encyclopedia says the surviving T92 was formerly at the U.S. Army Ordnance Museum at Aberdeen and moved to Fort Lee storage after that museum closed; PreservedTanks records an Aberdeen display history and a U.S. registration number. Official Army museum pages confirm Army stewardship of armor artifacts generally, but do not provide an easily accessible public T92 item page in the sources consulted. [TE-T92; PRT-T92; ARMY-COL] Sources

The T92 has no combat history. No reliable source indicates that either pilot vehicle was deployed to an operational unit or used in combat. All battlefield assessments in this section are therefore comparative and hypothetical, based on the vehicle’s documented specifications and the light-tank doctrine of its era. [TE-T92; VDS-T92] Sources

Had it entered service, its strengths would likely have been low silhouette, light weight, air transportability, respectable reconnaissance-tank optics, a high-velocity 76 mm gun, and good road range for a light tracked vehicle. Against enemy scouts, armored cars, older tanks, and soft targets, the T92 would have been dangerous. Its cupola machine guns also gave it unusual close-defense and observation-sector fire for a small tank. Sources

Its weaknesses in combat would have been equally clear. It had no gun stabilizer, limited armor, a gasoline engine, a complex turret, and a gun whose growth margin was questionable. It also lacked swimming ability, which became a key problem once the Army compared future light-tank needs to Soviet amphibious reconnaissance armor. [VDS-T92; TE-T92] Sources

The most important myth to avoid is that the T92 failed because it was a poor prototype. The evidence points instead to a changing requirement: a non-amphibious, 76-mm light tank was no longer the vehicle the Army wanted by the late 1950s. Mechanical and integration issues mattered, but the amphibious requirement was the strategic pivot. [TE-T92; AHF-M551] Sources

Legacy and historical evidence

The T92’s 76 mm T185E1 gave it M41-class light-tank firepower with a semiautomatic loading system and a generous ammunition family. By the late 1950s, however, the 76 mm class was increasingly marginal for defeating newer tanks frontally. The gun was sufficient for reconnaissance fights and light armor, not for the future main-battle-tank threat. [VDS-T92; TE-T92] Sources

Armor protection was roughly in the light-tank class and benefited from sloping and low silhouette. It was never intended to stand against medium- or heavy-tank guns. Compared with the M41, the T92 sought comparable protection in a lighter, lower package. [VDS-T92; AFV-M41] Sources

The T92’s trials revealed track-related problems that affected confidence in the design. Reported figures give about 35 mph and a range of 210 miles; the M41 comparison commonly uses about 45 mph. Those specifications do not by themselves establish comparative reliability in service. Sources

A conventional tank factory could understand an M41-like vehicle more easily than the T92’s cleft turret and semiautomatic cradle. Crew effectiveness is harder to judge without APG reports: the cupolas and vision blocks gave good visibility, but the split fighting compartment and loading system may have complicated combat rhythm and emergency actions. [VDS-T92; TE-T92] Sources

The T92’s strategic impact came from its failure, not its service. It helped define what the next U.S. light tank had to be: not merely a lighter M41, but an armored reconnaissance/airborne assault vehicle with amphibious capability and a different firepower concept. [AHF-M551; TE-T92] Sources

The T92 did not influence armored history through production numbers, battlefield performance, or export success. Its influence is conceptual: it marks a moment when U.S. designers tried to break out of conventional light-tank form. The cleft turret, low profile, heavy use of vision devices, weight-saving materials, and air-transportable concept all anticipated later debates about how much firepower and protection a light armored vehicle could carry. [TE-T92; VDS-T92] Sources

The direct program legacy was cancellation and redirection. The Army Historical Foundation describes the Sheridan’s origins in the 1957 ARCOVE process and a new program that included a light tank or armored reconnaissance/airborne assault vehicle. The T92 was not the Sheridan, but its cancellation belongs in the same historical chapter: the U.S. Army wanted a vehicle that could do more than the T92 could practically be modified to do. Sources

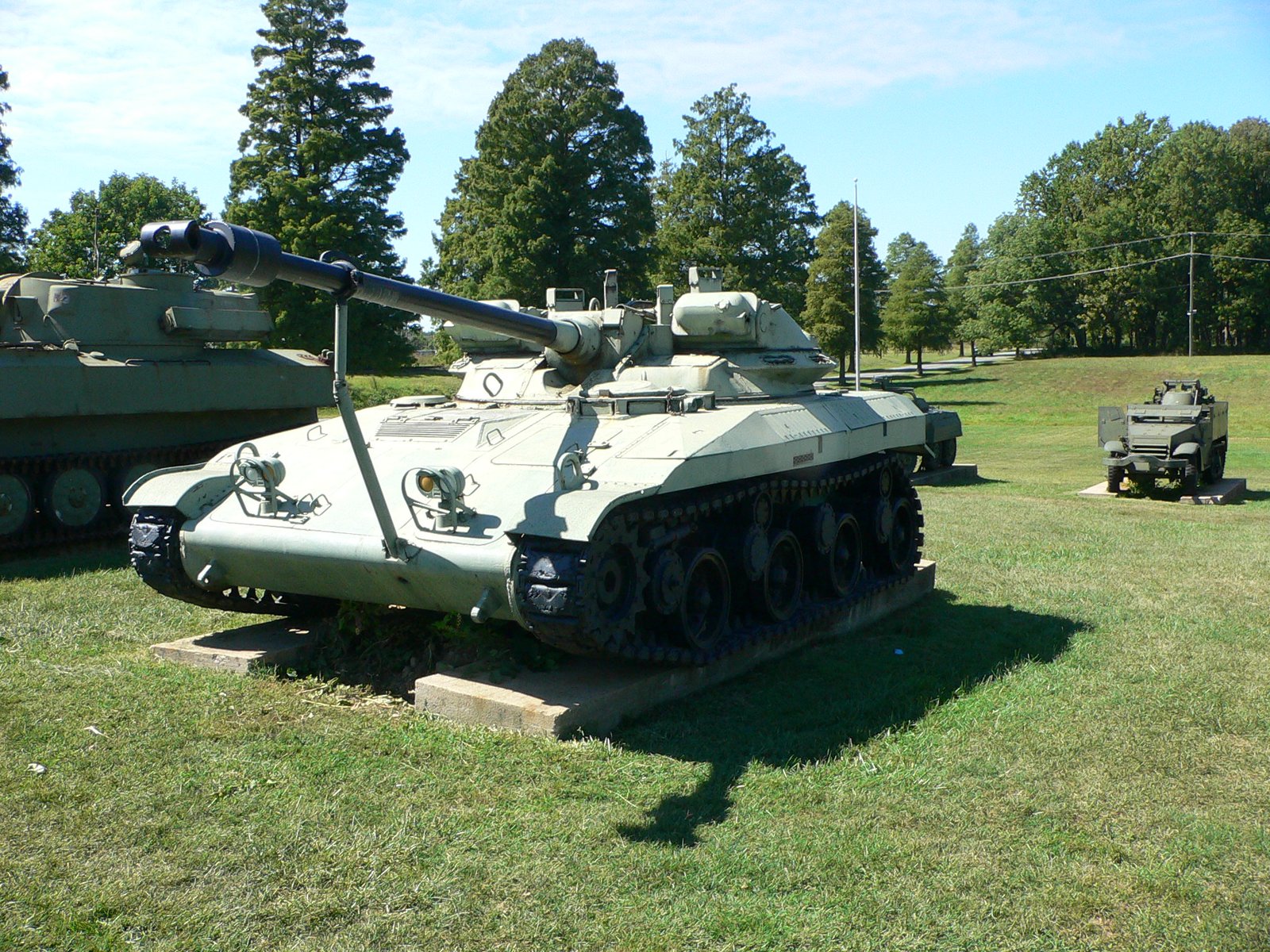

Surviving-vehicle legacy is incomplete. At least one T92 was photographed at the U.S. Army Ordnance Museum at Aberdeen in 2007 under a clear Creative Commons license. Secondary preservation records indicate it later left the Aberdeen display environment. The cited accounts do not firmly establish the current public-display status. [Commons-T92-1; Commons-T92-2; PRT-T92; ARMY-COL] Sources

Modern reputation is strongly shaped by video games and online armor communities. That attention is useful for discovery but risky for a history project because game statistics, reconstructed performance, and speculative variants can blur the historical record. T92 was a two-pilot prototype program with unresolved development issues, not a production reconnaissance tank. [TE-T92] Sources

The strongest technical source is the vehicle data-sheet PDF, which provides granular dimensions, armor, armament, optics, engine, transmission, suspension, communications, fire-protection, and performance data. The available scan is hosted by a secondary source rather than its original issuing institution. Sources

It is used here for project consistency rather than as sole evidence. Sources

Tank Encyclopedia provides the most accessible narrative chronology, including the May 1952 start, AAI/Cadillac/Detroit competition, development authorization, pilot deliveries, track problems, and cancellation narrative. It appears to rely heavily on Hunnicutt and other armor-history references. Its narrative is useful. Published dates and technical values are not entirely consistent. Sources

AFV Database is used for M41 comparison rather than T92 data. The Army Historical Foundation is used for the Sheridan and broader U.S. light-tank context. Wikimedia Commons pages are used only for image metadata and license status. PreservedTanks is used as a preservation lead, not as final proof of current location. [AFV-M41; AHF-M551; Commons-T92-1; Commons-T92-2; PRT-T92] Sources
