Historical overview
The T-55 Enigma was an Iraqi appliqué-armored conversion of the T-55-family main battle tank, probably undertaken in very small numbers between the late Iran-Iraq War and the 1991 Gulf War. Public sources generally agree on the visible form of the upgrade: angular armor boxes mounted around the turret and on the hull front and sides, plus a rear turret counterweight structure. The conversion did not change the basic T-55 architecture, 100 mm gun, four-man crew, or aging automotive base. [TE-T55E; Tamiya-T55E] Sources
Its importance lies in what it reveals about Iraqi military-industrial adaptation. Iraq had large stocks of Soviet and Chinese-pattern tanks, but by 1990 it faced severe procurement constraints and had to extract more survivability from old hulls. The Enigma package was an attempt to answer a specific battlefield problem: the vulnerability of older tanks to HEAT warheads, HESH rounds, TOW-class missiles, MILAN-class missiles, and air-launched anti-armor weapons. [TE-T55E; UN-SC-661; Tank-AFV-T55] Sources
The most important 'variants' are not production variants in the normal sense. They are better treated as example groups: T-55-family Enigmas captured or destroyed during the Gulf War; a reported Type 59-based or Type 69-II demonstrator seen at Baghdad in 1989; and museum survivors at Bovington, Aberdeen/Fort Knox/US Army collections, Mourmelon-le-Grand, and possibly Kuwait. The exact number converted remains unresolved. Published accounts describe 'Unknown'; a widely repeated public estimate is five to eight. [TE-T55E; Commons-Bovington; Commons-Khafji] Sources
The major controversies are designation, quantity, base hull identity, armor composition, and combat performance. 'Enigma' was not an Iraqi official designation. 'Al Faw' and 'Al Najim/Al-Najm' appear in secondary accounts, but official Iraqi documentation is not readily accessible. Sources
The Enigma was not a modern tank. It was a serious, visible, and locally engineered attempt to increase survivability against shaped-charge threats, but it could not offset the T-55's obsolete fire control, ammunition, mobility, night-fighting limitations, and vulnerability to modern combined-arms attack. Its value to this book project is as a vivid example of improvised modernization at the edge of a collapsing procurement environment. [TE-T55E; USMC-Khafji; Tank-AFV-T55] Sources
Iraq entered the late 1980s with one of the region's largest armored forces, assembled from Soviet, Eastern European, Chinese, and other sources. The T-55 family was old but numerous, easy to maintain, familiar to crews, and supported by a broad supply base. The base T-55 itself had been accepted into Soviet service in 1958 and became one of the most widely produced and exported Cold War tanks; Tank-AFV records 27,500 T-55s and notes extensive international modernization and conversion programs, including Iraqi derivatives. [Tank-AFV-T55] Sources
The Iran-Iraq War shaped the problem. Both sides used anti-tank guided missiles and air-delivered weapons against armored vehicles, and the limits of older tank protection were visible. The Enigma's large spaced/composite boxes appear to have been a direct answer to shaped-charge threats rather than kinetic penetrators. Sources
The strategic context tightened further after Iraq invaded Kuwait in August 1990. United Nations Security Council Resolution 661 imposed comprehensive sanctions against Iraq and occupied Kuwait, and SIPRI summarizes the resolution as establishing a comprehensive sanctions regime, including an open-ended arms embargo. That environment made local conversion and cannibalization more attractive than new tank procurement. [UN-SC-661; SIPRI-Iraq-Embargo] Sources
Doctrine also mattered. Iraqi armored units relied on mass, prepared positions, and older Soviet-pattern formations, while Coalition forces in 1991 brought superior sensors, air power, precision fires, and better training. Adding armor to the T-55 could help against selected missile or HESH impacts, but it did little for the broader command, control, night-fighting, and air-defense disadvantages that defined the Gulf War battlefield. [USMC-Khafji; TE-T55E] Sources
Development and variants
Published accounts describe the T-55 Enigma as a field-conversion family rather than a clean factory model. It includes the base T-55 relationship, the Iraqi armor package, suspected command-tank usage, the 1989 Baghdad exhibition demonstrator problem, Gulf War combat use, captured examples, museum survivors, and related Iraqi conversions often confused with it. Sources
Included: T-55-family Enigma conversions; likely T-55A/T-55AD/T-55K command-hull connections where documented by museum captions or secondary sources; Type 59 or Type 69-II Enigma demonstrators as boundary cases; combat at Khafji; captured vehicles and museum survivors. Sources
Excluded: standard T-55, T-55A, T-55M, T-55AM, and Soviet/Czech/Polish modernization lines except as lineage; Iraqi T-55QM/QM2 gun-upgrade programs except as related vehicles; Asad Babil/T-72 local-assembly issues except as procurement context. Sources
Common confusions: Type 59 and Type 69-II Enigma demonstrators; T-55QM with 125 mm gun; ordinary Iraqi T-55s photographed in 1991; museum restorations missing armor blocks; low-resolution wartime photographs where the armor package is ambiguous. Sources
T-55 Enigma was an Iraqi armor conversion applied to existing main battle tanks, closer to a local upgrade package than a separately manufactured tank model. [TE-T55E] Sources
The Enigma's design origin is obscure. No official Iraqi design file has been located in the cited account. Secondary sources usually place the conversion window around 1988-1990, with the first public-related appearance at a 1989 Baghdad arms exhibition. Tank Encyclopedia argues that the project likely began near the end of the Iran-Iraq War and that production, if that term is appropriate, fits a 1988-1990 window. [TE-T55E; Commons-Baghdad] Sources
Design responsibility is commonly attributed in secondary accounts to Iraqi state military-industrial organizations or local workshops, but the public evidence is indirect. The conversion does not appear to have required a new hull, turret, or automotive redesign; it required design and fabrication of armor modules, mounting brackets, hinge arrangements, lighting relocation, and rear counterweight structures. [TE-T55E; Commons-Bovington] Sources
Testing and trials are the greatest gap. Secondary accounts mention post-capture Coalition or technical evaluation of the armor's resistance to HESH and shaped-charge threats, but the publicly cited source chain points toward hard-to-obtain reports and later retellings rather than a readily available primary test document. Sources
Procurement appears to have been very small. Published accounts describe quantity as unknown. Tank Encyclopedia estimates five to eight examples based on photographs and museum survivors. Tamiya's product summary confirms several captured examples but does not give a production number. The best phrasing is 'a handful' unless a specific source is being quoted. [TE-T55E; Tamiya-T55E] Sources
Design and performance
The Enigma retained the conventional T-55 layout: driver in the left front hull, fighting compartment in the center, low rounded turret, engine/transmission at the rear, and four-man crew. The added armor modules radically changed the silhouette but not the internal arrangement. [TE-T55E; Tank-AFV-T55] Sources
The hull remained a T-55-family welded steel hull, but large armor boxes were added to the upper glacis and hull sides. Visible museum examples show brackets, bolts, and openings or recesses to preserve towing-hook access and driver access. [TE-T55E; Commons-Bovington] Sources
The cast turret was surrounded by angular armor blocks mounted on brackets. Some turret modules hinged or lifted, including blocks around the driver-hatch area and engine-access arc. A prominent rear counterweight rail or box structure balanced the mass added to the turret front and sides. [TE-T55E; Commons-Rear] Sources
The armor package is usually described as non-explosive composite or NERA-like armor. Tank Encyclopedia describes steel boxes containing spaced steel and rubber plates, with some captured examples lacking rubber sheeting. Other secondary summaries add aluminum/steel/rubber sandwich descriptions. Exact materials, thicknesses, and protection equivalents remain unverified in open sources. [TE-T55E; NERA-Discovery] Sources
Most sources retain the T-55's 100 mm D-10T/D-10T2 family rifled gun. No reliable evidence was found that the Enigma package changed the gun. Iraqi gun-upgrade projects with 125 mm weapons belong to separate T-55QM/QM2-style lines, not the classic Enigma. [TE-T55E; Tank-AFV-T55] Sources
The standard coaxial 7.62 mm machine gun remained. A 12.7 mm DShK anti-aircraft machine gun appears on some examples or mounts, but not all surviving Enigmas show the gun fitted. [TE-T55E; Commons-Bovington] Sources
The base T-55 carried approximately forty-plus 100 mm rounds depending model and internal arrangement. The Enigma's external armor may not have changed ammunition stowage, but command-radio equipment or individual base-hull differences could have affected stowage. Sources
No reliable evidence shows a modernized fire-control suite unique to the Enigma. Most likely the vehicle retained the base T-55 optical sighting and stabilization standard of the donor hull. This limited first-round hit probability, night fighting, and moving-target engagement compared with Coalition tanks. [Tank-AFV-T55; Comparative Assessment] Sources
The Enigma likely retained the donor T-55/T-55A day sights and infrared night equipment where fitted. Sources
The package retained the V-55 diesel family. Tank Encyclopedia lists 520 hp for the Enigma, while many T-55 summaries list higher nominal ratings depending model and measurement. With added mass near 41 tons, mobility and power-to-weight ratio were degraded. [TE-T55E; Tank-AFV-T55] Sources
The torsion-bar suspension and five-roadwheel layout remained unchanged. The added armor increased load but did not add a new suspension system. [Commons-Bovington; Tank-AFV-T55] Sources
The width and external bulk increased, especially across side armor blocks. Tank Encyclopedia estimates road speed at about 45 km/h and range around 300 km, both lower than a clean T-55's commonly cited values. Sources
The basic four-man T-55 crew remained. The armor package complicated access and maintenance, especially around the driver's hatch, turret front, and engine deck. Hinged modules and cutouts show that access problems were anticipated rather than ignored. [TE-T55E; Commons-Bovington] Sources
Some accounts describe Enigmas as battalion or unit command tanks. If true, some vehicles may have carried command radios or additional communication equipment; public sources do not confirm a consistent internal radio standard. [TE-T55E; Tamiya-T55E] Sources
Protection improved most visibly against frontal and side-aspect shaped-charge threats. It did not solve top-attack, mine, air-delivered weapon, kinetic penetrator, or unarmored-gap vulnerabilities. The mantlet and roof remained weak points. Sources
The package was simple in concept but heavy and awkward. It likely increased strain on suspension and drivetrain components, made some maintenance slower, and created many bolt/bracket/weld failure points. It was still maintainable by local workshops because it avoided complex electronics or explosive reactive armor logistics. [TE-T55E; Commons-Rear] Sources
Known weaknesses include obsolete fire control, limited night-fighting capability, aging ammunition, heavy added weight, armor gaps, possible uneven quality between blocks, questionable protection against kinetic penetrators, and vulnerability to air power. [TE-T55E; USMC-Khafji] Sources
Production, operators, and combat record
Production is best described as local conversion, not tank manufacture. The Enigma program reused existing hulls and added fabricated armor blocks, brackets, rails, hinges, and wiring changes. This made it far cheaper and faster than procuring new tanks, and it was consistent with Iraq's need to modernize a large old fleet under financial and sanctions pressure. [TE-T55E; UN-SC-661] Sources
No factory ledger, monthly production schedule, or official conversion total was found. The cited accounts leaves quantity unknown. A common estimate of five to eight is derived from photographed and recovered vehicles, not from an Iraqi production document. The quantities are estimates derived from photographed or surviving vehicles, not complete production records. [TE-T55E] Sources
Industrial bottlenecks likely included armor-material quality, welding and fabrication consistency, vehicle downtime, and integration of large modules with driver and engine access. The visible blocks are uneven and crudely finished, but the presence of hinged panels, tow-hook cutouts, rewired lights, and counterweights shows a planned conversion rather than a purely battlefield scrap-metal improvisation. [TE-T55E; Commons-Bovington; Commons-Rear] Sources
Cost data was not located. Export production is not documented. Sources
The only confirmed operator was Iraq. The vehicles likely served in regular Iraqi armored or mechanized units during the 1991 Gulf War, with some sources suggesting command-tank use. Tamiya summarizes this public understanding but uses cautious wording: the tanks were deployed to regular Iraqi armor units and 'it is said' they were used as command tanks. [Tamiya-T55E] Sources
Operators, captured holders, and survivor status. Sources
The Enigma's documented combat history centers on the Battle of Khafji, 29 January to 2 February 1991. Tank Encyclopedia states that Coalition forces first encountered Enigmas at Khafji and that some Iraqi T-55s there were Enigmas, while also admitting uncertainty about how many and which Iraqi division operated them. Sources
The official U.S. Marine Corps battle history provides a more conservative anchor. It states that, south of Khafji, a platoon of Iraqi T-55 tanks emerged and engaged Qatari AMX-30s, resulting in three T-55s destroyed and a fourth captured. The official text does not identify those T-55s as Enigmas, so the Enigma link comes from secondary identification of captured/photographed vehicles rather than from the Marine Corps monograph itself. [USMC-Khafji] Sources
Tactical employment appears to have been conventional: T-55-family tanks operating with Iraqi mechanized or armored units in and around Khafji. Sources
Strengths in combat: the added armor likely improved resistance to some frontal shaped-charge threats and may have allowed a few vehicles to survive impacts that ordinary T-55s would not. Weaknesses: the tank remained vulnerable to tank fire, air attack, artillery, top-angle attacks, and modern sensors; its own firepower and fire control lagged behind Coalition systems. [TE-T55E; USMC-Khafji] Sources
Myth versus evidence: The strongest myth is that Enigma armor made the T-55 competitive with modern Coalition armor. It did not. Even if some missile hits were defeated, survivability is not the same as battlefield parity. The better documented lesson is that add-on armor could improve one threat axis while leaving the platform strategically and tactically obsolete. [TE-T55E; Comparative Assessment] Sources
Legacy and historical evidence
Overall battlefield value: limited. The Enigma was better than an unmodified T-55 against selected threats, but it remained an obsolete platform in a battlespace dominated by Coalition air power, sensors, command networks, and modern tank gunnery. [USMC-Khafji; TE-T55E] Sources
The Enigma did not influence mainstream tank design, but it foreshadowed a recurring pattern: local forces adding heavy passive or non-explosive armor packages to old Soviet-pattern tanks when procurement channels collapse. Similar motives can be seen in later conflicts where T-55, T-62, T-72, and Type 59/69 hulls received cage armor, improvised composite modules, ERA substitutes, or welded standoff structures. Sources
Doctrinally, the Enigma demonstrates that survivability is multidimensional. Adding mass and standoff can help against a specific warhead class, but it cannot compensate for obsolete sensors, poor air cover, insufficient combined-arms integration, or weak command systems. This is an important corrective to photo-driven armor analysis. [Comparative Assessment] Sources

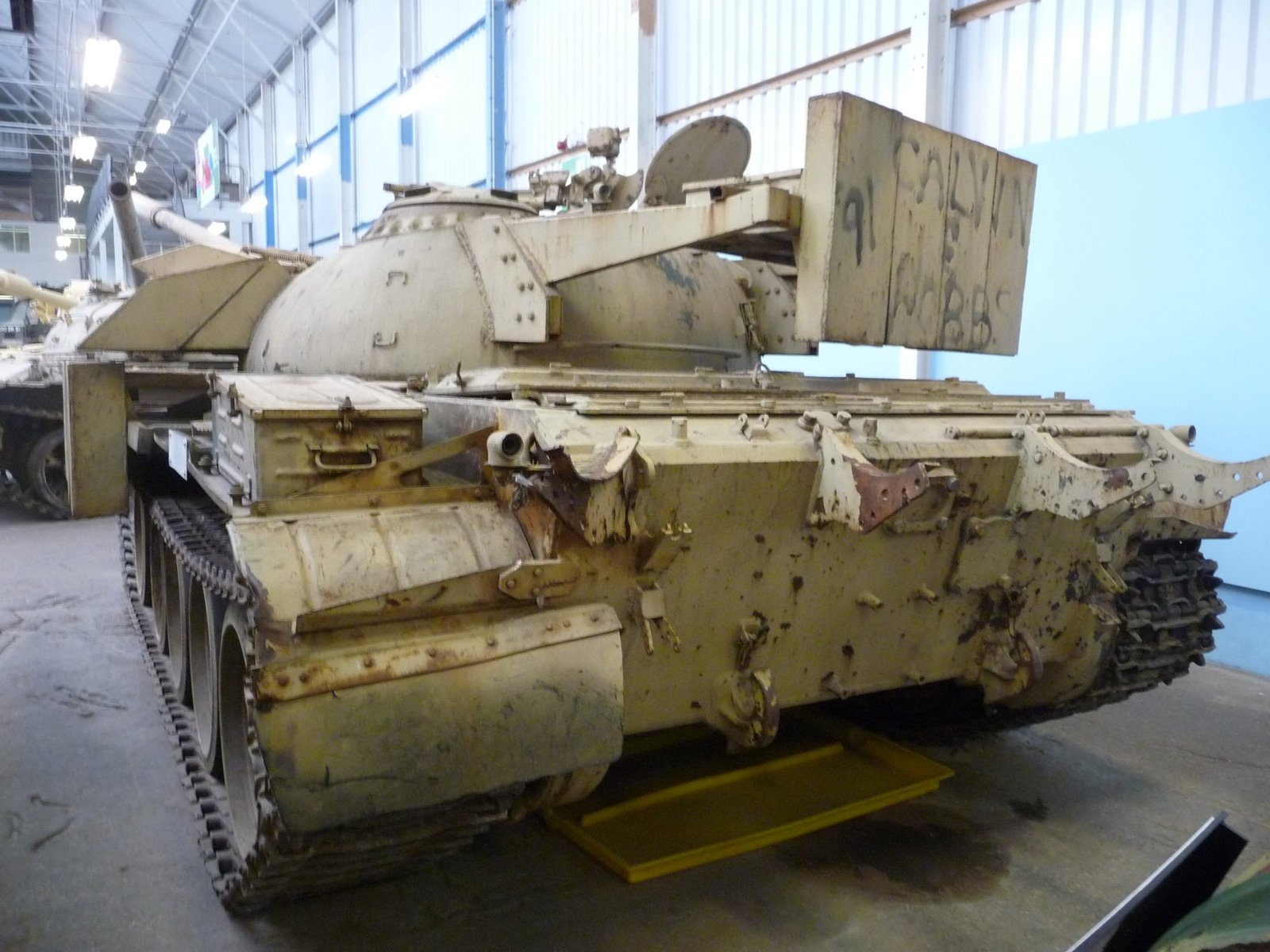

Surviving examples are central to the vehicle's reputation. The Bovington vehicle with 'Jeanne' graffiti, the Aberdeen/Fort Knox/Fort Moore-linked U.S. example, and French or Kuwaiti display leads shape public memory because only a handful existed and most knowledge comes from captured vehicles. [Commons-Bovington; TE-T55E] Sources
Common misconceptions: that every Iraqi T-55 with side clutter is an Enigma; that Enigma was an official Iraqi name; that the armor blocks were explosive reactive armor; that the conversion was a rushed battlefield welding job; and that surviving museum examples prove exact production quantity. All require careful correction. [TE-T55E; Tamiya-T55E] Sources
Most Enigma-specific information comes from captured vehicles, museum photographs, and secondary histories rather than an Iraqi technical manual. Those sources document external armor arrangements more clearly than construction details or measured protection; official accounts provide the wider Khafji battle context. [USMC-Khafji; TE-T55E] Sources
