T-37A

A small amphibious reconnaissance tank

The T-37A was a small Soviet amphibious tank intended for reconnaissance, liaison and movement across water obstacles. Its two-man crew operated a lightly protected vehicle armed with a machine gun rather than a cannon. The available evidence places it within the early-1930s attempt to give reconnaissance forces a tracked vehicle that could cross water without first waiting for a bridge. Sources

The family is separate from several similarly named experiments. The T-33, T-41 and experimental T-37 form part of the development setting; the production T-37A is not simply another spelling for all of them. The later T-38 is a successor, not an interchangeable configuration. Within the T-37A itself, radio equipment, manufacturing changes and specialized trials need individual treatment before a particular photograph or specification can be assigned to the entire fleet. Sources

Development and series manufacture

The development story includes Soviet evaluation of British amphibious technology and parallel domestic prototypes. The account reports the purchase of Vickers vehicles in 1932 and describes work involving several Soviet designers and organizations. Sources

The production design was accepted in 1933 and manufactured in the Moscow factory system subsequently identified with Factory No.37. Getting a watertight armored hull, propulsion equipment and ordinary tracked running gear to work together presented manufacturing challenges as well as design questions. The article therefore distinguishes formal acceptance from completion of a stable, fully equipped production run. Details of hull construction and flotation arrangements changed during production, and early photographs are not established to show the same arrangement as late museum examples. Sources

Hull, armament and the two-man crew

The driver sat to the left, while the commander also served as gunner in the small turret to the right. The compact layout placed substantial responsibility on the commander, who had to observe, communicate and operate the weapon. The main fighting equipment was a DT machine gun; experiments with alternative weapons are separate evidence, not the baseline service specification. Sources

The hull combined thin armor with the need for flotation. Accounts record plate thicknesses in a limited range, with figures dependent on the part and production state. Such protection was not intended to make the vehicle a substitute for a gun-armed breakthrough tank. Ammunition figures also conflict: The accounts record substantially different reported loads rather than adopting the largest figure as an established capacity. The quoted values vary with the source and vehicle configuration. Sources

Movement on land and water

A GAZ-AA-derived petrol engine, generally given as about 40 hp, powered the small vehicle. Tracked movement on land and propeller-driven movement afloat imposed different operating limits. These are reported specifications, not evidence that a crew could sustain them under any load, weather or water condition. Sources

Flotation depended on the hull and associated buoyancy arrangements, while steering and propulsion in water required equipment not found on an ordinary tankette. Hull and float details varied between photographed and described examples. Radio-equipped examples also changed the external appearance, particularly through their aerial arrangements. They cannot be represented as the universal equipment standard for a two-man reconnaissance fleet in which communication capacity varied. Sources

T-37A road speeds are commonly quoted at approximately 35–40 km/h, compared with about 4–6 km/h afloat. Sources

Production totals and specialized work

Published accounts give several competing production totals, including figures around 2,500 and more specific totals of 2,552 or 2,566. A much lower figure also appears in the source trail. These discrepancies cannot be resolved merely by selecting the most frequently repeated number. Proposed explanations involving factories, radio versions or other accounting counting methods remain hypotheses until checked against production and acceptance records. Sources

The family includes experiments in weapons, specialized equipment and transport. A trial installation does not establish a large conversion program. The exact quantity and equipment of radio tanks remain uncertain. Published figures therefore distinguish standard manufacture, proposed or experimental forms, and quantities whose definitions remain unsettled. This preserves the coverage of the available evidence while avoiding an artificial total assembled from overlapping categories. Sources

Air-transport experiments

The available evidence describes carriage beneath TB-3 aircraft and tests of releasing tanks into water. Those are separate activities with different evidence. A tank transported beneath an aircraft and unloaded after landing has not thereby demonstrated a successful parachute assault. Likewise, a photograph of an aircraft carrying a tank cannot by itself establish how the vehicle was delivered at the destination. Sources

The reported 1936 water-release tests involved damage to the vehicles, including their hull floors. The account concerns an experimental development rather than a regular production configuration. It cannot be rewritten as a routine operational capability or an established combat deployment. Keeping those limits visible explains the interest in air mobility without overstating what the experiments achieved. Sources

Service and captured use

The service framework includes Soviet reconnaissance and supporting roles, operations in Poland in 1939, the Winter War, and the opening German-Soviet campaigns in 1941. The vehicle’s light protection, restricted fighting power and crew workload limited the tasks it could perform safely. The ability to float did not remove the need for suitable entry and exit banks, mechanical readiness and coordination with other troops. Sources

Finnish captured-vehicle accounts give both 29 and 30 T-37As. Capture, acceptance, and later service figures may differ; other reported foreign operators are less securely documented. Sources

Accounts of later T-37A employment include a reported river-crossing role in 1944. That individual claim does not establish uninterrupted service by the entire prewar fleet. Sources

Legacy, survivors and image limits

The T-37A illustrates the practical appeal and limitations of an amphibious reconnaissance tank in the interwar period. It combined tracked mobility and flotation in a small production vehicle, while leaving difficult questions of protection, observation, communication and maintenance. Its relationship to later Soviet amphibious designs is part of a broader development sequence, not a reason to merge their specifications. Sources

The modern museum photographs document preserved T-37A vehicles rather than wartime service scenes. Restored components, markings, and equipment can differ from the tank’s original configuration. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

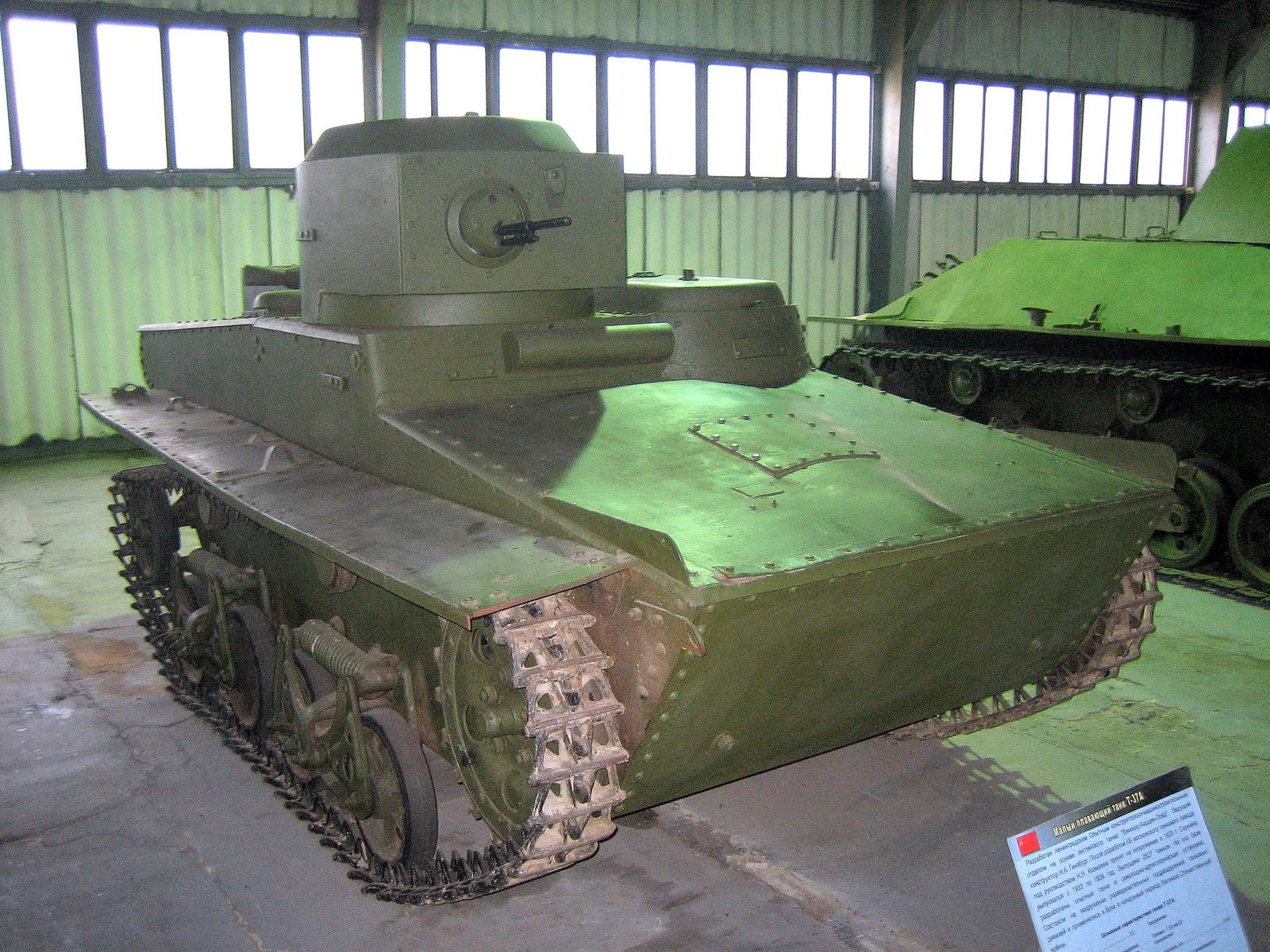

Front-quarter view of a T-37A museum exhibit at Kubinka.Saiga20K; CC BY-SA 3.0 option reported in the profile.Image source·CC BY-SA 3.0

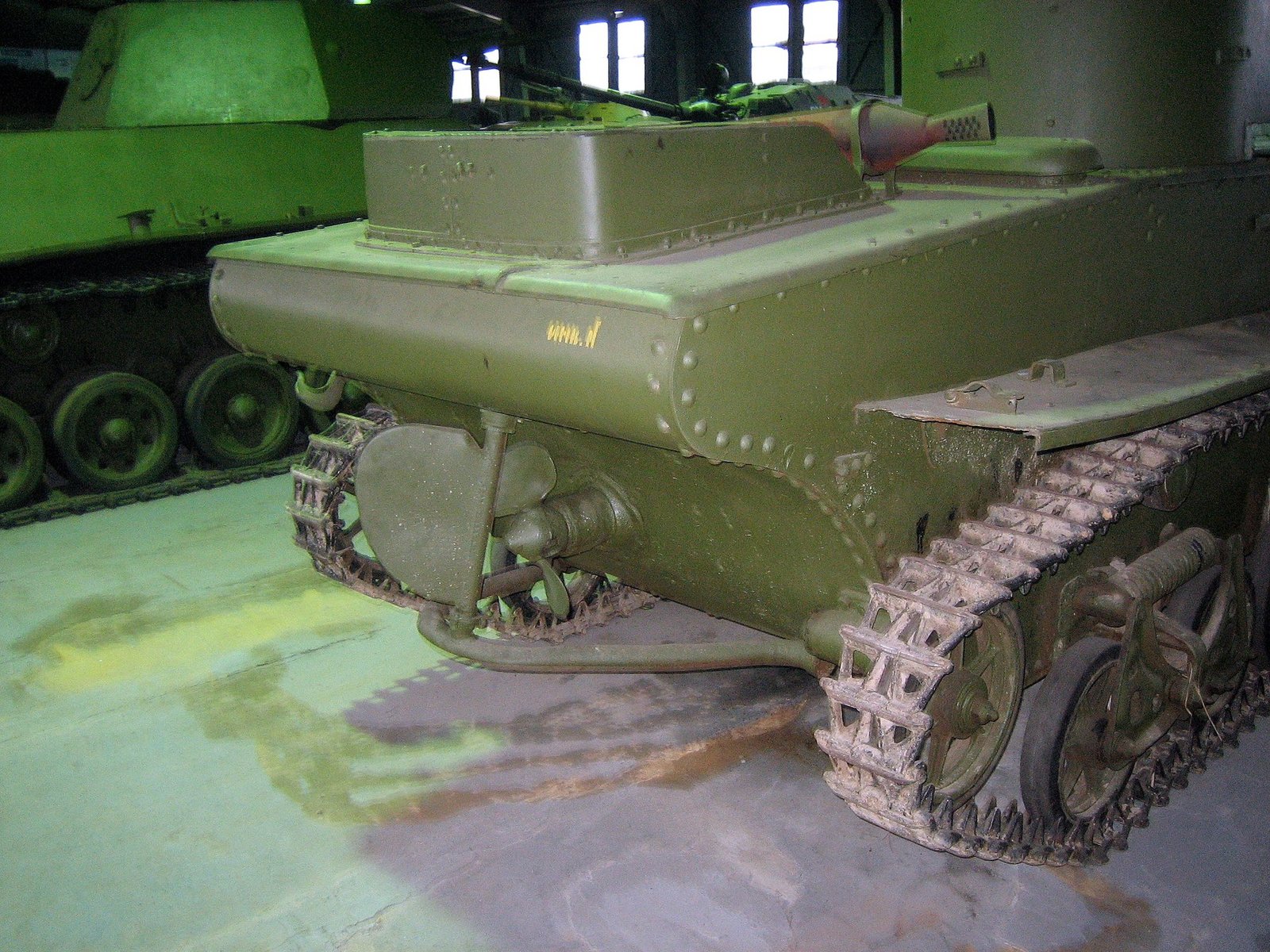

Rear of a T-37A museum exhibit, showing the stern and water-propulsion equipment.Saiga20K; CC BY-SA 3.0 option reported in the profile.Image source·CC BY-SA 3.0

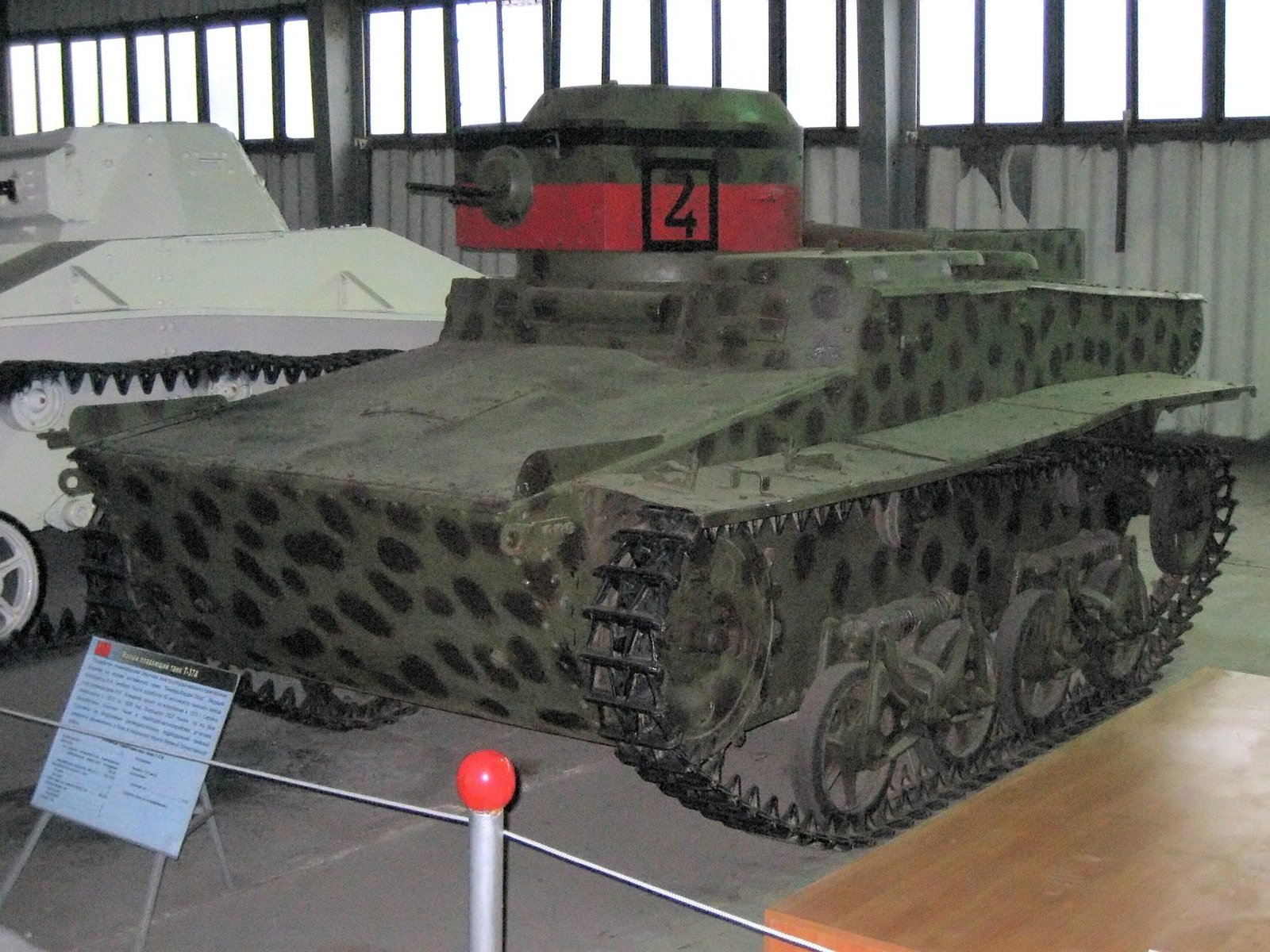

Camouflaged T-37A museum exhibit at Kubinka; source exposure date unknown.Saiga20K; inherited noise-cleaning by Hohum; CC BY-SA 3.0 option.Image source·CC BY-SA 3.0

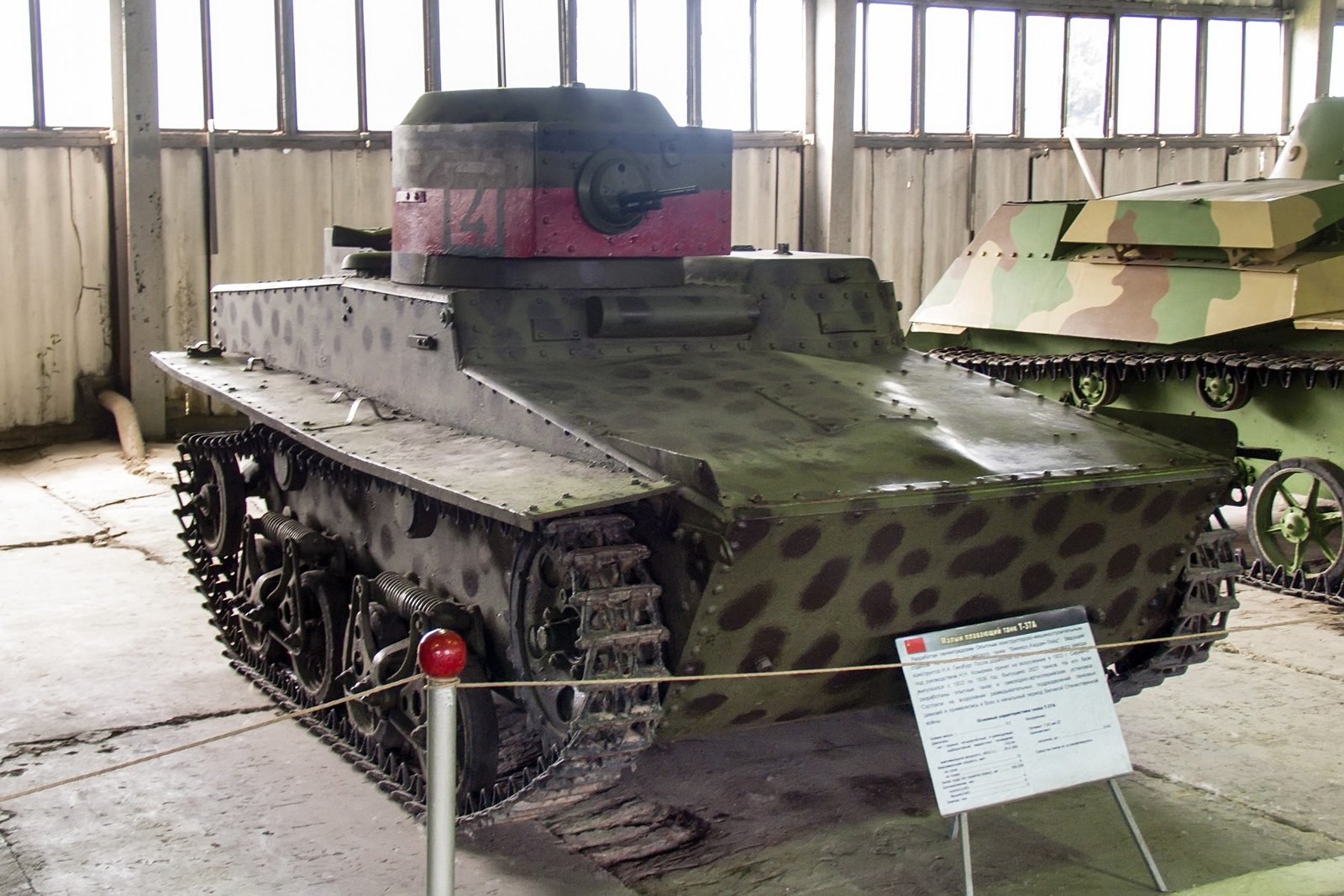

T-37A at Kubinka, photographed 8 June 2013.Mike1979 Russia; CC BY-SA 3.0 as reported by the profile.Image source·CC BY-SA 3.0
