T-18 / MS-1

A domestic production milestone

The T-18, also known as MS-1, gave the Soviet Union a domestically designed tank that could be manufactured in series. It was a small, two-man infantry-support vehicle with a rotating turret, light armor, and a rear-mounted power unit. Its importance rested as much on production, crew training, and industrial experience as on combat performance. It is not established as the first tank ever made in Russia: the account distinguishes its serial-production achievement from the earlier Russian Renault program. Sources

The family includes the T-16 development prototype, successive production configurations, and later attempts to extend the vehicle's usefulness. These are not interchangeable specification states. Experimental remote-control equipment, proposed artillery adaptations, and the reuse of worn tanks in fixed defenses belong in the history, but do not automatically represent additional production tanks. The T-26 and later Soviet families require their own articles rather than being counted inside the MS-1 fleet. Sources

Requirements and the T-16

The development story begins with the search for an affordable tank to support infantry and with the difficulty of establishing a dependable domestic manufacturing base. Accounts place the requirements discussion in 1924 and identifies the Bolshevik factory and Motovilikha works as important industrial participants. It associates the design group with V. I. Shukalov and the engine work with A. A. Mikulin. Foreign vehicles, particularly the Renault FT and Fiat 3000, provided points of comparison, but the account does not justify calling the T-18 a straightforward licensed copy. Sources

The T-16 appeared in 1927. Changes to its running gear and other arrangements produced the revised vehicle evaluated that summer. Published accounts describe trials on 11–17 June and acceptance on 6 July 1927. Those are development and acceptance dates, not the same event as the start of sustained production. The first order for 108 vehicles are placed in February 1928; the account also connects the first thirty tanks with OSOAVIAKhIM funding. These individual milestones remain distinct in the chronology. Sources

Layout, protection, and crew

The vehicle followed a compact arrangement with the driver at the front, the fighting compartment and turret behind him, and the power unit at the rear. Riveted construction and relatively light plate kept it within the small infantry-tank class. The account commonly gives a maximum armor thickness of 16 mm, but individual values belong to particular locations and configurations rather than to an undifferentiated armor rating. Sources

The commander also operated the turret weapons. This concentration of observation, command, aiming, and loading duties was a major constraint of the two-man arrangement. A rotating turret offered a useful field of fire, but it did not provide the division of labor found in a larger crew. The sources describe changes to turret details over time; a later turret niche cannot itself be treated as proof that a radio was installed. The reference material identifies no radio as standard equipment for the ordinary production vehicle. Sources

Weapons and changing fittings

The principal weapon was a 37 mm gun derived from the Hotchkiss system, with PS-1 terminology also appearing in the available evidence. The secondary armament likewise changed: the account discusses an early Fedorov installation and subsequent DT machine-gun equipment. Its sources do not consistently agree on the number or description of those machine guns. Sources

Ammunition figures need the same discipline. Accounts record different totals, including a commonly cited 104 gun rounds and 2,016 rounds for a DT-equipped configuration. These are retained as source-specific values, not averaged into a new figure. Sight descriptions include simple early arrangements and a later optical reference. The cited accounts do not firmly establish the transition and exact fit. A preserved tank's visible weapons cannot be used alone to settle the armament of all production batches. Sources

Mobility and production changes

The early air-cooled four-cylinder engine is generally given as about 35 horsepower, with later production associated with roughly 40 horsepower and transmission changes. Improvements to the running gear, track guidance, and suspension addressed problems encountered in use. Published accounts describe the 1930 configuration as a set of developments, not a completely unrelated tank, while keeping the much later T-18M experiment separate. Sources

Road-speed and endurance figures vary between the collected accounts. Figures around 16–18 km/h appear alongside wider published ranges, and operating conditions are not always specified. The short hull also made trench crossing an important limitation. Experimental obstacle-crossing attachments, including the arrangements described as Rhinoceros and Tyani-tolkay, belong to the trials record rather than the ordinary vehicle specification. Sources

Maintenance was inseparable from the industrial learning process. Engines, transmission components, tracks, and suspension parts had to be produced and supported with limited accumulated tank-manufacturing experience. The family therefore illustrates both the achievement of series production and the work needed to turn that achievement into reliable unit availability. Sources

How many were built?

The production total is not fully reconciled. The master index uses approximately 959 tanks, while the published collected accounts include totals up to 962. It also distinguishes a production-plan figure of 927 from completed output. Those numbers describe different assertions and cannot be silently combined into an exact production ledger. Sources

A further complication is the relationship between manufacturing dates, acceptance dates, prototypes, and modifications. A tank rebuilt or assigned to a later experiment is not necessarily an additional hull. Until factory or acceptance records settle the boundaries, a qualified range is more faithful to the available evidence than an unexplained single total. Sources

Training, combat, and fixed-defense reuse

The Soviet Union is the operational user established by the account. Training and experimental employment form a substantial part of the vehicle's history. The first documented combat episode in the available evidence is the 1929 Chinese Eastern Railway conflict. Its account distinguishes ten tanks delivered from nine available after one was damaged during unloading; these are availability figures for an operation, not alternative production totals. Sources

As the tanks aged, their value increasingly lay in training, experiments, and static defense. Accounts associate withdrawal decisions in 1938 with subsequent reuse in fortified positions. That reuse could preserve a hull or turret after the tank had ceased to function as a complete mobile vehicle. It cannot be represented as uninterrupted service by the original tank configuration. Sources

Accounts of Khasan-area use and fighting in 1941 are less securely documented. The reported nine vehicles with the 150th Tank Brigade near Moscow remain uncertain in both identification and unit attribution. Sources

Legacy and the surviving visual record

The MS-1's lasting contribution was the practical experience it gave Soviet industry and armored units: designing assemblies, producing vehicles in quantity, supplying parts, training crews, and learning from breakdowns and trials. Its limited mobility, light protection, and overloaded commander also made clear why replacement designs were needed. The available evidence does not establish a simple claim that every later Soviet tank descended directly from it. Sources

The image collection includes a development prototype, a small historical service image, restored vehicles, and a chassisless display. Those objects answer different questions. Museum restoration is valuable for explaining the general arrangement but cannot automatically authenticate every visible weapon, fitting, or marking as a production-standard feature. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

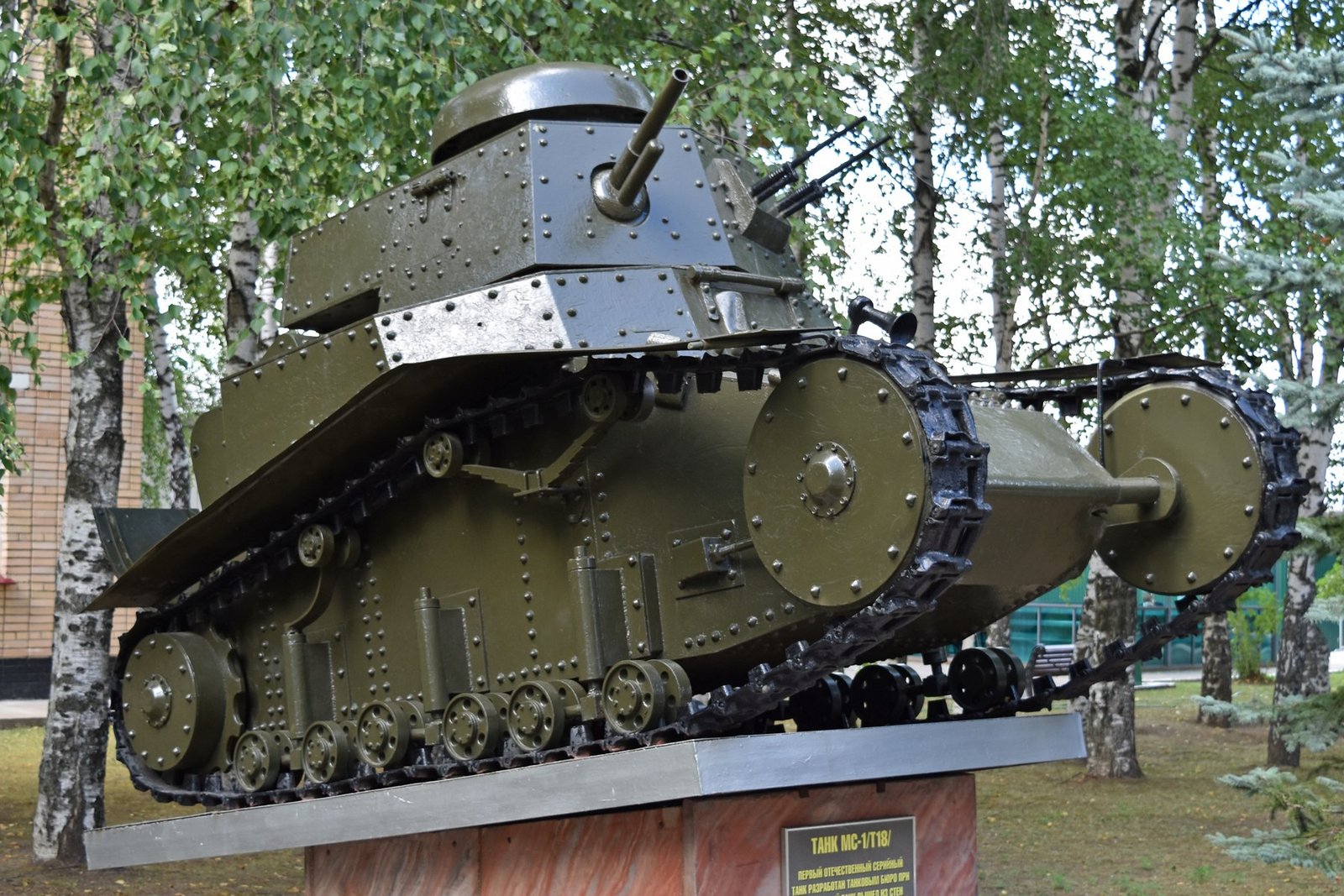

Preserved or restored T-18/MS-1 displayed in museum context; specimen history remains separate from visual identity.Alan Wilson; Wikimedia Commons/Flickr; account CC BY-SA 2.0 claim retained.Image source

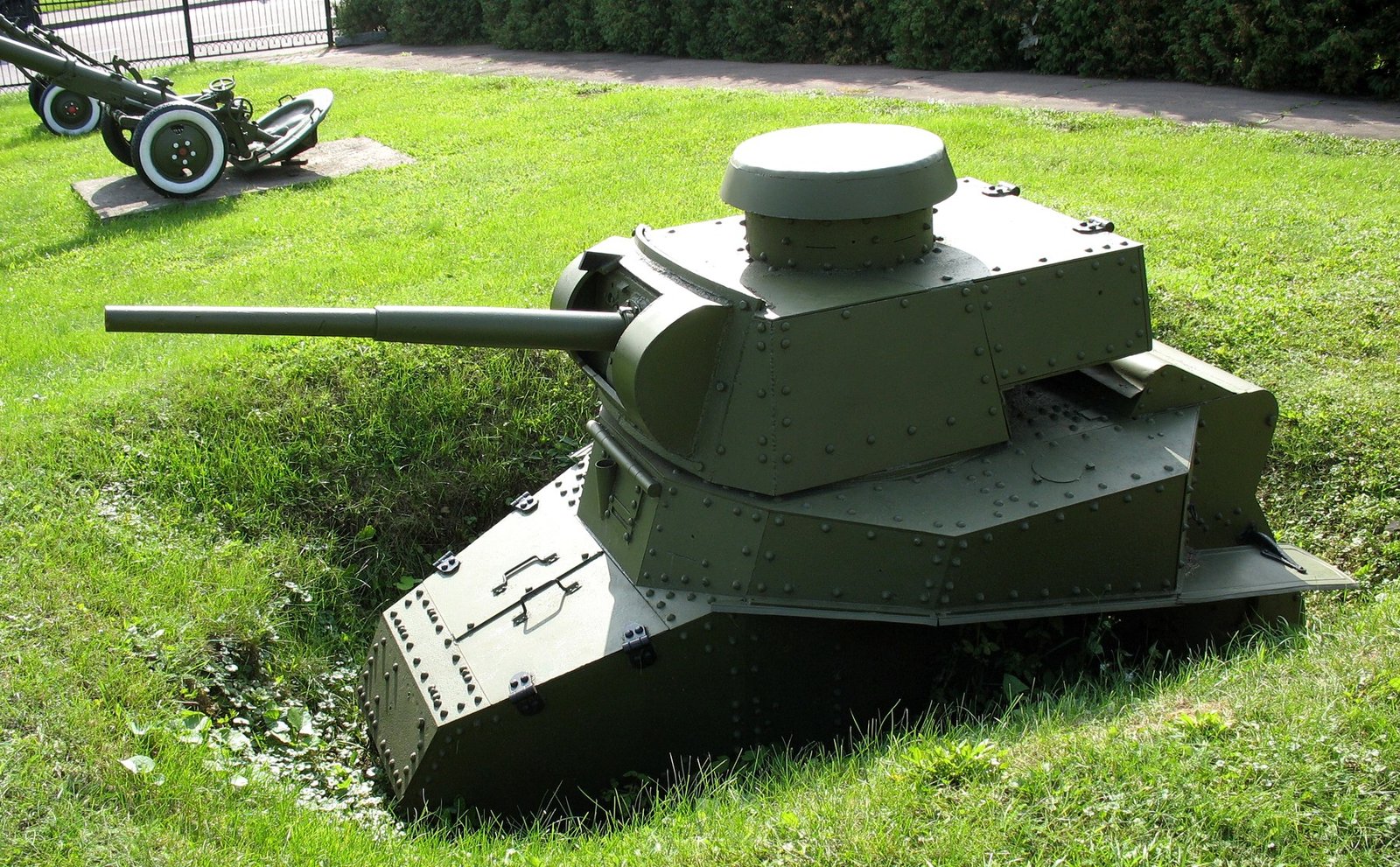

Preserved or restored T-18/MS-1 hull in museum context; missing or reconstructed running gear is part of the display condition.Doomych; Wikimedia Commons; account public-domain dedication assertion.Image source
