Historical overview
The Stingray light tank was a deliberately pragmatic design: a conventional four-man, rear-engine, torsion-bar tracked vehicle weighing roughly twenty-one metric tons, armed with a low-recoil-force version of the 105 mm L7 gun and protected by welded Cadaloy steel armor. Its proposition was not to defeat contemporary main battle tanks head-on, but to give light forces or smaller armies a gun-and-fire-control package approaching MBT lethality in a chassis that was cheaper, more mobile, and more air-transportable than a full main battle tank. [AFV Database; Army Guide; Forecast International] Sources
Historically, the vehicle shows how the late Cold War export market tried to solve the “light tank with MBT firepower” problem before the 1990s flood of surplus main battle tanks undermined many new-build light-tank proposals. The Stingray won one real production order, Thailand’s 106-vehicle purchase, but did not become the broader export success Cadillac Gage and later Textron hoped for. [Army Guide; Forecast International] Sources
The most important family members are the original contractor prototypes, the Thai production Stingray I, and the Stingray II prototype line. Published accounts describe Stingray II as a related prototype/export proposal, not as a separate production family. Sources
The Stingray was a sound, export-oriented fire-support tank built from proven subsystems. Its chief strengths were mobility, low cost, common 105 mm ammunition, and a credible fire-control fit for the 1980s. Its limitations were equally clear: light armor, a cramped four-man interior, limited growth margin, no U.S. Army adoption, and arrival into a market soon crowded by surplus M60s, Leopard 1s, T-72s, and other heavier tanks. [Forecast International; FAS; Army Guide] Sources
The Stingray emerged from a late-1970s and early-1980s revival of interest in light forces. Western armies were reassessing rapid deployment, air transport, and low-intensity conflict while many export customers wanted modern tank firepower without the cost, weight, infrastructure demands, and political baggage of a contemporary main battle tank. Cadillac Gage, already established in armored cars and lighter armored vehicles, saw a market for a tracked vehicle that could use proven components and common ammunition. [Forecast International] Sources
The central military problem was the classic light-tank contradiction: the vehicle had to be light enough for theater mobility and smaller-country infrastructure, yet carry a gun effective enough to matter against armored threats. The solution was a British-derived Royal Ordnance low-recoil-force L7-family 105 mm gun in a compact Cadillac Gage turret, with recoil forces reduced enough for a light chassis. [AFV Database; Forecast International] Sources
Doctrine also shaped the vehicle. The Stingray was not designed to spearhead armored breakthroughs against modern MBTs. Its more plausible missions were reconnaissance in force, mobile anti-armor ambushes, infantry fire support, security operations, and reinforcement of light units that otherwise had only infantry anti-tank weapons or lighter cannon vehicles. In this respect it belonged to the same design conversation as the M551 Sheridan replacement process, the Armored Gun System, the VFM family, and other 1980s light-tank concepts. [FAS; Forecast International] Sources
Industrial constraints favored a private venture. A government-funded U.S. Army tank program would have carried tighter requirements and heavier bureaucracy, while export buyers wanted a lower price and short delivery schedule. Cadillac Gage therefore selected mature, commercially or militarily available subsystems: Detroit Diesel engine, Allison transmission, M109-derived torsion-bar suspension, proven machine guns, and a NATO-standard gun. [Army Guide; Forecast International] Sources
Development and variants
It does not treat the M8 Armored Gun System, the Teledyne Continental CCVL, or Cadillac Gage wheeled Commando vehicles as Stingray variants, although those programs are discussed where they competed in the same U.S. or export light-tank ecosystem. [Forecast International] Sources
Classification is straightforward at the base-family level: the Stingray was a tracked, turreted, direct-fire armored vehicle with a tank gun and a four-man tank crew, and it was marketed and purchased as a light tank. Stingray II, AGS-Sheridan, LAV-105 turret work, and proposed M41/M551/M47 turret installations had different relationships to the original Stingray. They were not all completed production variants. Sources
Stingray I entered export production, while Stingray II remained a prototype and export proposal. The relationship of the CCVL to those programs is less certain, and dated reports of Thai service do not consistently establish the later fleet’s status. Sources
Cadillac Gage began concept definition in January 1983 and moved into design work by September 1983. Prototype construction began in February 1984. The first hull, initially without its final turret, ran in August 1984, while the turret program proceeded in parallel. The prototype turret was completed in June 1984 and fitted to an M551 Sheridan chassis for trials before being integrated with the new Stingray chassis. [Army Guide; Forecast International] Sources
The public unveiling came at the Association of the United States Army convention in October 1984. The first prototype then entered automotive and firing trials and was sent to potential export customers. Thailand evaluated the first prototype in early 1986, and a second prototype, built more closely to production drawings, was completed in mid-1986 or July 1986 depending on source wording. [Army Guide; Forecast International] Sources
Thailand became the sole confirmed production customer. Army Guide reports an October 1987 Cadillac Gage Textron agreement with Thailand for 106 tanks at a total cost of about US$150 million; Forecast International says the Thai procurement decision was announced in June 1987 and that the first order vehicles were completed in 1988, with the order completed in 1990. AFV Database records 1988 as the date of first acceptance and 106 total acceptances. [Army Guide; Forecast International; AFV Database] Sources
The corporate lineage changed after production. Forecast International states that Textron consolidated Cadillac Gage with Textron Marine Systems in 1994, moving design and production functions to New Orleans. Stingray II, an improved export proposal with better armor and fire control, was revealed in the 1990s and marketed into the early 2000s, but no production order followed. [Forecast International; Textron Systems archived page] Sources
Design and performance
The Stingray used a conventional tank layout: driver in the center front hull, fighting compartment and three-man turret in the middle, and a rear-mounted transverse power pack. The commander and gunner sat on the right side of the turret, with the loader on the left. This arrangement gave the vehicle familiar crew procedures and avoided the complexity of an autoloader in the base model. [AFV Database; Army Guide; Forecast International] Sources
The hull was welded from Cadaloy steel armor. The driver had a single-piece hatch, three day periscopes, and optional passive night driving periscope. Ammunition was stowed around the driver and below the turret ring, a compact arrangement that helped keep the silhouette and hull length down but contributed to the usual light-tank compromises in crew space and survivability. [Army Guide; Forecast International] Sources
The Cadillac Gage turret was also welded steel and designed around the Royal Ordnance low-recoil 105 mm gun. It had electrohydraulic and manual traverse/elevation, smoke grenade launchers, a coaxial machine gun, and provision for a commander’s roof machine gun. The turret was marketed not only on the Stingray chassis but also as a retrofit concept for older tanks and armored vehicles. [Army Guide; Forecast International] Sources
Open sources agree that the frontal arc was intended to defeat 14.5 mm armor-piercing fire, while the rest of the vehicle was protected against 7.62 mm armor-piercing fire. Optional spall liners, applique armor, NBC equipment, and fire-suppression packages were offered. This was light-tank protection, not MBT protection. [AFV Database; Army Guide; Forecast International] Sources
The main armament was a 105 mm L7A3 Low Recoil Force gun derived from the British L7 family. AFV Database states it could fire all standard NATO 105 mm ammunition and used a muzzle brake and recoil system that greatly reduced recoil forces. Forecast International lists elevation of +20 degrees and depression of -7.5 degrees. [AFV Database; Forecast International] Sources
The coaxial gun was an FN/M240-family 7.62 mm machine gun. A commander’s cupola or roof station could carry either a 12.7 mm M2HB or a 7.62 mm machine gun depending on customer fit. AFV Database lists 1,100 rounds for the M2HB with 100 ready and 2,400 rounds for the M240C with 400 ready. [AFV Database; Army Guide] Sources
Ammunition capacity is one of the main source conflicts. Forecast International gives 44 rounds for the original Commando Stingray while giving 32 for Stingray II. Published accounts describe 32 rounds as the safer standard figure for Thai production vehicles while noting the 44-round Forecast figure as a documented conflict. [AFV Database; Army Guide; Forecast International] Sources
Production and prototype vehicles are reported with Marconi/BAE digital fire-control equipment, a gunner’s day/night sight, laser rangefinder options, and stabilization in azimuth and elevation. Thai production vehicles are specifically reported by AFV Database as fitted with a British Marconi digital fire-control system. Stingray II added a more advanced Mark 3 digital fire-control suite and thermal sighting arrangements. [AFV Database; Forecast International] Sources
AFV Database lists an M36E1 or M36E1 SIRE day/night sight for the gunner and an NV52C day/night sight for the commander, with a laser rangefinder and azimuth/elevation stabilization. Forecast International identifies Optic-Electronic sights and describes the commander’s seven periscopes and NV52 day/night sight. [AFV Database; Forecast International] Sources
The engine was a Detroit Diesel 8V-92TA turbocharged two-stroke V-8 diesel rated at 535 hp at 2,300 rpm in the production vehicle. It drove an Allison XTG-411-2A automatic transmission with four forward and two reverse ranges. The engine was mounted transversely to conserve space. [AFV Database; Army Guide; Forecast International] Sources
The suspension was an independent torsion-bar system derived from the M109 self-propelled howitzer, with six dual rubber-tired road wheels per side, three return rollers, front idlers, rear drive sprockets, and shock absorbers on selected stations. This was a deliberate choice to reduce development risk and use established components. [AFV Database; Army Guide; Forecast International] Sources
The standard track was a center-guide, double-pin steel track with detachable rubber pads, about 38 cm / 15 inches wide. AFV Database gives a maximum road speed of 42 mph / 67 km/h and range of 300 miles / 483 km; other sources round speed to about 70-71 km/h. [AFV Database; FAS; Forecast International] Sources
The four-man crew preserved conventional tank workload distribution but created space pressure in a small vehicle. Forecast International notes criticism that the tank was cramped, while also recording Cadillac Gage’s view that ergonomics had been prioritized for the intended export market. [Forecast International] Sources
Specific radio fits were customer-dependent. Army Guide states that radio communications equipment would be installed according to user requirement. The cited evidence does not establish a specific Thai radio model. [Army Guide] Sources
Optional equipment included NBC protection, chemical-resistant paint, engine smoke generation, automatic fire detection/suppression, spall blankets, and applique armor provisions. The base protection standard remained light, particularly from the flanks and rear. [Army Guide; AFV Database; Forecast International] Sources
The design emphasized proven components and ease of maintenance. Forecast International describes the engine as selected for ruggedness and global parts support. The main documented service issue is reported structural cracking in Thai vehicles, which Forecast says was corrected by the contractor and may have been exaggerated in severity. [Forecast International] Sources
Known limitations were thin armor against cannon and modern anti-tank weapons, limited modernization growth margin, a small crew compartment, dependence on contractor support for a one-customer fleet, and a market position vulnerable to cheaper surplus MBTs after the Cold War. [Forecast International; FAS; Army Guide] Sources
Production, operators, and combat record
The Stingray was a private venture by Cadillac Gage Textron, later within Textron Marine & Land Systems. It combined in-house vehicle and turret integration with major subsystems from recognized suppliers: RO Defence / Royal Ordnance for the L7A3LRF 105 mm gun, Marconi / BAE-associated fire-control equipment, Optic-Electronic sights, Detroit Diesel power, Allison transmission, and M109-derived suspension concepts. [Forecast International; Army Guide] Sources
The key industrial decision was to minimize clean-sheet risk. Rather than create a new powerpack, suspension, gun, ammunition family, or fire-control architecture from scratch, Cadillac Gage packaged proven technology in a new export vehicle. This allowed a relatively short path from concept definition in 1983 to first production deliveries by late 1988. [Army Guide; Forecast International] Sources
Production totals are a major counting issue. AFV Database records 106 total acceptances, which aligns with the Thai order. Forecast International states that 108 original Commando Stingray tanks and two Commando Stingray II tanks had been manufactured by 1 January 2003. The most plausible reconciliation is that 106 refers to Thai production vehicles, 108 includes the two original prototypes/demonstrators, and 110 includes the two Stingray II prototypes. Published accounts describe “106 Thai production vehicles” as the main production figure and documents broader totals separately. [AFV Database; Forecast International; Army Guide] Sources

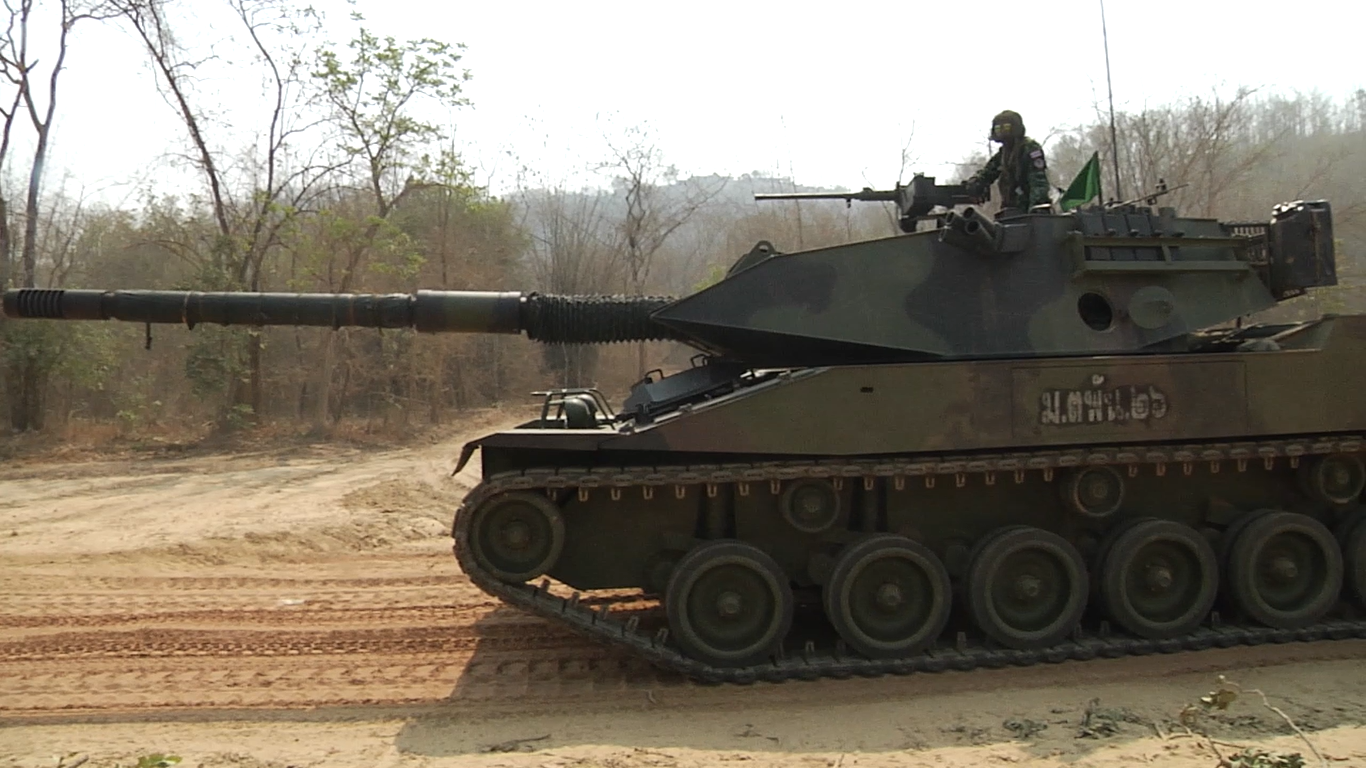

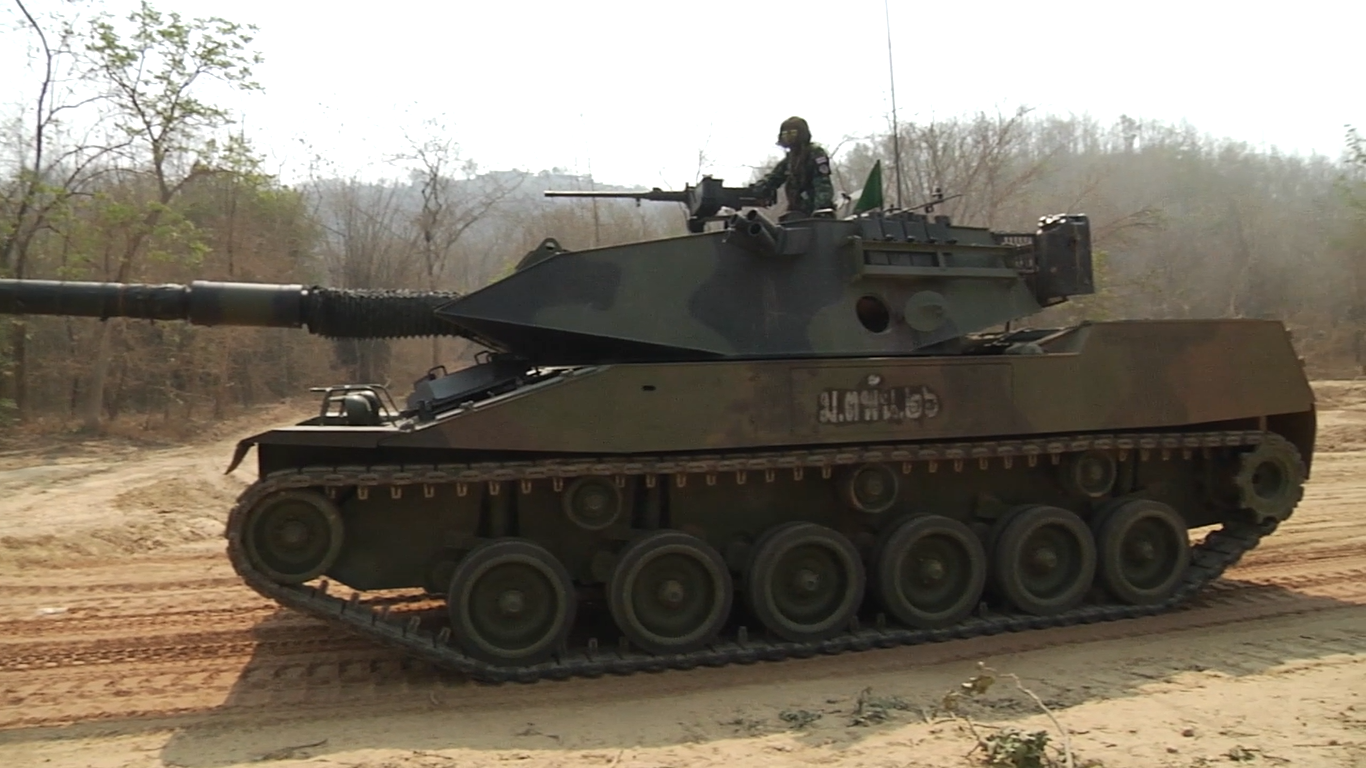

Thailand is the only confirmed production operator. The Royal Thai Army ordered 106 vehicles in 1987, received first production vehicles in December 1988, and completed deliveries by early 1990 according to Army Guide; AFV Database records 1988 first acceptance and 106 acceptances. [Army Guide; AFV Database] Sources
The United States did not adopt the Stingray. American involvement was limited to contractor-funded development, trials, U.S.-based prototypes, and marketing into U.S. light-tank or replacement discussions. The Stingray is an American-origin vehicle but not a U.S. Army service tank. [FAS; Forecast International] Sources
Current status remains less secure. The cited accounts account correctly says “Current/retired verify.” A 2024 Army Recognition article reports Thai trials of locally produced lithium-ion batteries on VT-4 main battle tanks and Stingray light tanks at Sripatcharin camp, which strongly suggests at least some Stingray hulls remained available for official Thai military testing in 2024. Popular/secondary sources in 2025 describe Thailand as still operating Stingray, but Published accounts describe those claims as uncertain until confirmed by an official Thai inventory or a current IISS/Janes entry. [Army Recognition; War Thunder/Gaijin] Sources
No well-documented combat record comparable to a major war campaign has been located in the consulted sources. The Stingray’s documented public imagery is stronger for Thai exercises and training than for verified combat employment. Wikimedia Commons hosts U.S. Army public-domain stills from Cobra Gold 2019 showing Royal Thai Army Stingray tanks during combined-arms live-fire training at Sukhothai, Thailand. [Wikimedia Commons; Army Recognition] Sources
Several secondary sources claim Thai Stingray deployments around Thai-Cambodian border tensions, including references to the 2011 border conflict and later tensions. However, major news reporting on recent Thai-Cambodian heavy-weapons withdrawals discusses tanks and armored vehicles generally rather than reliably identifying Stingray by type. Published accounts describe border deployment/combat claims as plausible but unconfirmed, not as documented combat performance evidence. [War Thunder/Gaijin; Reuters/AP background not Stingray-specific; Thai Military and Asian Region blog as photo lead only] Sources
The tactical employment most consistent with its design would be mobile direct fire, overwatch, reconnaissance support, and rapid reinforcement rather than frontal engagements against modern MBTs. Its 105 mm gun gave it lethality against older tanks and many armored vehicles, but its armor made exposure to autocannon, mines, top-attack munitions, and modern anti-tank missiles a serious risk. [FAS; AFV Database; Forecast International] Sources
Legacy and historical evidence
The Stingray was best compared not with an M1 Abrams or Leopard 2, but with other light or export fire-support vehicles. Against the M551 Sheridan, the Stingray offered a more conventional 105 mm gun, diesel powertrain, and export-friendly support logic, but it lacked the Sheridan’s airborne origin and U.S. service ecosystem. Against the British Scorpion/Scimitar family, it was much more heavily armed but larger and less strategically light. [FAS; Forecast International] Sources
Against older main battle tanks available on the export market, the Stingray’s position was mixed. It could be cheaper to operate and easier to deploy, but surplus M60s, Leopard 1s, T-55/T-62/T-72 variants, and other MBTs often offered heavier armor and large existing support networks. This market shift helps explain why Stingray II generated interest but no production order. [Forecast International] Sources
The Stingray’s legacy is disproportionate to its production run. It is a rare example of an American postwar private-venture tracked tank that achieved an export production order. It also illustrates the recurring appeal of a “light tank with big gun” in the period between the M551 Sheridan and modern mobile protected firepower concepts. [AFV Database; Forecast International; FAS] Sources
Its influence was more conceptual and commercial than doctrinal. Stingray did not define U.S. Army doctrine, but it participated in the wider M551 replacement and export-market debate that also produced CCVL, M8 AGS, VFM-style projects, and LAV-105 turret concepts. Stingray II showed how the original design could be upgraded with better protection and fire control, but also how difficult it was to sell a new light tank after the Cold War. [Forecast International; Textron Systems archived page] Sources
The vehicle’s modern reputation is often shaped by images of Thai service, by its unusual status as an American tank not used by America, and by its appearance in online gaming and enthusiast media. That popular visibility does not establish a large operational record. The real historical value is as a case study in export armor design, private venture procurement, and the trade space between mobility, firepower, protection, and price. [Wikimedia Commons; War Thunder/Gaijin] Sources
The production order, base layout, major subsystems, and core technical description are supported by multiple independent reference sites and by the Forecast International archived report. Current operational status, actual combat use, and some detailed specification values remain uncertain. [AFV Database; Army Guide; Forecast International] Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- AFV Database | Chris Conners, “Light Tank Stingray,” last updated 6 January 2024.
- Army Guide | “Stingray (Light tank).”
- Forecast International | “Commando Stingray and Commando Stingray II,” Military Vehicles Forecast archived report, March 2003.
- Federation of American Scientists | “Stingray light tank,” DOD-101, 7 August 1999.
- Army Recognition | “Thailand tests modified VT-4 main battle tanks and Stingray light tanks,” 5 March 2024.
- Textron Systems archived page | Archived / old Textron Marine & Land Systems page for Stingray II.
- Military Factory | “Cadillac Gage Stingray Light Tank.”
- Gaijin / War Thunder | “Commando Stingray: Born in America, Established in Thailand,” 22 August 2025.
- Wikimedia Commons image files | Royal Thai Army Stingray Cobra Gold 2019 file pages and “Stingray Light Tank.jpg.”
