Purpose and identity
The Renault AMR 33 was a small tracked reconnaissance vehicle developed for French cavalry formations. The AMR designation described a reconnaissance role, not the heavily protected assault task associated with an infantry tank. Its two-man crew, light armor and single rifle-caliber machine gun made that distinction important in both design and service. Sources
Published accounts describe a working total of 123 vehicles, separating five Renault VM prototypes from 118 production vehicles. It also records late suspension changes, possible command or radio modifications and related experiments. Those categories do not establish additional production automatically. The later AMR 35 and other Renault developments remain separate families, despite their technical connections. Sources
Development and procurement
French cavalry mechanization called for a fast vehicle able to scout, maintain contact and accompany mobile units. The AMR 33 offered a small tracked solution, but the desire to introduce useful equipment quickly left a number of engineering compromises unresolved. Accounts describe late-1932 trials and an early-1930s procurement sequence rather than a long period of settled design before production. Sources
The first substantial order is given as forty-five vehicles on 8 March 1933, followed by twenty more in June and later contractual arrangements involving additional production and prototypes. The first complete production vehicle is placed in June 1934, with the last small group in 1935. Sources
In particular, the published annual-completion statements do not transparently reconcile with its prototype/production breakdown. The original wording remains in published figures. Sources
Hull, turret and crew
The driver sat toward the left of a compact hull, with the engine occupying space beside the crew rather than a conventional isolated rear power compartment. The commander worked in a small turret. This arrangement limited space and placed observation, command and weapon operation on one turret occupant. Sources
The AVIS No. 1 turret carried the 7.5 mm machine gun that defined the ordinary fighting configuration. Its presence did not make the vehicle suitable for engagements with substantially better-armed tanks. Published accounts describe the thin armor as protection within a limited envelope, with a maximum around 13 mm and lighter horizontal plates. These plate values are not a promise of immunity to all small-arms fire. Sources

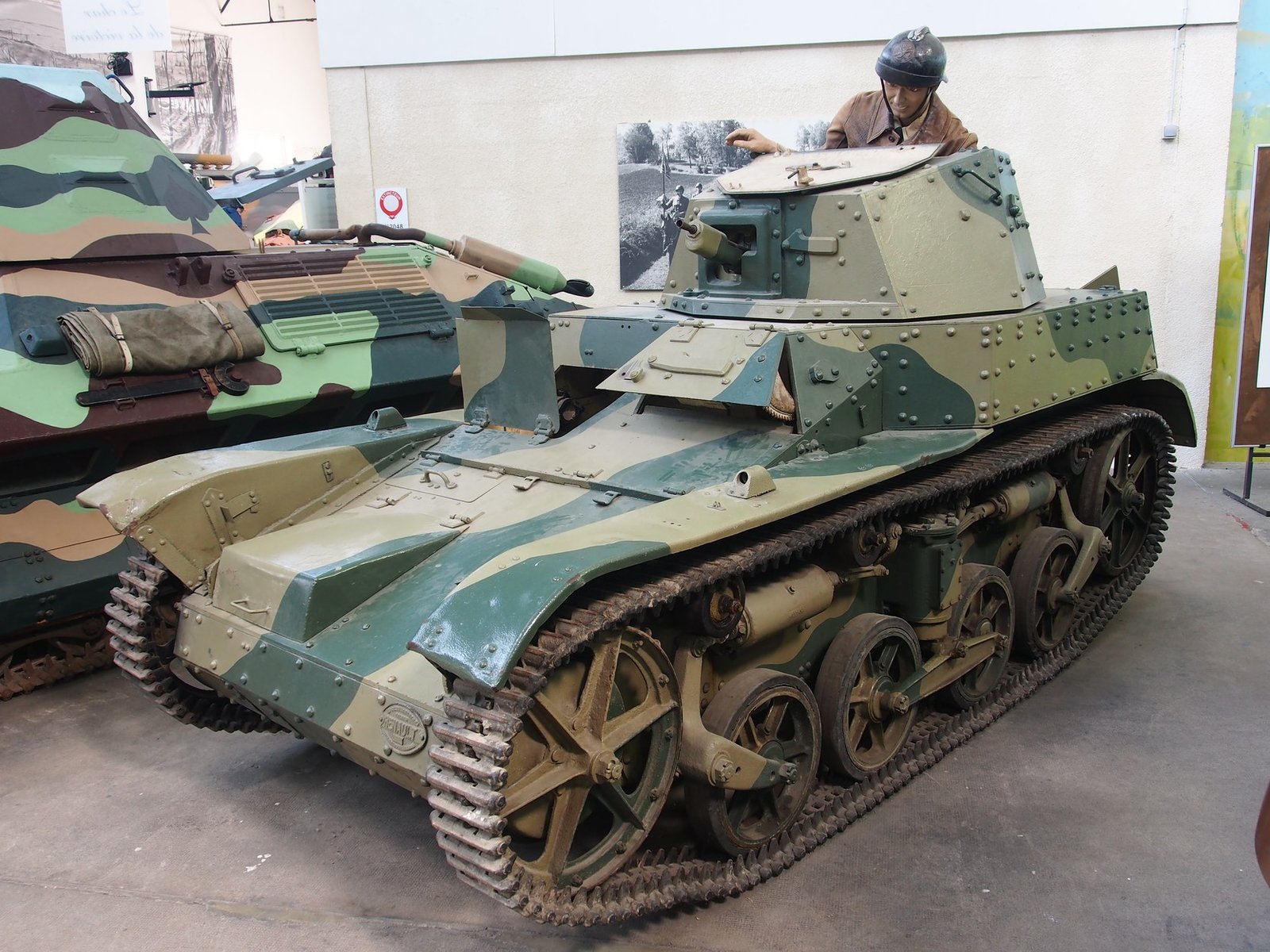

Museum photographs help explain the low hull, turret placement and narrow running gear, but their paint, external fittings and exhibition presentation need dated captions. They are not automatically evidence that every production tank carried the same visible equipment in 1934 or 1940. Sources
Weapon equipment, observation and communications
The ordinary weapon reference is a 7.5 mm MAC 31 machine gun with approximately 2,250 rounds in fifteen drums of 150. A spare gun mentioned in equipment descriptions does not establish a second permanently mounted weapon. Sources
The commander's workload was substantial: observation, reporting, turret operation and firing were combined in a small compartment. The available evidence does not establish a universal radio fit. Sources
That communications limitation affected the reconnaissance role directly. Rapid movement into contact was useful only if the crew could observe and report effectively. It is therefore misleading to evaluate the vehicle solely by maximum speed or to treat every photographed antenna or later equipment proposal as part of the normal service configuration. Sources
Power, running gear and performance
The petrol power plant is commonly described with ratings around 84 CV or 85 hp in the cited sources. The terminology is retained as reported rather than silently treating different horsepower conventions as identical. Weight figures also differ: approximately five tonnes loaded appears alongside a project value of about 5.5 tonnes. The material does not establish that these are merely alternative rounding of the same measurement. Sources
Road-speed figures in the 60–65 km/h range describe peak performance claims, whereas a lower cruising figure is a different measure. The same discipline applies to range, where the sources do not always use the same value or conditions. Those figures cannot be combined into an idealized endurance specification. Sources
The suspension and narrow tracks were central weaknesses in sustained use. Late production and some refitted vehicles are associated with changes to the suspension, but the extent of fleet-wide conversion is uncertain. Modifications affected particular chassis or batches and are not established as one universal late standard. Sources
Manufacture and proposed derivatives
Renault built the prototypes and production vehicles, but the small total still contains several accounting boundaries. Orders, complete deliveries, prototype rebuilding and later refits are different events. The published five-plus-118 interpretation is a useful working frame, while the conflicting annual figures remain a specific verification task. Sources
Special projects include a Type P concept, a reported 37 mm proposal and artillery-tractor work. A drawing or an order does not establish operational service. Renault YS and AMR 35 were separate developments, not additional AMR 33 production. Sources
France was the original operator. German captured-use designations provide a research path, but the account warns that many photographs labeled generically AMR actually show AMR 35s. Captured possession, conversion and continuing service refer to distinct categories before assigning a long German operational history to the AMR 33. Sources
Service and the 1940 campaign
The AMR 33 entered cavalry and motorized-dragoon organizations during the 1930s and experienced its principal combat during the Battle of France. Accounts place examples in several light cavalry formations and describes rapidly declining availability as combat losses and mechanical strain accumulated. The cited accounts do not firmly establish exact strengths and losses. Sources
One secondary account identifies vehicle 83950 near Vance on 10 May 1940 as a possible earliest French armored-vehicle loss of the campaign. The cited accounts do not firmly establish named operations and locations. Sources
The technical and tactical limitations reinforced one another. Light protection and machine-gun armament restricted the vehicle's ability to fight German armor, while inadequate communications reduced its value in rapidly changing reconnaissance situations. Fragile running gear also made repeated high-tempo movement costly. These themes help explain its difficulties, but do not certify a universal cause of loss for every abandoned AMR. Sources
Legacy and the visual record
The later AMR 35 addressed aspects of the earlier arrangement and belongs in the development comparison. Other Renault vehicles also drew on the same industrial experience. Such connections is reported specifically rather than converted into an all-purpose family tree that makes every later Renault light vehicle a variant of the AMR 33. Sources

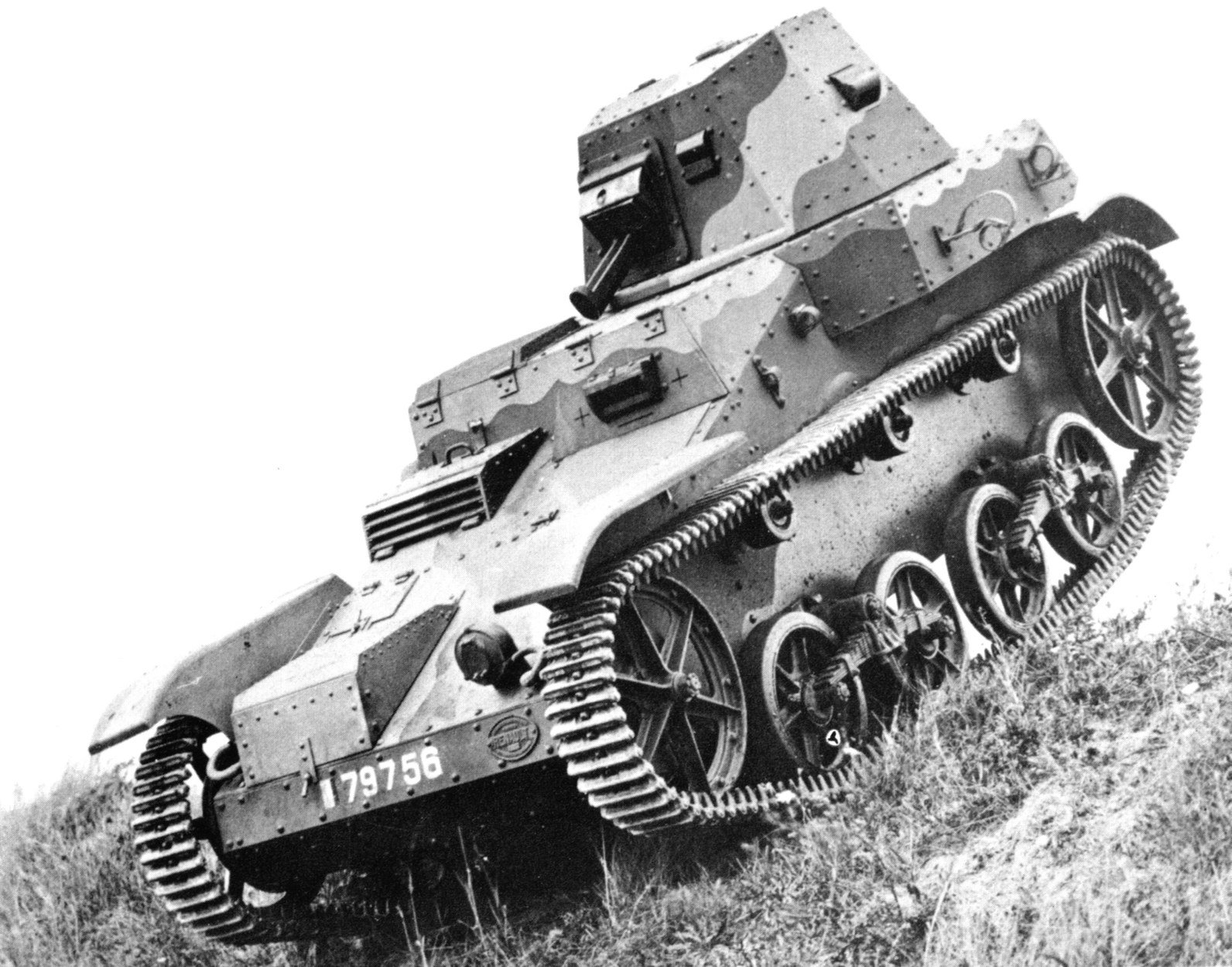

The surviving museum vehicle provides useful exterior evidence, while a historical prototype photograph and a modern multi-view drawing serve different purposes. The drawing is an interpretive reference, not a period Renault manufacturing sheet. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- Chars Français, “1935 AMR Renault 1933” — 2026-05-31
- Tank Encyclopedia, “AMR 33 / Renault VM” — 2026-05-31
- Musée des Blindés official collection page — Official museum context listing AMR 33 within the Saumur French 1940 collection display
- Wikimedia Commons file: Renault AMR33 mg 7792.jpg — 2026-05-31
- Wikimedia Commons file: Renault AMR 33, Tanks in the Musée des Blindés, France, pic-4.JPG — 2026-05-31
- Wikimedia Commons file: Renault AMR 33, Tanks in the Musée des Blindés, France, pic-6.JPG — 2026-05-31
- Wikimedia Commons file: AMR33Prototype79756.jpg — 2026-05-31
- Wikimedia Commons file: Renault 33 VM, Automitrailleuse de Reconnaissance, AMR.png — 2026-05-31
