A cavalry combat tank, not an AMR
The AMC 35, also known as Renault ACG1, was developed for the French Cavalry's combat-tank role. Its designation is distinct from the AMR reconnaissance series, the earlier AMC 34, or the Infantry's Renault and Hotchkiss light tanks. Accounts place it within a cavalry procurement system that distinguished reconnaissance, discovery, and combat tasks, even though later summaries sometimes flatten those categories into a single class of light tank. Sources
The vehicle combined a 47 mm gun and a two-person turret with a compact three-person crew. That arrangement offered a meaningful improvement in the division of turret work, but it did not remove the design's mechanical and logistical difficulties. French and Belgian configurations require separate equipment descriptions. Its small production run and late, fragmented employment matter as much to its history as the weapon or turret concept. Sources
Development, testing, and supplier changes
The development account links the ACG1 to shortcomings in the AMC 34 and to changing cavalry requirements. The 1935 program label is not the same as the date of every prototype trial or production delivery. Accounts describe substantial testing during 1936, while retaining differing accounts of the sequence of adoption, construction, and issue. Supplier reorganization and the relationship between Renault and the nationalized Issy-les-Moulineaux works also form part of the production story. Sources
A 25 mm prototype armament trial differs from the later 47 mm configuration. The Belgian procurement record introduces further differences in orders, hull deliveries, turrets, weapons, and operational readiness. A figure for vehicles ordered cannot settle how many complete tanks actually reached a unit. These distinctions explain why seemingly simple accounts of one design and one production total remain difficult to reconcile. Sources
Hull, turret, and protection
The hull placed the driver at the front and the engine behind the fighting compartment. The turret carried the commander and gunner, giving the gunner a distinct role but leaving loading and command tasks to be coordinated within a small space. Sources
The common working weight is 14.5 tonnes and the maximum armor thickness approximately 25 mm. Those values do not justify importing a thicker figure from another French tank or treating the maximum as uniform protection. Museum photographs show surviving components in a restored display state. These details remain unconfirmed in the cited evidence. Sources
Armament and configuration-specific equipment
French vehicles are associated with the 47 mm SA 35 and a 7.5 mm machine gun. The Belgian configuration used a 47 mm FRC weapon and a different machine-gun arrangement, although the accounts give conflicting descriptions of that secondary armament. Ammunition figures also vary between sources. They remain attributed alternatives until a loading diagram or contemporary specification establishes the relevant configuration. Sources
The Renault four-cylinder engine is commonly given as 180 hp or CV in the supplied references; the unit labels cannot be silently treated as identical measurements. Published road speed is around 42 km/h, with range dependent on the cited fuel and operating assumptions. Rubber-sprung running gear and mechanical reliability were persistent concerns. Radio and smoke-equipment claims likewise remain uncertain: a trial installation or a doctrinal requirement does not establish a universal production fit. Sources
Manufacture and Belgian procurement
The published working total of 57 is only one accounting interpretation, commonly divided into French and Belgian portions. Other cited sources give broader ranges or different totals for vehicles delivered, held in parks, or available in a unit. Published accounts describe those boundaries rather than adding an order, a hull delivery, and an operational tank as though each represented another manufactured vehicle. Sources
Belgian turret procurement adds a separate complication. Turrets intended for tanks or used in static positions do not necessarily correspond to additional completed ACG1s. French park inventories in May 1940 similarly describe a dated disposition, not the lifetime production total. The industrial material supplies a framework for checking contracts, deliveries, armament integration, and acceptance. It does not yet amount to a reconciled serial ledger or an established monthly manufacturing and cost history. Sources
French and Belgian service in 1940
Belgian vehicles fought during the German invasion in May 1940. Secondary accounts describe a small operational group, antitank-fire losses, mechanical failures, and the surrender of survivors. The photograph near Zwyndrecht documents a particular vehicle and occasion, not an entire unit’s loss record. Sources
French employment was improvised and dispersed among small cavalry groupings. The account cites fighting at Serches in June and the Loire defense context around Saumur. These accounts show actual use, not a tank that remained wholly absent from combat. Nevertheless, limited numbers, uneven readiness, crew preparation, communications, and repair support constrained what could be achieved. The gun and turret arrangement did not make the AMC 35 an independent solution to those operational weaknesses. Sources
Assessment without a lost-decisive-tank claim
The two-person turret and 47 mm weapon were important strengths relative to the vehicle's size and period. They offered a better division of fighting tasks and more useful firepower than a machine-gun reconnaissance vehicle. The published assessment is nevertheless qualified: mechanical trouble, modest protection, low availability, and fragmented employment sharply limited the practical value of those advantages. Sources
A counterfactual claim that simply building more AMC 35s would have transformed the 1940 campaign is not supported by the available evidence. Scaling production would also have required a more reliable design, integrated turrets and armament, trained crews, and a functioning support system. The vehicle is more useful historically as an example of a promising crew-and-weapon arrangement embedded in a troubled procurement program. Claims of direct influence on later French designs need documentary links rather than resemblance alone. Sources
Photographs, drawings, and remaining evidence

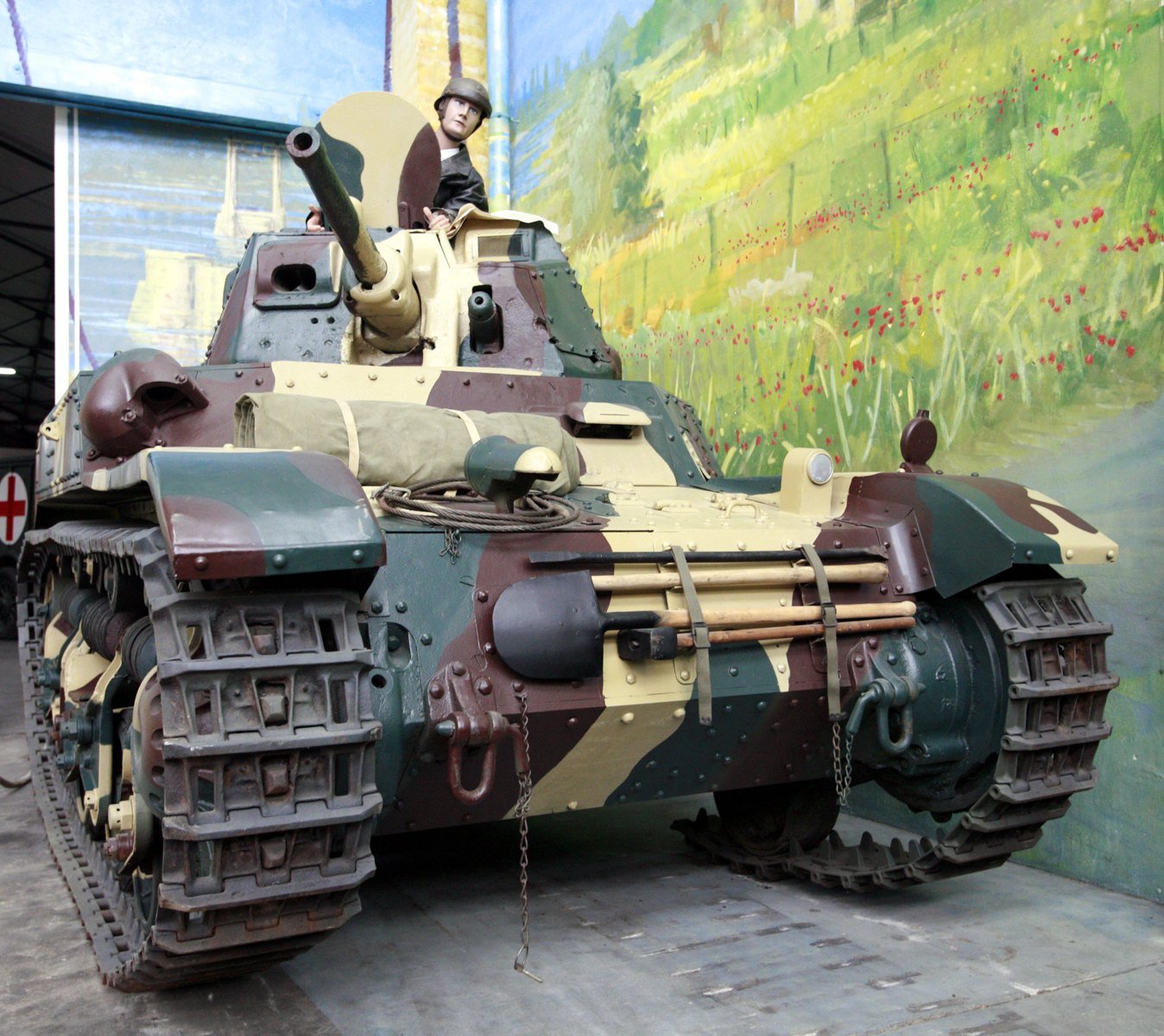

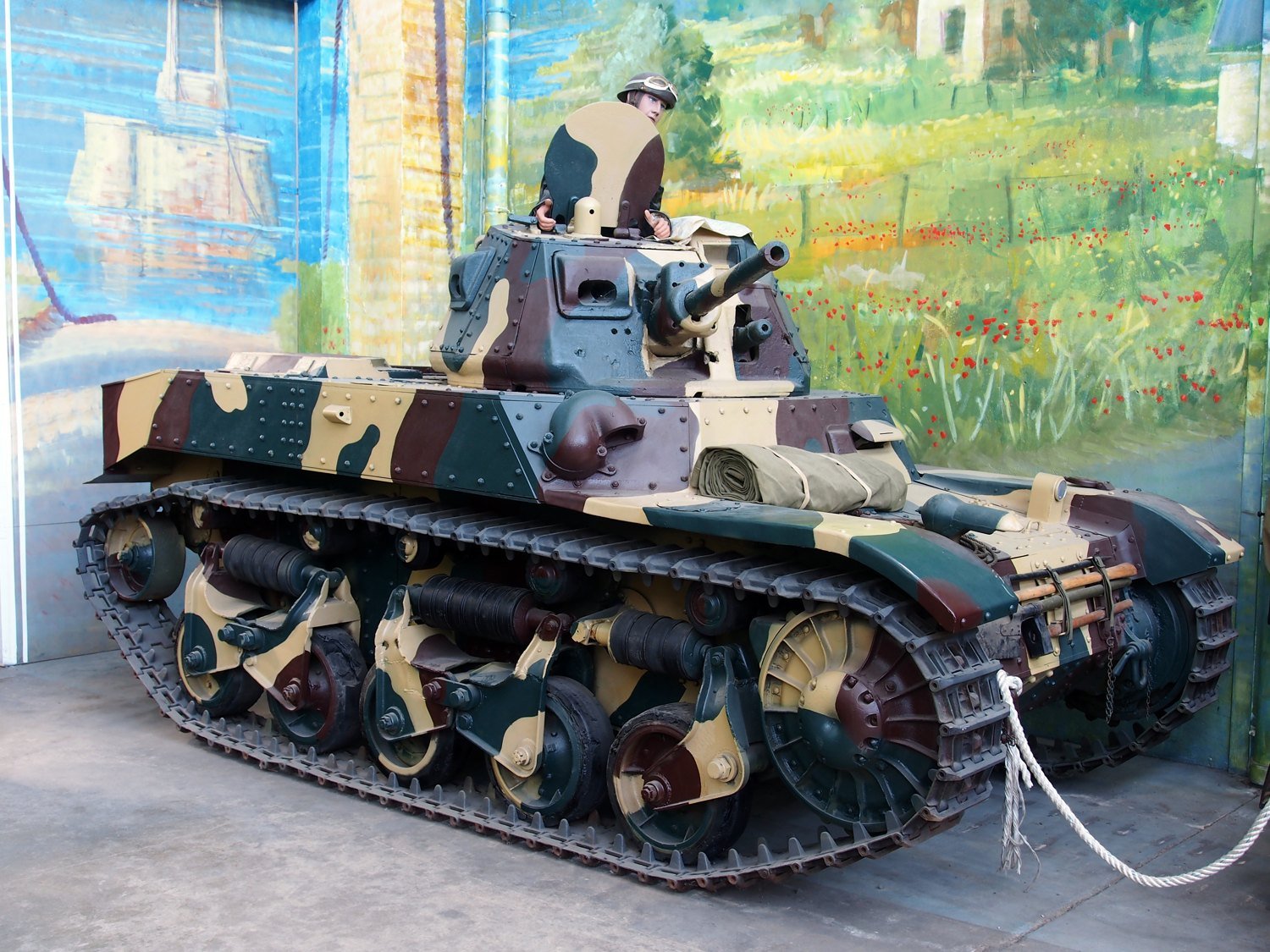

They answer different questions. The factory photograph shows an industrial interior, not the crew compartment of an assembled tank, and its stated date is uncertain against the development sequence. Modern views show the restored Saumur vehicle and cannot establish every wartime fitting. Sources
The main remaining tasks are the production and delivery ledger, French versus Belgian weapon details, trial dates, unit readiness, and the source of disputed technical figures. A visually appealing photograph or a detailed drawing can improve understanding, but neither by itself resolves the historical counting and configuration issues. Sources
