Panzerkampfwagen III

Overview and doctrinal place

The Panzerkampfwagen III was developed as a central gun tank for German armored formations. In the published account, its intended anti-tank role complemented the early Panzer IV's heavier support weapon. A five-man crew and three-man turret were central to the design's practical value: command, loading and gunnery were more clearly divided than in many small contemporary tanks. Sources

The family cannot be represented accurately by one armament or suspension description. Early A–D vehicles tested different running gear, while later production established a more familiar arrangement. Guns changed from 37 mm to short and long 50 mm types; the Ausf. N returned to a short 75 mm support weapon. Specialized variants and the related assault-gun chassis line had their own production and conversion histories. Sources

Development from experimental batches to series production

The early program used the Zugführerwagen designation and brought together a succession of small production or experimental batches. Published accounts give uncertainty over the combined A–D count: its listed figures sum to 70, while another summary gives approximately 75. Those statements remain unresolved rather than being corrected through an invented batch or additional prototype. Sources

The Ausf. E introduced the mature six-road-wheel torsion-bar arrangement. Later variants reflected overlapping changes in armor, gun installation, running gear and manufacture. A vehicle photographed with a 50 mm gun is not necessarily evidence that its original production batch left the factory with that gun. The available evidence therefore treats factory configuration and refit history separately. By the later war years the family had limited room for the higher-velocity armament needed against stronger opposition, and the long-gun Panzer IV assumed the main gun-tank role described in the cited sources. Sources

Hull, protection and crew organization

The established layout placed the driver and radio operator toward the front, the fighting compartment and main turret centrally, and the Maybach engine aft, with the drivetrain transmitting power to the front. The commander, gunner and loader occupied the turret. That organization reduced some competing tasks, but cannot be equated with effortless control or perfect visibility in action. Sources

Protection evolved considerably. Original plate thickness, added armor and spaced plates need to be specified for a particular Ausführung and date. A single maximum-thickness value would conceal that evolution. Cupolas, vision arrangements and later skirts likewise require photographic and documentary matching. The source describes welded armor construction and several protection changes, but does not support assigning every late feature to every surviving tank or assuming that a museum finish reproduces the vehicle's exact field state. Sources

Guns, ammunition and specialized roles

The principal gun sequence in the available evidence is the 37 mm KwK 36, the 50 mm KwK 38 L/42, the longer 50 mm KwK 39 L/60 and the short 75 mm KwK 37 L/24 fitted to the Ausf. N. The latter reflected a support role, not a simple return to the earliest anti-tank requirement. Coaxial and hull machine guns, commonly MG 34s in the later configurations, also need model-specific treatment. Sources

Ammunition capacities vary with installation: Published accounts describe examples around 125 rounds for a 37 mm configuration, 99 for a short-50 mm J, 85 for a long-50 mm L and 64 for N. These are not interchangeable family figures. Command vehicles traded or altered equipment to support extra communications, while observation, recovery and ammunition configurations served other functions. The flamethrower version has separate conversion and production questions; its existence does not allow flamethrower equipment to be assigned to a normal gun tank. Sources

Powertrain and operating envelope

The mature family is associated with the Maybach HL 120 TRM and, in the relevant late configurations, a six-forward-speed SSG 77 transmission. Published accounts give different output statements, including a net-power figure and the wartime American handbook's rating at a stated engine speed. They cannot be averaged into a new number or treated as identical measurement conventions. Sources

The distinction between maximum speed, practical road movement and cross-country pace is equally important. The source retains divergent figures rather than declaring one universal speed for all models. Tracks, suspension, increasing mass, maintenance and fuel supply shaped availability. The mature six-wheel torsion-bar system cannot be copied back onto the early A–D experimental arrangements. Power, mass, transmission, track width, and protection varied together across the configurations. Sources

Production, derivatives and operator records

New manufacture, command versions, refits, specialized conversions and chassis production need separate columns. Sources

StuG III and StuH 42 production continued the utility of the chassis concept, but these are separate fighting-vehicle families. Hybrid III/IV self-propelled vehicles also require their own identities. A captured specimen, trial vehicle or limited transfer does not establish evidence of an entire operational establishment without the appropriate records. Sources

Published Panzer III estimates include approximately 5,690–5,774 turreted gun tanks, alongside broader totals with different or unclear coverage. Sources

Combat service and preserved evidence

The account follows limited early availability in Poland, expanding use in France and the type's major employment in North Africa and the Soviet Union. Gun and armor changes affected those campaigns differently. Better crew task division and communications could be significant without making the early 37 mm vehicle superior in armor or firepower to every opponent. Later rearmament improved some capabilities but did not remove the constraints exposed by stronger enemy tanks. Sources

The image collection includes restored museum vehicles, a river-crossing scene with uncertain detailed identification and dated North African losses or recovery photographs. A photograph taken months after a tank was knocked out has separate exposure and battle dates. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

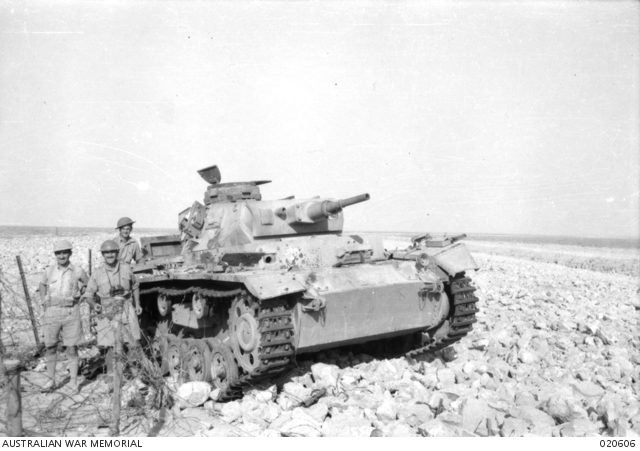

Destroyed Panzerkampfwagen III Ausf. G photographed at Tobruk on 14 September 1941; the image concerns a vehicle destroyed during the April 1941 fighting.Australian War Memorial 020606; copyright expired/public domain.Image source

Captured German Panzerkampfwagen III Ausf. J on a transporter during the British advance. November 1942. Mersa Matruh, Egypt.Australian War Memorial 050003; Australian War Memorial record.Image source

Captured or destroyed German Panzerkampfwagen III Ausf. G tanks around Sidi Rezegh. circa December 1941. Sidi Rezegh area, Libya.George Silk / Australian War Memorial 011853Image source
