A stopgap with several distinct branches
The Panzer II was developed as an interim German light tank while more powerful types were being prepared. Its 20 mm cannon offered greater firepower than the Panzer I's machine guns, and its three-person crew and communications equipment fitted the expanding armored force. Accounts describe an important early-war vehicle, but not one whose success can be explained by superior armor or an ability to defeat every opposing tank. Sources
The family label covers materially different branches. Lowercase pre-series designations is distinct from the later capital-letter Ausführungen. The common five-road-wheel gun tanks, the D/E fast branch, and the later Luchs differed in running gear and other equipment. Flamethrowers and self-propelled derivatives also are separate questions. A single specification copied across all those vehicles would obscure the development history the article is intended to explain. Sources
Development and changing running gear
The program developed under the La.S.100 designation, with MAN associated with chassis work and Daimler-Benz with the superstructure and turret. Early a and b vehicles used running gear that differed from the later c arrangement. The latter introduced the characteristic five-road-wheel layout associated with many subsequent A, B, C, and F gun tanks. The cited accounts do not firmly establish Serial boundaries and changes. Sources
The D/E branch pursued a different mobility solution with four large road wheels, while the Luchs adopted a reconnaissance layout and interleaved wheels. Their place within the family is not simply that of progressively heavier armor kits. The account also distinguishes the flamethrower designation Panzer II (F) from the gun tank Ausf. F. Similar lettering is not evidence that their armament, role, or manufacture was the same. Sources
Crew, armor, and gun-tank equipment
In the ordinary three-person gun tank, the commander also aimed and fired the turret weapons. The driver occupied the front hull, while the third crew member handled radio and associated fighting-compartment duties. This division made communication possible but left the commander with substantial observation and weapon workload. Luchs had a four-person crew, unlike the earlier tanks' arrangement. Sources
Protection changed between branches and production states. Published accounts give different frontal and side figures drawn partly from wartime intelligence, with later improvements distinguished from early specifications. Production variants used the 20 mm KwK 30 or KwK 38 with a coaxial machine gun; the exact configuration depends on the vehicle and date. Nominal ammunition figures and sight types cannot be generalized from one manual entry. No stabilized weapon system is inferred, and a maximum plate thickness does not describe the protection of the whole vehicle. Sources
Engines, mobility, and maintenance
The main gun-tank line used Maybach engines, with the HL 62 family and an approximately 140 hp rating recurring in the supplied technical material. Other branches used different engines and outputs; the Luchs is associated with the HL 66 P in the cited secondary account. Sources
Running gear influenced both mobility and maintenance. The account contrasts early bogie arrangements, the five-wheel pattern, the D/E branch, and the Luchs system. Their performance cannot be compared simply by selecting the highest published road speed. Sand, dust, mud, ice, and the availability of repair support affected operational usefulness. The cited accounts do not firmly establish exact radios, optics, and equipment changes. The presence of a radio in the general account does not establish one unchanging radio fit throughout the program. Sources
Production and conversion boundaries
Accounts record a broad working gun-tank total in the region of 1,800–1,900, with more specific totals dependent on which branches and pre-series vehicles are included. It does not provide a reconciled factory-by-factory ledger. Sources
Conversions are particularly important to the counting problem. A gun tank rebuilt as a flamethrower or another specialized vehicle cannot automatically count twice as newly manufactured armor. Conversely, a dedicated new chassis for a derivative is not necessarily a converted gun tank. Orders, completed chassis, accepted vehicles, conversions, and captured possession remain separate categories throughout the family records. Sources
Early-war fighting and later roles
The service framework follows German use in Poland, the western campaign, North Africa, and the Soviet Union, followed by a declining role as better-protected and more heavily armed vehicles became necessary. The Panzer II could contribute reconnaissance, fire support, and movement within an armored formation, but its light armor and small cannon limited its ability to fight stronger opponents. Local effectiveness depended on more than the tank's specifications. Sources
The Luchs and specialized derivatives require their own service histories rather than inheriting every campaign of the original gun-tank line. The same caution applies to other countries: a captured example or a photograph of possession is not sufficient evidence of sustained operational issue. Sources
Preserved vehicles and wartime photographs

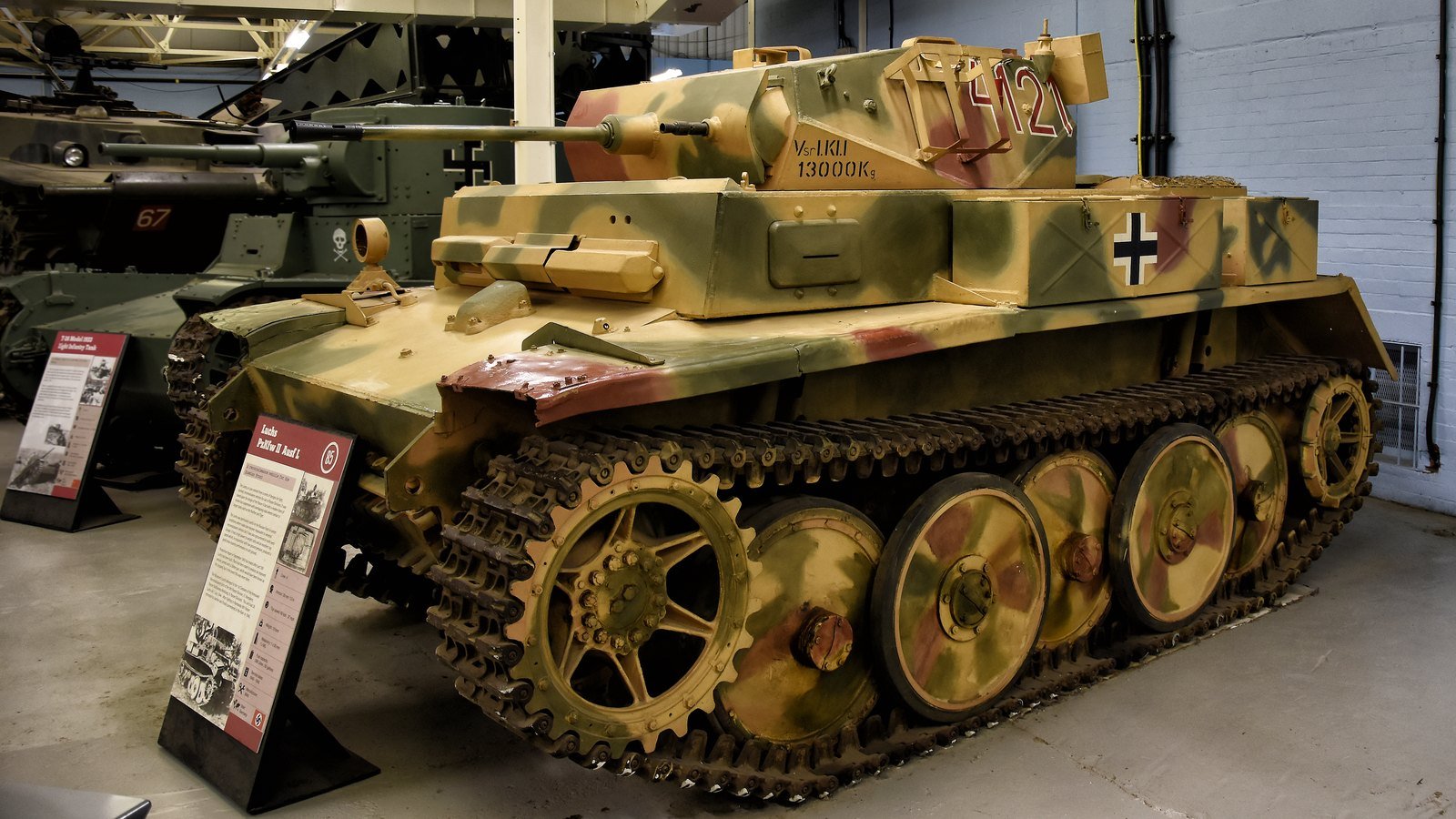

The references identify the Bovington survivor as an Ausf. F captured in Tunisia, but notes that its display markings represent a different formation and campaign context. Its museum photograph is therefore useful for surviving hardware and presentational interpretation, not as a photograph taken during the represented 1940 campaign. The Luchs photograph illustrates a distinct suspension and turret configuration and cannot substitute for a standard five-wheel Panzer II. Sources
Exact subtype and unit identification remain qualified where the image alone cannot settle them. An added modern description on an archive mirror differs from the archive's own caption, especially when it supplies a specialized-role interpretation. Sources
What remains to be established
That would test the family totals without erasing the original the cited accounts assertions. Variant manuals and contemporary drawings are needed to establish gun installations, armor changes, radios, sights, and model-specific automotive equipment. Sources
Imagery can support that work if its provenance is preserved. The source account provides a substantial starting framework, but its comparisons and bibliography are not a substitute for complete primary-source verification. unresolved questions remain leads until the relevant record has actually been consulted. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- The Tank Museum. "Panzer II." Accessed May 31, 2026. Museum collection source.
- The Tank Museum. "Panzer II Ausf L." Accessed May 31, 2026. Museum collection source.
- U.S. Office of the Chief of Ordnance. Catalog of Enemy Ordnance, 1945, Panzer II entries via Lone Sentry. Accessed May 31, 2026. Wartime technical-intelligence source.
- Lone Sentry. "Panzer II (WWII German Tank Data)." Accessed May 31, 2026. Secondary summary page.
- David Doyle Books. "Panzer Tracts." Accessed May 31, 2026. Source-quality note: Panzer Tracts described as based solely on primary sources and authored by Hilary Doyle and Thomas Jentz
- Panzer Tracts. "The Complete List of Panzer Tracts." Accessed May 31, 2026. Bibliographic confirmation for Panzer Tracts 2-1, 2-2, and 2-3 titles and coverage
- Tank Encyclopedia. "Panzer II Ausf. A-F and Ausf. L." Accessed May 31, 2026. Secondary armor-history reference.
- Wikimedia Commons. "File:Panzer II - Tank Museum Bovington 18-05-2017 15-27-20.JPG." Accessed May 31, 2026. Image source and license documentation for Figure 1. Paul Hermans; CC BY-SA 4.0/GFDL options
- Wikimedia Commons. "File:Panzer II Ausf. L - Tank Museum Bovington 18-5-2017 16-44-40.JPG." Accessed May 31, 2026. Image source and license documentation for Figure 2. Paul Hermans; CC BY-SA 4.0/GFDL options

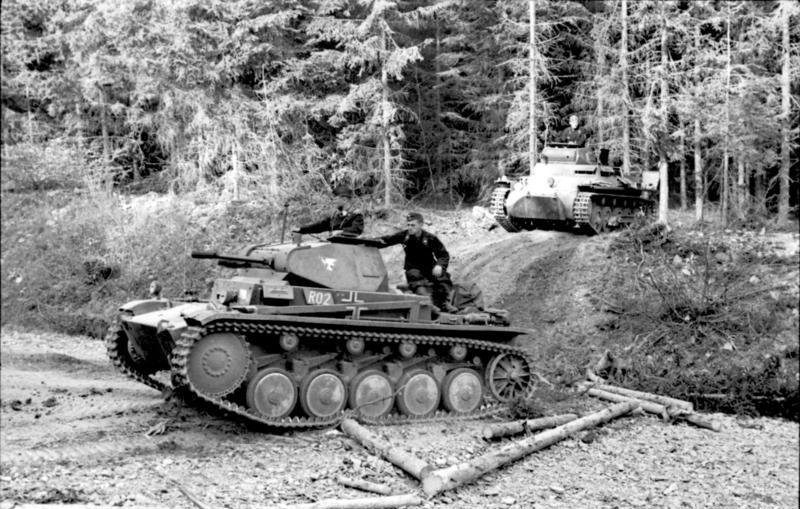

- Wikimedia Commons / German Federal Archives. "File:Bundesarchiv Bild 101I-382-0248-33A, Im Westen, Panzer II und Panzer I.jpg." Accessed May 31, 2026. Image source and license documentation for Figure 3. Bundesarchiv / Boecker / CC BY-SA 3.0 Germany

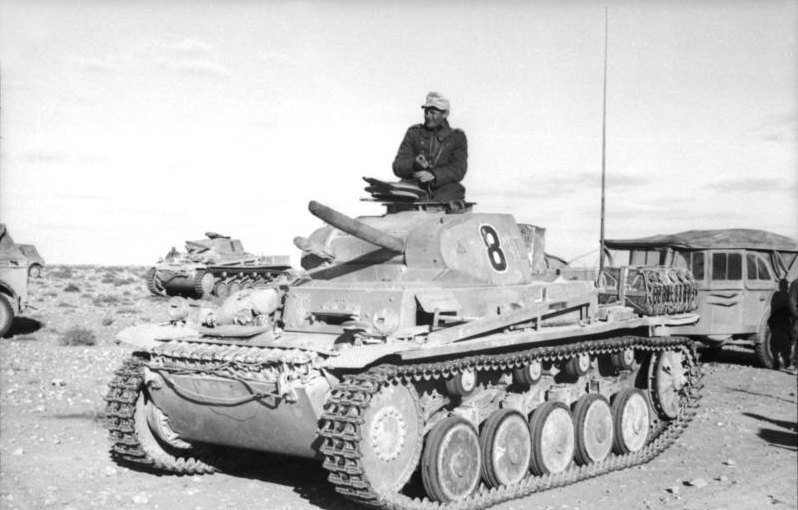

- Wikimedia Commons / German Federal Archives. "File:Bundesarchiv Bild 101I-783-0110-12, Nordafrika, Panzer II, Kraftfahrzeuge.jpg." Accessed May 31, 2026. Image source and license documentation for Figure 4. Bundesarchiv / Doerner / CC BY-SA 3.0 Germany
- Wikimedia Commons / Australian War Memorial. "File:Panzer II knocked out in Libya 1941.jpg." Accessed May 31, 2026. Image source and public-domain status for Figure 5. P.W. Kendall, 2/48 Battalion, Australian Army; AWM ID P06209.006.003; public domain under Australian copyright term rules
- PICRYL. "Panzer II knocked out in Libya 1941." Accessed May 31, 2026. Download mirror for Figure 5 and public-domain metadata; original source given as Australian War Memorial
