Panzer 61

Historical overview

The Panzer 61 was the first Swiss domestic main battle tank to enter full production. Its lineage began with the KW 30/Panzer 58 effort, which itself reflected a strategic problem: in the early 1950s, Switzerland found that foreign medium tanks could not be obtained on acceptable terms during the Korean War-era supply crunch. Switzerland therefore purchased AMX-13 light tanks as an interim solution while Konstruktionswerkstaette Thun developed a domestic medium tank. The Panzer 61 procurement decision followed on 16 March 1961, and vehicles were handed over to troops in 1965-67. [Haudenschild and Schneider 2006, pp. 1-2.] Sources

The tank mattered less because it transformed armored warfare than because it fit a national defense system. Swiss Cold War doctrine emphasized armed neutrality, militia mobilization, defense-in-depth, and counterattack by mobile formations operating within a heavily prepared national terrain. The Panzer 61 gave that doctrine an indigenous armored core and helped anchor Swiss mechanized battalions until the Leopard 2/Panzer 87 era. [NDU Press 2017; Australian Army Research Centre 2023; Full-Reuenthal Museum, Kampfpanzer collection page.] Sources

The most important members of the family are the baseline Panzer 61, the AA7/AA8 modernization package from 1976, the AA9 modernization from 1983 that replaced the 20 mm coaxial cannon with a 7.5 mm machine gun and improved optical arrangements, and the Entpannungspanzer 65 armored recovery vehicle. The Panzer 68 is treated here as the successor family, not simply as a Panzer 61 variant, though it inherited enough from the Panzer 61 that it is essential to the narrative. [Haudenschild and Schneider 2006, pp. 2-6, 9] Sources

The main controversies and data conflicts are documentary rather than battlefield-related. Sources agree on the 150 Panzer 61 production total, but differ on whether to state production as 1964-66, 1965-66, or delivery/service as 1965-67. Sources also differ on baseline weight and engine naming: the Swiss Army Museum documentation gives 39 t and a Mercedes-Benz 630 PS V8, while the Full-Reuenthal collection page lists 40.7 t and an MTU 837 630 PS engine for museum AA8/AA9 entries. Published accounts describe 39 t/Mercedes-Benz as the baseline published technical figure and 40.7 t/MTU 837 as an upgraded or museum-record standard needing further verification. [Haudenschild and Schneider 2006, pp. 2, 9; Full-Reuenthal Museum, Kampfpanzer collection page.] Sources

The Panzer 61 was a competent but conservative national MBT. It delivered credible 105 mm firepower and adequate mobility for Swiss terrain, but lacked some features that were becoming central to late-1960s MBTs, notably a stabilized main gun. Its real importance lies in industrial autonomy, doctrine, and continuity: it converted Swiss tank procurement from dependency toward domestic competence and provided the bridge from the Panzer 58 to the Panzer 68 and ultimately to the Panzer 87/Leopard 2 era. [Haudenschild and Schneider 2006, pp. 1-6; Tank-AFV, Panzer 61.] Sources

Strategic context before development centered on Swiss armed neutrality in an increasingly bipolar Europe. Switzerland was outside NATO and the Warsaw Pact but had to plan for a continental conflict in which Soviet or Warsaw Pact forces might reach Swiss borders through surrounding states. Swiss national defense culture emphasized deterrence, mobilization, territorial defense, and a high cost of invasion. [NDU Press 2017; Australian Army Research Centre 2023.] Sources

The immediate procurement problem was concrete. According to the Swiss Army Museum documentation, when Switzerland attempted to acquire a foreign medium tank in the early 1950s, the Korean War environment meant that no suitable supplier state was prepared to deliver. Switzerland therefore bought 200 French AMX-13 light tanks, called Leichter Panzer 51 in Swiss service, as an emergency solution while considering domestic production. [Haudenschild and Schneider 2006, p. 1.] Sources

Swiss doctrine also made tank choice unusual. Switzerland did not need an expeditionary MBT optimized for long-range overseas deployment; it needed armored forces that could support a mobilized militia army, fight in prepared defensive zones, counterattack on the central plateau, and remain maintainable by domestic industry. Army 61 doctrine and organization emphasized rapid mobilization, mechanized divisions, and mobile counterattack forces inside a defense-in-depth framework. [NDU Press 2017; Australian Army Research Centre 2023.] Sources

Industrial constraints were both a burden and an opportunity. Switzerland had a sophisticated precision-industrial base but not the scale of the United States, Soviet Union, United Kingdom, or West Germany. The Panzer 61 therefore represents an industrial-autonomy solution: a domestic hull/turret and assembly concept using selected foreign-derived components, such as the British 105 mm gun lineage and a French-derived electro-hydraulic turret drive. [Haudenschild and Schneider 2006, pp. 1-2; Tank-AFV, Panzer 61.] Sources

Development and variants

Panzer 61 developed from the KW 30/Panzer 58 line and later received AA7, AA8, and AA9 improvements. Entpannungspanzer 65 was a related support vehicle, while Panzer 68 was a successor family. [Haudenschild and Schneider 2006, pp. 2–6] Sources

Included: original Panzer 61 production vehicles; the 10 Panzer 58 pre-series vehicles where they were converted or served as direct antecedents; late Panzer 61 modernization actions; Swiss armored recovery and bridge-layer lineage as boundary context; operators and service in Swiss armored battalions; museum survivors and image documentation. Excluded: a full Panzer 68 account, a full Swiss Leopard 2/Panzer 87 account, and unrelated Swiss light tanks or prewar Czech-built Swiss vehicles. [Full-Reuenthal Museum.] Sources

Related vehicles often confused with the Panzer 61 include the Panzer 58, which was the pre-series/test-bed predecessor; the Panzer 68, which was the improved successor; the Entpannungspanzer 65/65/88, which used the family chassis as a recovery vehicle; and the Brueckenpanzer 68, which is a bridge-layer in the successor-family support lineage. Sources

In 1951, the federally owned Eidgenoessische Konstruktionswerkstaette at Thun, commonly abbreviated K+W, received the task of developing a medium tank with a rotating turret in roughly the 30-ton class. The project name was KW 30. The work produced the Panzer 58, for which a 10-vehicle pre-series was ordered in 1957. [Haudenschild and Schneider 2006, p. 1] Sources

Panzer 58 remained part of an evolving experimental program rather than a neatly separated endpoint in production. The early armament path included Swiss and British gun options, and the 10 pre-series vehicles were part of the practical development bridge to the Panzer 61. Tank-AFV states that the 10 Panzer 58 vehicles were converted to Panzer 61 standard in 1964; the cited accounts also treats Panzer 58 as the parent/lineage for CH-PANZER61. [Tank-AFV, Panzer 61] Sources

The major procurement decision came on 16 March 1961, when the Swiss parliament approved purchase of 150 Swiss tanks. The vehicle received the designation Panzer 61 and was delivered to troops in 1965-67 in the Swiss Army Museum account. Museum collection data at Full-Reuenthal lists K+W production in 1964-66 and identifies 150 vehicles. Published accounts describe both date ranges and treats them as complementary production-versus-fielding conventions unless factory records show otherwise. [Haudenschild and Schneider 2006, pp. 1-2; Full-Reuenthal Museum, Kampfpanzer collection page.] Sources

Testing and redesign continued after fielding. The Panzer 61 became the direct basis for the Panzer 68, whose procurement was approved in June 1968. Swiss Army Museum documentation describes the Panzer 68 changes as including stabilization for the main weapon, replacement of the 20 mm cannon by a 7.5 mm machine gun, changed sights and rangefinder arrangements, an MTU 660 PS engine, a transmission with more reverse speeds, wider rubber-padded tracks, and other detailed improvements. [Haudenschild and Schneider 2006, pp. 2-3.] Sources

The Panzer 61 fleet was itself modernized. Change actions AA7 and AA8 from 1976 added items such as a thermal sleeve, the Lyran illumination grenade launcher, ammunition and spent-case handling changes, rear turret stowage, and SE 412 radios. AA9 from 1983 replaced the original 20 mm coaxial cannon with a coaxial 7.5 mm machine gun and aligned the sight/rangefinder arrangements more closely with the Panzer 68. [Haudenschild and Schneider 2006, pp. 5-6; Full-Reuenthal Museum, Kampfpanzer collection page.] Sources

Design and performance

The Panzer 61 used a conventional postwar MBT layout: driver in the center front of the hull, fighting compartment and turret in the middle, and engine/transmission pack at the rear. The turret was centrally placed and carried a four-person crew arrangement with commander and gunner to the right and loader to the left. [Haudenschild and Schneider 2006, pp. 1-2.] Sources

The hull was cast as a single major piece in the Swiss Army Museum description, with a rounded nose and a central driver position. The driver had a rear-opening hatch and three periscopes, with the central periscope vertically movable. The design reflected the Panzer 58 lineage and retained a compact, rounded front form rather than the sharply faceted welded layouts used by many later tanks. [Haudenschild and Schneider 2006, p. 2; Tank-AFV, Panzer 61.] Sources

The turret was also described as a single cast piece. The commander had a fixed cupola with eight vision blocks and a rear-opening hatch, while the loader had a rotating cupola with a side-opening two-part hatch and six fixed vision blocks. The loader cupola also carried the mounting arrangement for the anti-aircraft machine gun. [Haudenschild and Schneider 2006, p. 2.] Sources

Published open data gives maximum armor up to 120 mm, usually associated with the turret and upper glacis/front. The armor was conventional cast steel, not composite armor. Open sources do not provide a reliable full armor diagram by angle, cast-section thickness, or exact turret-zone values; those details remain an unresolved question. [Haudenschild and Schneider 2006, p. 9; Tank-AFV, Panzer 61.] Sources

The main armament was a 10.5 cm Panzerkanone, generally described in English sources as an L7-family 105 mm gun. The Swiss Army Museum text describes a 10.5 cm tank gun with a semi-automatic vertical sliding breech. This gave the Panzer 61 credible NATO-standard tank firepower for the 1960s. [Haudenschild and Schneider 2006, p. 2; Tank-AFV, Panzer 61.] Sources

The early Panzer 61 was unusual because it mounted a tube-parallel 20 mm autocannon in addition to a 7.5 mm anti-aircraft machine gun and six 8 cm smoke grenade launchers. This 20 mm weapon was later judged of limited practical value and was removed in AA9, replaced by a coaxial 7.5 mm machine gun arrangement analogous to the Panzer 68. [Haudenschild and Schneider 2006, pp. 2, 5-6; Full-Reuenthal Museum.] Sources

The original ammunition stowage stated in Swiss Army Museum text was 52 rounds for the 10.5 cm gun, 240 rounds for the 20 mm cannon, 3,200 rounds for the machine gun, and 16 smoke rounds. Sources

The original fire-control arrangement was optical and electro-hydraulic rather than digital. Turret and weapon movement used an electro-hydraulic turret-control system from France, described as broadly identical to the AMX-30 system. Later AA9 upgrades changed the sight and rangefinder arrangements to align with the Panzer 68 standard. [Haudenschild and Schneider 2006, pp. 2, 5-6.] Sources

The gunner used an 8x monocular sight. The commander used a coincidence rangefinder with a 1,550 mm base length, installed transversely in the turret between the commander and gunner positions, and this also served as an 8x commander sight. AA9 replaced the original sight and rangefinder arrangements with Panzer 68-analogous equipment. [Haudenschild and Schneider 2006, pp. 2, 5-6.] Sources

The baseline powerpack consisted of main engine, auxiliary engine, gearbox, auxiliary gearbox, and radiator as a quickly removable block. Swiss Army Museum data identifies the main engine as a mechanically supercharged Mercedes-Benz 90-degree V8 diesel of 29,900 cc producing 630 PS, with a 31 PS Unimog-type four-cylinder auxiliary engine. The transmission was a powershift multi-plate clutch gearbox with six forward and two reverse gears, pivot steering, hydrostatic steering overlay, and band brakes. [Haudenschild and Schneider 2006, p. 2.] Sources

Each side had a front idler, six double road wheels, three return rollers, and a rear drive sprocket. Road wheels and return rollers had rubber tires, and the suspension used external swing arms with Belleville washers and hydraulic dampers. [Haudenschild and Schneider 2006, p. 2.] Sources

The original track links were cast and pinned, without rubber pads. Published speed was about 55 km/h on road and 30 km/h off-road; road range is usually given as roughly 250 km. The later Panzer 68 widened and rubber-padded the track, highlighting one area where the successor corrected the original Panzer 61 mobility package. [Haudenschild and Schneider 2006, pp. 2-3, 9; Full-Reuenthal Museum.] Sources

Crew was four: commander, gunner, loader, and driver. The driver had a central hull position; the commander and gunner sat right in the turret; the loader sat left. The Panzer 61 had practical but constrained 1960s MBT ergonomics, and the later Panzer 68/75 enlarged turret lineage can be interpreted as a response to crew-space pressure in the Swiss family. [Haudenschild and Schneider 2006, pp. 2, 4.] Sources

The original communications fit included an intercom and two SE 407 radio sets. AA7/AA8 replaced SE 407 with SE 412 radios, showing that communications modernization formed a formal part of the fleet update program. [Haudenschild and Schneider 2006, pp. 2, 5.] Sources

Passive crew protection included the armor shell, an NBC/ABC protection system in the fighting compartment, an 18-liter drinking-water tank, smoke launchers, and an emergency escape hatch under the driver seat. There is no evidence that the baseline Panzer 61 had explosive reactive armor, active protection, or composite armor. [Haudenschild and Schneider 2006, pp. 2, 9.] Sources

The most clearly documented maintainability feature is the removable powerpack concept, which combined the engines, gearbox, auxiliary gearbox, and radiator into a block designed to be removed and installed as a unit. Reliability is harder to judge from open sources; the Panzer 68 successor is better known for political controversy around technical defects, while the Panzer 61 record is mostly one of routine modernization and eventual replacement. [Haudenschild and Schneider 2006, pp. 2-5.] Sources

Known weaknesses include the lack of an original main-gun stabilizer, limited endurance compared with larger NATO tanks, no composite armor, a small production base, and the early 20 mm coaxial cannon concept that was later discarded as unnecessary in practice. The tank also had no combat record, so battlefield claims are necessarily inferential rather than demonstrated. [Haudenschild and Schneider 2006, pp. 3, 5-6; Tank-AFV, Panzer 61.] Sources

Haudenschild and Schneider’s Pz 61 AA9 data give 56 rounds for the 10.5 cm gun, 5,400 rounds for two 7.5 mm machine guns, 11 rounds for the 8 cm smoke launchers, and 12 rounds for the 7.1 cm Lyran illumination launcher. [Haudenschild and Schneider 2006, pp. 2, 9] Sources

Production, operators, and combat record

The central manufacturer and design authority was Konstruktionswerkstaette Thun, a federally owned Swiss armaments plant. The Swiss Army Museum account says K+W received the KW 30 development task in 1951 and that parliament approved 150 Panzer 61 tanks in March 1961. Full-Reuenthal museum data identifies K+W Thun production in 1964-66 and a total of 150 vehicles. [Haudenschild and Schneider 2006, p. 1; Full-Reuenthal Museum, Kampfpanzer collection page.] Sources

Production bottlenecks and monthly production data were not found in open sources in the cited record. The industrial story is therefore written at the program level: Switzerland moved from attempted foreign purchase, to emergency AMX-13 acquisition, to domestic K+W design and production, to Panzer 68 successor production. This is a strong industrial-autonomy narrative, but factory archives would be needed to reconstruct production tempo, costs, subcontractors, and acceptance-test details. [Haudenschild and Schneider 2006, pp. 1-3; Open Questions section below.] Sources

Export production did not occur. Later Panzer 68 export efforts were unsuccessful despite Austrian comparative trials with the M60 producing good results in Swiss accounts. The Swiss Army Museum source concludes that the Panzer 61/68 line was one of the few modern tanks used exclusively by a single army. [Haudenschild and Schneider 2006, p. 5.] Sources

The original and only operator was Switzerland. The cited accounts account OP-CH-PZ61-SWISS gives service start 1965 and retirement in the 1990s, with Swiss armored forces as context. Swiss Army Museum documentation states that Panzer 61s remained in service until 1994 and were then liquidated. Full-Reuenthal museum entries state use in Swiss Panzer battalions 4, 12, 13, 16, 20, 23, 25, and 27 until no later than 1994. [Haudenschild and Schneider 2006, p. 6; Full-Reuenthal Museum.] Sources

Training and museum survival formed the later service history. Panzer 61 examples appear in Swiss museums and international collections, including Thun, Full-Reuenthal, Saumur, Sinsheim, and The Tank Museum, with some vehicles used in public display or running events. Paint, stowage, markings, and armament on museum survivors may represent late-service or display configurations. [Full-Reuenthal Museum; The Tank Museum 2021; Wikimedia Commons image pages in photographs.] Sources

The Panzer 61 has no documented combat history in the sources consulted. This is consistent with its exclusive Swiss service, Switzerland's armed neutrality, and the absence of exports. It served as a deterrent and training/operational vehicle inside Swiss national defense rather than as a combat-tested expeditionary MBT. [Haudenschild and Schneider 2006, p. 5] Sources

Its intended tactical employment is documented through doctrine rather than combat reports. The tank belonged to a system of mobilized territorial defense, prepared terrain, and mobile counterattack. NDU Press describes Swiss Cold War defense around dissuasion and a costly hedgehog concept, while the Australian Army Research Centre summarizes the Armee61 model as rapid militia mobilization with mechanized divisions along the central Swiss plain for counterattack. [NDU Press 2017; Australian Army Research Centre 2023.] Sources

Strengths in likely combat would have included credible 105 mm firepower, good tactical mobility for Swiss road and training environments, familiar domestic maintenance, and integration with national doctrine. Weaknesses would have included unstabilized original gunnery, no combat-proven data against Soviet MBTs, limited production depth, and conventional cast armor that lagged later composite-protected MBTs. These are analytical inferences from the documented design and service context, not battle-proven results. [Haudenschild and Schneider 2006, pp. 2-6; Tank-AFV, Panzer 61.] Sources

Myths versus documented evidence: there is no support in the consulted sources for treating the Panzer 61 as an export success, a combat veteran, or a revolutionary design. The defensible interpretation is more interesting: a technically conservative but nationally significant tank that gave a small neutral state an indigenous MBT capability and an armored-vehicle development path. [Haudenschild and Schneider 2006, pp. 1-6; Full-Reuenthal Museum.] Sources

Legacy and historical evidence

The Panzer 61 belongs to the same broad 105 mm-gun transition era as the Centurion upgrades, early M60, AMX-30, Leopard 1, and late T-54/T-55 generation. It was not designed around the same strategic assumptions as superpower or NATO expeditionary tanks; it was a Swiss national-defense tank built in small numbers for a specific terrain and doctrine. [Haudenschild and Schneider 2006, pp. 1-3; NDU Press 2017.] Sources

Overall battlefield value is therefore conditional: in a Swiss defense-in-depth scenario, the Panzer 61 could have been valuable as a prepared-terrain counterattack tank with adequate firepower and national logistical support. In an open, high-intensity contest against massed later-generation Warsaw Pact armor, the lack of stabilization, limited armor growth, and small fleet depth would have been major limitations. [Haudenschild and Schneider 2006, pp. 2-6; NDU Press 2017.] Sources

The Panzer 61's strongest design legacy is the Panzer 68. The Swiss Army Museum account explicitly describes the Panzer 61 as the actual basis of the Panzer 68, then details the changes made in the 1968-approved successor program. Even later Panzer 61 modernization actions borrowed back from Panzer 68 improvements, creating a two-way continuity between the original and successor fleets. [Haudenschild and Schneider 2006, pp. 2-6.] Sources

Doctrinally, the Panzer 61 helped normalize Swiss armored counterattack forces in the Army 61 system. It did not turn Switzerland into an armored great power, but it contributed to a credible deterrent in which the costs of invasion were intended to be high. Its national value was partly symbolic: Switzerland could design, produce, sustain, and modernize a modern tank family. [NDU Press 2017; Australian Army Research Centre 2023.] Sources

Postwar and post-service legacy is mostly curatorial. Surviving vehicles in museums and public displays provide valuable visual evidence of upgrade states, but they remain uncertain because museum markings and restorations can combine late-service modifications, display repainting, and non-operational fittings. The Tank Museum highlighted the Panzer 61 in Tank Chats #128 as one of Switzerland's first home-grown tanks. [The Tank Museum 2021; Wikimedia Commons image pages; Full-Reuenthal Museum.] Sources

The Panzer 61 and Panzer 68 were related but distinct tanks. The 1958 milestone chiefly concerns Panzer 58 development, not Panzer 61 service, and the original 20 mm coaxial cannon was not retained throughout the vehicle’s life. Although it saw no combat, the tank served Swiss deterrent and industrial objectives. [Haudenschild and Schneider 2006, pp. 1-6.] Sources

Swiss Army Museum histories describe Panzer 61’s development and technical features; collection records and dated photographs provide information about individual preserved vehicles. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

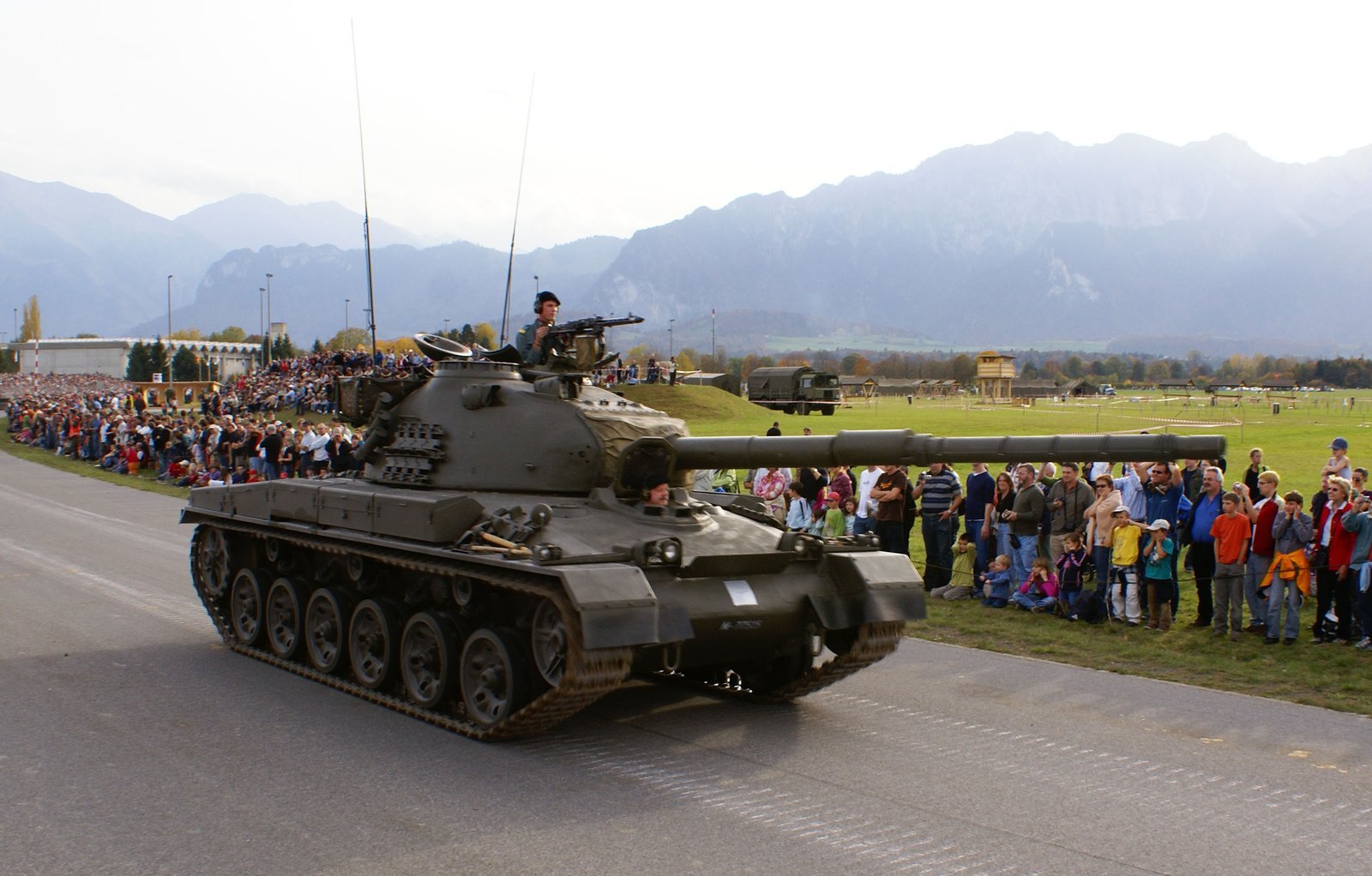

Panzer 61 side/front view during the Steel Parade at Army Days 2006, Thun, 27 October 2006. excellent external side-reference view.Sandstein; public domain / author release.
