M8 Armored Gun System

Historical overview

The M8 Armored Gun System (AGS) was a lightweight tracked direct-fire vehicle selected by the U.S. Army after the Cold War to replace the remaining M551 Sheridan capability in airborne and light forces. It was derived from FMC's Close Combat Vehicle-Light and, after FMC's armored-vehicle operations became part of United Defense, became a United Defense/BAE Systems lineage vehicle. Its core concept was not to defeat contemporary main battle tanks in a frontal duel; it was to accompany light infantry, rapidly deploy by air, and destroy bunkers, lightly armored vehicles, machine-gun positions, obstacles, and similar threats with a stabilized 105 mm tank gun. [Forecast International 2003; Ferguson and Salcedo 2022; BAE Systems 2018.] Sources

The program mattered because it was the most concrete bridge between the M551 Sheridan and the much later Mobile Protected Firepower/M10 Booker effort. The M8 demonstrated a modular protection approach, an automatic loader, a light 105 mm gun installation, and an air-dropable Level I configuration. It also exposed the Army's unresolved tradeoff: deployability and infantry support require a vehicle much lighter than an Abrams, while survivability, sustainment, and armored-branch expectations constantly pull the design toward heavier weight and higher cost. [Forecast International 2003; U.S. Army eARMOR 2022.] Sources

The most important variants and derivatives are the FMC CCVL antecedent, the XM8/M8 AGS pilot vehicles with Level I/II/III armor kits, the unfielded production-standard M8, a proposed austere export configuration, the uncompleted AGS Line-of-Sight Anti-Tank integration effort, the Thunderbolt/Enhanced Capabilities Demonstrator family associated with the chassis, and BAE Systems' 2018-2022 MPF proposal based on the type-classified M8. [Forecast International 2003; BAE Systems 2018] Sources

The vehicle is often called a light tank; Army terminology preferred "Armored Gun System" and, in the later MPF era, senior leaders emphasized that MPF is not established as a main battle tank. Sources also disagree on details such as total ammunition stowage and exact production/pilot-vehicle counts, so published accounts describe the uncertainty rather than smoothing it over. [Ferguson and Salcedo 2022; Forecast International 2003.] Sources

The M8 AGS was technically credible and programmatically mature enough to receive production approval, but it was canceled in a budget environment that valued other priorities more than a dedicated light armored direct-fire vehicle. Its operational significance is therefore negative as well as positive: it shows what the Army nearly fielded, and it helps explain why the Sheridan-to-MPF capability gap persisted for decades. Sources

The M8 AGS sits at the intersection of three U.S. Army problems: the aging M551 Sheridan, the post-Cold-War budget drawdown, and the continuing desire to give light units protected direct fire. The Sheridan had brought unusual firepower to airborne forces, but it had also suffered from the consequences of a combustible-cased 152 mm gun/missile system, maintenance burdens, and vulnerability that limited confidence in the design. Forecast International's archived program review summarized the Sheridan as a 1960s vehicle whose problems made a 1990s modernization unattractive. [Forecast International 2003.] Sources

The doctrinal need did not disappear when the Sheridan aged. In Panama, M551s allowed paratroopers to destroy barriers and enemy fighting positions, and in Desert Shield/Desert Storm the 82nd Airborne's Sheridan battalion provided a light armored direct-fire tool that infantry otherwise lacked. A 2022 Armor Branch article used these examples to argue that an MPF-like capability had repeatedly proven useful for light forces. [Ferguson and Salcedo 2022.] Sources

The M8 was one result of this crowded design ecology. FMC's CCVL provided a mature starting point; United Defense later marketed the AGS after the Army cancellation. [Forecast International 2003.] Sources

Politically and fiscally, the program was vulnerable from the start. The Army had just left the Cold War, force structure was shrinking, and higher-priority modernization and readiness accounts competed for money. The M8 had a real requirement and a selected contractor, but it did not have enough budgetary protection to survive the mid-1990s procurement squeeze. Sources

Development and variants

It excludes unrelated vehicles that sometimes fill the same doctrinal niche, such as the Cadillac Gage Stingray, Teledyne Expeditionary Tank, M1128 Stryker Mobile Gun System, and General Dynamics Land Systems M10 Booker, except when used for comparison or boundary explanation. Sources

The M8 is functionally a light tank: it is tracked, turreted, armed with a tank gun, and designed to support maneuver with direct fire. Nevertheless, U.S. nomenclature deliberately framed it as an "Armored Gun System," and later MPF doctrine warned commanders not to employ MPF vehicles as if they were Abrams-class main battle tanks. Sources

It also separates the BAE M8 MPF proposal from the General Dynamics M10 Booker, correctly preventing the MPF competition from being collapsed into one vehicle family. Sources

FMC developed the Close Combat Vehicle-Light as a private-venture light tank. Forecast International identified the CCVL as the basis of the Armored Gun System, and described the later AGS as a U.S. Army-sponsored light tank program administered through Army tank-automotive and armaments channels. Published accounts describe the M8 family as "1990s prototypes" with the parent/lineage field "Armored Gun System.". [Forecast International 2003] Sources

The Army issued an AGS request for proposals in August 1991, and a modified FMC CCVL was selected in June 1992. FMC and BMY combat-vehicle operations were then consolidated under United Defense Limited Partnership in 1994, making United Defense the prime contractor for the selected vehicle. Major subcontractors included Computing Devices Corporation of Canada, Detroit Diesel, General Dynamics Defense Systems, Hughes Aircraft, Textron Marine & Land Systems, and Watervliet Arsenal. [Forecast International 2003.] Sources

The M8 proceeded through pilot-vehicle testing in the mid-1990s. Available official imagery documents a Level I armor vehicle in 1994, a first airdrop of an XM8 at Yuma Proving Ground on 19 October 1994, and pilot vehicle PV-4 with Level III armor around 1996. The Level I configuration was central to the program's promise to support airborne forces rapidly. [Wikimedia Commons file pages citing U.S. Army sources and Norwich University Archives; Forecast International 2003.] Sources

Production approval was granted in October 1995, according to Forecast International, with a contract expected by mid-1996. The Army nonetheless canceled procurement in January 1996. A later Armor Branch article summarized the same point more broadly: the air-droppable AGS could provide M551-like capabilities more reliably with a proven 105 mm gun, but the budget could not support production in 1996. [Forecast International 2003; Ferguson and Salcedo 2022.] Sources

After cancellation, United Defense continued to market the M8 commercially and the Army re-examined it in the 1999-2000 medium-brigade vehicle evaluations. Forecast International reported that the Army again rejected M8 procurement in 2000 and forecast no production. [Forecast International 2003.] Sources

BAE Systems later revived the lineage for the Army's Mobile Protected Firepower competition. In 2018 BAE stated that its MPF proposal leveraged the Army's earlier investment in the type-classified M8 AGS and added modern technology to a mature design. The BAE proposal lost to General Dynamics Land Systems; the Army awarded the M10 Booker low-rate initial production contract to GDLS in June 2022 and then terminated M10 Booker procurement for convenience in June 2025. [BAE Systems 2018; U.S. Army Public Affairs 2025.] Sources

Design and performance

The M8 used a conventional light-tank layout with driver in the hull, a rotating turret carrying commander and gunner, and an automatic loader replacing the human loader. The three-man crew was a key weight-saving choice. [Forecast International 2003.] Sources

The hull was designed around air transportability and a modular armor concept. Forecast International describes steel and aluminum armor with titanium in certain areas and bolt-on ceramic/steel applique options. The cited accounts summarizes combat weight as roughly 19-25 tonnes, reflecting the different armor levels. [Forecast International 2003] Sources

The turret mounted the 105 mm M35 low-recoil gun and the autoloader, with smoke-grenade launchers on the turret sides. Commander visibility came from a cupola/periscope arrangement; Forecast International noted that a commander's independent thermal viewer had been deleted from the U.S. Army procurement configuration to save cost and development time. [Forecast International 2003.] Sources

The M8's armor was not intended to equal a main battle tank. Its central idea was scalable protection: a lighter Level I configuration for airborne deployment and heavier Level II/III kits for greater survivability after arrival. Detailed threat-level claims vary in secondary sources; Published accounts describe the armor arrangement as modular applique with exact threat levels requiring confirmation from program manuals. [Forecast International 2003; Wikimedia Commons image pages.] Sources

The main gun was the M35 105 mm low-recoil cannon, described by Forecast International as a lighter low-recoil version of the M68, itself the U.S. version of the L7 family. It could fire U.S./NATO standard 105 mm tank ammunition. [Forecast International 2003.] Sources

Forecast International identifies a 7.62 mm M240 coaxial machine gun. Sources

Ammunition capacity is a source-conflict item. Forecast International states that the autoloader stored 21 rounds and the hull held 24 more, while several later summaries report a total around 30-31 rounds. The 21-round ready-loader figure is the most consistently important detail for technical discussion; total stowage remains an unresolved question in the cited record. [Forecast International 2003; source comparison.] Sources

The M8 had a computer-based fire-control system, a two-axis stabilized day/night infrared gunner's sight with laser rangefinder, an auxiliary sight, digital fire-control computer, muzzle-reference system, and commander display/override capability. Forecast International attributes the digital fire-control computer to Computing Devices Corporation of Canada and describes it as related to M1 equipment. [Forecast International 2003.] Sources

The gunner's principal sight combined day/night infrared functionality and laser ranging. The commander had periscopes around the cupola and fire-control data display, but the deletion of the independent thermal viewer limited hunter-killer capability relative to designs that included a separate commander's thermal viewer. [Forecast International 2003.] Sources

Power came from a Detroit Diesel 6V-92TA six-cylinder supercharged diesel rated about 552 horsepower in Forecast International's data. The gearbox was the HMPT-500-3 hydromechanical transmission with one reverse and three forward ratios. [Forecast International 2003.] Sources

The M8 used torsion-bar suspension with six dual-tired road wheels per side, front idler, rear drive sprocket, hydropneumatic shock dampers on most road-wheel stations, and T-150 double-pin track. [Forecast International 2003.] Sources

Forecast International gives a maximum road speed of 70 km/h (43.5 mph) and road range of about 480 km (298 miles). The vehicle's mobility story was not just road speed; it was the ability to be moved by strategic/tactical airlift in a useful combat configuration, then fitted with heavier armor when appropriate. [Forecast International 2003.] Sources

A three-man crew reduced size and weight but placed more burden on automation. The autoloader promised rapid fire and removed the loader position, but it also made autoloader reliability and ammunition handling central to combat effectiveness. [Forecast International 2003.] Sources

Open sources reviewed here do not provide a confirmed final radio fit. Forecast International emphasizes 1553 databus technology, indicating a digital integration approach unusual for many older light tanks. Specific radio models remains uncertain from Army technical manuals or system handbooks. [Forecast International 2003.] Sources

Protection centered on the armor packages, low silhouette/weight management, smoke-grenade launchers, and the vehicle's ability to tailor protection to mission and airlift constraints. It lacked main-battle-tank levels of passive armor, and this limitation was inherent to the requirement rather than a design accident. Sources

The vehicle was designed to be deployable and maintainable with Army support systems, but no operational fielding occurred, so reliability evidence is test-program evidence rather than combat-service evidence. BAE's later MPF proposal argued that the M8 lineage provided a mature, low-risk base, but that statement was from the proposing manufacturer. [BAE Systems 2018.] Sources

Known weaknesses were not proven combat failures; they were structural tradeoffs: limited protection compared with an MBT, dependence on autoloader reliability, uncertain total ammunition stowage, deletion of a commander's independent thermal viewer in the U.S. procurement configuration, and extreme vulnerability to budget cancellation because it served a specialized force rather than the Army's heavy-armored core. Sources

Production, operators, and combat record

The M8 was not mass-produced. Forecast International reported one CCVL prototype and six developmental AGS prototypes as of 1 January 2003. Published accounts describe the family as "Prototype / low-rate pre-production" and the AGS variant as "Cancelled before full fielding." These statements are consistent: the program crossed important development and approval thresholds, but not the threshold into operational line-unit procurement. [Forecast International 2003] Sources

The contractor lineage is important. FMC's Ground Systems Division produced the CCVL foundation; FMC and BMY Combat Systems merged operations under United Defense Limited Partnership in 1994; BAE Systems later inherited the lineage after acquiring United Defense. Subcontractor work included powertrain, fire-control, turret/gun integration, and the M35 gun from Watervliet Arsenal. [Forecast International 2003; BAE Systems 2018.] Sources

The program received production approval in October 1995, but the Army canceled procurement in January 1996 before the expected production contract. Forecast International also records renewed Army evaluations around 1999-2000 for medium brigades, after which the Army again rejected M8 procurement. [Forecast International 2003.] Sources

The M8 AGS had no operational line-unit service. Its real operator was the U.S. Army test and evaluation community, with the 82nd Airborne Division and light/airborne forces as the intended users. Forecast International describes it as designed especially for U.S. Army light/airborne forces and originally intended to replace the M551 Sheridan. [Forecast International 2003.] Sources

Retirement/current status: The original M8 AGS program effectively ended with the 1996 cancellation and 2000 rejection for medium brigades. Surviving pilot vehicles and later BAE MPF testbeds appear in museum/collection and test contexts, but exact disposition of every vehicle remains an unresolved question. Sources

The M8 AGS has no documented combat service. Sources

Its combat-history relevance is indirect. The M551 Sheridan, the system it was intended to replace, supplied airborne light armor during Operation Just Cause and Desert Shield/Desert Storm. U.S. Army eARMOR authors argued that Sheridan employment demonstrated the utility of MPF-like capabilities for light forces, and that the XM8 AGS was the Army's effort to preserve those positive capabilities with a more reliable 105 mm gun vehicle. [Ferguson and Salcedo 2022.] Sources

The main counterfactual question is whether an M8-equipped airborne/light armor battalion would have changed U.S. options in the early Global War on Terror or later rapid-deployment operations. The answer remains speculative. The vehicle could plausibly have provided a lighter alternative to attached Abrams/Bradley teams or Stryker MGS in some environments, but survivability, sustainment, and Rules of Engagement would have shaped actual employment. Sources

Legacy and historical evidence

The most useful comparisons are not with an M1 Abrams, but with vehicles solving the same problem: Sheridan, Stingray, Teledyne Expeditionary Tank, M1128 Stryker Mobile Gun System, CV90105/CV90120-style light direct-fire vehicles, and the later M10 Booker. The Abrams comparison is still relevant because it shows why the Army wanted something much lighter for infantry brigade combat teams. Sources

Overall assessment: the M8 was strongest in deployable firepower and weakest in political survivability. Against peer main battle tanks it was not an MBT substitute. Against the infantry-support problem that generated it, it was one of the Army's most mature and coherent answers. Sources

The M8's direct legacy is the unfilled gap it left. After the Sheridan retired, airborne and light forces did not receive a direct, organic tracked gun system. Instead, the Army improvised with attached heavy armor, Stryker-based solutions, anti-tank teams, and eventually the MPF program. A 2022 Armor Branch article explicitly framed MPF as a response to the gap left by not replacing Sheridan earlier. [Ferguson and Salcedo 2022.] Sources

Industrially, the M8 lived on inside BAE Systems. BAE's 2018 MPF proposal described a design that leveraged the Army's earlier investment in the type-classified M8 AGS and updated it with modern technology. That proposal did not win the MPF competition, but its existence confirms that the M8 was not merely a dead prototype; it remained a viable starting point for later light direct-fire designs. [BAE Systems 2018.] Sources

The story also extends into the M10 Booker. The M10 was not an M8 derivative, but it answered the same institutional desire for protected direct fire in infantry brigades. In June 2025 the Army announced that it had issued a termination for convenience of current low-rate initial production and would not enter full-rate production as planned. This does not resurrect the M8, but it makes the M8 more historically important: two serious U.S. attempts to solve the light protected firepower problem stalled before becoming a durable fielded fleet. [U.S. Army Public Affairs 2025.] Sources

Photographs document surviving M8 pilots from the 1990s and a BAE MPF testbed at the U.S. Army Armor & Cavalry Collection in 2023. They do not establish a complete inventory or history of every surviving vehicle. Sources

The program’s broad chronology is documented more fully than some of its detailed technical configurations. Archived specifications, later doctrinal discussions, and manufacturer descriptions concern different stages of the vehicle’s development. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

XM8 Armored Gun System being airdropped for the first time at Yuma Proving Ground, 19 October 1994. Yuma Proving Ground, Arizona. source page identifies this as the first airdrop. — XM8 Armored Gun System being airdropped for the first time at Yuma Proving Ground, 19 October 1994. Yuma Proving Ground, Arizona. Source page identifies this as the first airdrop.U.S. Army photograph by Parker Meyer/Gary Fesperman; Public domain as U.S. federal government work. URL/source citation: File:XM8_Armored_Gun_System_airdrop_Yuma-10.jpg in bibliography.

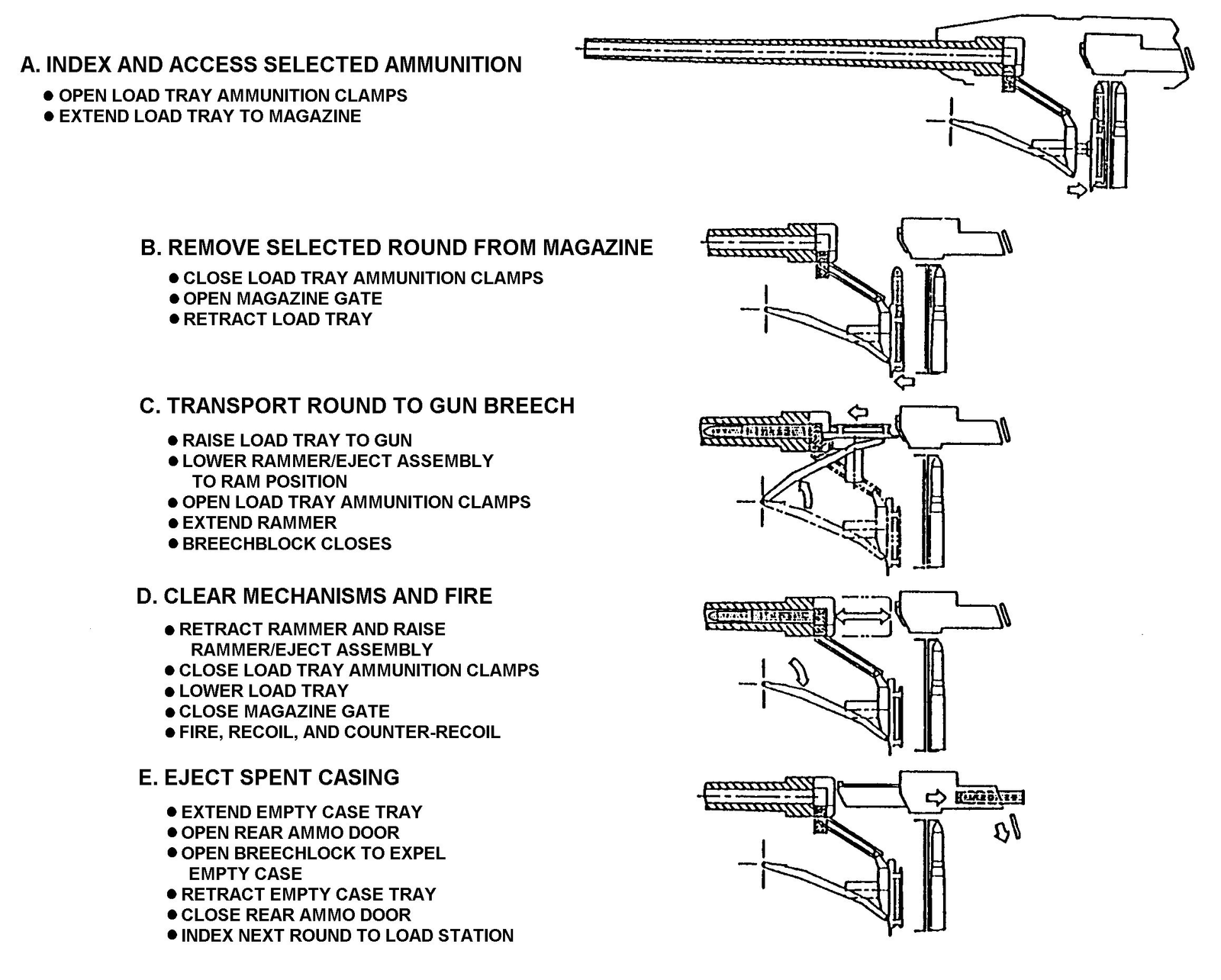

M8 Armored Gun System autoloader operation diagram, c. 1996. not applicable. diagram is included as a technical illustration rather than a photograph.U.S. Army; Public domain as U.S. federal government work. URL/source citation: File:AGS_Autoloader_Operation.png in bibliography.
