Historical overview
The M60 post-Cold-War upgrade family is the long afterlife of the American M60 main battle tank. By the 1990s the M60 had been displaced from U.S. first-line service by the M1 Abrams, but large numbers remained in allied and partner inventories. The strategic problem was simple: many armies still had viable hulls, crews, depots, and spare-parts ecosystems, but the original 105 mm gun, analog sights, hydraulic turret systems, and 1960s protection standard were increasingly inadequate. [S1] Sources
The most consequential branches are the Israeli Sabra line and its Turkish M60T/M60TM descendants, the Jordanian/Raytheon fire-control and Phoenix/SLEP work, General Dynamics Land Systems’ M60-2000/120S prototype, Turkish national follow-on programs such as Fırat and TİYK-M60T, Leonardo’s export M60A3 overhaul proposal, Taiwan’s current M60A3 modernization, and uncertain national rebuilds such as Iran’s Samsam. [S2; S3; S4; S5; S8; S9] Sources
The family mattered because it showed a recurring armored-force tradeoff: a new MBT offers better growth margin and protection, but a rebuild can preserve training, depots, ammunition stocks, bridges, transporters, and national budgets. The best rebuilds improved night fighting, first-round hit probability, survivability against anti-tank guided missiles and RPGs, and tactical communications. They did not turn the M60 hull into an Abrams, Merkava, Leopard 2, or K2; the high silhouette, aging hull architecture, legacy ammunition stowage constraints, and limited protection growth remained structural limits. [S1; S2; S3; S4] Sources
Post-Cold-War M60 modernization was a practical bridge solution, especially for armies facing regional threats, border-security missions, and budget limits. Its historical significance lies less in any single variant than in the persistence of the M60 as an upgradeable installed base. The Turkish M60T/M60TM line is the most operationally important modern branch; the M60-2000/120S is the most technically dramatic but commercially unsuccessful branch; and Taiwan’s recent work shows that the family was still not finished as of 2026. [S2; S3; S8; S9] Sources
Major disputes and uncertainty: exact active fleet counts change quickly; the Sabra/M60T/M60TM naming boundary is often blurred; Jordanian Phoenix quantities and configurations are less consistently documented than Turkish upgrades; Iranian Samsam details are uncertain; and 2025–2026 turret-replacement concepts is described as proposals until a live integrated vehicle and procurement contract are documented. [S6; S7; S11] Sources
The M60 entered U.S. service as a product-improved Patton-line MBT with a 105 mm M68 gun, a four-man crew, a rear powerpack, torsion-bar suspension, and a turret/hull layout familiar to armies already operating M48/M60 equipment. AFV Database records first M60 acceptance in December 1960 and places the M60A3’s first acceptance in May 1979. Sources
By the end of the Cold War, the M60’s original design compromises had become obvious. Newer MBTs used stronger composite armor, more powerful 120 mm smoothbore guns, better thermal sights, digital fire-control systems, safer ammunition compartments, and more capable automotive systems. Yet many M60 operators faced neither the budget nor the political conditions for full replacement. The modernization market therefore grew from a mismatch between aging hulls and persistent armored-force requirements. [S1; S4] Sources
The doctrinal context varied by operator. For Turkey, the M60T/M60TM was tied to NATO-standard armor forces, regional threats, and the operational lessons of Syria. For Jordan, the problem was keeping a legacy armored force relevant without buying an entirely new fleet. For Taiwan, M60A3 modernization sits inside a broader defense plan where armored units support mobile counter-landing and anti-airborne defense. For Egypt and other large M60 users, industrial self-reliance and cost control remain central themes. [S2; S3; S4; S6; S8] Sources
Industrial constraints were equally important. An M60 rebuild could reuse hulls, depots, trained mechanics, tank transporters, bridging assumptions, spares pipelines, and sometimes ammunition stocks. The tradeoff was that every deep modernization had to work around the original hull/turret envelope. This mattered for ammunition stowage, turret-ring loads, recoil management, armor weight, power-to-weight ratio, and crew ergonomics. [S1; S4; S10] Sources
Development and variants
It is not a account on the entire original Cold War M60 family, though baseline M60A3 data is included where needed for comparison and technical context. [S1] Sources
Original M60A1/M60A3 baseline features needed to understand the upgrade problem, including crew layout, 105 mm M68 armament, M60A3 laser rangefinder/ballistic computer/TTS baseline, powerpack, and armor scheme. Sources
General Dynamics Land Systems M60-2000 / 120S prototype and related 120 mm export-market logic. [S10] Sources
Israeli Sabra Mk I, Mk II, and Mk III export-upgrade lineage, especially the Turkish M60T/Sabra Mk II branch. Sources
Turkish M60T, M60TM/Fırat, TİYK-M60T, and M60A3T1 as post-combat/post-2017 national modernization branches. [S2; S3] Sources
Jordanian M60 Phoenix/Raytheon fire-control work and Raytheon’s wider M60A3 SLEP proposal. [S4] Sources
Leonardo M60A3 export overhaul proposal. Sources
Taiwan’s recent M60A3 modernization reporting and transition context. [S8; S9] Sources
Iranian Samsam / local M60 modernization as an uncertain branch. Sources
The full Cold War M60 base family, M60A2 Starship, M728 CEV, M60 AVLB, and other specialized derivatives are only referenced for context unless a post-1991 upgrade relationship is direct. Sources
The Philippine/Israeli “Sabrah” light tank is excluded. The cited accounts separately treats Sabrah as a tracked/wheeled light-tank family and explicitly creates a risk of name confusion with the Israeli Sabra M60 upgrade. Sources
Museum restorations, scale models, and video-game configurations are excluded except as photo leads or public-visibility notes. Sources
Operator inventories change as tanks are rebuilt, stored, transferred, or retired. The cited accounts do not establish a single current total for every modernization program. [S11] Sources
The late M60A3/TTS baseline already represented a Cold War modernization step. AFV Database describes the M60A3 as adding a laser rangefinder, solid-state ballistic computer, crosswind sensor, thermal shroud for the M68 gun, and later the AN/VSG-2 Tank Thermal Sight designation M60A3(TTS). This made the M60A3 a logical base for post-Cold-War sight and fire-control work. Sources
General Dynamics Land Systems pursued the M60-2000/120S as an export-market answer to large M60 fleets that could not or would not buy new MBTs. The concept mated an Abrams-derived 120 mm turret concept to an M60 hull and aimed to package Abrams-like firepower into an existing fleet. The vehicle is described as a prototype/export upgrade and classification item. Non-official technical summaries generally describe a single prototype and no production orders, so this branch is treated as less certain. [S10] Sources

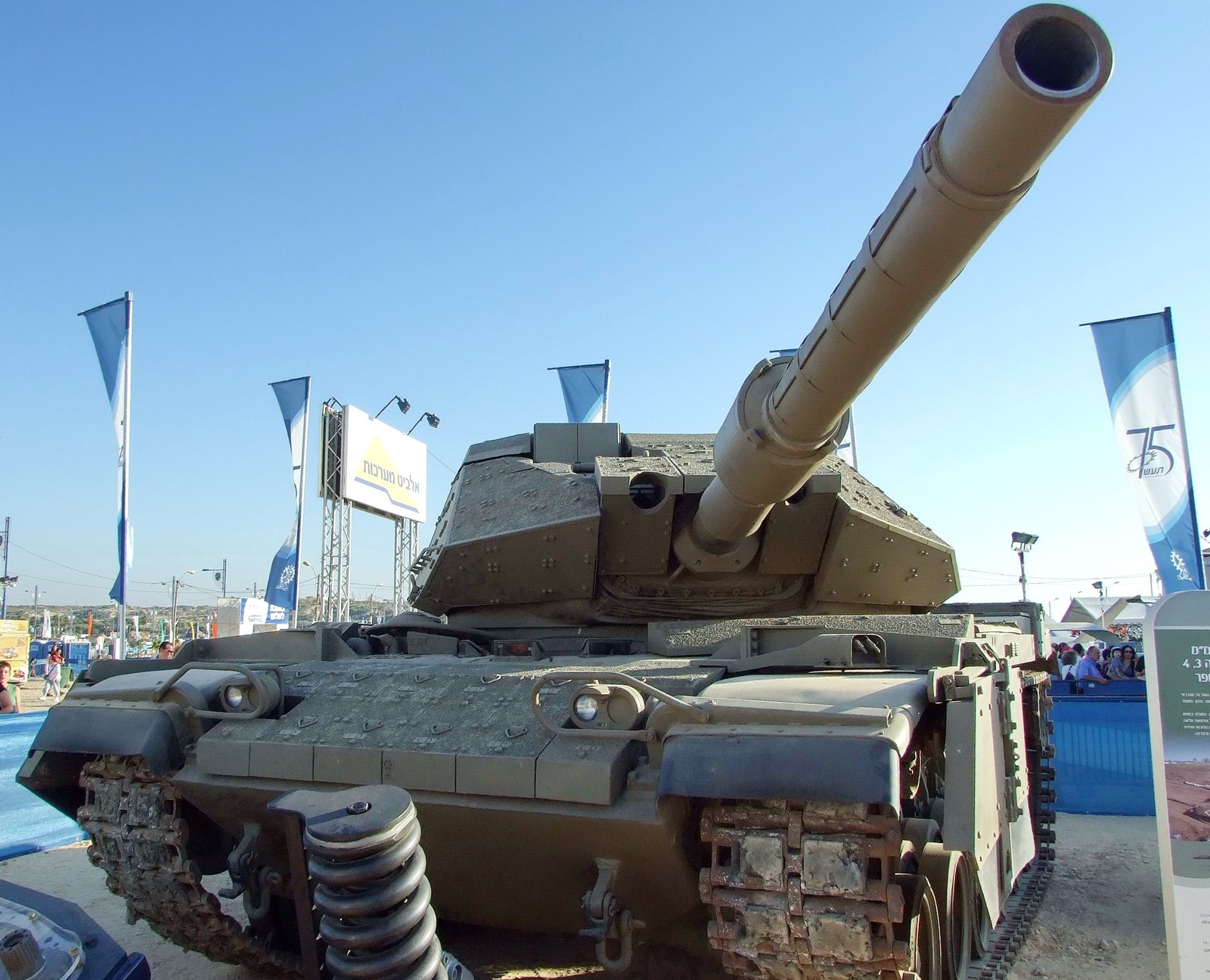

The Israeli Sabra line grew out of deep M60/Magach modernization logic and became most consequential through Turkey’s M60T. The cited accounts treats Sabra Mk I as a prototype/export package, Sabra Mk III as a further export branch, and M60T Sabra Mk II as the production upgrade used by Türkiye. The M60T line is the best-documented operational branch in the cited record because Turkish follow-on programs are reported by ASELSAN and Defence Turkey. [S2; S3] Sources
ASELSAN’s 2020 annual report states that, under the Presidency of Defence Industries, ASELSAN modernized all M60T tanks in the Turkish Armed Forces inventory to M60TM configuration. It also says the Fırat Project was launched in May 2017 to add capabilities to Turkish MBTs, and that M60T modernization was implemented urgently while Operation Olive Branch and Operation Euphrates Shield were ongoing. Sources
The later TİYK-M60T program moves the line from urgent post-combat modernization toward serial integration of a national fire-control and command system. Defence Turkey reports that the TİYK-M60T contract between SSB and ASELSAN was signed on 4 July 2022, and that first-phase subsystems include VOLKAN-M fire control, TC2IS, additional armor, and crew seats, with work carried out at the Kayseri 2nd Main Maintenance Factory Directorate. Sources
Raytheon’s M60A3 SLEP illustrates the U.S. industry branch of post-Cold-War M60 modernization. Defense News reported in 2016 that Raytheon had earlier fielded a new fire-control solution for Jordan, then developed a broader service-life extension package including an advanced digital fire-control system, 120 mm gun replacement, a 950 hp engine, replacement of hydraulics with electronic systems, fire-on-the-move capability, and testing at Aberdeen Proving Ground. Sources
Leonardo markets an M60A3 upgrade and overhaul program as a cost-effective way to enhance the platform toward third-generation MBT capability. Taiwan’s 2026 reporting shows a more focused route: preserve existing M60A3 hulls and 105 mm guns while improving fire control, thermal sights, electrical/hydraulic systems, and hunter-killer capability through a NCSIST/Leonardo DRS pathway. [S5; S8; S9] Sources
The 2025 John Cockerill 3105/M60 concept at EDEX cannot be folded into the canonical the cited accounts family as a fielded variant. The official John Cockerill release documents the 3105 turret’s general characteristics and EDEX context, while Army Recognition reports an M60 scale-model integration concept. Sources
Design and performance
The underlying M60 layout is conventional: driver in the hull front center; commander and gunner on the turret right; loader on the turret left; engine and transmission at the rear. This layout remained a strength for upgrade planning because crews, depots, and manuals were familiar, but it also locked in the turret-ring, ammunition, and hull-volume limits that deep rebuilds had to respect. Sources
The M60/M60A1/M60A3 hull is cast/welded steel armor with a pronounced glacis and six road wheels per side. Later upgrades generally retained the hull, adding side skirts, appliqué armor, belly or mine-related measures, sensors, and sometimes automotive rebuilds. The hull was robust but tall and old-fashioned by modern MBT standards. [S1; S3] Sources
Baseline M60A1/A3 turrets carried the 105 mm M68 on the M140 mount. Upgrade approaches diverged: retain the turret and improve FCS/armor; replace the gun with a 120 mm smoothbore; add a new bustle or armor array; or, in the 120S concept, mate an Abrams-style turret assembly to an M60 hull. Turkish M60TM imagery and descriptions show heavy turret appliqué, sensors, and remote weapon-station additions. [S1; S3; S10; P4] Sources
The base M60A3 armor was cast homogeneous steel. AFV Database lists M60A3 upper-front hull, lower-front hull, turret-front, side, rear, top, and floor thicknesses/equivalents, but post-Cold-War packages often replace precise armor data with generic “additional armor,” “passive armor,” “ERA,” or export-sensitive terminology. in the cited account, upgrade armor claims are described functionally unless a primary source gives exact details. [S1; S3] Sources
The original gun was the 105 mm M68/M68E1 rifled gun. Many upgrade proposals sought a 120 mm smoothbore to standardize with modern NATO ammunition. The Sabra/M60T branch used an Israeli/Turkish 120 mm smoothbore line; Raytheon’s SLEP proposed replacing the 105 mm with a 120 mm gun; Leonardo’s proposal also belongs to the 120 mm export-upgrade market. Taiwan’s 2026 reporting, however, indicates retention of the 105 mm M68 in the reported current enhancement program. [S1; S3; S4; S5; S8] Sources
Baseline M60A3 secondary weapons included a cupola-mounted .50-caliber M85, coaxial 7.62 mm MG, and smoke systems. Upgrades may replace the original cupola weapon with remote weapon stations, change machine-gun types, or add modern smoke/obscurant systems. TİYK-M60T reporting specifically names integration of additional armor and systems but does not publish a complete weapon fit in the cited article. [S1; S3] Sources
Baseline M60A3 stowed 63 rounds for the 105 mm gun according to AFV Database. 120 mm conversions reduce total ready/total ammunition relative to the smaller 105 mm round and require safe stowage, recoil integration, ballistic software, and ammunition-supply changes. The 120S concept is notable because Abrams-style bustle ammunition with blow-off panels was part of its logic, but production never followed. [S1; S10] Sources
Fire control is the heart of the family. M60A3 already included a laser rangefinder and solid-state ballistic computer; Raytheon, Leonardo, ASELSAN, Elbit/Israeli, and Taiwanese programs all pursued higher first-round hit probability through digital FCS, thermal sight upgrades, stabilized sights, hunter-killer functionality, and fire-on-the-move improvements. [S1; S3; S4; S5; S8; S9] Sources
Thermal imagery transformed the M60’s night and obscurant-weather performance. The M60A3(TTS) baseline began with the AN/VSG-2 thermal sight. Later upgrades replace or augment these with third-generation thermal sights, commander’s independent sights, panoramic sights, and digital displays where budgets permit. [S1; S8; S9] Sources
The baseline M60A3 used the Continental AVDS-1790-2C air-cooled diesel and CD-850-6A transmission. Upgrade packages either overhaul this powerpack or replace it with higher-output options. Raytheon advertised a 950 hp engine; Sabra/M60T references commonly report a more powerful MTU/Renk powerpack; 120S summaries describe optional higher-power packages beyond the prototype’s baseline engine. The cited accounts do not firmly establish exact installed configurations. [S1; S4; S10] Sources
The original torsion-bar suspension and six-road-wheel layout remained central to the M60. Added armor and turret weight placed demands on mobility, reliability, and bridge-loading limits during deep modernization. Some proposals advertised suspension improvements; exact operator implementations vary. [S1; S10] Sources
The M60’s sustained road speed was about 30 mph / 48 km/h in baseline M60A3 form. Added armor can reduce mobility unless compensated by engine and drivetrain upgrades. For many operators, reliability, parts availability, and mobility over existing infrastructure mattered more than a headline top-speed increase. [S1; S4] Sources
Most M60 rebuilds retained a four-person crew with a human loader. Remote weapon stations, modern displays, new crew seats, and improved electrical systems can improve survivability and workload, but the original turret volume and hull access remain constraints. Defence Turkey’s TİYK-M60T reporting explicitly includes new crew seats in the first phase. Sources
Modern rebuilds increasingly include digital communications or battlefield-management links. The TİYK-M60T article names TC2IS, a tank command-control information system, which moves the vehicle beyond simple gunnery modernization toward networked armored-force employment. Sources
Post-Cold-War protection efforts include passive appliqué, ERA, laser-warning receivers, smoke/discharger improvements, cameras, situational-awareness sensors, remote weapons, and active-protection or hard-kill/soft-kill possibilities. Public sources rarely define exact armor recipes. The 2025 Cockerill concept also discusses APS compatibility at a concept level. [S2; S3; S6; S7] Sources
Modernization succeeds only if depots can keep vehicles running. The M60’s mechanical familiarity is a strength, but age-related hull fatigue, corrosion, wiring, optics obsolescence, hydraulic systems, and parts pipelines can erase savings if the rebuild is shallow. Raytheon emphasized replacement of hydraulics with electronic systems and “zero-hour” engine work; TİYK-M60T includes factory-level maintenance/repair. [S3; S4] Sources
The M60’s structural weaknesses are high silhouette, old steel armor baseline, legacy hull/turret geometry, ammunition-stowage limits, older crew ergonomics, and limited growth margin relative to third-generation MBTs. Upgrades can improve survivability against many battlefield threats, but they cannot fully overcome the underlying platform’s age. [S1; S4] Sources
Production, operators, and combat record
The defining industrial fact is that post-Cold-War M60 programs did not restart new M60 hull production. They rebuilt existing fleets. This makes production counting difficult: a “produced” vehicle may be an original 1960s–1980s hull overhauled decades later, a prototype conversion, a depot rebuild, or a partial modernization package. The cited accounts therefore classifies the family as an upgrade family rather than a new production family. Sources
For the United States, the industrial branch was export-package development. GDLS’ 120S/M60-2000 attempted to sell a large-turret, 120 mm, Abrams-influenced rebuild; Raytheon’s SLEP emphasized fire-control, gun, powerpack, and electric-drive renewal. These were systems-integration projects more than tank-manufacturing programs. [S4; S10] Sources
For Türkiye, the industrial story shifted from Israeli-kit integration toward indigenous systems. The initial M60T branch sits in the Israel Military Industries/Turkish depot relationship recorded by the cited accounts. The later M60TM/Fırat and TİYK-M60T branches are Turkish-defense-industrial projects led by ASELSAN/SSB and supported by Roketsan and depot-level work at Kayseri. [S2; S3] Sources
Jordan’s Phoenix/Raytheon branch and Leonardo’s M60A3 proposal sit in the competitive export-upgrade market. Their value was not new hull output but the ability to sell modular improvements—fire control, sights, powerpack, gun, armor, or overhaul—into countries with legacy fleets. [S4; S5] Sources
Taiwan’s 2024–2026 reporting shows a national sustainment logic: retain a large M60A3 fleet while Abrams deliveries cover only part of the tank force, and use domestic NCSIST plus U.S.-linked subsystem work to improve lethality and night-fighting. [S8; S9] Sources
Production bottlenecks and cost drivers include turret-ring integration, recoil management for 120 mm conversions, armor weight, electrical rewiring, thermal-imager availability, depot throughput, and whether an operator wants a narrow fire-control refresh or a deep rebuild that changes weapon, engine, armor, sensors, and command systems simultaneously. [S1; S4; S8] Sources
The M60 upgrade family is global, but the published account’s post-Cold-War canonical branch emphasizes Türkiye, Jordan, Taiwan, Egypt, Iran, and other legacy operators. Sources
Captured use, lend-lease use, and wartime transfer history are not central to the post-Cold-War upgrade family. For a full M60 base-family history, Israeli, Iranian, U.S. Marine Corps, and other combat-use histories would need deeper treatment. Here, service history is included where it shaped the modernization path. Sources
The original M60 family saw extensive Cold War and post-Cold-War combat, including U.S. Marine Corps M60A1 use in the Gulf War and multiple Middle Eastern conflicts. Its combat-history focus is how late combat lessons drove modernization. [S1] Sources
Turkey’s M60T/M60TM line provides the clearest modern case. ASELSAN’s annual report explicitly ties urgent M60T modernization to the period in which Operation Olive Branch and Operation Euphrates Shield were ongoing, and it says upgraded tanks were provided for Turkish Armed Forces use while those operations were underway. That makes the M60TM/Fırat branch a battlefield-feedback modernization rather than a purely peacetime export package. Sources
The tactical logic of Fırat/TİYK improvements is consistent with the threat environment: anti-tank guided missiles, close-range urban or border engagements, drone/observation exposure, and the need for better all-around situational awareness. The cited official sources support the fact of added capabilities and specific TİYK subsystems; they do not publish a full vulnerability-and-loss analysis. The cited accounts do not firmly establish any exact claim about combat losses or hit locations. [S2; S3] Sources
Jordanian, Taiwanese, Egyptian, and Iranian M60 modernization branches are more sustainment- and deterrence-focused in the sources used here. They are not established to have the same combat-driven upgrade sequence as Türkiye unless operator-specific evidence is found. [S4; S8; S9; S11] Sources
Myths versus evidence: a 120 mm gun, new FCS, and add-on armor do not erase the M60’s age. Conversely, it is misleading to call all modernized M60s useless simply because the original hull dates from the 1960s. The evidence supports a narrower conclusion: the M60 can remain useful in selected missions and theaters when modernized intelligently, but it remains constrained against current top-tier MBTs and top-attack/ATGM-heavy threat environments. [S1; S2; S3; S4] Sources
Legacy and historical evidence
Overall battlefield value depends on threat. Against insurgent armor, older tanks, fortified positions, or border-security threats, a modernized M60 with thermal sights, good FCS, reliable radios, and improved protection can be valuable. Against a peer force with modern 120/125 mm MBTs, top-attack ATGMs, drones, and precision artillery, it is described as a second-line or carefully supported platform unless heavily modernized and doctrinally protected. [S1; S2; S3; S4] Sources
The M60 upgrade family’s legacy is the survival of an old tank architecture as a modular host. It influenced procurement thinking less by creating a new design school and more by proving that legacy MBT fleets could absorb modern electronics, sights, armor kits, and even new guns if an operator accepted engineering compromises. [S4; S5] Sources
Doctrinally, the family supports an incremental modernization model: improve sighting and fire control first, then survivability, then communications, then powerpack/gun if resources and mission needs justify the cost. Taiwan’s reported choice to retain the 105 mm while improving FCS and thermal sights fits this logic; Turkey’s M60T/M60TM path represents the deeper rebuild path with 120 mm firepower and layered survivability measures. [S2; S3; S8; S9] Sources
Surviving vehicles are widespread in museums, training bases, and active units, but photo identification can be difficult. M60A3 TTS, Magach, Sabra, M60T, M60TM, and local refits may share silhouettes while differing substantially in armor modules, sights, cupola/RCWS fit, and side-skirt packages. [P1; P2; P3; P4] Sources
Common misconceptions include treating all modernized M60s as identical, assuming every 120 mm proposal was adopted, calling the M60 an Abrams substitute, or confusing Sabra with the Philippine Sabrah light tank. Published accounts describe those boundaries explicit. Sources
Baseline M60A3 technical data is well supported by AFV Database, which itself cites U.S. technical manuals and standard references. Turkish M60TM/TİYK program facts are strongly supported by ASELSAN and Defence Turkey. Raytheon SLEP facts are supported by Defense News reporting from a Raytheon interview context. Leonardo’s program is supported at a high level by an official manufacturer page but not enough for full specifications. Taiwan’s 2026 branch is supported by recent defense-media reporting and is described as current but developing. Iranian Samsam and some operator counts remain uncertain. [S1; S2; S3; S4; S5; S8; S9] Sources
M60A3 baseline crew, 105 mm armament, AVDS-1790 engine, CD-850-6A transmission, armor data, and M60A3/TTS features are well supported by AFV Database. Sources

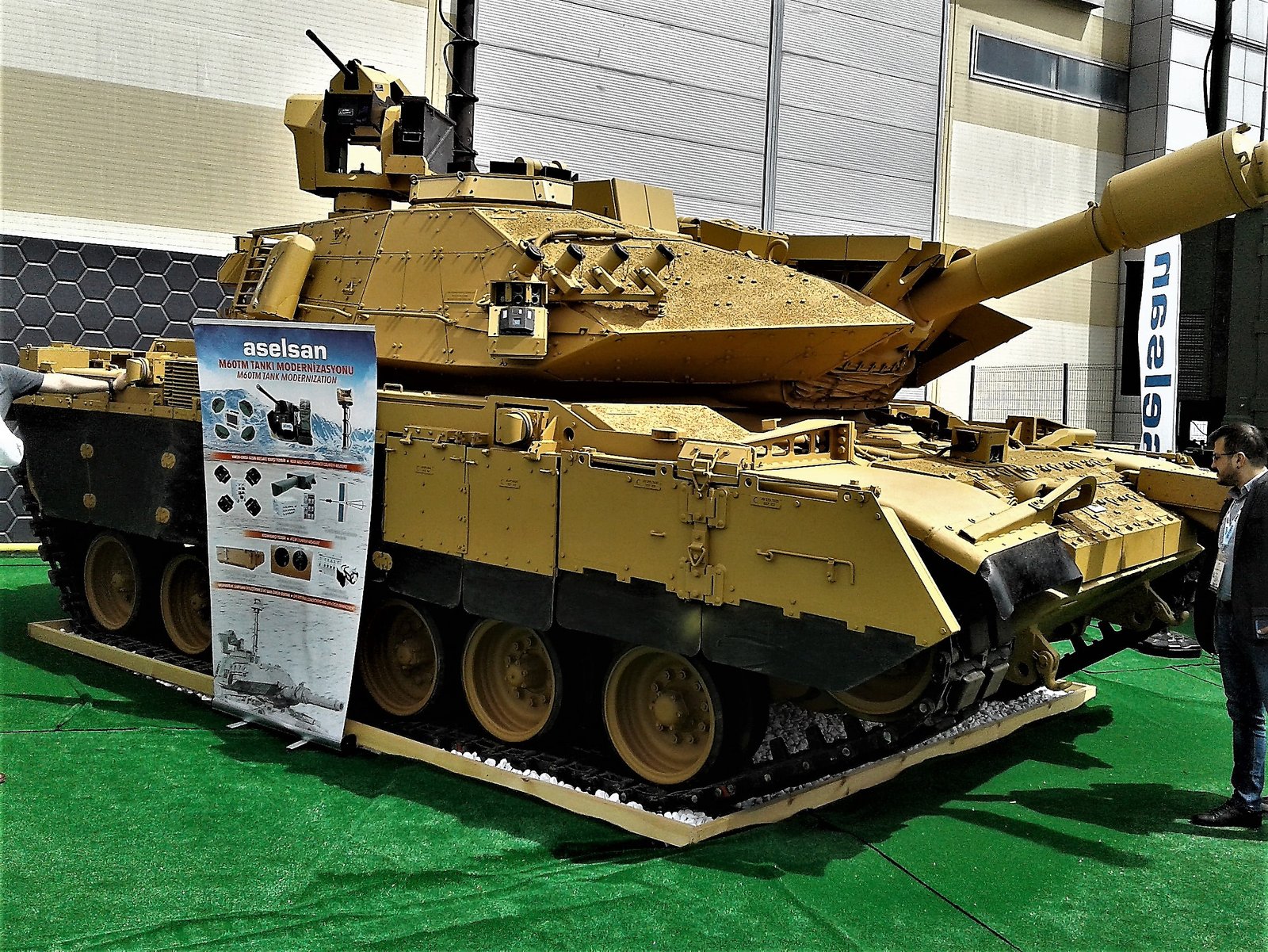

ASELSAN states that M60T tanks in the Turkish Armed Forces inventory were modernized to M60TM configuration and that the Fırat Project started in May 2017. Sources
Defence Turkey reports TİYK-M60T contract date, VOLKAN-M, TC2IS, additional armor, crew seats, Kayseri depot work, and first delivery status. Sources
Raytheon publicly described a 2016 SLEP package with digital FCS, 120 mm gun, 950 hp engine, electric systems, and Aberdeen testing. Sources
M60T/Sabra quantity commonly reported around 170. Sources
Secondary accounts broadly agree on the M60-2000/120S prototype, but some detailed specifications remain unconfirmed. [S10] Sources
Taiwan 2024–2026 modernization details are current-source claims but subject to program evolution. [S8; S9] Sources
Leonardo’s M60A3 upgrade exists as an official program page, but detailed specifications require brochure validation. Sources
Iranian Samsam technical configuration, quantity, and operational status. Sources
Exact Jordanian Phoenix fleet quantity and gun/powerpack package. [S4] Sources
Cockerill 3105/M60 as anything beyond a concept/scale-model proposal. [S6; S7] Sources
Exact current active counts for all operators without latest IISS/official confirmation. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- [S1] AFV Database, “105mm Gun Tank M60,”, accessed 2026-06-04.
- [S2] ASELSAN, 2020 Faaliyet Raporu / Annual Report, accessed 2026-06-04.
- [S3] Defence Turkey, “The First Batch of Modernized M60T Tanks was Delivered to the Turkish Land Forces Command,” 20 May 2024, updated 6 April 2026, accessed 2026-06-04.
- [S4] Defense News, Jen Judson, “Raytheon Breathes New Life Into Patton Tanks,” 5 June 2016, accessed 2026-06-04.
- [S5] Leonardo, “M60A3,”, accessed 2026-06-04.
- [S6] John Cockerill, “John Cockerill Defense strengthens its strategic engagement with Egypt at EDEX 2025,” 28 November 2025, accessed 2026-06-04.
- [S7] Army Recognition, Alain Servaes, “EXCLUSIVE: U.S. M60 tanks reborn as light tank killers with John Cockerill 3105 105mm turret at EDEX 2025,” 8 December 2025, accessed 2026-06-04. Further reading; not independently consulted.
- [S8] Asian Military Review, “Taiwan to upgrade its M60A3 tank fleet,” 23 April 2026, accessed 2026-06-04.
- [S9] The Defense Post, Akhsan Erido Elezhar, “New Capability Allows Taiwan’s M60A3 Tanks to Handle Two Targets at Once,” 13 April 2026, accessed 2026-06-04.
- Trackpads historical compilation, 2026 (unpublished).
- Trackpads historical compilation, 2026 (unpublished).
- Trackpads historical compilation, 2026 (unpublished).
- Trackpads historical compilation, 2026 (unpublished).
- [P1] Wikimedia Commons, “File:ROCA M60A3 TTS Tank Side View 20111009.jpg,”. Creator: 玄史生; license: CC BY-SA 3.0 Unported.

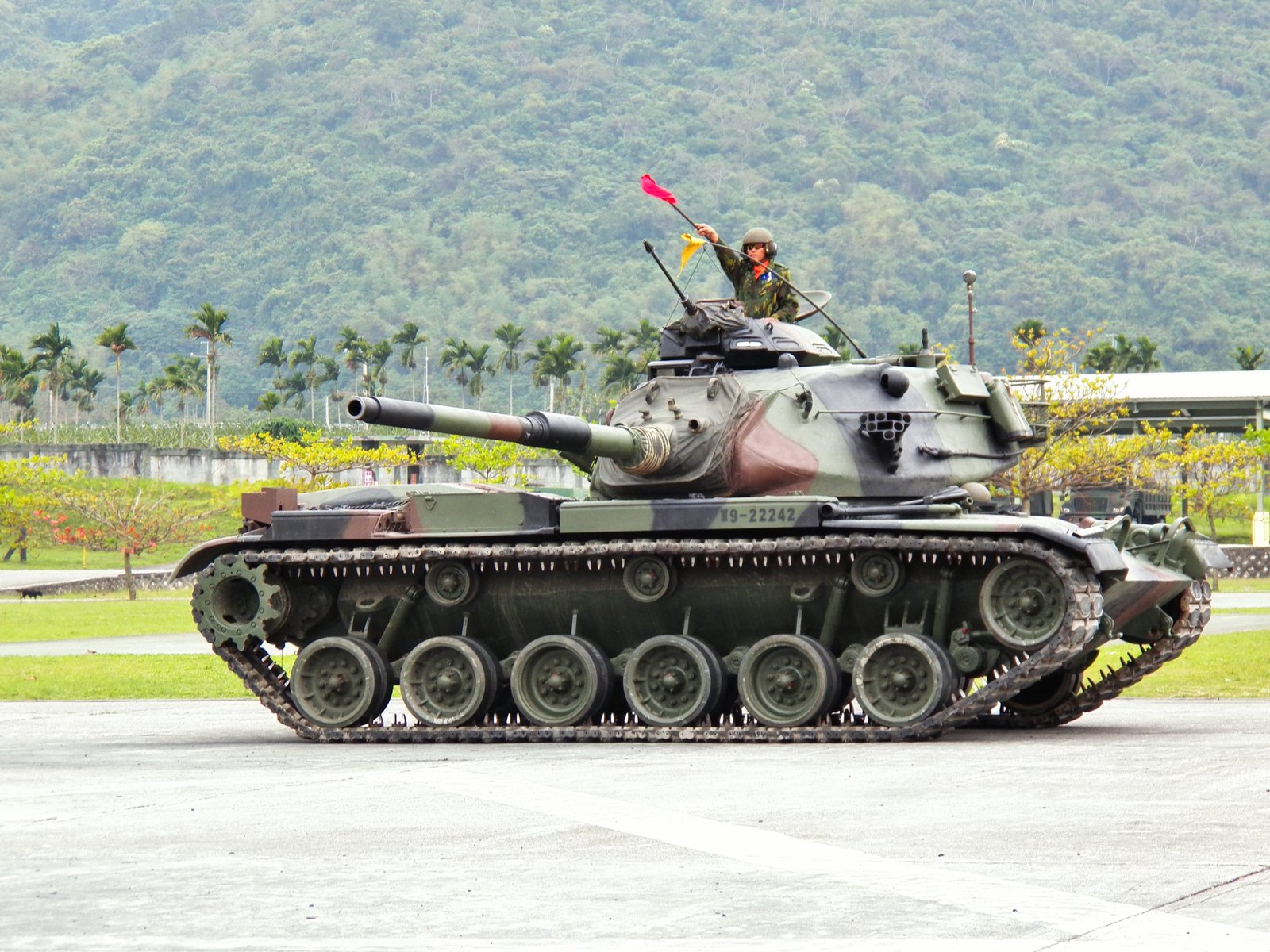

- [P2] Wikimedia Commons, “File:M60A3 TTS Turning Turret Demo in Exercise 20120324.jpg,”. Creator: 玄史生; license: CC BY-SA 3.0 Unported / GFDL options.
