A production heavy tank that never became a fielded weapon
The M6 was the United States Army’s first Second World War heavy-tank family to reach limited production, yet its operational history consists of testing, training, demonstration, and development rather than combat. That distinction is fundamental. The vehicle was not an unrealized paper proposal: forty production acceptances are supported by the cited accounts and variant-level records. It was also not a combat-proven heavy tank. No U.S. formation took the M6 family overseas for battle. Sources
The program emerged from the shock of European armored warfare and the rapid expansion of a small interwar American tank establishment. Ordnance planners sought heavier protection and more powerful weapons, while the new Armored Force placed great weight on mobility, standardization, shipping, recovery, and the ability to field large numbers. The M6 exposed the conflict between those priorities. A technically impressive sixty-ton-class vehicle could consume the shipping and support space of multiple medium tanks without delivering a proportionate battlefield advantage. Sources
The production tank’s armament—a 3-inch M7 gun paired coaxially with a 37 mm M6—reflected an early-war multi-weapon concept already losing relevance. The family’s six-man crew, complex secondary armament, large dimensions, and unusual transmission experiments made it an important engineering program, but not a convincing answer to the U.S. Army’s practical wartime needs. Its historical value lies in the decisions it forced, the systems it tested, and the bridge it provided to later heavy-gun work. Sources
T1 variants, hull construction, and drive experiments
The M6 family grew from the T1 heavy-tank program. The cast-hull T1E2 became the standardized M6, while the welded-hull T1E3 became M6A1. The War Department manual treats those two vehicles as operationally similar apart from the principal hull-construction difference. The T1E1 retained a cast hull but used General Electric electric drive; it is frequently associated with the proposed M6A2 designation, although formal standardization and usage require careful nomenclature review. Sources
Baldwin Locomotive Works built the principal production groups. The family used a Wright G-200-series radial engine and, in the M6/M6A1, a torque-converter and mechanical-transmission arrangement with rear drive sprockets. The T1E1’s electric transmission was technically significant and demonstrated useful handling characteristics, but it did not secure operational adoption. Drive-system diversity increased the program’s experimental value while reducing standardization. Sources
The turret combined the 3-inch and 37 mm guns in one mount. Primary-manual data records 75 rounds for the 3-inch weapon and 202 for the 37 mm, along with substantial machine-gun ammunition. Heavy frontal and turret protection gave the vehicle genuine heavy-tank mass, but awkward crew positions and a complicated machine-gun scheme reduced practical effectiveness. The six-man crew did not automatically create efficient task division; two loaders and multiple weapon stations competed for space inside a layout that was already becoming obsolete. Sources
The chassis used horizontal-volute suspension and distinctive double tracks. Its road performance was respectable for its weight, but tactical mobility cannot be separated from bridge limits, transporter requirements, recovery capability, maintenance burden, and ocean shipping. Those system-level constraints were central to the decision not to deploy it. Sources
Forty acceptances, conflicting totals, and a collapsing requirement
The strongest production accounting divides forty acceptances among eight M6, twelve M6A1, and twenty T1E1 vehicles. This total is consistent across the cited accounts and the acceptance data used in the cited sources. A broader U.S. Army historical overview gives fifty, while some modern accounts distinguish forty production vehicles from additional pilots. Sources
Initial ambitions were much larger. Wartime pressure generated plans for substantial production, including vehicles potentially intended for Allied aid, but Armored Force opposition and changing requirements reduced the program to a small completion run. The central issue was not that Baldwin could not manufacture any heavy tanks; it was that the Army no longer saw enough operational value to justify the production and deployment system. Sources
Cost remains unresolved in the cited sources. Secondary unit-cost figures are not established as settled without contract and procurement records. The same caution applies to disposal and survivor histories. The family’s U.S.-only test and training role is secure. The cited accounts do not firmly establish precise movements, demonstrations, scrapping dates, and surviving-vehicle provenance. Sources
No combat history—and why that still matters
The M6 has no battlefield narrative in the ordinary sense. It did not fight, and therefore claims about combat survivability, tactical success, or crew experience remain hypothetical or test-based. Its absence from combat is itself a historical result: American institutions judged the vehicle before deployment and concluded that its burden outweighed its likely contribution. Sources
The comparison with the M4 Sherman captures the strategic logic. The Army could build, ship, sustain, and recover many more medium tanks within existing organizations. The M6 offered thicker protection and a stronger antitank weapon than early 75 mm medium tanks, but its dual-cannon turret did not provide the clean growth path that later single-gun heavy-tank designs pursued. Nor did its armor solve the logistical problem of moving a vehicle of this weight across ports, ships, bridges, railways, recovery routes, and maintenance echelons. Sources
This does not make the program technically meaningless. It accumulated data on cast and welded heavy hulls, high-power radial installations, torque-converter and electric drives, suspension, turret handling, and large-vehicle maintenance. It also showed how quickly a requirement could become outdated when doctrine and the enemy threat changed faster than production tooling. The M6’s most important lesson was that vehicle specifications alone do not create an operational system. Sources
M6A2E1 and the testbed afterlife
The M6A2E1 branch gave the family a second life as a heavy-gun and turret test platform. Two vehicles were modified or completed with a large turret and 105 mm T5E1 weapon associated with T29 development. They were not operational assault tanks and does not represent two additional standard M6 production vehicles without an explicit category. Proposed wartime conversion schemes and the completed testbeds belong in separate columns. Sources
The testbed’s crew, armor, dimensions, and exact modification sequence remain less secure than the production M6/M6A1 manual data. It is especially important not to copy production M6 ammunition, sight, or crew data into the M6A2E1 as though the new turret changed nothing. Sources
The broader legacy runs toward later American heavy-tank studies, but lineage cannot be exaggerated. T29, T30, T34, and T26/M26 were separate programs shaped by later requirements. The M6 contributed lessons and hardware; it was not simply renamed into those successors. Sources
Manual imagery, evidence strengths, and open records

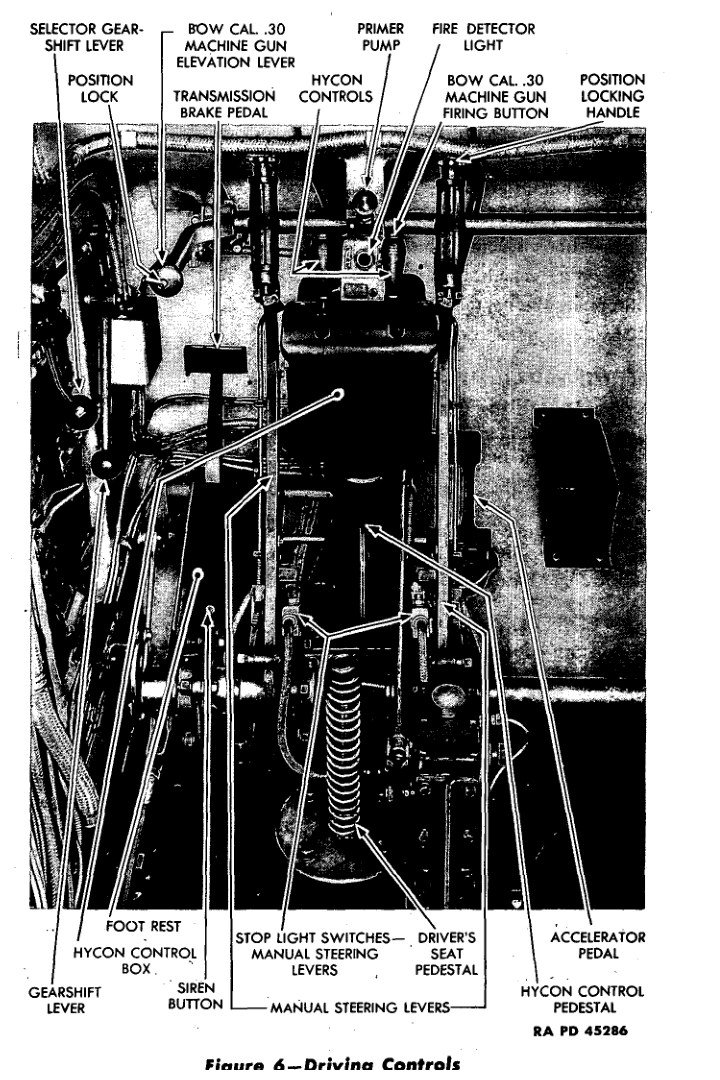

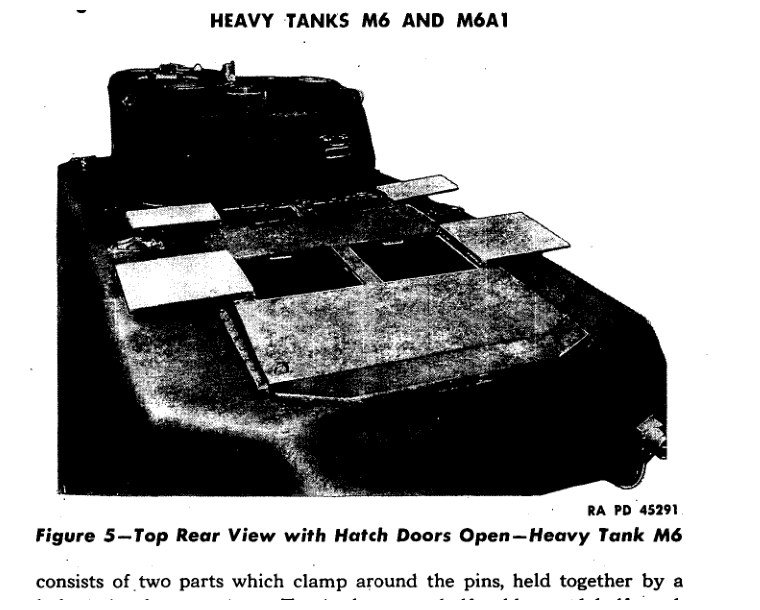

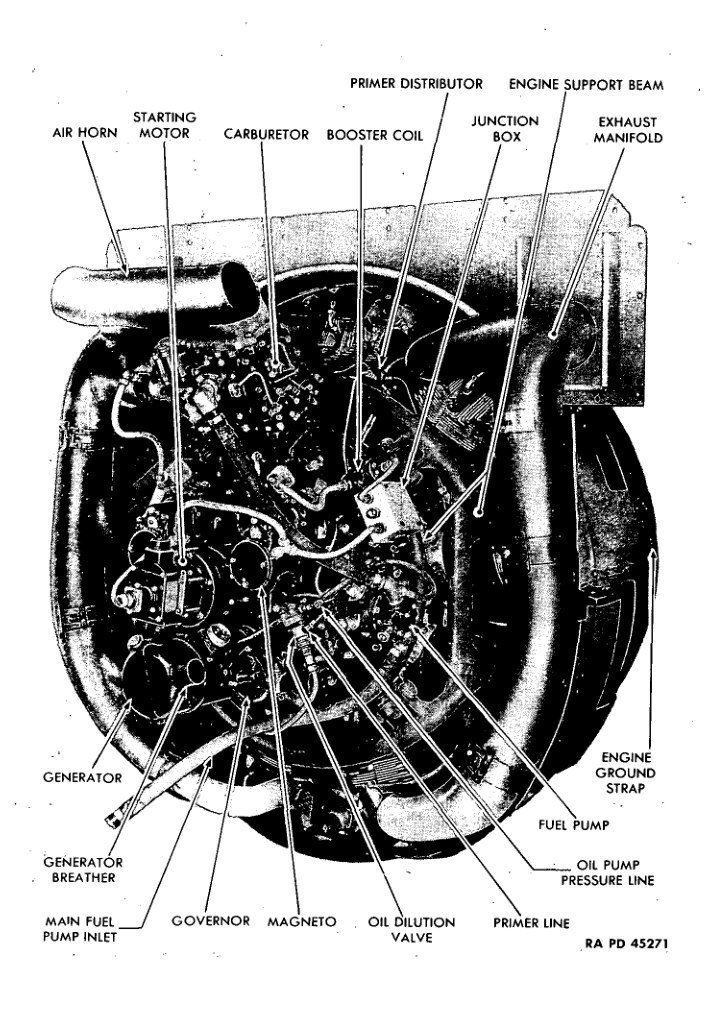

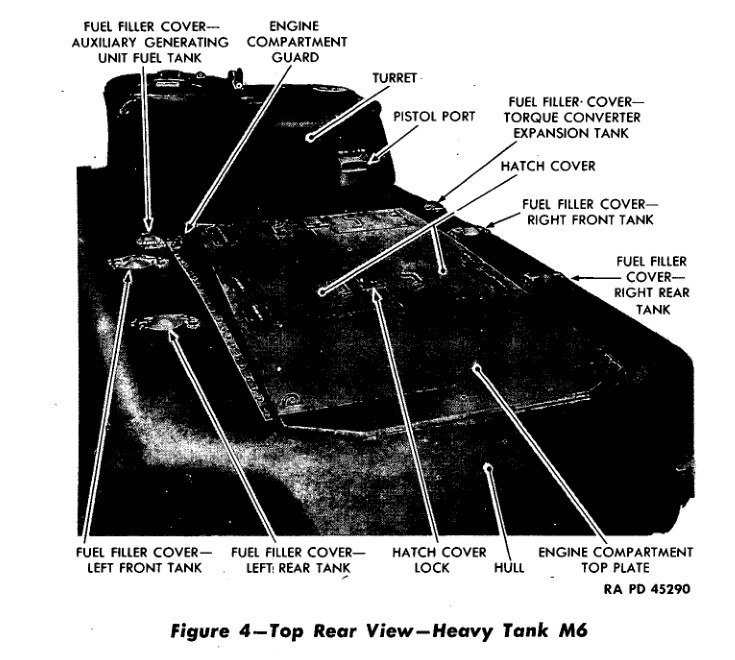

The five images come from TM 9-721 and are unusually strong technical evidence for the production M6/M6A1. They show an exterior three-quarter view, top-rear arrangements, open rear-deck access, driver controls, and the Wright engine’s accessory side. As U.S. War Department manual imagery, they provide a clear public-domain source trail and are more reliable for labeled components than a restored vehicle photograph would be. Sources
Their strength is also their limit. They document M6/M6A1 manual configurations, not every T1E1 electrical-drive detail and not the later M6A2E1 testbed. A line drawing or labeled manual photograph is not a combat scene, and a manual date does not prove that every accepted vehicle carried every feature exactly as illustrated. The original figures and captions remain preserved; proposed captions are not final technical annotations. Sources
Strong non-embedded leads exist for M6, M6A1, T1E1, and M6A2E1 official photographs. Those files were not silently substituted or counted as acquired. Production, test, demonstration, survivor, and propaganda contexts is distinct. Sources
