Historical overview
The M551 Sheridan was a compact, four-crew, aluminum-hulled, steel-turreted airborne light tank formally designated as an Armored Reconnaissance/Airborne Assault Vehicle. It entered Army service in 1967 after a 1959 development start and first production acceptance in July 1966. Its defining feature was the 152 mm M81 family gun/launcher, which could fire both conventional large-caliber ammunition and the MGM-51 Shillelagh missile. That weapon made the vehicle far more heavily armed than its light weight suggested, but also created the system's central technical and tactical controversy. Sources
The Sheridan mattered because it occupied a narrow doctrinal niche that no U.S. armored vehicle has cleanly replaced: parachute-deliverable tracked armor for airborne forces. In Vietnam it provided mobile canister and high-explosive firepower to cavalry and infantry, even though its missile system was not useful there. In Panama it became one of the few tanks actually air-dropped into a combat operation. In the Gulf War it gave the 82nd Airborne Division deployable armored punch during Desert Shield and Desert Storm. At Fort Irwin, visually modified M551s became the iconic National Training Center OPFOR surrogates for Soviet-style vehicles. Sources
The principal versions were the XM551 pilots, the base M551, the M551A1 with laser rangefinder improvements, and the M551A1(TTS) with thermal sights. Vietnam field modifications included additional local protection, while VISMOD vehicles represented opposing forces at the National Training Center. The cancelled T92, the T49/M41-based 152 mm testbed, and later airborne-armor replacements were related development programs, not Sheridan production variants. Sources
The major disputes concern production total, exact retirement date, and Shillelagh combat use. The cited accounts and AFV Database list about 1,662 total acceptances; the Army Historical Foundation rounds production to approximately 1,700; FAS lists 1,562. Likewise, "retirement" can mean front-line airborne armor retirement in 1996/1997 or final National Training Center VISMOD withdrawal in 2003/2004. Sources
The Sheridan was a bold and imperfect answer to an extremely hard requirement. It was too lightly protected to survive many tank threats, too technically delicate to realize the full promise of the Shillelagh system, and sometimes hazardous to its crews. Yet it was genuinely useful when employed as lightweight direct-fire support, and its strategic mobility gave U.S. airborne forces a psychological and tactical effect that no heavier main battle tank could provide on short notice. Sources
The Sheridan emerged from the late-1950s U.S. Army search for a mobile armored vehicle that could support airborne and reconnaissance forces without the weight penalties of a main battle tank. The Army had used light tanks such as the M24 and M41, but the postwar battlefield was increasingly shaped by hollow-charge ammunition, amphibious Soviet reconnaissance vehicles, nuclear-era mobility expectations, and the dream that guided missiles could let small platforms defeat heavier armor. Sources
The immediate strategic background included the Soviet PT-76. The cancelled T92 light tank might have replaced the M41, but Soviet amphibious light armor raised the requirement for swim capability. The cited accounts explicitly links the T92 cancellation to amphibious concerns and the M551 program. The Sheridan therefore combined three difficult demands: light enough for airborne use, buoyant enough for water operations, and powerful enough to threaten armor. Sources
U.S. Army thinking also shifted toward guided missiles. The Army Historical Foundation traces the background to the 1957 ARCOVE study, which recommended guided missiles for future tanks; in June 1959 the Shillelagh missile program began, and on 17 September 1959 formal development of the M551 AR/AAV began. This chronology explains why the cited accounts year 1959 is appropriate even though first acceptances and fielding came later. Sources
Doctrinally, the Sheridan had to support cavalry screens, airborne assault, reconnaissance, and expeditionary crisis response. It was never meant to duel Soviet main battle tanks on equal terms through armor protection. Instead, it was designed to be where heavier tanks could not be, to cross water obstacles with preparation, and to deliver destructive short-duration firepower after air movement. Sources
Development and variants
It includes the original M551, modernized M551A1, M551A1(TTS), prototype and testbed context, Vietnam field modifications, and VISMOD training conversions. It excludes speculative successor programs except where needed to explain legacy and boundary issues. Sources
XM551 pilot and prototype context, including the 1959 AR/AAV development start and the 152 mm gun/launcher requirement. Sources
Production M551 vehicles accepted from 1966 and fielded in 1967-1968. Sources
M551A1 laser-rangefinder upgrade and M551A1(TTS) thermal-sight modernization. Sources
Vietnam field modifications, including ACAV-style shields, local armor, and field stowage changes where documented. Sources
National Training Center VISMOD conversions used as OPFOR T-72, BMP, self-propelled artillery, and air-defense surrogates. Sources
Service in Vietnam, Operation Golden Pheasant, Operation Just Cause, Operation Desert Shield/Storm, and NTC training. Sources
Full technical history of the MGM-51 Shillelagh missile outside its use in the Sheridan system. Sources
A full biography of General Philip Sheridan; the name is noted only as the vehicle's namesake. Sources
Later replacement attempts and current U.S. light-tank programs, except as legacy context requiring separate current verification. Sources
Museum restorations and replicas unless clearly marked as display examples in the photographs. Sources
The Sheridan is classification-sensitive. The official Army designation, AR/AAV, emphasized reconnaissance and airborne assault rather than a conventional tank role. In practice, however, the vehicle was armored, tracked, turreted, crewed like a tank, and armed with a large-caliber gun/launcher. The cited accounts therefore keeps it in the light-tank category while preserving the official designation. Sources
The correct project treatment is to include them in the family tree with boundary notes, not to count them as new tank families or as fresh production vehicles. The T92 and T49 rows are likewise best handled as developmental context rather than direct Sheridan production variants. Sources
Formal M551 development began in September 1959 around the AR/AAV concept and the XM81/M81 152 mm gun/launcher. The program attempted to integrate an extremely large low-pressure gun, combustible-case ammunition, guided-missile electronics, amphibious flotation, and airborne weight control in a single small chassis. General Motors' Allison Division became the production organization, with production beginning in 1966. Sources
The T49 and T92 belong to the Sheridan's prehistory. The T49 used a modified M41 light-tank chassis as a 152 mm gun/launcher testbed, demonstrating the weapon concept before the XM551. The T92 represented a conventional light-tank path but was cancelled after amphibious requirements changed the problem. These vehicles are described as enabling and boundary vehicles rather than Sheridan variants. Sources
The first accepted production Sheridan arrived in July 1966, and the vehicle entered service in 1967. Fielding was complicated by technical and operational deficiencies. Evaluators in 1967 identified problems before large-scale combat use; Vietnam deployment then revealed practical weaknesses in the gun system, electronics, ammunition handling, protection, and reliability. The Army nevertheless deployed the type because it offered firepower and mobility no other airborne-capable tracked vehicle could match. Sources
A critical post-fielding correction was the closed-breech scavenging system, or CBSS. AFV Database notes that the original 152 mm gun/launcher design suffered from gases venting into the turret; CBSS was installed beginning with vehicle 700 and retrofitted to earlier vehicles. This seemingly technical detail mattered for crew safety and shows how far the Sheridan matured only after production was already underway. Sources
M551A1 modernization followed in the 1970s with the AN/VVG-1 laser rangefinder, and the M551A1(TTS) appeared in the late 1980s with a tank thermal sight. The latter kept the Sheridan tactically relevant for the 82nd Airborne Division during Panama and the Gulf War even though the basic vehicle was already obsolescent by main-battle-tank standards. Sources
Design and performance
The Sheridan used a conventional tank layout in miniaturized airborne form: driver forward in the hull, turret in the center, engine and transmission in the rear, and a crew of four. Its low mass and compact size made it suitable for air transport and parachute delivery, while its tracked suspension gave better cross-country mobility than many wheeled fire-support vehicles. Sources
The hull was fabricated from rolled 7039 aluminum alloy. Aluminum saved weight but did not provide the same protection or fire behavior as thick steel armor. The hull incorporated flotation equipment: AFV Database describes integral buoyancy and erection of a flotation screen before water operation. The vehicle could swim at low water speed after preparation. Sources
The turret was steel rather than aluminum, combining rolled and cast homogeneous armor elements. It carried the 152 mm gun/launcher, coaxial machine gun, missile guidance equipment on missile-capable vehicles, and commander's machine-gun station. The turret was crowded because the large-bore weapon and fire-control equipment were fitted into a very small vehicle. Sources
Protection was deliberately light. It was suitable against small-arms fire, shell fragments, and some battlefield hazards, but Vietnam made clear that mines, RPGs, and heavy automatic fire could be devastating. The Army Historical Foundation emphasizes vulnerability to mines and RPGs, and the combustible ammunition created additional crew risk when penetrated or damaged. Sources
The 152 mm M81/M81E1 gun/launcher was the Sheridan's signature system. It could fire conventional rounds, including M409 HEAT and canister-type ammunition, and launch the MGM-51 Shillelagh anti-tank missile. The missile offered long-range anti-armor potential, but missile electronics, dead-zone/minimum-range issues, and tropical reliability problems sharply limited combat utility. Sources
Secondary weapons included a.50 caliber M2HB machine gun for the commander and a 7.62 mm coaxial machine gun. AFV Database notes M240 coaxial fit on M551A1(TTS) vehicles, while earlier vehicles used the M73/M219 family according to most technical summaries. Sources
Ammunition stowage is a source-sensitive point because conventional-round and missile counts vary by configuration. AFV Database lists 20 conventional 152 mm rounds and 10 MGM-51 missiles for the base M551; its M551A1(TTS) data lists 20 rounds and 9 missiles. The Army Historical Foundation states that the Sheridan could carry up to eight Shillelagh missiles. Sources
Original missile guidance used a semiautomatic command-to-line-of-sight system with infrared link. Early vehicles could be produced without full missile-guidance components, and Vietnam vehicles did not exploit the missile system. The M551A1 added a laser rangefinder in the early 1970s; M551A1(TTS) vehicles added thermal sighting in 1989. Sources
The sighting suite evolved from day/periscope and missile-sighting equipment toward laser ranging and thermal imaging. The M551A1(TTS) upgrade gave the 82nd Airborne Division a night-fighting tool better suited to late-Cold-War deployment than the original optical package. Sources
Power came from the General Motors/Detroit Diesel 6V53T two-stroke diesel, with AFV Database listing 255 net horsepower and 300 gross horsepower. The transmission was the Allison XTG-250-1A. The package was compact and adequate for the Sheridan's light mass, but hot-weather operation, maintenance demands, and recoil/electronics interactions contributed to field dissatisfaction. Sources
The suspension used torsion bars with five dual road wheels on each side, drive sprockets at the rear, front idlers, and a flat track layout. The compact running gear helped keep weight down but did not make the Sheridan immune to the abuse of rough terrain, airborne delivery, and field operations. Sources
AFV Database lists maximum road speed of about 43 mph, water speed of about 3.6 mph, and road range of about 350 miles. The Sheridan could be transported by air and dropped by parachute, giving it a strategic-mobility profile fundamentally different from M48/M60-family main battle tanks. Sources
The four-person crew preserved the classic commander, gunner, loader, and driver structure. Ergonomics were difficult because the vehicle packaged a large-bore weapon, combustible rounds, missile equipment, radios, flotation gear, and field stowage into a compact hull and turret. Vietnam crews often added local stowage, shields, or armor, which improved practicality but could further burden the vehicle. Sources
The Sheridan operated as part of U.S. cavalry and airborne command networks and used standard U.S. tactical radios of its service period. Detailed radio fit varied by unit, modernization state, and era; the cited evidence does not establish a single fixed radio suite. Sources
Protection systems were mainly passive and procedural: light armor, smoke-grenade launchers, low profile, mobility, and amphibious flotation. Late-service vehicles benefited more from improved sighting and tactical employment than from a major armor upgrade. VISMOD vehicles were training systems, not combat-protection upgrades. Sources
Known trouble areas included the gun/launcher, missile electronics, combustible ammunition handling, bore evacuation/scavenging, moisture sensitivity, recoil effects, and engine or cooling problems under harsh conditions. Maintenance could keep vehicles running, but the Sheridan was not a simple armored car with a big gun; it was a complex missile/gun system on a light chassis. Sources
Light armor and aluminum hull vulnerability to mines, RPGs, and heavy battlefield fire. Sources
Gun/launcher blast, recoil, scavenging, and ammunition problems, especially in early service. Sources
Shillelagh missile electronics and guidance limitations in tropical and close-range conditions. Sources
Limited ammunition capacity for a vehicle expected to provide direct-fire support. Sources
A narrow tactical niche: extremely useful for airborne firepower, but not a substitute for an MBT. Sources
Production, operators, and combat record
Production began in 1966 under General Motors' Allison Division, with first acceptance in July 1966 and total acceptances listed by AFV Database as 1,662. The cited sources describe the same approximate total. The Army Historical Foundation rounds the total to approximately 1,700 delivered by the end of production in 1970, while FAS lists 1,562 between 1966 and 1970. Until a primary Army acceptance ledger is checked, 1,662 is described as the best working total and 1,700 as a rounded narrative figure. Sources
The Sheridan's production challenge was integration rather than mass volume. Aluminum hull fabrication, a steel turret, a very large low-pressure gun/launcher, combustible-case ammunition, missile guidance equipment, amphibious flotation, and airborne-delivery requirements all had to fit in a vehicle near 15 tons. That complexity explains why the vehicle needed post-production corrections such as CBSS and why field reports often emphasized reliability and crew-safety problems. Sources
The M551A1 and M551A1(TTS) were upgrade programs rather than new-build families. VISMOD was an industrially significant training conversion: the official NTC history states that in FY1980 the Army delivered 330 Sheridans from prepositioned and war-reserve stocks in Europe to Anniston Army Depot for inspection, repair, and limited modification with fiberglass, wood, or plastic visual kits. The program was funded at $17.7 million; 230 vehicles became permanent Fort Irwin assets and 100 remained at Anniston in reserve. Sources
The United States Army was the Sheridan's operational user. The vehicle equipped airborne and cavalry units, with the 82nd Airborne Division and the 11th Armored Cavalry Regiment appearing prominently in late-service imagery and institutional history. Sources
The service-history problem is retirement definition. If the question means front-line U.S. Army airborne armor, the relevant endpoint is the mid-to-late 1990s, with the Army Historical Foundation emphasizing the July 1997 inactivation of 3rd Battalion, 73rd Armor. If the question means final Army use of Sheridan hulls, the NTC VISMOD fleet lasted into 2003/2004. The Museum of American Armor says the Sheridan retired in 1996 and NTC use ended in 2003; an official Army memorial article gives a broad "retired in 2004" formulation. These statements can be reconciled only by specifying front-line versus training use. Sources

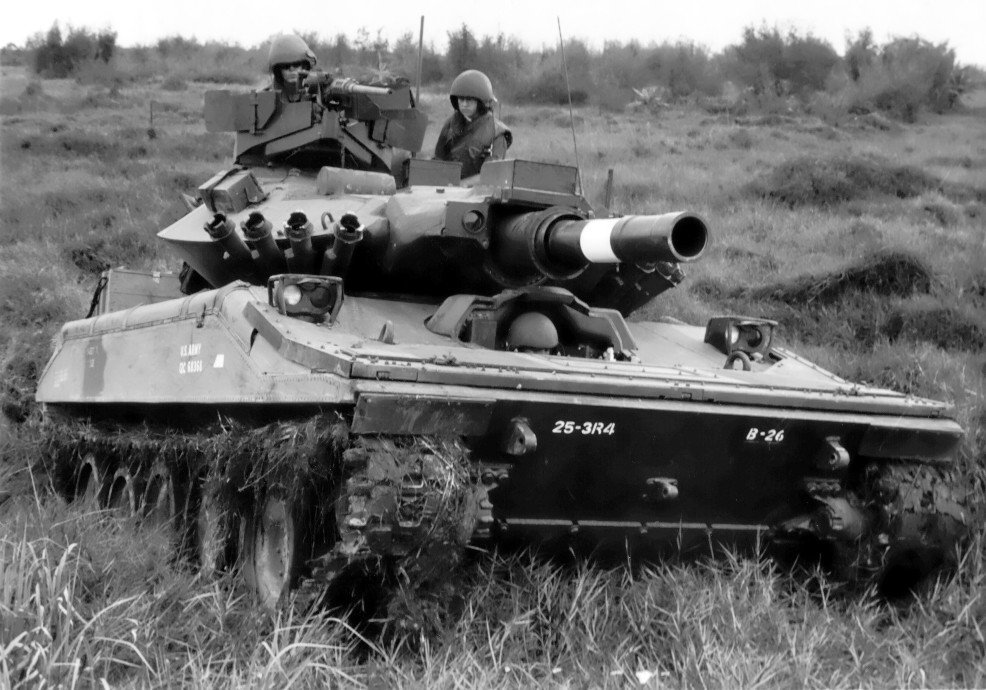

Vietnam was the Sheridan's first and most demanding combat environment. The Army Historical Foundation states that 64 Sheridans deployed to Vietnam in January 1969, initially to 1st Squadron, 11th Armored Cavalry Regiment and 3rd Squadron, 4th Cavalry, and that about 200 were eventually deployed. Missile guidance equipment was not installed for Vietnam employment, so the Sheridan functioned mainly as a mobile direct-fire platform firing conventional 152 mm rounds, especially canister and high-explosive/HEAT ammunition. Sources
The vehicle's strengths and weaknesses appeared quickly. Crews valued its heavy canister effect and mobility in roles that previously relied on lighter armored vehicles. At the same time, mines and RPGs could be catastrophic, combustible ammunition was a serious hazard, and moisture, recoil, electronics, bore-scavenging, and overheating problems damaged confidence. Vietnam field modifications represents evidence of practical soldier adaptation to a vehicle that did not match all of its procurement assumptions. Sources
Golden Pheasant was not a major tank battle, but it rehearsed the rapid deployment of light forces with armor and belongs in Sheridan’s deployment history. The official Army History article states that XVIII Airborne Corps added AH-1 attack helicopters and a section of two M551A1 Sheridan light tanks to the Honduras deployment, and the associated image metadata places a Sheridan of 3rd Battalion, 73rd Armor in the Jamastran area. Sources

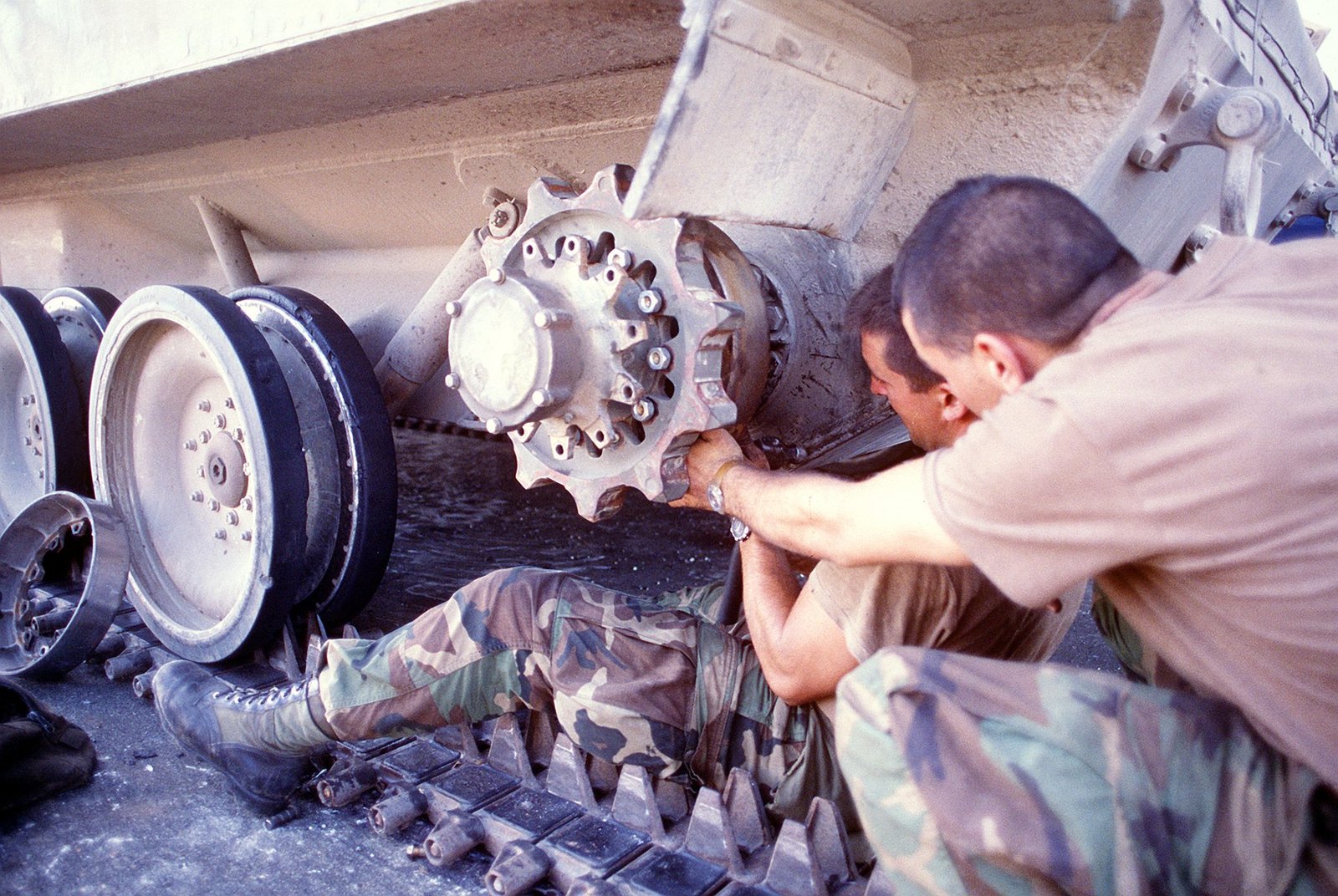

Panama gave the Sheridan its most famous airborne-armor moment. The official Army article states that ten Sheridans were airdropped from a C-141 during Operation Just Cause. CMH museum text identifies a Sheridan exhibit as representing tanks used against Manuel Noriega's Panamanian Defense Forces in December 1989. Sources

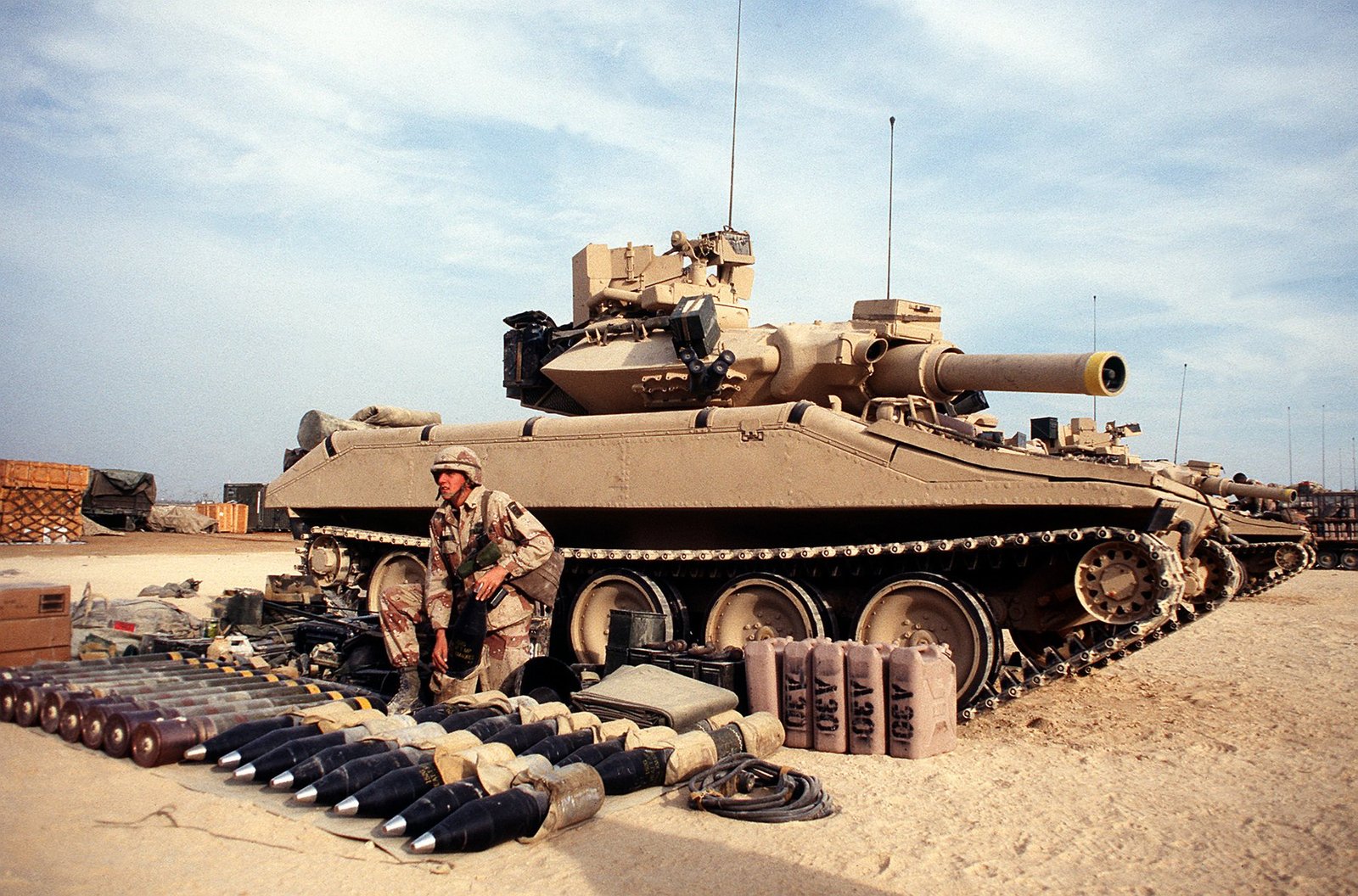

The 82nd Airborne Division took M551A1 Sheridans to Southwest Asia during Desert Shield and Desert Storm. They were not comparable to M1 Abrams tanks in protection or lethality, but they provided early-deploying U.S. light forces with tracked armored firepower while heavier formations arrived. The Army Historical Foundation notes the TTS upgrade in this period and describes the 3-73 Armor role in the Gulf deployment. Sources
Accounts disagree over combat use of Shillelagh missiles from Sheridans. The Army Historical Foundation states that none were fired in combat, while some secondary histories report a small number during Desert Storm. The cited material does not resolve that contradiction. Sources
Myth: the Sheridan was simply a failed tank. Documented evidence: it failed at several ambitious technical promises but succeeded in some airborne direct-fire roles. Sources
Myth: the missile made it a tank killer in Vietnam. Documented evidence: Vietnam vehicles did not use missile guidance; the vehicle fought mostly with conventional ammunition. Sources
Myth: one retirement date is enough. Documented evidence: front-line retirement and NTC training retirement are separate events. Sources
Myth: VISMOD Sheridans were Soviet vehicles. Documented evidence: they were U.S. M551 hulls visually modified to simulate Soviet-style threats. Sources
Legacy and historical evidence
Sheridan's specialized tactical requirements differed from those of a main battle tank. Against an M60A1 or T-62 it was badly under-armored; against an M41 Walker Bulldog it had much greater explosive and theoretical missile firepower; against the PT-76 it had far more punch but similar vulnerability problems; against airborne assault guns it offered a turreted, U.S.-integrated, air-droppable solution. Sources
Overall battlefield value depends entirely on mission. In a tank-versus-tank exchange the Sheridan was a poor substitute for a main battle tank. In an airborne operation where the alternative was no tracked armor at all, it had disproportionate value. That gap between tactical vulnerability and strategic deployability is the key to understanding the vehicle fairly. Sources
The Sheridan's legacy is larger than its production total. It was the last U.S. operational airborne light tank, a combat vehicle whose limitations were inseparable from the requirement that made it valuable. Its use by the 82nd Airborne Division turned it into a symbol of deployable armor: imperfect, risky, but sometimes the only tank-like platform that could arrive with light forces. Sources
The training legacy may be even more important. At the National Training Center, hundreds of VISMOD Sheridans simulated Soviet-style armored vehicles and helped train U.S. units for high-intensity mechanized combat. The official NTC history's 330-vehicle VISMOD program shows that the Sheridan's second life shaped the training culture of the Army that fought Desert Storm and prepared for later mechanized conflicts. Sources
Design influence is mixed. The Sheridan did not create a lasting U.S. missile-gun tank line; the Shillelagh concept also troubled M60A2 and MBT-70/XM803-era thinking. But the need for air-transportable armored firepower continued to recur in U.S. programs. Sources
Common misconceptions include treating the vehicle as either a pure failure or a forgotten superweapon. The documented record supports neither extreme. It was a high-risk compromise: one that disappointed as a missile tank, endangered crews in some combat settings, but still delivered real fire-support value in specific missions and became central to U.S. OPFOR training. Sources
AFV Database provides technical and acceptance figures, while official Army histories and the Army Historical Foundation describe institutional and service chronology. These sources do not all use the same production and retirement dates or counting categories; the older FAS summary also reflects a different reporting period. Sources
Development began in 1959 and the first M551 acceptance occurred in July 1966. Sources
The Sheridan used a 152 mm M81-family gun/launcher and could fire MGM-51 Shillelagh missiles. Sources
The hull was aluminum alloy and the turret was steel. Sources
The vehicle served in Vietnam, Panama, and the Gulf War. Sources
The NTC VISMOD program used 330 Sheridan hulls sent to Anniston in FY1980. Sources
Exact production total, with 1,662 used as the best working number but alternatives preserved. Sources
Exact M551A1 and M551A1(TTS) conversion quantities. Sources
Final front-line retirement date by calendar year, because 1996 and July 1997 conventions coexist. Sources
Specific ammunition stowage by vehicle and era, because 8, 9, and 10 missile counts appear depending source/configuration. Sources
Final NTC retirement phrasing, because sources describe 2003 and 2004 endpoints. Sources
Whether any Sheridan fired a Shillelagh missile in combat during Desert Storm. Sources
Counts and standardization of Vietnam ACAV-style field modifications. Sources
Exact counts by VISMOD threat-vehicle subtype. Sources
Vehicle-level serial identities for specific museum survivors. Sources
