Infantry Tank Mk II Matilda II / A12

Infantry Tank Mk II Matilda II with troops of the 5th Battalion, King's Shropshire Light Infantry during maneuvers at Knowsley Park near Liverpool, 30 July 1940. Knowsley Park, United Kingdom.Mr Taylor / IWM H2622

Overview and variants

The A12 Matilda II was a heavily protected British infantry tank with a turret-mounted 2-pounder gun and a four-man crew. Unlike the smaller A11, it could divide the turret work among commander, gunner and loader. The shared Matilda name cannot obscure those separate designs. Its wartime significance extended beyond the original gun tank through engine and transmission changes, overseas service and specialized conversions. Sources

Published accounts give a standard production total of 2,987 alongside rounded or differing summaries. Specialist vehicles such as flamethrowers, dozers and flails were conversions or separate experimental arrangements, not necessarily additions to that manufacturing total. Similarly, the quantity dispatched to an overseas user is not automatically the number received or operated. Sources

Requirements and development

Development sought an infantry tank with stronger fighting capability than a machine-gun-only vehicle. Accounts describe contributions from the Mechanization Board, the Royal Arsenal and Vulcan, with earlier experimental work providing context. A mock-up in 1936, inspection in 1937 and mild-steel pilot work preceded full service production. The retained chronology distinguishes those stages rather than treating a single proposal date as the introduction of a finished tank. Sources

The A12 demanded more complicated manufacture than its outwardly simple silhouette suggests. Heavy castings, protected suspension arrangements and the integration of two engines required industrial capacity and careful assembly. The subsequent involvement of several engineering firms reflects the scale of wartime demand. It does not imply that every manufacturer delivered an identical configuration throughout production. Sources

Protection and crew arrangement

The driver sat in the forward hull beneath the main fighting compartment, with three men in the turret and the paired engines behind. Published accounts describe armor values ranging from roughly 20 to 78 mm, depending on location. Strongest thickness cannot be applied to every surface, while the protection of the running gear introduced its own maintenance and mud-clearance difficulties. Sources

The three-man turret reduced some workload compared with a commander who also had to load and fire, but space and turret-ring dimensions constrained later growth. Its protection was particularly valuable in some early-war circumstances. That advantage cannot be generalized into invulnerability against mines, heavy guns, close attack, mechanical immobilization or later anti-tank weapons. Sources

Weapons and automotive marks

The normal gun tank used a 40 mm 2-pounder and a machine gun, with changes from early Vickers to Besa equipment represented in the available evidence. The close-support version carried a 3-inch howitzer. That weapon is distinct from the A10's 3.7-inch close-support armament. Quoted ammunition loads are configuration-specific reported figures; specialized interiors and conversion roles could alter them. Sources

Early A12s used paired AEC diesel engines, while later marks used paired Leylands. Published accounts describe representative individual ratings around 87 and 95 hp respectively and retains changes to associated transmissions. The cited accounts do not firmly establish Mark numbering, engine substitutions and gearbox improvements. Road and cross-country speeds, fuel capacity and range require the same qualification. Radio photographs document actual installations in particular vehicles but do not establish one unchanging wireless standard for the entire family. Sources

Production and specialist development

The production account names several British manufacturers and carries completion into 1943. Its annual totals and factory allocations remain source assertions pending the underlying acceptance ledger. A large wartime production figure says nothing by itself about the number of serviceable tanks available to a unit on a given day. Sources

Specialist development extended the chassis into quite different roles. Scorpion and Baron mine flails, the Canal Defence Light searchlight turret, bulldozers, Frog flamethrowers, and the Hedgehog projector had distinct purposes and development histories. Proposed capability, a completed demonstration vehicle and documented combat employment are three different evidentiary states. Sources

British, Soviet and Australian service

The account follows British use from France through North Africa, including the circumstances in which its protection earned a strong reputation and the later conditions that eroded that advantage. Replacement in one theater did not mean every A12 worldwide ceased operating at the same date. Training holdings, reserve vehicles and specialist conversions had different trajectories. Sources

For Soviet supply, the available evidence distinguishes 1,084 shipped from 918 received. Those figures require shipment and delivery context rather than being merged into a single operator total. Australian employment in New Guinea, Bougainville and Borneo involved demanding terrain and close cooperation with infantry. It also produced distinctive specialized equipment. The source does not establish combat use for every Hedgehog example, and conflicting captions or dates on a Frog photograph remain verification tasks rather than opportunities to infer an exact event. Sources

Assessment and surviving evidence

The A12's historical value lies in the interaction between protection, crew organization, mobility and adaptation. It was neither simply an obsolete slow tank nor an all-purpose solution. The original anti-tank gun, the close-support role and specialized Australian conversions need their own assessments within the tactical setting in which they were used. Sources

Museum vehicles, official photographs and contemporary interiors offer complementary evidence. An exterior can show a bulldozer blade or launcher but not verify its entire operating history. A radio installation can illustrate equipment without representing all production marks. Preserved tanks may retain later modifications, replacement components or historically representative markings; those conditions belong in captions so that the reference collection does not turn restoration choices into universal wartime specifications. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

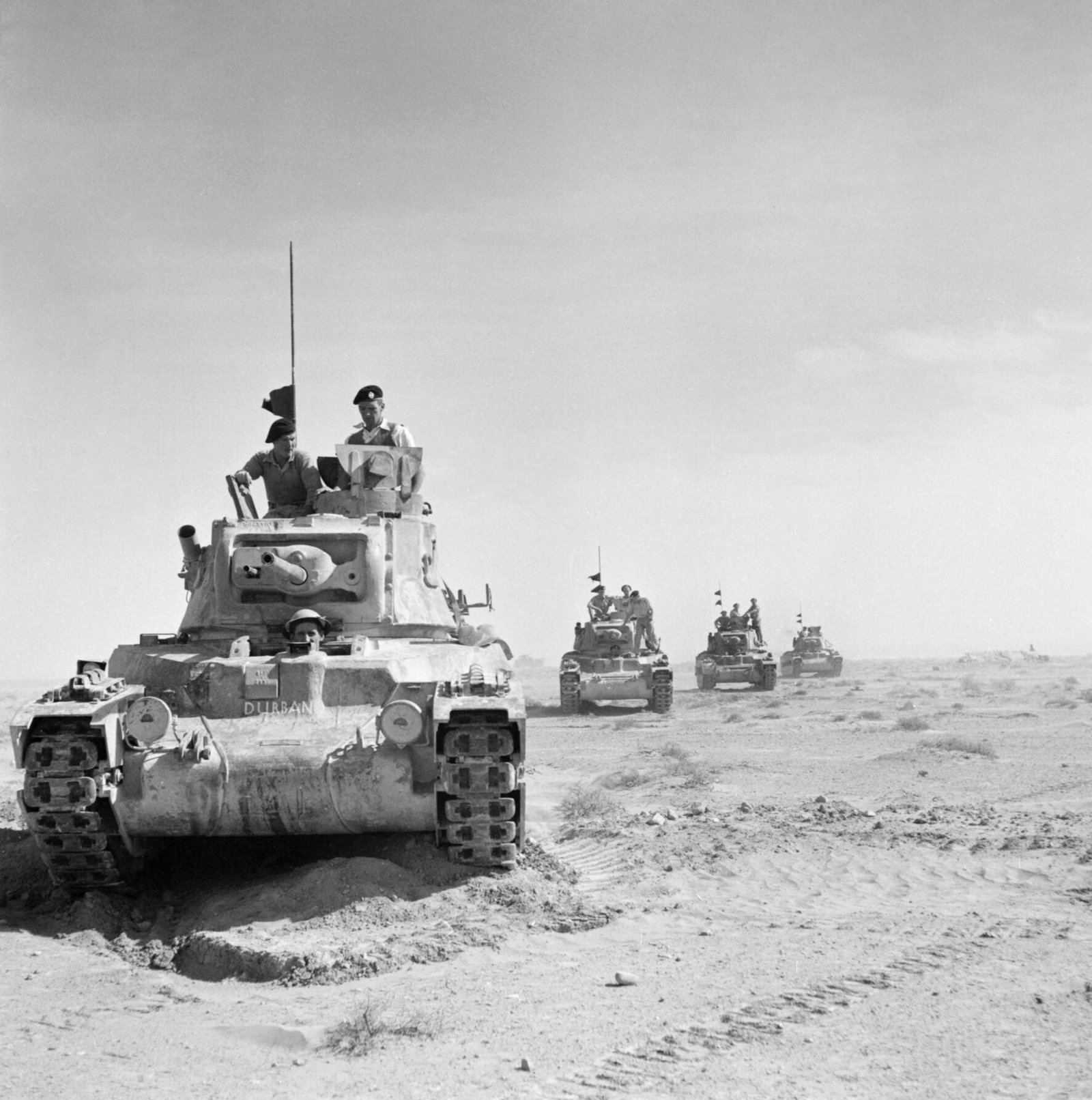

Matilda tanks on the move outside the perimeter of Tobruk, Libya, 18 November 1941. near Tobruk, Libya.G. Keating / IWM E6600; public-domain assertion unreviewed.

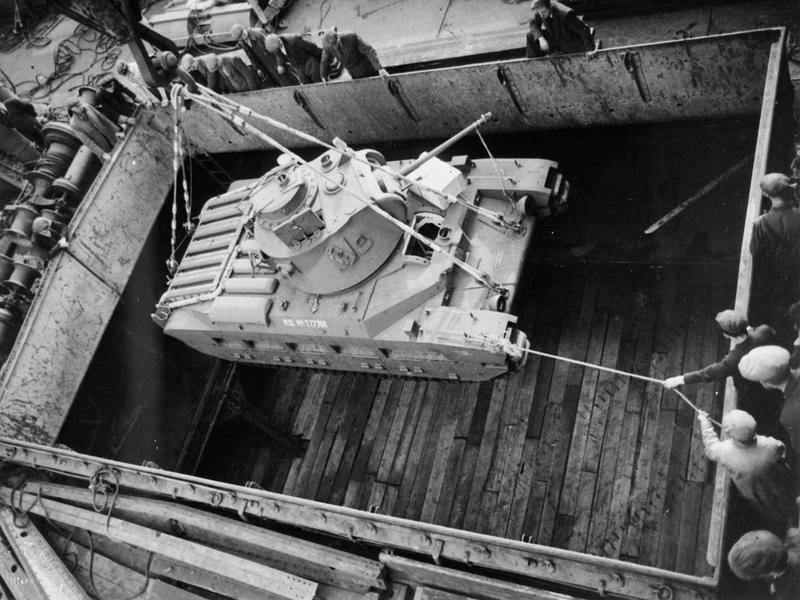

A Matilda II being lowered into a ship's hold at a British port, 1939-1945. British port, exact port not identified.IWM HU87236; photographer and exact exposure details unresolved.

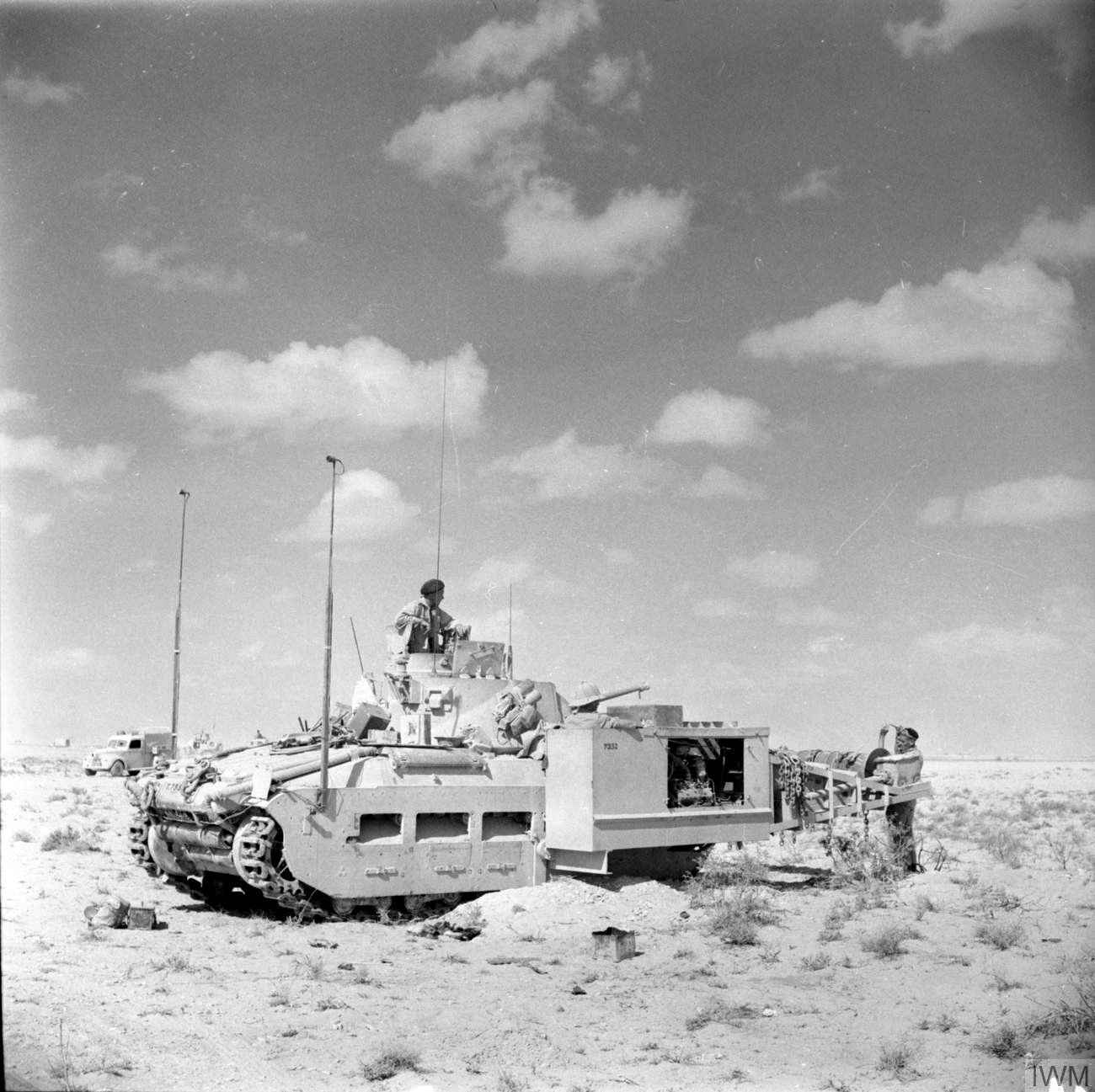

Matilda Scorpion flail tank, North Africa, 2 November 1942.Groom / IWM E18868

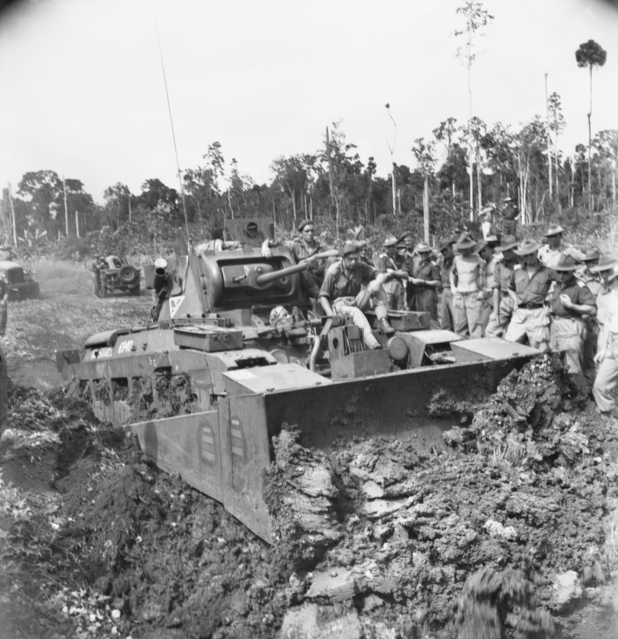

Australian Matilda fitted with a bulldozer blade during a demonstration on Morotai, 9 June 1945; the blade was operated by a Jeep engine.AWM109011; copyright expired/public domain.Image source

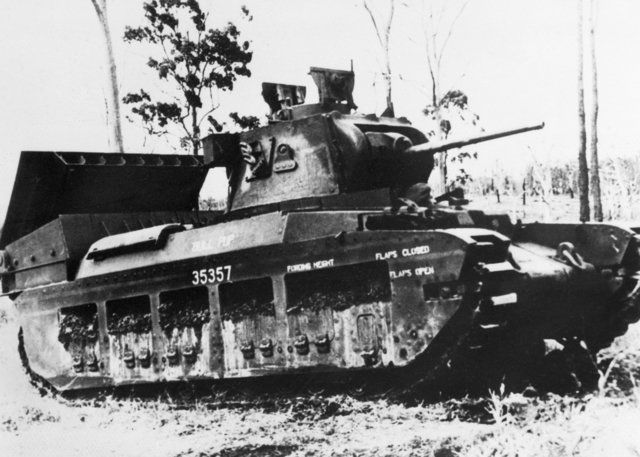

Australian Matilda experimental Hedgehog installation; the AWM catalogue describes six spigots mounted over the engine compartment.AWM133687; copyright expired/public domain.Image source
