HSTV-L

Historical overview

HSTV-L stood for High Survivability Test Vehicle - Lightweight. It was not a fielded tank, not a procurement item, and not a family with production variants. It was a single U.S. demonstrator built by AAI Corporation under the direction of the U.S. Army Tank-Automotive Command (TACOM) to test a coherent package of advanced technologies: a compact three-man layout, a low hull and low-profile turret, a high-output gas turbine powerpack, hydropneumatic suspension, a rapid-firing 75 mm ARES smoothbore cannon using telescoped ammunition, and Texas Instruments hunter/killer fire control. Sources

Its historical significance lies in what it tried to prove. Rather than simply adding armor, HSTV-L explored survivability through reduced target signature, burst mobility, better night fighting, redundant sights, high first-round-hit probability, and fast follow-up fire. Jane's described the vehicle as an exercise in “system realism” for a three-man crew, hunter/killer fire control, and low silhouette rather than as a generic variable-parameter test bed. The project was therefore closer to an integrated combat-system experiment than to a conventional light-tank prototype. Sources

The most important related vehicles are the earlier HIMAG experimental chassis, the AAI RDF/LT private-venture light tank that borrowed HSTV-L ideas and armament, and the later U.S. Mobile Protected Gun System / Armored Gun System ecosystem. HSTV-L helped preserve technical and doctrinal ideas, but it did not directly become the M8 AGS or any later production vehicle. Sources

HSTV-L was a technically ambitious, influential, but non-production prototype. Its story is best told as a late-Cold-War experiment in whether speed, small size, sensors, stabilization, and automatic fire could substitute for the mass and protection of a main battle tank. Its key controversies are not combat performance but classification, start date, exact gun designation, armor protection claims, and the degree of lineage to later U.S. light-tank programs. Sources

By the mid-1970s, the U.S. Army and Marine Corps were wrestling with a recurring problem: how to give light or rapidly deployable forces armored direct fire without the weight, sealift/airlift penalties, and logistical burden of a main battle tank. The M551 Sheridan had offered air-transportable firepower, but its aluminum armor, missile/gun-launcher concept, and reliability controversies left room for a new generation of lightweight armored-vehicle ideas. At the same time, the Soviet threat environment placed pressure on NATO to find ways to defeat improved tanks without assuming that every solution had to be a 55- to 60-ton MBT. Sources

The Armored Combat Vehicle Technology (ACVT) environment explored this problem at the technology level. Instead of producing one immediate replacement vehicle, ACVT investigated mobility, crew posture, fire control, stabilization, signature reduction, advanced armament, and survivability concepts. HSTV-L belonged to that world. Its central design question was not “Can a light tank out-armor an MBT?” but “Can a light vehicle survive by being hard to detect, hard to hit, fast to reposition, and faster to acquire and engage targets?”. Sources

The doctrine implied by HSTV-L was aggressive and sensor-heavy. A small vehicle with strong acceleration, a low target profile, advanced night sights, and a rapid-fire cannon might operate by ambush, overwatch, flanking, helicopter/air transport concepts, and quick displacement rather than by trading shots like an MBT. This approach made sense as an experiment, but it raised severe practical questions about armor protection, ammunition lethality against future Soviet tanks, logistics for a gas turbine in a light chassis, and affordability of advanced sensors. Sources

Development and variants

Published accounts describe HSTV-L as a prototype light tank/testbed rather than as an operational tank family. Sources

The AAI-built HSTV-L demonstrator and its full testbed concept. Sources

The 75 mm ARES automatic cannon and HSTV-L ammunition/feed arrangement at a high level. Sources

Fire-control, stabilization, mobility, crew-layout, and survivability concepts tested by the vehicle. Sources

Closely related programs and vehicles that clarify context: HIMAG, RDF/LT, MPWS, MPGS, AGS, and later mobile protected firepower debates. Sources

RDF/LT as its own family, except as a related vehicle. The cited accounts has a separate US-RDFLT family and prototype record. Sources

HIMAG as its own testbed family, except as development background. Sources

Later production or acquisition vehicles such as M8 AGS and M10 Booker, except as legacy/context comparisons. Sources

Unbuilt paper proposals except where they explain the 1977 AAI versus Pacific Car and Foundry competition. Sources

Classification and boundary issues: HSTV-L was often described as a light tank because it carried a tank-style direct-fire cannon, had a turret, and used tracked armored-vehicle mobility. It was also unmistakably a technology demonstrator. HSTV-L was a prototype and testbed, not a fielded service or export tank. Sources

Army M10 Booker articles, 2024 and 2025, for later-program context. Sources

The cited accounts uses 1977-1981 as the family development span, while the prototype sheet uses 1979-1980s. This is not a contradiction so much as a difference between program start and built/tested vehicle. Secondary sources describe AAI Corporation and Pacific Car and Foundry submitting HSTV-L proposals in July 1977, AAI receiving the contract in December 1977, and construction being completed in 1979. Jane's, writing from the early 1980s perspective, reports that the vehicle was being used for stabilization and fire-control experiments after field testing, with Motion Base Simulator work beginning in September 1982. Sources

AAI Corporation of Baltimore, Maryland, was the manufacturer of the test vehicle. Jane's lists the HSTV(L) manufacturer as AAI Corporation and names TACOM at Warren, Michigan, as the Army organization directing the project. ARES Inc. of Port Clinton, Ohio, designed and made the 75 mm gun and automatic feeder. Texas Instruments supplied the fire-control system, Raytheon supplied the eye-safe CO2 laser rangefinder, Cadillac Gage supplied the gun-control/stabilization system, Avco Lycoming supplied the 650 hp modified helicopter gas turbine, Detroit Diesel Allison supplied the X-300-4A transmission, and Teledyne supplied the fixed-height hydropneumatic suspension. Sources

Design and performance

HSTV-L used a very low, compact tracked chassis with a three-man crew and a cleft/low-profile turret arrangement. The design placed survivability emphasis on small exposed area, mobility, redundant sighting, and fire-control performance. The driver and gunner were seated low in the hull in semi-reclined positions, while the commander had a turret/hunter-sight role. Jane's emphasized that any crewman could shoot and both hull crewmen could drive, a striking human-machine-interface concept for the period. Sources

The hull was short and low, with a hull length around 5.918 m and hull-top height around 1.422 m. The front hull and low silhouette reduced exposed target area. Exact hull armor thickness is not reliably available in open sources; the accounts indicate that the hull was designed around angle, silhouette, and applique concepts rather than heavy MBT protection. Sources

The turret was a low-profile cleft design carrying the 75 mm automatic cannon and a stabilized sensor suite. This permitted exceptional elevation/depression ranges in published specifications, although some values vary by source and aspect. The commander's hunter sight could rotate independently of the turret, supporting a hunter/killer engagement process. Sources

Secondary accounts state that applique armor and high obliquity were expected to improve resistance against contemporary threats, including claims connected to Soviet 115 mm rounds. Because those claims are not supported by a clear official armor statement in the cited sources, they are described as uncertain. Sources

The main armament was a 75 mm smoothbore automatic cannon designed with ARES involvement. Jane's describes a revolving breech, telescoping ammunition, an automatic feeder, and an autoloader cycle of about one round per 1.5 seconds. Some later sources identify the cannon as XM274 and discuss L/72 geometry and Eugene Stoner's role, but the conservative citation in the cited record is “75 mm ARES smoothbore automatic cannon.”. Sources

Jane's lists a 7.62 mm M240 machine gun for both commander and coaxial positions. Sources

Jane's lists 26 rounds of main-gun ammunition for the test vehicle. Secondary sources distinguish HSTV-L's 26-round immediate system from RDF/LT's larger 60-round capacity. The ammunition was cased/telescoped in concept, allowing compact automatic handling. Sources

Texas Instruments supplied a hunter/killer fire-control system. The commander used an independently stabilized hunter sight; once a target was selected, the turret and killer sight could align to it, allowing the gunner to engage while the commander searched for the next target. Jane's lists inputs from sights, crosswind sensor, muzzle reference, vertical reference, and a Raytheon eye-safe CO2 laser rangefinder. Sources

Both direct-vision and FLIR optics were available for the hunter and killer sighting functions. Jane's describes video displays visible to hull crew and a commander option to use a direct-view optic or video screen. The fire-control processor could support automatic tracking and rate-aid tracking. Sources

The powerpack was a nonregenerative 650 hp modified helicopter gas turbine from Avco Lycoming, mounted beside the transmission and connected by a cross-drive gearbox. The transmission was a GMC/Detroit Diesel Allison X-300-4A automatic cross-drive with four forward and one reverse gear according to Jane's OCR; other summaries sometimes report two reverse gears. The safe claim is X-300-4A automatic cross-drive transmission. Sources

Teledyne supplied a fixed-height hydropneumatic suspension. Jane's lists 355.6 mm jounce and 127 mm rebound travel, made possible by small road wheels. The system was not the adjustable variable-height suspension associated with some other experimental chassis. Sources

The track was an improved version of the M551 Sheridan type. Jane's lists a road speed of 83.68 km/h, fuel capacity of 409 liters, cruising range of 160 km, ground pressure of 0.7 kg/cm2, 60 percent gradient, 30 percent side slope, 1.0 m fording, and pivot-to-infinity turning radius. These figures are best understood as test-vehicle specifications, not service reliability guarantees. Sources

The three-man crew and semi-reclined hull positions were central to the design. Controls, video screens, and duplicate driving/firing functionality were meant to make the compact vehicle fight effectively despite its unusual layout. This was technically ambitious and a potential maintenance/training burden. Sources

The cited sources do not provide a detailed radio installation. Because HSTV-L was a test vehicle, communications equipment may have varied during tests. The exact radio installation is not established in the cited technical material. Sources

Protection consisted of low silhouette, applique armor, high acceleration, redundant sighting/night capability, and stabilized fire-on-the-move ability. Smoke-launcher or NBC details were not confirmed in the accessed sources. The cited evidence does not establish an active protection system. Sources

HSTV-L was a sophisticated demonstrator rather than a production vehicle. The gas turbine, automatic cannon, advanced electronics, and compact crew stations would have posed production-support questions. Jane's records continued Motion Base Simulator testing to refine stabilization and potentially eliminate expensive sensors, showing that maturity and cost were key issues. Sources

Known or probable limitations included limited armor mass, short range by MBT standards, small ammunition load, complexity, one-off prototype status, uncertain armor claims, and no combat or operational service record. The vehicle's virtues were technological and experimental rather than proven battlefield reliability. Sources

Armor claims beyond silhouette/applique are deliberately treated cautiously. Sources

The HSTV-L specification also lists a coaxial 7.62 mm machine gun and a 7.62 mm antiaircraft machine gun, with 3,200 rounds of machine-gun ammunition. Sources

Production, operators, and combat record

There was no production program. Published accounts describe one demonstrator, and no operators or variants sheets identify a fielded HSTV-L fleet. The term “production” in this case means prototype manufacture and subcontracted technology integration. Sources

Production bottlenecks cannot be reconstructed from the sources accessed. The likely industrial challenge was not hull fabrication but integration of the automatic gun, ammunition feed, digital stabilization, FLIR/video fire-control architecture, compact crew ergonomics, and gas-turbine powerpack into a maintainable and affordable combat vehicle. No reliable unit cost was found. Sources

HSTV-L had no operational users. It was a U.S. Army/TACOM test vehicle used for experimentation and evaluation. Sources

No captured employment, export service, regular training-unit issue, or combat deployment of HSTV-L is established in the cited accounts. Sources

Army Center of Military History page for the Armor & Cavalry Collection; Wikimedia Commons 2021 Collection image pages. Sources

HSTV-L has no combat history. It was not deployed to war, not issued to operational formations, and not produced beyond the single demonstrator. Therefore, there is no first combat use, battle record, loss history, tactical after-action literature, or crew combat memoir base to evaluate. Sources

The vehicle has no established combat record from which to assess battlefield performance. In theory, HSTV-L was intended to exploit a low profile, speed, rapid target acquisition, fire-on-the-move accuracy, and fast bursts from the 75 mm automatic cannon. In practice, no battlefield evidence exists to test whether those advantages would have offset limited armor, short range, small ammunition load, and high system complexity. Sources

Enemy assessments were not found in the sources accessed. No cited documentary evidence establishes Soviet or Warsaw Pact reactions specifically to HSTV-L. Sources

Legacy and historical evidence

Against the M551 Sheridan, HSTV-L looks like a generational experiment in replacing an unusual gun/launcher light tank with sensors, stabilization, a rapid-fire cannon, and much better crew-system integration. Against M60A3 or early M1 Abrams, it was never a tank-on-tank substitute in armor mass or sustained operational endurance; it was a different answer to a different mobility and deployability problem. Against later AGS/M8 concepts, it appears more experimental and less production-oriented, but more radical in its automation and profile. Sources

Army M10 Booker articles used only to show later recurrence of mobile protected direct-fire requirements. Sources

HSTV-L's legacy is technological and conceptual. It demonstrated how a lightweight armored vehicle might combine a high-output powerpack, low-profile crew stations, hunter/killer optics, FLIR, laser ranging, digital stabilization, automatic tracking aids, and an autoloading medium-caliber cannon. These ideas did not produce an HSTV-L service vehicle, but they contributed to the wider language of U.S. light direct-fire vehicle design in the 1980s and beyond. Sources

The closest immediate successor idea was AAI's RDF/LT. Jane's reports that the RDF/LT was designed as a private venture by AAI after the company had built the HSTV(L) prototype under Army TACOM contract. RDF/LT used the 75 mm ARES concept and a similar fire-control philosophy but was a different, more austere vehicle. Later MPWS, MPGS, and AGS efforts dealt with the same strategic problem: how to give light forces mobile protected direct fire. Those programs cannot be combined into a single direct lineage, but HSTV-L is an important ancestor of the discussion. Sources

A modern comparison is the M10 Booker, formerly Mobile Protected Firepower. The U.S. Army accepted the first M10 in 2024 as a mobile protected direct-fire capability for infantry brigade combat teams, then announced in June 2025 that it would cease procurement and not enter full-rate production. This does not make M10 a descendant of HSTV-L; it shows the persistence of the same procurement dilemma that HSTV-L explored experimentally: firepower and protection for lighter formations remain attractive, expensive, and difficult to institutionalize. Sources

Surviving vehicle evidence is strongest from public-domain imagery showing HSTV-L at or arriving for the U.S. Army Armor & Cavalry Collection in 2021. The official Center of Military History page describes the Collection as responsible for preserving Army Cavalry and Armor heritage and artifact collections. The broader claim is not established by the cited evidence. The collection association is reported, but the precise current display or storage status remains unconfirmed. Sources

Army CMH Armor & Cavalry Collection page; U.S. Army M10 Booker articles, 2024 and 2025; Wikimedia Commons public-domain HSTV-L Collection images. Sources

The best accessible technical source in the cited account is Jane's Light Tanks and Armoured Cars, which provides contemporaneous early-1980s data and identifies the project organizations and suppliers. Tank Encyclopedia provides a detailed secondary synthesis and useful Hunnicutt-derived timeline. It remains unconfirmed. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

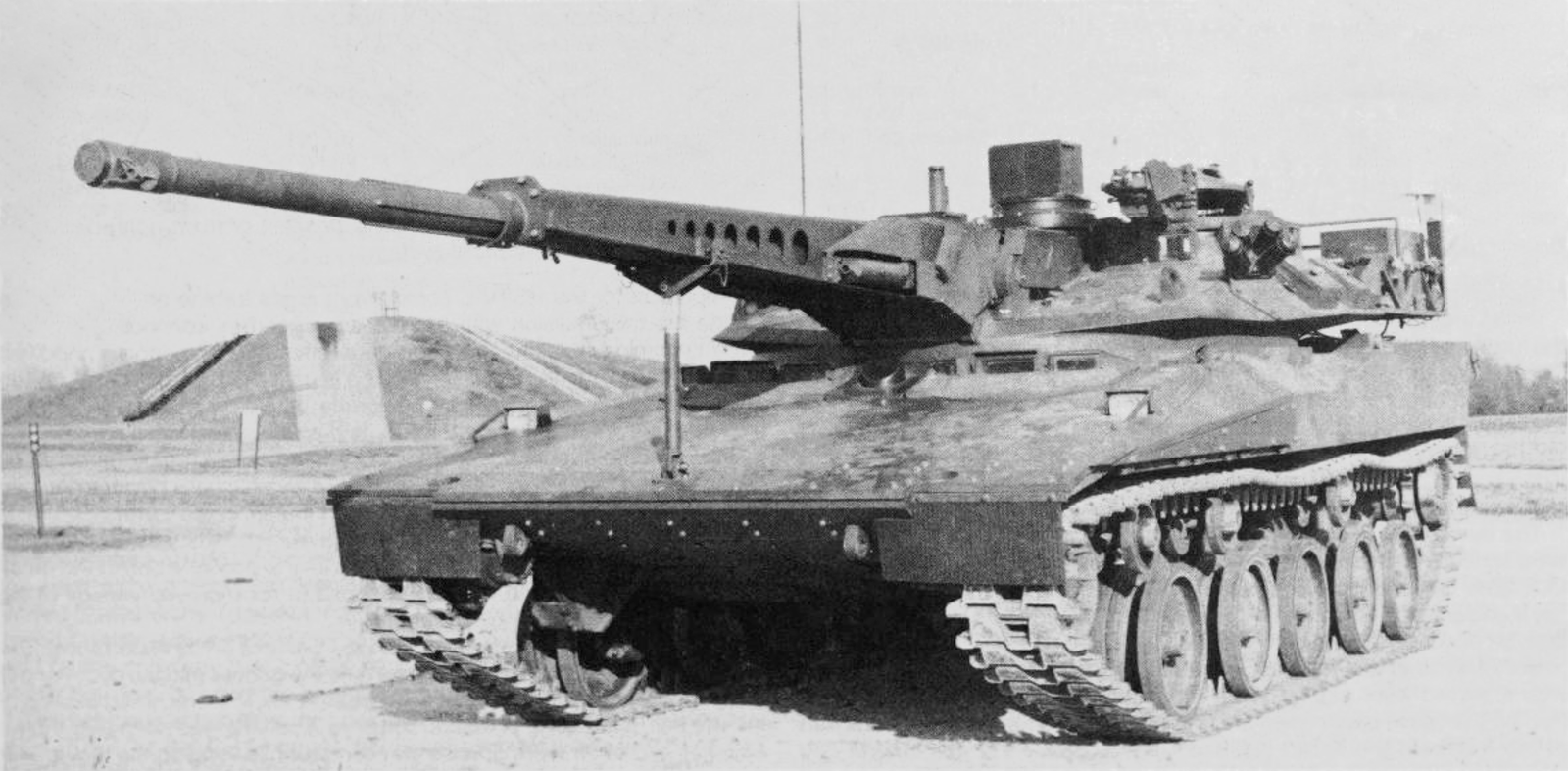

HSTV(L) prototype with hatches closed, circa 1981. not stated. the file description identifies the vehicle as buttoned up circa 1981. — HSTV(L) prototype with hatches closed, circa 1981. not stated. The file description identifies the vehicle as buttoned up circa 1981.U.S. Army; public domain, U.S. federal government work / Creative Commons Public Domain Mark.

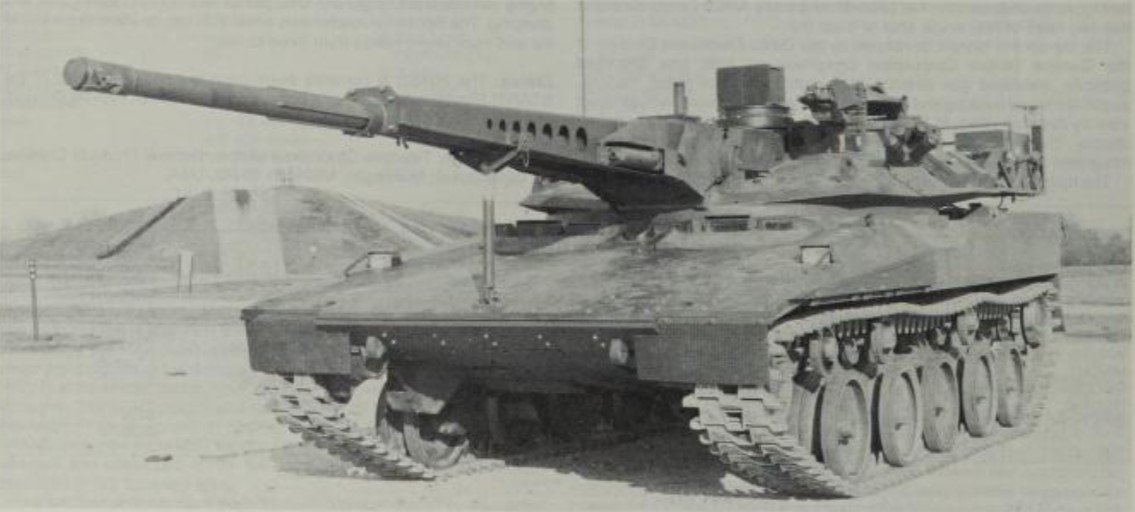

HSTV(L), circa 1985. not stated. useful later test-period view. — HSTV(L), circa 1985. not stated. Useful later test-period view.U.S. Army; public domain, U.S. federal government work / Creative Commons Public Domain Mark.

HSTV-L at the U.S. Army Armor and Cavalry Collection, 2021. Fort Benning/Fort Moore area, Georgia, U.S. Army Armor & Cavalry Collection. image supports artifact survival/collection presence.U.S. Army Armor and Cavalry Collection; public domain, U.S. federal government work / Creative Commons Public Domain Mark.

HSTV-L arriving at the U.S. Army Armor & Cavalry Collection, 24 November 2021. movement/arrival image; condition may not reflect current restoration status.U.S. Army; public domain, U.S. federal government work / Creative Commons Public Domain Mark.
