FV4005

Historical overview

FV4005 was not a production tank family in the conventional sense. It was a British prototype program built around the 183 mm L4A1 gun, the largest gun The Tank Museum identifies as having been fitted to a tank. The concept was simple and urgent: if heavy Soviet tanks could not be reliably defeated at long range by existing British tank guns, a huge HESH-firing weapon might defeat or disrupt them even with non-ideal hits. Sources

Its importance lies less in battlefield service - it had none - than in what it reveals about the transitional moment between late-gun-era tank destroyers and guided anti-tank missiles. FV4005 was an attempt to solve the heavy-tank problem by scaling up a direct-fire gun; Malkara and similar systems solved the same problem by shifting toward guided weapons, longer standoff range, and smaller launch vehicles. Sources

The most important variants are Stage I and Stage II. Stage I was an experimental firing-platform and ammunition-handling testbed. Stage II used a fully enclosed but very thin turret shell and two loaders instead of the Stage I load-assist system. The Tank Museum’s surviving vehicle is a Stage II turret restored to running condition on a correct Centurion Mark 3 hull after years displayed on a representative Mark 12 hull. Sources

The major controversies are not dramatic battlefield disputes but record-keeping and classification problems. “Number produced” can mean the two production-representative Stage II turrets listed by The Tank Museum, the three Centurion-hull installations implied by the one Stage I plus two Stage II turret order, or the single surviving restored museum vehicle. Published accounts describe FV4005 as a prototype family: one Stage I test configuration and two Stage II turrets/vehicles ordered, with only one Stage II turret clearly represented by the preserved/restored survivor. Sources

FV4005 was technically fascinating but operationally marginal. Its 183 mm HESH round gave it extraordinary single-shot destructive potential, but the vehicle suffered from tiny ammunition stowage, two-loader ammunition handling, low rate of fire, firing-arc restrictions under recoil, poor practical accuracy at maximum range, thin turret protection, and a large silhouette. It is best understood as a final, spectacular direct-fire gun-tank experiment rather than a missed production opportunity. Sources

The strategic context was the early Cold War heavy-tank problem. Britain entered the postwar period with Centurion as its principal armored vehicle, but Soviet heavy tanks such as IS-3 and later T-10 drove British interest in longer-ranged, more powerful anti-tank fire. The Tank Museum’s Conqueror account frames the same concern: the British War Office wanted a vehicle with thicker armor and a longer-ranged gun to support Centurion against Soviet heavy tanks. Sources

FV4005 attacked the problem from a different direction. Instead of a heavy, purpose-built tank like Conqueror or FV215, it put the emerging 183 mm L4A1 gun on the in-production Centurion hull as a quicker, stopgap solution. The attraction was speed of fielding: the hull existed, the Soviet heavy-tank threat appeared urgent, and the weapon’s intended HESH effect promised disruption even if the target was not penetrated in the conventional armor-piercing sense. Sources

Doctrine was moving uneasily between gun-line assumptions and guided-missile possibilities. FV4005 assumed a direct-fire heavy gun vehicle could engage beyond the range at which heavy Soviet tanks could respond effectively. By contrast, Malkara and other early anti-tank guided weapons promised longer range from much lighter launch vehicles, even though early missiles had their own limitations. Sources

Industrial constraints mattered. Britain already possessed the Centurion hull and a mature armored-vehicle industry, but the 183 mm gun and its ammunition imposed new mechanical and ergonomic problems: extremely heavy two-part ammunition, difficult recoil management, ammunition resupply from outside the vehicle, and a turret large enough to dominate the chassis. Sources

Development and variants

Classification: prototype heavy gun tank / tank destroyer / self-propelled anti-tank gun. FV4005 combined a Centurion hull with a 183 mm weapon in an experimental heavy-gun vehicle, commonly described as a prototype gun tank or tank destroyer. Sources

Included: the 183 mm L4A1 gun installation, Stage I and Stage II turret/mounting development, test and cancellation narrative, non-operational status, relation to Centurion, FV4004 Conway, FV215, and the post-service museum history. Excluded: game-balance statistics from World of Tanks or War Thunder; the unrelated Second World War Cruiser Tank Mk VIII Centaur/A27L; and Centurion family support variants not directly part of FV4005 except where needed for lineage. Sources

Related vehicles often confused with FV4005 include FV4004 Conway, which placed the 120 mm L1 gun on a Centurion hull; FV215, the purpose-designed 183 mm heavy gun tank project; FV217 Badger and FV215b (183), which are principally video-game or alternate-project names in popular usage; and “Centaur,” an unofficial label that can mislead readers into confusing FV4005 with the Second World War A27L Centaur cruiser tank family. Sources

The vehicle’s origin lies in a late-1940s British effort to produce a gun capable of defeating a new generation of Soviet heavy tanks at long range. The Tank Museum states that the Army requirement aimed to defeat 152 mm of armor plate sloped at 60 degrees at 2,000 yards. This requirement drove the 183 mm L4A1 HESH gun. Sources

The purpose-designed FV215 was the intended heavy gun tank carrier, but concern that war could come before FV215 was ready led to a parallel stopgap on the Centurion hull: Heavy Gun Tank Number 1, FV4005. The requirement for FV4005 was issued in November 1950 and was to be fulfilled in two stages. Sources

Stage I was experimental only. It used an open mounting on the Centurion turret ring to test whether the hull could act as a firing platform and to address heavy-ammunition handling. Stage II was intended to be closer to a service vehicle, with a fully enclosed turret and manual two-loader ammunition handling. The Tank Museum records that one Stage I and two Stage II turrets were ordered from Vickers for fitting to three Centurion Mark 3 hulls supplied by the Army. Sources

Trials centered on firing stability, recoil systems, and ammunition handling. Stage I used a concentric recoil system and a load-assist arrangement; Stage II removed the load-assist, used conventional hydropneumatic recoil cylinders above the gun, and added a second loader. Stage II firing trials in 1955 reportedly fired 150 rounds with satisfactory overall functioning, while retaining firing-arc restrictions. Sources

The project ended in August 1957, along with FV215. The stated reasons were not simply that the gun was too large: the ammunition was large and slow to load, the practical accuracy at maximum range suffered, the vehicle could carry very few rounds, and missiles appeared to offer more accurate long-range anti-armor fire from smaller platforms. Sources

After cancellation, the three Centurion hulls were returned to the Army and the turrets went to experimental establishments. The Tank Museum’s Stage II turret arrived in 1970 from the Royal Military College of Science, was mounted on a representative Centurion Mark 12 hull in 2007, and later was cosmetically restored and reunited with a Centurion Mark 3 hull. Sources

Design and performance

FV4005 used a Centurion hull with the 183 mm L4A1 gun mounted above the original turret ring. Stage II’s most recognizable feature was its huge slab-sided turret, which gave the vehicle a very high silhouette and concentrated the fighting compartment around ammunition handling and recoil space rather than around armor protection. Sources

The original trial installations used Centurion Mark 3 hulls supplied by the Army. The later museum display vehicle was for many years a Stage II turret on a representative Mark 12 hull; the recent restoration reunited the turret with a correct Centurion Mark 3 hull. No source consulted indicates major hull redesign beyond the recoil spade, gun crutch, and fittings required for the 183 mm system. Sources

Stage I used an open experimental mounting rather than a service turret. Stage II used a fully enclosed turret shell, but The Tank Museum specifies only 14 mm of shell protection, making it a splinter/small-arms enclosure rather than a true heavy tank turret. Sources

Protection was fundamentally uneven. The Stage II turret shell was only 14 mm, so the vehicle’s crew compartment was vulnerable to heavy machine-gun fire, autocannon, artillery fragments, and any tank gun. This was acceptable only if FV4005 fought as a distant overwatch weapon, not as a front-line tank. Sources

The main armament was the 183 mm L4A1 gun firing HESH ammunition. The gun was designed to defeat or at least disrupt heavily armored targets at long range, with the HESH effect relying on explosive shock rather than a long-rod kinetic penetrator. The Tank Museum identifies the L4A1 as the largest gun fitted to a tank. Sources

The Tank Museum’s FV4005 collection page lists one.50 caliber M2 machine gun as the secondary weapon. Sources

The ammunition was separate-loading and exceptionally heavy. The projectile weighed 145 lb / 65.8 kg and was 29.75 in / 76 cm long; the case added 67.75 lb / 30.7 kg and 26.85 in / 68 cm. Stage II carried 12 rounds internally and used a rail/winch system on the engine deck for quick resupply from a truck parked behind the vehicle. Sources

Open sources consulted do not provide a full fire-control-system description. The key documented performance issue is practical accuracy at maximum range: the projectile’s size, velocity, and sensitivity to crosswinds undermined the long-range promise. The detailed sighting and rangefinding equipment remains uncertain. Sources

Specific optics and sight model designations are not securely documented in the sources in the cited record. FV4005 likely retained elements compatible with Centurion practice, but this cannot be asserted without an equipment list, drawing set, or firing-trial report. Sources

The powerpack was inherited from the Centurion hull; no consulted source documents a unique FV4005 engine conversion. The Tank Museum’s Centurion page supplies the broader Centurion context and notes that its listed vehicle statistics relate to the Mark 3, but a dedicated FV4005 powertrain source remains desirable. Sources

The suspension was the Centurion hull’s system. FV4005’s unique dynamic problem was not ordinary cross-country mobility but the recoil load of the 183 mm gun; both stages used a recoil spade on the lower rear and a front gun crutch to support the barrel in travel. Sources

Mobility was adequate only in the sense that Centurion could carry the weapon; the vehicle’s high silhouette and firing preparation requirements were tactical liabilities. Sources

The crew is listed as five. Stage II added a second loader because the load-assist system of Stage I was removed. Each loader handled one part of the ammunition, making sustained fire physically demanding. The rate of fire is given as only two rounds per minute. Sources

No unique FV4005 radio fit was located in the open sources used here. For narrative work, describe it only as a prototype on a Centurion hull unless a War Office equipment schedule or museum file confirms a particular wireless installation. Sources

No smoke dischargers, night-fighting suite, NBC system, active protection, or specialized protection package is documented in the sources used. The vehicle is described as an early-1950s gun test/prototype rather than as a mature operational platform. Sources

Stage I’s concentric recoil system suffered faults in firing trials, while Stage II’s conventional hydropneumatic recoil cylinders were more reliable. The overall system still imposed very heavy ammunition handling and external resupply needs. Sources

Known weaknesses include limited ammunition stowage, low rate of fire, restricted safe firing arc despite full traverse, thin turret protection, high silhouette, practical accuracy problems at maximum range, recoil stresses, and rapid obsolescence as anti-tank guided missiles matured. Sources

The Tank Museum lists FV4005 at 50.8 tonnes and gives speed figures of 31.6 km/h and 21.5 mph. Those two speeds are not exact equivalents, leaving a discrepancy in the published specification. Sources

Production, operators, and combat record

FV4005 never entered production. It was a prototype and limited turret/hull test program ordered around a specific weapon requirement rather than a manufacturing program. The most important industrial actor named in the available well-documented narrative is Vickers, which The Tank Museum identifies as the firm ordered to supply one Stage I and two Stage II turrets. Sources

The industrial logic was expediency. Instead of waiting for a purpose-designed 183 mm carrier, Britain could theoretically adapt existing Centurion hull production and field a heavy gun faster. That logic is also why the design remained compromised: the hull was not created around the L4A1 gun, ammunition, or recoil loads. Sources

Production bottlenecks, if production had proceeded, would likely have included turret fabrication, recoil equipment, ammunition production and handling gear, hull modification, gun crutch and rear-spade fabrication, and crew training for the separate-loading ammunition. These are reasoned inferences from the design; no monthly production plan or unit-cost figure was located in the sources in the cited record. Sources

The later restoration had its own industry story. The Tank Museum’s FV4005 restoration campaign involved World of Tanks sponsorship, fundraising, and A W Hewes work to conserve and cosmetically restore the turret, purchase/prepare a correct Centurion Mark 3 chassis, and fabricate missing unique fittings from original drawings. Sources

Original operator/use: British Army and Ministry of Supply trial use only. FV4005 was not issued to armored regiments, did not serve in operational units, and was not exported. Sources

After cancellation, the hulls returned to the Army and the turrets went to experimental establishments. The Tank Museum’s Stage II turret came to Bovington in 1970 from the Royal Military College of Science. This is a custody history, not an operational-service history. Sources

In museum life, the vehicle had three visible phases: turret storage/display after 1970, gate-guard/display mounting on a representative Centurion Mark 12 hull from roughly 2007/2008, and the recent restoration to a correct Centurion Mark 3 hull and running order for public events. Sources

FV4005 had no combat history. It was a prototype and trials vehicle; it was cancelled before series production and before operational issue. Therefore, claims about battlefield performance is described as hypothetical or based on game portrayals unless clearly grounded in trial reports. Sources

The best evidence for tactical strengths and weaknesses comes from design and trial data rather than battle reports. Strengths included enormous HESH effect, long intended engagement range, and use of an available Centurion hull. Weaknesses included low ammunition capacity, low rate of fire, restricted safe firing arc under recoil, limited turret protection, accuracy degradation at maximum range, and logistical dependence on external resupply. Sources

Enemy assessments were not located in the open sources used here. Any Soviet or Warsaw Pact intelligence assessment of FV4005 would likely be found in archival material rather than standard museum summaries. This is a meaningful an unresolved question for a book-length Cold War armor narrative. Sources

Myth versus evidence: FV4005’s popular image as a battlefield “delete button” largely comes from video-game culture and from the spectacle of the vehicle itself. Historical evidence supports enormous firepower, but it also supports the Army’s conclusion that the gun vehicle was too slow-firing, too inaccurate at the intended maximum range, and too vulnerable/awkward compared with missiles. Sources

Legacy and historical evidence

Overall battlefield value: FV4005 would have been dangerous in a narrow ambush/overwatch scenario but fragile and inefficient in sustained armored combat. Conqueror and Centurion were real unit equipment; Malkara pointed toward the missile era; FV4005 remained an engineering experiment with high narrative value and low practical adoption value. Sources

FV4005’s design legacy is mostly cautionary. It demonstrated that simply scaling up gun caliber could solve one part of the anti-tank problem while creating other problems: giant ammunition, low rate of fire, recoil management, accuracy at long range, and unacceptable exposure of a large turret. Sources

Doctrinally, its cancellation tracks the broader shift from gun-based long-range tank destroyers to guided missiles. The Tank Museum explicitly links FV4005’s cancellation to missiles; IWM and DSTG records show Malkara as a UK-Australian anti-tank guided weapon intended to defeat Soviet Bloc armor from a vehicle-mounted launcher. Sources

As a surviving vehicle, FV4005 has an unusually strong modern public profile. The Tank Museum links renewed public interest partly to video-game visibility, while the 2023-2024 restoration turned the once-static gate-guard oddity into a running museum attraction. Sources

Common misconceptions include: that FV4005 was a production tank; that it saw combat; that the surviving restored assembly is the original trial vehicle exactly as tested; that “Centaur” is its official name; and that video-game accuracy, reload, or damage statistics are historical performance data. Sources

Museum descriptions document FV4005’s broad development and preservation. Detailed trial results, optical equipment, drawings, and powertrain changes are not fully reproduced in the cited public accounts. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

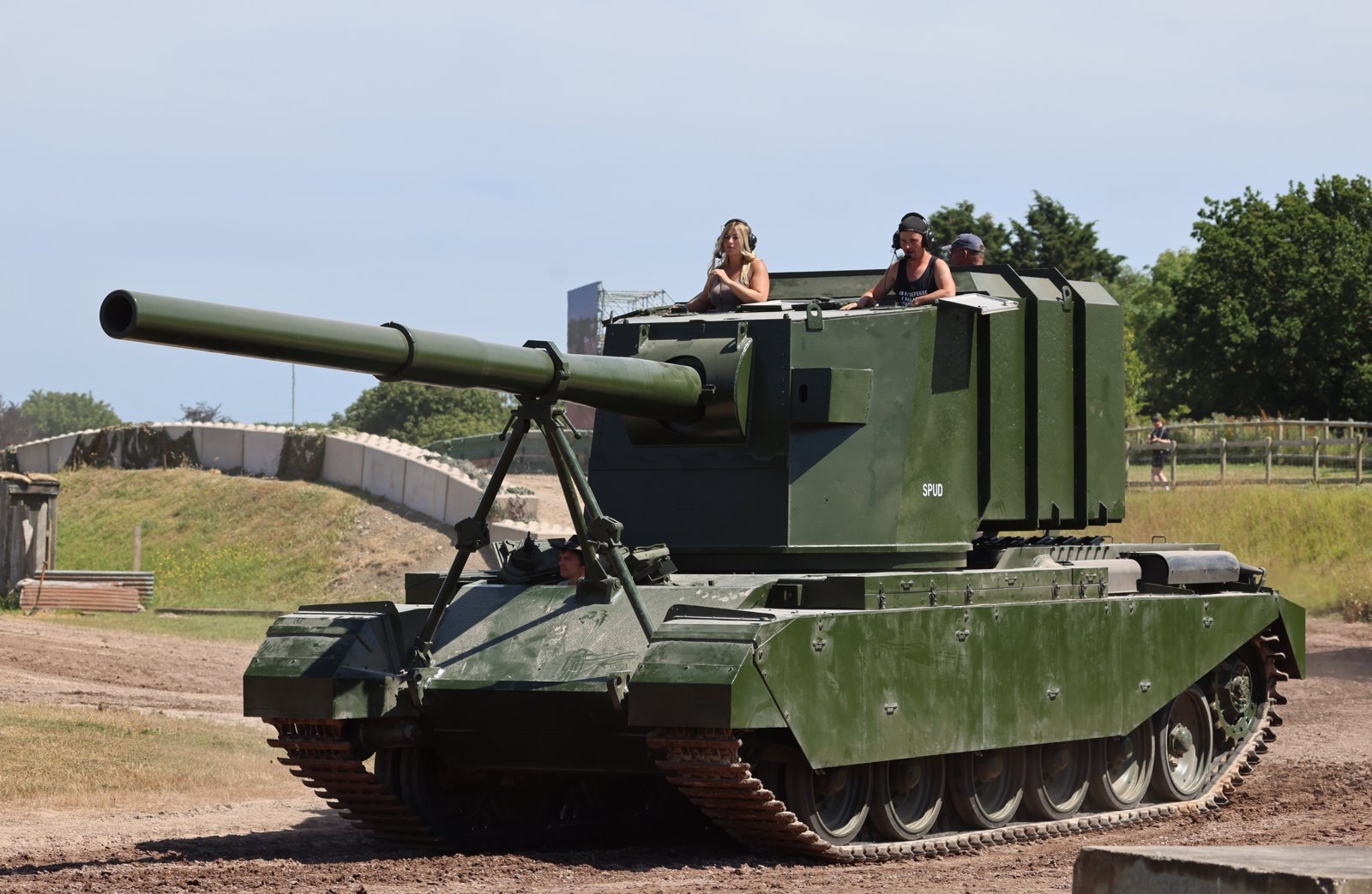

Restored FV4005 at TANKFEST 2024, June 2024. FV4005 Stage II turret on Centurion Mark III hull after restoration. The Tank Museum / TANKFEST, Bovington, Dorset, UK. restored public-running/display configuration, not a combat-service photograph. [IMG3].Geni; CC BY-SA 4.0.
