Fiat 2000

Overview and historical setting

The Fiat 2000 was an Italian heavy-tank project that produced two large experimental vehicles rather than a wartime operational fleet. Its origins lay in the search for protected tracked firepower during the First World War. Accounts emphasize its substantial gun, multiple machine-gun positions and a layout that separated the engine space from much of the crew compartment. Those features distinguish it from the smaller Renault-derived Fiat 3000 that followed a different path. Sources

The familiar appearance is a tall armored body beneath a domed turret. The cited accounts do not firmly establish the earliest design and prototype stages. The family cannot be reduced to one photograph of the later configuration. Conversely, different photographs, changing turrets and later display arrangements do not establish more than the two completed historical machines recorded in the available evidence. Sources

Design, construction and trials

The development chronology remains more detailed than a single introduction date. The account mentions earlier official interest, sustained design work during 1916–1917, presentation of the project in early 1917, and an incomplete vehicle undergoing trials in June. It associates the design with Carlo Cavalli and Giulio Cesare Cappa. Completion and further work extended into 1918. Sources

This chronology does not give the Fiat 2000 a First World War combat record. The available evidence distinguishes demonstrations, testing and intended wartime use from action against an enemy. Film and photographs can document movement and appearance, but their existence does not prove a battle deployment. Sources

The project also faced a mismatch between impressive individual size and the requirements of a deployable force. Terrain, railway movement, production cost and support all mattered. The account contrasts the heavy experimental vehicles with Italy’s interest in smaller French-derived tanks. That contrast explains a procurement choice; it cannot establish a claim that every feature of the Fiat 2000 directly shaped a later Italian tank. Sources

Hull and internal arrangement

The engine and much of the mechanical installation occupied a lower space, beneath the principal crew area. This was an important organizational feature of the design, giving the crew a different relationship to the machinery than in vehicles where engines and fighting stations shared an undivided compartment. Separation does not demonstrate complete protection from noise, heat or every mechanical hazard, however; The available evidence does not establish such a result. Sources

The large hull used sloping surfaces and protective side structures around its running gear. Unlike the British rhomboid arrangement, the tracks remained beneath much of the body rather than climbing around its entire outline. The tall silhouette and heavy structure affected visibility, transport and maneuver, as well as the space available to the crew. Sources

The turret’s changing appearance is a matter for a dated image sequence. The available evidence distinguishes an earlier, flatter arrangement from the better-known domed turret. Armor figures, commonly around 15–20 mm in the cited sources, likewise need their plate locations preserved rather than being presented as uniform all-around thickness. Sources

Guns, crew and fighting positions

The best-supported main-armament account in the cited sources is a 65 mm gun. Seven 6.5 mm Fiat-Revelli machine guns are commonly described, arranged to cover several directions around the hull. An eighth aperture or possible firing position does not necessarily mean an eighth machine gun was carried as standard. Sources

A large crew was necessary to operate these positions. The available evidence commonly records ten, while some accounts or images are associated with eight. The difference is not resolved simply by inventing a distinction between demonstration crew and wartime establishment. An establishment, test report or dated equipment record is needed to determine the intended complement for each configuration. Sources

Ammunition capacity, detailed sight fittings and the complete internal communications arrangement are not firmly established. Later reported gun changes, especially the 1934 modification, belong to a separate configuration discussion. Sources

Mobility and support requirements

A six-cylinder Fiat A12 petrol engine of aircraft origin is associated with the vehicle, commonly rated at about 250 horsepower. It powered a tank weighing approximately 38.8–40 tonnes. The account quotes a road speed around 7.5 kilometres per hour and a range near 75 kilometres under favorable assumptions. Those figures describe source-reported capability, not the average progress of a tank unit over difficult terrain. Sources

The design required substantial fuel, handling and maintenance support. Its weight and dimensions complicated movement beyond the test ground, while the running gear’s performance depended on terrain. A tank that could overcome a demonstration obstacle might still be difficult to transport, supply or recover during a campaign. Sources

The available evidence does not justify an undifferentiated story of constant mechanical failure. Some descriptions credit its mechanical qualities, but there is no complete operational dataset to establish a reliable fleet-wide measure. The useful assessment is therefore specific: separate power, weight, speed, obstacle demonstrations and logistical burdens, and resist using either a successful demonstration or an adverse anecdote as the whole design’s verdict. Sources

Postwar employment and uncertain individual histories

The account connects the Fiat 2000 with Italy’s early tank organization after the war and with public demonstrations in Rome in early April 1919. Exact demonstration dates and the relationship between the two vehicles remain points for checking. A reported establishment combining Fiat 2000 and Renault FT machines is evidence for organizational experimentation, not proof that every authorized vehicle was present on every occasion. Sources

Libya appears in the subsequent history, but the number of Fiat 2000s sent, the timing of their movements and the exact character of their employment are not completely settled by the account. The experience nevertheless belongs in the vehicle’s history and cannot be omitted merely because it falls after the Armistice. Sources

A later modification is associated with 1934 and the replacement of forward machine-gun positions by small cannon. The source package retains uncertainty over caliber and precise configuration. Reported mid-1930s appearances and final disposal are less securely documented. Until that trail is secure, a claimed display date is not established as a confirmed scrapping date. Sources

Preservation, reconstruction and interpretation

The accounts distinguish the lost historical machines from a modern reconstructed Fiat 2000. The replica is valuable because it allows the overall form and scale to be represented in clear color photographs. It is not a surviving First World War vehicle, and its construction choices is not established as independent evidence for every original fitting. Sources

Historical photographs and sectional drawings remain central to the technical story. Their limited resolution may prevent confident identification of small features. For the present article, the prepared gallery keeps period views, a diagram and replica photographs in separate roles. This provides visual depth without manufacturing an appearance of certainty that the underlying research does not support. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

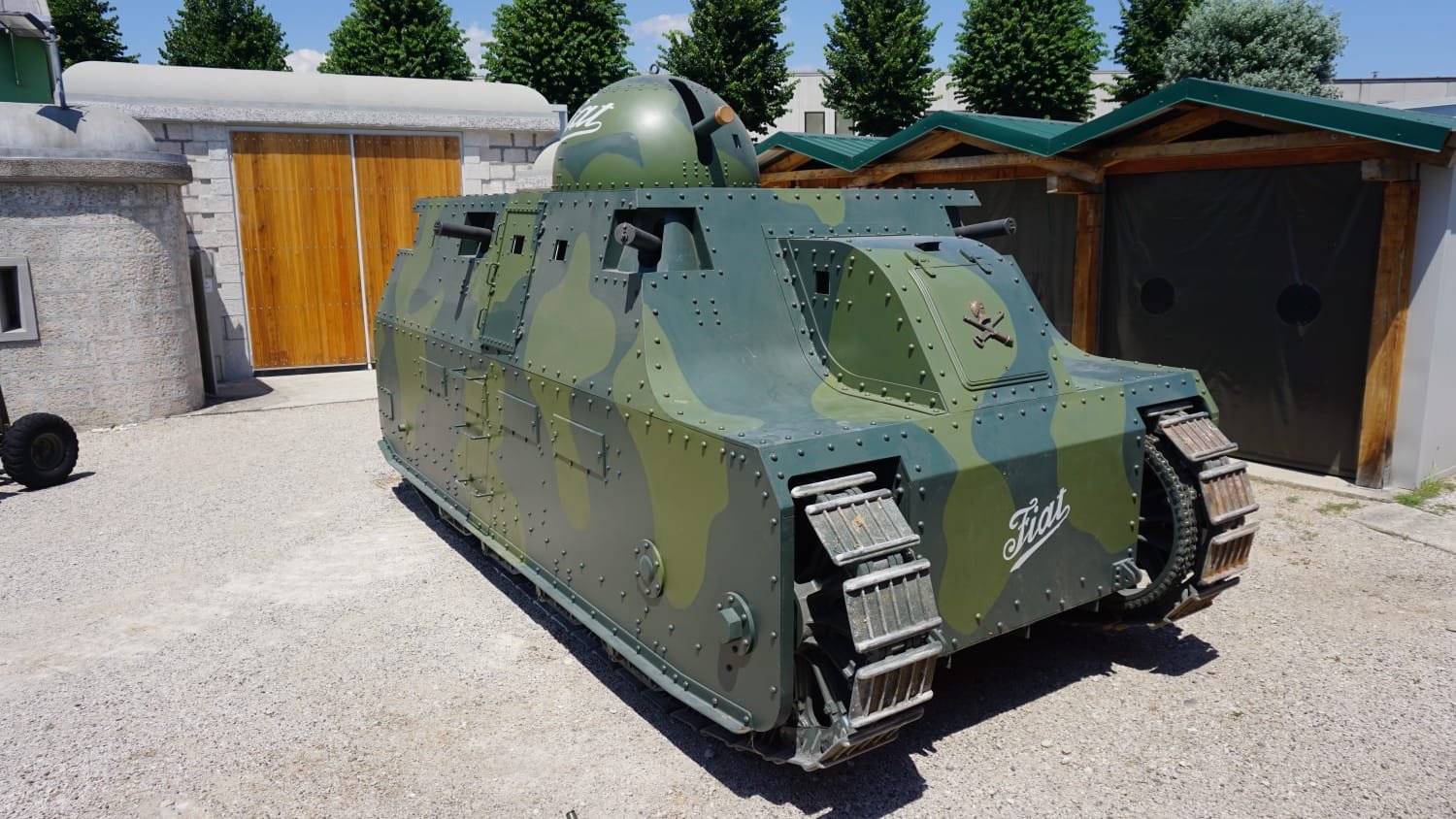

Full-size modern Fiat 2000 replica at Montecchio Maggiore in 2021; it is an interpretive reconstruction, not an original survivor.Mauri747 / CC BY-SA 4.0.Image source·CC BY-SA 4.0

Alternate view of the full-size modern Fiat 2000 replica at Montecchio Maggiore in 2021; historical fidelity remains bounded by the reconstruction record. — Alternate view of the full-size modern Fiat 2000 replica at Montecchio Maggiore in 2021; its reconstructed details are not all authenticated.Mauri747 / CC BY-SA 4.0.Image source·CC BY-SA 4.0
