Cruiser Tank Mk III/IV A13 family

The early A13 cruisers introduced Christie suspension into British tank production and embodied the interwar emphasis on speed in the cruiser role.

Cruiser Mk IV tanks of 5th Royal Tank Regiment, 3rd Armoured Brigade, 1st Armoured Division on exercise at Thursley Common, Surrey, July 1940.Lt Malindine / Imperial War Museums H 2483; UK Government public-domain status.Image source

Speed as a design priority

The early A13 cruisers introduced Christie suspension into British tank production and embodied the interwar emphasis on speed in the cruiser role. The account groups the Cruiser Mk III, Mk IV and Mk IVA because they formed a closely related development sequence. Their task was not identical to that of the slower infantry tanks designed to support a methodical assault. Sources

The names can be misleading without a clear boundary. Cruiser Mk III corresponds to A13 Mk I, while Cruiser Mk IV and IVA correspond to later A13 marks within this early family. The A13 Mk III designation belongs to Covenanter, a separate design family despite the reused project number. Crusader likewise belongs elsewhere. Published accounts describe those distinctions so that a reader does not mistake every A13-labelled tank for a variant of the same production vehicle. The early cruisers combined a useful antitank gun and a relatively favourable crew arrangement with light protection and an evolving mechanical system. Sources

From Christie influence to British production

British development drew on Christie’s ideas through imported examples and domestic experimentation, with Nuffield playing a leading industrial role. The production tank used the suspension concept without retaining a wheel-running service mode. Large road wheels therefore do not establish that these British cruisers operated like convertible Soviet BT tanks or the Polish 10TP. Sources

The Mk III provided the initial production configuration. The Mk IV added protection, notably around the turret, while the IVA incorporated the Besa machine gun in place of the earlier Vickers arrangement. These changes require attention to the vehicle and date being described rather than a generic family image. The references identify sixty-five Mk IIIs as the firmest narrow production figure, while larger totals for the IV/IVA and combined family differ between sources. Contracts, completed tanks, rebuilds, and different family definitions describe different quantities. Sources

A four-man tank with uneven protection

The layout placed the driver forward, three crew members in the turret and the engine and transmission at the rear. A three-man turret could distribute command, aiming and loading more effectively than a cramped two-man arrangement, although it did not make observation, communications and fighting effortless under campaign conditions. Sources

The main weapon was the 2-pounder, a 40 mm antitank gun. Accounts emphasize its useful early-war performance against armour, while also flagging the practical limitations surrounding high-explosive ammunition. That issue is reported in terms of availability and tactical use, not simplified into a claim that no such shell could exist. Protection varied by mark and by plate. The Mk III’s light armour and the Mk IV’s thicker local arrangements cannot be combined into one universal thickness. Machine-gun type, ammunition stowage and sighting equipment similarly remain uncertain. A restored tank carrying added turret armour cannot, by itself, define the original production standard of every Mk III. Sources

High speed still required mechanical support

The Nuffield Liberty petrol engine and Christie-type suspension gave the family its characteristic mobility potential. The source describes a nominal output around 340 horsepower, a four-speed forward transmission and tracked running. Quoted maximum speeds vary because ungoverned or theoretical capability and the governed service figure answer different questions. Sources

Range and road performance also differ from what a unit could sustain across damaged roads or desert terrain. Cooling, maintenance, wear, fuel supply and recovery capacity all shaped practical readiness. A breakdown that led to abandonment during a retreat may have had a different immediate cause from a tank knocked out by gunfire, even if both disappeared from a unit’s available strength. Radio fit likewise changed with time and cannot be assigned from a generic family specification. The published mechanical discussion is therefore essential to understanding the vehicle: speed was an important characteristic, but operational mobility depended on a system of crews, spares and support as well as the tank itself. Sources

France, the desert and later secondary use

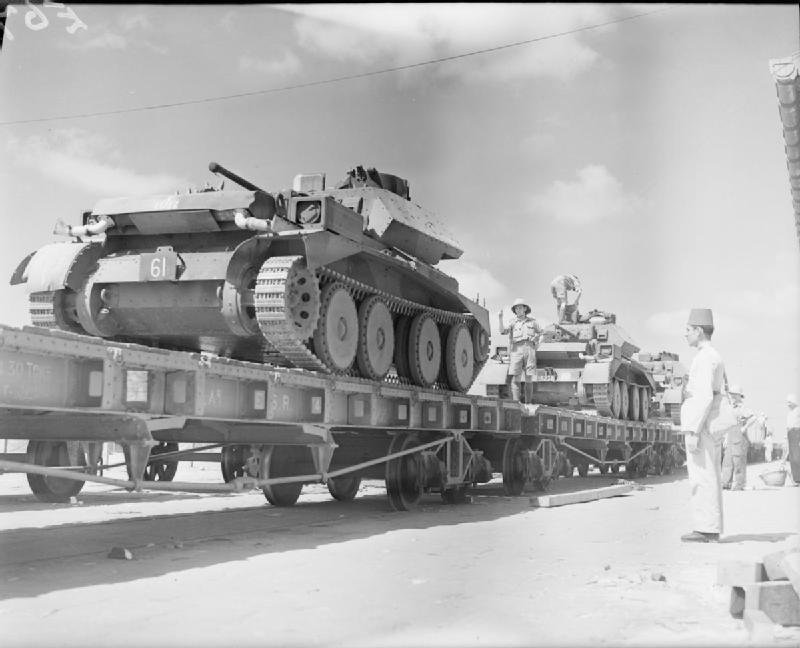

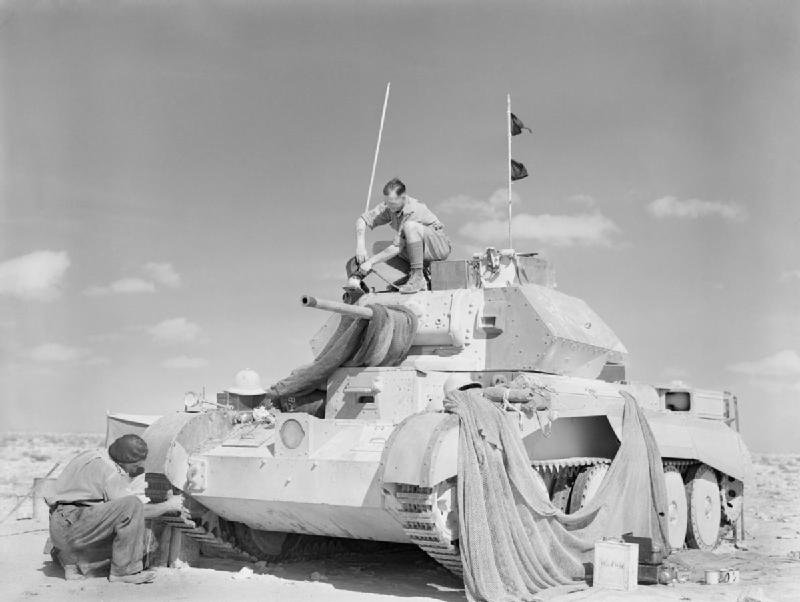

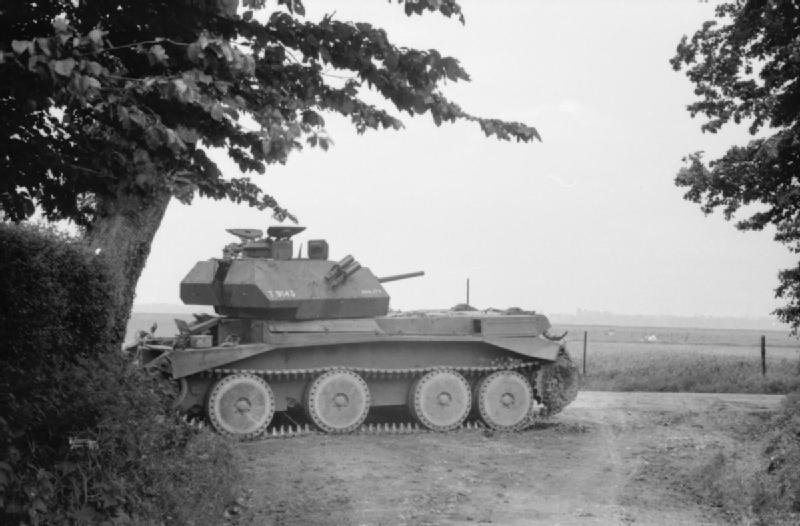

The family saw wartime service in France and North Africa, with further employment associated with Greece and Cyprus in the source description. In France, rapid movement, limited preparation and the difficulty of recovering disabled vehicles shaped the results alongside enemy action. The desert campaigns demonstrated the value of cruiser mobility while placing equally severe demands on mechanical endurance and logistical support. Sources

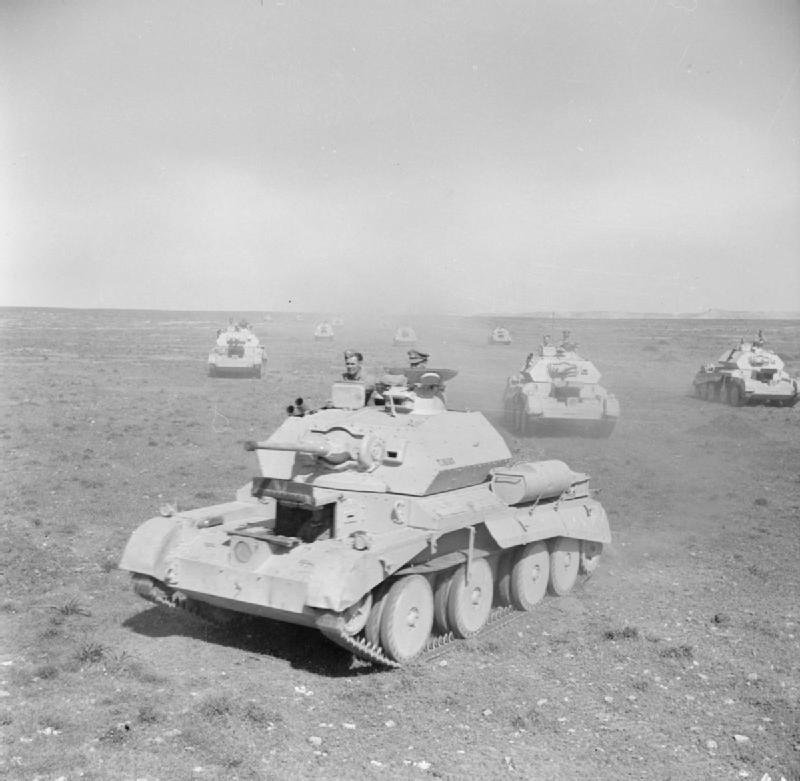

Campaign references remain precise. Participation by a formation does not mean that every tank in it was the same A13 mark, and a battle associated with cruiser tanks cannot automatically be assigned to every subtype. The account connects the family with the early desert operations. Withdrawal from principal frontline duties by the later part of 1941 also does not imply the instantaneous disappearance of every tank. Training and secondary employment could continue. A dated Cyprus exercise photograph belongs to that later context, not proof that the entire family remained a standard frontline type everywhere. Sources

A development bridge, not a single settled specification

The early A13 cruisers occupy an important place between Britain’s earlier cruiser designs and the better-known wartime developments that followed. They demonstrate both the attraction of high speed and the difficulty of balancing mobility, protection, armament and reliability under pressure. Their history is clearer when those trade-offs are explained by mark and campaign rather than compressed into a favourable or unfavourable verdict on the whole family. Sources

Museums and wartime photographs provide valuable evidence, but they do not remove the counting and configuration problems. An experimental armour modification, a modern representative paint scheme and a photographed service tank are different kinds of evidence. Sources

Background reading and references. Each photograph has its own source and credit.

Sources and further reading

Background reading and references. Each photograph has its own source and credit.

  1. Queen’s Royal Hussars Museum — “A13 Cruiser.” — Accessed 2026-06-01
  2. Tank Encyclopedia — “A.13 Mk.I, Cruiser Mk.III.” — Accessed 2026-06-01
  3. Quartermaster Section — “Cruiser Tank Mk IV (A13) Mk II.” — Accessed 2026-06-01
  4. Armor Archives — Yuri Pasholok, “Cruiser IV: A Bit More Armour.” — Accessed 2026-06-01
  5. The Tank Museum — “Crusader III.” — Accessed 2026-06-01
  6. The Tank Museum — “A History of the Royal Tank Regiment.” — Accessed 2026-06-01
  7. Tank and AFV News / Tank Museum Tank Chats listing — “Tank Chats #1 A13 Cruiser.” — Accessed 2026-06-01
  8. Wikimedia Commons / Simon Q image — “Tank Cruiser Mark III A13.” — Accessed 2026-06-01
