Historical overview
The CM-12 was a Taiwanese Patton-family main battle tank upgrade, built around existing M48-series hulls and a turret/fire-control package closely related to the Brave Tiger. The program fitted a 105 mm M68A1 rifled gun, two-axis stabilization, a digital ballistic computer, laser rangefinder, and thermal-imaging capability to an old M48-family chassis. The upgrade turned a first-generation Cold War Patton into a late-Cold-War defensive bridge tank. Sources
The vehicle mattered because it illustrates Taiwan's armored-force problem in miniature: modern threats, limited access to new tanks, a mature but aging American Patton supply base, and a domestic defense industry that could integrate imported subsystems but could not yet field an all-new indigenous tank. The did not make Taiwan's armored force modern by global standards, but it extended the useful life of legacy vehicles and gave selected units a fire-control improvement beyond the baseline M48A3. Sources
The most important relationship is not a separate variant tree but the CM-11 / CM-12 pair. The CM-11 used an M60A3 hull, modified M48 turret, 105 mm gun, and modern fire-control system; the CM-12 applied a similar turret/fire-control approach to M48-family hulls. The CM-12 was thus the lower-performance, more elderly sibling of the CM-11, with a shorter cruising range and less attractive upgrade potential. Sources
Two disputes dominate the record. First, the conversion quantity is not fully settled: recent CNA reporting based on an Army reply states that 100 CM-12s were completed by 1993, whereas a 2017 Ministry of National Defense journal article states that 250 M48A3s were upgraded and named. Second, several sources describe the hulls as M48A3, while a detailed Taiwanese Army armor article states that the local hulls were originally M48A1 bodies converted with diesel engines, not factory-built U.S. M48A3 hulls. Published accounts describe 100 as the best-supported operational count for current project purposes, while preserving the 250-vehicle claim as a source conflict. Sources
The CM-12 was a useful but temporary Taiwanese adaptation. It improved sensors, gun control, and training value, but it could not solve the fundamental weaknesses of Patton-era cast armor, aging hulls, limited fuel capacity, and constrained upgrade headroom. Its retirement and cannibalization for parts by the mid-2020s was therefore a rational outcome rather than a sudden loss of a viable modern tank. Sources
Taiwan's post-1970s armored modernization unfolded under a distinctive strategic and procurement problem. The Republic of China Army had to prepare for island defense against a People's Liberation Army that was improving amphibious and armored capabilities, yet Taiwan's ability to buy the most modern foreign tanks was politically constrained. Taiwanese defense literature of the 2010s repeatedly described the existing,, and M60A3 fleet as M48/M60-family tanks that had served for decades and were increasingly strained by aging hulls and disappearing parts sources. Sources
The operational setting was defensive. Taiwan's armored units were expected to contribute to counter-landing, mobile counterattack, and protection of key terrain rather than to execute deep continental armored thrusts. Taiwanese Army studies emphasized that PLA amphibious armor and later-generation main battle tanks posed an increasingly severe challenge, especially in firepower and protection. The same literature argued that Taiwan needed tanks with better firepower, sensors, mobility, command links, and protection, but also recognized cost and procurement constraints. Sources
The Brave Tiger program provided the direct technological context. A 2017 Ministry of National Defense journal article states that Taiwan's Armaments/Armored Vehicle Development Center, in cooperation with General Dynamics, developed a second-generation domestic tank concept using purchased equipment; two prototypes were sent to the United States in 1988 for testing. The combined an M60A3 chassis with an M48 turret and integrated a 105 mm M68A1 gun, two-axis stabilization, digital ballistic computer, laser rangefinder, and thermal imager. Sources
The CM-12 was the cheaper follow-on application of that concept to old M48-family vehicles. Instead of buying or building a new hull, Taiwan upgraded M48A3/M48A1-derived tanks to near-CM-11 fire-control and armament standards. The result was a fleet that looked superficially similar to an M48A5 but had a different origin, different subsystem mix, and a substantially different operational rationale. Sources
Development and variants
Published accounts describe the as a discrete upgrade family rather than as the full M48 Patton family. It includes the M48 lineage where necessary to understand the hull, automotive baseline, armament, and protection, but it does not attempt to replace a complete M48/M48A5 account. It also covers relationships because the shared the turret/fire-control logic and is often explained through the program. Sources
Included: design origin, relationship, M48A3/M48A1-derived hull issue, known fire-control and armament package, production/conversion disputes, operator status, retirement, and photo documentation. Sources
Excluded except by comparison: full M48 Patton family, full Brave Tiger production history, M60A3 TTS modernization program, and Taiwan's M1A2T Abrams program. Sources
Related vehicles often confused with it: Brave Tiger/M48H, M48A5, M48A3 Taiwan local diesel conversions, M60A3 TTS, and M41D. Sources
The vehicle identity is clear, but hull provenance and production quantity remain disputed. Sources
The vehicle carried a tank gun, turret, tracked chassis, and four-person crew, but its technical novelty was systems integration, not new vehicle architecture. Sources
The cannot be separated from Taiwan's production and systems-integration effort. Published accounts describe the family as TW-, a Taiwan/United States Cold War main battle tank upgrade, with development/start listed as the 1980s and a production/conversion period into the 1990s. Its account identifies the vehicle as a modernization of the M48A3 and notes that the exact number built or converted remains uncertain. Sources
The core package was already defined by the late 1980s: a 105 mm M68A1 gun, two-dimensional stabilization, digital ballistic computer, laser rangefinder, and thermal-imaging fire-control system. The 2017 MND article states that this made the Republic of China Army's first tank with fire-on-the-move and night-fighting capability. It then states that M48A3 tanks were upgraded in the same pattern, fitted with a -like turret and fire-control system, and named. Sources
The exact conversion count is the main unresolved development-history problem. CNA's May 2025 article, citing the Army's reply, says that 100 extra fire-control-system sets from the production program were integrated with 105 mm rifled guns and used to convert M48A3 tanks, completed by 1993 and named. The same number appears in another 2017 MND article that discusses life-cycle limits: it states that numbered 100 and reached the end of its service life in Minguo 111, or 2022. However, a different 2017 MND journal article says 250 M48A3s were upgraded and named. Sources
The account resolves this by using 100 as the best-supported operational count, because it is repeated in both a 2025 Army-reply news report and a 2017 MND article on fleet life limits. The 250 figure is preserved as a serious source conflict because it appears in a Taiwanese defense journal article and may reflect a planned quantity, broader M48A3 modernization population, or an authorial data error. Sources
The second unresolved issue is hull identity. Many sources call the vehicle an M48A3 modernization. A detailed Taiwanese Army armor article, however, states that the hull was originally an M48A1 body converted with a diesel engine and was not a U.S.-factory M48A3. That hull history helps explain why the vehicle had poor range and limited upgrade value compared with later M48A5-series tanks. Sources
Design and performance

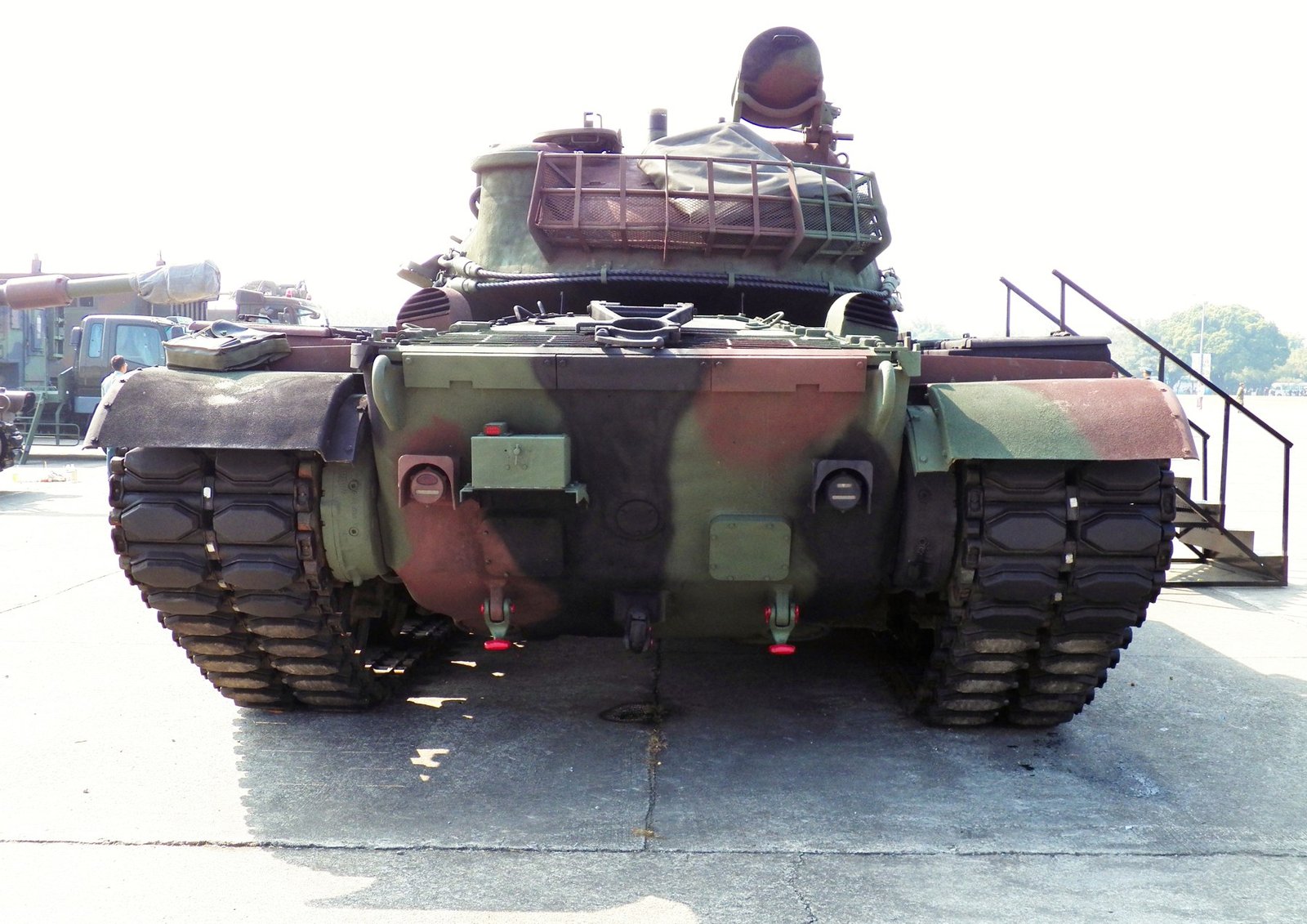

The retained the conventional Patton-series layout: driver in the front hull, turret fighting compartment in the center, and engine/transmission in the rear. Crew was four: commander, gunner, loader, and driver. The elimination of the old bow machine-gunner position was already a defining feature of the M48 lineage. Sources
The hull was an M48-family cast/welded structure. Public reporting often calls it an M48A3, but Taiwanese armor literature notes that Taiwan's hulls were originally M48A1 bodies converted with diesel engines, not U.S.-factory M48A3 hulls. For project consistency, Published accounts describe "M48A3/M48A1-derived" where precision matters. Sources

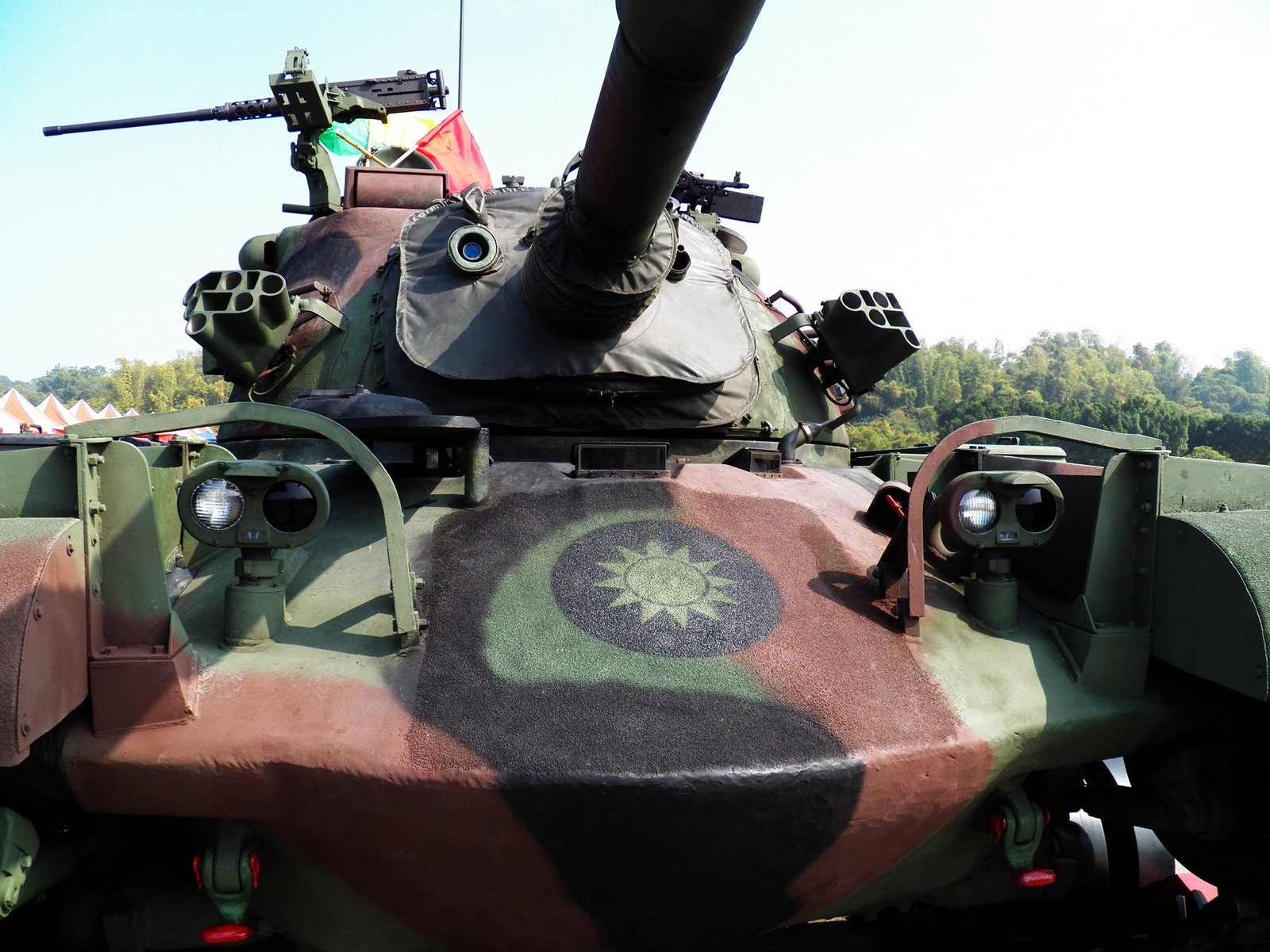

The turret was a modified M48/-pattern turret. A 2017 MND article describes the turret as deleting the older commander's machine-gun cupola in favor of a lower-profile Israeli Urdan-style cupola with an M2HB machine gun; the is described as having the same turret and fire-control approach. Sources
Protection remained cast homogeneous armor rather than modern composite armor. A Taiwanese MND article on tank protection gives turret-front thickness as approximately 15 cm, gun shield/mantlet as 11 cm, and turret/hull side armor as 7.6 cm, while U.S. M48 references give broadly similar Patton-family cast armor figures. These numbers is described as approximate because the exact Taiwanese conversion configuration is not fully documented. Sources
The main armament was the 105 mm M68A1 rifled gun, a U.S. derivative of the British L7 family. This gun brought the into the same broad firepower class as M48A5, M60, M60A1/A3, and, but it remained outmatched by modern 120 mm and 125 mm smoothbore-armed tanks. Sources
The best-supported secondary armament was an M2HB.50-caliber machine gun for the commander and a 7.62 mm coaxial weapon, commonly described as M240 in / context. Some public sources also identify a loader's T74 7.62 mm machine gun. The exact service standard varied by fit and period, so published accounts describe secondary-gun details beyond M2HB/M240 as uncertain. Sources
The M68 gun could fire compatible NATO-family 105 mm ammunition, including kinetic-energy, HEAT, smoke, and training rounds where issued. Published ammunition capacities range from 54 to 60 rounds: 54 is commonly given for the M48A5 baseline, while other summaries give 60. The difference is not resolved in the cited accounts. Sources
Fire-control modernization was the 's strongest feature. The / package integrated two-axis gun stabilization, a digital ballistic computer, laser rangefinder, and thermal-imaging sighting, giving the vehicle fire-on-the-move and night-fighting capability far beyond a legacy M48A3. Sources
The available documentation supports thermal imaging and laser ranging as part of the -derived fire-control suite. Exact sight model names, commander/gunner channel details, and retrofit batches remain open questions because accessible official publications discuss capability rather than complete technical nomenclature. Sources
The powerpack was a Continental AVDS-1790 diesel family engine, described in Taiwanese literature as AVDS-1790-2CMRS and in public summaries as a 750 hp AVDS-1790-2C/2-series engine. The transmission was in the Allison CD-850 family in the M48A3/A5 lineage. Sources
The suspension remained torsion-bar Patton-family suspension with six road wheels per side. The system was familiar, rugged, and supportable, but by the 2010s Taiwanese sources emphasized aging hulls, disappearing parts sources, and life-expired structures. Sources
The vehicle retained Patton-family rubber-padded track arrangements. Some public accounts say the received newer tracks to reduce road wear, but the exact track model is not confirmed in the sources used here. Maximum road speed is usually given near 48 km/h. Sources
The four-person crew had a familiar Western manual-loader turret arrangement. The major ergonomic limitation was the inherited M48 turret volume. Taiwanese upgrade studies specifically identify / turret space as a constraint on larger-caliber gun upgrades. Sources
No reliable open source consulted provides a complete radio fit. The vehicle likely used Republic of China Army standard armored-vehicle communications for its period, but exact radio models cannot be inferred without manuals or unit records. Sources
No modern active protection system or composite armor package is documented for the CM-12. NBC/CBRN protection was limited by older systems, and Taiwanese MND literature argued that existing tank warning/control systems and collective-protection arrangements were aging and inadequate against newer agents. Sources
Reliability became the decisive weakness. Taiwanese analyses before 2025 described the hulls as elderly, range-limited, and poor candidates for improvement; 2025 reporting states that CM-12s had been sent for dismantlement and common parts recovery because combat value and maintenance cost no longer justified retention. Sources
Known weaknesses include old cast armor, inability to accept a major gun upgrade without severe redesign, short cruising range, aging M48-derived hulls, diminishing parts availability, and limited value against PLA 125 mm tank guns and modern anti-armor threats. Sources
Production, operators, and combat record
The CM-12 was produced by conversion rather than new manufacture. The key Taiwanese institution was the Armored Vehicle Development Center / Army Ordnance Maintenance and Development Center lineage, the same domestic armor-industrial structure associated with the CM-11. The program included cooperation with General Dynamics, and the CM-12 drew on the CM-11 turret and fire-control package. Sources
CNA's 2025 account gives the clearest production narrative: extra fire-control-system sets procured during production were integrated with 105 mm rifled guns and installed on M48A3 tanks, with the conversion completed by 1993 and a total of 100 vehicles. Sources
The important industrial limitation was not the gun or fire-control system alone but the hull. Taiwanese sources argue that the hulls were old M48A1-derived bodies with diesel engine conversions and limited fuel capacity. That made them poorer candidates for deep modernization than the M60A3 fleet. Sources
Taiwan was the sole operator. The cited accounts groups / under a Taiwan operator record beginning in 1988 and treats the M60A3// lineage as a legacy modernized fleet that remained relevant until Abrams deliveries matured. Sources
The CM-12 served as part of the Republic of China Army's main tank inventory alongside the Brave Tiger and M60A3 TTS. It progressively lost priority as the CM-11 and M60A3 fleets provided better combat value and as Taiwan prepared to field M1A2T Abrams tanks. By May 2025, the Army told CNA that the CM-12 had been reviewed for retirement, sent to the Ordnance/maintenance center, and was being used for common-parts recovery. Sources
No documented combat use of the CM-12 was found. Its service history appears to have been domestic Republic of China Army training, exercises, display, and readiness duty. This distinguishes the CM-12 from the broader M48 Patton family, which saw extensive combat in Vietnam, the Arab-Israeli wars, South Asian conflicts, and other postwar service. Sources
In tactical employment, the would have been used as a defensive direct-fire platform. Its fire-control suite made it more credible at night and on the move than a legacy M48A3, but its armor and hull were not adequate against modern anti-armor threats. Taiwanese defense analyses placed //M60A3 performance in a broader concern that PLA 96/99-series tanks and amphibious assault vehicles were becoming more capable than Taiwan's legacy armored fleet. Sources

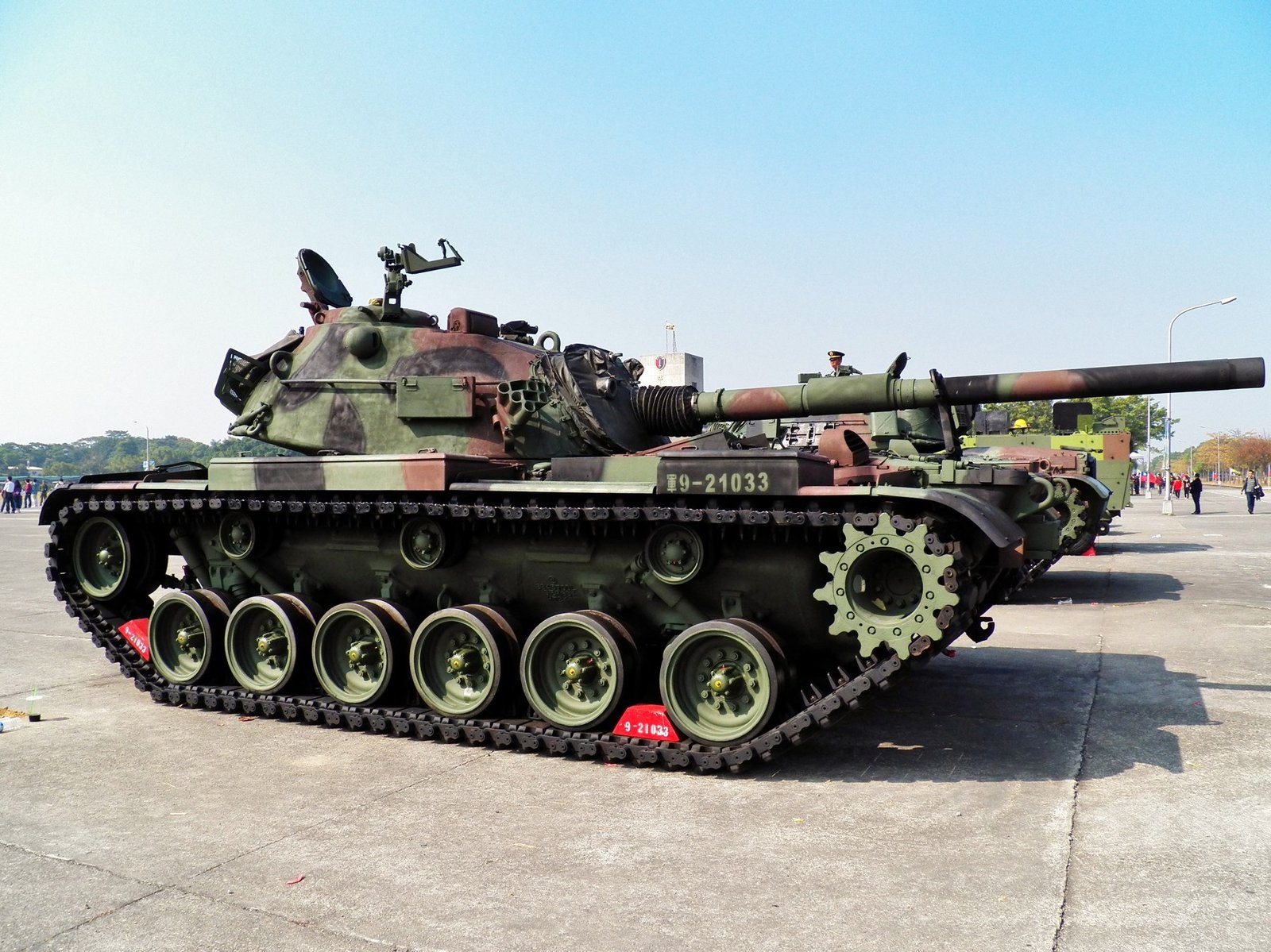

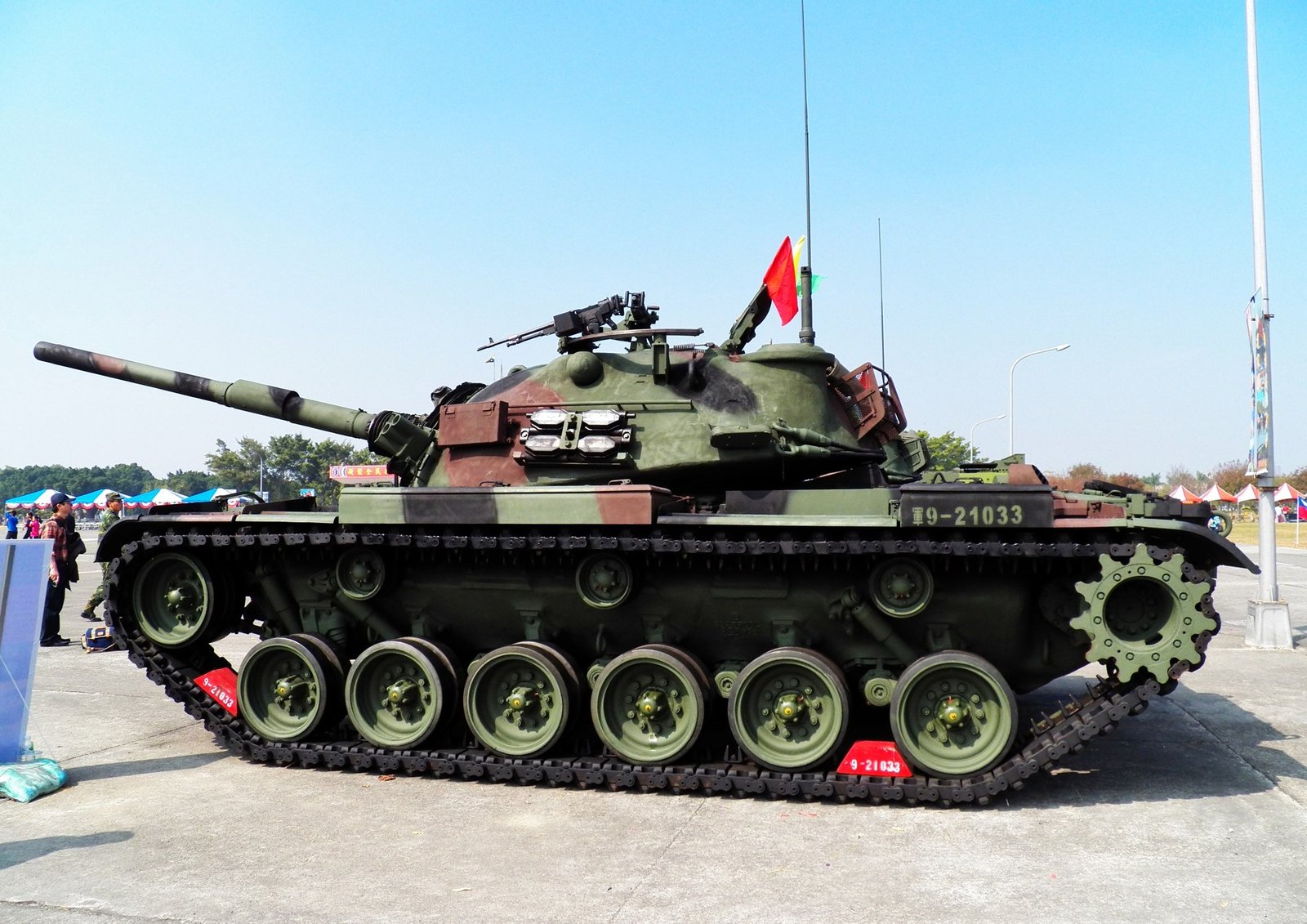

Crew experience in public sources is mostly indirect. The photographs from the 2012 ROCA Infantry School event show vehicles in public-display and post-event handling contexts rather than field operations. MND technical literature, however, emphasizes maintenance burden, hull age, limited range, and diminishing upgrade value, which suggests the vehicle became increasingly unattractive to units as a readiness asset. Sources
Legacy and historical evidence
The 's best feature was fire control. Its weakest features were armor, hull age, range, and upgrade headroom. Strategically, it was valuable because it kept more Taiwanese tank crews and units equipped during a period when political and procurement realities made rapid replacement difficult. It was not valuable because it matched modern Chinese or Western MBTs; it did not. Sources
The 's legacy is not technical influence on later tank design; it is procurement improvisation. It shows how a military can use surplus fire-control equipment, old hulls, and a domestic integration center to create an interim combat vehicle when the preferred solution--new modern tanks--is delayed or politically constrained. Sources
In Taiwanese armored history, the marks the lower end of the //M60A3 triad. As Taiwan acquired M1A2T Abrams tanks and emphasized unmanned systems, the became the obvious fleet to retire first. CNA and Liberty Times reporting in 2025 framed the retirement as part of a broader effort to remove equipment that no longer met operational needs or imposed excessive maintenance costs. Sources
Common misconceptions to avoid: the CM-12 was not simply a new-production Taiwanese tank; it was not a standard U.S. M48A5; and it was not the same vehicle as the Brave Tiger. The CM-11 was the more ambitious hybrid with an M60 hull, while the CM-12 was the more constrained Patton-hull conversion. Sources
Surviving vehicles likely include display or stored examples, but no authoritative survivor register was found. Wikimedia Commons photographs document at least one vehicle displayed at the ROCA Infantry School in 2012. Sources
The vehicle is well enough documented for identity, role, and retirement, but not for every technical detail. The best sources are Taiwanese MND/Army journal PDFs and the 2025 CNA article quoting the Army. The weakest sources are broad web summaries that repeat data without clear primary references. Wikipedia and similar pages were used only as discovery aids and image leads, not as final authority for disputed claims. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- [S1] Central News Agency (CNA), "CM12戰車汰除 陸軍：已全數後送兵整中心拆零納補," 24 May 2025.
- [S2] Lin Jun-an, "國軍現役主戰車構型研改規格規劃初探," Army Logistics Quarterly / ROC Ministry of National Defense PDF, February 2017.
- [S3] "國軍M60A3主戰車性能提升研改延壽之芻議," Army Academic Bimonthly / ROC Ministry of National Defense PDF, 2017.
- [S4] Wei Zong-zhi, "國軍現行主力戰車性能提升研析與評估," ROC Ministry of National Defense PDF.
- [S5] Chen Yuan-long, "就現今共軍化生放核威脅探究我國主力戰車防護力," ROC Ministry of National Defense PDF.
- [S6] AFV Database, "90mm Gun Tank M48 Patton."
- [S7] Federation of American Scientists, "M48 Patton," updated 7 August 1999.
- [S8] Army Historical Foundation, Dallas Looney, "The M48 Patton Main Battle Tank."
- [S9] Focus Taiwan / CNA, "Final batch of 28 M1A2T Abrams tanks delivered to Taiwan," 27 April 2026.
- [S10] Reuters, "Taiwan shows off new US tanks amid annual war games," 10 July 2025.
- [S12] Liberty Times Net, "顧立雄專訪》CM12戰車115年起汰除 牽引式火砲不符作戰需求," 23 May 2025.
