Carro Armato M13/40

A turreted gun for the Italian medium tank

The Carro Armato M13/40 represented an important change in Italy's medium-tank line: the principal gun was mounted in a rotating turret rather than in the hull arrangement of the earlier M11/39. It combined a 47 mm weapon with a diesel engine and a chassis developed within the limits of Italian industry. Its designation and role were Italian medium-tank categories, not a guarantee of equivalence with every foreign vehicle described as medium. Sources

The account favors a total of 710 but retains other published figures, including 740, 779 and 785. Those alternatives require examination of production boundaries, dates and conversions rather than a choice based on which number is repeated most often. Command vehicles and related chassis uses can illuminate the family without automatically becoming additional newly built gun tanks. Sources

Development within an existing industrial system

The M13/40 was not developed on a blank industrial slate. Its lineage included the earlier Italian tankette and medium-tank experience, existing automotive resources and the relationship between Ansaldo production and Fiat-SPA engine supply. Moving the principal weapon into a turret addressed a conspicuous limitation of the M11/39, but it did not instantly provide a wholly new suspension, manufacturing system or crew environment. Sources

War increased the urgency of delivering available designs while technical improvements were still needed. The development chronology therefore has to distinguish design decisions, orders, series changes and unit deliveries. A vehicle described as an improvement over its predecessor might nevertheless retain important constraints inherited from that predecessor. The M13/40's strengths and weaknesses arose from that combination of a more useful weapon arrangement with conservative automotive and manufacturing choices. Its historical place is clearer when those constraints are explained than when the tank is judged only by an isolated gun caliber or a later opponent's performance. Sources

Firepower, armor and the division of crew tasks

The hull placed the driver and the forward machine-gun position ahead of a two-man turret. The commander also had weapon-related duties, while the loader served the turreted gun. This distribution of work mattered: a commander occupied with aiming or firing had less freedom to observe, direct the driver and coordinate with other tanks. The value of turreted firepower cannot be separated from the people required to use it. Sources

The 47/32 gun offered both antitank and explosive ammunition, making it more flexible than a machine-gun-only vehicle. Its effectiveness nevertheless depended on range, target and the opposition encountered; it was not equally capable against every British tank. The armor was riveted and its thickness varied by plate and location. A turret-front value cannot be applied to the hull sides. Machine-gun fit and gun-ammunition stowage also differ in published accounts. These remain configuration questions, with the source's alternative ammunition figures preserved rather than normalized into one apparently settled load. Sources

Mobility, communications and maintenance

The diesel powerplant, front drive and leaf-spring bogie suspension provided a practical but limited automotive foundation. A quoted road speed or range describes only one aspect of mobility. Cross-country movement, track performance, cooling, maintenance and recovery shaped what a unit could accomplish in an actual campaign. The vehicle's comparatively narrow tracks and inherited suspension need to be assessed within those operating conditions rather than through speed alone. Sources

Diesel fuel cannot serve as shorthand for immunity to fire or general survivability. Protection depended on penetration, ammunition, fuel installation, crew escape and the circumstances of damage. Communications pose a similar problem for summary accounts. Radio equipment associated with the family was not necessarily available or installed in the same way on every vehicle or at every stage. Changes in fittings and unit practice remain uncertain. The reported specifications therefore describe reported states and qualifications, not a claim that every Series I–III tank left the factory with identical equipment. Sources

Production, campaigns and captured vehicles

Newly manufactured tanks, command conversions, and other vehicles built on related chassis represent different production categories. The transition to later Italian medium tanks also creates opportunities for totals to overlap. A serial-by-series production reconciliation is needed before disputed figures can be presented as final. Sources

The M13/40 saw substantial service in North Africa, including the fighting associated with Operation Compass and Beda Fomm. The broader account also considers other theaters and later use, but individual unit and model identification is not uniformly secure. Captured vehicles are an important part of the surviving photographic record. A line of captured tanks shows a particular outcome; it does not explain the cause of every loss or prove that all vehicles were destroyed in combat. Temporary captured use and technical examination were distinct from original Italian deliveries and did not constitute additional production. Sources

A useful improvement with persistent limits

The M13/40 improved Italy's tank armament arrangement, but its battlefield value depended on more than the move to a turreted gun. Armor, crew workload, communications, mechanical support and the changing strength of the opposition all shaped its performance. Sources

The preserved comparison and chronology tables provide a framework for that assessment while leaving source conflicts visible. Museum examples similarly remains uncertain of exact model and restoration state before they become technical illustrations. It cannot silently transfer characteristics from an M14/41 display vehicle or convert a captured photograph into a complete combat narrative. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

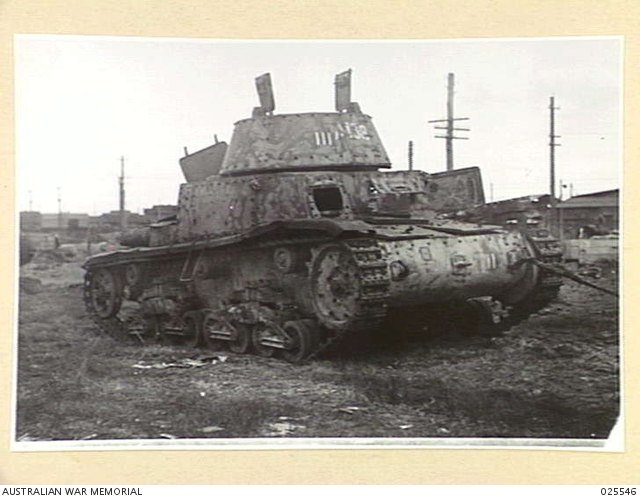

Damaged Italian Carro Armato M13/40 captured by the AIF in Libya and brought to Fishermens Bend, Victoria, for examination, July 1942. Shows technical-intelligence and damage discussion. [AWM-025546].Australian War Memorial 025546; expired-copyright status displayed,; copyright expired; public domain.Image source

Italian Carro Armato M13/40 captured near Barce, Libya, December 1941. service/combat photograph, Shows terrain and damage context. [AWM-022559].Australian War Memorial 022559; expired-copyright status displayed,; copyright expired; public domain.Image source
