Batignolles-Châtillon Char 25t

Historical overview

The Char 25t was a short-lived French prototype tank program built by Batignolles-Châtillon at Nantes in the mid-1950s. Project records in The vehicle is described as a prototype/cancelled medium tank with two prototypes often cited, and the Chars-Français page likewise states that two prototypes were constructed. The Musée des Blindés' current public note identifies the museum entrance vehicle as the second prototype, completed in December 1955. (Sources:.). [CF1] [MDB1] Sources

Its central design idea was a bigger and more powerful AMX-13-like vehicle. It retained the characteristic French oscillating turret concept while using a 90 mm gun and aiming for high road speed, around 65 km/h in several sources. It was much lighter than the AMX-50 family and not as light as the AMX-13, which is why sources variously describe it as a medium tank, light tank, or Super AMX-13. (Sources:.). [CF1] [TA1] [FRWiki1] Sources

Why it mattered: the Char 25t is a dead-end bridge. It did not produce a service tank, but it illustrates how France explored mobility, autoloaders, oscillating turrets, low weight, and high firepower before settling on the AMX-30's different 30-ton-plus main battle tank path. Some sources claim propulsion or transmission lessons were reused in AMX-30 studies, while others emphasize the project's cancellation due to the 30-ton requirement, a 90 mm gun that was becoming insufficient, the AMX-13's lower cost, and the oscillating turret's inability to meet nuclear-biological-chemical protection requirements. (Sources:.). [CF1] [TA1] [TA3] [MDB1] [FRWiki1] Sources

The Char 25t was technically ambitious but strategically crowded out. It offered speed and a compact silhouette, but its thin armor, complicated suspension and turret, uncertain upgrade margin, and NBC vulnerability made it a poor fit for the late-1950s battlefield. It is best treated not as a failed AMX-30, but as an experimental link in France's wider search for a postwar tank architecture. Sources

France emerged from the Second World War with a complicated armored inheritance: wartime domestic designs, liberated and captured German equipment, U.S.-supplied Shermans and later Pattons, and an urgent desire to rebuild a sovereign armored-vehicle industry. French designers experimented broadly after 1945, from the heavy AMX-50 family to the compact AMX-13. The Char 25t belongs to this experimental environment rather than to a settled procurement line. Sources

The AMX-13 showed one attractive path: a light chassis, an oscillating turret, and automatic loading for a relatively powerful gun. It was commercially and militarily successful enough to make the concept credible, but it also revealed the limits of the oscillating turret: reloading could require exposure or withdrawal, ammunition arrangements were constrained, and the turret was difficult to seal for NBC protection. [TA2] [FRWiki1] Sources

The problem facing French planners in the early and mid-1950s was how to combine strategic mobility, adequate firepower, affordability, and survivability without building another heavy and expensive AMX-50-style vehicle. The M47 Patton in French service provided a medium-tank reference point, but France also wanted a native route. The Char 25t answered this problem with a lightweight 25-ton envelope and 90 mm armament, not with heavy armor. Sources

By the mid-1950s, however, the Soviet T-54/T-55 threat, the growth of shaped-charge antiarmor weapons, and the expectation of nuclear, biological, and chemical battlefields changed the evaluation criteria. A thinly armored oscillating-turret tank that could not be sealed effectively became less attractive, while the French requirement moved toward the future AMX-30 class. (Sources:.). [TA1] [TA3] [MDB1] [FRWiki1] Sources

Development and variants

Published accounts describe the Batignolles-Châtillon Char 25t as a discrete prototype tank family, not as a production family. (Sources:.). [CF1] [TA1] Sources

Batignolles-Châtillon's 12t project, the AMX-13, AMX-50, Lorraine 40t, and AMX-30 are discussed only as context or comparison. Sources

Classification is ambiguous. The cited accounts calls it a prototype medium tank, Tank-AFV describes it as a light/medium type, and French Wikipedia calls it a char léger while also noting the Super AMX-13 label. The practical classification used here is: prototype 25-ton light/medium gun tank with oscillating turret. This captures both its weight class and its position between light-tank and medium-tank requirements. (Sources:.). [TA1] [FRWiki1] Sources

The Chars-Français page titles it as a 1954 vehicle and states that it was a prototype made by Batignolles-Châtillon at Nantes. French Wikipedia gives a broader 1952-1955 design period; that broader span probably reflects concept or design work before the completed prototypes rather than a definitive service-introduction year. (Sources:.). [CF1] [FRWiki1] Sources

Batignolles-Châtillon was an industrial firm at Nantes rather than the state arsenal usually associated with GIAT/AMX families. The museum's current note explicitly stresses that the Char 25t cannot be credited to GIAT or to the AMX-13/AMX-30 arsenal lineage, even though the vehicle drew on AMX-13 concepts and later fed into AMX-30-era thinking. (Source:.). [MDB1] Sources

Prototype chronology is the most important unresolved point. French Wikipedia states that the first prototype left the factory in September 1954 as a turretless rolling test bed and that the second prototype was completed in December 1955 with the T.O.90/930 oscillating turret. The museum's 2026 public note independently identifies the displayed vehicle as the second prototype completed in December 1955. Older English summaries often collapse the two prototypes into a generic 1954 pair. Published accounts describe the 1954 date as the family start/prototype year, while flagging the September 1954 and December 1955 details as less certain. (Sources:.). [FRWiki1] [MDB1] [CF1] [TA1] Sources

The design was abandoned before production. Chars-Français attributes abandonment to the development of the AMX-30. Tank-AFV emphasizes technical problems: unreliable hydraulic suspension, constant chassis maintenance, and oscillating-turret drawbacks including NBC and external reload issues. The museum's current interpretation adds that the 90 mm gun was quickly outpaced by new Soviet tanks, that the AMX-13 could receive a 105 mm gun at lower cost, and that the 30-ton requirement of 1956 led toward the future AMX-30. These explanations are complementary rather than mutually exclusive. (Sources:.). [CF1] [TA1] [MDB1] Sources

Design and performance

The Char 25t followed a conventional tank layout: driver and radio-operator/forward crew positions at the front, fighting compartment under the turret, and engine compartment at the rear. Its unusual feature was not the hull arrangement but the attempt to combine a low, relatively light chassis with an oscillating turret and a 90 mm gun. [TA1] [FRWiki1] Sources

The hull was compact and sharply sloped, with the front glacis often cited around 50 mm and side/rear plates in the 20-25 mm range. These figures describe protection against splinters, heavy machine guns, and light automatic cannon more than resistance to contemporary tank guns. Tank-AFV gives a 50 mm glacis, descending to 30 mm, 25 mm sides, and 20 mm rear; French Wikipedia gives similar hull values with a 50 mm/64-degree frontal plate. [TA1] [FRWiki1] Sources

The turret was an oscillating type, in which the lower turret ring traversed and the upper turret section elevated with the gun. This was the same family of French ideas used on the AMX-13, but scaled for a larger gun and vehicle. It simplified some aspects of mounting a powerful gun in a compact turret, but it also created sealing and loading problems. The design's NBC weakness was a central cancellation factor in several summaries. (Sources:.). [TA1] [TA2] [FRWiki1] Sources

Armor was deliberately light. The most defensible summary is 20-50 mm overall, with a stronger glacis and turret face and thinner side, rear, roof, and belly plates. French Wikipedia cites a 60 mm turret front, while Tank-AFV lists a general 20-50 mm range and describes the vehicle as mobility-focused rather than armor-focused. Because these figures come from secondary summaries, precise plate maps is described as less certain. [TA1] [FRWiki1] Sources

The main armament was a 90 mm high-velocity gun. Chars-Français gives a 90 mm gun with 930 m/s muzzle velocity. Source designations vary: CN-90, D.911 APX, DCA 45, F3, and T.O.90/930-related language appear in different summaries. Published accounts describe the cautious phrase '90 mm high-velocity gun' unless a source's exact designation is being discussed. (Sources:.). [CF1] [TA1] [FRWiki1] [ENWiki1] Sources

Secondary armament was in the 7.5 mm French machine-gun class. Sources agree on at least one coaxial machine gun; some cite a roof or close-defense machine gun as well. Chars-Français simply states one machine gun, while French Wikipedia describes a coaxial MAC 31 and a roof-mounted close-defense gun of the same model. The discrepancy is probably a difference between prototype fit and summary level. [CF1] [FRWiki1] Sources

Ammunition stowage is source-sensitive. French Wikipedia cites 42 to 52 90 mm rounds depending on prototype; English secondary summaries commonly state 52 rounds with 16 in the turret. The 90x615 mm R ammunition is described by French Wikipedia as the same ammunition family used by the T119 gun on French M47 Pattons. The precise round count and ready-rack arrangement remain uncertain. [FRWiki1] [ENWiki1] Sources

No modern stabilized fire-control system has been identified in the sources reviewed. English secondary text describes periscopes, a commander's observation dome, and a command-priority device that could allow the commander to take over target engagement. This detail is useful but remain less certain because it is not confirmed here from a primary manual. (Source:.). [ENWiki1] Sources

The optics suite was extensive for a prototype: secondary summaries describe multiple periscopes for crew observation and a commander's cupola with vision blocks. French sources note a compact turret and crew layout similar in spirit to the AMX-13. Exact sight models and field-of-view details remain an unresolved question. [TA1] [ENWiki1] Sources

The baseline engine is disputed by prototype stage. The museum's current note says the displayed second prototype has a 500 hp engine. Chars-Français focuses on components later reused in AMX-30 studies without naming the engine. Tank-AFV lists a SOFAM 3M.27.101 or similar 500 hp unit. French Wikipedia says the first prototype was initially intended for a Moteur Moderne 3M.27.101 500 hp engine, later replaced by a German Maybach HL230 700 hp during development, while the second prototype used the 500 hp engine and had a planned SOFAM 12 GS 750 hp upgrade tested separately. Published accounts describe 500 hp as the safest displayed/baseline figure and treats the Maybach and 750 hp details as prototype-development notes. (Sources:.). [MDB1] [TA1] [FRWiki1] Sources

The transmission is commonly described as a preselective six-speed arrangement with differential steering, but detailed gear ratios and production-standard status were not located. (Source:.). [FRWiki1] Sources

Suspension descriptions vary between hydraulic suspension, torsion bars, and oleopneumatic dampers. Tank-AFV explicitly lists unreliable hydraulic suspension among the problems that helped sink the program. French Wikipedia describes torsion bars with oleopneumatic dampers. The least misleading synthesis is that the vehicle used a torsion-bar-based running gear with hydraulic/oleopneumatic damping elements whose reliability and maintenance burden were problematic. [TA1] [FRWiki1] Sources

Most sources give a top road speed of about 65 km/h. The reported power-to-weight ratio with a 500 hp engine and a 25-ton class vehicle is approximately 20 hp/t, which is consistent with a fast prototype. Track and running-gear descriptions include six doubled road wheels per side and wide tracks, but exact track dimensions vary across secondary summaries. (Sources:.). [CF1] [TA1] [FRWiki1] Sources

The crew was four: commander, gunner, loader, and driver in several sources. The presence of a loader is noteworthy because oscillating-turret/autoloading designs often complicate conventional crew roles. Some descriptions imply automatic loading, but prototype ammunition handling and reload procedures are not securely documented in the sources reviewed. (Sources:.). [TA1] [FRWiki1] [ENWiki1] Sources

Tank-AFV lists an SCR 528F radio. That suggests the vehicle used postwar radio equipment rather than a uniquely French production-standard suite. Because no technical manual was located, this remains less certain. (Source:.). [TA1] Sources

No active protection, spall liner, or modern fire-suppression system is documented in the reviewed sources. Smoke grenade launchers are cited in English summaries but not consistently in the higher-value French sources. NBC protection is the critical negative point: the oscillating turret could not be made acceptably airtight, a factor repeatedly associated with cancellation. (Sources:.). [FRWiki1] [TA1] [ENWiki1] Sources

Reliability was apparently poor enough to matter. Tank-AFV lists unreliable hydraulic suspension and constant chassis maintenance; French Wikipedia describes engine development problems on the first prototype. Because these claims are not quoted from trial reports here, they are described as less certain, but they align with the project's abandonment before production. [TA1] [FRWiki1] Sources

Thin armor, adequate only for a mobility-focused concept rather than tank-gun combat. Sources

Oscillating turret difficult to seal for NBC warfare. Sources

External or complicated reload implications inherited from oscillating-turret/autoloader concepts. Sources

Uncertain engine and suspension maturity during testing. Sources

90 mm gun increasingly unattractive as Soviet medium-tank armor improved and French requirements moved toward a 105 mm/30-ton class. Sources

No production base or operator demand after the AMX-30 path became dominant. Sources

Production, operators, and combat record

The Char 25t was not mass-produced. The strongest repeated figure is two prototypes. The cited accounts say '2 prototypes often cited'; Chars-Français states '2 prototypes construits'; French Wikipedia and several English summaries also list two. (Sources:.). [CF1] [FRWiki1] [ENWiki1] Sources

The manufacturer was Batignolles-Châtillon at Nantes. The museum's current note emphasizes that this makes the vehicle distinct from GIAT and the state AMX development line, even though it is commonly discussed in the same French postwar tank narrative. (Source:.). [MDB1] Sources

No reliable cost, monthly production, or production contract data was located. This absence is expected for a cancelled prototype program. Industrially, the vehicle appears to have served more as an experimental platform for drivetrain, suspension, turret, and weight-class concepts than as a pre-series procurement candidate. Sources

The Char 25t had no operational military service. Its only operator category was French testing/trials. The vehicle was not exported, not adopted, and not used in combat. (Sources:.). [CF1] [TA1] Sources

The surviving museum vehicle is at the Musée des Blindés, Saumur. Tank-AFV described the restored vehicle as displayed with an AMX-13 and ELC AMX after restoration in 2016. The museum's current public post states that the second prototype is now at the entrance to the museum. The cited museum account provides a more recent description than the older visitor reports of outdoor storage or uncertain display status. [TA1] [MDB1] Sources

The Char 25t has no documented combat history. It was never accepted for service and no production vehicles were fielded. Any claim that it fought in Algeria, Suez, NATO exercises, or later French operations is described as false unless supported by primary evidence. (Sources:.). [TA1] [CF1] Sources

The absence of combat use is itself significant. The Char 25t is a laboratory vehicle: its story belongs to trials, requirements, and design choices rather than battlefield performance. For narrative purposes, it can be contrasted with the AMX-13, which did have extensive operational and export service, and the AMX-30, which became France's long-term main battle tank solution. Sources

Legacy and historical evidence

The Char 25t is best compared to three categories: the AMX-13 that inspired it, the M47 Patton that framed French medium-tank reality in the 1950s, and the emerging AMX-30 path that displaced it. It can also be compared conceptually with Soviet T-54/T-55 threats, though it was not a production rival to those tanks. Sources

Overall battlefield value, if it had entered limited service, would likely have depended on reconnaissance, ambush, flank fire, and rapid displacement rather than slugging matches. Its thin armor and turret sealing problems would have been serious liabilities in late-1950s NATO planning. Sources

The Char 25t's legacy is disproportionate to its physical production. In technical history, it is a marker of France's mid-century fascination with light, fast, hard-hitting armored vehicles. In public memory, it is famous far beyond its archival footprint because of video-game portrayals, especially under the 'Bat Chat' abbreviation. That popularity does not establish operational importance. Sources

Its possible influence on the AMX-30 remain uncertain. Chars-Français says motorization components were reused in AMX-30 studies, and Tank-AFV says transmission and propulsion technologies were reused. The museum's current note frames the Char 25t as a transitional vehicle superseded by the future 30-ton AMX-30 requirement. These claims support influence or continuity, not direct parentage. (Sources:.). [CF1] [TA1] [MDB1] Sources

The surviving vehicle's restoration matters. Older accounts described outdoor deterioration; Tank-AFV notes restoration in 2016; current museum public communication places the second prototype at the museum entrance. The vehicle is therefore not merely a relic in storage but an active interpretive object for the public. (Sources:.). [TA1] [MDB1] [WC1] [WC2] [WC3] Sources

The vehicle is a prototype with limited official publication, so the record is dominated by museum text, enthusiast-compiled French reference pages, and secondary summaries that sometimes recycle each other. The most reliable points are identity, country, builder, approximate date, cancellation, two-prototype count, 90 mm armament, four-person crew, and 65 km/h top speed. The least reliable points are exact engine sequence, gun designation, ammunition stowage, suspension engineering, and the fate of the non-displayed prototype. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

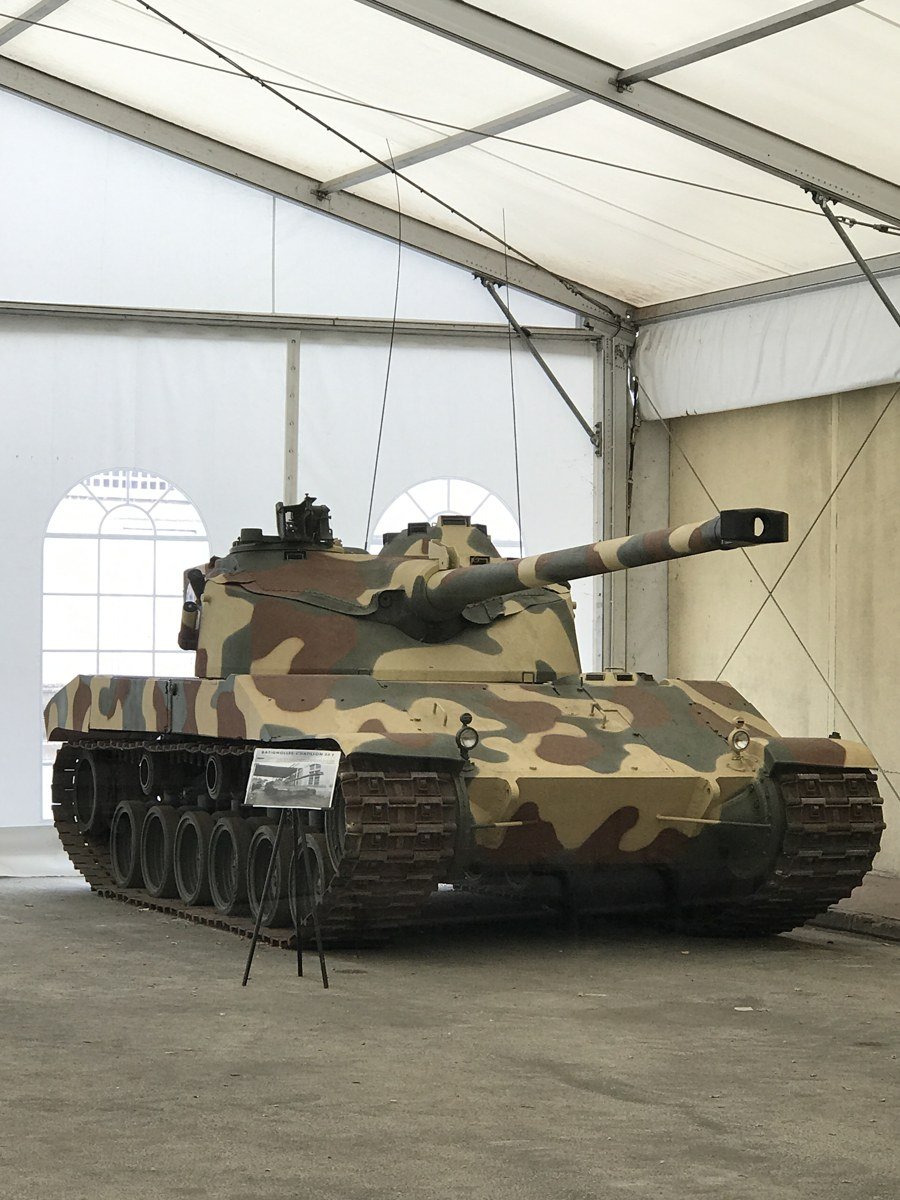

Restored Batignolles-Châtillon Char 25t prototype at Musée des Blindés, 8 September 2017. filename misspells Châtillon as 'Chatillion'; vehicle appears restored and indoors/covered. [WC1].Aplett; CC BY-SA 4.0.
