Historical overview
The ARL 44 was a limited-production French heavy or transitional tank designed after the Liberation of France and produced in small numbers in the late 1940s. Published accounts describe the family as FR-ARL44, a French heavy/transitional tank with 60 built, less certain, and an explicit note that its postwar production and service justify its Cold War-phase placement even though the program began during the last phase of the Second World War. Sources
Technically, the ARL 44 combined a powerful 90 mm SA 45/DCA 45 gun and thick frontal armor with an old-fashioned hull and running gear lineage traceable to the Char B1/B1 ter family. It used a German Maybach HL 230 engine and retained a long, narrow trench-crossing hull concept whose suspension layout was obsolete by the late 1940s. Contemporary and later assessments therefore often describe it as a tank with strong nominal firepower but poor modernization potential and troublesome reliability. Sources
The most important configurations are the early ACL1-turreted prototype, generally associated with a 75/76 mm gun, and the production series with the Schneider turret and 90 mm SA 45 gun. No major specialized derivatives entered production. The vehicle’s classification is a genuine boundary issue: it appears in sources as a heavy tank, a transitional tank, and a tank destroyer or “chasseur de chars de 48 tonnes.” The vehicle is described as a tank family with a classification-sensitive service history rather than silently choosing one label. Sources
Development and variants
It includes clandestine and immediate post-Liberation development context, the early ACL1-turreted prototype configuration, the production 90 mm vehicle, French Army service, reliability and classification issues, survivors, and legacy. It excludes fictional game variants, scale models, and later French vehicles except where they explain ARL 44’s place in the AMX-era transition. Sources
The ARL 44 emerged from the Direction des Études et Fabrications d’Armement (DEFA) effort to restart French tank design after liberation. Atelier de Construction de Rueil (ARL) became the central design/manufacturing reference in the vehicle’s name, while other firms and arsenals contributed turret, armament, hull, and production work. The project was validated in 1944 and evolved quickly from a modest transition concept into a much heavier gun-and-armor vehicle. Sources
Early requirements appear to have envisioned a 30–35 tonne class vehicle with approximately Sherman-equivalent protection and a 75 mm gun. This concept would have offered France a domestic tank without waiting for a clean-sheet modern design. By 1945, however, the vehicle looked inadequate when compared with late-war tanks already in service or entering service. The front armor requirement increased toward 120 mm, the main armament shifted toward a 90 mm weapon, and weight rose into the 48–50 tonne range. Sources
Design and performance

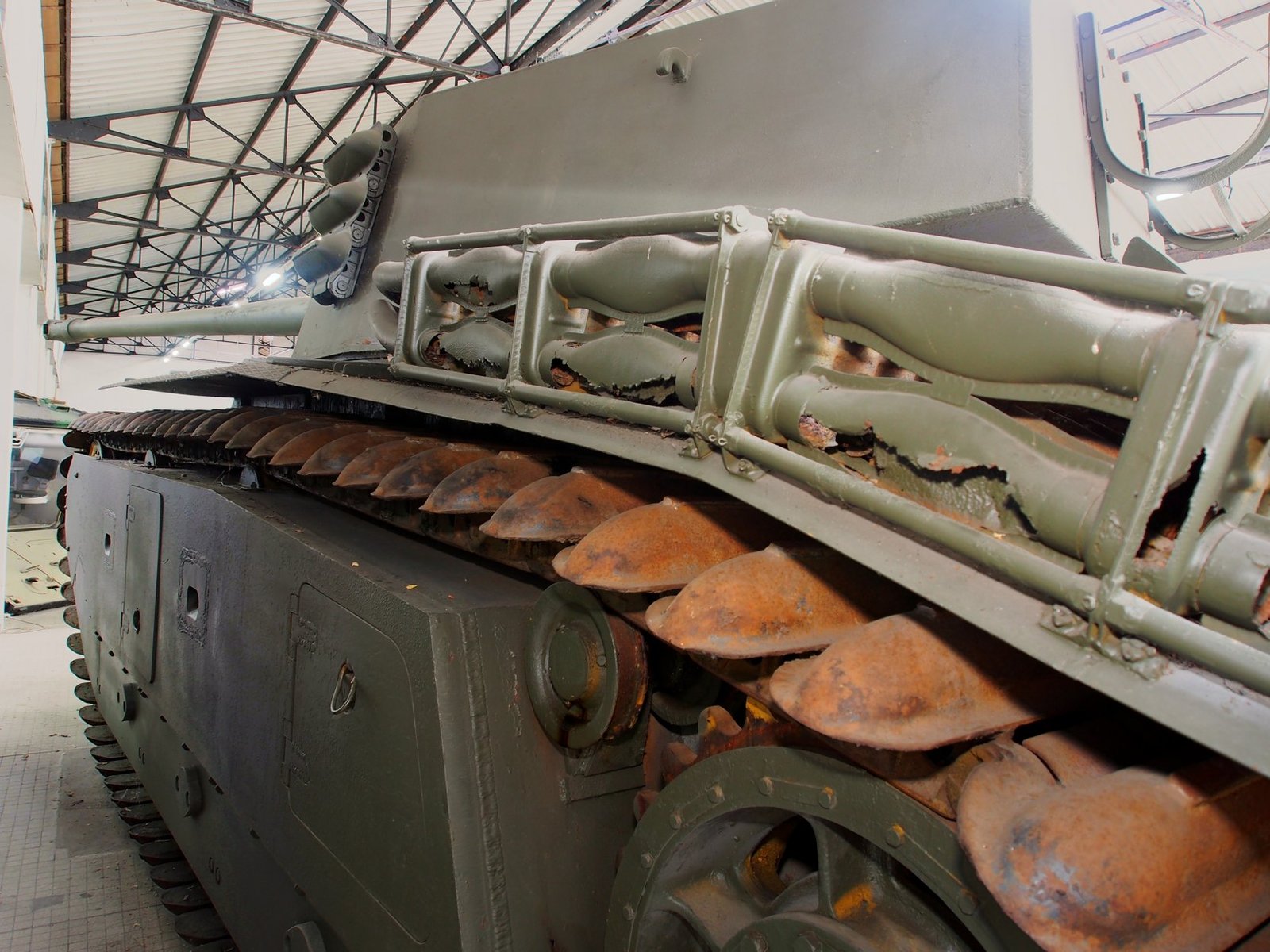

ARL 44 used a conventional tank arrangement with the driver and hull machine-gun/radio position forward, a central fighting compartment, and a rear engine installation. Its long hull and covered suspension immediately reveal the Char B-lineage influence: the vehicle still reflects a French heavy-tank tradition optimized for trench crossing and protected advance rather than a fully postwar mobility model. Sources
The most consistently cited armor point is the 120 mm frontal value. Matériels Terrestres gives a hull range of 20–120 mm and a turret range of 10–110 mm, while Chars-francais lists frontal and side values in a slightly different form. Because the tank did not see combat, practical armor effectiveness is best assessed against late-war gun threats conceptually rather than through battlefield evidence. Sources
Ammunition stowage is a source-conflict item. Matériels Terrestres records 37 rounds for the 90 mm gun, while Chars-francais lists 50 rounds. The difference may reflect documentation stage, theoretical capacity, or source interpretation. Published accounts describe 37–50 rounds as the defensible range and marks exact capacity as less certain. Sources
The ARL 44 used the Maybach HL 230 engine, a German V-12 gasoline engine known from Panther/Tiger-family use. Sources vary between 575 hp actual output and 600 cv nominal. Matériels Terrestres describes a manual 8-speed transmission with six forward and two reverse ratios and double-differential steering; service sources record gearbox and clutch trouble. Sources
The usual crew figure is five. The long hull and high turret created a large vehicle, but size did not necessarily mean good ergonomics. Sources
Production, operators, and combat record
ARL 44’s production story is a postwar industrial-recovery story. The tank was not ordered because it was the ideal combat vehicle for 1951; it was ordered because France needed to restart armored-vehicle production, keep design bureaus active, and demonstrate national capability. The Musée des Blindés explicitly describes it as a transition tank produced in urgency, while Tank-AFV emphasizes that morale and industrial continuity mattered more than battlefield practicality. Sources
Production quantities contracted from ambitious early targets. Chars-francais describes plans on the order of hundreds of vehicles and monthly production goals before the order was cut to 60. Armor Archives likewise describes successive reductions as the military and industry realized the tank would be late, heavy, and no longer competitive. This contraction is one of the clearest signs that ARL 44 became a bridging project rather than a front-line mass-production solution. Sources
These details remain unresolved in the cited historical evidence. Sources
Service timing is a source-conflict area. The Musée des Blindés states that the first tanks were received in 1951 and withdrawn by 1954. Matériels Terrestres gives service from October 1951 to November 1953 and details trouble soon after receipt. Chars-francais says first tanks were received in January 1951, appeared in the 14 July 1951 parade, entered service at 503e RCC in October 1951, were withdrawn in December 1951 after problems, and were abandoned in 1952. These statements can be reconciled only by distinguishing physical receipt, public display, unit assignment, operational availability, and formal disposal. Sources
Legacy and historical evidence
The ARL 44 emerged among late-war and immediate-postwar tanks while extending an older French design tradition. In that comparison, its 90 mm gun and thick frontal armor appear respectable, but its mobility, reliability, and production maturity lag badly. Sources
The most important comparison may be with later French designs. The AMX 13 and AMX 30 lines show France moving toward mobility, compactness, autoloading concepts, exportable design, and eventually a philosophy of firepower and mobility over maximum armor. ARL 44’s shortcomings made that shift more legible. Sources
Influence on later tank design was mostly negative or diagnostic. ARL 44 showed the cost of excessive weight, old suspension concepts, and delayed turret/armament integration. Later French projects such as AMX 50 explored more modern heavy-tank architecture, while AMX 13 and AMX 30 eventually embodied a different national style emphasizing mobility, firepower, and export practicality. Sources
Modern reputation often swings between ridicule and fascination. Both extremes miss the point. The tank was not a good postwar battlefield vehicle, but it was a rational political-industrial project in a country rebuilding its armored forces from occupation and defeat. Its failure as a tank was part of the process by which France recovered as a tank-producing nation. Sources
Armor Archives is useful for development chronology and lineage interpretation. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- ARL 44 — Musée des Blindés — Accessed 1 June 2026
- Char lourd ARL 44 — Matériels Terrestres 39-45 — Accessed 1 June 2026
- 1945 ARL 44 — Chars-francais.net — Accessed 1 June 2026
- The Last of the Char B — Armor Archives — Accessed 1 June 2026
- Trackpads historical compilation, 2026 (unpublished).
- Archives de la section technique de l’armée de terre; ARL 44 files — Service historique de la Défense / FranceArchives lead — Lead identified 1 June 2026. Further reading; not independently consulted.
- File:ARL44.jpg — Wikimedia Commons — Accessed 1 June 2026
- File:ARL 44 in the Musée des Blindés.jpg — Wikimedia Commons / Shonagon — Accessed 1 June 2026
- File:ARL-44.jpg — Wikimedia Commons / MWAK — Accessed 1 June 2026
- File:ARL 44 in the Musée des Blindés, France, pic-5.jpg — Wikimedia Commons / Alf van Beem — Accessed 1 June 2026
- File:ARL-44 at Mourmelon le Grand.JPG — Wikimedia Commons / The shadock — Accessed 1 June 2026
- File:Heavy Tanks (26512170783).jpg — Wikimedia Commons / Falcon® Photography — Accessed 1 June 2026
