Historical overview
Description. The AMX-50 was France’s ambitious postwar attempt to regain a first-rank tank-design capability through a fast, heavily armed vehicle using an oscillating turret and a Maybach-derived power plant. It began as the AMX M4/Project 141 medium-tank concept in 1945 and evolved into 100 mm and 120 mm prototypes, including the Surblindé, Surbaissé, and Foch tank-destroyer branch. The program never entered production, but it is a key bridge between wartime heavy-tank thinking, French oscillating-turret experiments, and the eventual shift toward lighter main battle tank concepts. Sources
The AMX-50 family was not a production tank but a prototype series that embodies the difficult transition from late-war heavy-tank concepts to early Cold War main battle tank thinking. The vehicle is described as a French Cold War “prototype heavy/medium tank” family, developed from 1945 to 1958 and cancelled after a prototype-only program. Sources
Its importance lies less in combat service—there was none—than in design ambition. France tried to combine a high-velocity 90 mm, then 100 mm, and ultimately 120 mm gun with an oscillating turret, semi-automatic loading, high road speed, and enough protection to confront contemporary heavy tanks. The official Musée des Blindés summary emphasizes that the program restored French technical capacity even though it stopped because the vehicle became too heavy, too expensive, and overtaken by lighter anti-tank technologies. Sources
The most important variants are the initial AMX M4 / Project 141, the AMX 50/100, the AMX 50/120, the AMX 50 Surblindé, the AMX 50 Surbaissé, and the AMX 50 Foch casemate tank destroyer. Published accounts describe these as one family, with Foch marked as a boundary case rather than a separate production lineage. Sources
Major controversies are concentrated in dates, prototype counts, armor figures, installed horsepower, and speed. The Musée des Blindés page gives the Surbaissé as a 1956 last prototype of 58 tonnes, 1,000 CV, 51 km/h, and 85 mm armor. Chars-Français, citing DGA Châtellerault archives, gives common 120 mm characteristics as 59.2 tonnes for one 120 mm example, 80 mm maximum armor, an 850 CV HL 295, and 65 km/h. Tank-AFV reports five prototypes, a 1954 120 mm prototype, and 120 mm frontal armor for some 120 mm configurations. These differences are best treated as variant-specific and source-conflicted, not as a single uniform specification. Sources
The AMX-50 was a technically fertile but strategically mistimed program. Its armament and turret system were advanced, but its power-plant problems, rising weight, cost, and the rapidly changing anti-armor environment undermined the case for serial production. Its legacy is strongest as a development pathway and as a cautionary example of requirements growth in the first decade after 1945. Sources
Development and variants
It includes the AMX M4 / Project 141 starting point, the 90/100 mm development path, the 100 mm oscillating-turret prototypes, the 120 mm heavy-tank prototypes, the Surblindé and Surbaissé late forms, and the Foch casemate tank destroyer because published accounts describe Foch under the AMX-50 family. It excludes the AMX-13, AMX-30, Panhard EBR, Lorraine 40t, and Lorraine Canon d’assaut except where they clarify design context or boundary issues. Sources
Classification and boundary issues. The AMX-50 is classification-sensitive because the same lineage is described as a medium tank, heavy tank, and eventually a potential main battle tank. That is not a contradiction so much as evidence of changing requirements. The 1945 M4 concept tried to keep weight near 30 tonnes and was armed with a 90 mm gun; later protection growth pushed the family beyond 50 tonnes; the 120 mm versions were heavy tanks by intended target set and armament. Sources
The Foch is a boundary inclusion. Chars-Français identifies it as a canon automoteur developed from AMX-50 mechanical components and abandoned after a turreted AMX-50 could mount equivalent armament. The cited sources describe it as FR-AMX50-FOCH, and The vehicle is described as an AMX-50 derivative rather than a separate tank family. Sources
France emerged from the Second World War with an urgent desire to rebuild a national armored-vehicle industry. The ARL 44 was an interim answer: a transitional heavy vehicle drawing on wartime and clandestine studies, but already constrained by old components and technical compromises. The Musée des Blindés characterizes the ARL 44 as a liberation-era transition tank, validated from 1944 and affected by materials shortages and technical problems before withdrawal in the early 1950s. Sources
The AMX-50 program followed directly from this industrial and doctrinal gap. Chars-Français states that, from 1945, French manufacturers were consulted for a tank comparable to the Soviet Stalin tanks or the German Tiger II, and that AMX presented an M4 preliminary project in 1945. The design goal was therefore not merely a better ARL 44; it was a modern French tank capable of competing with the heaviest and most influential wartime or early postwar armor. Sources
The program also reflected a transitional doctrinal moment. Western armies had not yet settled on the main battle tank as a unified category. Heavy tanks such as the American M103 and British Conqueror were still being pursued as answers to Soviet heavy armor, while medium tanks like the M47 and M48 represented the path toward more general-purpose postwar tanks. The AMX-50 straddled this divide: it sought high firepower and speed, but requirements creep and the 120 mm armament pulled it into heavy-tank weight and complexity. Sources
Industrial constraints were central. The Maybach HL 295 engine appears repeatedly in museum and secondary-source accounts. The Musée des Blindés notes that France installed a team of Maybach engine specialists in Eure to work on the HL 295 for the AMX-50. Chars-Français records both a Maybach gasoline HL 295 and a Saurer diesel as considered engines for early prototypes. The engine problem became one of the program’s defining obstacles. Sources
The political and procurement context changed as the program developed. NATO rearmament, U.S. military aid, and the availability of the M47 Patton reduced the practical urgency of a 100 mm French medium tank. At the same time, shaped-charge ammunition and new thinking about mobility eroded the rationale for a very heavy and expensive 120 mm French heavy tank. Sources
The AMX-50 began as the AMX M4 / Project 141 design in 1945. Early M4 drawings were reportedly inspired by the Tiger II, with a 90 mm Schneider gun and reduced armor to hold weight to the original 30-tonne target. Chars-Français states that the original armor was reduced to a maximum of about 30 mm and that protection was later revised upward, increasing weight above 50 tonnes. Sources
Two early prototypes were ordered. Chars-Français reports the first example emerging in 1949 at more than 55 tonnes and the second in 1951 with an oscillating turret; tests ran from 1950 to 1952. Tank-AFV gives a similar but not identical sequence: the first prototype was delivered in fall 1949 at 53.7 tonnes and rearmed to 100 mm during the winter of 1950, while a second used a new 100 mm oscillating turret. Sources
The 100 mm phase introduced the feature most associated with the family: a large oscillating turret with automatic or semi-automatic loading. Tank-AFV attributes the 100 mm autoloading gun to Arsenal de Tarbes and notes that the oscillating turret became a wider French design theme of the era. The official museum description of the later Surbaissé similarly emphasizes the semi-automatic loader and the higher rate of fire it gave compared with other heavy tanks in the category. Sources
The 120 mm phase is the most source-conflicted part of the chronology. Chars-Français titles the 120 mm article “1951 AMX 50 120mm” and describes a third example in 1951 with a 120 mm turret and weight rising to 59.2 tonnes. Tank-AFV places the first 120 mm prototype in 1954 and describes subsequent 1955 and 1956 developments. The safest interpretation is that 120 mm studies began early, but the built 120 mm configurations evolved across several prototypes and rebuilds from the early to mid-1950s. Sources
The Surblindé and Surbaissé were late answers to the same dilemma. The Surblindé increased protection and adopted a pike-nose front inspired by Soviet IS-3/T-10 forms, but the result increased weight. The Surbaissé lowered the profile and represented the last prototype of the program. The Musée des Blindés states that the Surbaissé was produced in 1956; Chars-Français says an AMX 50 surbaissé prototype was constructed in 1956 under a 1958 heading. Sources
The program was cancelled after more than a decade of evolution. The official museum explanation stresses that the vehicle became too heavy and too expensive, while new technologies promised a lighter vehicle with better anti-tank capability. Chars-Français similarly points to weight, cost, and the late-1950s arrival of the French “obus G” shaped-charge round as reasons the heavy-tank concept lost relevance. Sources
Design and performance
The AMX-50 used a conventional tank layout around a large tracked hull, rear power pack, and a central fighting compartment supporting increasingly large turrets. The early family carried a five-man crew in some sources, while the 120 mm Surbaissé museum specification and Chars-Français 120 mm summary give four crew. The difference likely reflects variant layout and the effect of assisted loading. Sources
Early M4 designs were welded and sloped, with a strong German late-war visual influence. Tank-AFV describes Project 141 / M4 blueprints as closely related to Tiger II thinking, with overlapping wheels, welded sloped armor, and a 90 mm Schneider gun. Later 120 mm vehicles introduced heavier armor and, in the Surblindé, a pike nose influenced by Soviet heavy-tank shapes. Sources
The oscillating turret was the family’s defining feature. In an oscillating turret, the gun is fixed in the upper turret section and elevates with that section, while the lower section traverses conventionally. The AMX-50 used this arrangement to reduce breech-space demands and to support semi-automatic loading; the concept is also associated with French AMX-13 and Panhard EBR development. Sources
Armor figures are not established as uniform across the family. The initial M4 proposal reportedly sacrificed armor to about 30 mm maximum to meet a 30-tonne target. Chars-Français gives 80 mm maximum armor for the 120 mm engines, while the Musée des Blindés gives 85 mm for the surviving Surbaissé. Tank-AFV reports 120 mm hull nose and turret face for a 1954 120 mm specification. The differences likely reflect different prototypes, measurement basis, or planned versus surviving configuration. Sources
The family moved from a 90 mm Schneider gun to a 100 mm gun and then to 120 mm armament. Chars-Français records a 90 then 100 mm gun for the 1949 AMX 50/M4; Tank-AFV attributes the 100 mm autoloading gun to Arsenal de Tarbes and the 120 mm gun to Atelier du Havre as a derivation of an American gun using similar ammunition. The museum’s surviving Surbaissé is described as armed with a 120 mm gun. Sources
Secondary armament varies by source and configuration. The Musée des Blindés lists the Surbaissé with one 12.7 mm and one 7.5 mm weapon in addition to the 120 mm gun. Chars-Français gives one 20 mm MG 151 and one machine gun as common 120 mm characteristics. Tank-AFV lists a 20 mm MG 151, a 7.62 mm machine gun, and for an early 120 mm prototype a.50 cal roof weapon. These figures refer to different variants and dates rather than interchangeable specifications. Sources
The turret roof and commander positions show optical fittings in museum photographs, and later secondary summaries mention rangefinder development, but accessible official pages do not provide enough detail for a firm equipment list. This remains an unresolved question for DGA drawings and the Saumur documentation file. Sources
The initial M4 design considered torsion-bar, leaf-spring, and coil-spring systems according to Chars-Français, with the spring systems offering reduced height. Tank-AFV’s 120 mm specification identifies torsion bars and an interleaved wheel train. The family’s running gear visually reflects the late-war German influence noted in secondary accounts. Sources
The early 90/100 mm AMX-50 is commonly assigned five crew, while Chars-Français gives four for the 120 mm configuration and Surbaissé. Assisted loading changed the loader’s role, but ammunition replenishment and radio duties complicate comparisons. Exact internal arrangements are not consistently documented. Sources
No active, reactive, NBC, smoke-launcher, or special protection system is confirmed by the accessible sources used here. The oscillating turret offered loading and volume advantages but was not an ideal long-term answer to later NBC-sealing expectations; that point is presented as a cautious interpretation of Cold War tank-design trends rather than a documented cancellation cause in the accessed sources. Sources
Known or strongly inferred weaknesses were rising weight, inadequate or unreliable engine output for desired mobility, high cost, increasingly marginal heavy-tank rationale, and source-conflicted armor protection. The vehicle was never combat tested. Assessments of its tactical limitations therefore depend on trials and the circumstances of its cancellation. Sources
Production, operators, and combat record
The AMX-50 never reached serial production. Published accounts describe “Prototype series” and “Prototype only,” with the family status as prototype/cancelled. Tank-AFV gives a total of five prototypes, while other accessible sources are less explicit and focus on particular prototypes rather than a family total. Because prototype hulls and turrets were rebuilt or mixed, the exact count remain uncertain. Sources
The primary industrial actor was AMX, the Atelier de Construction d’Issy-les-Moulineaux, supported by French state arsenals and engineering organizations. Tank-AFV names the Arsenal de Tarbes in connection with the 100 mm autoloading gun and Atelier du Havre in connection with the 120 mm gun. Chars-Français identifies the source base for its pages as Archives DGA Châtellerault, making the DGA archives a key target for future verification. Sources
The power-plant effort was internationalized by necessity. The official museum page states that French authorities used a Maybach team in Eure to work on the HL 295. This arrangement highlights a larger postwar pattern: French industry was rebuilding capability while also absorbing, adapting, or repurposing German technical knowledge. Sources
The AMX-50 had no operational service and no export operators. The only “operator” in a strict sense was France for testing, trials, and museum preservation. Sources
Retirement is therefore better understood as program termination rather than withdrawal from service. The vehicle’s historical “service history” is a test-and-display history, not an operational Army career. Sources
The AMX-50 had no combat history. It was never issued to combat units, never deployed operationally, and never exported for wartime use. There is no battlefield record from which to measure combat performance. Sources
The intended tactical role changed over time. The early M4/AMX-50 sought to replace transitional and obsolete French armor with a modern vehicle capable of fighting heavy Soviet or late-war German types. The 100 mm phase would have competed with early Cold War medium tanks, but the 120 mm phase was meant to answer heavy armored threats. Sources
Strengths in theory included high-caliber firepower, a compact oscillating turret, assisted loading, and ambitious mobility. Weaknesses in practice included power-plant limitations, rising mass, cost, and an anti-armor environment that was moving toward more lethal shaped-charge rounds. The absence of combat data means survivability, crew experience, and loss rates cannot be documented. Sources
Legacy and historical evidence
The most meaningful comparisons are not combat matchups but procurement and design alternatives. The AMX-50 occupied the same postwar problem space as late heavy tanks and early main battle tank concepts. Its strengths were firepower and design ambition; its weaknesses were industrial maturity and changing strategic timing. Sources
The AMX-50’s legacy is technological and narrative rather than operational. The official museum page’s most balanced judgment is that the result remained positive because France recovered an international-level technical capability through the program, even though the tank itself became too heavy and too expensive. Sources
The oscillating turret is the most visible design theme. Although the AMX-50 did not enter service, postwar French armored vehicles such as the AMX-13 and Panhard EBR made oscillating turrets a recognizable French specialty. The AMX-50 represents the large-caliber, heavy-tank branch of that same design culture. Sources
The program also influenced how French designers framed the next step. Weight, engine output, cost, and shaped-charge threats pushed French thinking away from a heavy-tank solution. The AMX-30 path emphasized mobility and a different balance of protection, armament, and tactical survivability. Sources

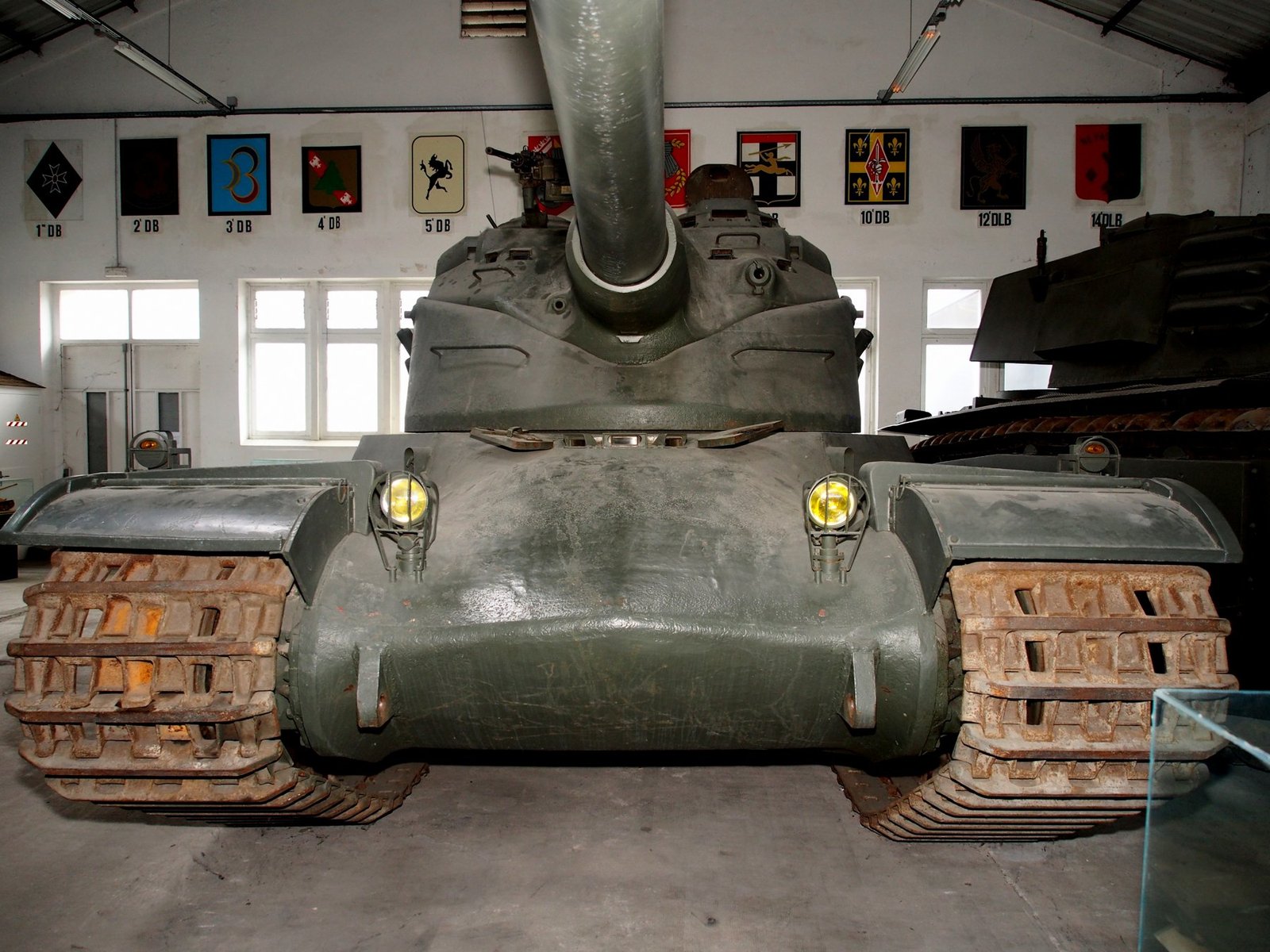

Surviving vehicles are limited. The major surviving reference point is the AMX 50/120 Surbaissé at the Musée des Blindés in Saumur. Sources
Modern reputation is distorted by video games and online armor culture. Terms such as “AMX 50 B” are often encountered in game contexts and may conflate proposals, turrets, hulls, or final prototype configurations. Sources
The official Musée des Blindés page is the strongest source for the surviving Surbaissé and the museum’s interpretation of program significance. Chars-Français is valuable because its relevant pages cite Archives DGA Châtellerault, though the pages are condensed and not primary documents themselves. Sources
