Historical overview
The AMX-40 was France's most ambitious pre-Leclerc export MBT proposal. It followed the AMX-32 and drew on the AMX-30 family's automotive and layout traditions, but it moved the export concept into the 120 mm smoothbore era. Its defining design bargain was high mobility and competitive firepower in a tank lighter than most contemporary Western MBTs. The Musée des Blindés highlights the vehicle's 120 mm gun, composite armor, stabilization, thermal-imaging technology, and 70 km/h road speed, while also emphasizing that no buyer adopted it. Sources
Historically, the AMX-40 mattered less as a production tank than as a market signal. It showed that French industry understood the need for a stronger export MBT after the AMX-30 and AMX-32, yet it also exposed the limits of an export-only approach. Contemporary reporting shows that France continued to court Gulf customers in the mid-1980s, including Saudi Arabia, but the AMX-40 had not secured export orders by late 1986. Sources
The vehicle's most important variants are the prototype/pre-series vehicles rather than serial production variants. Published accounts describe four prototypes as the common figure; Chars Français likewise says four prototypes were completed by 1986. The Musée des Blindés, however, states that four prototypes and two pre-series examples were produced, and it identifies its displayed vehicle as pre-series No. 02. Published accounts describe “four prototypes” and “six total prototype/pre-series vehicles” as a terminology conflict rather than a confirmed contradiction. Sources
The AMX-40 was technically serious and commercially unsuccessful. Its 120 mm armament and mobility gave it a plausible export pitch, but its protection level, its absence from French Army service, and the crowded MBT export market left it without a customer. Its legacy is best understood as a bridge between the AMX-30 export school and the industrial learning environment that preceded Leclerc, not as a direct Leclerc prototype or a combat-service tank. Sources
France entered the 1980s with the AMX-30 as its established MBT and with a distinctive design philosophy that had emphasized mobility, compactness, and firepower over the heavy passive armor approach taken by some NATO contemporaries. The AMX-30 remained important in service and export markets, but by the late 1970s and early 1980s the appearance of new Soviet tanks, improved anti-armor ammunition, thermal imaging, laser ranging, and Western 120 mm guns placed pressure on any 105 mm export MBT proposal. Sources
The AMX-32 was France's first serious attempt to update the export offer, but it also failed to find production customers. The AMX-40 followed as a more powerful export vehicle. Chars Français explicitly frames the AMX-40 as the successor to AMX-32 and as a vehicle designed specifically for export; the cited accounts likewise records AMX-32/AMX-30 lineage. Sources
The strategic problem was not simply technical. Export buyers wanted firepower and modern sights, but they also wanted certainty that a tank would be backed by a large home operator, an established logistics chain, and political-military support. The AMX-40's lack of a French Army order became a commercial weakness. Chars Français notes that the lack of a national market handicapped the type and discouraged foreign buyers. Sources
The broader market was hostile to a clean-sheet export-only MBT. The Leopard 2 and M1 Abrams were becoming benchmarks for Western armor, Britain was fielding Challenger 1, and Soviet-pattern tanks continued to dominate many client states through price, politics, or existing infrastructure. In the non-aligned export niche, designs such as Brazil's Osório, Italy's OF-40, and British Vickers offerings also competed for attention. The AMX-40 therefore entered a market where a “good tank” was not enough: a buyer also needed confidence in supply, support, interoperability, and political alignment. Sources
Development and variants
The AMX-40 design program from its early-1980s conception through abandonment around the end of the decade. Sources
Prototype/pre-series nomenclature where sources identify P1-P4 and/or P01-P02, with uncertain identifications. Sources
The AMX-30 and AMX-32 lineage context needed to understand the design. Sources
Export trials and marketing context, including Gulf interest documented by contemporary press. Sources
Technical description of layout, armament, protection, fire control, automotive system, and known weaknesses. Sources
The interwar AMX 40 cavalry tank project of 1939-1940. Sources
The Leclerc production tank. Early Leclerc/MSC development appears in the available accounts as a boundary prototype linked to the same late-Cold-War French context, but Leclerc production belongs to a later family record. Sources
In-game performance values or game-balance ammunition behavior. A game wiki was used only as an uncertain discovery aid, not as the final authority for real vehicle performance. Sources
AMX-30: the earlier French MBT lineage from which the AMX-32 and AMX-40 inherited layout and export positioning. Sources
AMX-32: the immediate export-prototype predecessor; the AMX-40 was a more ambitious 120 mm successor rather than a simple AMX-32 production model. Sources
Leclerc: France's later production MBT. The AMX-40 shared some industrial and conceptual environment but is not established as a Leclerc prototype. Sources
AMX 40 cavalry tank project: a prewar paper/project vehicle, unrelated except for designation similarity. Sources
The basic identity, country, timeframe, export-only status, 120 mm armament, and no-order outcome are well supported. The exact breakdown of prototype versus pre-series vehicles, late prototype configurations, armor details, and ammunition stowage are uncertain details because open sources summarize rather than reproduce factory documentation. Sources
Open sources place the AMX-40 program in the early 1980s. A careful reading suggests that conceptual and industrial work began before public prototype presentation, while the completed prototype sequence belongs mostly to 1983-1986. Sources
The design was associated with French land-systems industry, especially AMX/APX and GIAT-era organizations. The vehicle continued the French export-line practice of adapting proven AMX-30-family layouts while adding stronger firepower, improved fire control, and composite or laminated frontal protection. Sources
The AMX-40 was marketed as an export MBT and was evaluated or offered to prospective customers. Contemporary press reporting confirms Saudi interest/testing plans, and secondary summaries also mention interest or competition in Spain and other markets. Because the open sources do not provide a complete official trial file, Published accounts describe detailed trial outcomes as an unresolved question. Sources
The most important procurement decision was negative: France did not adopt the AMX-40, and no export customer placed a production order. Musée des Blindés describes the project as abandoned after no orders were received. Chars Français links the failure partly to the absence of a national market, a common handicap for export-only armor designs. [S1] Sources
Design and performance
The AMX-40 used a conventional four-crew MBT layout: driver in the front hull, turret crew of commander, gunner, and loader, engine and transmission in the rear. The layout visually and conceptually followed the AMX-30/AMX-32 line rather than the heavier M1/Leopard 2 school. Sources

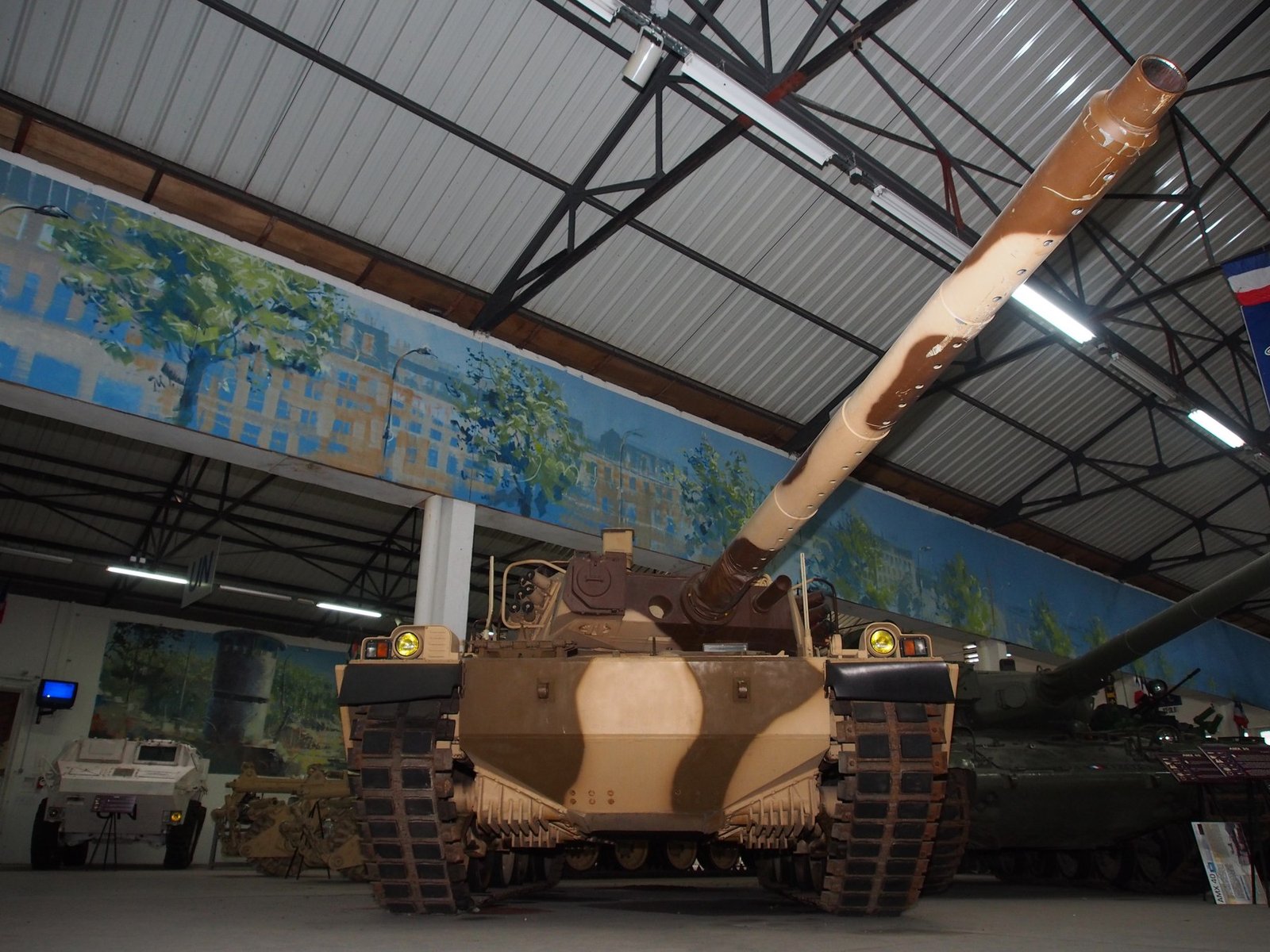

The hull was low and comparatively light for a 120 mm Western MBT. Photographs of the preserved vehicle show a sharply sloped glacis, broad track guards, large side skirts, and a rear engine deck consistent with a rear-mounted diesel powerpack. Armor thickness values are not treated as verified because public sources summarize armor technology rather than publish factory drawings. Sources
The turret was angular, with a pronounced bustle and a long 120 mm gun overhang. The front geometry used sloped and faceted surfaces intended to improve frontal resistance while keeping weight down. Photographs show smoke-launcher clusters on the turret sides and roof-mounted sight housings. Sources
Open sources consistently describe composite or laminated frontal protection, but not with consistent armor-equivalent figures. The Musée des Blindés refers to composite armor; Chars Français says the frontal laminated arrangement protected against HEAT threats above 100 mm caliber. Sources
The main armament was a French 120 mm smoothbore gun, generally identified in secondary literature as a GIAT/CN120-family weapon. It made the AMX-40 competitive in caliber with 1980s Western MBTs and was a major step beyond the AMX-30/AMX-32 export position. Sources
The secondary armament was unusually heavy for a coaxial weapon: a 20 mm cannon, intended for lightly armored or soft targets, and a 7.62 mm machine gun controlled from within the turret according to Chars Français. This followed a French tradition seen on AMX-30-family vehicles, where a 20 mm coaxial cannon increased target flexibility. Sources
Open sources agree on 120 mm ammunition use but disagree on stowage totals and internal ready-rack details. A range around the high 30s to about 40 rounds is often cited in secondary sources, but The evidence does not firmly establish exact ammunition capacity. The 20 mm and 7.62 mm ammunition loads are likewise not fixed here without primary confirmation. Sources
The AMX-40 was equipped with modernized fire-control features for its export pitch. The Musée des Blindés lists stabilization and thermal-camera technology, while MilitaryFactory identifies the COTAC fire-control system lineage borrowed from the AMX-30B2. The precise configuration may have varied among prototypes and pre-series vehicles. Sources
The preserved vehicle shows prominent turret-roof sight housings. Public summaries describe laser-rangefinding, day/night optics, and thermal-imaging capability. The cited accounts do not firmly establish exact sight model names and prototype-by-prototype fit. Sources
The AMX-40 used a Poyaud/SACM-Grossol V12 diesel family. Here the sources diverge: many secondary summaries cite an 1,100 hp version in early prototypes, while the Musée des Blindés gives the displayed vehicle a powerful 1,300 cv engine. Chars Français identifies a Poyaud engine and a German ZF automatic transmission. Published accounts describe 1,100 hp as a common baseline-prototype figure and 1,300 cv as a later/pre-series or museum-vehicle configuration unless a primary GIAT data sheet says otherwise. Sources
The suspension used six road wheels per side and follows the general AMX-30-lineage appearance in available photos. Public descriptions commonly identify torsion-bar suspension. Because the photographic evidence clearly supports the six-road-wheel arrangement, that point is well-documented; detailed damper and track-life data remain an unresolved question. Sources
The principal selling point was mobility. The museum gives 43.7 tonnes and 70 km/h, which, with 1,300 cv, would produce a very high power-to-weight figure; with 1,100 hp, the vehicle still sits around 25 hp/t. This gave the AMX-40 a strong acceleration and agility pitch compared with heavier Western contemporaries. Sources
The four-crew layout avoided an autoloader and retained a human loader. The turret bustle and conventional ammunition handling fit the Western export expectation of crewed turrets and manual loading. Precise ergonomics, internal volume, and crew survivability arrangements are not well documented in open sources. Sources
Specific radio model data was not found in the open sources consulted. As an export proposal, communications equipment likely would have been tailored to buyer requirements, but that is an inference and is not confirmed for any prospective operator. Sources
The vehicle had smoke-grenade launchers visible on the turret, composite/laminated frontal armor, and fire-control/night-fighting improvements. There is no evidence in the sources consulted of active protection or explosive reactive armor as standard AMX-40 equipment. Sources
The design tried to reduce risk by staying within an AMX-30/AMX-32 industrial lineage and by using a known Western automatic transmission. However, the lack of a service fleet means there is no large operational record from which to judge reliability. Maintainability claims represent design intent rather than proven service fact. Sources
The main weakness was commercial rather than purely technical: no home-army adoption, a small prototype base, and intense export competition. Technically, the vehicle was lighter and likely less heavily protected than top-tier 1980s NATO MBTs. Its exact armor package remains uncertain, but the AMX-40 was not a Challenger 1 or Leopard 2 equivalent in passive mass. Sources
Production, operators, and combat record
The AMX-40 was not a production tank. Its industrial story is therefore a prototype and export-marketing story centered on French land-systems industry rather than serial factory output. Published accounts describe “Prototype only” and “4 prototypes often cited,” while the Musée des Blindés uses a broader formulation of four prototypes and two pre-series examples. Sources
The design drew on France's established AMX-30 production and export ecosystem, which reduced developmental risk but also imposed lineage constraints. Unlike the Leclerc, the AMX-40 was not a national next-generation procurement program. It was an export proposal: a vehicle meant to convince foreign customers that France could offer a 120 mm MBT without waiting for the more expensive and nationally oriented Leclerc path. Sources
Open sources consulted name the French AMX/GIAT industrial family rather than a fully documented factory-by-factory production ledger. Secondary sources often associate design work with AMX-APX and GIAT-era organizations. The preservation of a pre-series vehicle at the Musée des Blindés is the best publicly accessible indicator of a completed hardware sequence. Sources
No reliable open cost figure was found. Because no export order was placed, licensed production, local assembly, and buyer-specific industrial offsets remained hypothetical. A firmly documented unit price is not established in the cited material. Sources
The AMX-40 had no operational military operators. It was used for French trials, demonstrations, and export marketing, then survived as a museum artifact. The official museum page states plainly that no orders were received and the project was abandoned. Sources
Since the AMX-40 was never operationally fielded, “retirement” is not applicable in the normal service sense. At least one example survives at the Musée des Blindés in Saumur, and the museum identifies the vehicle on display as pre-series No. 02. Sources
The AMX-40 has no documented combat history. It was not adopted into service, did not equip an operational army, and no reliable source consulted records battlefield deployment. No documented combat use is established in the cited material. Sources
Its intended tactical role was conventional MBT employment: long-range direct fire with a 120 mm gun, engagement of lighter targets with the 20 mm coaxial cannon, and high operational/tactical mobility. The 20 mm coaxial cannon would have been useful against light armor, fortifications, soft-skinned vehicles, helicopters at close range, and targets for which a 120 mm round was excessive, but this remains an intended capability rather than a combat-proven record. Sources
Legacy and historical evidence
The AMX-40's natural comparison set includes the Leopard 2, M1 Abrams, Challenger 1, T-72/T-80, Vickers export tanks, OF-40, and EE-T1/EE-T2 Osório. The AMX-40 was not simply inferior; rather, it was optimized for a different risk and weight balance. It offered modern firepower and excellent mobility in a lighter package, but it lacked a heavy passive-armor mass budget and the institutional certainty created by large home-army fleets. Sources
The AMX-40's direct legacy is modest: it did not arm a regiment, win a war, or start a family of production derivatives. Its indirect significance is larger. It represents the final stage of the AMX-30 export philosophy before France committed to the more advanced and more expensive Leclerc family. Sources
Chars Français notes that the AMX-32 and AMX-40 allowed testing of new components for the future Leclerc, but that statement cannot be overread. The AMX-40 was not simply a Leclerc prototype; it was an export MBT that shared a late-Cold-War industrial environment with the next-generation French tank program. Sources

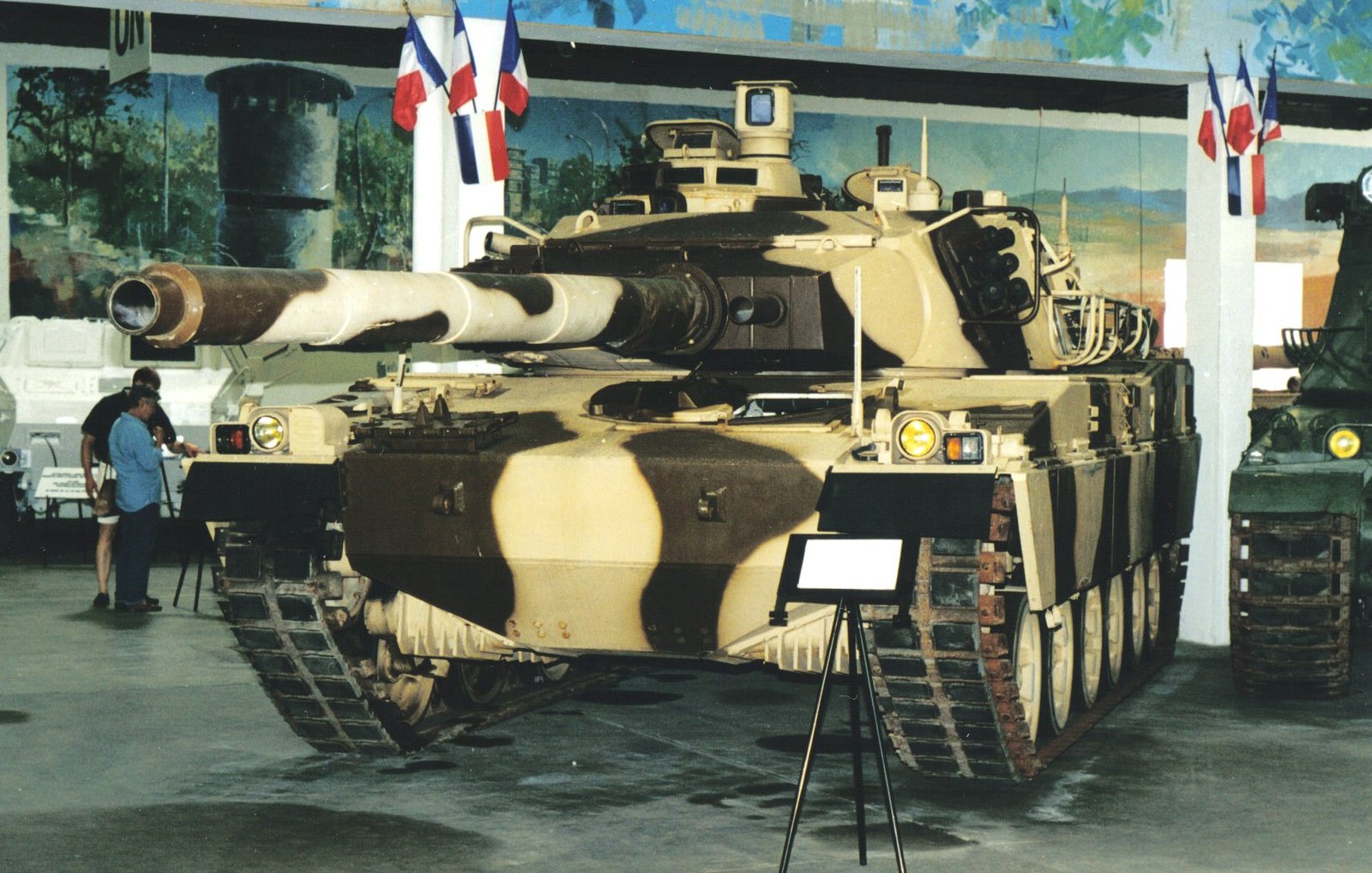

The Musée des Blindés preserves an AMX-40 and identifies its exhibit as pre-series No. 02. That makes the Saumur vehicle especially valuable for physical study of turret geometry, sight installations, side skirts, suspension arrangement, and overall scale. Sources
The AMX-40 has an outsized popular reputation because it appears in games and online armor communities, but popular attention can obscure the archival uncertainty around prototype counts and subconfigurations. Sources
It was not an operational French Army MBT. Sources
It was not exported to Saudi Arabia, Spain, India, or any other known buyer. Sources
It cannot be combined with the unrelated 1939-1940 AMX 40 cavalry tank project. Sources
It is not established as a direct Leclerc prototype without careful qualification. Sources
Its armor cannot be assigned exact RHA-equivalent values without traceable primary or high-quality printed sources. Sources
The Musée des Blindés describes the AMX-40 prototype chronology, the absence of production orders, and a four-plus-two construction count. Specialist French histories and contemporary reporting provide additional development and export context. Sources
AMX-40 was a French late-Cold-War export MBT prototype/proposal. Sources
It descended from the AMX-30/AMX-32 export lineage. Sources
It mounted a 120 mm smoothbore main gun and 20 mm/7.62 mm secondary weapons. Sources
It did not receive production orders and had no operational combat service. Sources
A preserved example is held by the Musée des Blindés at Saumur. Sources
Four prototypes were built before or by 1986, with two additional pre-series vehicles depending terminology. Sources
Poyaud/SACM-Grossol V12 diesel power was used, with 1,100 hp common in early descriptions and 1,300 cv for the museum P02 configuration. Sources
The AMX-40 used COTAC/COTAC-lineage fire-control equipment and thermal-imaging/stabilization capabilities. Sources
Saudi Arabia and possibly Spain evaluated or seriously considered the vehicle, but no sale occurred. Sources
Exact armor equivalent values, especially against kinetic penetrators. Sources
Exact 120 mm ammunition count and compartment-by-compartment stowage. Sources
Prototype-specific labels and configurations beyond the museum-identified P02. Sources
Any claim that the AMX-40 was directly a Leclerc prototype rather than related context. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- [S1] Musée des Blindés, “AMX 40.” Official museum vehicle page. Accessed 2026-06-03.
- [S2] Chars Français, “1983 AMX 40.” Accessed 2026-06-03.
- [S3] MilitaryFactory, “AMX-40 Main Battle Tank.” Accessed 2026-06-03. Secondary technical summary for prototype sequence, COTAC fire-control attribution, layout, dimensions, and no-operator status
- [S4] Le Monde archive, “L’Arabie Saoudite testera le char français AMX-40.” Published 1986-10-21. Accessed 2026-06-03. Contemporary press evidence for Saudi trials/export campaign and lack of export orders by late 1986
- [S5] War Thunder Wiki, “AMX-40.” Accessed 2026-06-03.
- [S6] Wikimedia Commons, “AMX-40, Tanks in the Musée des Blindés, France, pic-2.JPG.” Photographer Alf van Beem, 2013-09-11, own work, CC0/public domain
- [S7] Wikimedia Commons, “AMX-40, Tanks in the Musée des Blindés, France, pic-3.JPG.” Photographer Alf van Beem, 2013-09-11, own work, CC0/public domain
- [S8] Wikimedia Commons, “AMX-40, Tanks in the Musée des Blindés, France, pic-6.JPG.” Photographer Alf van Beem, 2013-09-11, own work, CC0/public domain
- [S9] Wikimedia Commons, “AMX40-2.jpg.” Photographer MWAK, July 2000, own work, public domain
