AMX-32

AMX-32 left-side profile at Musee des Blindes, Saumur, 18 July 2009. Saumur, France. Shows side armor/skirt layout and AMX-30-derived running gear; museum display/storage condition. [Wikimedia Commons, AMX-32_mg_7760.jpg, Rama, CC BY-SA 2.0 FR].Rama; Creative Commons Attribution-Share Alike 2.0 France and CeCILL options on file page.Image source

Historical overview

The AMX-32 was France’s attempt to turn the AMX-30 concept into a more attractive late-Cold War export tank. Its direct background was the AMX-30B2 modernization program, which addressed major weaknesses in the original AMX-30 through improved fire control, laser ranging, low-light television, a new transmission, and APFSDS ammunition. The AMX-32 moved beyond modernization by offering a redesigned turret, additional frontal and side protection, a 20 mm coaxial cannon, optional/variant 105 mm and 120 mm main armament, and upgraded sights. [Tank-AFV, AMX-30 page / AMX-32 section] [Chars-Francais, 1979 AMX 32] [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

The vehicle mattered because it exposed a fundamental problem in the export-tank market: a technically competent tank could still fail if it lacked a domestic order, combat proof, a broad logistics base, or a clear advantage over proven competitors. The AMX-32 had mobility close to the AMX-30 tradition and an advanced fire-control package for its weight class, but it was competing against surplus and new-build M60s, Leopard 1 variants, the Italian OF-40, British private-venture designs, and the early appearance of heavier third-generation tanks. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [The Tank Museum, Leopard 1 collection entry] [Tank Encyclopedia, OF-40] [Tank Encyclopedia, Vickers Mk.4 Valiant] Sources

The most important AMX-32 forms are the 1979 Satory 105 mm demonstrator and the 1981 120 mm demonstrator. Chars-Francais states that the first prototype was shown at Satory in 1979 with the AMX-30’s 105 mm gun, while a second prototype shown in 1981 carried a 120 mm gun and improved armor. MilitaryFactory compresses the program into two prototypes and no production, while the cited accounts and some secondary sources preserve a “six approximate / verify” count. Published accounts describe “at least two complete demonstrators” as well-documented and “six prototypes or chassis” as unresolved. [Chars-Francais, 1979 AMX 32] [MilitaryFactory, AMX-32 page] [ArmedConflicts / Valka.cz, AMX-32 page] Sources

The key technical claims are better established than the exact prototype count. The GIAT brochure for the AMX-32 105 mm version lists a four-man crew, hull length 6.59 m, overall length 9.45 m with the 105 mm gun, 3.24 m width over side pre-armor, 2.96 m overall height with the sight stabilized, about 39 tonnes combat weight, 65 km/h maximum road speed, 47 rounds of 105 mm ammunition, a 20 mm automatic cannon with 480 rounds, a 7.62 mm machine gun with 2,150 rounds, and a COTAC-based fire-control system. Chars-Francais separately lists the 120 mm version at 9.85 m overall length and about 40 tonnes combat weight, with 38 rounds of 120 mm ammunition. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

The AMX-32 was a clever, compact, and well-armed export tank that made the AMX-30 architecture more survivable and accurate. It was not a production French Army tank, not a clean-sheet third-generation MBT, and not a direct equivalent to the Leopard 2, M1, or Challenger generation. Its historical value lies in its role as a hinge: the last serious AMX-30-derived export tank before the more ambitious AMX-40 and the eventual Leclerc era. [Chars-Francais, 1983 AMX 40] Sources

The AMX-30 emerged from a French design philosophy that emphasized mobility and firepower over heavy passive armor. By the 1970s this logic was under pressure. The Soviet T-62 and T-72 families, better long-rod penetrators, precision anti-tank missiles, and thermal/low-light sighting expectations made a lightly protected, optically older tank less attractive to export customers. Tank-AFV notes that the AMX-30B modernization problem included inadequate protection and the risk posed by T-62/T-72-class opponents, while AMX-30B2 modernization introduced improved fire control, laser ranging, low-light television, APFSDS capability, and a new transmission. [Tank-AFV, AMX-30 page / AMX-32 section] Sources

The AMX-32 was therefore not merely a new tank for the French Army; it was an export answer to a changed marketplace. The same years that saw AMX-30B2 modernization also saw countries weigh proven U.S. M60A3 packages, German Leopard 1A3/A4 upgrades, the Italian OF-40 export tank, British private-venture Chobham-armored concepts, and emerging heavier third-generation designs. For a French export tank to compete, it needed a modern fire-control story and better protection without abandoning the AMX-30’s medium-weight mobility. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [The Tank Museum, Leopard 1 collection entry] [Tank Encyclopedia, OF-40] [Tank Encyclopedia, Vickers Mk.4 Valiant] Sources

The design problem was to produce a tank attractive to countries that wanted something more advanced than the original AMX-30, but not necessarily a very heavy and expensive third-generation MBT. GIAT’s own brochure framed the AMX-32 around four claims: a 105 mm gun firing APFSDS ammunition, a 20 mm gun associated with the main armament, a mass-produced automatic fire-control system, and firing-on-the-move capability for the tank commander. The brochure also emphasized medium weight, strategic mobility, and the ability to ford 2.20 m without special equipment or 4 m with a snorkel. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

The AMX-32 was developed in parallel with AMX-30B2 modernization rather than as the first step in a French Army procurement program. Chars-Francais explicitly states that, at the same time the AMX-30 B2 modernization was under way, AMX workshops developed the AMX-32 specially for export. That mattered: a tank without a domestic order usually had weaker political backing, less production assurance, and fewer training/logistics guarantees for a foreign buyer. The later AMX-40 suffered the same problem; Chars-Francais states that the absence of a French Army order was a major handicap for that export program as well. [Chars-Francais, 1979 AMX 32] [Chars-Francais, 1983 AMX 40] Sources

The AMX-32 thus belongs in the history of French export armored vehicles as much as in the technical history of French tanks. It was a product meant to be seen at Satory, described in brochures, and sold abroad. It was also a design stepping-stone: Chars-Francais describes the AMX-40 as the logical successor to AMX-32 and says that AMX-32 and AMX-40 mainly allowed several components later used in Leclerc to be tested. [Chars-Francais, 1983 AMX 40] Sources

Development and variants

Published accounts describe the AMX-32 as a prototype/export family rather than as a single museum vehicle. The AMX-30B2 is included as developmental background because many AMX-32 features were aligned with the broader AMX-30 modernization effort; however, AMX-30B2 is not treated as an AMX-32 variant. [Tank-AFV, AMX-30 page / AMX-32 section] Sources

AMX-32 as an export main battle tank prototype family, not an operational fleet. Sources

The 1979 105 mm prototype / demonstrator shown at Satory. Sources

The 1981 120 mm prototype / demonstrator with improved armor. Sources

The GIAT June 1983 AMX-32 brochure configuration, which documents the 105 mm weapon-system optimization package. Sources

Survivor and museum information where the vehicle can be tied to a preserved AMX-32 rather than generic AMX-30 lineage. Sources

AMX-40 successor context, especially where sources state that AMX-32 and AMX-40 served as component and concept bridges toward Leclerc. Sources

Full AMX-30 production-service history, except as context. Sources

A complete AMX-40 account; AMX-40 appears only as successor context. Sources

Leclerc development history except for source-supported notes about later component influence. Sources

Unverified marketing claims of export negotiations, unless clearly labeled as leads rather than facts. Sources

Replicas, scale models, video-game depictions, and unlabeled images of unrelated AMX-30 variants. Sources

The AMX-32 was a French Cold War prototype and export proposal, first demonstrated in 1979 with 105 mm or 120 mm armament in different configurations. It attracted no production orders and preceded the AMX-40 export design. Sources

The safest project treatment is to preserve FR-AMX32 as the canonical family, FR-AMX32 as the variant record for the AMX-32 export MBT prototype, and FR-AMX32-PROTO as the prototype/paper cross-reference rather than merging it into AMX-30B2 or AMX-40. Sources

The AMX-32 was created within the French AMX/GIAT industrial ecosystem, with AMX-APX associated with the documented brochure configuration. The cited accounts summarizes the lineage as “AMX-30 export improvement.” Secondary references sometimes identify the project as a private initiative of Atelier de Construction de Roanne and AMX-APX for the export market. This is plausible but remains unconfirmed. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [ArmedConflicts / Valka.cz, AMX-32 page] Sources

Accessible sources document public demonstrations and technical claims more clearly than formal state trial reports. GIAT’s brochure describes firing accuracy, APFSDS performance, mobility, protection, NBC equipment, and fire-control features in marketing terms. It claims that the fire-control system reduced the firing sequence to a few seconds and achieved a direct hit in 90 percent of cases, but the underlying test protocol is not included in the scan and is described as a manufacturer claim rather than an independent trials result. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

MilitaryFactory states that the AMX-32 was developed into two prototypes and went no further; Tank-AFV says the AMX-32 received no orders; Chars-Francais moves the story into AMX-40 successor development rather than production. The cited accounts likewise records “Prototype only” and “No production orders.”. [MilitaryFactory, AMX-32 page] [Tank-AFV, AMX-30 page / AMX-32 section] [Chars-Francais, 1983 AMX 40] Sources

The likely reasons were cumulative rather than singular. The AMX-32 had no French Army baseline order; the 105 mm version was an improved second-generation tank at a time when buyers were already evaluating 120 mm, composite-armored, or surplus upgrade solutions; the 120 mm version arrived into a market where Leopard 2, M1, and Challenger-class designs redefined high-end MBT expectations; and proven export fleets such as M60 and Leopard 1 offered logistics certainty. The AMX-32 was neither cheap surplus nor an unequivocal third-generation leap. This interpretation is supported by the no-order outcome and by the AMX-40 source’s explicit statement that lack of domestic adoption handicapped the follow-on export design. [Chars-Francais, 1983 AMX 40] Sources

Design and performance

The AMX-32 used a conventional four-crew MBT layout. Chars-Francais describes the internal organization as directly inspired by the AMX-30, with the driver at front left, three crewmen in the turret, and the engine/transmission group in the rear. GIAT’s technical-characteristics page lists the crew as commander, gunner, loader, and driver. [Chars-Francais, 1979 AMX 32] [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

The hull remained recognizably AMX-30-derived but was not identical in protection or exterior fit. The GIAT brochure lists hull length at 6.59 m and width to side pre-armor at 3.24 m. The vehicle used side pre-armor / skirt structures, storage and external fittings on the rear deck, and a five-road-wheel suspension line visually consistent with the AMX-30 lineage. Brochure diagrams identify items such as the NBC compartment, radio sets, air supply duct, radiators, oil cooler, hydraulic mechanism box, and connector-fitted tracks. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

The AMX-32 turret was the most visible break from the rounded cast AMX-30 turret. The prototype photographs and GIAT diagrams show a more angular welded turret with external side and frontal armor modules. Chars-Francais describes the 1981 prototype as having improved armor, while the brochure emphasizes protection of the front of the tank and low-end sides through careful armor-plate thickness and intersection angles. Exact turret armor composition and thickness remain undocumented in open sources used here. [Chars-Francais, 1979 AMX 32] [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

The AMX-32 was not a thin-skinned AMX-30 in unchanged form: GIAT advertised “composite armour plate,” attention to the protection of the AMX-32 crew, and a combination of plates of varied hardness and composite materials. Chars-Francais similarly states that the nose and welded turret received modern composite armor and that protective skirts were added over the running gear. However, no reliable accessible source provides exact thicknesses, construction drawings, or verified RHA-equivalent values. Published accounts describe armor type and location at less certain, but not numerical protection levels. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

Two main armament paths refer to distinct categories. The 1979 / GIAT brochure configuration used the French 105 mm gun and emphasized APFSDS ammunition. The brochure lists 47 rounds of 105 mm ammunition, including 19 in the turret. The 1981 / 120 mm configuration carried a smoothbore 120 mm gun developed by EFAB Bourges according to Chars-Francais, with 38 rounds total and 17 in the turret. Chars-Francais states that the 120 mm gun could fire the same rounds as the German Leopard II. This claim is plausible for export-standard 120 mm ammunition compatibility but remains unconfirmed because a complete interchangeability statement. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

The AMX-32 retained one of the most distinctive AMX-30 family ideas: a 20 mm automatic cannon associated with the main armament. GIAT describes it as interlocked with the main weapon and useful against personnel, lightly armored vehicles, anti-aircraft targets, and fast response without drawing down main-gun ammunition. The brochure lists 480 rounds for the 20 mm gun, including 230 ready for use in the ammunition chest. Chars-Francais identifies the gun as the M693 20 mm cannon and gives the same 480-round figure. A 7.62 mm machine gun mounted on the observation cabin / commander’s cupola had 2,150 rounds in the GIAT brochure, with 650 on one belt inserted ready on the weapon. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

Fire control was a central selling point. The GIAT brochure describes a mass-produced, integrated fire-control system adopted by the French Army and associated on AMX-32 with sight stabilization that allowed the tank commander to fire when the tank was on the move. It lists an M527 gyrostabilized panoramic day/night telescope for the commander and a COTAC M581 integrated telescope for the gunner, providing laser rangefinding, tachometry, and automatic corrections. The brochure further states that target elevation/traverse speed, slant, outside temperature, wind, altitude, ammunition, and ballistic characteristics were taken into account. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

This language cannot be overread as “the AMX-32 had a fully modern, fully stabilized gunner’s hunter-killer system equivalent to later third-generation MBTs.” The brochure specifically stresses commander firing-on-the-move through a sight stabilization system. Chars-Francais similarly describes a commander panoramic gyrostabilized sight, a sight slaved to the commander, and a gunner laser rangefinder integrated with the COTAC fire-control computer. Sources

Optics included the commander’s panoramic day/night telescope, an observation cabin/cupola with eight wide-angle anti-glare periscopes, the gunner’s laser-rangefinder telescope integrated with COTAC, and light-intensification or low-light television equipment for driving, observation, and firing. GIAT’s diagram identifies a DIVT 13 television camera, gunner’s TV monitor, tank commander’s TV monitor, gunner’s telescope M581, and tank commander’s telescope M527. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

The accessible sources disagree slightly on power. The GIAT brochure offers two engine packages: an HS 110-2 engine similar to the AMX-30 engine, multi-fuel, direct-supercharged, 700 hp; and an HS 110-2SR diesel, cooled supercharging, 800 hp. Chars-Francais describes an 800 hp Hispano-Suiza engine with a powershift gearbox. MilitaryFactory lists 720 hp, a figure not reconciled by the brochure or Chars-Francais page. Published accounts describe 700/800 hp as the documented brochure options, 800 hp as the usual advertised/Chars-Francais export configuration, and 720 hp as a secondary-source conflict. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] [MilitaryFactory, AMX-32 page] Sources

The gearbox was the ENC 200, described by GIAT as a gearbox with a lock-up torque converter, five gears and reverse controlled electrically, and hydrostatic steering with a steering wheel that continuously varied the turning line. Chars-Francais lists a powershift five-speed gearbox with reversing, torque converter, lock-up, and hydrostatic steering. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

The AMX-32 retained AMX-30-like medium-weight mobility. GIAT lists 65 km/h maximum road speed, 50 km/h average road speed, 45 km/h average cross-country speed, and 18 hours of NATO combat range/autonomy. Chars-Francais gives essentially the same road and cross-country performance figures for the 120 mm configuration. Mobility obstacles in the GIAT brochure include 60 percent grade, 30 percent slant, 2.90 m straight-edged ditch, 0.90 m vertical obstacle, 1.20 m fording without preparation, 2.20 m with preparation but no snorkel, and 4.00 m with preparation and snorkel. Chars-Francais reports 2.20 m without preparation and 4 m with snorkel; that differs from the brochure’s more graduated fording values and is treated as a variant/reporting difference. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

The crew was four. The GIAT brochure stresses ease of driving, rail transport without restriction, and modern ergonomics. The 20 mm coaxial gun reduced the need to expend main-gun rounds on light targets and gave the turret crew an intermediate weapon. Interior photographs in the GIAT brochure show a compact but relatively instrumentation-heavy commander and gunner arrangement for a late-1970s tank, including television monitors and electronics boxes. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

Chars-Francais lists communications options as TRVP 13/213 or TRC 570 or HF-TRC 320, with interphone and external telephone. GIAT’s diagram identifies radio-set positions and includes the external telephone in the technical layout. Exact export-customer radio fits would have varied by buyer and are not documented because there was no serial customer. [Chars-Francais, 1979 AMX 32] [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

Protection included composite/spaced armor on the frontal arc and turret, running-gear side protection, smoke launchers, and NBC equipment. GIAT states that NBC protection was standard and that filters could be replaced from outside the tank; in hot-weather versions, NBC protection could be replaced by air conditioning. Optional equipment listed in the brochure included air conditioning, a fire-fighting system, smoke generators through the exhaust unit, and connector-type or metal tracks. Chars-Francais lists double-circuit NBC ventilation/pressurization and DREB smoke dischargers. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

Because the AMX-32 never entered serial service, no operational reliability record exists. Its strongest maintainability argument was continuity with the AMX-30 family and the use of known French fire-control and automotive components. Its weaknesses were equally clear: no domestic order, no combat record, uncertain export logistics, protection levels that were marketed but not independently published, and a prototype-count/fate record that remains confused in open sources. It also sat between categories: heavier and more complex than a simple AMX-30 upgrade, but not as heavily protected or strategically established as the leading third-generation MBTs of the 1980s. Sources

Production, operators, and combat record

The AMX-32 is best understood as a GIAT/AMX/APX export demonstrator. The brochure bears the GIAT name and the designation AMX-APX 06617 A. Chars-Francais attributes development to AMX workshops during the same period as AMX-30B2 modernization. The 120 mm gun is attributed by Chars-Francais to EFAB Bourges. Exact division of labor among Atelier de Construction de Roanne, AMX-APX, optics/electronics suppliers, and engine/transmission suppliers remains a target for deeper archival research. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

The industrial bottleneck was not a single manufacturing problem visible in open sources. It was market validation. A French export tank with no domestic production order had to persuade customers that France would sustain the design, supply spares, train crews, and keep the system modern. AMX-32’s successor, AMX-40, encountered the same difficulty; Chars-Francais states that the absence of a domestic market was a major handicap. [Chars-Francais, 1983 AMX 40] Sources

The AMX-32 was configured and marketed for export. The GIAT brochure is written as a sales document, advertising broad ammunition choices, 105 mm APFSDS, a 20 mm cannon, fire-control accuracy, mobility, armor protection, NBC protection, optional air conditioning, and track options for user-country requirements. No firm buyer emerged. The most plausible narrative is that the AMX-32 was technically adequate but commercially stranded between cheaper proven vehicles and newer heavier MBTs. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

The AMX-32 had no operational military operator. Its service history is a trials, demonstration, storage, and museum-survivor history. France was the country of origin and demonstration context, but the French Army did not adopt the vehicle as a line tank. [Tank-AFV, AMX-30 page / AMX-32 section] [MilitaryFactory, AMX-32 page] Sources

PreservedTanks assigns AMX-32 Tank Unique ID 960 to Musee des Blindes, Saumur, France, and an image detail page credits a front-right photo from 15 June 1994 to the J. Vollert Collection / Tankograd. A PreservedTanks profile snippet further states that the AMX-32 and two AMX-40 tanks were gifted by GIAT Industrie in 1992. The preservation database reports a survivor, but this is not a complete official museum inventory. [PreservedTanks.com, AMX-32 Unique ID 960] Sources

The AMX-32 had no documented combat history. It was not adopted for line service, was not produced for export, and was not reported here as participating in war under French, foreign, or captured-use markings. This absence is not a minor footnote: it is one reason the vehicle is difficult to evaluate. There are manufacturer claims for fire-control speed, hit probability, armor protection, and mobility, but no operational combat record to test those claims under field conditions. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [MilitaryFactory, AMX-32 page] [Tank-AFV, AMX-30 page / AMX-32 section] Sources

In theory, AMX-32 would have been used as a medium-weight MBT optimized for mobile direct fire. Its 105 mm version would have relied on APFSDS, high rate of engagement, and a 20 mm coaxial cannon to handle light targets without consuming main-gun ammunition. Its 120 mm version would have given stronger anti-armor growth potential while retaining a roughly 40-ton class vehicle. The commander sight and COTAC fire-control package were meant to reduce engagement time and allow at least commander-directed firing on the move. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

Legacy and historical evidence

The AMX-32 can be compared with late-second-generation export MBTs and private-venture alternatives rather than only with the heaviest early-1980s tanks. Its most relevant comparison set includes AMX-30B2, Leopard 1A3/A4-style modernized 105 mm tanks, the Italian OF-40, Vickers Valiant / Vickers Mk.4 private-venture concepts, M60A3-type upgrades, and the rising 120 mm Leopard 2 / M1 generation. Sources

AMX-32’s direct legacy was not a production fleet; it was a technology and concept bridge. Chars-Francais calls AMX-40 the logical successor to AMX-32 and says AMX-32/AMX-40 mainly served to test several components later integrated into Leclerc. That is the vehicle’s most important design-history role. It sits between AMX-30B2 modernization and the Leclerc generation, showing how France experimented with export-market solutions before committing to a truly new national MBT. [Chars-Francais, 1983 AMX 40] Sources

At least one AMX-32 survivor is documented at Musee des Blindes, Saumur through PreservedTanks and Wikimedia Commons photographs. The photographs used in the cited record show the vehicle in museum or storage/display context in 1997 and 2009. The cited accounts do not firmly establish exact current condition, accession number, and whether more than one AMX-32 remains in French storage. [PreservedTanks.com, AMX-32 Unique ID 960] [Wikimedia Commons, AMX32.jpg, MWAK, public domain] [Wikimedia Commons, AMX-32_mg_7757.jpg, Rama, CC BY-SA 2.0 FR] [Wikimedia Commons, AMX-32_mg_7760.jpg, Rama, CC BY-SA 2.0 FR] Sources

Modern armor enthusiasts often treat the AMX-32 as a “what if” tank: a vehicle that appears more modern than the AMX-30 yet clearly less famous than AMX-40 or Leclerc. Its reputation is shaped by prototype photographs, a few museum images, and scattered published figures. Common misconceptions include counting it as a fielded French MBT, treating the two public demonstrators as the entire chassis count without qualification, assuming published armor equivalence values from unsourced game communities, or collapsing AMX-32 and AMX-40 into one program. Sources

The safest influence statement is modest: AMX-32 helped test or demonstrate features—fire-control integration, improved protection packaging, 120 mm export firepower, automotive choices, and export layout concepts—that formed part of the French path from AMX-30 to AMX-40 and Leclerc. It did not itself create a lineage of operational derivatives. [Chars-Francais, 1983 AMX 40] Sources

The vehicle is real, the basic chronology is strong, and the GIAT brochure provides high-value technical data for the 105 mm package. However, the AMX-32 never entered service, so there are no operational manuals or fleet records readily available. Much open literature repeats a small number of claims, often without distinguishing between complete demonstrators, hulls, turrets, and marketing configurations. Sources

AMX-32 was a French AMX-30-derived export MBT prototype, not a serial-production tank. [Tank-AFV, AMX-30 page / AMX-32 section] [MilitaryFactory, AMX-32 page] Sources

A 105 mm AMX-32 prototype/demonstrator was shown at Satory in 1979. [Chars-Francais, 1979 AMX 32] [Tank-AFV, AMX-30 page / AMX-32 section] Sources

A 120 mm AMX-32 prototype/demonstrator was shown in 1981 with improved armor. [Chars-Francais, 1979 AMX 32] Sources

The 105 mm brochure configuration had four crew, about 39 t combat weight, 65 km/h maximum road speed, 47 x 105 mm rounds, a 20 mm automatic gun, a 7.62 mm machine gun, and COTAC/M527/M581 fire-control components. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

AMX-40 followed AMX-32 as a French export MBT project, with four prototypes completed by 1986. [Chars-Francais, 1983 AMX 40] Sources

The 120 mm AMX-32 used an EFAB Bourges smoothbore and carried 38 rounds. This is well supported by Chars-Francais but remains unconfirmed. [Chars-Francais, 1979 AMX 32] Sources

The advertised 800 hp powerpack represents the usual export/Chars-Francais configuration, while the brochure also lists a 700 hp engine option. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

AMX-32 and AMX-40 tested components later integrated into Leclerc; the broad statement is sourced. The precise components remain uncertain. [Chars-Francais, 1983 AMX 40] Sources

Preservation records document an AMX-32 at Saumur, although they do not establish its present display status. [PreservedTanks.com, AMX-32 Unique ID 960] Sources

The exact total prototype count. Two public demonstrators are well attested; “six approx / verify” remains unresolved. [MilitaryFactory, AMX-32 page] Sources

Exact armor thickness, armor composition layers, or RHA-equivalent protection values. These cannot be stated without primary documentation. [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] [Chars-Francais, 1979 AMX 32] Sources

The 720 hp figure in MilitaryFactory, which conflicts with the 700/800 hp brochure options and 800 hp Chars-Francais description. [MilitaryFactory, AMX-32 page] [GIAT AMX 32 brochure, AMX-APX 06617 A, June 1983] Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

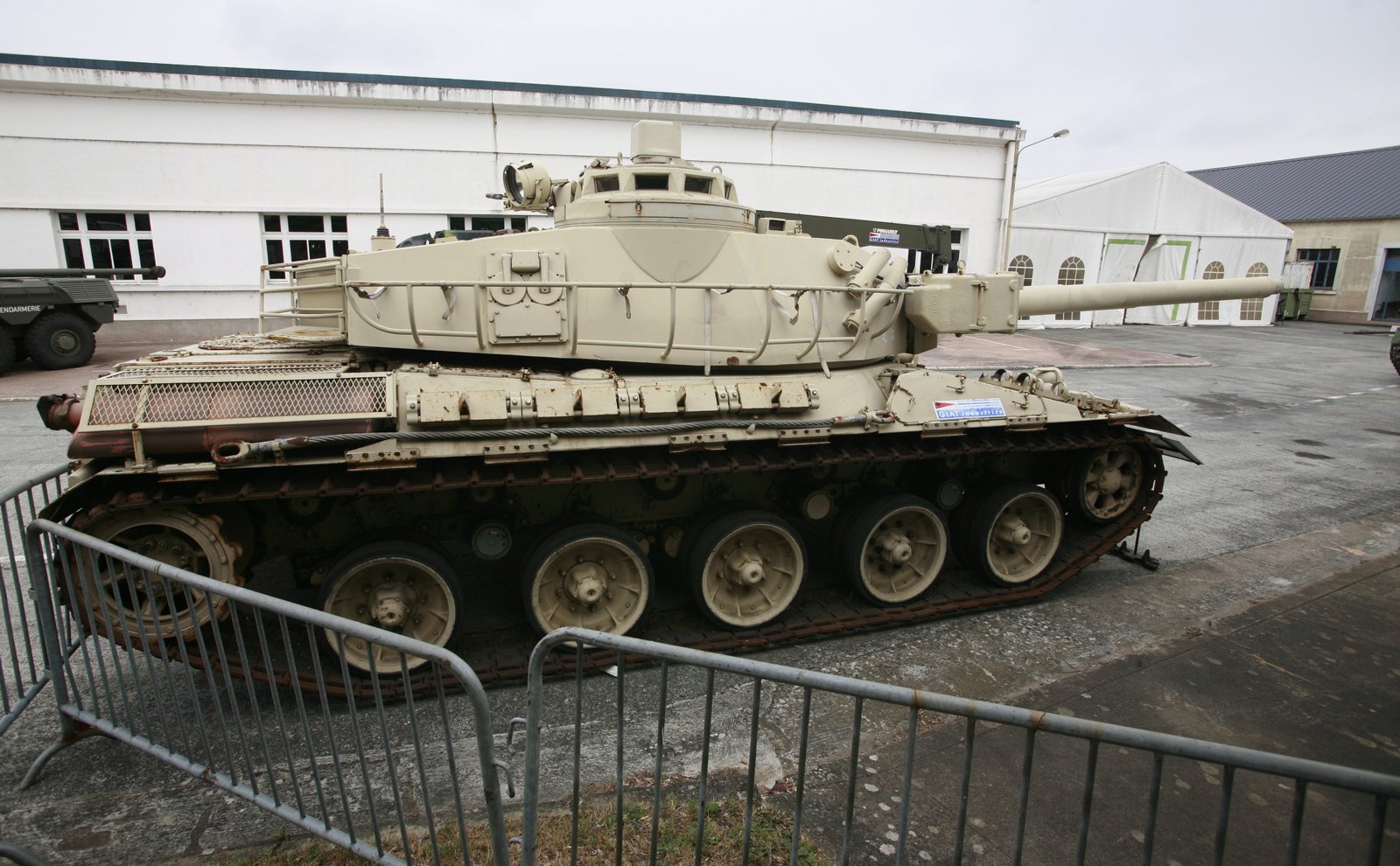

AMX-32 side/rear three-quarter view at Musee des Blindes, Saumur, 18 July 2009. Shows angular turret, rear-deck arrangement, side skirts, and five-road-wheel AMX-30 lineage features. [Wikimedia Commons, AMX-32_mg_7757.jpg, Rama, CC BY-SA 2.0 FR].Rama; Creative Commons Attribution-Share Alike 2.0 France and CeCILL options on file page.Image source

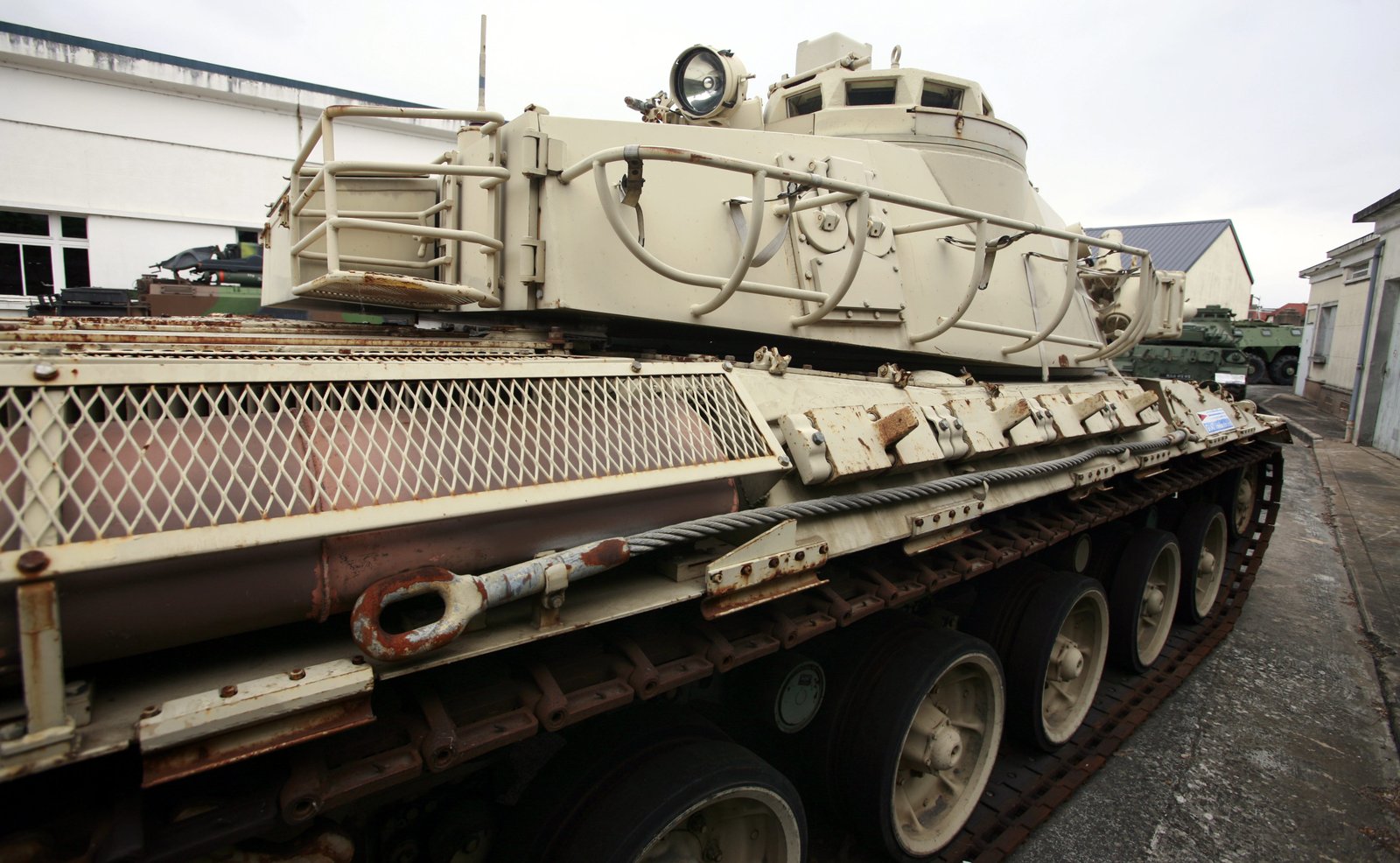

AMX-32 rear-quarter detail at Musee des Blindes, Saumur, 18 July 2009. Shows show rear fittings, skirt structure, and preserved-vehicle weathering; external wear does not establish service use. [Wikimedia Commons, AMX-32_mg_7757.jpg, Rama, CC BY-SA 2.0 FR].Rama; Creative Commons Attribution-Share Alike 2.0 France and CeCILL options on file page.
