Historical overview
The AMX-30E was the Spanish license-production branch of the French AMX-30 main battle tank family. It is best understood as a Spanish AMX-30B derivative rather than a clean-sheet Spanish tank. The Spanish Army’s own summary describes the AMX-30 as a French 1960s design that emerged after the breakup of the Franco-German common-tank effort, then states that Spain built a licensed version called AMX-30 E with several national changes. Sources
The tank mattered for three linked reasons. First, it gave the Spanish Army a modern 105 mm-gun main battle tank at a time when the force still relied heavily on older U.S.-origin M47 and M48 tanks. Second, the program expanded Spanish armored-vehicle industrial capacity through Empresa Nacional Santa Bárbara, the Las Canteras assembly site near Seville, ENASA engine production in Barcelona, and a distributed Spanish component base. Third, the fleet became the platform for Spanish modernization experiments that produced the AMX-30EM1 and AMX-30EM2. Sources
The record is mixed. The AMX-30E gave Spain useful mobility, a competent low-profile turret, a 105 mm main gun, and a national production base, but it carried the AMX-30 family’s central weakness: limited armor protection and persistent automotive reliability problems. The Spanish Army source is blunt that the AMX-30E had a good turret but persistent clutch, gearbox, and cooling-system problems, which drove modernization from 1987 onward. Sources
The most important variants are the baseline AMX-30E, the AMX-30EM1 automotive modernization, and the AMX-30EM2 more extensive modernization. Support and related chassis vehicles included AMX-30 Kiosque driver trainers, AMX-30ED recovery vehicles, and AMX-30 Roland air-defense vehicles, but those are treated here as related Spanish AMX-30 service assets rather than as part of the AMX-30E MBT production count. Sources
The major controversies and source conflicts are not about whether Spain had AMX-30E tanks, but about dating conventions, exact modernization counts, and some technical details. The total of 299 is well supported as 19 French-supplied tanks plus 280 Spanish-built tanks, but modernization counts vary: an official MUMA sheet says 210 of 299 were modified, while common secondary accounts often imply split counts that cover the entire fleet. Sources
The AMX-30E sits at the intersection of French postwar tank design and Spain’s late-Cold War effort to modernize an armored force still built around older U.S. equipment. French AMX-30 development followed the collapse of the Franco-German common-tank project. French design choices emphasized mobility, low silhouette, and a powerful 105 mm gun rather than the heavy armor approach represented by tanks such as the British Chieftain. Sources
For Spain, the immediate problem was obsolescence. The official Spanish Army AMX-30E history says that in 1966 the Spanish Army began studying a replacement for the antiquated M47 and proposed the German Leopard. Political and international constraints, however, pushed the decision toward adopting and manufacturing the French AMX-30 under a Hispano-French military-cooperation arrangement. Sources
Spanish armored doctrine in this period had to reconcile multiple inherited fleets, limited domestic tank-production experience, geography that ranged from Iberian garrisons to Spanish Sahara, and the desire to preserve national industrial participation. The AMX-30E therefore served a strategic and industrial role as much as a purely tactical one: it gave Spain a path to build and maintain a modern MBT at home rather than relying only on foreign transfers. Sources
The Sahara context sharpened the requirement. Spain bought 19 tanks directly from France to create a powerful armored capability for the Legion’s “Bakali” tank company, while the larger license program created the domestic production base. Spanish Army historical materials link AMX-30 vehicles to the Bakali company and to the armored expeditionary framework around Spanish Sahara in the mid-1970s. Sources
The wider Cold War context also explains the AMX-30E’s design tradeoffs. A tank such as AMX-30E could move quickly, ford deeply with a snorkel, and use a compact low turret, but it accepted relatively modest armor. This was not an accidental defect; it was a design philosophy inherited from the French parent family. Sources
Development and variants
Classification: Published accounts describe AMX-30E as a tank family inside the wider AMX-30 lineage: a Spanish licensed-production and modernization branch of the French AMX-30B main battle tank. It includes the initial Spanish AMX-30E production standard, the earlier French-built tanks delivered directly to Spain for urgent service, the Spanish modernization programs AMX-30EM1 and AMX-30EM2, and the operator/service record in Spain. Sources
Included: Spanish AMX-30E procurement, industrial production, AMX-30E technical configuration, Spanish Army service, Sahara deployment context, AMX-30EM1/EM2 modernization, and related Spanish support vehicles where they illuminate the AMX-30E fleet. Sources
Excluded: The full French AMX-30B, AMX-30B2, BRENUS, EBG, DCA, Pluton, Roland, AuF1, and other French AMX-30 chassis families are not covered as independent families. They appear only when needed to explain parentage or boundary confusion. The French AMX-30B background is summarized because it defines the Spanish vehicle’s design baseline. Sources
Related vehicles often confused with it: French AMX-30B; French AMX-30B2; French AMX-30 EBG engineering vehicle; Spanish AMX-30ED recovery vehicles; AMX-30 Roland antiaircraft missile vehicles; the unbuilt Spanish Lince tank project; and later Leopard 2E. Sources
That matches the external-source situation: the existence of EM1/EM2 is solid, but exact conversion counts and sub-variant boundaries require deeper Spanish archival or Jane’s/ARMOR follow-up. Sources
The design origin is French. The AMX-30 parent family emerged from the postwar common-tank effort and entered French service as the AMX-30B in the late 1960s. Chars-francais notes that the French AMX-30B production standard used the HS 110 diesel, CN-105 F1 105 mm gun, TOP 7 cupola, and a secondary armament arrangement that initially included a 12.7 mm coaxial weapon and later a 20 mm cannon. Sources
Spanish development began as an adoption and localization process. The official Spanish Army AMX-30E paper says Spain studied a replacement in 1966, selected the AMX-30 after political and international constraints undermined the Leopard option, and signed a 1970 agreement under which France would deliver 19 tanks and Spain would receive a license to manufacture 180 more. Empresa Nacional Santa Bárbara de Industrias Militares was the principal contractor. Sources
Industrial development was distributed. The Spanish Army source states that the gun and tracks were built at the Fábrica de Armas de Sevilla, the engine at ENASA in Barcelona, components across Spain, and final assembly at the Fábrica de Artillería facilities in Las Canteras, Seville. The 2022 Spanish Army history also identifies the 22 June 1970 agreement and the delivery of the first five tanks at Las Canteras on 30 October 1974. Sources
The first direct French vehicles had an urgent-service purpose. One remained in the Peninsula at the Cavalry Application School; the remainder went to the Sahara, where the Legion tank company “Bakali” was formed inside the Tercio Don Juan de Austria. This early deployment is distinct from serial Spanish AMX-30E production, which began in 1974. Sources
The domestic production program unfolded in two main orders: a first series of 180 and a 1979 expansion for another 100, continuing to 1983. Official Spanish Army material describes this as the first and only tank built in large series in Spain. The MUMA sheet frames the 280 Spanish-built vehicles as a major advance for national production and distinguishes them from the 19 directly purchased French vehicles. Sources
Modernization became necessary because of reliability and obsolescence. The Spanish Army source says the AMX-30E had a good turret but persistent problems with clutch, gearbox, and cooling system. From 1987, Spain studied and applied modernization programs focused on transmission, engine, and fire control, producing prototypes that led to AMX-30EM1 and AMX-30EM2. Sources
Design and performance
The AMX-30E retained the AMX-30’s classic layout: driver front left, fuel and ammunition storage to the driver’s right, fighting compartment and low turret at the center, and rear engine compartment separated by a firewall. The official Spanish description notes a passage through the firewall for underwater engine air intake, supporting the tank’s deep-fording concept. Sources
The hull used rolled steel plates and cast steel pieces. It was light for its generation: the Spanish Army source gives 34 metric tons in marching order and 36 metric tons in combat, reinforcing the AMX-30 family’s mobility-first concept. Sources
The turret was a low one-piece cast armor turret. The gunner and commander sat on the right, the loader on the left. Spanish sources repeatedly treat the turret as one of the vehicle’s strengths even while criticizing the automotive system. Sources
The official technical sheet in the longer Spanish Army PDF gives armor thickness as between 110 and 12 mm; the one-page MUMA sheet summarizes armor as steel from 20 to 80 mm. Published accounts describe the 110-12 mm figure as the more detailed vehicle specification while flagging the one-page museum-sheet difference as a source conflict. Sources
The AMX-30E used the DEFA F1 / CN-105-F1 105 mm, 56-caliber semiautomatic gun with a vertical wedge breech and thermal sleeve. The Spanish Army source gives 360-degree traverse in 15 seconds and elevation from -8 to +20 degrees. The same source notes that although the chamber was standardized like many Western tank guns, ammunition cannot be freely interchanged because the gun and ammunition system differed. Sources
The Spanish AMX-30E differed from the French AMX-30B by replacing the French 20 mm parallel cannon with a 12.7 mm Browning machine gun. The longer official Spanish source lists a Browning M-3.50 caliber coaxial weapon with 750 rounds and a 7.62 mm MG-1 in the TOP-7 commander’s cupola with 2,050 rounds. MUMA’s one-page description instead identifies a coaxial MG-42 and another 7.62 mm weapon, leaving a discrepancy in the secondary-armament descriptions. Sources
The longer Spanish Army source lists 50 main-gun rounds: 4 vertical rounds in the turret, 18 horizontal rounds in the turret rear, and 28 horizontal rounds next to the driver. It names hollow-charge stabilized ammunition and high-explosive ammunition, with effective ranges of 3,000 m and 3,500 m respectively. Sources
Baseline fire control included the M-208 coincidence rangefinder with a 2 m base and 12x magnification, M-271 gunner sight, M-282 rotating periscope for loader and gunner, and TOP-7 commander’s cupola with ten fixed periscopes and a 10x sight. Modernization programs later focused heavily on improving fire control. Sources
The AMX-30E had night vision by image intensifier for the driver and an IR projector for firing. The Spanish version explicitly replaced the French driver IR night-vision arrangement with an image intensifier. Sources
The engine was the Hispano-Suiza HS 110 manufactured by ENASA, a 12-cylinder opposed multifuel diesel-cycle engine, water-cooled and turbocharged. The longer Spanish Army source gives 720 CV / 530 kW at 2,600 rpm, while the MUMA sheet gives 680 CV. Transmission was a manual five-speed mechanism with inverter and an electrokinetic Gravina automatic clutch. Sources
The running gear used a Vickers-type arrangement with rear drive sprocket, front idler, five double road wheels, five single return rollers, transverse torsion bars, and shock absorbers on the first and fifth wheels. Sources
The Spanish Army source gives 83 links per track, 57 cm track width, maximum road speed of 65 km/h, 500-600 km road range, 20 CV/t power-to-weight ratio, 0.77 kg/cm2 ground pressure, 60% grade, 30% side slope, 90 cm vertical obstacle, 2.9 m trench, 2.2 m fording without snorkel and 4 m with snorkel. Sources
Crew was four: commander, gunner, loader, and driver. Sources
Spanish AMX-30E used American-family radios instead of the French radio fit. The longer source lists AN/VRC-64, AN/VRC-12, AN/VRC-45, AN/VIC-1 intercom, and external telephone. Sources
Protection included steel armor, smoke dischargers, NBC protection using inflatable seals and interior overpressure, and the low silhouette inherited from the French AMX-30. The tank’s protection was not comparable to more heavily armored contemporaries; Spanish sources explicitly note its lighter armor. Sources
The central weakness was automotive reliability. The official Spanish Army paper states that the AMX-30E always gave problems with clutch, gearbox, and cooling, motivating modernization of transmission, engine, and fire control from 1987. Sources
Known weaknesses were limited armor protection; a specialized 105 mm ammunition ecosystem; clutch, gearbox, and cooling problems; and the need for modernization to keep pace with 1980s fire-control and thermal-imaging expectations. Sources
Production, operators, and combat record
The production story is one of the strongest parts of the AMX-30E record. The longer official Spanish Army source states that in 1970 France would deliver 19 tanks and Spain would receive a license for 180, with Empresa Nacional Santa Bárbara de Industrias Militares as principal contractor. Sources
Industrial responsibilities were distributed across Spain. The source credits the gun and tracks to the Fábrica de Armas de Sevilla, the engine to ENASA in Barcelona, components to manufacturers around Spain, and final assembly to the Fábrica de Artillería at Las Canteras, Seville. Sources
Serial production began in 1974. The first 180 equipped the Brunete Armored Division structure; a 1979 expansion added 100 more and continued to 1983. The MUMA sheet states that 280 were built in Spain and that 19 more were directly purchased from France for the Bakali company, giving the widely used total of 299. Sources
This program was a milestone for Spanish industry. Official sources call it a large advance and describe the AMX-30E as the first and only tank built in large series in Spain. That phrasing cannot be stretched to mean Spain had no armored-vehicle industry; rather, it highlights main battle tank production at scale. Sources
Original and only operator: Spain. The AMX-30E was built for the Spanish Army and did not become a significant export line in its own right. Sources
The first French-delivered tanks were tied to the Legion’s Bakali company and Sahara deployment context. Serial Spanish-built AMX-30E tanks then entered Spanish units from 1974 onward. The MUMA sheet lists the first five vehicles to Wad-Ras no. 55, then the Bakali vehicles, then Alcázar de Toledo no. 61 with 104 and Villaviciosa no. 14 with 23. Sources
The Alcázar de Toledo history confirms that in 1977 the RIAC retired M48 tanks and incorporated 104 AMX-30E. It later records reception of reformed AMX-30EM2 tanks on 15 May 1990, with two battalions completed in 1992. Sources
Retirement was gradual. M60A3 TTS deliveries began in 1993 after conventional-forces reductions, and the first Leopard 2E battalion was complete by 19 January 2006 with final Leopard and recovery vehicles delivered in July 2008. The 2022 Spanish Army history says Leopard 2E would replace M60 and AMX-30 and unify the tracked armored fleet around the Leopard family. Sources
The two entries refer to the same national operator rather than separate users. Sources
The combat-history record is limited and remain uncertain. Spanish sources tie early French-delivered AMX-30 tanks to the Legion’s Bakali company and to Spanish Sahara. The longer official AMX-30E paper says most of the directly delivered tanks were sent to the Sahara, where the Legion tank company was created, and that Bakali was attached to the M48 tactical group of RIAC 61 when it went to Sahara. Sources
The 2022 Spanish Army history places AMX-30s of the Bakali company within the armored battalion context in Sahara and describes the worsening security situation, Madrid Tripartite Agreements, and the return of the armored expeditionary unit to Spain by mid-January 1976. Sources
The safest interpretation is that AMX-30/AMX-30E service in Sahara represented an important deployment and deterrent/security role rather than a well-documented combat trial of the type available for some other Cold War tanks. Sources
In tactical terms, the AMX-30E’s strengths were speed, good range, a low turret, and 105 mm firepower. Its combat weaknesses would have been limited armor protection and automotive reliability, especially clutch, gearbox, and cooling issues. The latter are explicitly identified by the Spanish Army source as a reason for modernization. Sources
Enemy assessments and crew memoir material were not found in the cited sources. This is a useful an unresolved question for book or podcast work: Spanish-language veterans’ accounts, unit journals, and archives from the Bakali company and RIAC 61 may provide the human evidence needed to turn a deployment narrative into a combat-experience narrative. Sources
Legacy and historical evidence
The most relevant comparison set is not “all tanks of 1960,” but the vehicles Spain was choosing among or replacing and the AMX-30E’s NATO and Warsaw Pact contemporaries: Leopard 1, M48/M60, Chieftain, T-55/T-62, and French AMX-30B/B2. Sources
The AMX-30E’s legacy is primarily Spanish. It demonstrated that Spain could assemble and sustain a large-series main battle tank through a national industrial network. Official Spanish Army sources describe it as a major advance and as Spain’s first and only tank built in large series. Sources
Doctrinally, it helped Spain transition from a mixed inventory of older U.S.-origin tanks into a more modern armored force. Its service record intersects with the later arrival of M60A3 TTS and the eventual Leopard 2E, which Spanish Army histories frame as unifying the tracked armored fleet around the Leopard family. Sources
Technically, the AMX-30E reinforced lessons about the costs of mobility-over-protection design and about the importance of reliable powertrain and cooling systems. The Spanish modernization programs can be read as a domestic attempt to salvage a useful gun/turret platform while fixing the automotive and fire-control limitations that became more obvious by the 1980s. Sources
Surviving vehicles have strong museum value. The longer Spanish Army AMX-30E source explains how, after the FACE/CFE arms-reduction framework, the Museo del Ejército requested static preservation of AMX-30E and AMX-30ER1 vehicles, and it details the deactivation of a museum AMX-30E including hull number 043 and registration ET-97981. Sources
Modern reputation is mixed. Enthusiasts often remember the AMX-30 family for speed, looks, and French design philosophy; Spanish Army sources remember the AMX-30E as a capable but mechanically troublesome national-production milestone. Both views are valid if kept separate: the tank was important even though it was not a fully satisfactory long-term MBT. Sources
Common misconceptions include treating AMX-30E as simply a French AMX-30B with Spanish markings; ignoring the 12.7 mm-versus-20 mm secondary-armament difference; counting AMX-30ED/Roland vehicles as if they were baseline MBTs; and presenting EM1/EM2 conversion numbers as settled despite the official-source conflict. Sources
Spanish Army summaries establish the main AMX-30E chronology and baseline specifications. They confirm EM1 and EM2 modernization but do not fully describe every technical package or conversion quantity. Sources
The best-established points are: Spain selected AMX-30 after studying an M47 replacement; a 1970 agreement included 19 French-delivered tanks and license production; Santa Bárbara was principal contractor; serial production began in 1974; the second series of 100 extended production to 1983; 280 were built in Spain and 19 directly purchased; AMX-30E differed from the French vehicle in secondary armament, radios, and driver night vision; RIAC 61 received 104 AMX-30E in 1977; AMX-30EM2 was received in 1990 and two battalions completed in 1992. Sources
Less certain details include: the exact relationship between AMX-30E and later EM1/EM2 sub-configurations; the completeness of the 299 production/acceptance convention across operational vehicles; and the interpretation of museum-preservation examples as representative of in-service configuration. Sources
Unconfirmed details include: any precise EM1/EM2 conversion split not directly supported by the retrieved official sources; detailed fire-control subsystem names for EM1/EM2; exact retirement date by unit; combat-loss figures; and any unsupported export or foreign-use claims for AMX-30E specifically. Sources
Disputed production totals: Baseline total is best treated as 299, composed of 19 French-delivered plus 280 Spanish-built. The published account’s 299 aligns with official Spanish source logic, although some sources may present 280 when they mean Spanish-built vehicles only. Sources
Disputed designations: AMX-30 E versus AMX-30E is primarily orthographic; official Spanish sources use AMX-30 E. EM1 and EM2 designations are real, but exact package details remain a classification item. Sources
Disputed service dates: Spanish serial service begins in 1974; direct French vehicles were obtained under the 1970 agreement and used to meet urgent Sahara needs. Modernized EM2 dates are confirmed in one unit history, but fleetwide entry and retirement dates remain unconfirmed. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- [S1] Ejército de Tierra, Regimiento Acorazado Alcázar de Toledo / RAC 61, “CARRO DE COMBATE AMX-30 E,” official Spanish Army PDF. URL/source
- [S2] Ejército de Tierra / Museo de Medios Acorazados (MUMA), “CARRO DE COMBATE AMX-30 E,” exhibit sheet PDF. URL/source
- [S3] Ejército de Tierra, “Historial del Regimiento de Infantería Acorazada Alcázar de Toledo nº 61,” official PDF. URL/source
- [S4] Ejército de Tierra / Academia de Infantería, “Historia de las unidades acorazadas en España,” Memorial de Infantería Española, Núm. 84, 2022. URL/source
- [S5] Chars-francais.net, “1966 AMX 30 B.” URL/source
- [S6] Wikimedia Commons, File:AMX-30E.jpg, Outisnn, 14 June 2015, attribution-only license. URL/source

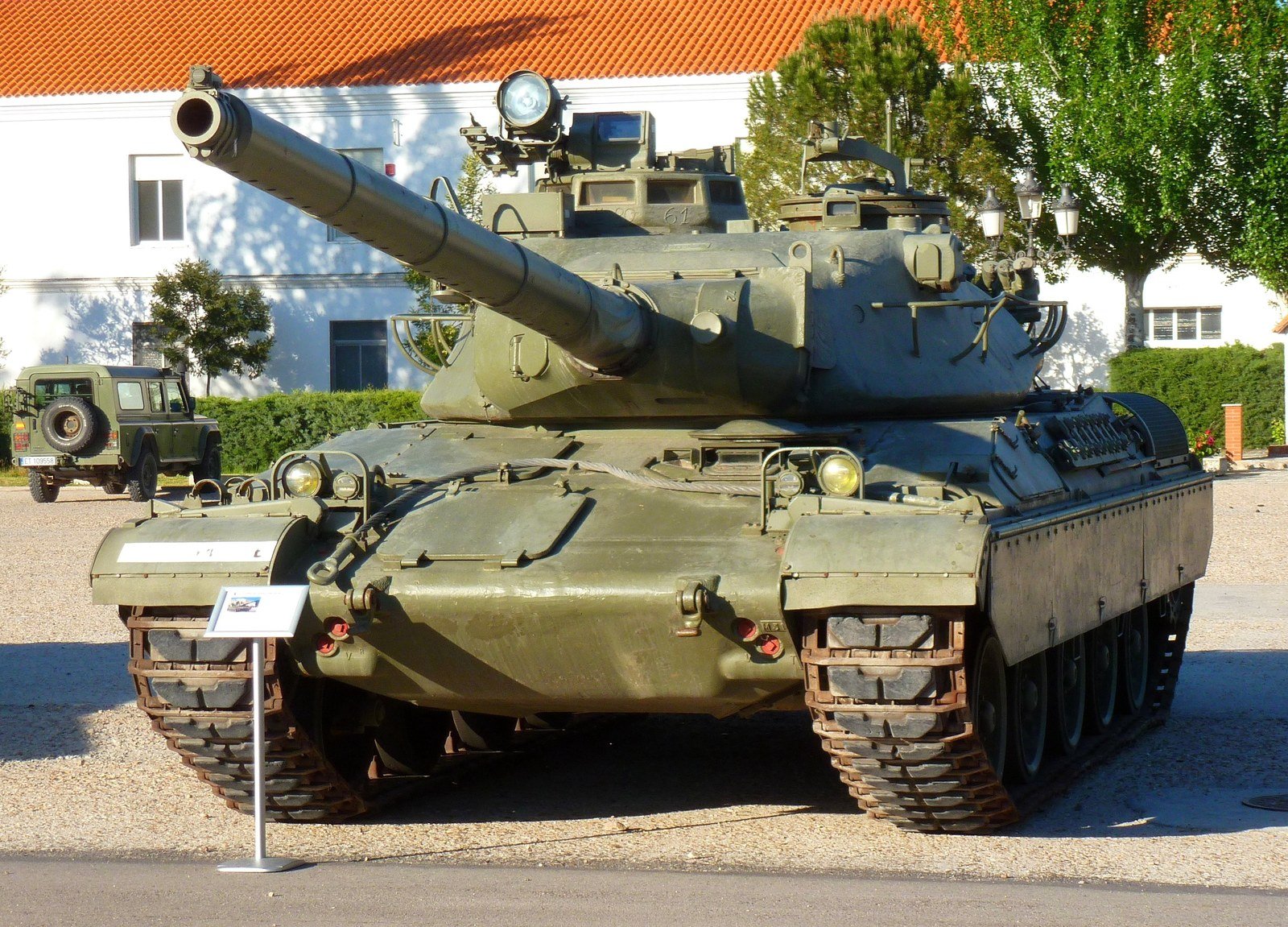

- [S7] Wikimedia Commons, File:AMX-30EM2.JPG, Outisnn, 31 May 2013, CC BY-SA 3.0 Unported. URL/source
- [S8] Wikimedia Commons, File:AMX30_side.jpg, JonCatalán/Catalan at English Wikipedia, 29 October 2007, CC BY 3.0. URL/source

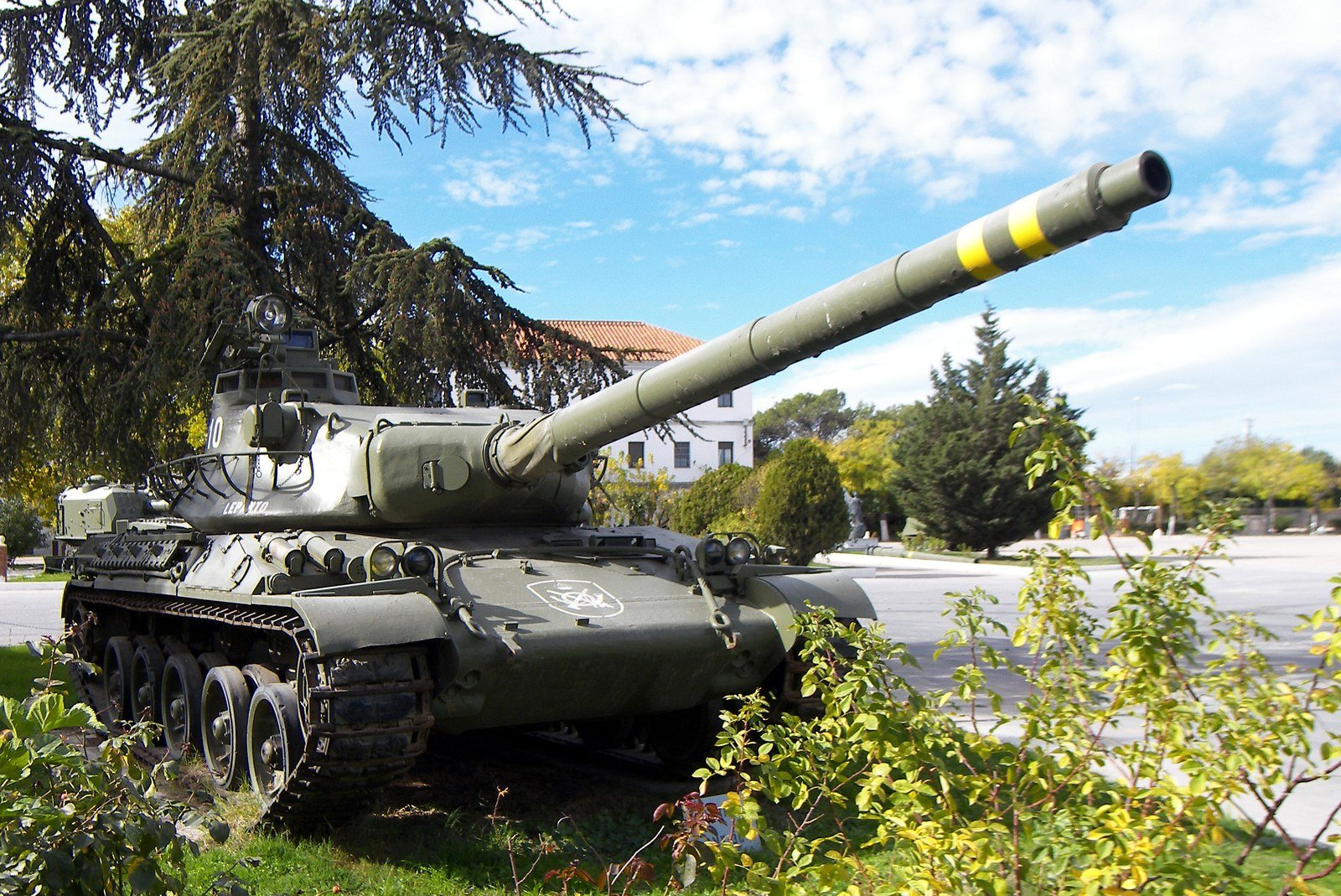

- [S9] Wikimedia Commons, File:AMX30_afar.jpg, JonCatalan/Catalan at English Wikipedia, October 2007, CC BY 3.0. URL/source
- Trackpads historical compilation, 2026 (unpublished).
