Al-Zarrar

Historical overview

Al-Zarrar was not a clean-sheet Pakistani tank. It was a deep modernization of Pakistan’s large Type 59/T-59 fleet, intended to preserve armored mass while raising older Chinese-origin tanks closer to modern battlefield requirements. Heavy Industries Taxila (HIT) presents the program as an upgrade in three areas—mobility, firepower, and armor protection—with a 730 hp engine replacing the 520 hp baseline engine and a 125 mm smoothbore gun combined with improved fire-control and second-generation gun-control systems. [HIT Products; GlobalSecurity.] Sources

The design mattered because it occupied the middle tier of Pakistan’s armored force structure: cheaper and more numerous than new-generation tanks, but substantially more capable than unmodified Type 59s. In February 2004 President Pervez Musharraf handed over 80 upgraded Al-Zarrar tanks to the Pakistan Army at Heavy Industries Taxila, and contemporary Pakistani reporting described plans to manufacture “hundreds” for army armored formations. [Dawn, 27 February 2004; Business Recorder, 27 February 2004.] Sources

The most important “variant” is the Al-Zarrar production upgrade itself. Open sources discuss earlier T-59 rebuild/T-59 MII work, prototypes with differing systems, and export-oriented packages for T-54/T-55/Type 59 owners, but there is not enough authoritative evidence to divide Al-Zarrar into multiple stable production subvariants. [Dawn, 15 January 2003; GlobalSecurity] Sources

The central controversy is quantity. Published accounts describe “hundreds” as well-documented, 320–500 as plausible but uncertain, and exact current inventory as unresolved. Sources

Al-Zarrar was an economical force-preservation solution. It could not erase the limitations of the Type 59 hull, turret volume, and survivability architecture, but it gave Pakistan a useful mass of upgraded tanks while Al-Khalid, T-80UD, and later Chinese-derived or co-developed tanks formed the higher end of the fleet. Sources

Pakistan’s armored force inherited a problem common to many Cold War armies: it had a large population of serviceable but aging medium tanks whose replacement cost exceeded what procurement budgets and sanctions-era politics could comfortably support. Chinese Type 59/T-59 tanks had entered Pakistani service decades before Al-Zarrar. They offered a simple, rugged, low-silhouette design derived from the Soviet T-54A, but by the 1990s the baseline 100 mm gun, fire-control equipment, engine output, and passive protection no longer matched the threat environment. [GlobalSecurity; ODIN/Type 59 discovery source in the available accounts; Military Factory.] Sources

The strategic problem was therefore not simply “build a better tank.” Pakistan needed to keep armored formations large enough for conventional deterrence against India while improving night-fighting, first-round hit probability, and survivability. Modern tanks such as the T-80UD and Al-Khalid could not replace every legacy vehicle quickly. Upgrading Type 59s was a way to stretch the fleet, preserve trained units, and sustain domestic industrial skills at Heavy Industries Taxila. [Dawn, 27 February 2004; Business Recorder, 27 February 2004.] Sources

The doctrine behind Al-Zarrar was pragmatic. It assumed that a large number of upgraded, reasonably mobile tanks with a 125 mm gun and modernized sights would remain useful for mass, training, and secondary-line or mixed-unit roles even if they were not equal to the newest Indian or Pakistani frontline MBTs. This mirrors modernization programs elsewhere, including T-55AM, T-72M, Ramses II, Type 59D, and T-55AGM-style packages: the old hull remains, but sensors, guns, engines, and armor packages attempt to postpone obsolescence. Sources

Industrial context is central. HIT was created around the rebuild of Chinese-origin T-59 tanks; GlobalSecurity’s overview emphasizes that HIT had rebuilt T-59s since 1979, stripping tanks to components, replacing worn parts, and rebuilding others to specification. That institutional experience made a deep Type 59 upgrade feasible in a way that purchasing an all-new fleet was not. [GlobalSecurity.] Sources

Development and variants

Published accounts describe Al-Zarrar as an upgrade family centered on the Pakistani rebuild of the Chinese-origin Type 59/T-59 main battle tank. It includes the original Type 59 baseline only as the parent vehicle, the Pakistani T-59 rebuild path that led toward Al-Zarrar, the Al-Zarrar production configuration, export or marketing discussions where documented, and unresolved claims about later improvements. Sources

Those vehicles overlap in Pakistani service and in 125 mm armament or Chinese industrial lineage, but they are separate families. Sources

Classification issue: Al-Zarrar is usually called a main battle tank in Pakistani, defense-industry, and secondary sources. A stricter taxonomy could call it a second-generation MBT modernization rather than a third-generation MBT because the underlying hull, turret architecture, crew arrangement, and protection geometry remain rooted in the T-54/Type 59 generation. Published accounts describe “main battle tank upgrade” for precision and “MBT” where matching source terminology. Sources

Vehicle identity, parentage, and broad service role are well supported; exact production/current inventory, protection details, and detailed subvariant structure are not. Sources

Open sources differ in the level of detail they provide, but the broad chronology is consistent: Pakistan began phased T-59 upgrading in the 1990s, earlier rebuild/upgrade work preceded Al-Zarrar, prototypes were tested, and production deliveries followed in the early 2000s. GlobalSecurity describes a phased program beginning in 1990, first-phase completion in 1997, a second phase launched in 1998, and three prototypes before production. Dawn’s January 2003 report likewise refers to three prototypes, 54 major improvements, and commercial production. [GlobalSecurity; Dawn, 15 January 2003.] Sources

HIT’s public product page condenses the design logic rather than the full timeline. It identifies the upgrade as a three-part improvement in mobility, firepower, and armor protection, specifying a 730 hp engine in place of 520 hp and a 125 mm smoothbore gun with improved fire-control and second-generation gun-control systems. The same HIT page states that the gun factory manufactures 125 mm gun barrels for Al-Khalid and Al-Zarrar programs, a useful official confirmation that Al-Zarrar was part of HIT’s 125 mm tank-gun industrial base. [HIT Products.] Sources

Contemporary press reporting helps anchor production. On 15 January 2003, Dawn reported that Pakistan had started commercial production of Al Zarrar and expected to manufacture about 50 tanks that year for export, citing defense sources. On 27 February 2004, Dawn reported the handover of 80 upgraded Al-Zarrar tanks to the Pakistan Army. Business Recorder reported the same 80-tank handover and explicitly stated that the project had Chinese technical assistance. [Dawn, 15 January 2003; Dawn, 27 February 2004; Business Recorder, 27 February 2004.] Sources

Some secondary sources add Ukrainian or KMDB involvement, particularly in the engine/powerpack area. This is plausible because Dawn’s 2003 reporting mentioned China and Ukraine cooperation in defense production, and several secondary technical references identify a Ukrainian/KMDB 12-cylinder diesel. However, official public sources consulted here do not fully document the supplier chain. “foreign technical assistance from China” is described as well supported by contemporary reporting, and “Ukrainian/KMDB engine or technical role” as plausible but less complete evidence unless corroborated by additional primary records. Sources

Design and performance

Al-Zarrar retained the classic Type 59/T-54 lineage layout: driver in the front hull, fighting compartment and turret in the center, and engine/transmission at the rear. This preserved the compact low silhouette and logistical familiarity of the parent fleet. It also preserved several disadvantages, including limited internal volume, constrained ammunition stowage, and an older turret architecture compared with later Western and post-Soviet MBTs. [Military Factory; GlobalSecurity.] Sources

The hull remained fundamentally Type 59-derived. Photographs show the familiar five-road-wheel running gear and rear engine deck, with side skirts and add-on armor depending on vehicle fit. The rebuild approach implies extensive overhaul of existing hulls rather than new hull manufacture for each tank. GlobalSecurity’s T-59 rebuild description notes that HIT stripped tanks down and rebuilt them with new or refurbished components; Al-Zarrar was the later, deeper modernization path. [GlobalSecurity.] Sources

The turret appears to be the original Type 59 rounded turret form with add-on armor modules rather than a wholly new turret in the standard Al-Zarrar configuration. Public photographs show external wedge-like armor modules, smoke launchers on the turret sides, a bustle/storage box at the rear, and roof-mounted heavy machine-gun equipment. Claims of completely new welded turrets belong to later or separate Type 59 modernization images and cannot be combined into the core Al-Zarrar account without stronger evidence. Sources

HIT’s public description confirms “Armour protection” as a main upgrade area but does not publish armor thickness or protection equivalence. Secondary sources describe add-on composite armor, explosive reactive armor, mine-protection improvements, smoke dischargers, and laser/threat warning. Because detailed armor packages are sensitive and inconsistently reported, Published accounts describe the existence of add-on/ERA-style protection as less certain and all numeric protection values as unknown. [HIT Products; GlobalSecurity; Military Factory.] Sources

The primary armament was a 125 mm smoothbore gun. This is well-documented: it appears in the available accounts, HIT’s official page, Dawn’s 2003 report, Business Recorder’s 2004 report, and multiple secondary technical references. HIT also advertises its capability to make 125 mm gun barrels for the Al-Zarrar and Al-Khalid programs. [HIT Products; Dawn, 15 January 2003; Business Recorder, 27 February 2004.] Sources

Most secondary sources describe a 12.7 mm anti-aircraft heavy machine gun, a 7.62 mm coaxial machine gun, and smoke grenade launchers. The precise machine-gun model and ammunition stowage are not confirmed by official public documentation. Military Factory lists eight smoke grenade dischargers, while Dawn’s 2003 article describes six electrically operated smoke grenade launchers on either side of the turret, implying twelve tubes in that reported configuration. This discrepancy likely reflects wording, fit differences, or source simplification; no exact launcher count is treated as definitive. [Dawn, 15 January 2003; Military Factory.] Sources

The 125 mm gun would logically fire a family of 125 mm APFSDS, HEAT, and HE/fragmentation ammunition, but publicly available sources do not provide a fully verified Pakistani service ammunition list for Al-Zarrar. Military Factory gives an estimated 45 125 mm rounds. Some web sources discuss ATGM or depleted-uranium ammunition. These claims remain unconfirmed. [Military Factory] Sources

HIT confirms improved fire-control and a second-generation gun-control system. Dawn’s 2004 handover article describes Al-Zarrar as an all-weather tank with an image-stabilized fire-control system and day/night capability. Dawn’s 2003 production article mentions a computerized fire-control system with sensors, stabilization, and thermal-imaging-based night sights. These claims are consistent and are treated as qualified, though exact manufacturer/model details remain open. [HIT Products; Dawn, 15 January 2003; Dawn, 27 February 2004.] Sources

Thermal-imaging night sights are widely reported; the strongest contemporary support is Dawn’s 2003 description. Official HIT public text does not publish sight models, magnifications, rangefinder details, or commander independent sight characteristics. The likely practical effect was a large improvement over baseline Type 59 night fighting, but not equality with modern hunter-killer third-generation MBTs unless a specific later fit is documented. Sources

The most consistent official engine data is the change from a 520 hp baseline to a 730 hp diesel. Dawn’s 2003 report refers to a 700 hp Ukraine engine, GlobalSecurity states 700 hp, HIT states 730 hp, and Military Factory specifies a KMDB 12-cylinder, liquid-cooled diesel with 730 hp. Published accounts describe 730 hp as the official/public HIT figure, notes 700 hp as an earlier or rounded report, and treats exact engine model and supplier as less certain. [HIT Products; Dawn, 15 January 2003; GlobalSecurity; Military Factory.] Sources

Transmission information is less certain. GlobalSecurity’s T-59 MII data lists a mechanical transmission with five forward and one reverse gear for an earlier T-59 MII package. Whether Al-Zarrar retained, modified, or replaced this arrangement across all vehicles are not securely documented in the open sources used here. [GlobalSecurity.] Sources

The parent Type 59 used torsion-bar suspension with five large road wheels per side. GlobalSecurity reports improved suspension and rubber tracks for Al-Zarrar, with better stability and crew comfort. Military Factory describes a torsion-bar suspension system. These details are plausible and visually consistent with photographs. [GlobalSecurity; Military Factory.] Sources

Road speed claims range from 55 km/h in an official catalogue search snippet to 65 km/h in GlobalSecurity, Dawn-derived summaries, and Military Factory. Range claims commonly appear as 400–450 km, sometimes with external fuel barrels. Sources

The crew was four: commander, gunner, loader, and driver. That is consistent with the cited accounts and the Type 59 architecture. The presence of a human loader is an important boundary point: despite the 125 mm gun, there is no strong open-evidence that the standard Al-Zarrar used a Soviet-style carousel autoloader. Sources

Public sources provide little detail on radios or battle-management equipment. Pakistan almost certainly updated communications to match contemporary army standards, but exact radio models, encryption, intercom, and data-link features are not identified in the consulted sources. This is an uncertain area. Sources

Protection-system claims include add-on armor, ERA, smoke launchers, thermal smoke, automatic fire extinguishing, and threat/laser warning. GlobalSecurity’s earlier T-59 MII list includes automatic fire extinguishing, GPS, and thermal smoke; its Al-Zarrar section adds composite armor and ERA. Military Factory also claims automatic fire suppression and threat warning. None of these sources publish verified test data or protection levels. [GlobalSecurity; Military Factory.] Sources

Al-Zarrar’s strongest reliability argument was industrial familiarity. HIT had decades of experience rebuilding T-59s and could refurbish older tanks with existing infrastructure. The upgrade may have improved reliability by replacing worn parts and installing more powerful systems, but it also added complexity—new FCS, sensors, armor packages, and a more powerful engine—onto an old platform. Familiar equipment could simplify maintenance compared with a small fleet of wholly unfamiliar tanks, although that does not demonstrate the reliability of a modern main battle tank. Sources

Old hull and turret architecture: limited internal volume, legacy armor geometry, and constrained growth margin. Sources

Protection uncertainty: no reliable public armor equivalence or mine/IED survivability data. Sources

Ammunition stowage and crew survivability: Type 59-derived layout does not have modern compartmentalized ammunition protection. Sources

Sensor generation: improved over Type 59, but exact sight performance and hunter-killer capability are not confirmed. Sources

Quantity confusion: sources mix planned conversions, completed conversions, and current inventory. Sources

No clearly documented family of specialized Al-Zarrar derivatives comparable to recovery, bridge-layer, command, or engineering variants. Sources

Published Al-Zarrar specifications give approximately 55–65 km/h on roads and an operating range of around 400–450 km, depending on configuration and source. Sources

Production, operators, and combat record

Heavy Industries Taxila was the central manufacturer and integrator. The program drew on HIT’s long T-59 rebuild experience and on Pakistan’s broader effort to indigenize armored-vehicle production. HIT’s official product page lists Al-Zarrar among its tank products and describes the upgrade as a major modernization in mobility, firepower, and armor protection; the same site states that HIT’s Gun Factory produces 125 mm gun barrels for Al-Zarrar and Al-Khalid programs. [HIT Products.] Sources

Production chronology remains partly source-dependent. Dawn reported in January 2003 that commercial production had started and that about 50 tanks would be manufactured that year for export. In February 2004, both Dawn and Business Recorder reported the handover of 80 upgraded Al-Zarrar tanks to the Pakistan Army. Business Recorder added that the project was completed with Chinese technical assistance and that HIT planned to manufacture hundreds for the Pakistan Army. [Dawn, 15 January 2003; Dawn, 27 February 2004; Business Recorder, 27 February 2004.] Sources

The most reliable production statement is therefore not a precise total but a production floor: at least the first public 80-tank handover in 2004, with contemporary plans for hundreds. Secondary sources differ beyond that. Military Factory lists total production as 320 units as of its last-edited 2017 page; Military Periscope says plans existed for more than 600 T-59s to be converted; several inventory summaries cite about 500 in service. Sources

Pakistan is the only confirmed operator in the consulted authoritative and semi-authoritative sources. Published accounts describe Al-Zarrar as a Pakistan-operated domestic modernization active from the 2000s to the present, and it separately tracks the Type 59 / Al-Zarrar lineage in Pakistani service from the 1960s/1970s to current upgraded forms. Sources

Export interest is part of the story but not the operator list. Dawn reported in 2003 that production was expected to include about 50 tanks for export, and secondary sources often discuss Bangladesh interest in a Type 59 upgrade. No reliable source consulted here confirms a foreign Al-Zarrar fleet in operational service. Export status is described as “marketed/discussed, not confirmed.”. [Dawn, 15 January 2003.] Sources

Al-Zarrar’s combat record is much less well documented than its development and handover. Secondary sources sometimes associate Al-Zarrar with counterinsurgency or internal-security fighting in Pakistan’s northwest, including Swat/Malakand-era operations. However, the consulted official and contemporary primary sources in the cited record do not provide a clear, independently verifiable combat chronology, loss list, or after-action assessment for Al-Zarrar. [Military Factory, treated cautiously.] Sources

For that reason, the account does not claim a confirmed first combat use or specific battlefield performance record. It is safer to say that Al-Zarrar entered service in a Pakistan Army armoured corps context shaped by Indo-Pakistani conventional deterrence and by later internal-security demands, but that publicly available evidence is thin on direct combat employment, losses, and crew survivability. Sources

Legacy and historical evidence

Against an unmodified Type 59, Al-Zarrar was a major improvement. The 125 mm gun, improved FCS, day/night sights, add-on protection, and higher-output engine addressed the parent vehicle’s most obvious weaknesses. In that comparison, Al-Zarrar was a successful modernization. Sources

Against Pakistan’s Al-Khalid or T-80UD, it was a lower-tier solution. It lacked the growth margin and more modern chassis/turret architecture of newer tanks. Its role was not to replace all frontline armor with a peer of modern third-generation MBTs, but to make a large legacy fleet useful enough to remain in the order of battle. Sources

Against Indian T-72M1/Ajeya upgrades, T-90S/Bhishma, and Arjun Mk 1/Mk 1A, the comparison depends on date and upgrade level. Al-Zarrar’s 125 mm armament brought it into a more modern firepower class, but its underlying Type 59 structure likely constrained armor, crew protection, and sensor integration relative to T-90 and Arjun-class vehicles. It was more plausibly comparable to other late-life T-54/T-55/Type 59 modernizations than to new heavy MBTs. Sources

Al-Zarrar’s legacy lies in domestic armored-vehicle sustainment. It demonstrated that Pakistan could rebuild and modernize a large legacy fleet through HIT while also fielding newer tanks such as Al-Khalid and T-80UD. It also helped maintain a 125 mm gun, fire-control, rebuild, and armor-integration industrial base useful for other Pakistani armored programs. [HIT Products; Business Recorder.] Sources

Doctrinally, the tank illustrates an enduring trade-off: fleets need not consist entirely of cutting-edge vehicles to be strategically useful. In an army with many armored units, an upgraded second-tier vehicle can still serve training, reserve, regional, deterrent, and attrition roles, provided doctrine does not overestimate it against modern anti-tank threats. Sources

Common misconceptions include treating Al-Zarrar as a wholly new Pakistani tank, assuming every Type 59 in Pakistan became Al-Zarrar, assuming export negotiations produced confirmed operators, or assigning exact armor and penetration values without primary evidence. The stronger interpretation is more nuanced: it was a significant but limited modernization program. Sources

Surviving vehicles are visible in Pakistani service imagery, parade photos, and Wikimedia-hosted photographs from Kharian and IDEAS 2006. Museum-survivor data for Al-Zarrar specifically was not located in the sources used here; most likely examples remain in active or reserve Pakistani service rather than foreign museum collections. Sources

HIT’s product descriptions outline the gun, engine, and fire-control improvements, while contemporary reporting in 2003–2004 records the handover chronology. Published technical figures differ, particularly where sources do not identify a specific vehicle configuration. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

Al-Zarrar MBT photographed at the 27 Cavalry compound, Kharian, Pakistan. caption spelling on source page reads “Al zarar compound at 27 Cav Khariyan”; location spelling standardized here as Kharian, with source uncertainty preserved. — Al-Zarrar MBT photographed at the 27 Cavalry compound, Kharian, Pakistan. Caption spelling on source page reads “Al zarar compound at 27 Cav Khariyan”; location spelling standardized here as Kharian, with source uncertainty preserved.Bezerk86; public domain self-release by copyright holder.

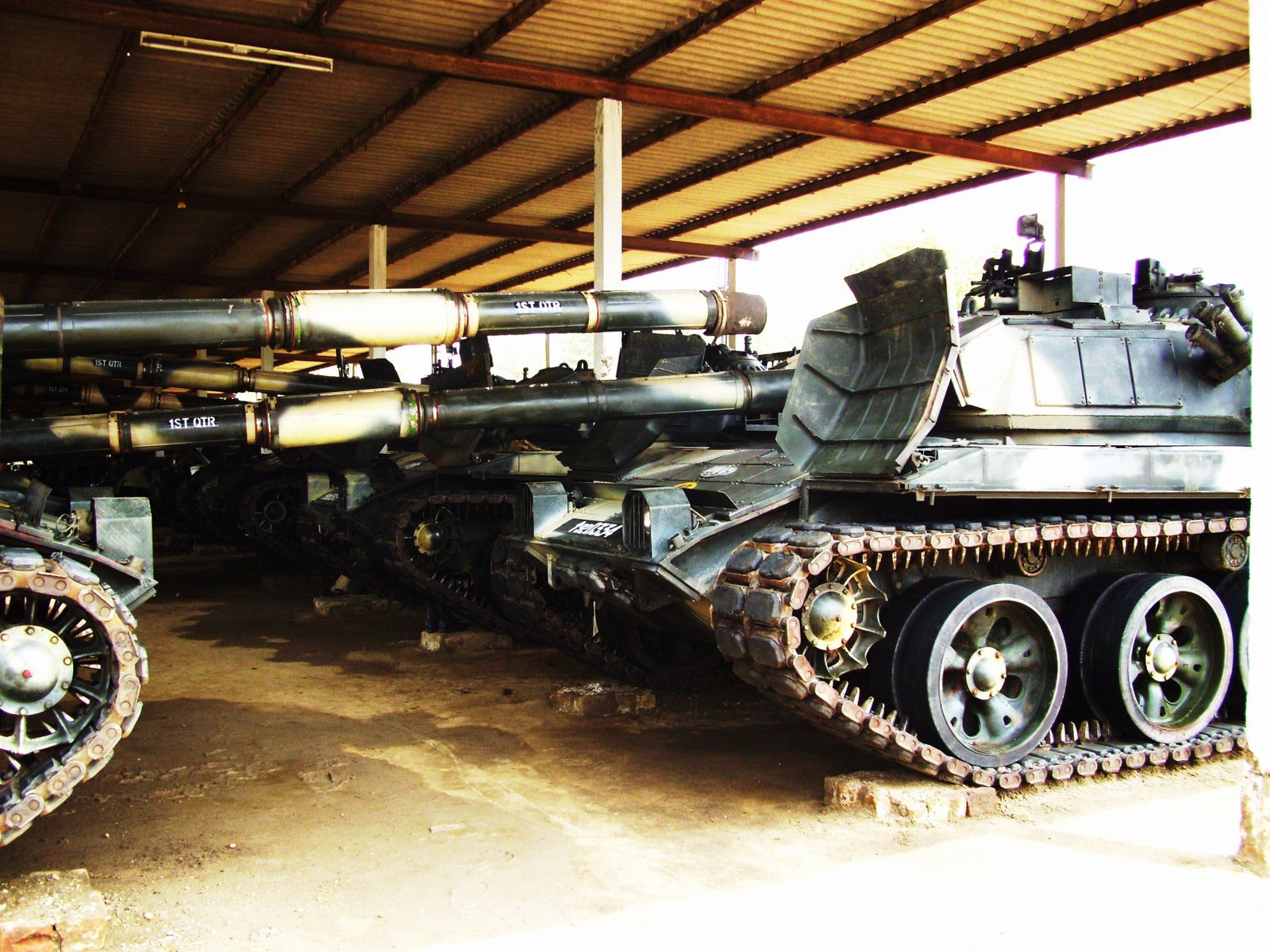

Al-Zarrar MBT photographed at the 27 Cavalry compound, Kharian, Pakistan. useful as a second angle of the same vehicle family; not enough by itself to define a separate subvariant. — Al-Zarrar MBT photographed at the 27 Cavalry compound, Kharian, Pakistan. Useful as a second angle of the same vehicle family; not enough by itself to define a separate subvariant.Bezerk86; public domain self-release by copyright holder.
