A Polish development of the Vickers concept
The 7TP was a Polish light tank developed from the Vickers 6-Ton concept. Its diesel engine, revised hull arrangements, and eventual Bofors gun turret made it a distinct Polish development rather than an unchanged imported design. Sources
The principal versions were the twin-turret machine-gun tank and the single-turret gun tank. The related C7P tractor, prototypes, and later proposals for a more heavily protected tank also formed part of the program's history. They were not all production 7TP gun tanks, and references to proposed improvements do not establish that a vehicle called 9TP was completed. Sources
From prototypes to a gun-armed tank
Development began with adaptation and testing. The early twin-turret arrangement followed the available Vickers pattern while work continued on the definitive armament installation. The later single-turret version combined a 37 mm Bofors gun with a coaxial machine gun, giving the tank a substantially different capability against armored targets. Sources
The diesel engine required a revised engine compartment and supporting systems. Turret design, observation equipment, and domestic manufacture brought further changes. Prototype fittings were not necessarily identical to equipment delivered on production vehicles, and later armor-improvement proposals were not standard 7TP specifications. Sources
Hull, turret, and crew arrangement
The driver sat at the front of the hull, with the fighting compartment in the center and the engine at the rear. The single-turret tank had a three-man crew, including two men in the turret. Observation, command, loading, and aiming nevertheless imposed a considerable workload on that small crew. Sources
Armor was light and varied across the vehicle. Published figures include approximately 17 mm at the front and 15 mm around the turret, with thinner protection over the roof, rear, and engine compartment. The figures vary by configuration and source. A complete ballistic test record is not established in the cited material, so nominal thickness alone cannot demonstrate resistance to a particular weapon at a particular range. Sources
Armament, observation, and diesel mobility
The single-turret tank's 37 mm Bofors gun and coaxial ckm wz.30 offered different firepower from the twin-turret version's machine guns. Published ammunition allowances for the main gun range from roughly 70 to 80 rounds rather than a single established allowance for every vehicle. Sources
The PZInż.235 diesel, derived from a Saurer design, is reported at about 110 hp. Observation improvements included the Gundlach periscope. These were notable features, although the sources do not establish unqualified world-first claims for either. Radio equipment was limited and varied by vehicle and date; the precise distribution of transmitters and receivers remains uncertain. Sources
Production, conversion, and unresolved totals
Published production totals differ. One accounting gives approximately 132–134 completed tanks, while another gives 149. The treatment of prototypes, conversions, more heavily protected vehicles, and the proposed 9TP helps explain why the categories matter, but the cited evidence does not settle the discrepancy. Sources
A frequently quoted breakdown gives around 24 twin-turret tanks and roughly 108–110 single-turret tanks. A rebuilt vehicle could appear in more than one configuration during its life without representing a second newly manufactured tank. The C7P artillery tractor was also a separate vehicle type despite sharing components and industrial origins. Orders, factory completions, army acceptance, and conversions describe different stages of the program. Sources
Service and the 1939 campaign
Poland was the principal original operator, and the 1939 campaign dominates the combat history. The 7TP served within a small armored force constrained by maintenance, fuel, command, and the wider campaign situation. The single-turret version offered useful firepower, but tactical successes did not remove those operational limitations or compensate fully for light protection. Sources
Reported tank strengths describe particular units and dates, not necessarily a company's authorized establishment. German and Soviet forces captured examples, but transport, technical examination, or a photograph in their possession does not demonstrate prolonged frontline operation. Precise loss and victory totals are not firmly established by the cited unit evidence. Sources
Comparison and significance
The 7TP illustrates how an imported design could become the basis of a substantial national engineering effort. Its relationship to the Vickers 6-Ton and T-26 involved differences in engines, weapons, observation equipment, and crew arrangements. The twin-turret and single-turret versions also had materially different fighting capabilities. Sources
The diesel engine and Polish observation equipment were important achievements, but production remained limited and further development was interrupted in 1939. The 7TP could not by itself resolve the wider imbalance of the campaign. The projected advantages of later, more heavily protected designs were not demonstrated performance of the tanks actually fielded. Sources
Photographs and reconstruction

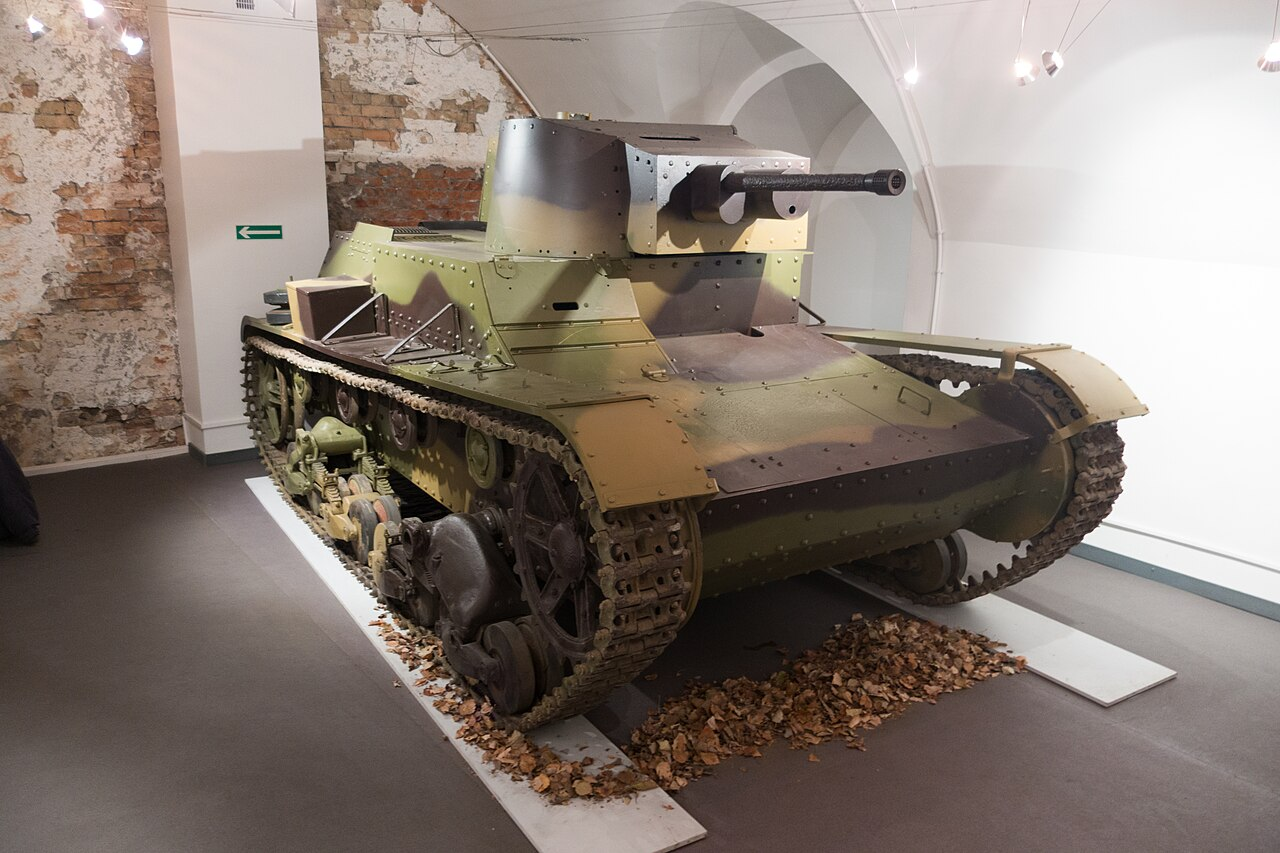

Period photographs show side views and formations of both twin-turret and single-turret 7TPs. The modern museum reconstruction illustrates the hull and gun-turret arrangement but is not an intact wartime survivor with every component authenticated. Parade and exercise photographs record a particular occasion; the vehicles visible in them do not establish a complete production total or the overall strength of a formation. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
.jpg){kind=link}
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- [S2] The Tank Museum, "Vickers-Armstrongs Mark E" (Vickers 6-ton collection/history page)
- [S3] Muzeum Wojska Polskiego, "Budowa Centralnego Okręgu Przemysłowego" timeline entry
- [S4] 1 Batalion Czołgów, Wojsko Polskie, "Historia batalionu"
- [S5] Muzeum Broni Pancernej w Poznaniu, "7TP w Muzeum Broni Pancernej w Poznaniu," 4 Oct. 2019
- [S6] Muzeum Broni Pancernej w Poznaniu, "7TP wraca do Warszawy," 5 Nov. 2019
- [S7] Muzeum Broni Pancernej w Poznaniu, "Ckm Browning wz.30 w polskiej broni pancernej," 8 Nov. 2019
- [S8] Ministerstwo Spraw Wojskowych, Regulamin Broni Pancernej: Czołgi Lekkie - Walka, Warsaw, 1938; digitized by Centralna Biblioteka Wojskowa / Zbrojownia
- [S9] Muzeum Broni Pancernej w Poznaniu, "Największa wrześniowa bitwa polskich pancerniaków," 25 Sept. 2024
- [S10] Armor Archives, "7TP: Polish Vickers," 14 Oct. 2016
- [S11] Armor Archives, "Modernization, Polish Style," 2 Feb. 2019
- [S12] WP39 Struktury, "Batalion czołgów lekkich 7TP - kompania czołgów lekkich z 1939"
- [S13] Derela, "Polish light tank 7TP - Part I"
