A Swedish design adapted to Hungarian requirements
The Toldi family brought a modern Swedish light-tank design into Hungarian production. Derived from the Landsverk L-60, it combined a compact three-man arrangement with torsion-bar suspension and the ability to equip expanding armoured formations. Published accounts describe it primarily as a light and reconnaissance tank, even though wartime demands sometimes required it to perform more demanding tasks. Sources
The family is best understood through changes in equipment and production status rather than a single specification applied to every name. Toldi I and II formed the initial 20 mm-armed fleet. The later IIa represented a 40 mm-armed conversion, while the extent of completed Toldi III production remains disputed in the cited sources. Medical conversions and the experimental tank-destroyer project belong in the relationship record without swelling the turreted-tank total. The Swedish parent is technological ancestry; the Nimród is a related Hungarian armoured-development subject, not simply another Toldi variant to be added to its census. Sources
Licence production, acceptance and the counting problem
Hungarian interest in the L-60 led to trials and adoption decisions in 1938, followed by domestic manufacturing through Ganz and MÁVAG. The initial eighty-tank series was divided between the two firms. The references identify acceptance of the first pair in April 1940, with delivery delays and dependence on imported components complicating the transition from an order to an equipped force. Sources
The next series added 110 tanks in the accounting. The precise second-order date remains uncertain and is not essential to establishing the difference between the two initial production groups. Together, eighty and 110 provide the published 190-vehicle baseline for Toldi I and II. Reported conversions of eighty existing vehicles to IIa standard does not add as though another eighty hulls were manufactured. The larger 202 total found in some summaries depends on how twelve Toldi III vehicles are classified and counted. Sources
Light protection and changing firepower
The tank placed the transmission forward and the engine at the rear, with two men in the turret and a driver in the hull. A three-man crew reduced the personnel requirement but left the commander with overlapping duties. The original armour was thin and appropriate to a light vehicle; later local increases did not transform the entire tank into a well-protected medium design. Sources
Its first main weapon was the 20 mm 36M Solothurn-derived antitank rifle described in the cited sources. Calling it an automatic cannon merely because of its calibre would erase an important technical distinction. A machine gun supplemented the principal armament. Re-equipment with a 40 mm gun gave the IIa a more substantial weapon, but installation, ammunition stowage and additional weight brought further compromises. A family-level overview can explain the direction of development without pretending that the smallest early tank and the heaviest later proposal shared identical capabilities. Sources
Mobility and communications did not remove fragility
The early tanks used a Büssing-NAG petrol engine, with the account giving output in the approximate 155–160 horsepower range. Later Hungarian engine arrangements and strengthened components belong to the development record rather than an assumption that all examples were mechanically identical. Torsion-bar suspension was a notable feature, but initial manufacture and service also exposed problems with components and durability. Sources
The source differentiates nominal speeds for the early tanks, heavier conversions and later projected forms. Those figures do not demonstrate cross-country averages or guarantees that every vehicle could maintain its quoted road performance in service. Radio equipment was an important asset for reconnaissance and command, though antenna appearance and equipment changes remain uncertain. Mechanical reliability, trained drivers, maintenance and available spares all affected the practical value of the tanks. A useful light vehicle still needed an organization capable of keeping it running and using its information effectively. Sources
Campaign experience changed the family’s role
Hungary was the family’s principal production operator. The accounts distinguish earlier movements and occupation duties from combat in Yugoslavia in 1941, followed by use on the Eastern Front. Those deployments exposed the limits of a lightly protected tank with a small-calibre main weapon when used against increasingly demanding opposition. Sources
Reported losses remain uncertain. A vehicle withdrawn with mechanical failure, a recoverable damaged tank and an irretrievably destroyed tank are not equivalent categories. The published figures for deployment and attrition do not establish a simple destroyed percentage without checking how the underlying records classify each event. As the war progressed, reconnaissance, liaison and supporting duties were more appropriate to the surviving fleet than direct competition with modern medium tanks. The 40 mm conversion sought to improve the armament, but it could not remove the basic limits of the chassis, armour and crew arrangement. Later capture or isolated use is not securely documented. Sources
A production achievement with a limited legacy
The Toldi mattered as an industrial and organizational step. It connected Hungarian factories with a foreign design, helped develop experience in tank manufacture and equipped units during a period of expansion. Its weaknesses are part of that history, not a reason to dismiss the program as meaningless or to present later armament changes as a complete solution. Sources
The surviving image record can explain both service context and physical construction, but it introduces its own distinctions. The working family tree therefore keeps original captions and competing classifications accessible while leaving approval open. Sources

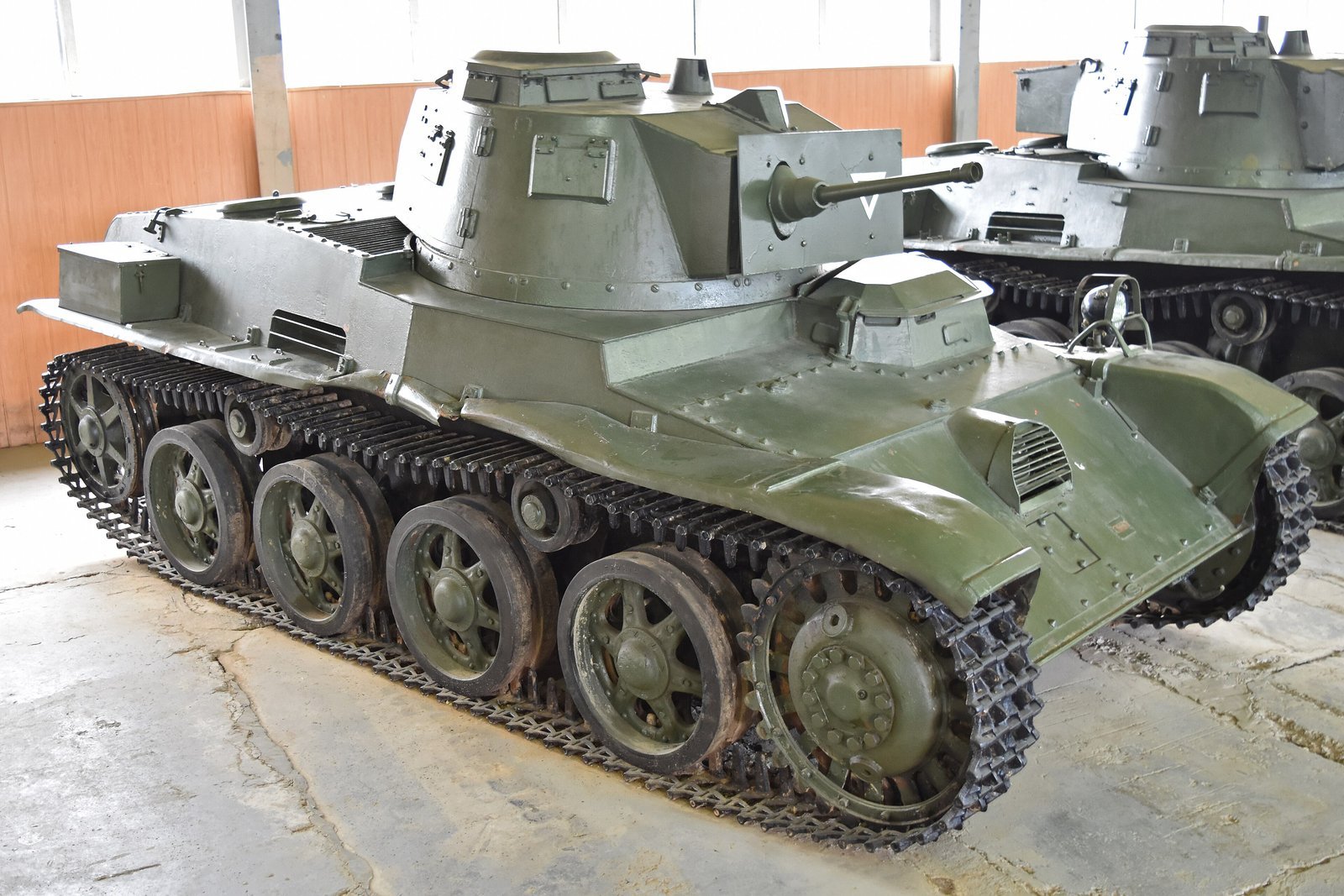

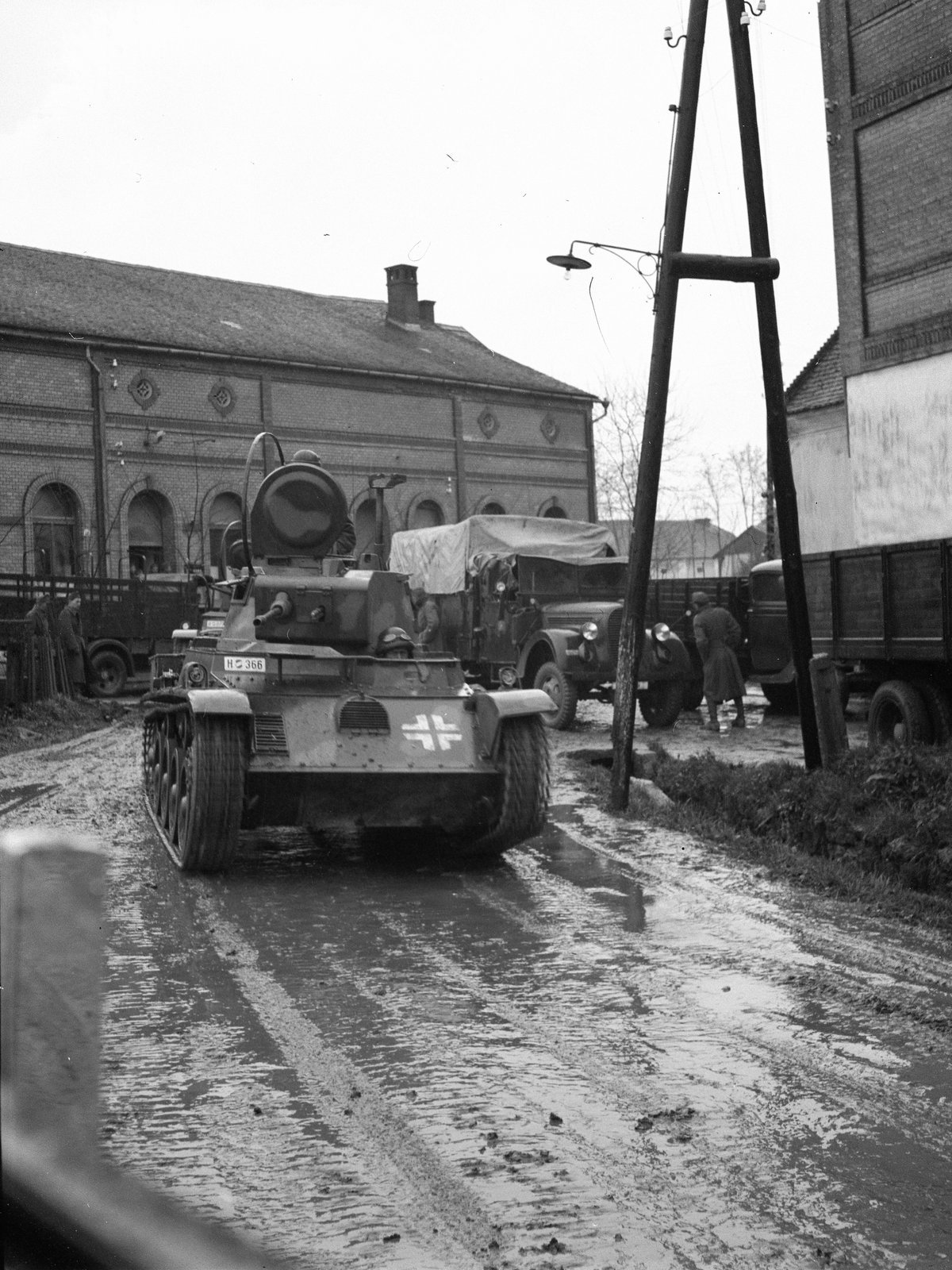

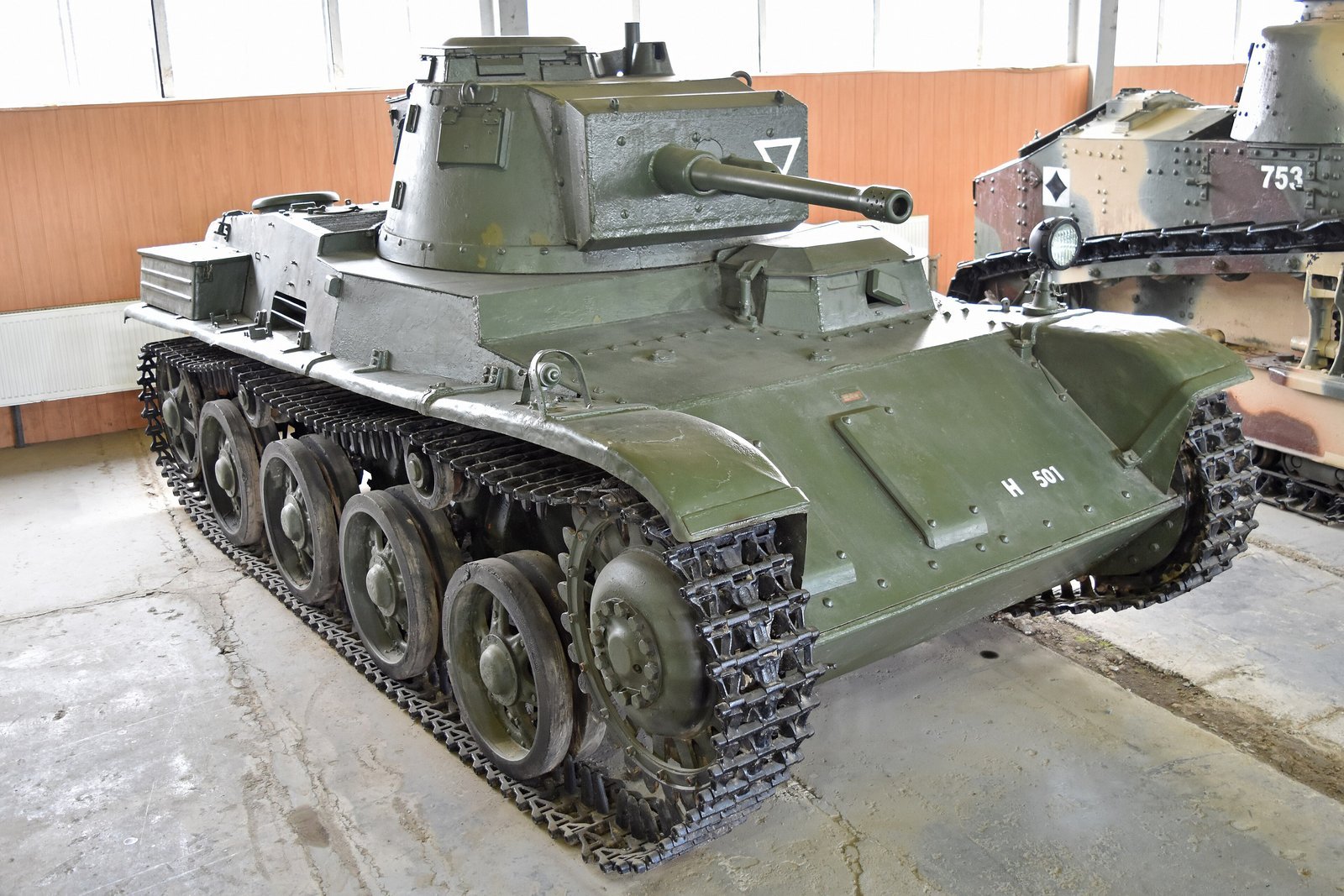

Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
.jpg){kind=link}
.jpg){kind=link}
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- Mujzer, Péter. PhD dissertation | A magyar páncéloscsapatok szervezeti, anyagi-technikai felkészültségének, kiképzési szintjének összehasonlítása más európai haderőkkel 1920-1941-ben, különös tekintettel a fő hadviselő felekre és a környező országokra. National University of Public Service, Budapest, 2024.
- Honvédelem.hu | Snoj Péter, “Harckocsik magyar színekben – 2. rész,” Honvédelem.hu, 2020-10-26.
- Tank Encyclopedia: Toldi I/II | Marko Pantelic, “38M Toldi I and II (A20 and B20),” Tank Encyclopedia, 2020-11-21.
- Tank Encyclopedia: Toldi IIA | Marko Pantelic, “38M Toldi IIA (B40),” Tank Encyclopedia, 2024-08-05.
- Tank Encyclopedia: Toldi III | Marko Pantelic, “Toldi III (C40),” Tank Encyclopedia, 2025-04-19.
- Tank Encyclopedia: Toldi páncélvadász | Károly Németh, “Toldi páncélvadász,” Tank Encyclopedia, 2017-06-08.
- Tank Encyclopedia: Toldi eü20 | “Toldi eü20,” Tank Encyclopedia.
